Chrysler Pacifica. Manual - part 410

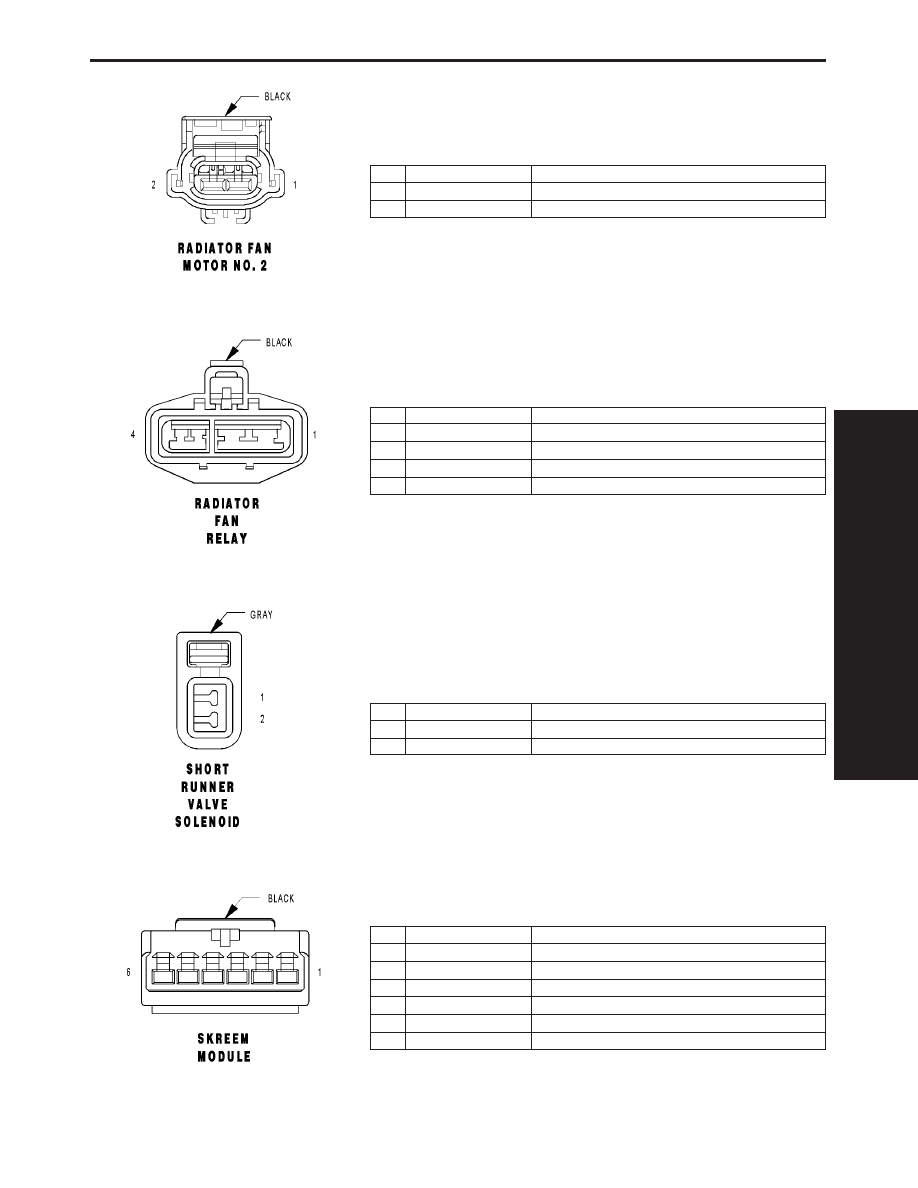

RADIATOR FAN MOTOR NO. 2 - BLACK 2 WAY

CAV

CIRCUIT

FUNCTION

1

N23 12DB/DG

RADIATOR FAN RELAY OUTPUT

2

Z223 12BK/DG

GROUND

RADIATOR FAN RELAY - BLACK 4 WAY

CAV

CIRCUIT

FUNCTION

1

A112 12OR/RD

FUSED B(+)

2

N23 12DB/DG

RADIATOR FAN RELAY OUTPUT

3

Z723 18BK/DG

GROUND

4

K173 18BR/VT

RAD FAN RELAY CONTROL

SHORT RUNNER VALVE SOLENOID - GRAY 2 WAY

CAV

CIRCUIT

FUNCTION

1

K236 18DB/LG

SRV SOL CONTROL

2

K342 16BR/WT

AUTOMATIC SHUT DOWN RELAY OUTPUT

SKREEM MODULE - BLACK 6 WAY

CAV

CIRCUIT

FUNCTION

1

-

-

2

D25 20WT/VT

PCI BUS

3

-

-

4

F20 20PK/GY

IGNITION SWITCH OUTPUT (RUN-START)

5

Z120 20BK/WT

GROUND

6

A118 20RD/OR

FUSED B(+)

C

O
N
N

E

C

T

O

R

P

I

N
O
U

T
S

361

CONNECTOR PINOUTS

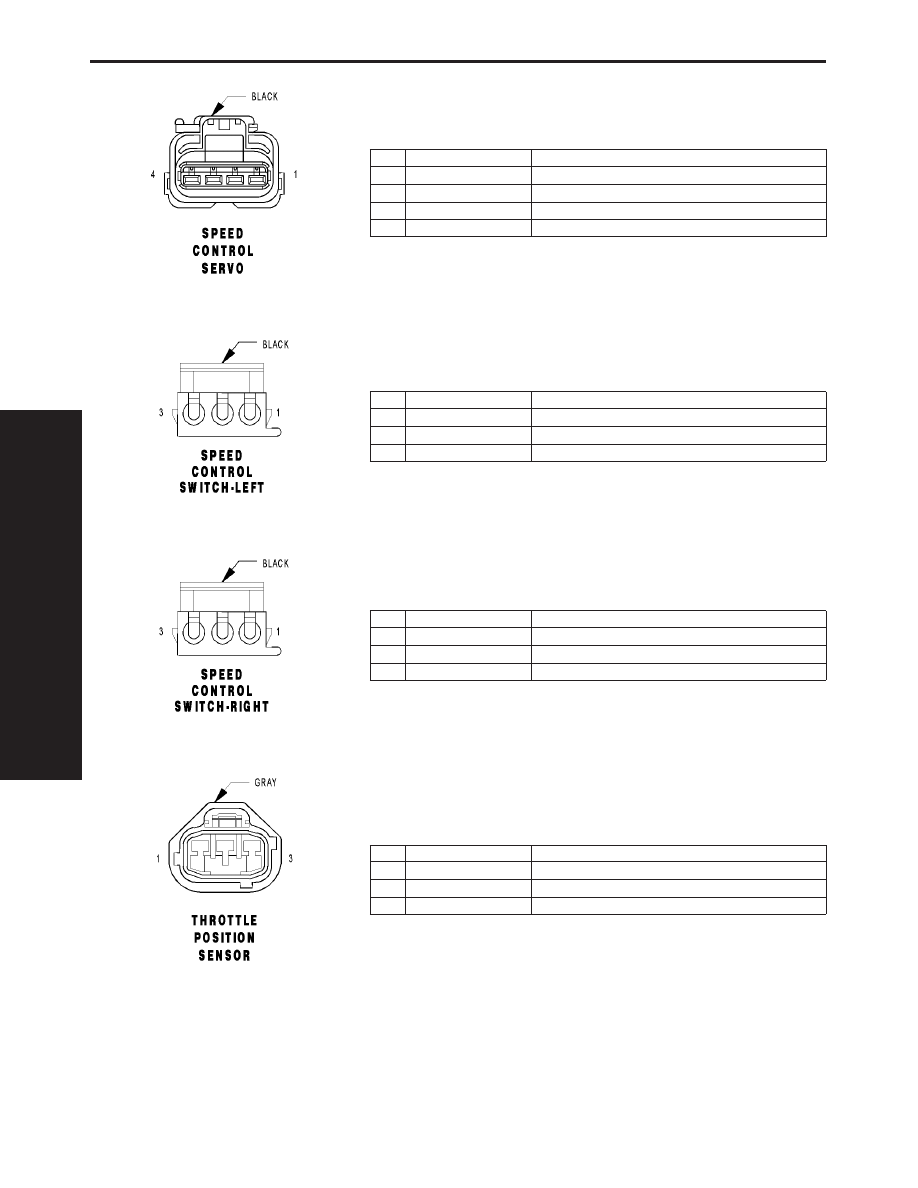

SPEED CONTROL SERVO - BLACK 4 WAY

CAV

CIRCUIT

FUNCTION

1

V36 20YL/VT

S/C VACUUM CONTROL

2

V35 20VT/OR

S/C VENT CONTROL

3

V30 20VT/WT

SPEED CONTROL BRAKE SWITCH OUTPUT

4

Z155 18BK/LG

GROUND

SPEED CONTROL SWITCH-LEFT - BLACK 3 WAY

CAV

CIRCUIT

FUNCTION

1

Z23 20BK/VT

SPEED CONTROL SWITCH GROUND

2

-

-

3

V37 20VT

S/C SWITCH SIGNAL

SPEED CONTROL SWITCH-RIGHT - BLACK 3 WAY

CAV

CIRCUIT

FUNCTION

1

Z23 20BK/VT

SPEED CONTROL SWITCH GROUND

2

-

-

3

V37 20VT

S/C SWITCH SIGNAL

THROTTLE POSITION SENSOR - GRAY 3 WAY

CAV

CIRCUIT

FUNCTION

1

K900 20DB/DG

SENSOR GROUND

2

K22 18BR/OR

TP SIGNAL

3

F855 20PK/YL

5 VOLT SUPPLY

C

O
N
N

E

C

T

O

R

P

I

N
O
U

T
S

362

CONNECTOR PINOUTS

10.0

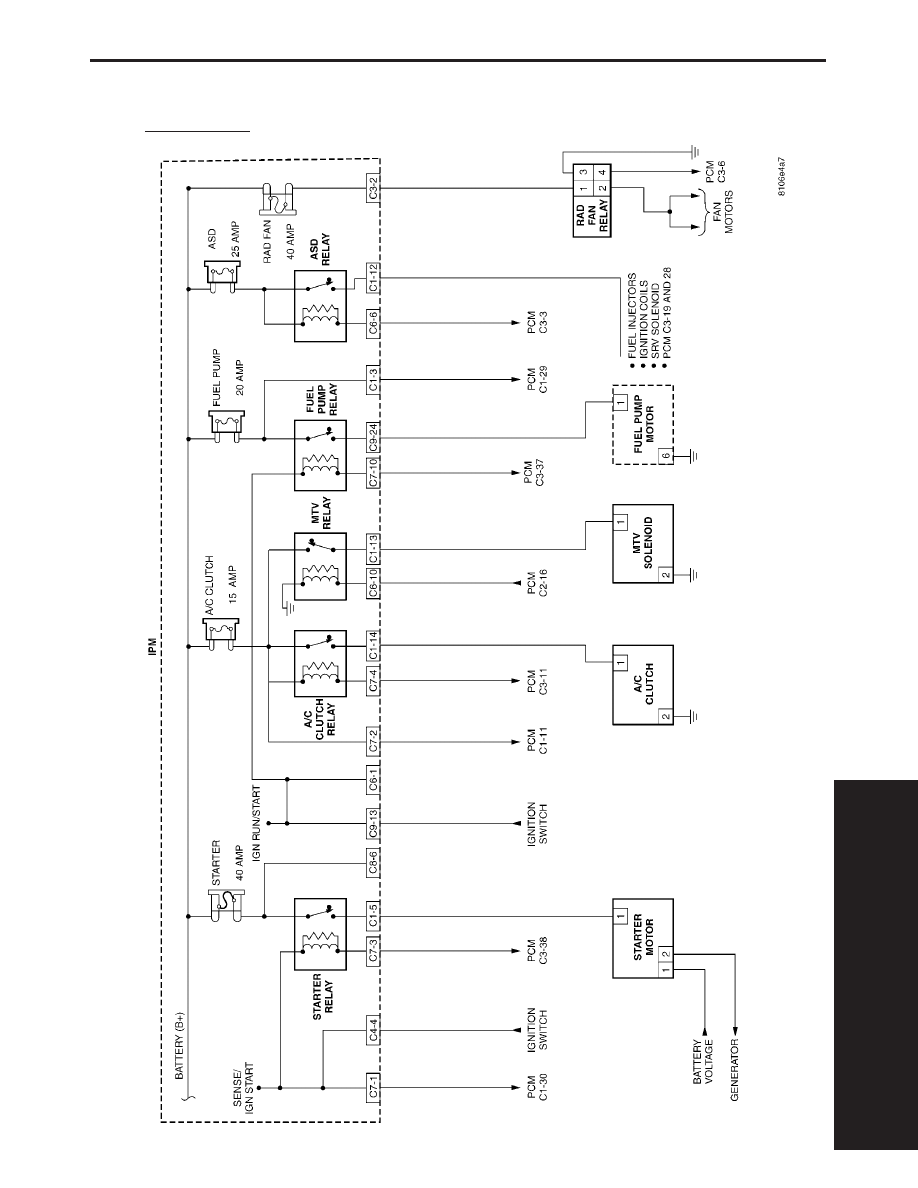

SCHEMATIC DIAGRAMS
