357

CONNECTOR PINOUTS

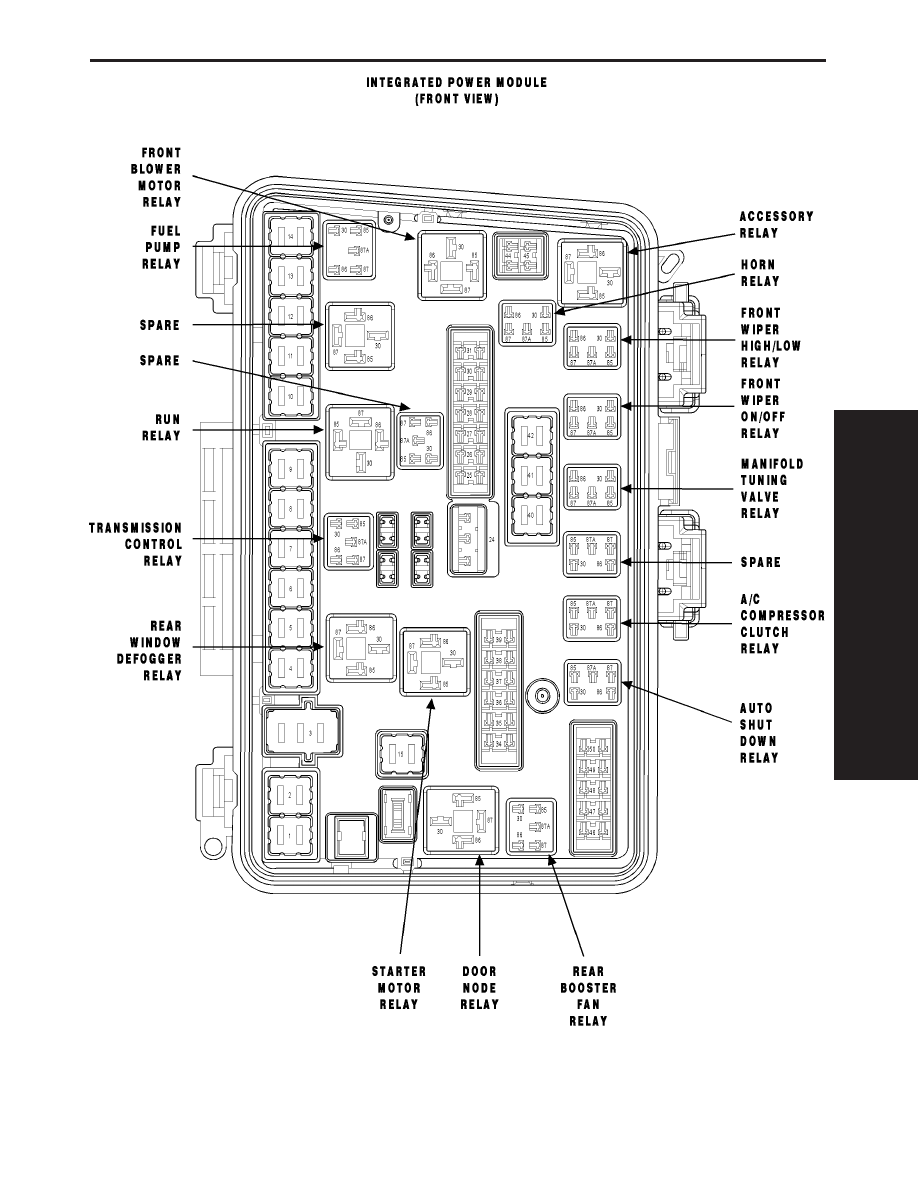

A/C COMPRESSOR CLUTCH RELAY

CAV

CIRCUIT

FUNCTION

30

INTERNAL

FUSED B(+)

85

F202 20PK/GY

FUSED IGNITION SWITCH OUTPUT (RUN-START)

86

C13 20LB/OR

A/C CLUTCH RELAY CONTROL

87

C3 18DB/YL

A/C COMPRESSOR CLUTCH RELAY OUTPUT

87A

-

-

FUEL PUMP RELAY

CAV

CIRCUIT

FUNCTION

30

INTERNAL

FUSED B(+)

85

INTERNAL

FUSED IGNITION SWITCH OUTPUT (RUN-START)

86

K31 20BR

FUEL PUMP RELAY CONTROL

87

N1 16DB/OR

FUEL PUMP RELAY OUTPUT

87A

-

-

MANIFOLD TUNING VALVE RELAY

CAV

CIRCUIT

FUNCTION

30

INTERNAL

FUSED B(+)

85

INTERNAL

GROUND

86

K36 20DB/YL

MTV CONTROL

87

K136 18BR

MANIFOLD TUNING VALVE RELAY OUTPUT

87A

-

-

STARTER MOTOR RELAY

CAV

CIRCUIT

FUNCTION

30

INTERNAL

FUSED B(+)

85

T751 20YL

IGNITION SWITCH OUTPUT (START)

86

T752 20DG/OR

STARTER RELAY CONTROL

87

T750 12YL/GY

STARTER MOTOR RELAY OUTPUT

87A

-

-

C

O
N
N

E

C

T

O

R

P

I

N
O
U

T
S

358

CONNECTOR PINOUTS

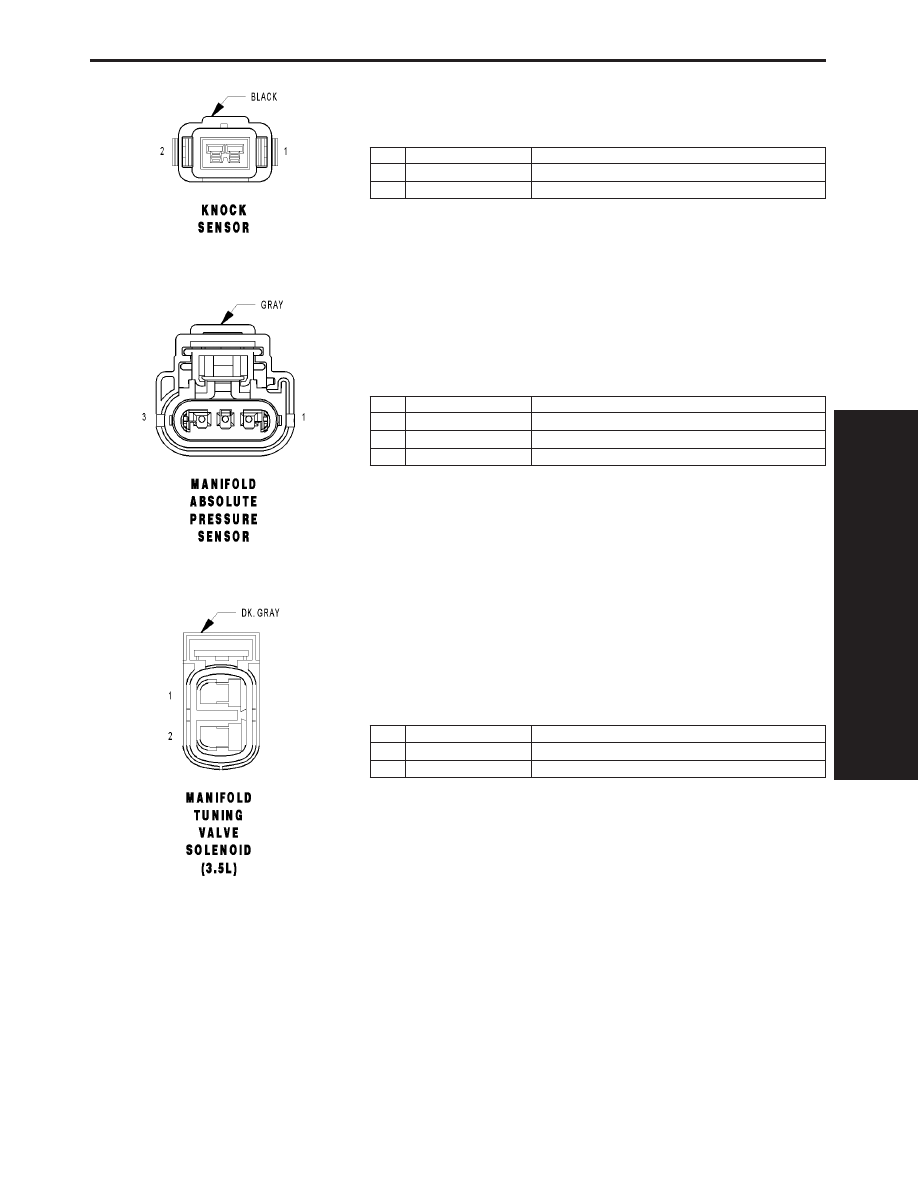

KNOCK SENSOR - BLACK 2 WAY

CAV

CIRCUIT

FUNCTION

1

K42 20DB/OR

KS SIGNAL

2

K942 20BR/LG

KS RETURN

MANIFOLD ABSOLUTE PRESSURE SENSOR - GRAY 3 WAY

CAV

CIRCUIT

FUNCTION

1

K1 20VT/BR

MAP SIGNAL

2

K900 20DB/DG

SENSOR GROUND

3

F855 20PK/YL

5 VOLT SUPPLY

MANIFOLD TUNING VALVE SOLENOID (3.5L) - DK. GRAY 2 WAY

CAV

CIRCUIT

FUNCTION

1

Z110 20BK/LG

GROUND

2

K136 18BR

MANIFOLD TUNING VALVE RELAY OUTPUT

C

O
N
N

E

C

T

O

R

P

I

N
O
U

T
S

359

CONNECTOR PINOUTS

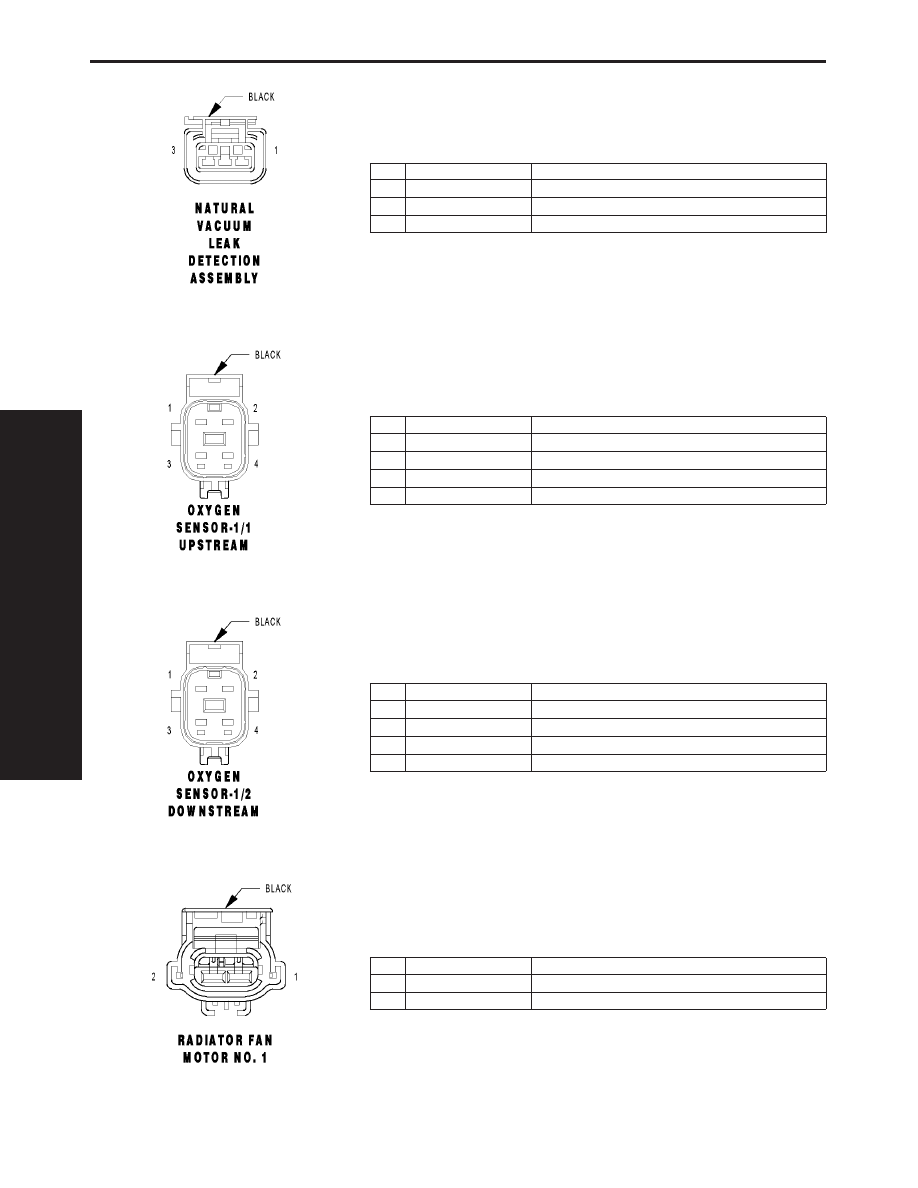

NATURAL VACUUM LEAK DETECTION ASSEMBLY - BLACK 3 WAY

CAV

CIRCUIT

FUNCTION

1

Z166 18BK/WT

GROUND

2

K107 20VT/WT

NVLD SWITCH SIGNAL

3

K106 20VT/LB

NVLD SOL CONTROL

OXYGEN SENSOR-1/1 UPSTREAM - BLACK 4 WAY

CAV

CIRCUIT

FUNCTION

1

Z42 18BK/LG

GROUND

2

K99 18BR/TN

O2 1/1 HEATER CONTROL

3

K902 18BR/DG

O2 RETURN (UP)

4

K41 18DB/LB

O2 1/1 SIGNAL

OXYGEN SENSOR-1/2 DOWNSTREAM - BLACK 4 WAY

CAV

CIRCUIT

FUNCTION

1

Z43 18BK/LB

GROUND

2

K299 18BR/OR

O2 1/2 HEATER CONTROL

3

K904 20DB/DG

O2 RETURN (DOWN)

4

K141 20DB/YL

O2 1/2 SIGNAL

RADIATOR FAN MOTOR NO. 1 - BLACK 2 WAY

CAV

CIRCUIT

FUNCTION

1

N23 12DB/DG

RADIATOR FAN RELAY OUTPUT

2

Z823 12BK/DG

GROUND

C

O
N
N

E

C

T

O

R

P

I

N
O
U

T
S

360
