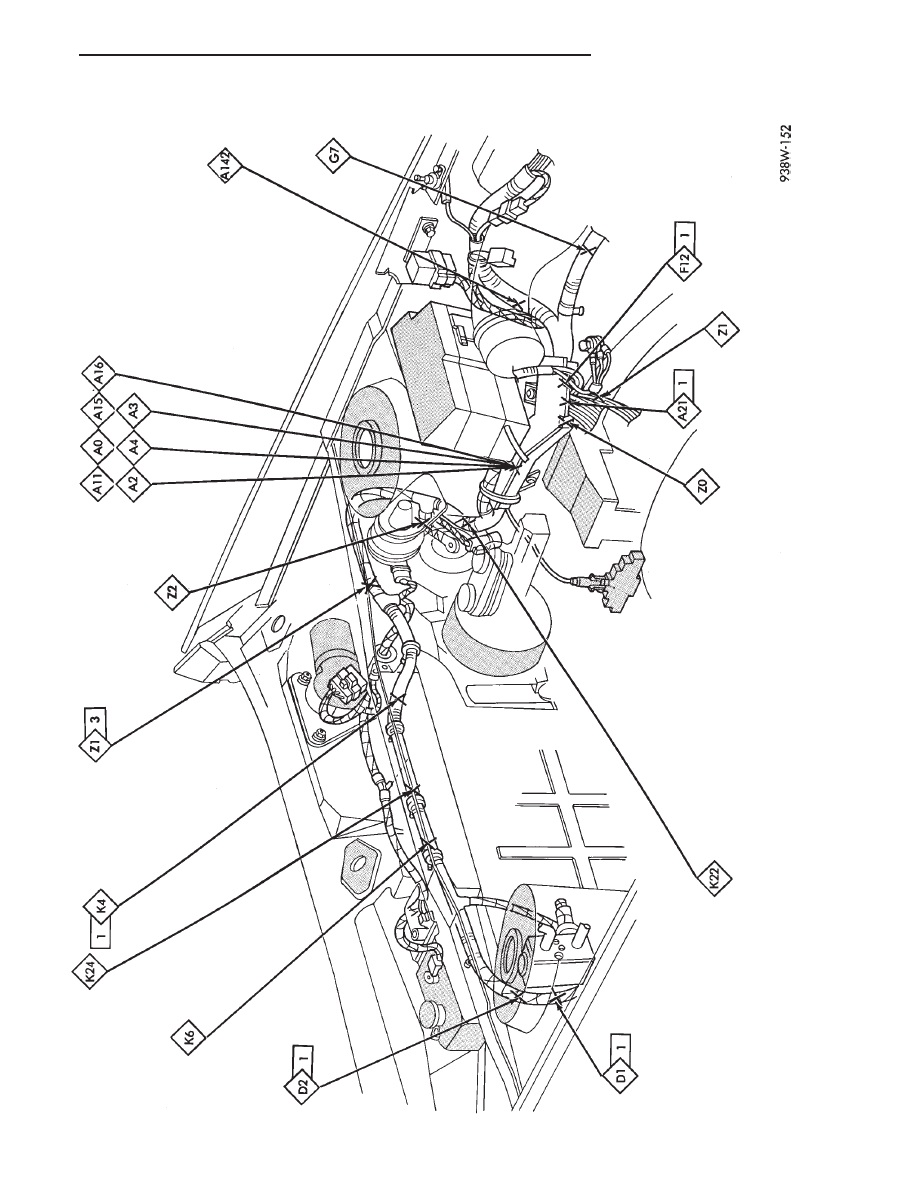

Fig. 7 Cowl Panel Splices (Right Side) AJ-Body

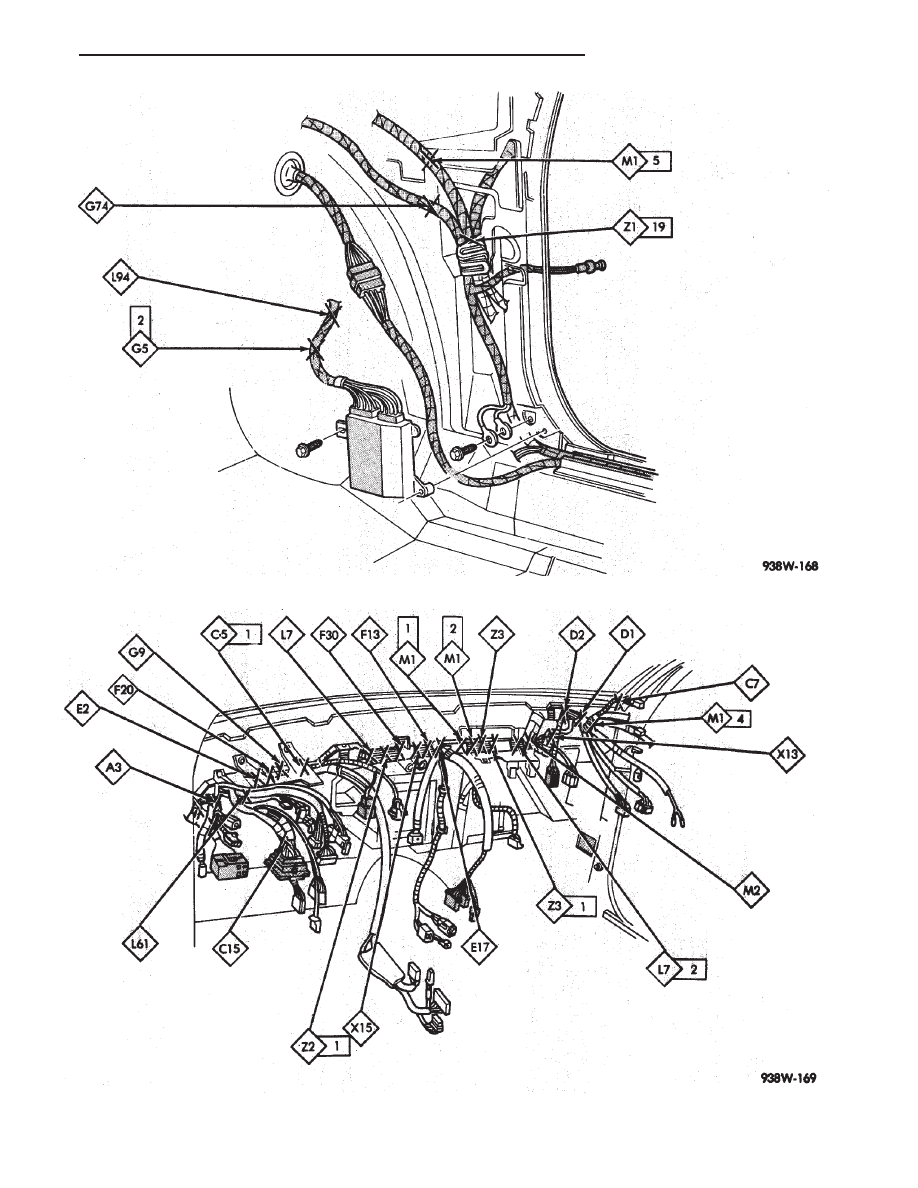

Fig. 8 Instrument Panel Splices AJ-Body

Ä

SPLICE LOCATIONS

8W - 165

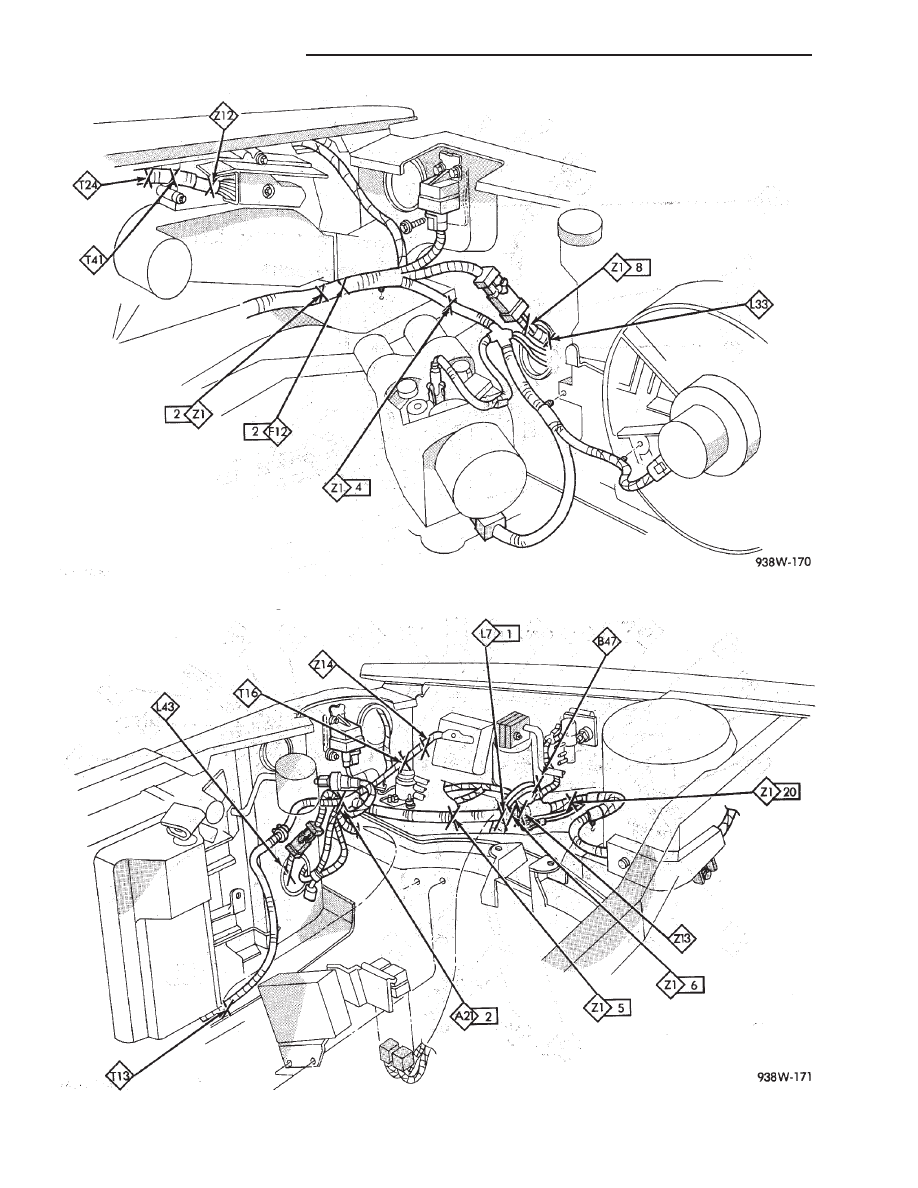

Fig. 9 Engine Compartment Splices AJ-Body

Fig. 10 Engine Compartment Splices AJ-Body

8W - 166

SPLICE LOCATIONS

Ä

Fig.

1

1

Engine

Compartment

Splices

AJ-Body

Ä

SPLICE LOCATIONS

8W - 167

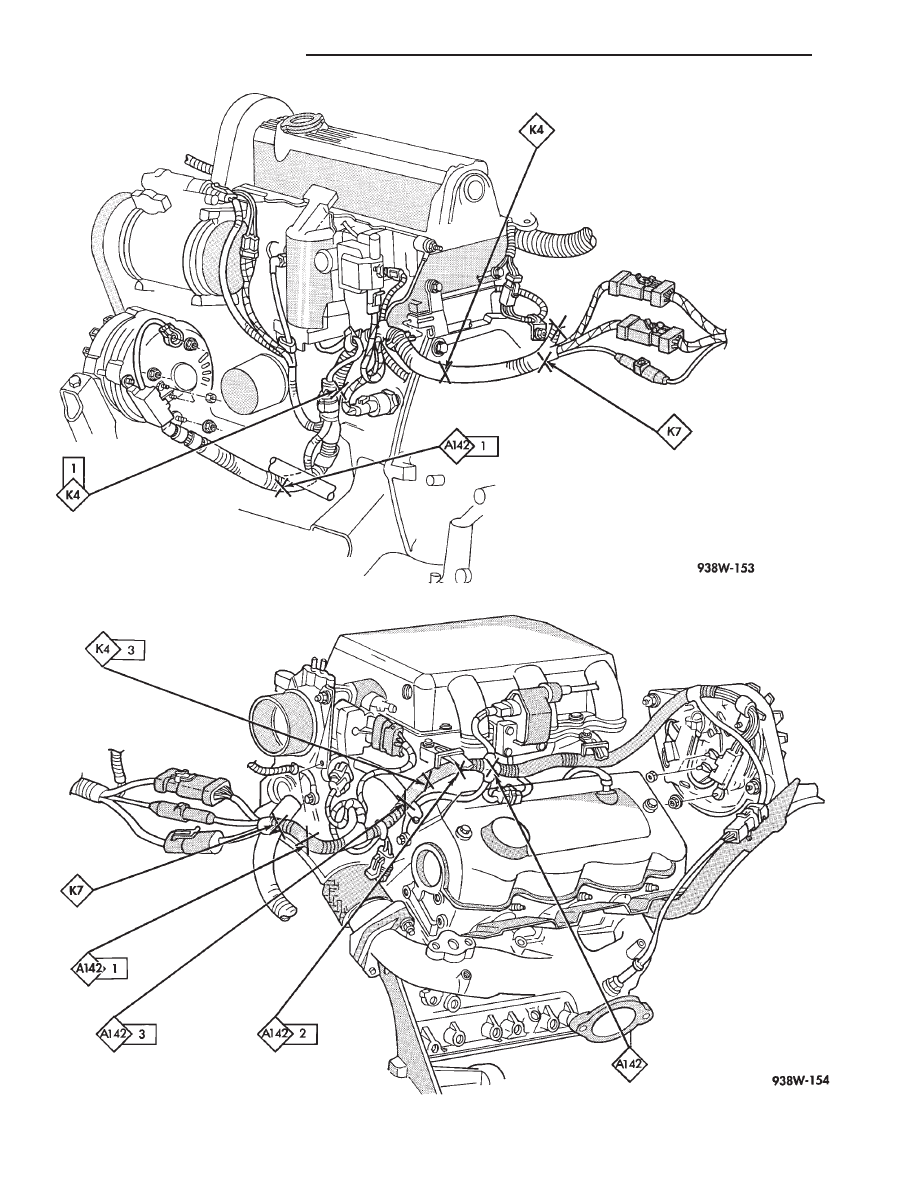

Fig. 12 Engine Splices 2.5L EFI AJ-Body

Fig. 13 Engine Splices 3.0L AJ-Body

8W - 168

SPLICE LOCATIONS

Ä
