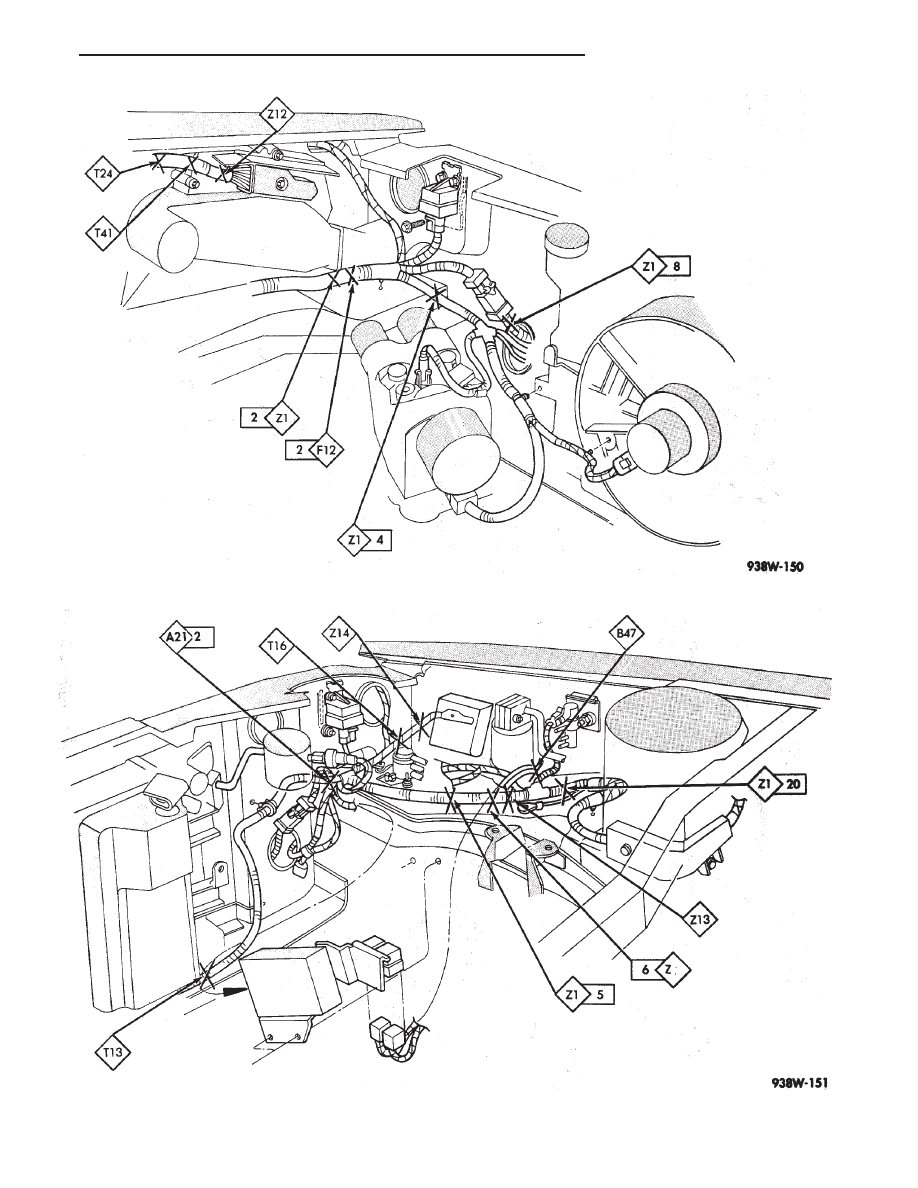

Fig. 7 Engine Compartment Splices AG-Body

Fig. 8 Engine Compartment Splices AG-Body

Ä

SPLICE LOCATIONS

8W - 157

Fig.

9

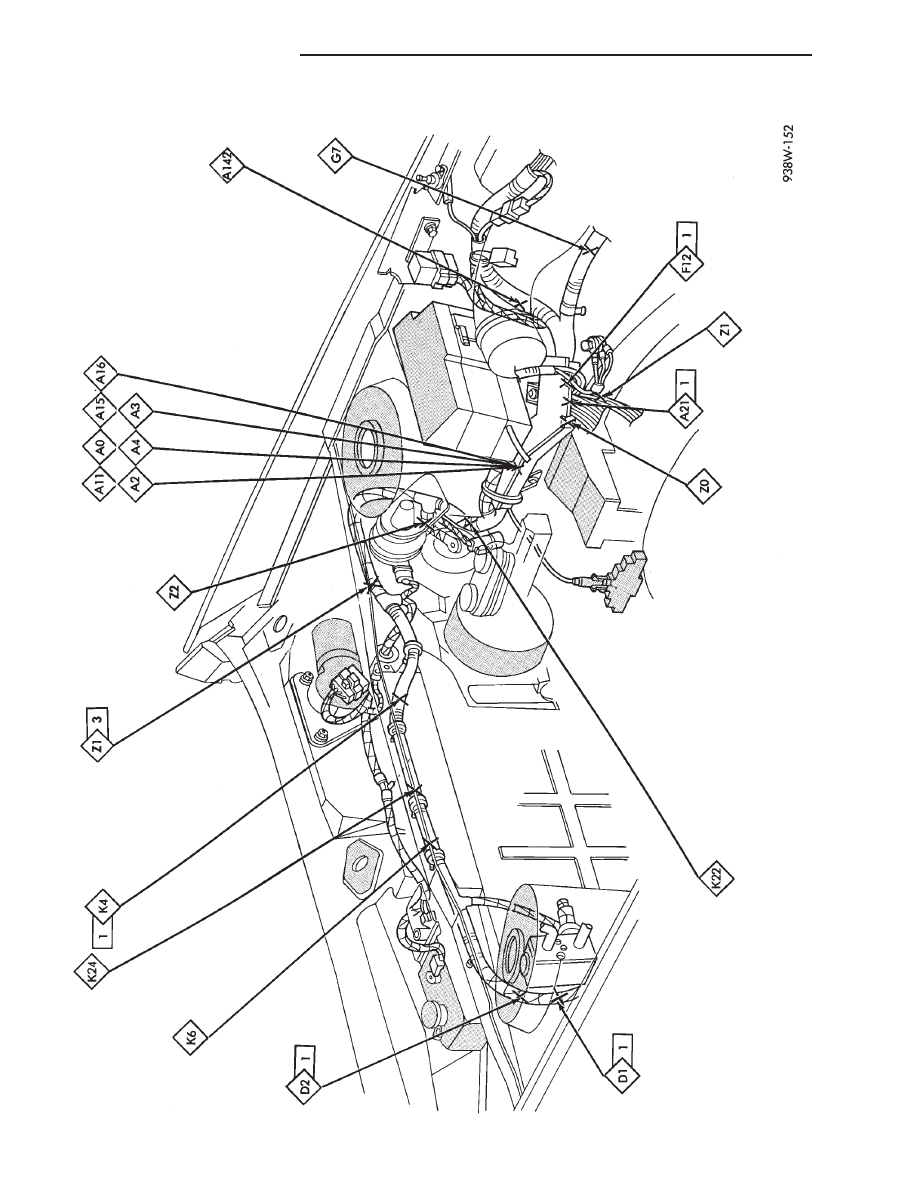

Engine

Compartment

Splices

AG-Body

8W - 158

SPLICE LOCATIONS

Ä

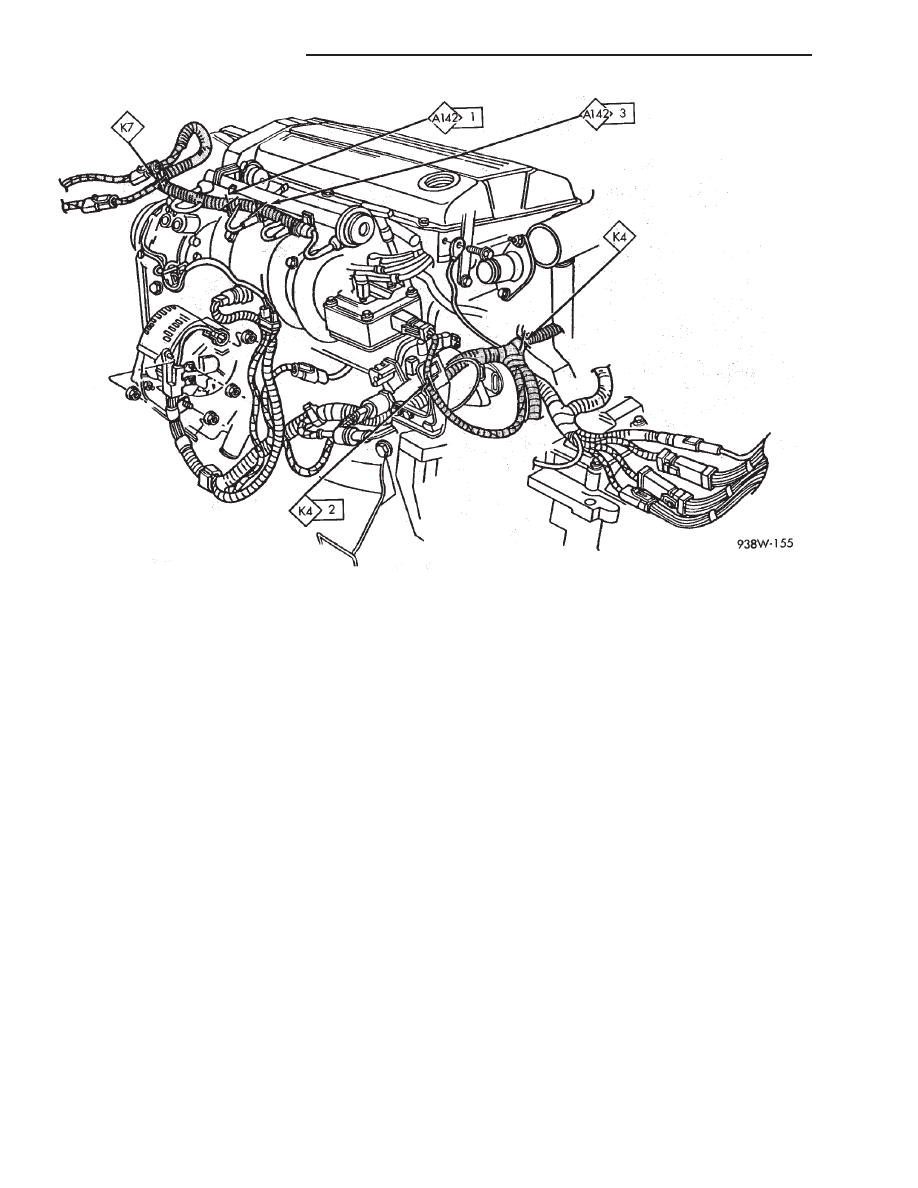

Fig. 10 Engine Splices EFI AG-Body

Fig. 11 Engine Splices 3.0L AG-Body

Ä

SPLICE LOCATIONS

8W - 159

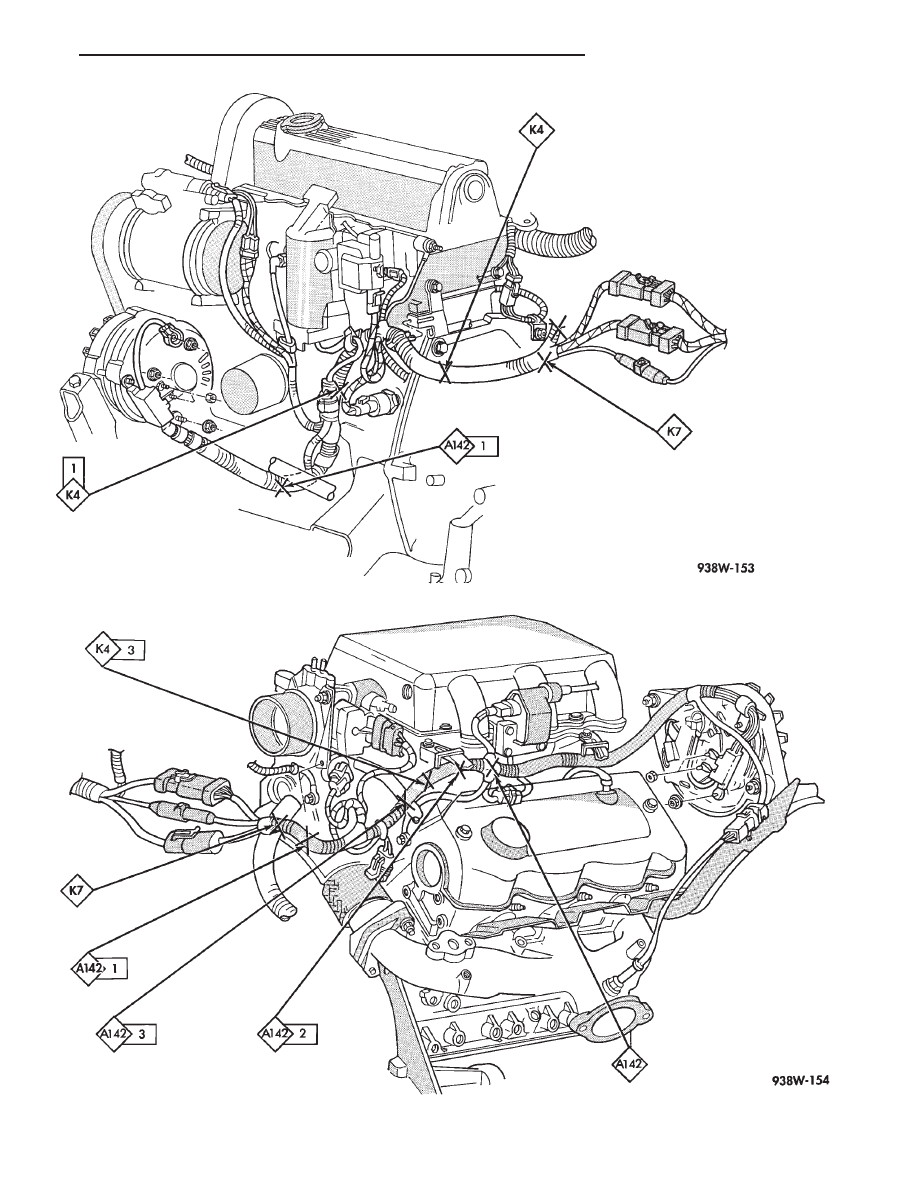

Fig. 12 Engine Splices Turbo III AG-Body

8W - 160

SPLICE LOCATIONS

Ä
