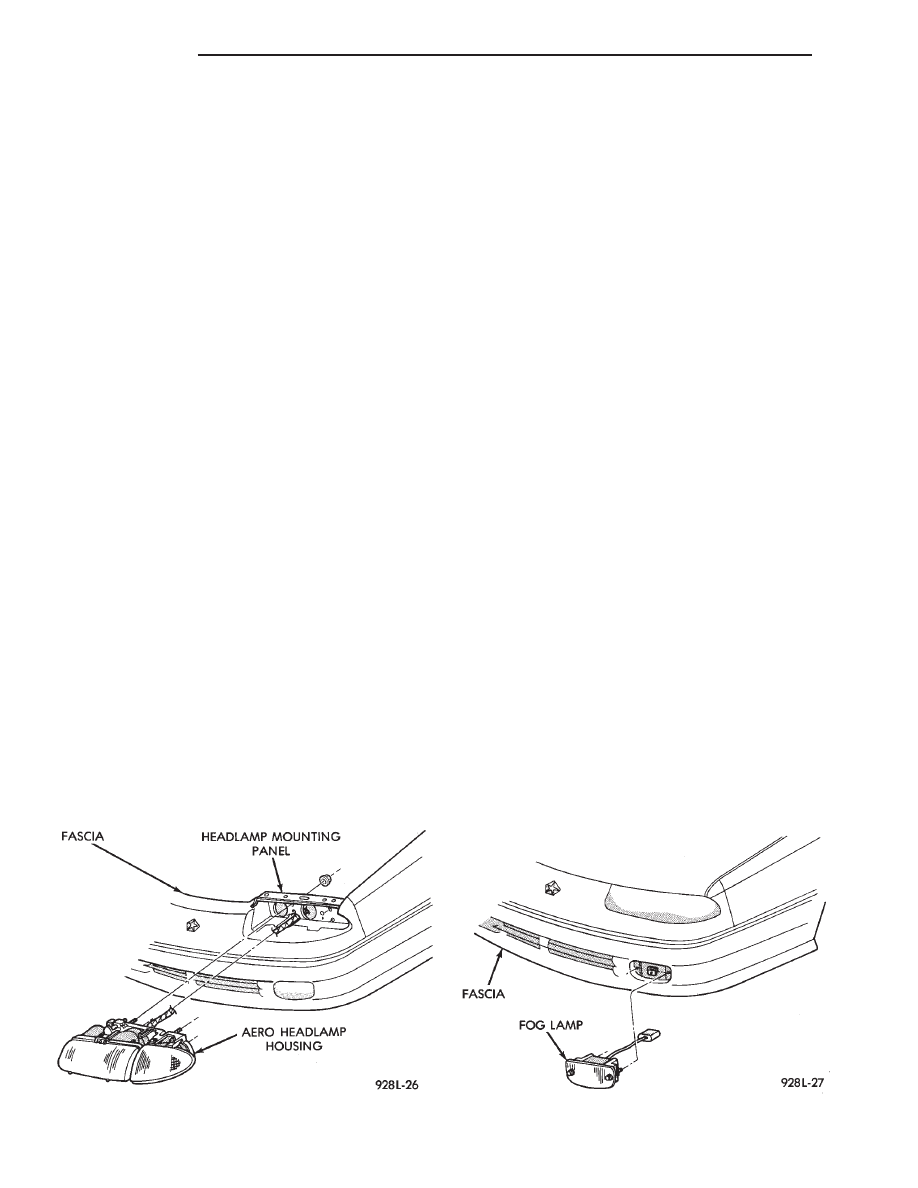

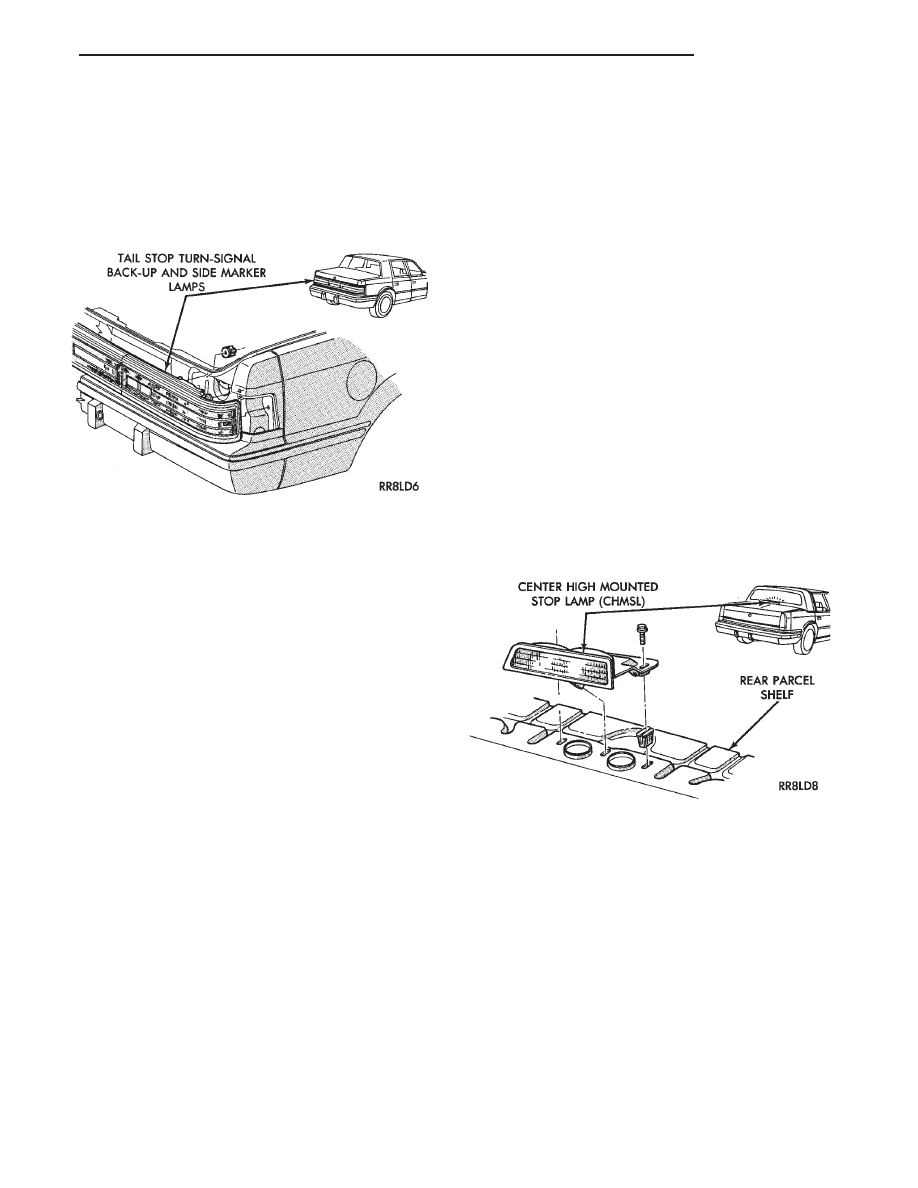

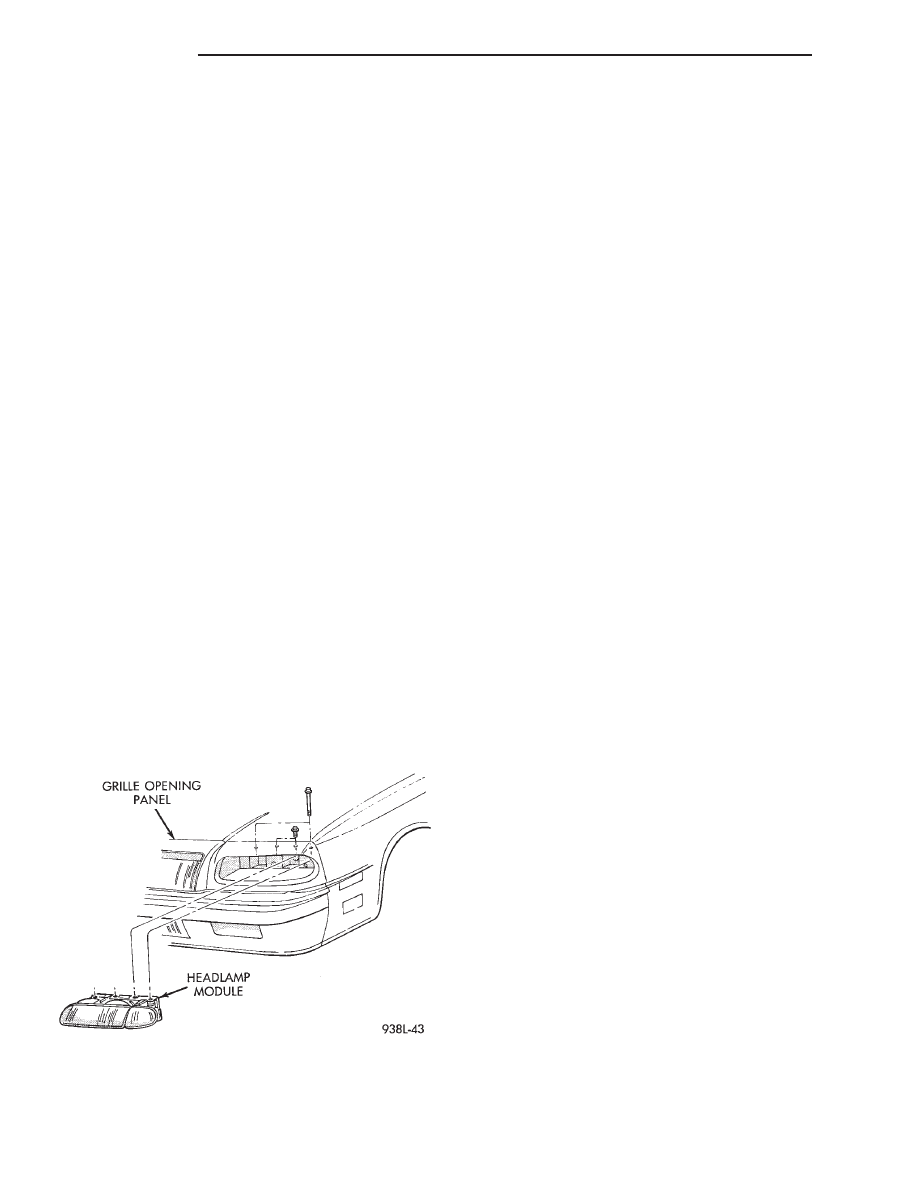

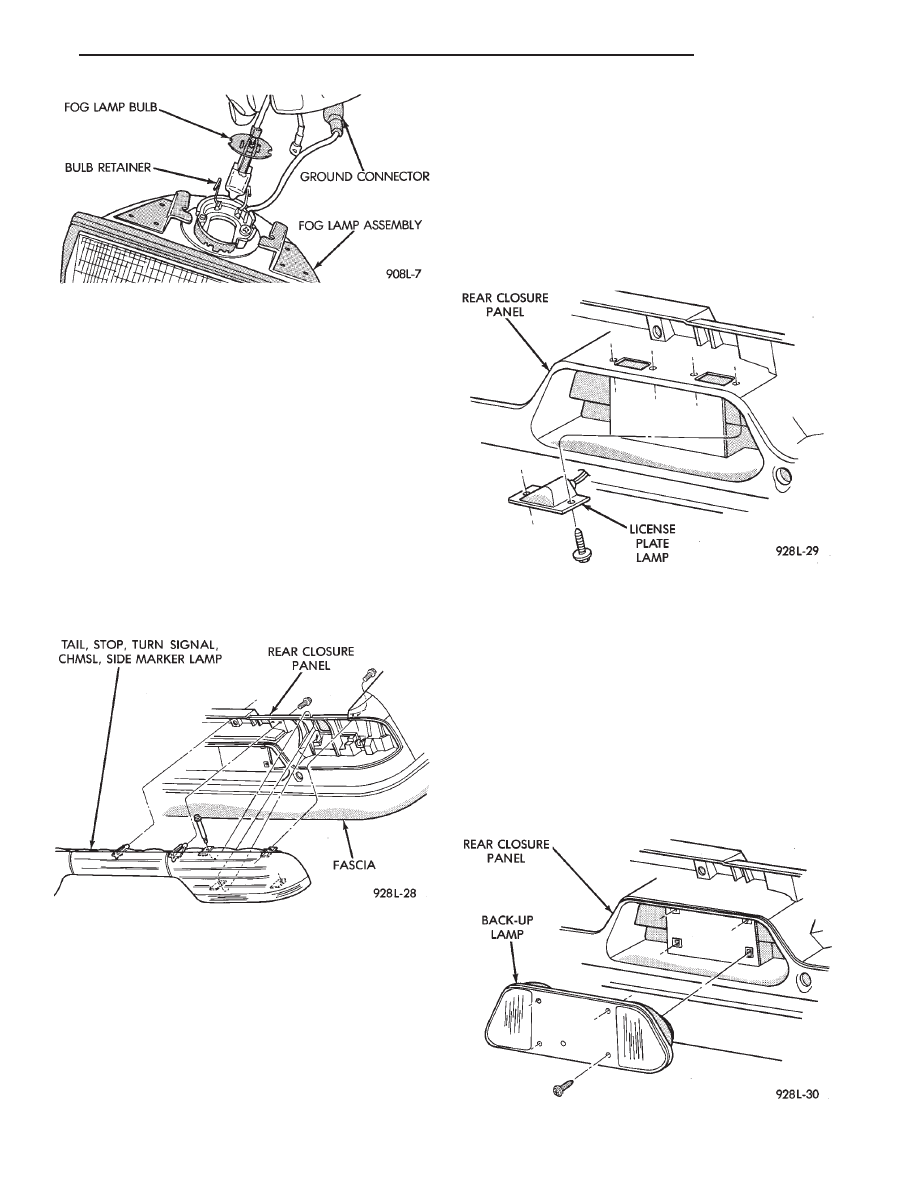

(3) Separate the lamp assembly from the rear clo- sure panel. (4) Rotate the socket and bulb assemblies counter- clockwise and pull the sockets from the lamp. (5) Remove the bulbs from the sockets. INSTALLATION Reverse the preceding operation. REAR SIDE MARKER LAMP BULB—AC/C-BODY REMOVAL (FIG. 8) (1) Raise the deck lid and roll the trunk liner away from the inner quarter panel. (2) Rotate the socket and bulb assembly counter- clockwise and pull the socket from the lamp. (3) Remove the bulb from the socket. INSTALLATION Reverse the preceding operation. REAR SIDE MARKER LAMP—AC/C-BODY REMOVAL (FIG. 8) (1) Remove the body side molding. Refer to Group 23, Body. (2) Remove socket assembly and attaching nuts and separate lamp from the body. INSTALLATION Reverse the preceding operation. LICENSE PLATE LAMP/BULB REMOVAL (1) Remove the two screws retaining the lamp to the bumper guard. (2) Remove the bulb from the socket assembly. INSTALLATION Reverse the preceding operation. CENTER HIGH-MOUNTED STOP LAMP (CHMSL) REMOVAL (1) Open trunk lid. counterclockwise, and pull the CHMSL socket and (3) Pull bulb from the socket. INSTALLATION Reverse the preceding operation. CENTER HIGH MOUNTED STOP LAMP (CHMSL) REMOVAL (FIG. 10) (1) Remove parcel shelf trim cover. Refer to Group 23, Body. (2) Remove two CHMSL attaching screws and sep- arate the lamp from the parcel shelf. INSTALLATION Reverse the preceding operation. Fig. 9 Rear Lighting—AC/D-Body Fig. 10 CHMSL Ä LAMPS 8L - 13 |
