(2) Remove two speaker attaching screws and dis-

connect wire connector.

(3) Remove speaker.
(4) For installation reverse above procedures.

REAR SHELF SPEAKERS REMOVAL

(1) Remove rear shelf, refer to Group 23, Body.
(2) Remove two speaker attaching screws and dis-

connect wire connector.

(3) Remove speaker.
(4) For installation reverse above procedures.

AG and AJ BODIES

INSTRUMENT PANEL SPEAKERS
REPLACEMENT

(1) Remove instrument panel top cover (Fig. 22).

(2) Remove two speaker retaining screws.
(3) Lift speaker away from panel and disconnect

wiring.

(4) For installation reverse above procedures.

FRONT DOOR MOUNTED SPEAKER
REPLACEMENT—AG BODY

(1) Remove door trim panel.
(2) Remove two speaker-adaptor retaining screws

(Fig. 23).

(3) Pull speaker away from door and disconnect

wiring.

(4) For installation reverse above procedures.

REAR SPEAKER REPLACEMENT—AG BODY

(1) Remove speaker grille by pulling away from

quarter trim panel to disengage retaining clips (Fig.
24).

(2) Remove four speaker retaining screws.
(3) Pull speaker away from body and disconnect

wiring.

(4) For installation reverse above procedures.

DOOR MOUNTED SPEAKER
REPLACEMENT—AJ BODY

(1) Pull speaker grille away from door trim panel

to disengage retaining clips (Fig. 25).

(2) Remove two speaker retaining screws.
(3) Pull speaker away from door and disconnect

wiring.

(4) For installation reverse above procedures.

REAR SPEAKER REPLACEMENT—AJ BODY
WITH 60/40 FOLDING REAR SEAT

(1) Remove 40-side seat back.
(2) Remove 60-side seat back.
(3) Remove outboard pivot brackets.

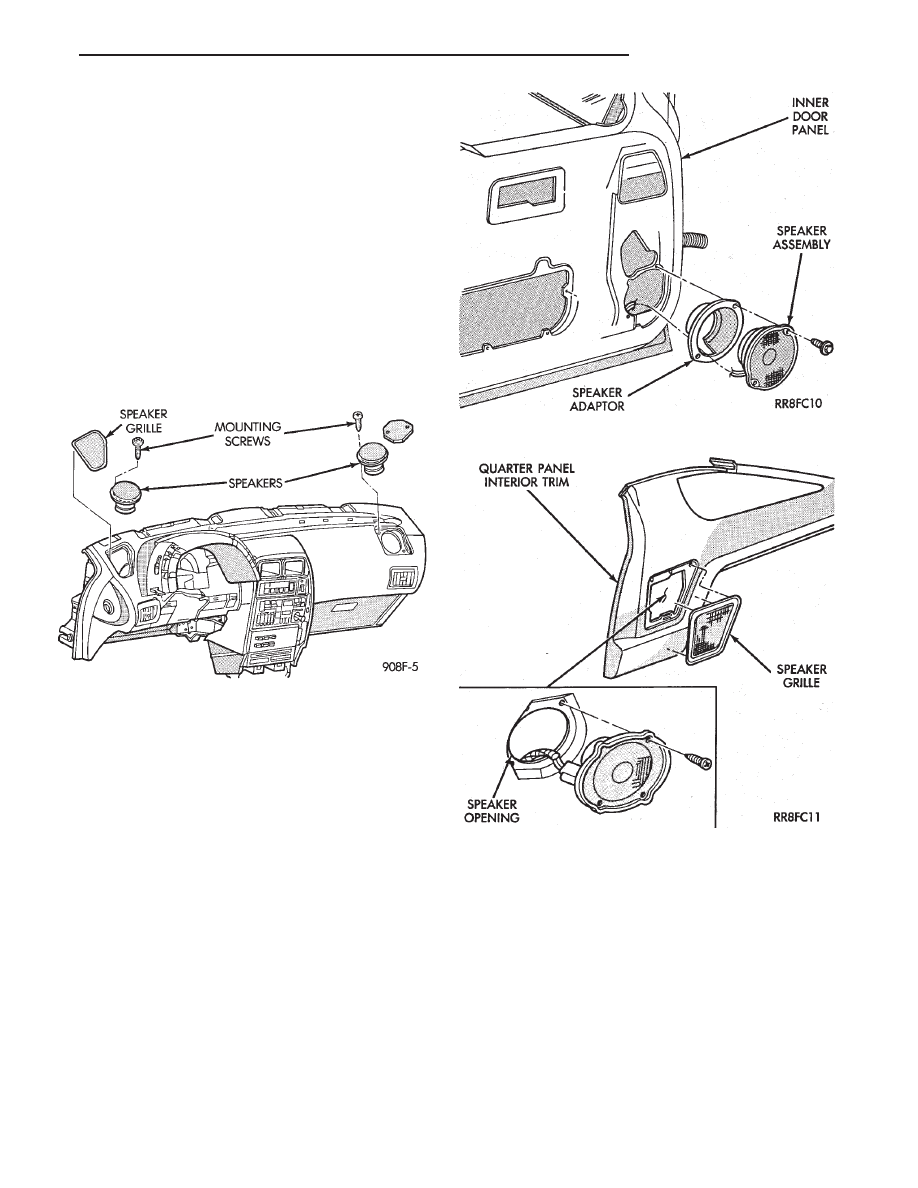

Fig. 22 Instrument Panel Speakers—AG and AJ

Bodies

Fig. 23 Front Door Mounted Speaker—AG Body

Fig. 24 Rear Speaker—AG Body

Ä

AUDIO SYSTEM

8F - 25

(4) Remove seat cushion.
(5) Remove quarter trim lower extension panel.
(6) Remove front seat belt turning loop and cover.
(7) Remove rear reading lamp.
(8) Remove quarter trim panel.
(9) Remove two seat back latches.
(10) Pull out shelf trim side extension molding.
(11) Remove shelf trim center extension molding.
(12) Remove shelf trim panel (Fig. 26).

(13) Remove four speaker retaining screws.
(14) Lift speaker away from shelf panel and dis-

connect wiring.

(15) For installation reverse above procedures. Be

sure to position speakers so that terminals are point-
ing outward.

REAR SPEAKER REPLACEMENT—AJ BODY
WITH FIXED SEAT BACK

(1) Remove seat cushion.
(2) Remove seat back.
(3) Remove quarter trim panels.
(4) Remove shelf trim panel.
(5) Remove four speaker retaining screws (Fig. 26).
(6) Lift speaker away from shelf panel and discon-

nect wiring.

(7) For installation reverse above procedures. Be

sure to position speakers so that terminals are point-
ing outward.

REAR SPEAKER REPLACEMENT—AJ BODY
CONVERTIBLE

(1) Move folding top to UP position.
(2) Unsnap sling well from tacking strip and fold-

out of the way to gain access to speaker.

(3) Lower folding top to improve speaker accessi-

bility.

(4) Remove two speaker retaining screws (Fig. 27).
(5) Disconnect wiring and pull out speaker.

(6) For installation reverse above procedures.

AP Body

DOOR MOUNTED SPEAKER
REPLACEMENT—AP BODY

(1) Remove door trim panel.
(2) Remove two screws holding speaker to inner

door panel (Fig. 28).

(3) Pull speaker out and disconnect wiring.
(4) For installation reverse above procedures.

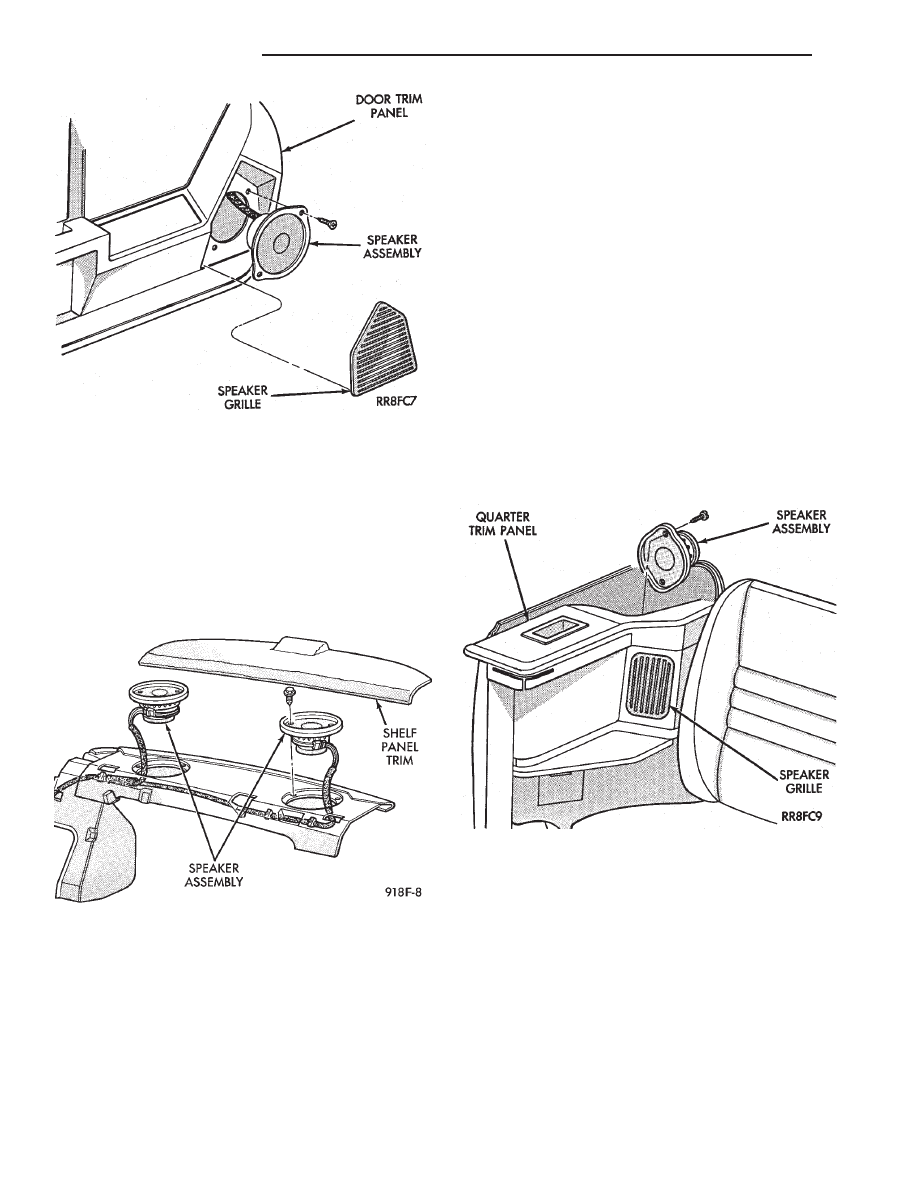

Fig. 25 Door Mounted Speaker—AJ Body

Fig. 26 Rear Speaker—AJ Body

Fig. 27 Rear Speaker—AJ Body

8F - 26

AUDIO SYSTEM

Ä

REAR MOUNTED SPEAKER
REPLACEMENT—AP BODY

(1) Remove cargo side trim panel (Fig. 29).

(2) Reaching up underneath quarter panel exten-

sion, remove four speaker retaining nuts (Fig. 30).

(3) Move speaker away from mounting bracket and

disconnect wiring.

(4) For installation reverse above procedures.

AC AND AY BODIES

INSTRUMENT PANEL SPEAKER
REPLACEMENT

(1) Carefully, pry speaker grille away from instru-

ment panel (Fig. 31).

(2) Remove two speaker retaining screws.

(3) Lift speaker away from panel and disconnect

wiring.

(4) For installation reverse above procedures.

DOOR MOUNTED SPEAKER
REPLACEMENT—AC AND AY BODIES

(1) Carefully, pry speaker grille away from door

trim panel (Fig. 32).

(2) Remove two speaker retaining screws.
(3) Pull speaker away from door and disconnect

wiring.

(4) For installation reverse above procedures.

REAR SPEAKER REPLACEMENT—AC AND AY
BODIES

(1) Remove seat cushion.
(2) Remove seat back.

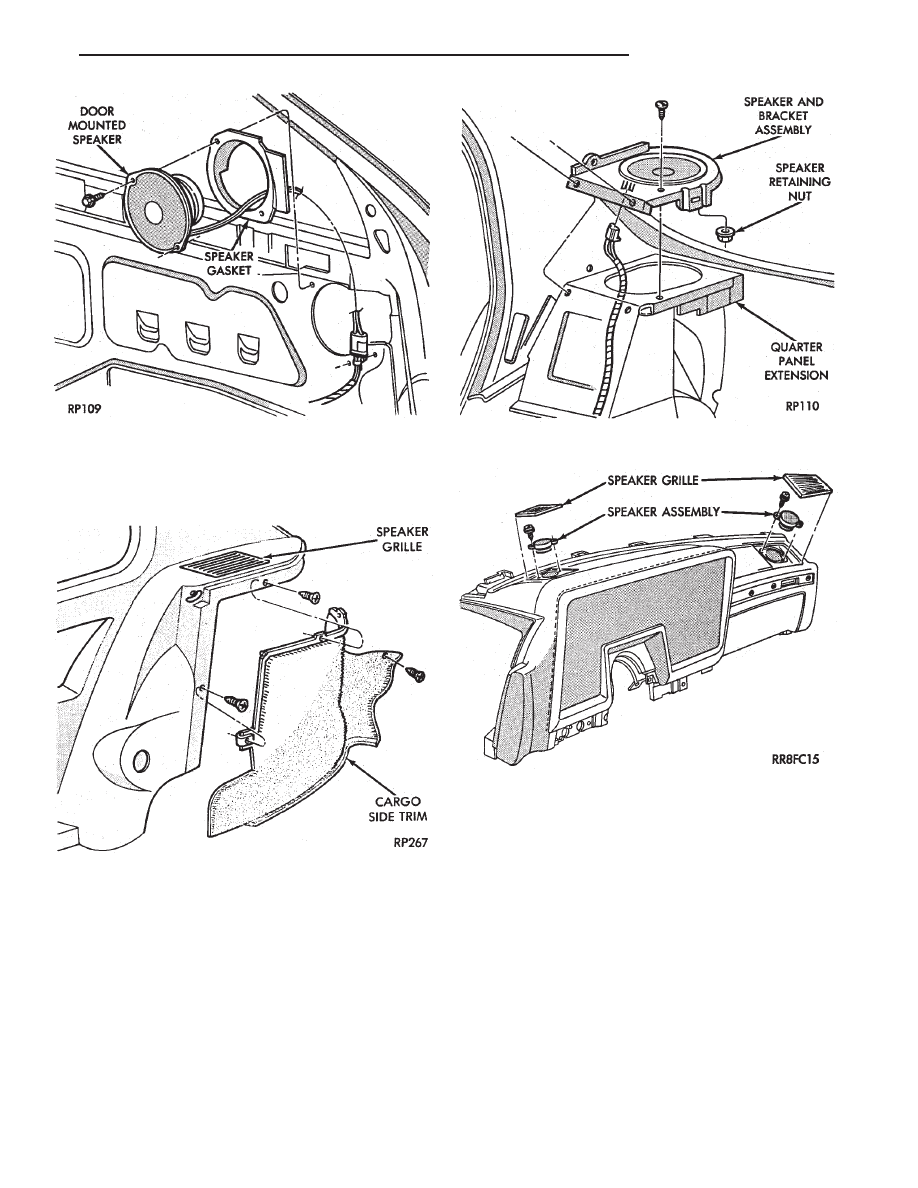

Fig. 28 Door Mounted Speaker—AP Body

Fig. 29 Cargo Side Trim Panel—AP Body

Fig. 30 Rear Mounted Speaker—AP Body

Fig. 31 Instrument Panel Speakers—AC and AY

Bodies

Ä

AUDIO SYSTEM

8F - 27

(3) Remove shelf trim panel (Fig. 33).

(4) Remove four speaker retaining screws.
(5) Pull speaker away from shelf panel and discon-

nect wiring.

(6) For installation reverse above procedures.

INFINITY REMOTE AMPLIFIER

The AC and AY amplifier is located in the trunk

on the rear seat bulkhead and the behind rear trim
panel.

The AJ amplifier is located in the trunk on the left

wheel housing extension behind the side trim panel.

When the radio system is ON, and all or some

speakers are not operating or have a noise distortion
refer to the diagnostic tests. The amplifier has the
terminal connections list on the case (Fig. 34).

CONDITION: NOISE DISTORTION IN ALL
SPEAKERS

• Check battery voltage for 11 Volts or more

• Check amplifier connectors and wires for proper
connection and continuity
• If OK, check radio, refer to Audio Diagnostic
Charts.
• If OK, replace amplifier

CONDITION: ELECTRICAL NOISE
DISTORTION ONE SPEAKER

Remove output signal connector from amplifier and

check for short to ground on the speaker with the
distortion. Refer to Fig. 34 for the appropriate pin
numbers.
• If shorted to ground disconnect speaker connector
and recheck the amplifier connector for short to
ground.
• If still shorted to ground repair wires. If not
shorted to ground, replace speaker.

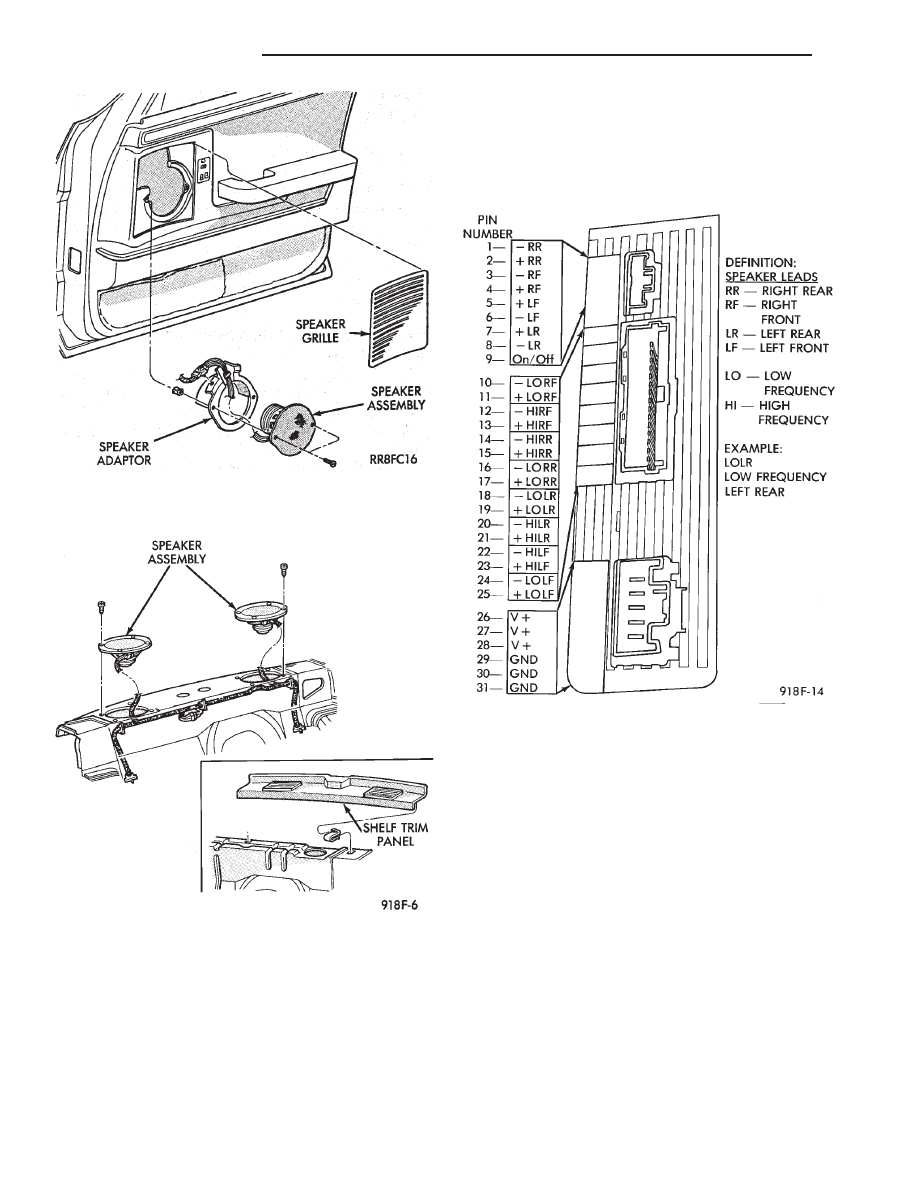

Fig. 32 Door Mounted Speaker—AC and AY Bodies

Fig. 33 Rear Speakers—AC and AY Bodies

Fig. 34 Amplifier Terminals

8F - 28

AUDIO SYSTEM

Ä
