PUMP OIL SEAL-REPLACEMENT

The pump oil seal can be replaced without remov-

ing the pump and reaction shaft support assembly
from the transaxle case.

(1) Screw seal remover Tool C-3981 into seal (Fig.

1), then tighten screw portion of tool to withdraw the
seal.

(2) To install a new seal, place seal in opening of

the pump housing (lip side facing inward). Using
Tool C-4193 and Handle Tool C-4, drive new seal

into housing until tool bottoms (Fig. 2).

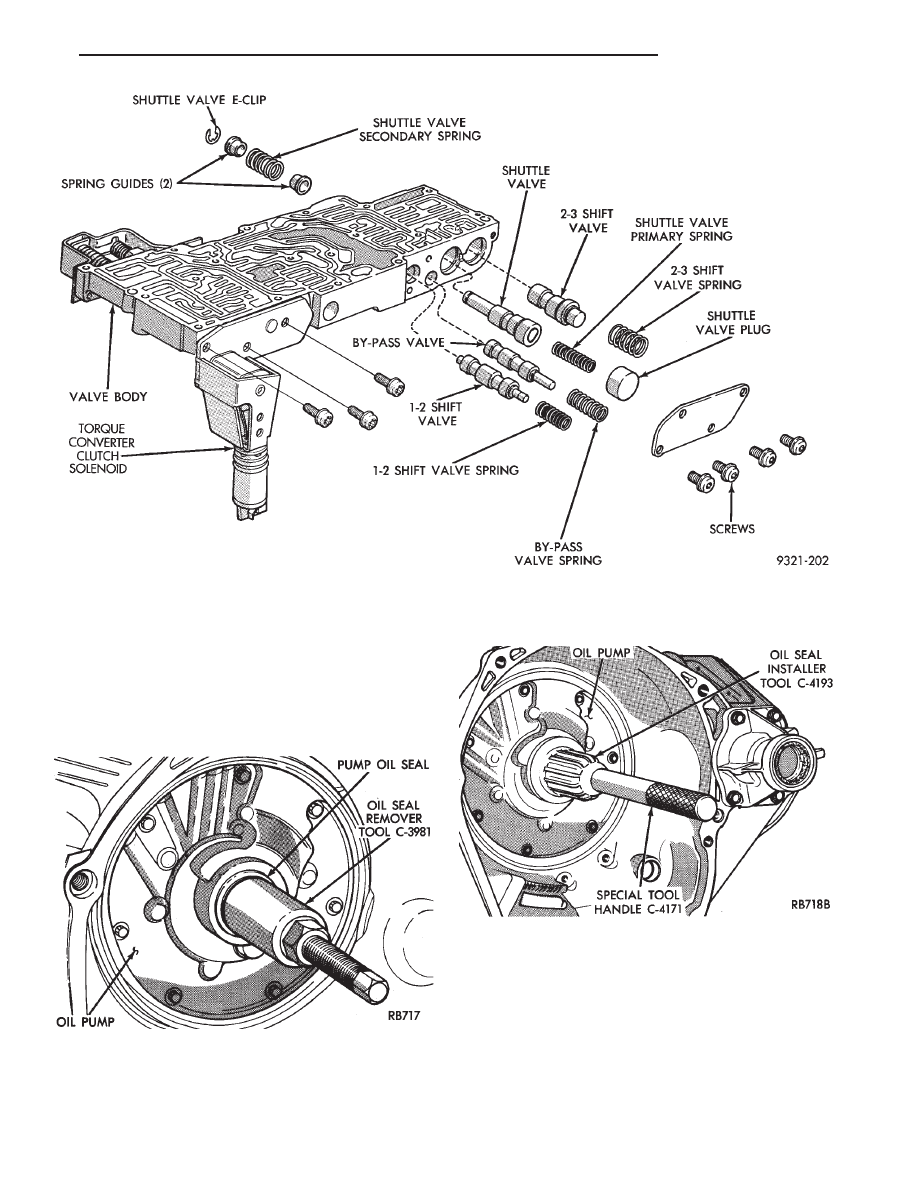

Fig. 15 Shift Valves and Shuttle Valve

Fig. 16 Remove Pump Oil Seal

Fig. 17 Install Pump Oil Seal

Ä

TRANSAXLE

21 - 61

OIL PUMP-RECONDITION

Also, check gear side clearance with a straight

edge and a feeler gauge (See Specifications).

FRONT CLUTCH-RECONDITION

INSPECTION

Inspect plates and discs for flatness. They must not

be warped or cone shaped.

Inspect facing material on all driving discs. Re-

place discs that are charred, glazed or heavily pitted.
Discs should also be replaced if they show evidence of
material flaking off or if facing material can be
scraped off easily. Inspect driving disc splines for
wear or other damage. Inspect steel plate surfaces for
burning, scoring, or damaged driving lugs. Replace if
necessary.

Inspect steel plate lug grooves in clutch retainer

for smooth surfaces, plates must travel freely in
grooves. Inspect band contacting surface on clutch re-
tainer for scores, the contact surface should be pro-
tected

from

damage

during

disassembly

and

handling. Note ball check in clutch retainer, make
sure ball moves freely. Inspect piston seal surfaces in
clutch retainer for nicks or deep scratches, light
scratches will not interfere with sealing of seals. In-
spect clutch retainer inner bore surface for wear from
reaction shaft support seal rings. Inspect clutch re-
tainer bushing for wear or scores.

Inspect inside bore of piston for score marks, if

light, remove with crocus cloth. Inspect seal grooves
for nicks and burrs. Inspect seals for deterioration,
wear, and hardness. Inspect piston spring, retainer
and snap ring for distortion.

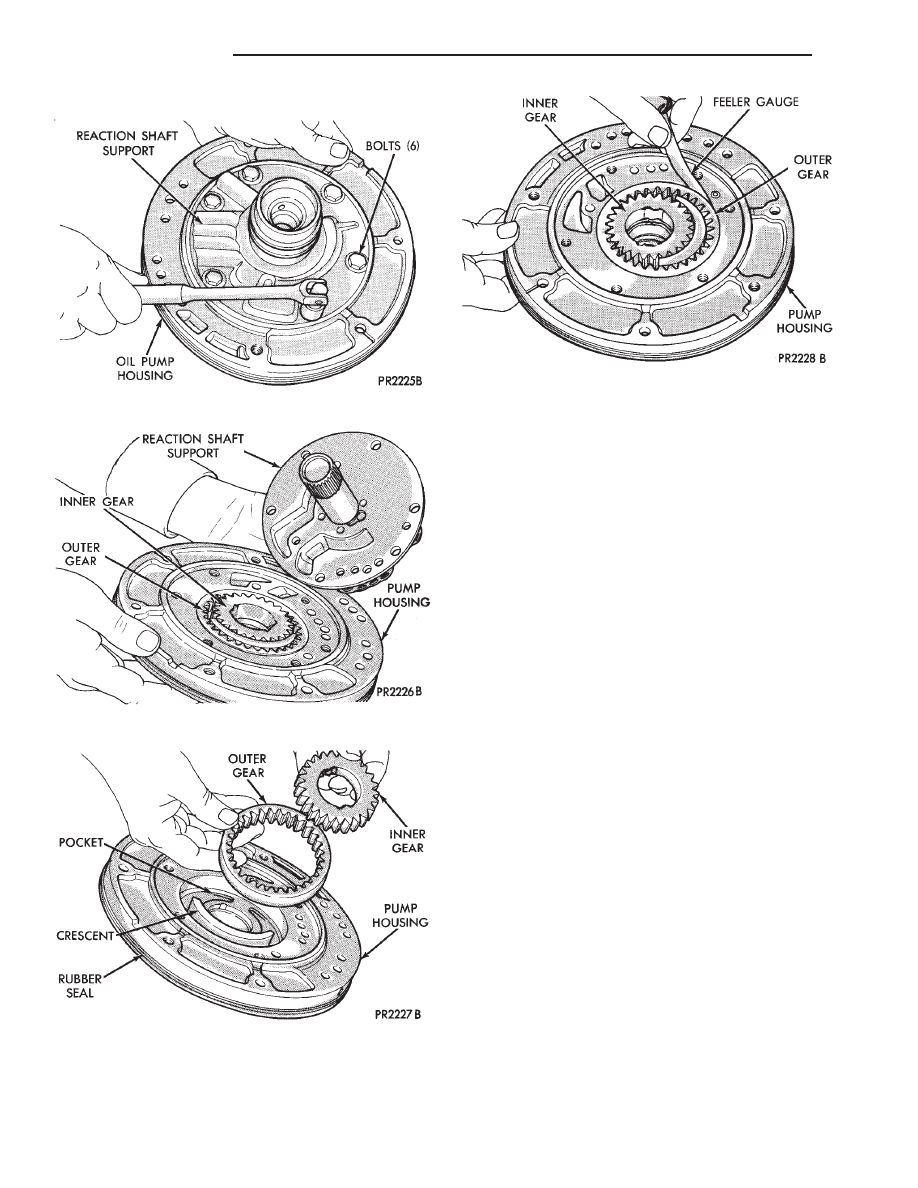

Fig. 4 Measuring Pump Clearance (Gear to Pocket)

Fig. 1 Reaction Shaft Support Bolts

Fig. 2 Reaction Shaft Support

Fig. 3 Inner and Outer Pump Gears

21 - 62

TRANSAXLE

Ä

DISASSEMBLE/ASSEMBLE

To reassemble, reverse the above procedure.

MEASURING PLATE CLEARANCE

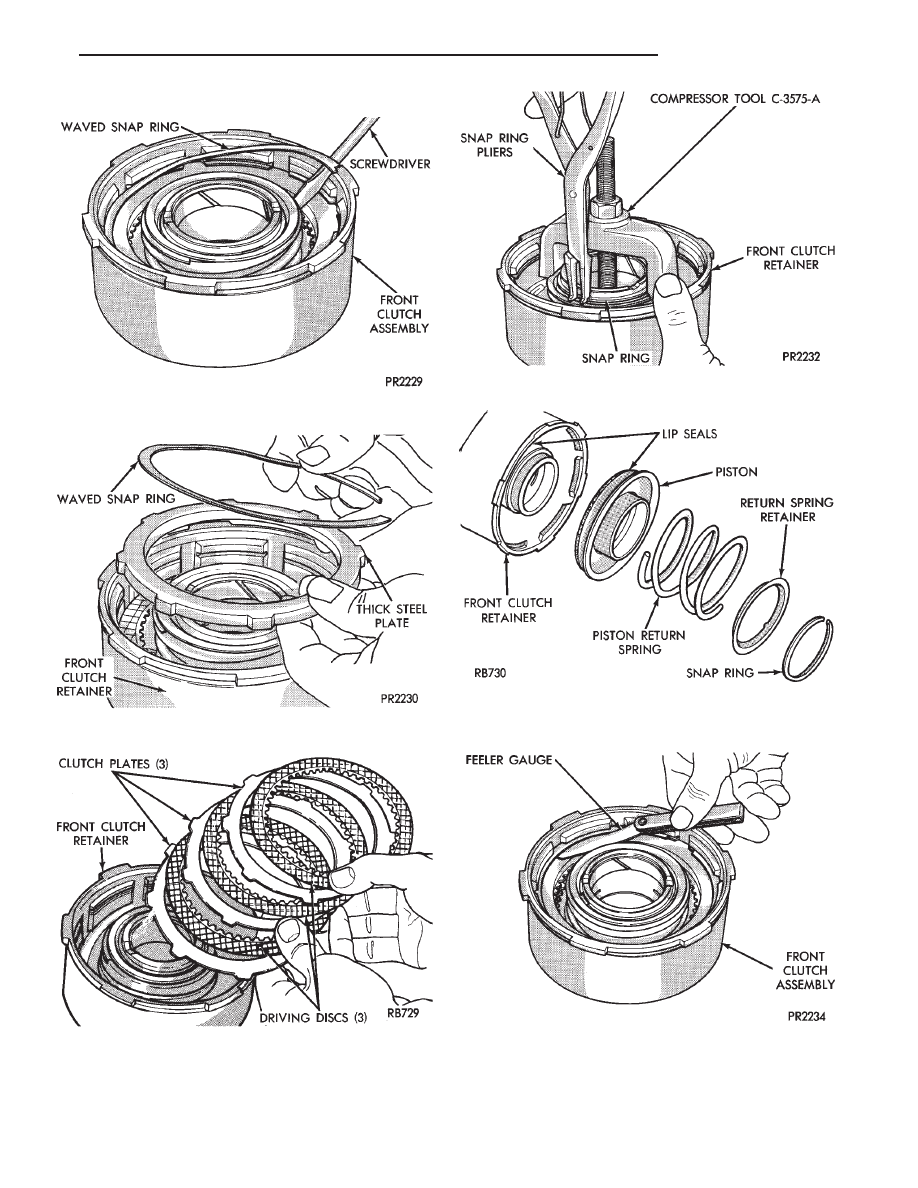

Fig. 1 Front Clutch Waved Snap Ring

Fig. 2 Thick Steel Plate and Waved Snap Ring

Fig. 3 Front Clutch—Three-Disc Shown

Fig. 4 Front Clutch Return Spring Snap Ring

Fig. 5 Front Clutch Return Spring and Piston

Fig. 6 Measuring Front Clutch Plate Clearance

Ä

TRANSAXLE

21 - 63

REAR CLUTCH-RECONDITION

INSPECTION

Inspect facing material on all driving discs. Re-

place discs that are charred, glazed or heavily pitted.
Discs should also be replaced if they show evidence of
material flaking off or if facing material can be
scraped off easily. Inspect driving disc splines for
wear or other damage. Inspect steel plate and pres-
sure plate surface for burning, scoring or damaged
driving lugs. Re place if necessary. Inspect plates and
discs for flatness, they must not be warped or cone-
shaped.

Inspect steel plate lug grooves in clutch retainer

for smooth surfaces, plates must travel freely in the
grooves. Note ball check in piston; make sure ball
moves freely. Inspect seal rings surfaces in clutch re-
tainer for nicks or deep scratches; light scratches will
not interfere with sealing of the seals. Inspect neo-
prene seal rings for deterioration, wear and hard-
ness. Inspect piston spring and waved snap ring for
distortion or breakage.

Inspect teflon and/or cast iron seal rings on input

shaft for wear. Do not remove rings unless conditions
warrant. Inspect rear clutch to front clutch No. 2
thrust washer for wear. Washer thickness should be
.061 to .063 inch, replace if necessary.

DISASSEMBLE/ASSEMBLE

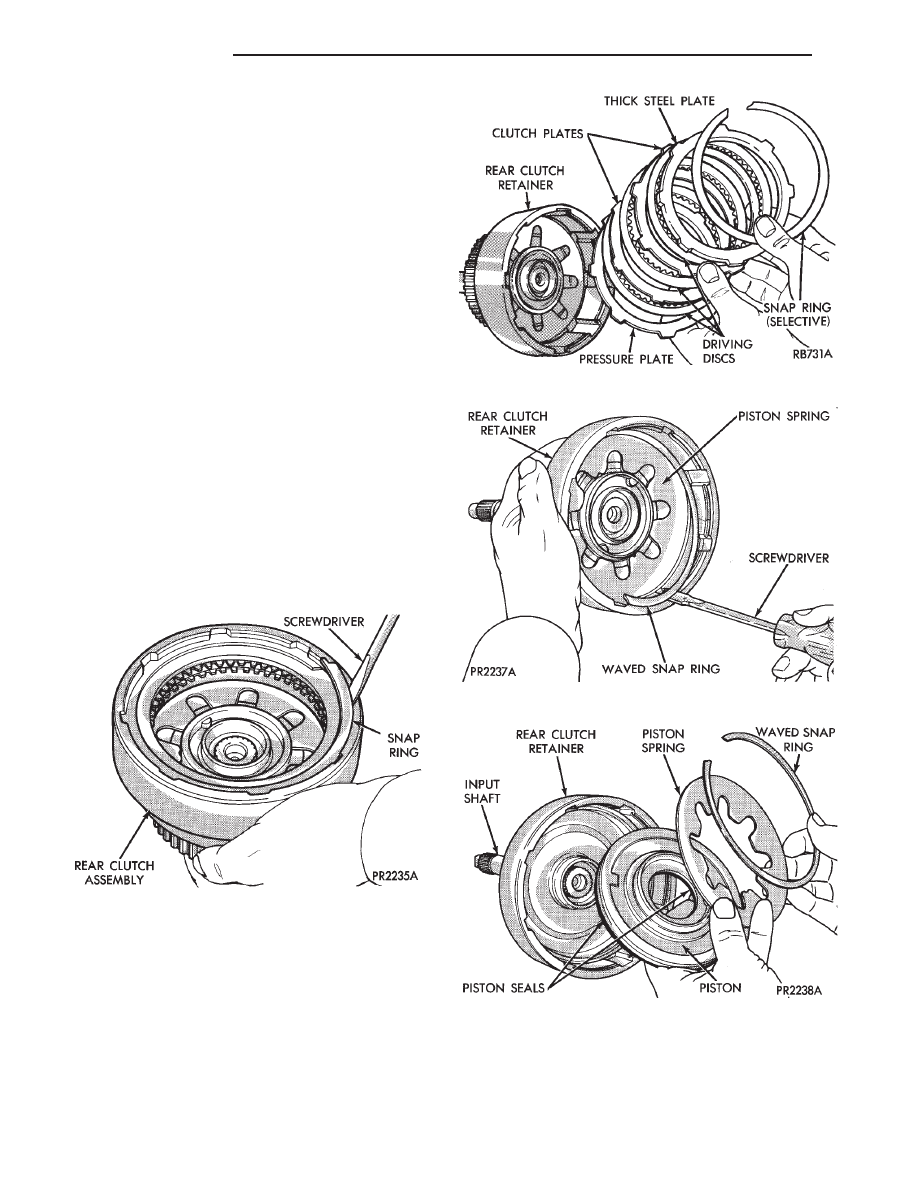

Fig. 1 Rear Clutch Outer Snap Ring

Fig. 2 Rear Clutch—Three-Disc Shown

Fig. 3 Piston Spring Waved Snap Ring

Fig. 4 Rear Clutch Piston and Piston Spring
