Chery B14. Manual - part 32





Unplug related electrical connector (Refer to disassembly/assembly of instrument panel)



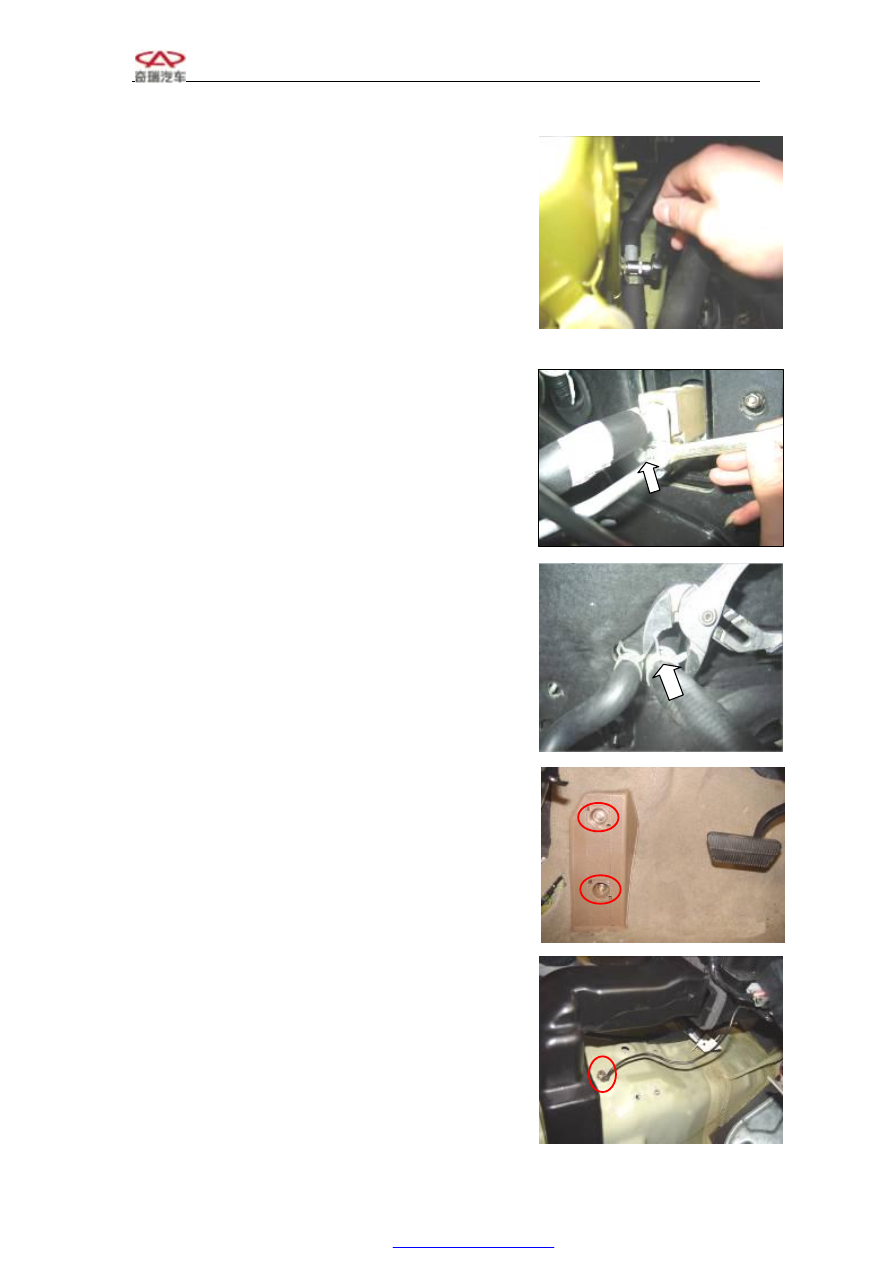

2.3    Loose  fixing  bolts  on  high/low  pressure  pipe  by

spanner.

















2.4    Loose  the  fixing  bolt  between  high/low  pressure  pipe

and expansion valve, pull high/low pressure pipe outward.













2.5    Disassemble evaporator water tank inlet and outlet pipe

clip and take off water pipe.

Note: coolant will flow out from the water pipe, pay attention

to recycling the coolant.











2.6    Disassemble  interior  trim  such  as  driver’s  side  pedal,

front seats, sub instrument panel, threshold pressing plate etc.

and take off the front end of carpet.











2.7    Disassemble AC cable grounding bolt.









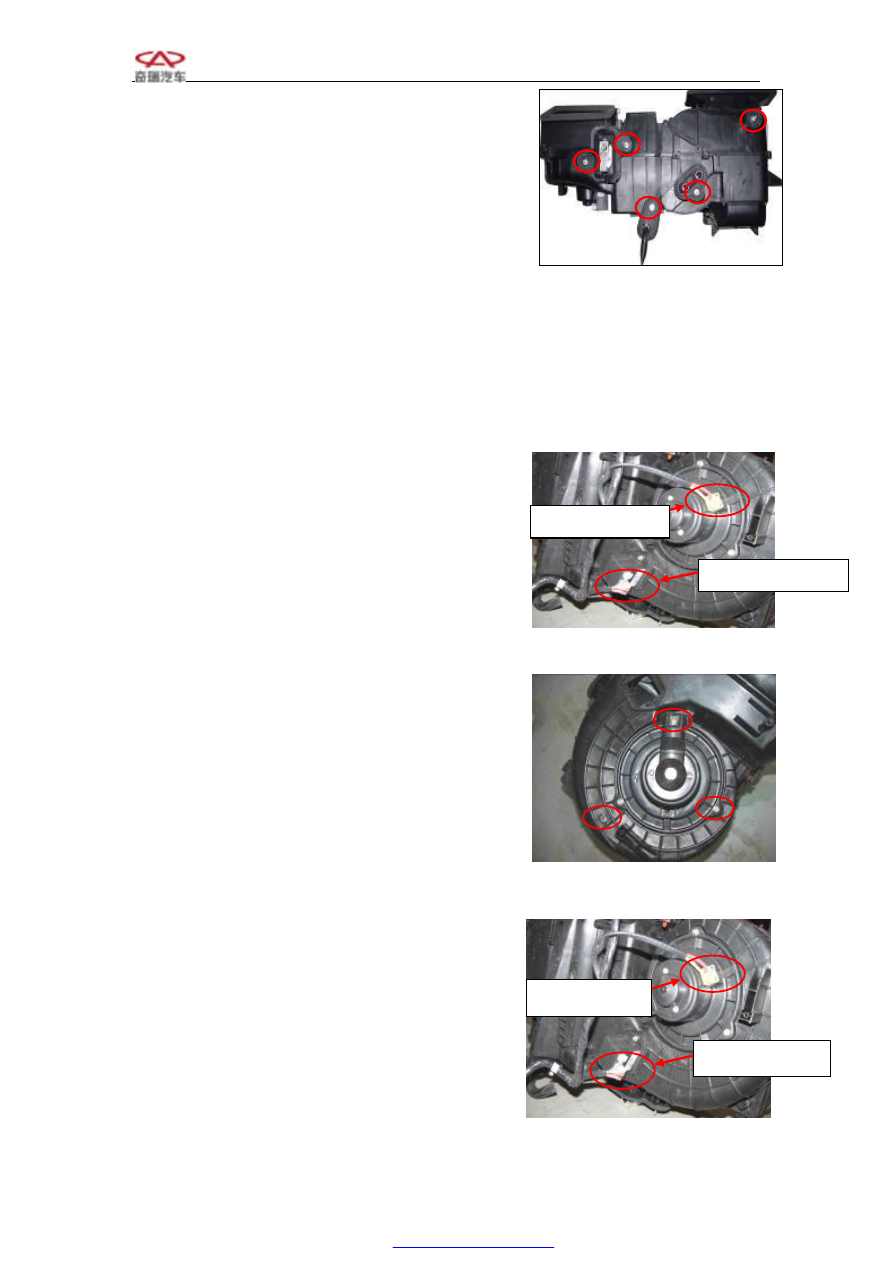

2.8    Loose  5  fixing  bolts  of  evaporator  assembly  on  metal

sheet from front cab, positions see right figure.

Installation torque is 3.5±0.5 Nm



2.9    Take out evaporator and AC cable assembly from cab

3    Installation of evaporator assembly

The installing steps are reverse to those for removal.



4    Disassembly/assembly of interior evaporator

Tool: cross head screwdriver, 4.0 hexagon wrench, socket spanner.

4.1    Blower replacement

4.1.1    Disassembly steps

4.1.1.1    Disassemble blower motor plug and motor speeder

module plug.











4.1.1.2    Disassemble  3  blower  motor  screws  and  take  out

blower.





4.1.2    Assembly steps

The installing steps are reverse to those for removal.

5    Disassembly/assembly  of  blower  speeder
module

5.1    Disassembly steps

5.1.1    Unplug speeder module plug







Plug of blower motor

Plug of speeder module

Blower motor plug

Speeder module plug

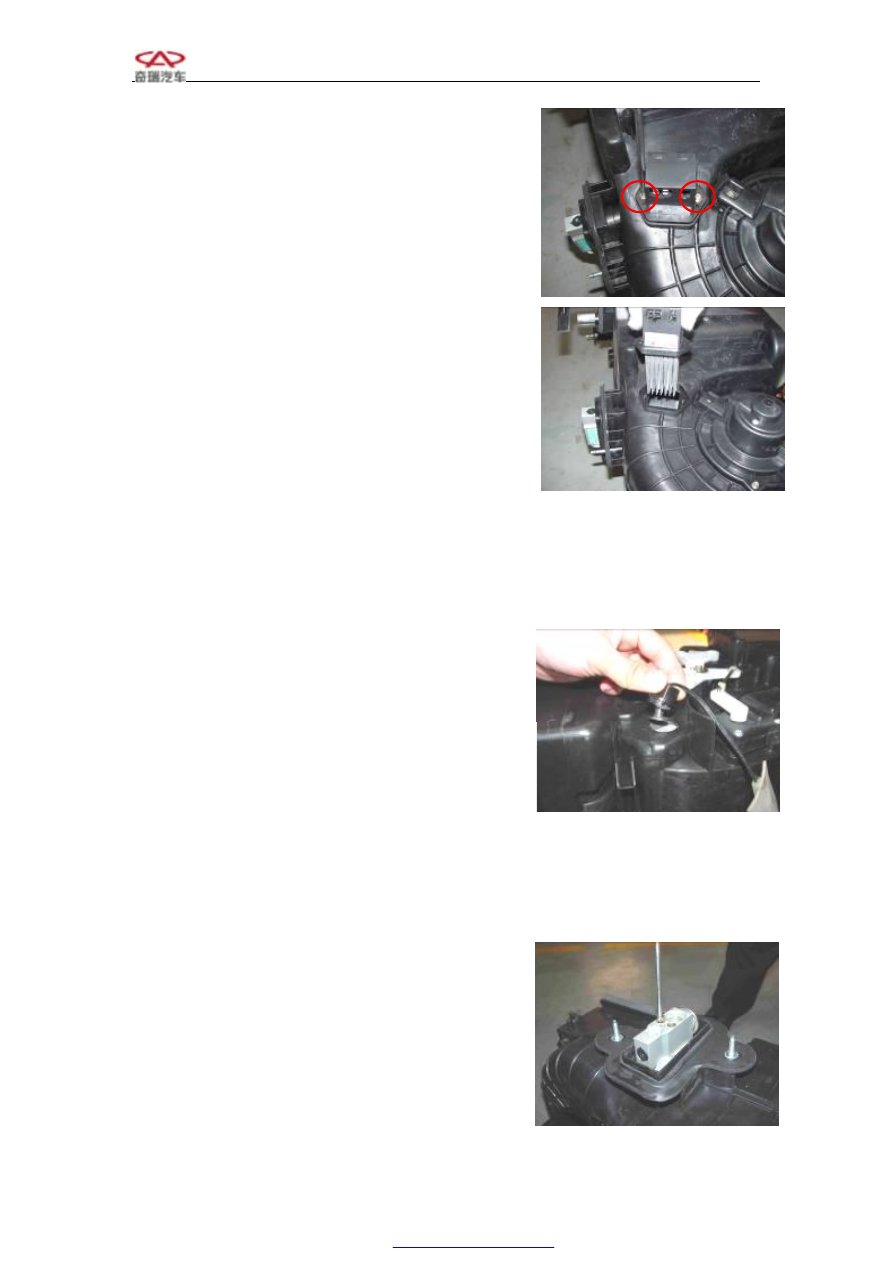

5.1.2    Disassemble 2 speeder module fixing bolts

















5.1.3    Take off speeder module







5.2    Assembly steps

The installing steps are reverse to those for removal.



6    Disassembly/assembly of heating water tank

6.1    Disassembly steps

6.1.1    Disassemble evaporator assembly (see disassembly of

evaporator)



6.1.2    Disassemble AC cable (see disassembly of AC cable)



6.1.3    Disassemble evaporator water temperature sensor

















6.1.4    Disassemble  2  socket  head  cap  bolt  from  expansion

valve

Tool: 4.0 allen wrench

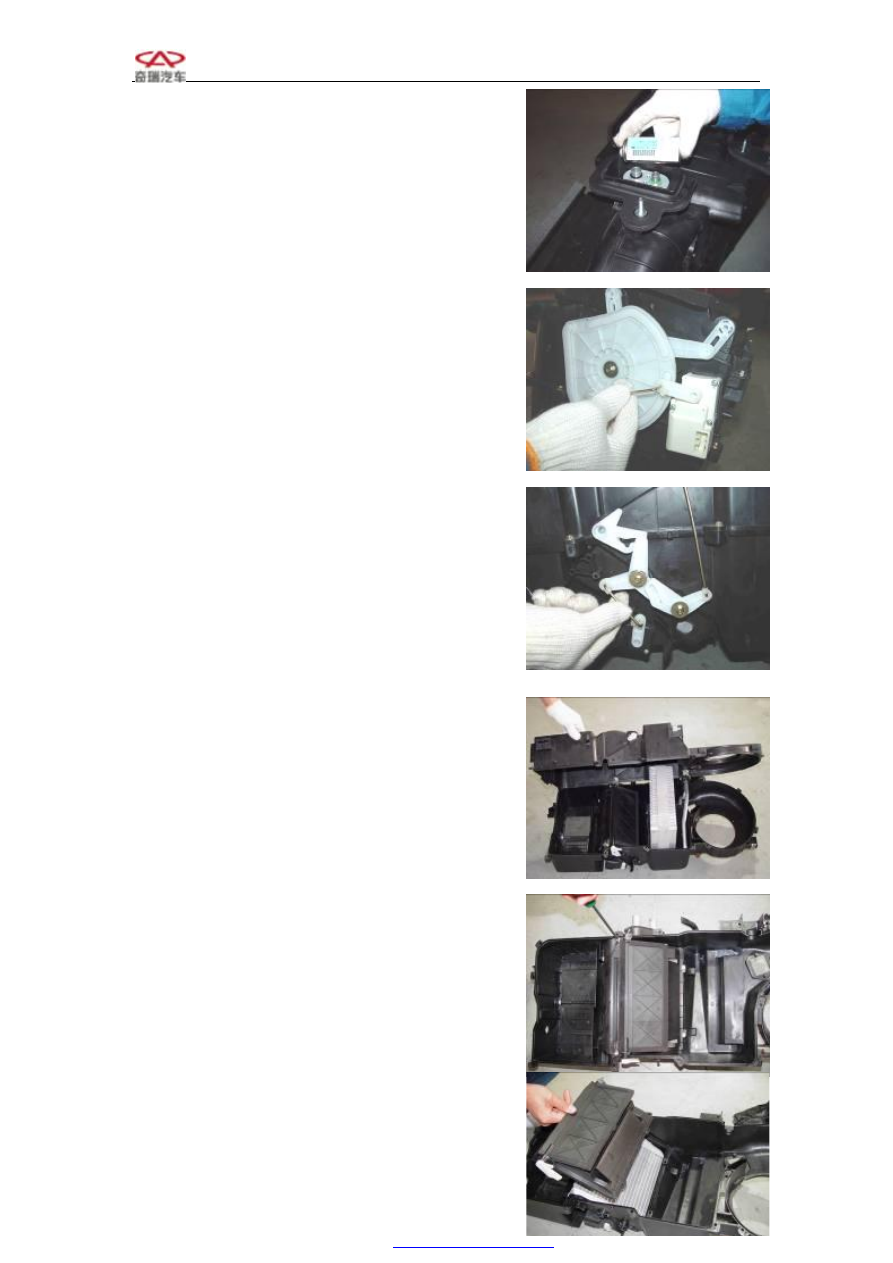

6.1.5    Take  off  expansion  valve,  tear  down  gasket  around

expansion installation position.













6.1.6    Disassemble mode ventilator connection rod

















6.1.7    Disassemble cooling/heating control ventilator

pull rod















6.1.8    Disassemble  14  bolts  on  evaporator  housing,

decomposing evaporator housing.

Note: the sponge seal around housing is one time using











6.1.9    Disassemble  4  bolts  on  heating  cover  plate

assembly
