Chery B14. Manual - part 29





5    Disassembly/assembly of front ashtray

5.1    Disassembly steps

5.1.1    Disassemble central control panel

(Refer to disassembly steps for central control panel)





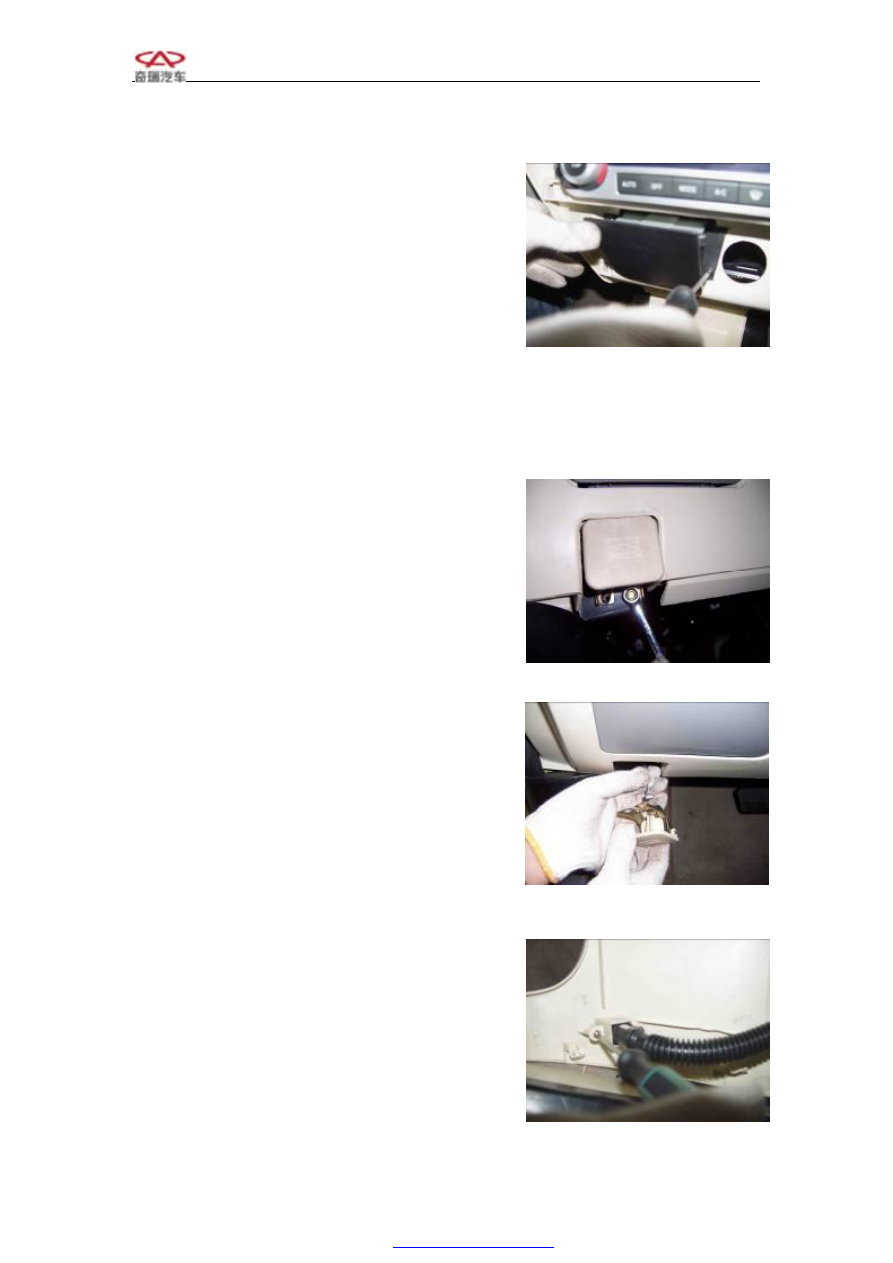

5.1.2    Unscrew 4 front ash tray fixing screws, take off ash

tray.

Installation torque: 1.5±0.5Nm

5.2    Assembly steps

The installing steps are reverse to those for removal.



6    Disassembly/assembly of glove box

6.1    Disassembly steps

6.1.1    Disassemble  2  engine  hood  opening  handle  fixing

bolts by No. 10 spanner.







6.1.2    Disassemble engine hood opening cable





















6.1.3    Disassemble glove box and separate rear plugs (for

meters  brightness  and  headlamp  brightness);  disassemble

AC  interior  temperature  fixing  screw  and  take  off  glove

box.









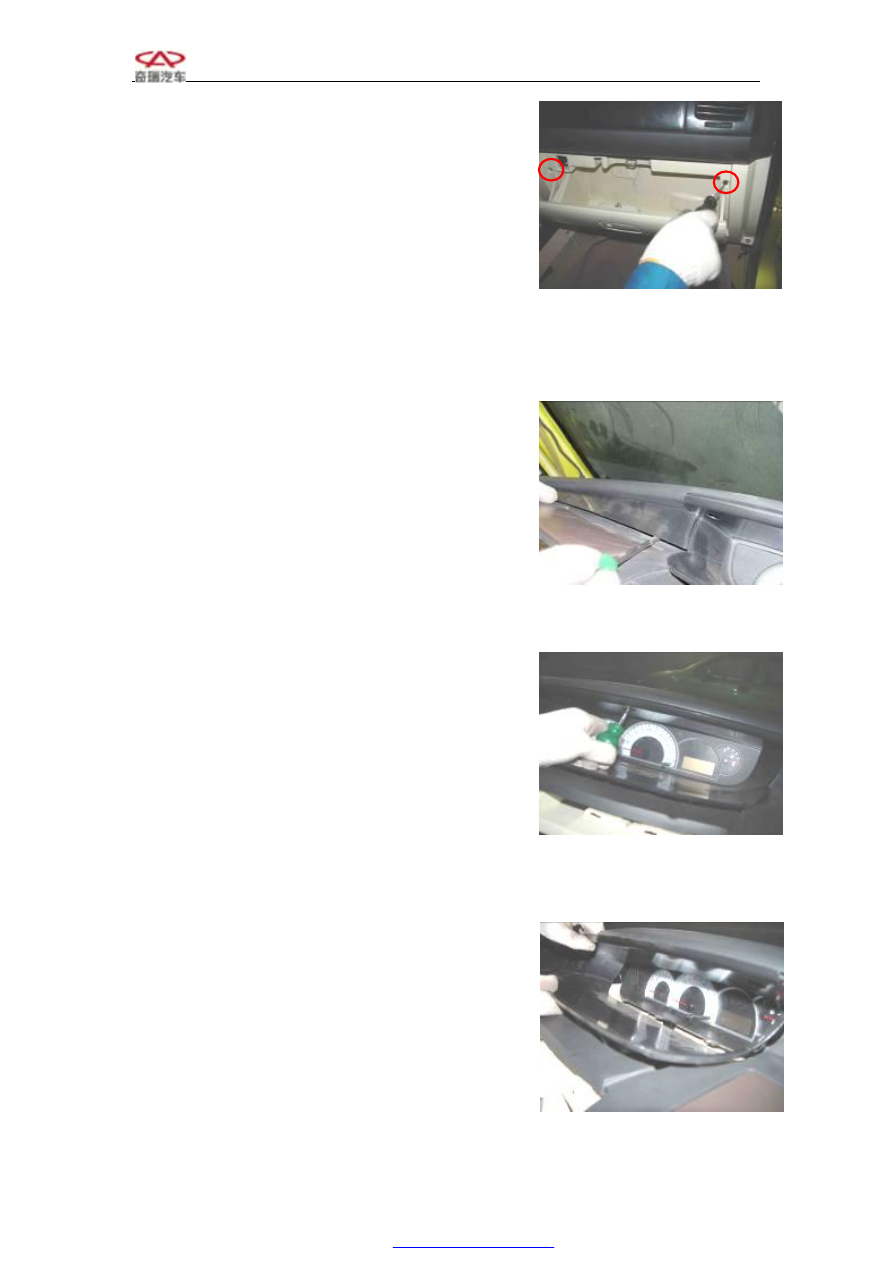

6.1.4    Disassemble  2  codriver  side  glove  box  fixing  screws

and take off codriver side glove box.

Installation torque is 2±0.5Nm





6.2    Assembly steps

The installing steps are reverse to those for removal.





7    Disassembly/assembly of combined instrument

7.1    Disassembly steps

7.1.1    Prize combined instrument side trim plate by

screwdriver carefully.















7.1.2    Unscrew combined instrument 3  outside frame fixing

screws by cross head screwdriver.



















7.1.3    Take off combined instrument outside frame

















7.1.4    Disassemble  3  fixing  screws  which  fix  combined

instrument  and  instrument  panel  main  body  by  cross  head

screwdriver.

Installation torque is 1.5±0.5 Nm











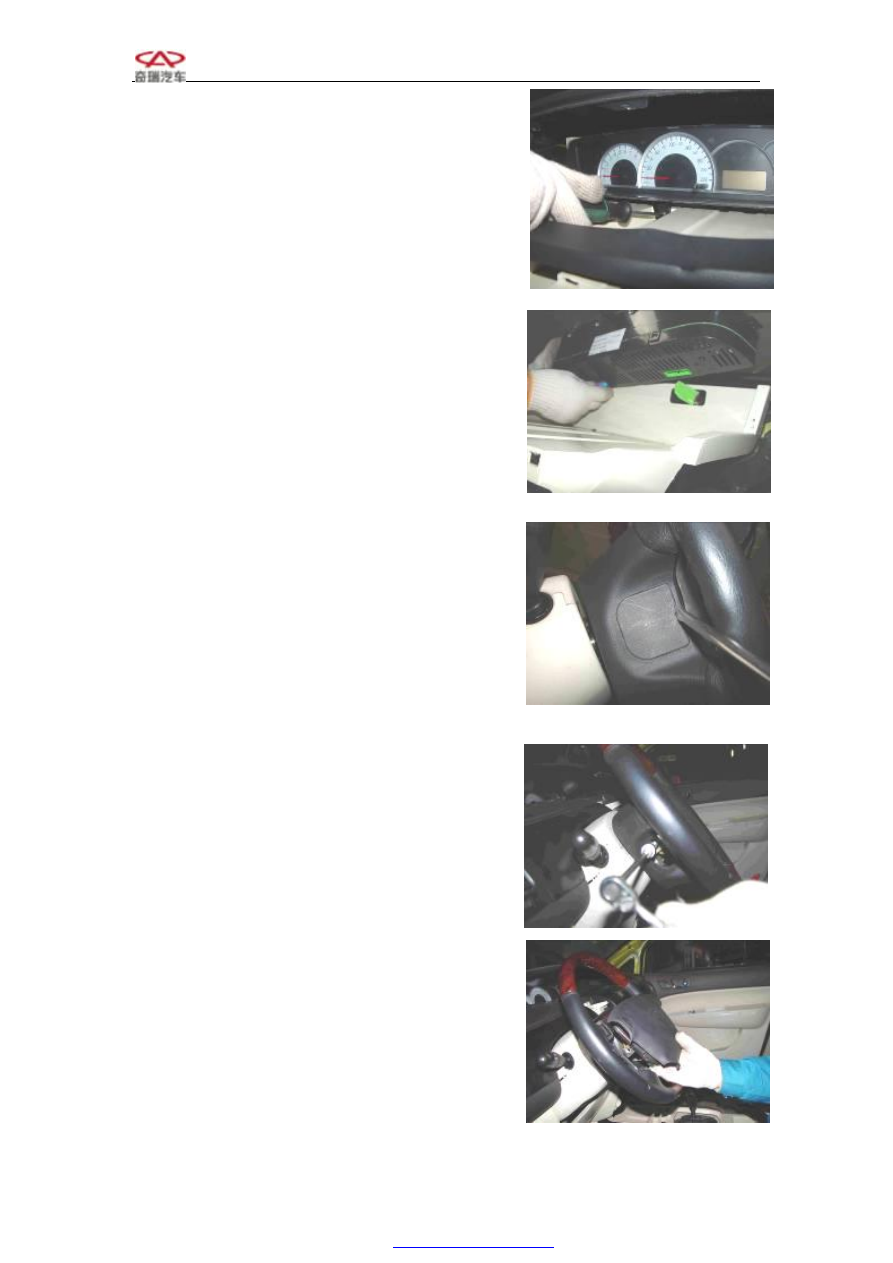

7.1.4    Unplug 2 combined instrument rear plug and

take off the combined instrument.







7.2    Assembly steps

The installing steps are reverse to those for removal.

8    Disassembly of steering wheel

8.1    Disassembly steps

8.1.1    Prize two caps beside of steering wheel.









8.1.2    Use TORX T40 disassemble 2 air bag fixing bolts.

Installation torque is 1.6±2Nm













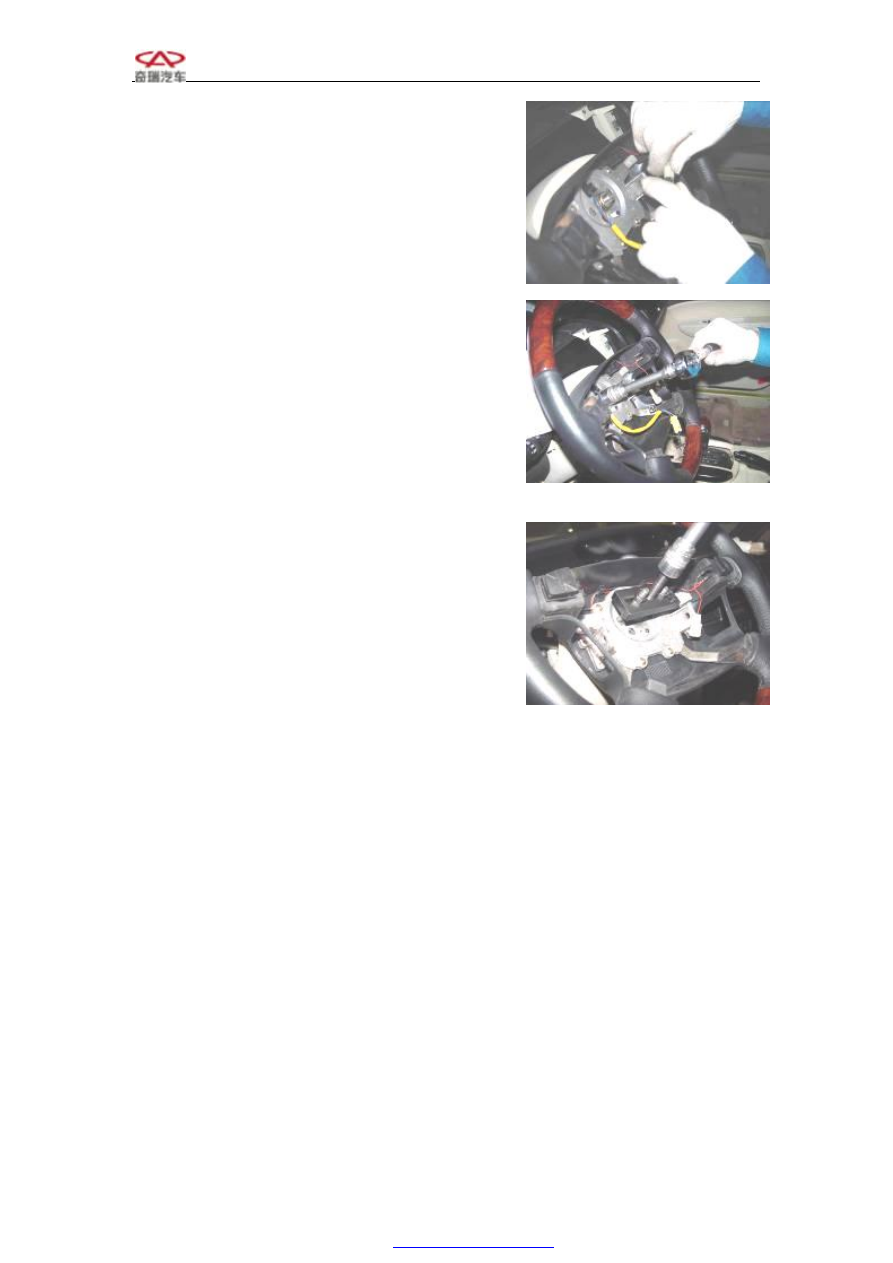

8.1.3    Take away air bag











8.1.4    Unplug horn plug

















8.1.5    Disassemble steering wheel fixing nut by No.22

sleeve.

Installation torque is 30±3 Nm

















8.1.6    Pull the steering wheel out by extractor.













8.2    Assembly steps

The installing steps are reverse to those for removal.



9    Disassembly/assembly of headlamp combined

switch, wiper switch, ignition switch, coil cable

(Please refer to disassembly/assembly of
