Chery A18. Manual - part 36





Installation

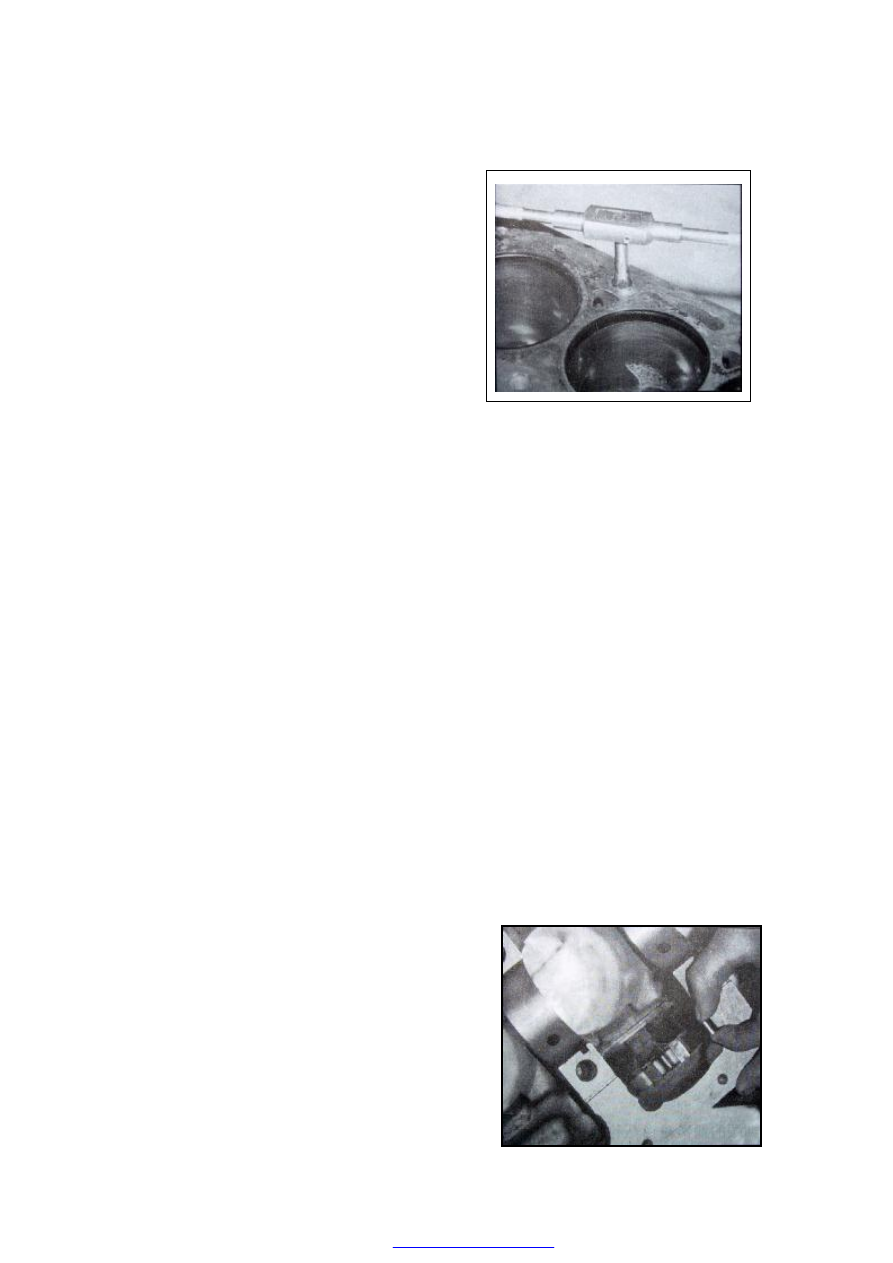

Before  installation,  tap  the  threaded  hole  on
the  cylinder  block  with  tapping  drill,
especially those of the cylinder head bolts and
main bearing bolts.

      Cylinder head bolt: M10X1.5~6H

      Main bearing bolt: M12X1.75~6H

Installation  of  the  whiney  key  of  the  crank
shaft: gently drive the whiney key into the key
slot.  The  clearance  between  the  whiney  key
and  key  slot  is  0.00~0.051mm.  Check  the
protrusion  after  the  whiney  key  is  installed,
which shall be 1.392~1.739mm.

There  are  two  pieces  of  crank  shaft  thrust
spacers,  which  are  installed  on  the  front  and
rear  thrust  surfaces.  Before  installation,  apply
some motor oil on the side of the thrust spacer
with oil groove and make this side towards the
cylinder  block  and  the  other  side  towards  the
crank shaft.

Apply  some  motor  oil  on  the  main  journal,
connecting  rod  journal,  thrust  surface  and
bearing  shell  before  the  crank  shaft  is
installed.

The  top  of  the  main  bearing  cap  is  cast  with
numbers-  1,  2,  3,  4,  5  and  one  arrow.  During
the  assembly,  start  the  installation  in  a
front-to-back  order  and  enable  the  guide
finger  towards  the  front  end  surface  of  the
cylinder  block.  The  width  of  1,  2,  4,  5  main
bearing cap is same, but that of the third main
bearing cap is larger than others. The location
of the main bearing cap depends on the rabbet
and  the  rabbet  and  the  cylinder  block  is
interference  fit,  with  the  interference  to  be
0.025~0.145mm. After the assembly, the sides
of the first and fifth main bearing cap shall be
even  with  or  lower  than  the  back  and  front
end surface of the cylinder block.






Among  the  main  bearing  bolts,  9  are
hexagonal-head  flanged  bolts  and  1  is  stud.
For  transverse  engine,  the  stud  shall  be
installed  on  the  left  threaded  hole  of  the
second  main  bearing  cap  (seeing  from  the
front) for installing  the support of the suction
strainer.  For  a  north-south  engine,  the  stud



shall  be  installed  on  the  left  threaded  hole  of
the  fourth  main  bearing  cap  (seeing  from  the
front).

Apply some motor oil on the head joint before
installing the main bearing cap bolts.

Tighten  the  main  bearing  cap  bolts  and  stud
by    hands,  then  tighten  them  to  the  moment
of 90~100Nm.



The  twist  moment  of  the  crank  shaft
(assembly  with  piston  connecting  rod)  is
16Nm max.



Oil baffle assembly

Removal

Take  the  oil  baffle  assembly  out  from  the
right  side  of  the  back  of  the  cylinder  block
(seeing from the front)

Installation

Install  the  oil  baffle  assembly  from  the  right
side  of  the  back  of  the  cylinder  block  (see
from  the  front).  The  tension  spring  of  the  oil
baffle  assembly  shall  be  lower  than  the
crankcase flange of the cylinder block.
























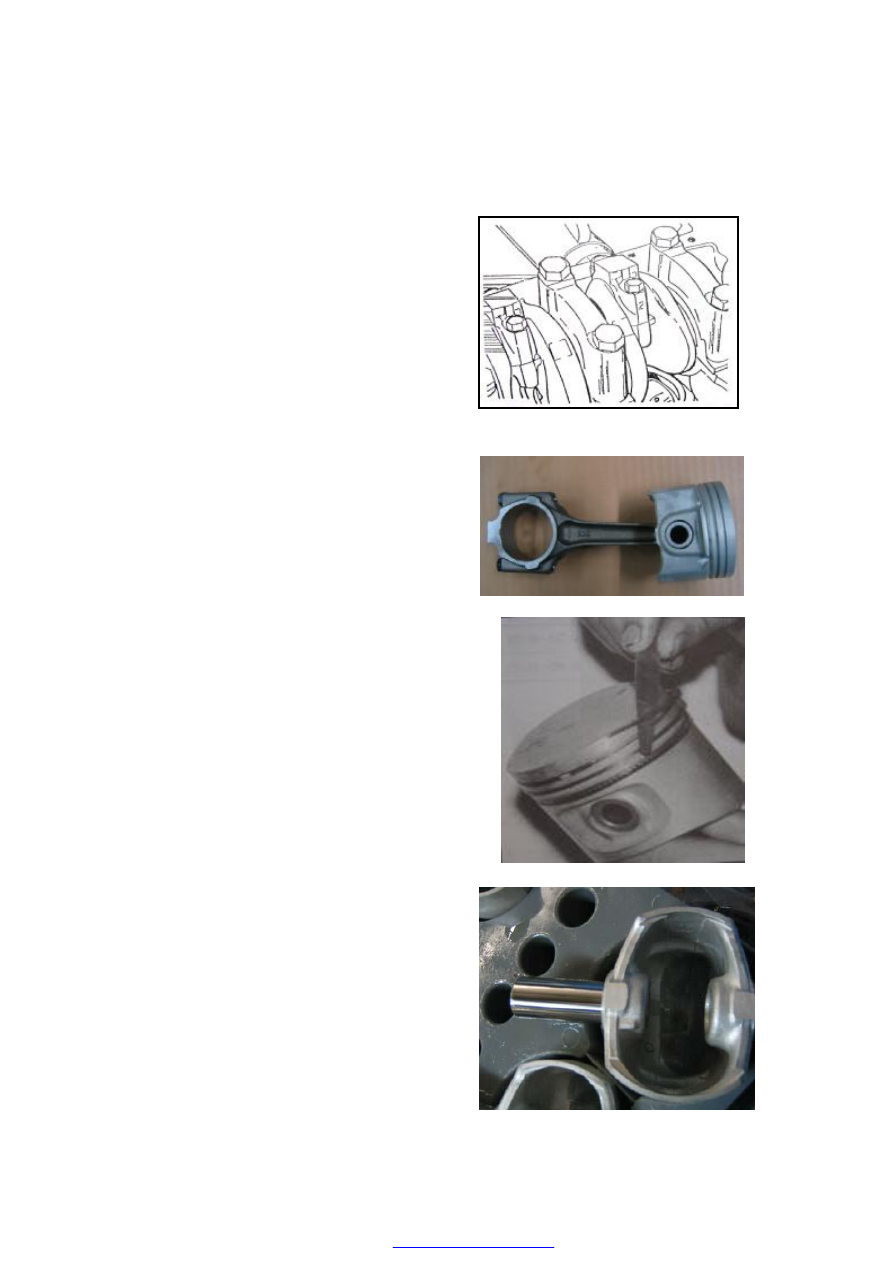

PISTON AND CONNECTING ROD ASSEMBLY

PISTON REMOVAL, MEASURE AND INSTALLATION


Removal


Rotate  the  crank  shaft  to  the  bottom  dead
center (BDC)  of  the  removed  cylinder,  check
whether  there  is  a  cylinder  number  on  the
connecting  rod  body  and  cap,  which  shall  be
on  the  left  of  the  rod  (seeing  from  the  front).
If  there  is  no  such  a  number,  number  each
cylinder before removal.







Remove the connecting rod bolts to dismantle
the

connecting

rod

cap,

take

the

connecting-rod bearing shell out and label the
cylinder  number  and  bottom  and  top  shell  on
the back of the shell.









Push  the  connecting  rod  and  piston  out  from
the  cylinder  block  with  a  wooden  club  and
take the cylinder rod out.

Remove the piston ring with a  special tool or
the  leaf  of  a  clearance  gauge  and  label  each
cylinder and bottom and top leaf.













Press  the piston  pin  out of  the  piston  and  the
small  end  of  the  connecting  rod  with  a  press
machine  and  put  the  piston,  piston  ring  and
pin of each cylinder together.


















Rinsing and inspection


Rinse  and  clean  the  carbon  deposit  on  the
piston, piston ring and pin.

Rinse  and  clean  the  carbon  deposit  on  the
bottom of the cylinder bore.

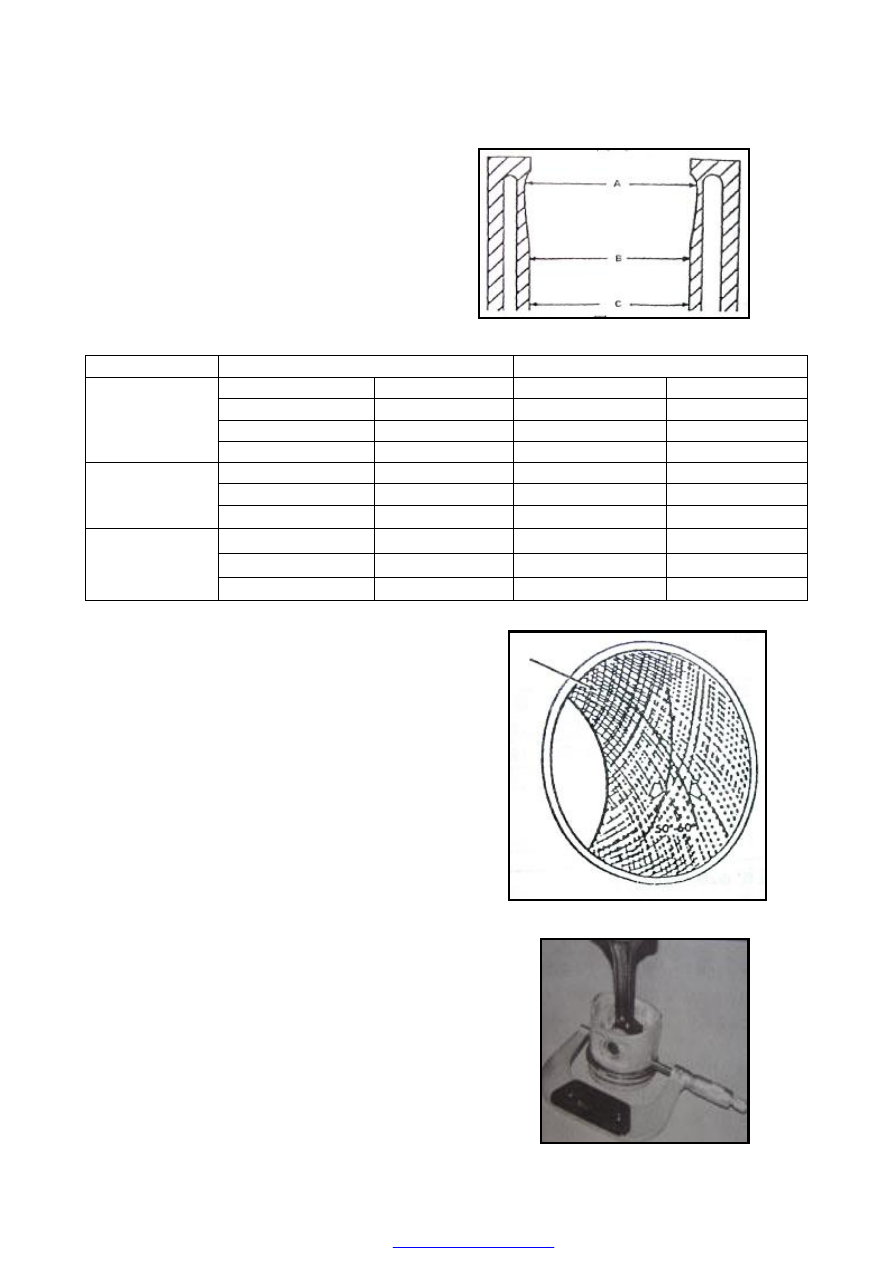

Measure the diameter of the cylinder bore.













480 M cylinder bore (unit: mm)

480 E cylinder bore (unit: mm)

79.94-79.95

79.94-79.95

79.95-79.96

79.95-79.96

79.96-79.97

79.96-79.97

Ex-factory

grouping

79.97-79.98

79.97-79.98

80.23-80.24

80.23-80.24

80.24-80.25

80.24-80.25

Ex-factory

repair

80.25-80.26

80.25-80.26

Standard

79.965-77.975

Standard

79.965-77.975

Oversized by 0.29

0.29

80.245-80.255

Oversized by 0.29

80.245-80.255

For

Maintenance

Oversized by 0.5

80.466-80.475

Oversized by 0.5

80.466-80.475





Grind the cylinder bore according to the size for
maintenance with the grinding angle to be 50°
~60°.




















Measure the piston from the point that is 19mm
away from the bottom of the skirt.
