S150 Bobcat Loader
Operation & Maintenance Manual

90

DIAGNOSTICS SERVICE CODES (CONT’D)

Number Codes List (Cont’d)

CODE

CODE

25-02

Rear auxiliary relief solenoid error ON

32-61

Handle lock short to ground

25-03

Rear auxiliary relief solenoid error OFF

32-62

Handle lock short to battery

32-63

Pedal lock short to ground

26-02

Front base solenoid error ON

32-64

Pedal lock short to battery

26-03

Front base solenoid error OFF

32-65

Sensor supply voltage out of range

32-66

Battery voltage out of range

27-02

Front rod solenoid error ON

32-67

Switch flipped while operating

27-03

Front rod solenoid error OFF

32-68

Lift handle information error

32-69

Control pattern switch flipped while operating

28-02

Diverter solenoid error ON

32-70

Right drive handle short to ground

28-03

Diverter solenoid error OFF

32-71

Right drive handle short to battery

29-02

High flow solenoid error ON

33-23

Main Controller (Bobcat Controller) not
programmed

29-03

High flow solenoid error OFF

34-04

Deluxe panel no communication to Bobcat
controller

30-28

Controller Memory failure

35-02

Two-speed fan error ON

31-28

Interrupted power failure

35-03

Two-speed fan error OFF

32-04

ACS not communicating with Bobcat Controller

36-48

ACD multiple controllers present

32-23

ACS Not calibrated

32-31

Tilt actuator fault

37-02

Two-speed secondary error ON

32-32

Tilt actuator wiring fault

37-03

Two-speed secondary error OFF

32-33

Tilt handle wiring fault

32-34

Tilt actuator not in neutral

32-35

Tilt handle/pedal not in neutral

32-36

Lift actuator fault

32-37

Lift actuator wiring fault

32-38

Lift handle wiring fault

32-39

Lift actuator not in neutral

32-40

Lift handle/pedal not in neutral

32-41

No communication

32-49

Lift actuator short to ground

32-50

Tilt actuator short to ground

32-51

Lift actuator short to battery

32-52

Tilt actuator short to battery

32-53

Lift handle/pedal short to ground

32-54

Tilt handle/pedal short to ground

32-55

Lift handle/pedal short to battery

32-56

Tilt handle/pedal short to battery

32-57

Lift actuator reduced performance

32-58

Tilt actuator reduced performance

32-59

Lift actuator wrong direction

32-60

Tilt actuator wrong direction

S150 Bobcat Loader

91

Operation & Maintenance Manual

DIAGNOSTICS SERVICE CODES (CONT’D)

Number Codes List (Cont’d)

CODE

CODE

38-04

No communication from joystick controller

38-53

Left forward drive solenoid error OFF

38-05

Left joystick X axis not in neutral

38-54

Left reverse drive solenoid error OFF

38-06

Right joystick X axis not in neutral

38-55

Right forward drive solenoid error OFF

38-07

Left joystick Y as not in neutral

38-56

Right reverse drive solenoid error OFF

38-08

Right joystick Y axis not in neutral

38-57

Front right extend steering solenoid error OFF

38-09

Control pattern switch - Short to Battery or Ground

38-58

Front right retract steering solenoid error OFF

38-11

Lift actuator not in neutral

38-59

Front left extend steering solenoid error OFF

38-12

Tilt actuator not in neutral

38-60

Front left retract steering solenoid error OFF

38-13

Lift actuator fault

38-61

Rear right extend steering solenoid error OFF

38-14

Tilt actuator fault

38-62

Rear right retract steering solenoid error OFF

38-15

Right wheel speed fault

38-63

Rear left extend steering solenoid error OFF

38-16

Left wheel speed fault

38-64

Rear left retract steering solenoid error OFF

38-17

Tilt actuator reduced performance

38-65

Steering pressure solenoid error OFF

38-18

Lift actuator reduced performance

38-66

Back-up alarm error OFF

38-19

Left joystick X axis out of range high

38-67

No communication from Bobcat controller

38-20

Right joystick X axis out of range low

38-68

Wheel angles (alignment) not calibrated

38-21

Left joystick Y axis out of range high

38-69

Lift & tilt actuators not calibrated

38-22

Right joystick Y axis out of range high

38-70

Interrupted power

38-23

Front right steering sensor out of range high

38-71

Battery out of range

38-24

Front left steering sensor out of range high

38-72

Drive pump not calibrated

38-25

Rear right steering sensor out of range high

38-73

Steering mode/drive mode switch flipped while
operating

38-26

Rear left steering sensor out of range high

38-74

Uncommanded right wheel speed error ON

38-27

Lift actuator out of range high

38-75

Uncommanded left wheel speed error ON

38-28

Tilt actuator out of range high

38-76

Undercurrent steer pressure solenoid

38-29

Left joystick X axis out of range low

38-77

Undercurrent front right extend steer solenoid

38-30

Right joystick X axis out of range low

38-78

Undercurrent front right retract steer solenoid

38-31

Left joystick Y axis out of range low

38-79

Undercurrent front left extend steer solenoid

38-32

Right joystick Y axis out of range low

38-80

Undercurrent front left retract steer solenoid

38-33

Front right steering sensor out of range low

38-81

Undercurrent rear right extend steer solenoid

38-34

Front left steering sensor out of range low

38-82

Undercurrent rear right retract steer solenoid

38-35

Rear right steering sensor out of range low

38-83

Undercurrent rear left extend steer solenoid

38-36

Rear left steering sensor out of range low

38-84

Undercurrent rear left retract steer solenoid

38-37

5 volt sensor supply 1 out of range low

38-85

5 Volt sensor supply 1 out of range high

38-38

5 volt sensor supply 2 out of range low

38-86

5 Volt sensor supply 2 out of range high

38-39

Lift actuator short to ground/out of range low

38-87

Front right wheel blocked (steering mechanical failure)

38-40

Tilt actuator short to ground/out of range low

38-88

Front left wheel blocked (steering mechanical failure)

38-41

Tilt actuator wrong direction

38-89

Rear right wheel blocked (steering mechanical failure)

38-42

Lift actuator wrong direction

38-90

Rear left steering error

38-43

Left forward drive solenoid error ON

38-91

Right speed sensor missing pulses

38-44

Left reverse drive solenoid error ON

38-92

Left speed sensor missing pulses

38-45

Right forward drive solenoid error ON

38-93

Unresponsive right speed sensor

38-46

Right reverse drive solenoid error ON

38-94

Unresponsive left speed sensor

38-47

Front right steering solenoid error ON

38-98

Controller in drive calibration mode

38-48

Front left steering solenoid error ON

38-99

Controller in wheel position calibration mode.

38-49

Rear right steering solenoid error ON

38-50

Rear left steering solenoid error ON

38-51

Steering pressure solenoid error ON

38-52

Back-up alarm error ON

S150 Bobcat Loader
Operation & Maintenance Manual

92

DIAGNOSTICS SERVICE CODES (CONT’D)

Number Codes List (Cont’d)

CODE

CODE

39-04

Left joystick no communication to Bobcat controller

85-02

ACD output ‘F’ error ON

85-03

ACD output ‘F’ error OFF

40-04

Right joystick no communication to Bobcat
controller

86-02

ACD output ‘G’ error ON

44-02

Horn error ON

86-03

ACD output ‘G’ error OFF

44-03

Horn error OFF

87-02

ACD output ‘H’ error ON

45-02

Right blinker error ON

87-03

ACD output ‘H’ error OFF

45-03

Right blinker error OFF

90-02

Service tool output ‘C’ error ON

46-02

Left blinker error ON

90-03

Service tool output ‘C’ error OFF

46-03

Left blinker error OFF

91-02

Service tool output ‘D’ error ON

47-21

8 volt sensor supply out of range high

91-03

Service tool output ‘D’ error OFF

47-22

8 volt sensor supply out of range low

92-02

Service tool output ‘E’ error ON

48-02

Front light relay error ON

92-03

Service tool output ‘E’ error OFF

48-03

Front light relay error OFF

93-02

Service tool output ‘F’ error ON

49-02

Rear light relay error ON

93-03

Service tool output ‘F’ error OFF

49-03

Rear light relay error OFF

60-21

Rear auxiliary control out of range high

60-22

Rear auxiliary control out of range low

60-23

Rear auxiliary control not returning to neutral

64-02

Switched power relay error ON

64-03

Switched power relay error OFF

74-72

Bobcat controller in boot code

74-73

Left hand panel system RX error

80-02

ACD output ‘A’ error ON

80-03

ACD output ‘A’ error OFF

81-02

ACD output ‘B’ error ON

81-03

ACD output’ B’ error OFF

82-02

ACD output ‘C’ error ON

82-03

ACD output ‘C’ error OFF

83-02

ACD output ‘D’ error ON

83-03

ACD output ‘D’ error OFF

84-02

ACD output ‘E’ error ON

84-03

ACD output ‘E’ error OFF

S150 Bobcat Loader

93

Operation & Maintenance Manual

DELUXE INSTRUMENT PANEL SETUP

Deluxe Panel Upgrade

Icon Identification

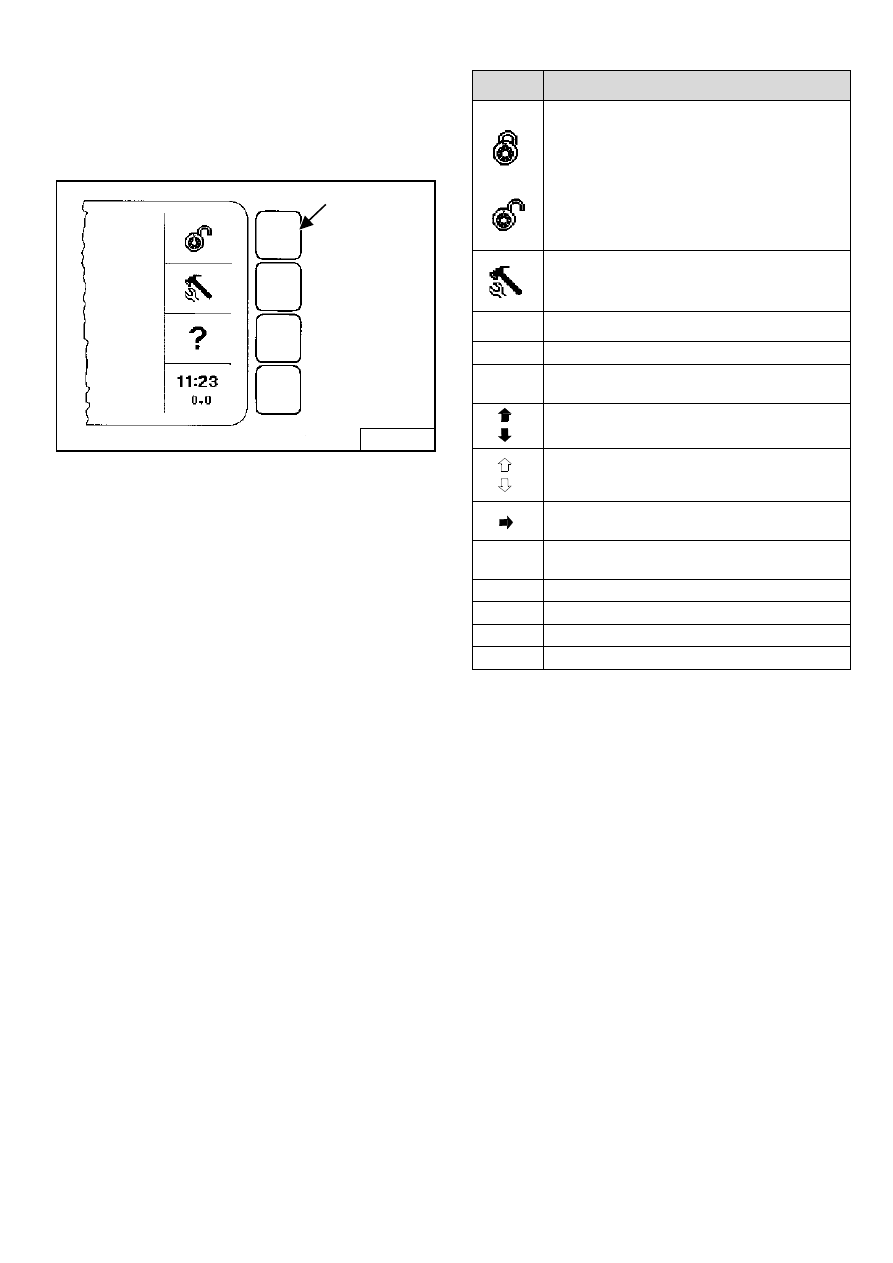

Figure 176

Make selection by pressing SELECTION BUTTON
opposite the Icon [Figure 176].

B-16162

EXAMPLE

SELECTION BUTTON

ICON

DESCRIPTION

LOCK / UNLOCK: Allows machine to be locked/
unlocked. You must lock machine to activate
security system.

When system is unlocked, the user can press
RUN / ENTER then press START to begin
operation.

A valid password will need to be entered at startup
to run a locked machine.

TOOL / SETUP: Access system options.

Use to set clock, check system warnings, select
language, set passwords, etc.

?

HELP: Access help on current menu item.

EXIT

EXIT returns you to previous level menu.

11:23

0.0

CLOCK / JOB CLOCK: Press to clear or lock job
clock; TOOL/SETUP to set time.

UP ARROW: Goes backward one screen.

DOWN ARROW: Goes forward one screen.

OUTLINE ARROWS: No screen available
(backward/forward).

SELECTION ARROW: Use to select menu item.

NEXT

Goes to the NEXT screen in series. EXAMPLE:
the next Active Warning screen.

INFO

Goes to more information about an attachment.

YES / NO Answer yes/no to current setup question.

CLEAR

Removes previously installed password.

SET

Set accepts current installed password.
