Bobcat S150. Manual - part 27
S150 Bobcat Loader
Operation & Maintenance Manual
94
DELUXE INSTRUMENT PANEL SETUP (CONT’D)
Deluxe Panel Setup
Display Options
Figure 177
All new machines with Deluxe Instrumentation arrive at
Bobcat Dealerships with the panel in locked mode. This
means that a password must be used to start the engine
[Figure 177].
Passwords (Deluxe)
For security purposes, your dealer may change the
password and also set it in the locked mode. Your
dealer will provide you with the password.
Owner Password:
Allows for full use of the loader and to setup the
Deluxe Panel. Owner can select a password to allow
starting & operating the loader and modify the setup
of the Deluxe Panel. Owner should change the
password as soon as possible for security of the
loader.
User Password:
Allows starting and operating the loader; cannot
change password or any of the other setup features.

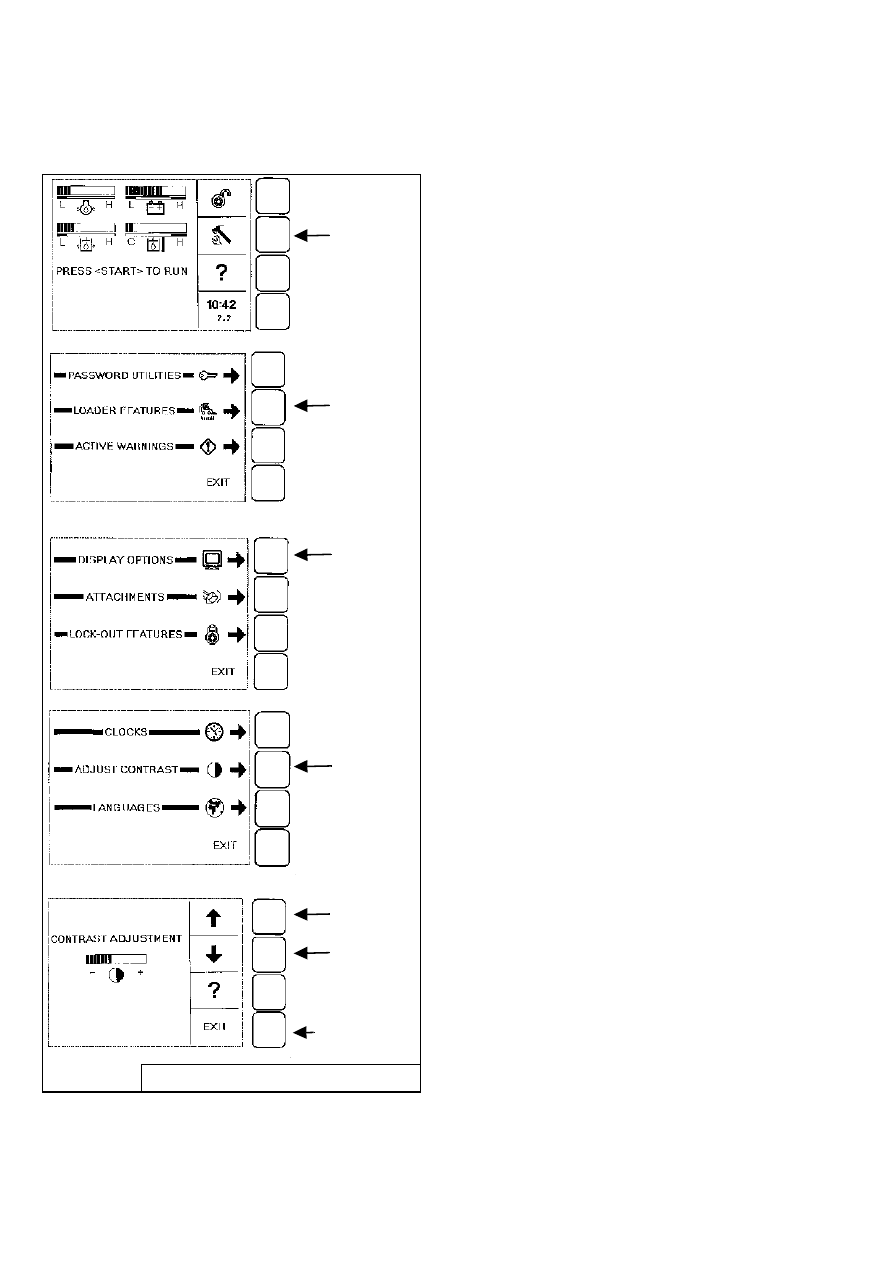

DISPLAY
TOOL/SETUP
Press
Press
LOADER
Press
ADJUST
Press
UP OR DOWN
Press
Arrow to
change contrast.
Press EXIT to
return to
previous level
menu.
B-16163 / B16164 / B-16161 / B-16166 / B-16167
FEATURES
OPTIONS
CONTRAST
