Bobcat S150. Manual - part 10

S150 Bobcat Loader

Operation & Maintenance Manual

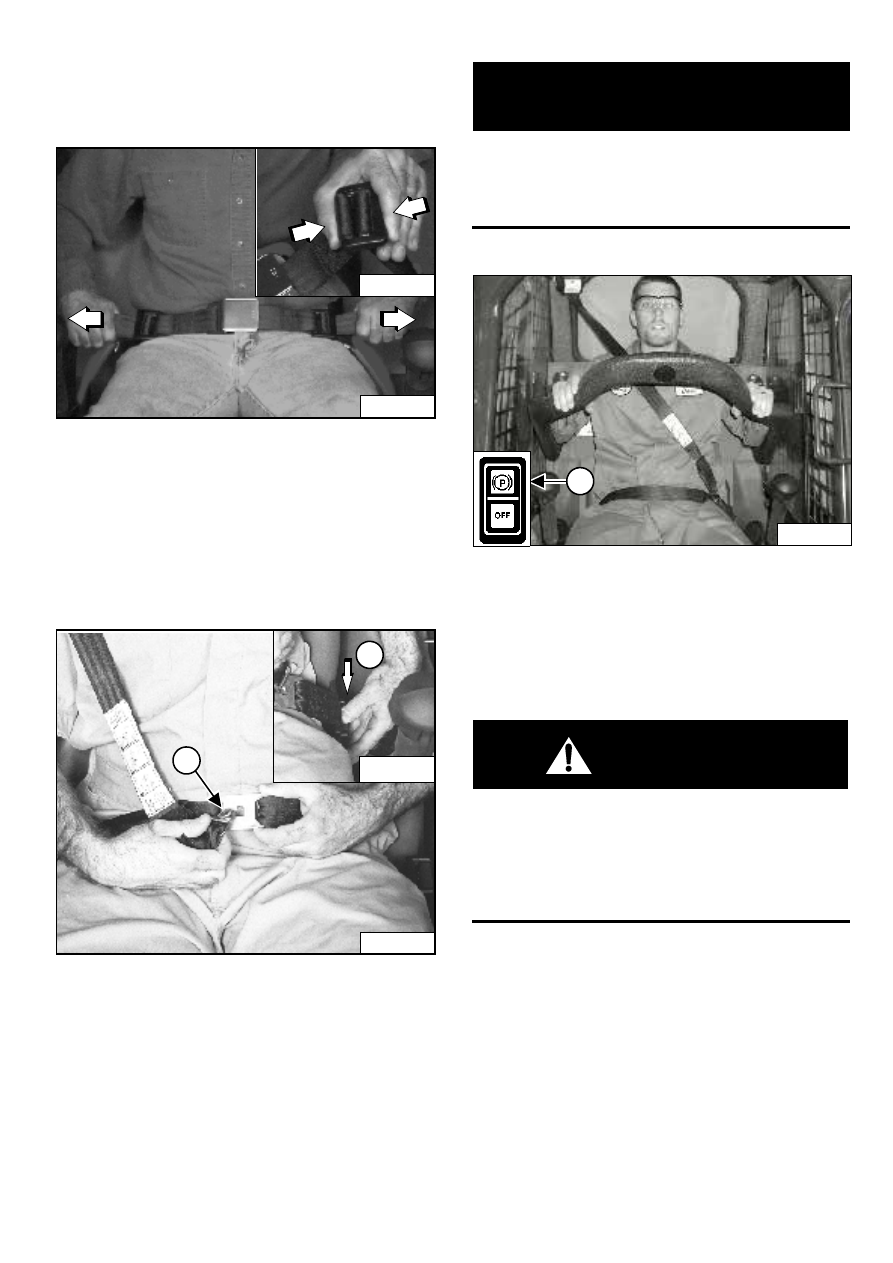

PRE-STARTING PROCEDURE (CONT’D)

Before Starting The Engine (Cont’d)

Figure 46

Squeeze both seat belt adjusters to release and lengthen
each half of the seat belt [Figure 46].

Fasten the seat belt.

Pull the ends of the belt through the belt adjusters so that
the seat belt is snug and the buckle is centered between
your hips [Figure 46].

Figure 47

3-Point Restraint - (Option) Connect the shoulder belt to
the lap belt (1) [Figure 47]. Pull the lap belt across to the
left side of the seat (2) [Figure 47] and fasten.

The shoulder belt must be positioned over your right
shoulder and lap belt over your lower hips [Figure 47].

IMPORTANT

Check the seat belt and shoulder belt retractors for
correct operation.

Keep retractors clean and replace as necessary.

I-2199-0400

Figure 48

Lower the seat bar and engage the parking brake (1)
[Figure 48].

Put the foot pedals or hand controls in neutral position.

NOTE: Keep your hands on the steering levers and

your feet on the foot pedals (or footrests)
while operating the loader.

WARNING

AVOID INJURY OR DEATH

When operating the machine:
•

Keep the seat belt fastened snugly.

•

The seat bar must be lowered.

•

Keep your feet on the pedal controls or footrests
and hands on steering levers.

W-2261-0799

P-16038

P-16041

N-21773

P-45114

S150 Bobcat Loader
Operation & Maintenance Manual

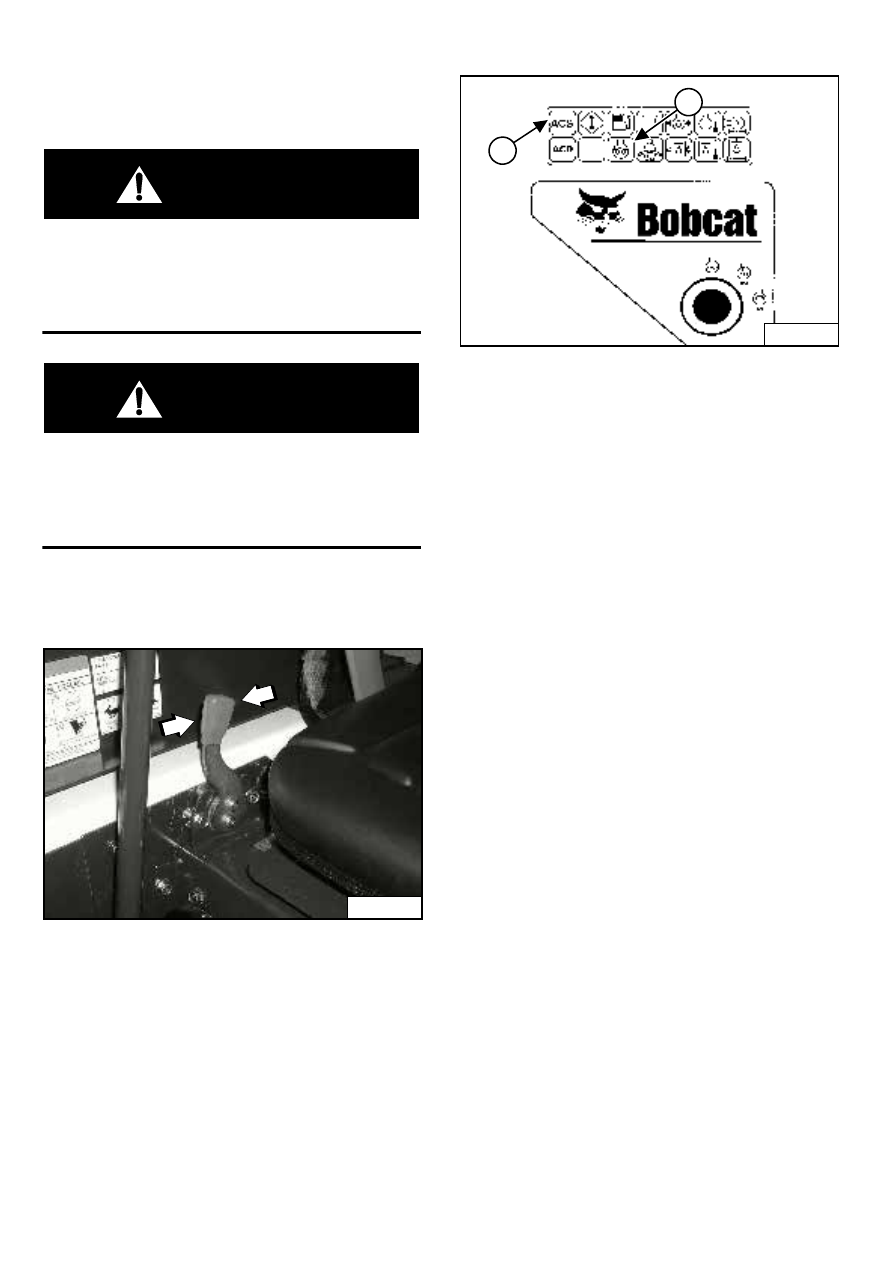

STARTING THE ENGINE (STANDARD PANEL, KEY
SWITCH)

Procedure

WARNING

When an engine is running in an enclosed area, fresh
air must be added to avoid concentration of exhaust
fumes. If the engine is stationary, vent the exhaust
outside. Exhaust fumes contain odorless, invisible
gases which can kill without warning.

W-2050-1285

WARNING

AVOID INJURY OR DEATH

•

Engines can have hot parts and hot exhaust gas.
Keep flammable material away.

•

Do not use machines in atmosphere containing
explosive gas.

W-2051-1086

Perform the PRE-STARTING PROCEDURE. (See PRE-
STARTING PROCEDURES on Page 22.)

Figure 49

Set the engine speed control to the 1/2 speed position
[Figure 49].

Figure 50

Turn the key switch to RUN [Figure 50]. The indicator
lights on the right instrument panel [Figure 50] will come
ON briefly and the Instrument Panel/monitoring system
will do a self test.

If the temperature is cold, the intake air heater will
automatically cycle. The Icon light (1) [Figure 50] will be
ON and the cycle time remaining will show in the hour
meter.

When the Icon light goes OFF, turn the key switch to
START [Figure 50].

NOTE: Make sure both hand controls (ACS) or

Joysticks (SJC) are in the neutral position
before starting the engine. Do not move the
levers or joysticks from the neutral position
when turning the key to RUN or START
[Figure 50].

If controls are moved:

The neutral position for the hydraulic valve

spool and hand control may not be correctly
calibrated. This can result in slight movement of
the lift or tilt hydraulic cylinders when the hand
control lever is returned to the neutral position
after start-up.

ACS indicator light (2) [Figure 50] on right

instrument panel will be ON.

If either condition occurs, return key to STOP. Put
the controls in neutral position and re-start engine.

Release the key when the engine starts. It will return to
the RUN position.

P-31864

B-15552B

S150 Bobcat Loader

Operation & Maintenance Manual

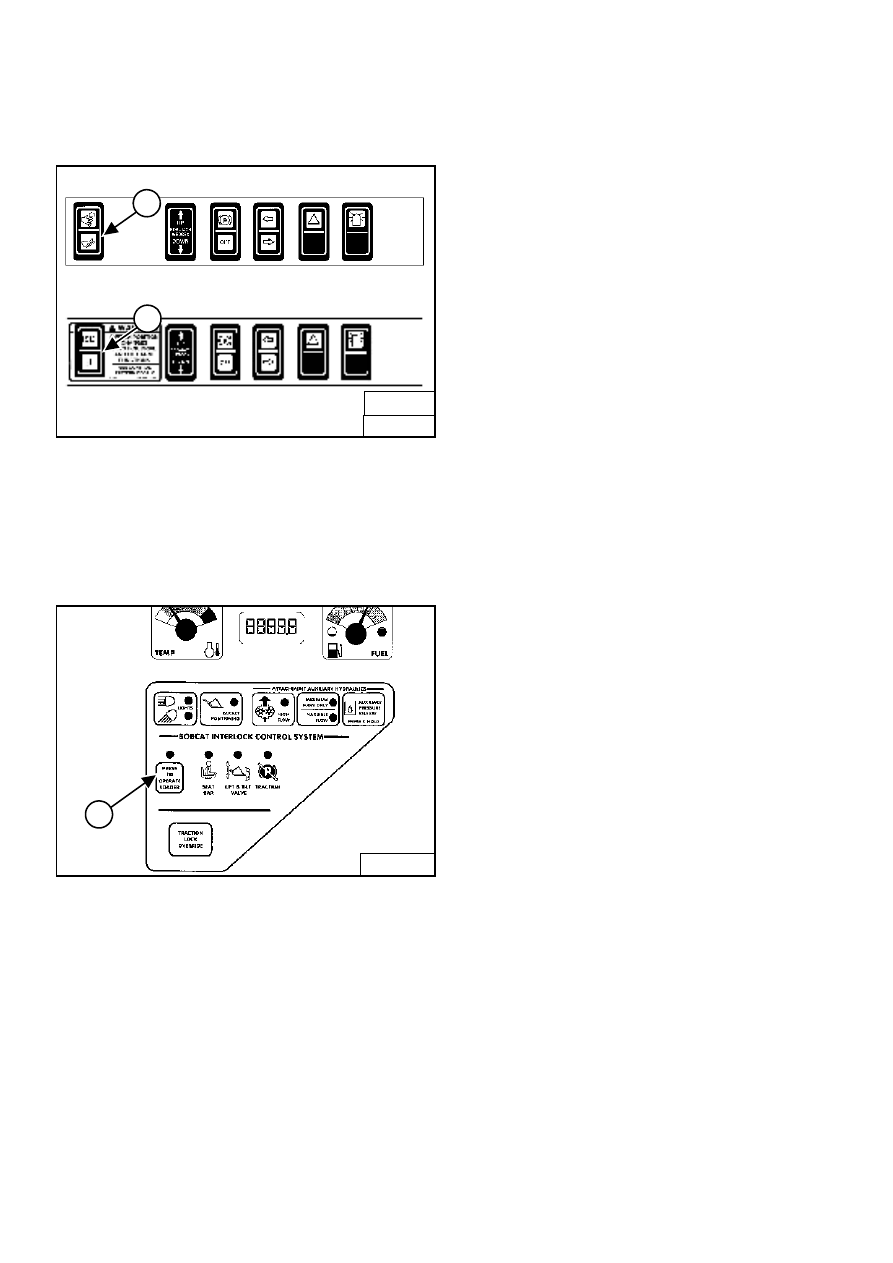

STARTING THE ENGINE (STD. PANEL, KEY SWITCH)
(CONT’D)

Procedure (Cont’d)

Figure 51

(ACS) Select hand control or foot pedal operation (1)
[Figure 51].

(SJC) Select ‘ISO’ or ‘H’ Control Pattern (2) [Figure 51].

Figure 52

Press the PRESS TO OPERATE LOADER Button (1)
[Figure 52] to activate the BICS™ system and to perform
hydraulic and loader functions. (See Cold Temperature
Starting on Page 27.)

NOTE: (SJC) The pending mode will flash which will

indicate PRESS TO OPERATE LOADER is
required. The light will flash when key is ON
and continue to flash until the PRESS TO
OPERATE LOADER button is pressed and
thereafter it will light solid. If the mode (ISO/H)
is changed while driving, the active mode will
be solid and the pending mode will flash.
When operation of the machine is returned to
neutral, the active mode will then turn off and
the pending mode will continue to flash until
the PRESS TO OPERATE LOADER button is
pressed.

B-15993B

SJC

B-15993H

FRONT ACCESSORY PANEL

ACS

B-15551

S150 Bobcat Loader
Operation & Maintenance Manual

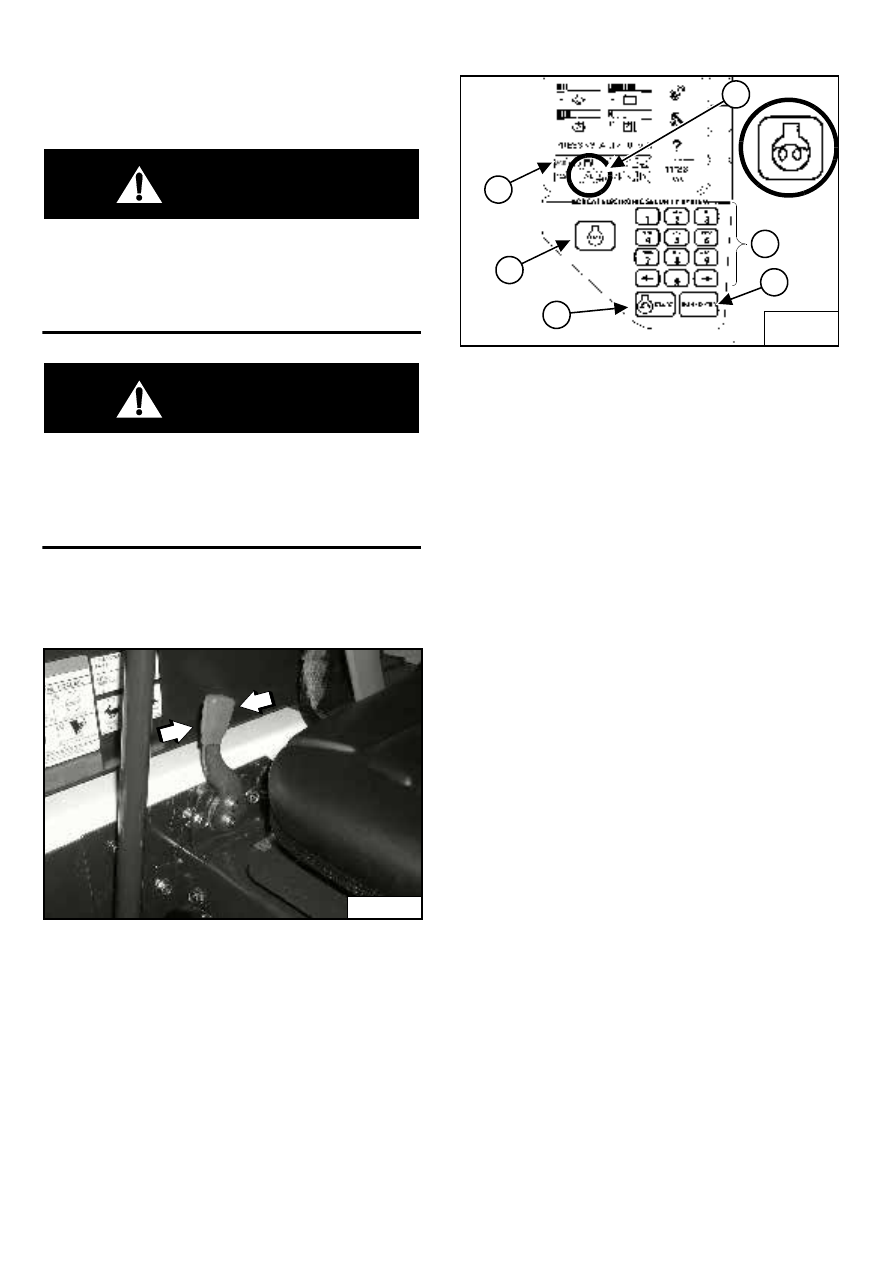

STARTING THE ENGINE (DELUXE PANEL, KEYLESS
START)

Procedure

WARNING

W-2050-1285

WARNING

AVOID INJURY OR DEATH

•

Engines can have hot parts and hot exhaust gas.
Keep flammable material away.

•

Do not use machines in atmosphere containing
explosive gas.

W-2051-1086

Perform the PRE-STARTING PROCEDURE. (See PRE-
STARTING PROCEDURES on Page 22.)

Figure 53

Set the engine speed control at the 1/2 speed position
[Figure 53].

NOTE: Loaders with Deluxe Instrument Panel have a

permanent, randomly generated Master
Password set at the factory. Your loader will
be assigned an Owner Password. Your dealer
will provide you with this password. Change
the password to one that you will easily
remember to prevent unauthorized use of
your loader. (See Passwords (Deluxe) on
Page 94.) Keep your password in a safe place
for future needs.

Figure 54

Use the numeric keypad (1) [Figure 54] to enter the
password, then press the RUN / ENTER Button (2)
[Figure 54].

If the temperature is cold, the intake air heater will
automatically cycle and the Icon (3) [Figure 54] will be
ON.

When the Icon light goes OFF, press the START
Button (4) [Figure 54]. Release the button when the
engine starts.

NOTE: Make sure both hand controls (ACS) or

Joysticks (SJC) are in the neutral position
before starting the engine. Do not move the
levers or joysticks from the neutral position
before attempting to start the engine.

If controls are moved:

a. The neutral position for the hydraulic valve
spool and hand control may not be correctly
calibrated. This can result in slight movement of
the lift or tilt hydraulic cylinders when the hand
control lever is returned to the neutral position
after start-up.

b. ACS indicator light (5) [Figure 54] on right
instrument panel will be ON.

If either condition occurs, return key to STOP. Put
the controls in neutral position and re-start engine.

P-31864

B-15553B

B-22153
