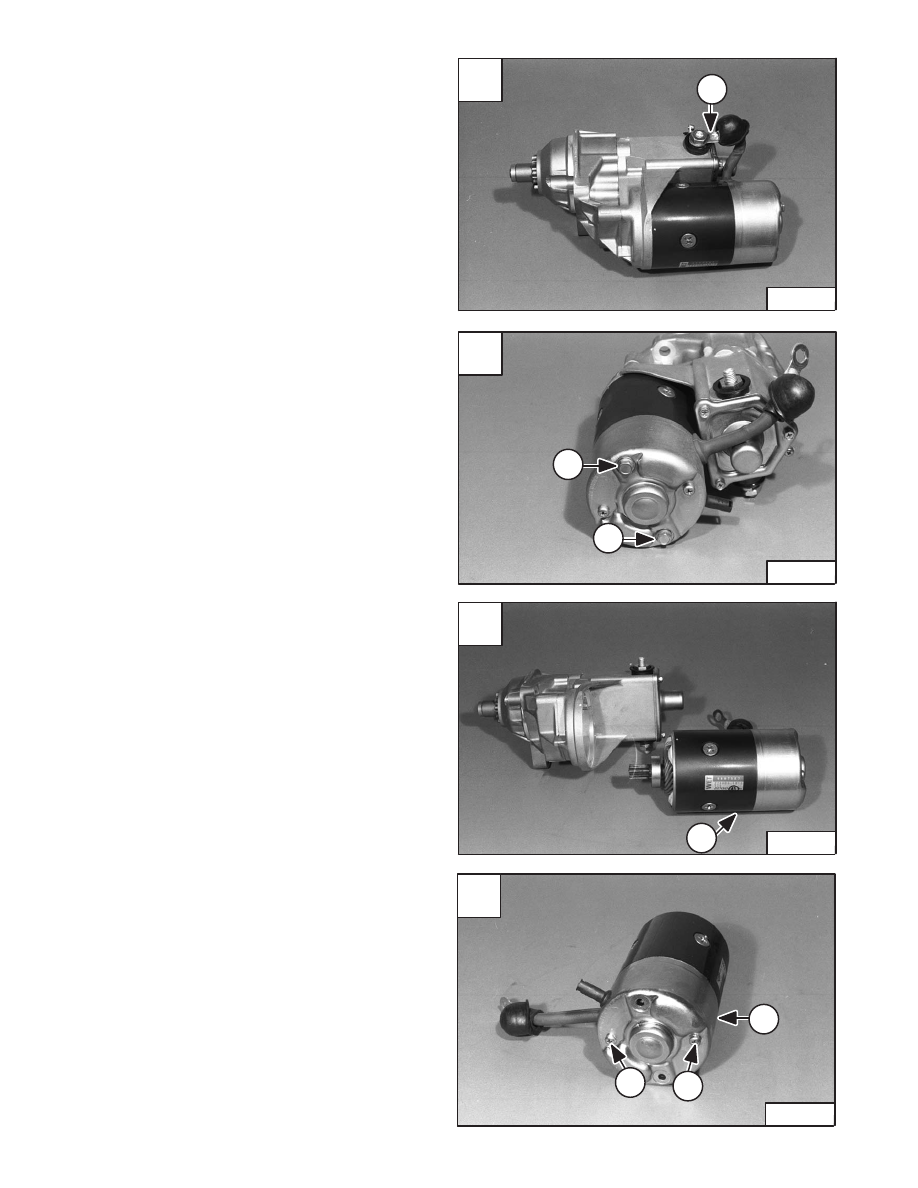

STARTER (DENSO) (Cont’d)

Disassembly

Remove the cable (Item 1) [A] from the magnetic switch.

Remove the bolts (Item 1) [B].

Remove the frame (Item 1) [C] from the magnetic switch.

Remove the bolts (Item 1) [D] from the brush cover (Item
2) [D].

Remove the cover (Item 2) [D].

A

N–15158

1

C

N–15160

1

D

N–15161

1

1

2

–6–20–

773 BICS Loader

Service Manual

B

N–15159

1

1

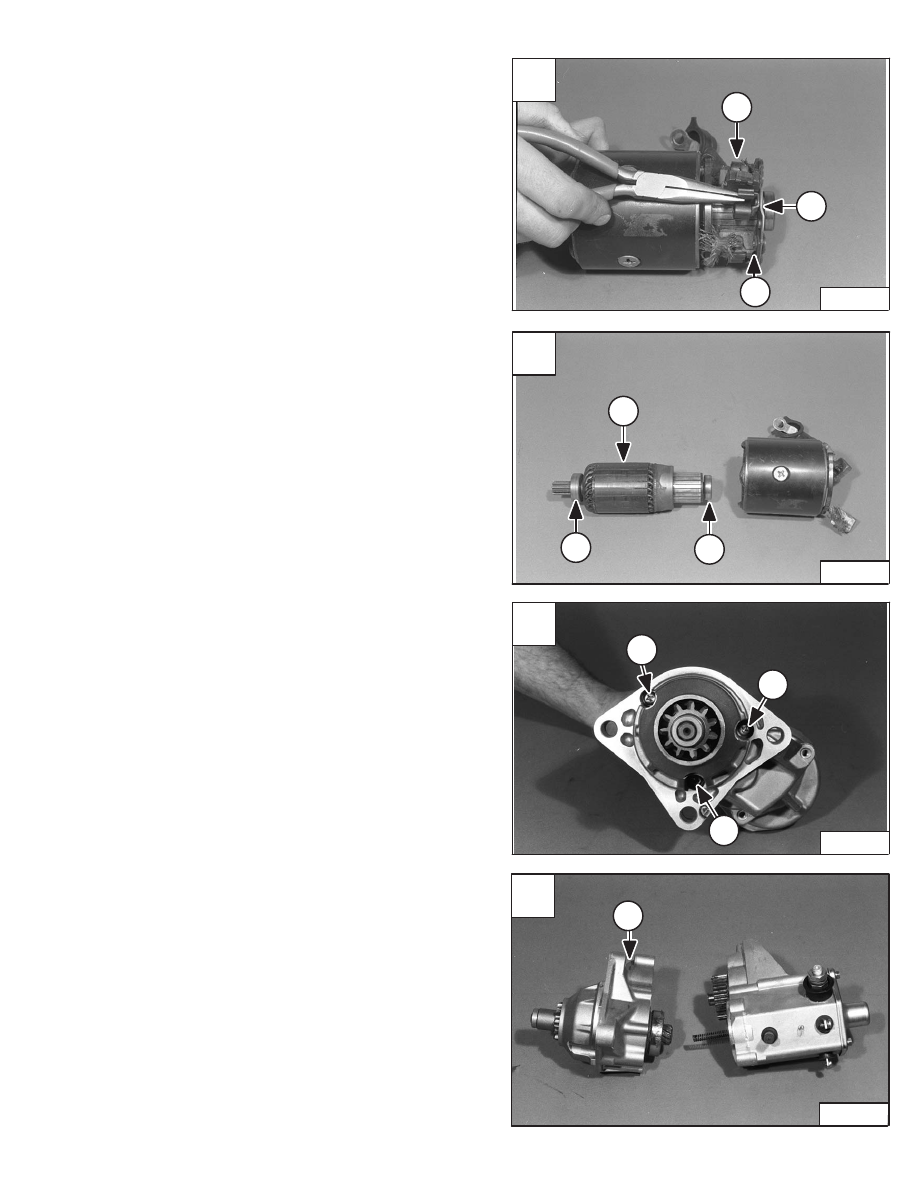

STARTER (DENSO) (Cont’d)

Disassembly (Cont’d)

Using a needle nose pliers, pull the brush springs (Item
1) [A] back and remove the brushes (Item 2) [A].

NOTE: The brushes are non–replaceable. If the

brushes are worn order a new brush holder
(for the negative brushes) and yolk (for the
positive brushes).

Remove the brush holder (Item 3) [A] from the end of the
armature.

Remove the armature (Item 1) [B] from the frame.

Remove the bearings (Item 2) [B] from both ends of the
armature.

Remove the bolts (Item 1) [C] from the starter housing.

Remove the starter housing (Item 1) [D] from the
magnetic switch.

A

N–00980

2

1

3

C

N–15162

1

1

1

D

N–15163

1

773 BICS Loader

–6–21–

Service Manual

B

N–00981

1

2

2

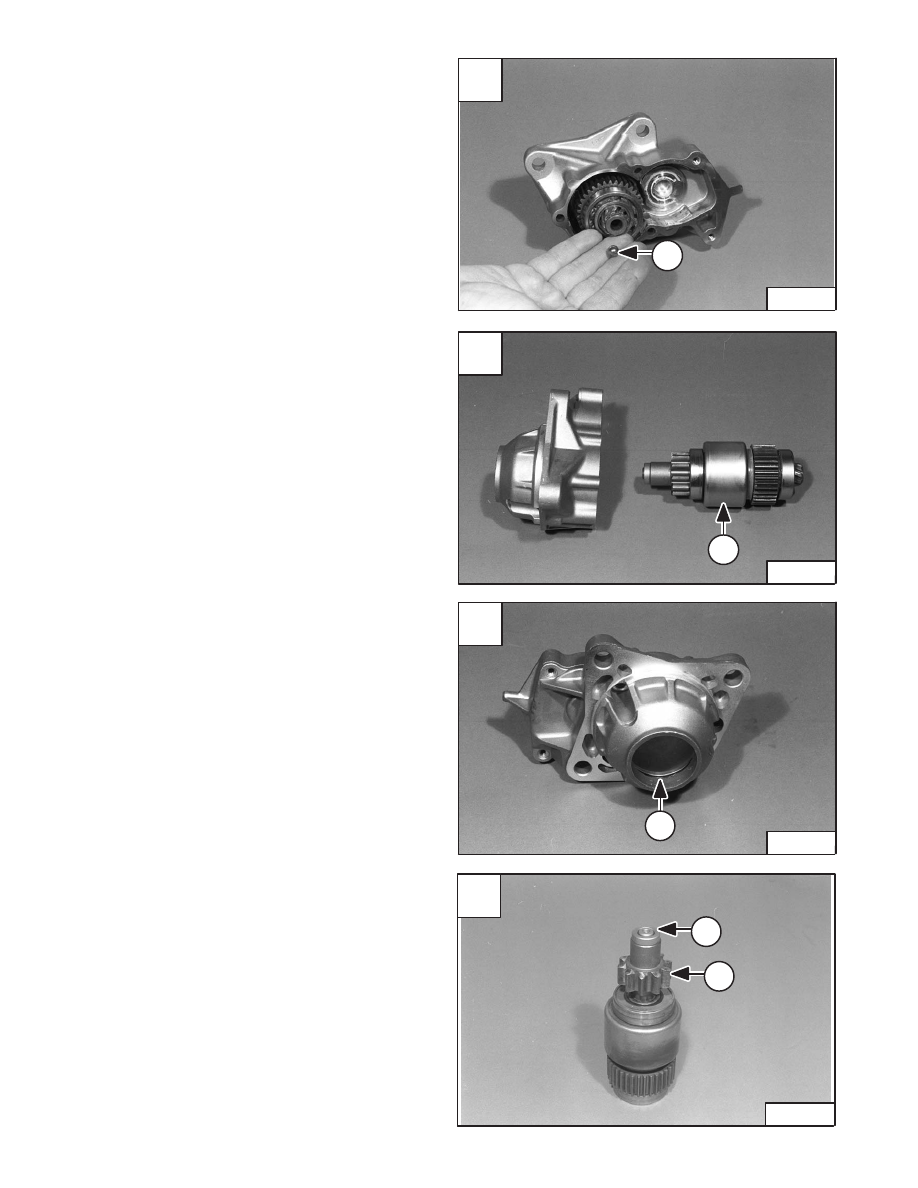

STARTER (DENSO) (Cont’d)

Disassembly (Cont’d)

Remove the ball (Item 1) [A] from the pinion shaft.

Tap the starter pinion/clutch assembly (Item 1) [B] out of
the starter housing.

Remove the O–ring (Item 1) [C].

Press down on the pinion (Item 1) [D] and retainer (Item
2) [D].

A

N–15164

1

C

N–15166

1

D

N–00987

2

1

–6–22–

773 BICS Loader

Service Manual

B

N–15165

1

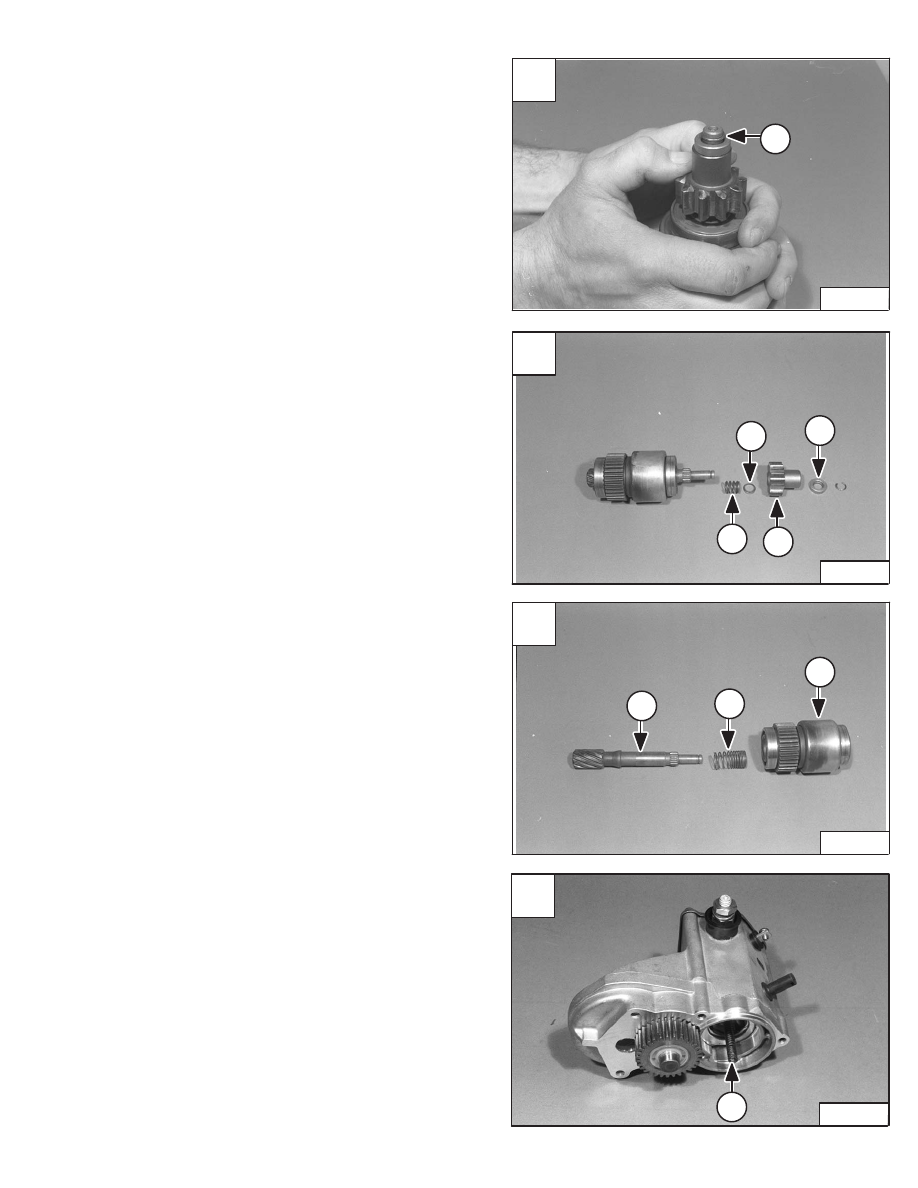

STARTER (DENSO) (Cont’d)

Disassembly (Cont’d)

Remove the snap ring (Item 1) [A].

Remove the retainer (Item 1) [B] and pinion (Item 2) [B].

Remove the spring seat (Item 3) [B] and spring (Item 4)
[B].

Remove the pinion shaft (Item 1) [C] and spring (Item 2)
[C] from the over running clutch (Item 3) [C].

Remove the spring (Item 1) [D] from the magnetic switch
housing.

A

N–15011

1

C

N–00989

1

2

3

D

N–15167

1

773 BICS Loader

–6–23–

Service Manual

B

N–00988

1

3

2

4
