STARTER (DELCO REMY) (Cont’d)

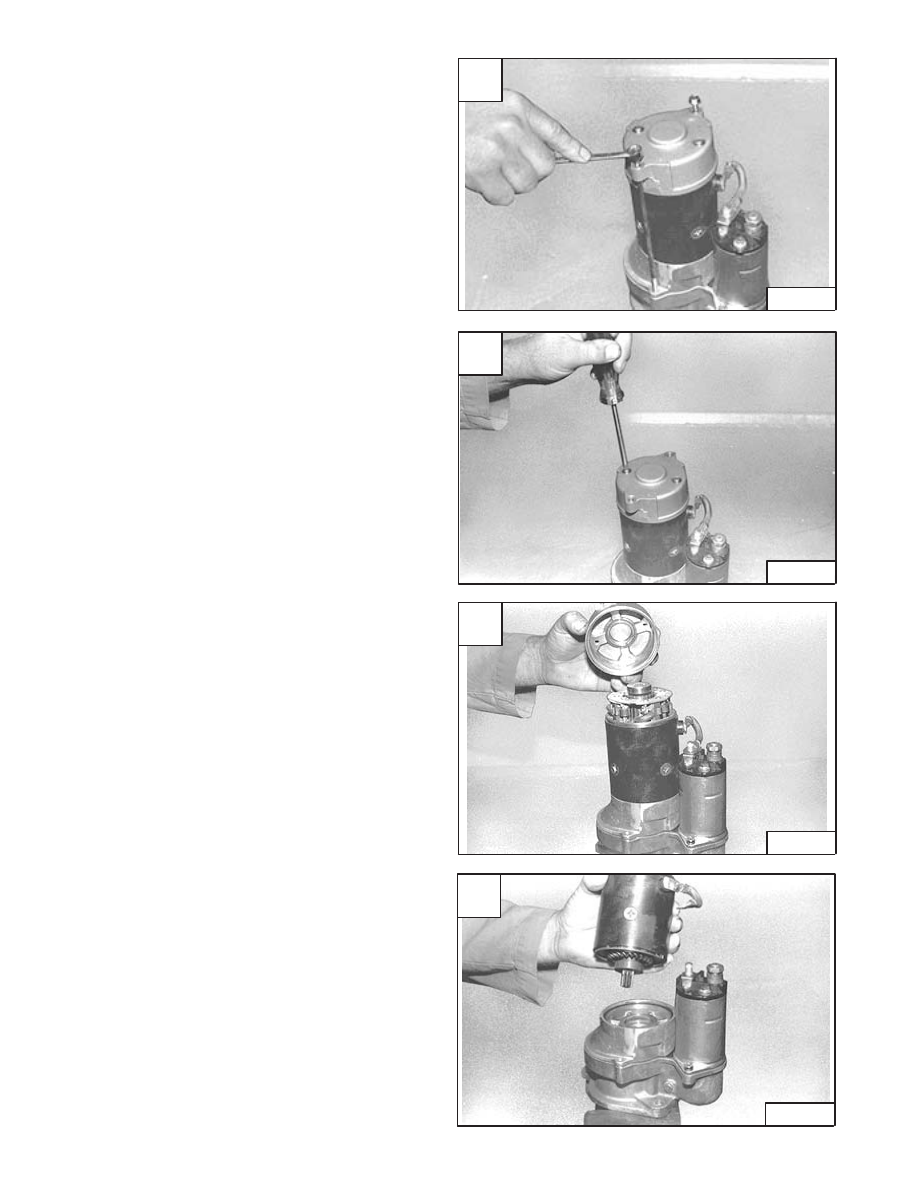

Disassembly and Assembly

Remove the starter thru–bolts [A].

Remove the bolts for the brush holders [B].

Remove the starter end cap [C].

Remove the starter housing/armature assembly from the
reduction gear drive [D].

A

CD–08924

C

CD–08926

D

CD–08927

–6–16–

773 BICS Loader

Service Manual

B

CD–08925

STARTER (DELCO REMY) (Cont’d)

Disassembly and Assembly (Cont’d)

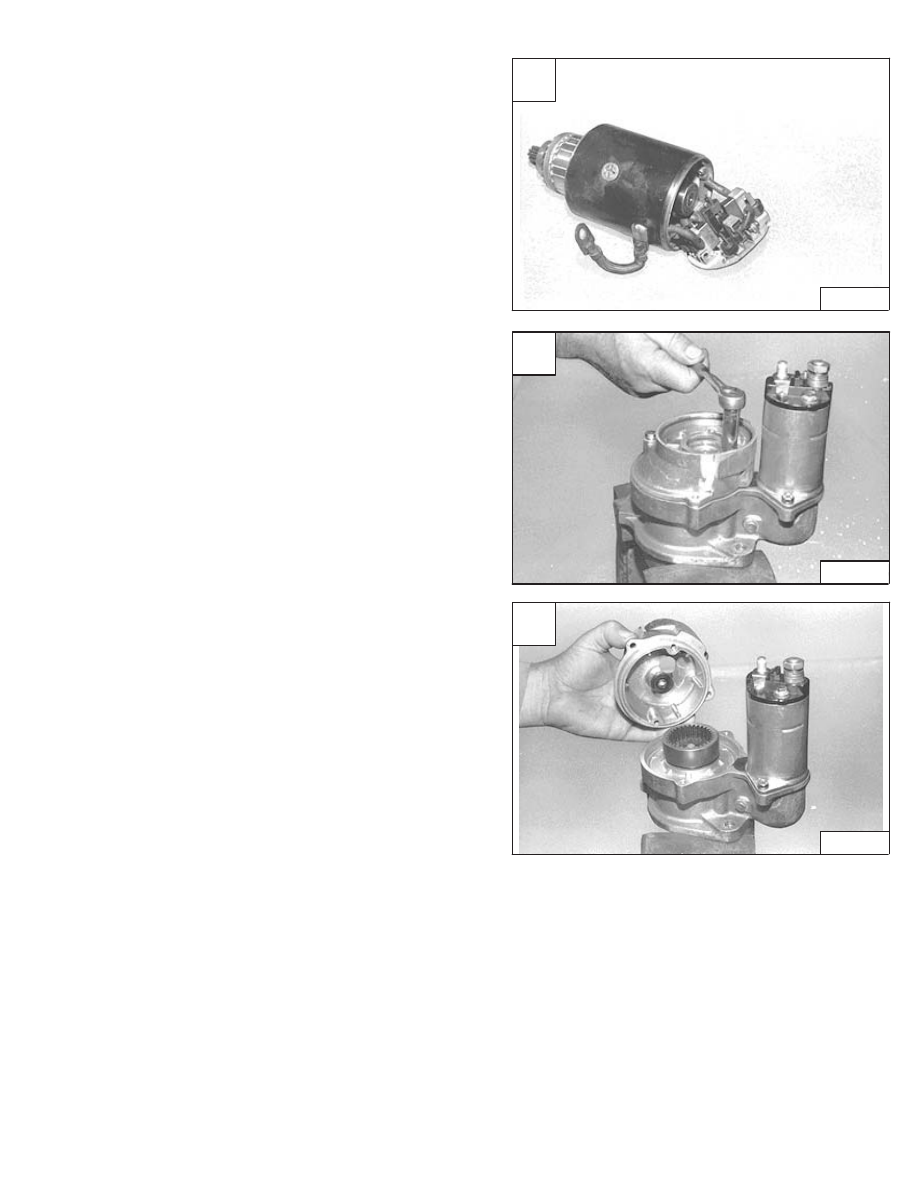

Remove the armature and brushes from the starter
housing [A].

Remove the bolts from the reduction gear housing [B].

Remove the reduction gear housing [C].

A

CD–08928

C

CD–08930

773 BICS Loader

–6–17–

Service Manual

B

CD–08929

STARTER (DELCO REMY) (Cont’d)

Cleaning and Inspection

Use a brush and air pressure to clean the drive, field coils,
armature and starter housing.

NOTE: DO NOT use solvent to clean the drive

assembly. The solvent will remove the
lubricant and the drive will slip.

Check the following items:

Armature

Broken or burned insulation
Loose connections at commutator

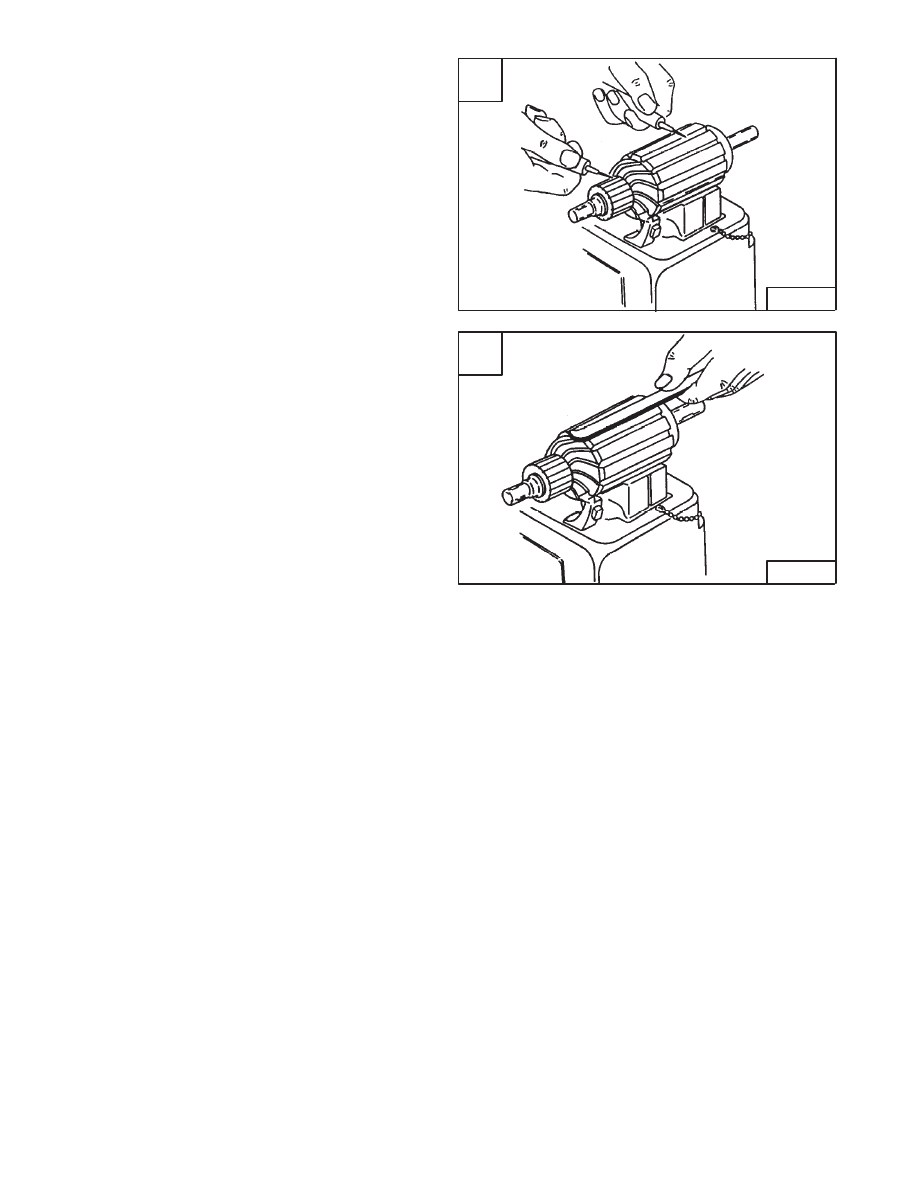

Open or grounded circuits [A] & [B]
Worn shaft or bearings
Rough commutator

Brush Holders

Broken springs
Broken insulation
Spring tension

Field Coils

Broken or burned insulation
Electrical continuity
Brush connections

Drive Gears

Worn teeth
Tooth engagement

A

A–01995

–6–18–

773 BICS Loader

Service Manual

B

A–01994

D–02297

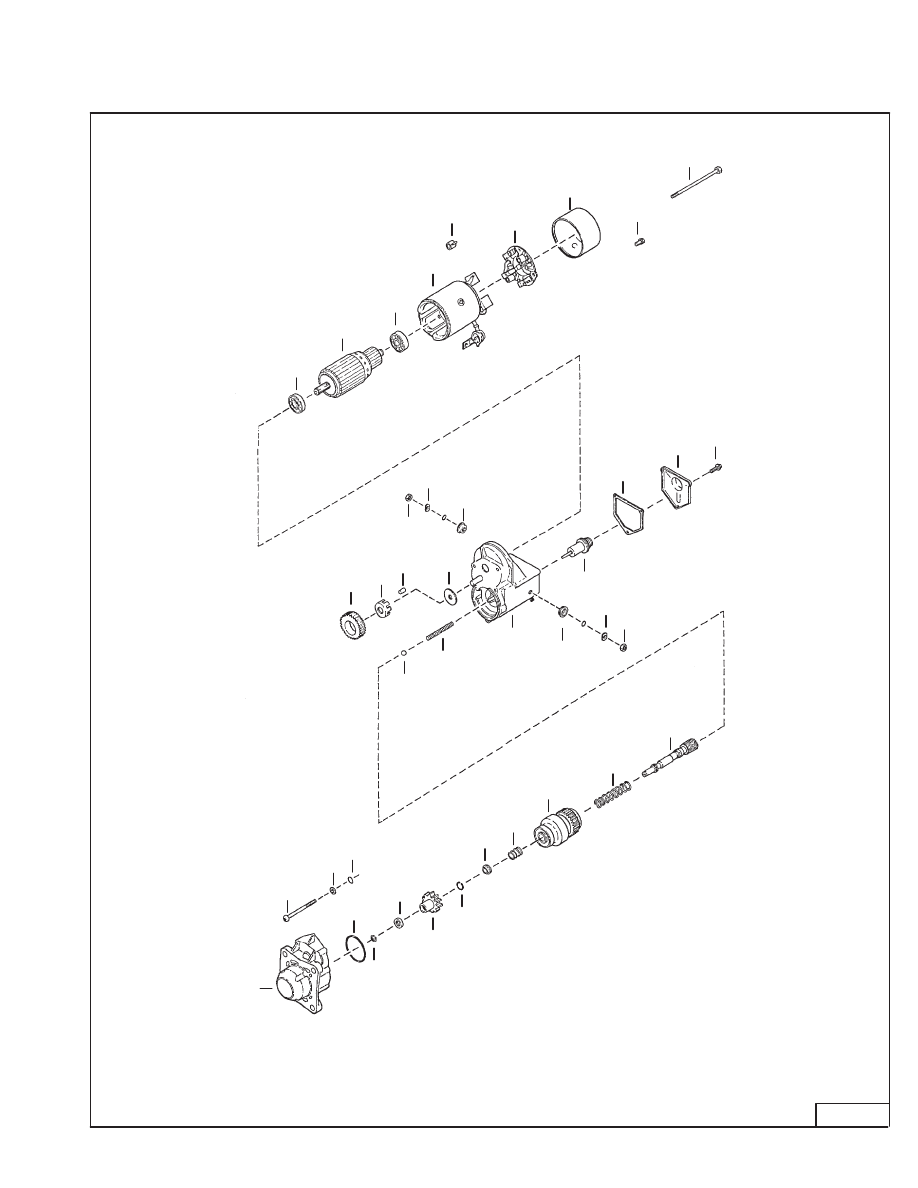

STARTER (DENSO)

Parts Identification

  1.

Bearing

  2.

Armature

  3.

Bearing

  4.

Frame

  5.

Brush Spring

  6.

Brush Holder

  7.

Cover

  8.

Bolt

  9.

Bolt

10.

Bolt

11.

Cover

12.

Gasket

13.

Switch

14.

Nut

15.

Washer

16.

Nut

17.

Washer

18.

Roller

19.

Retainer

20.

Idler Gear

21.

Ball

22.

Spring

23.

Housing

24.

Screw

25.

Washer

26.

O–ring

27.

Housing

28.

O–ring

29.

Snap Ring

30.

Collar

31.

Pinion Gear

32.

Spring Seat

33.

Spring

34.

Clutch

35.

Spring

36.

Pinion Shaft

1

2

3

4

5

6

7

8

9

20

19

18

15

16

14

17

12

11

10

13

15

16

36

35

23

14

22

21

34

33

32

30

28

26

25

24

29

31

29

27

773 BICS Loader

–6–19–

Service Manual
