MP3 basics - ID3 tag

The ID3 tag is a field containing additional information which can be attached to MP3 audio files. ID3 stands
for "Identify an MP3".
MP3 files can, but need not necessarily, contain ID3 tags.

An ID3 tag contains information on the selected
MP3 file. The main contents of the ID3 tag are the
name of the artist, the name of the album as well as
the name of the track. The ID3 tag is an integral part
of the MP3 file. The ID3 tag can be used to call up
details of the track title, even on compact MP3
player displays.

The ID3 tag can be generated and edited on the PC
using standard MP3 converters and player software.

The ID3 tag version can be read out as illustrated,
e.g. using Apple iTunes, the PC software for the
Apple iPod.

Note

There exist various versions of the ID3 tag. To find out which versions support the drive, please
refer to the instruction manual for the Audi MP3 drive. Only then is it possible to show
information on the system display.

Title name

Artist

Album

ID3 tag version

Storage location on PC

Summary

Left Outside alone

Feedback

Options

Lyrics

Left Outside alone (4:17)
Anastacia
Anastacia

Type:

Size:

Bitrate:

Sampling rate:

Modified on:

Count:

Last played:

MPEG audio file
5.9 MB
187 Kbits/s (VBR)
44,100 kHz
25.04.2006 14:55
0
Not available

Type:

Channels:

ID3 tag:

Coded with:

MPEG-1, Layer 3
Stereo (Joint)
v2.3
LAME3.96

Back

Cancel

382_043

Location: E:\MyMusic\Anastacia\Anastacia

Infotainment

Audi Navigation (BNS 5.0)

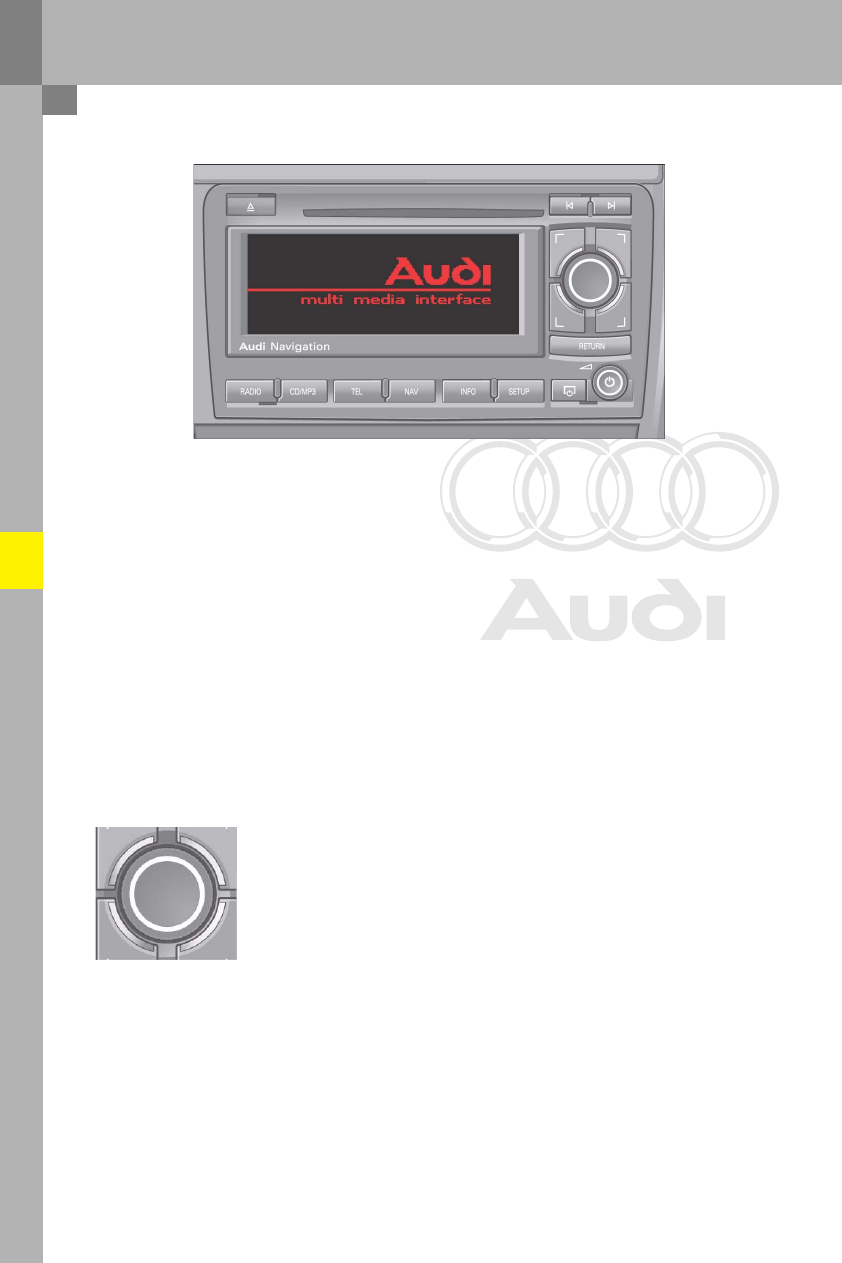

When model year 2007 is launched, the BNS 5.0 navigation system in the Audi A3, A4, TT will replace the
current BNS 4.1 navigation system.

The system combines the concept of the Navigation System Plus (RNS-E) with the display of the MMI basic
system. Unlike the Navigation plus system, the BNS 5.0 navigation system features CD navigation and
a monochrome screen but no SD/MMC card reader.

For the first time, it is possible to navigate even with the navigation CD removed, which means that the drive
can also be used to play audio CDs.

Specifications

Control

–

6 inch monochrome display with MMI basic display

–

MMI operating logic as well as 6 function keys

–

Control via optional integrated multifunction steering wheel

–

Route indication by means of directional arrows on driver information display

–

Display and voice output in 9 different languages

–

The desired language (German, English, French, Italian, Dutch, Portuguese,
Swedish, Spanish and Czech) can be copied from the navigation CD to the
system and converted, depending on the selection made in the language
menu.

382_048

Navigation

–

CD navigation with voice output and route display on the dash panel insert.
In total, 10 different navigation CDs are available for Europe.
The navigation CDs of the predecessor system cannot be used.
All CDs contain all major routes in Europe (Major Routes of Europe). The map
data for the navigation CD is supplied by Teleatlas.

–

Dynamic navigation with TMC

–

The navigation CD can be removed after the route has been generated. This
means that it is possible to navigate and simultaneously use the CD drive to
play back audio CDs or MP3 CDs.

–

Destination input by location, post code, POIs or longitude and latitude

–

Routes with up to 6 waypoints can be generated

–

Route memory

–

Country CDs are available for the following countries (where digitised): Alps,
Benelux, Germany, France, United Kingdom/Ireland, Italy, Spain/Portugal,
Scandinavia/Finland.

Radio

–

Dual FM tuner with switched diversity for optimum reception, as well as
simultaneous dynamic station list updating and TMC reception

–

AM tuner for medium wave and long wave

Internal and external drives

–

Internal CD drive, MP3 compatible

–

Control of an optional auxiliary 6-disc CD changer or an optional auxiliary iPod
adaptor

–

No connectivity for additional auxiliary source (AUX).

Note

In the case of the BNS 5.0 navigation system, only the internal CD drive is MP3 compatible.
The optional auxiliary CD changer cannot play MP3 CDs. Audi TT Coupé ’07 comes with the CD
changer system previously featured in the Audi A3 8P and Audi A4 8E.

Infotainment

Telephone

–

Operation of the optional factory-fitted mobile phone adapter with navigation
system speller

–

Mute function for handsfree telephone: If the mobile phone adapter is
factory-fitted, muting is via the infotainment CAN bus. A direct wiring plug
contact is provided for retrofit solutions. Retrofit solutions cannot be
operated with the navigation system.

–

LF input for handsfree telephone: when the radio is switched on, the vehicle
loudspeakers are used as loudspeakers for the handsfree telephone.

Sound

–

Integrated 2 x 20 W amplifier

–

Auxiliary sound amplifier connected

–

Connectivity for optional auxiliary BOSE sound amplifier

–

Speed-dependent volume control (GALA) via infotainment CAN bus

–

Basic sound setting via body version coding (A4 saloon/Avant/Cabrio, A3, TT).

Service

–

Comfort coding: after the power supply to the radio has been disconnected, it
is not necessary to enter the 4-digit PIN if the radio is restored to operation in
the same vehicle.

–

Diagnosis via CAN bus (TT, A3 8P) or L-wire (A4 8E). The scope of diagnosis
(data blocks, adaption, coding, etc.) is basically the same as for diagnosis of
the Navigation plus system (RNS-E).

–

The system software can be updated as required with a flash CD.

Technical variants

In addition to the Audi TT Coupé ‘07, the navigation system will in future also be used in other Audi models
equipped with the infotainment CAN bus. The necessary adjustments are basically the shape of the front trim
panel, the CAN communication and the diagnosis path (CAN, L-wire, etc.)
