Parking aid control unit J446

Introduction

The Audi TT Coupé ´07 is equipped for the first time with an acoustic parking system with ultrasonic sensors
as featured previously in other Audi models. A 4-channel rear acoustic parking system is available as optional
equipment.
The term "4-channel rear acoustic parking system" means that 4 acoustic parking sensors which monitor the
area behind the vehicle are integrated in the rear bumper cover.

382_002

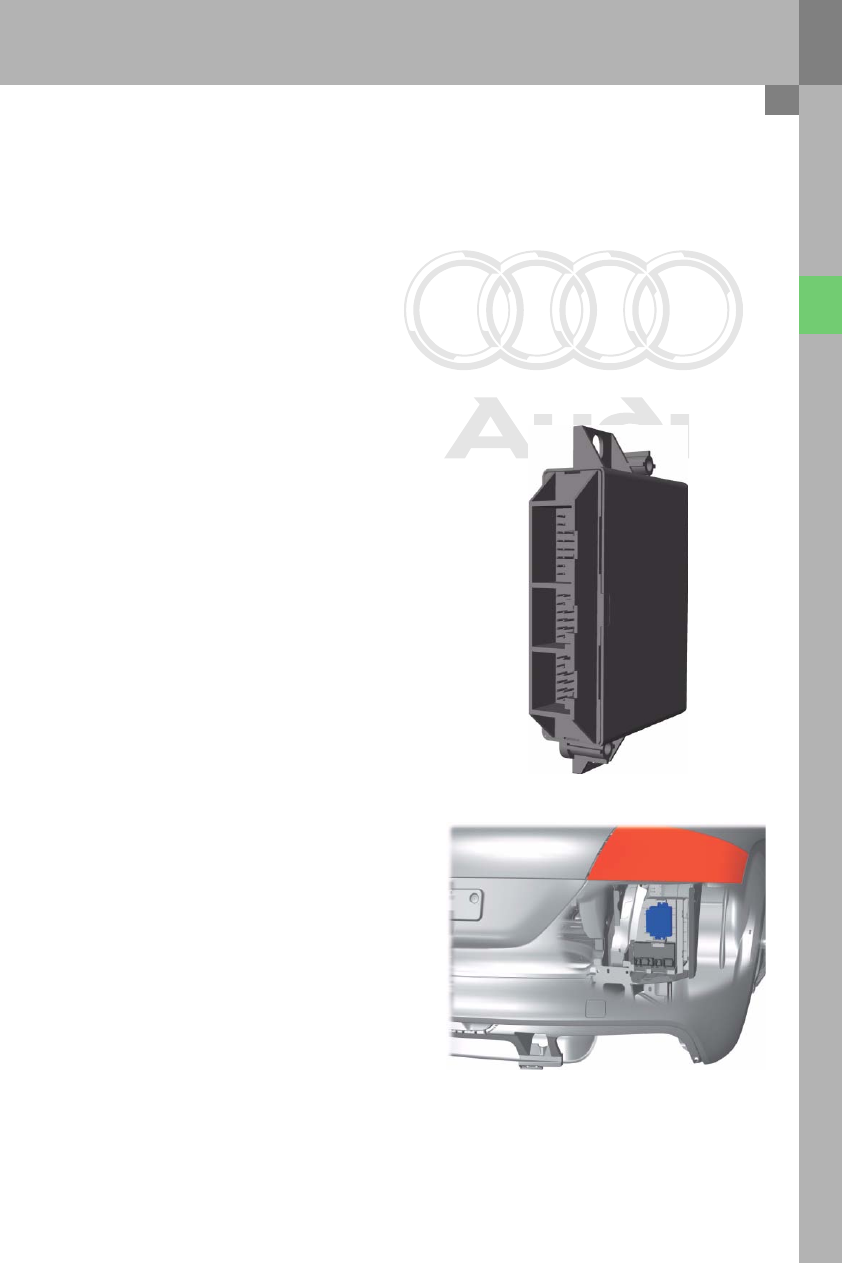

The acoustic parking system control unit J446 is
a carry-over part from the Audi A3 ‘04. Both the
hardware and the software are identical.
The systems in the Audi TT Coupé ´07 and in the
Audi A3 ’04 (different installation positions of the
acoustic parking sensor in the rear bumper) are
differentiated by the software based on the control
unit coding.

382_000

In the Audi TT Coupé ´07, the acoustic parking
system control unit is located at the rear right on
a control unit holder. It is arranged above the
convenience electronics central control unit J393.

Acoustic parking system control unit J446

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

34

Electrical system and convenience electronics

Acoustic parking system adjustment options

In the Audi TT Coupé ´07, the volume and pitch (frequency) of the acoustic parking system can, for the first
time, be adjusted via the "Extended convenience menu" in the control unit with display in dash panel insert.

Alternatively, these settings can be made at the service centre using the diagnostic tester. There are
appropriate adaption channels in the acoustic parking system control unit for this purpose.

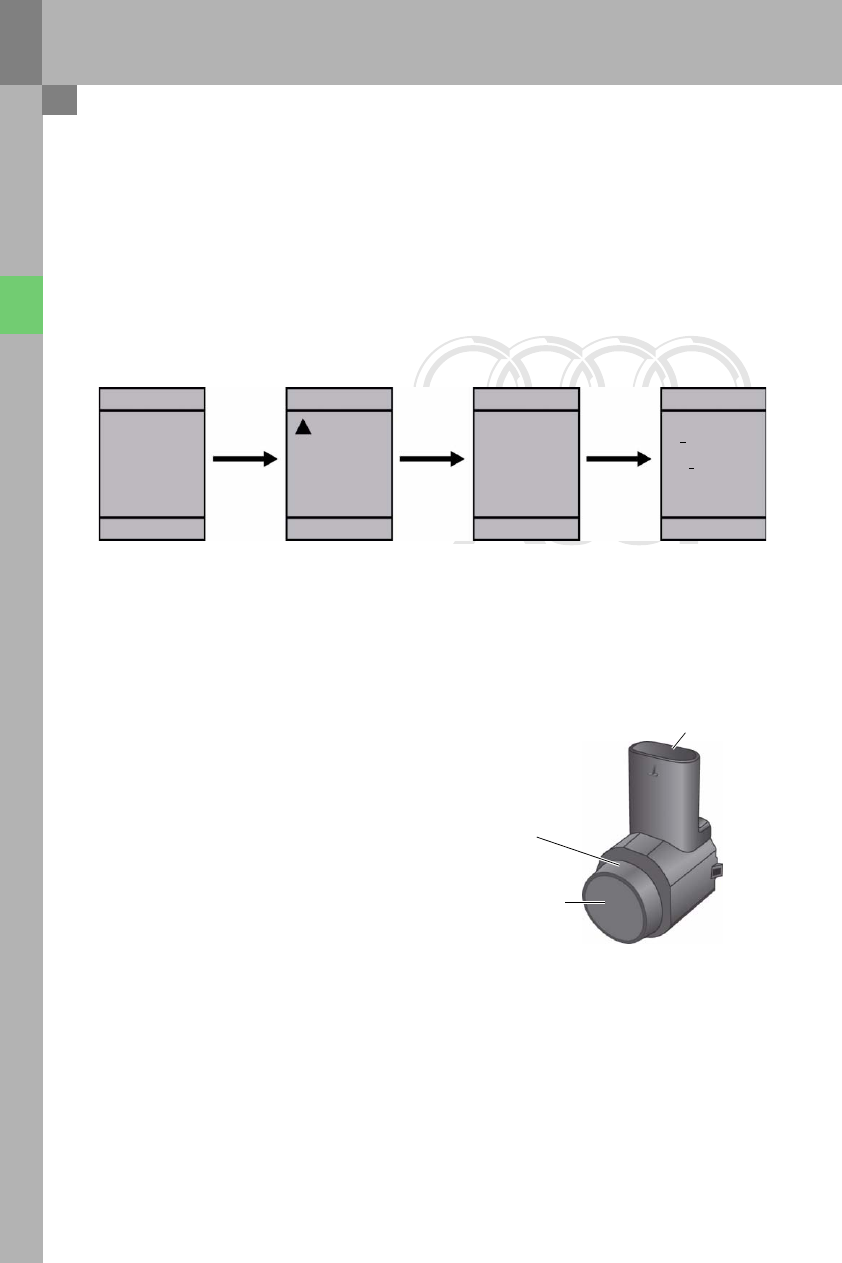

The relevant menu can be accessed as follows:

382_017

382_021

So-called fifth-generation acoustic parking sensors
are used in the Audi TT Coupé ´07.This generation of
sensors was used for the first time by Audi in the
Audi Q7. These sensors are much smaller than the
fourth generation sensors and no longer have a
fixed plastic housing which accommodates the
oscillating membrane.

It has been replaced by an expandable decoupling
ring, which is fitted on the ultrasonic sensor.
The decoupling ring must be removed to paint the
acoustic parking sensor.

Acoustic parking sensor of the acoustic parking system

DISPLAY TYPE

>SET

QUERY
MENU OFF

SET

WIPER
WINDOW
DOORS

>ACOUSTIC
PARKING SYSTEM

ACOUSTIC PARKING
SYSTEM

>REAR

REAR

VOLUME
1 2 3 4 5
PITCH

>1 2 3 4 5

HELP

BACK

BACK

BACK

3-pin connector

Oscillating membrane
for transmitting and
receiving ultrasound

Decoupling ring

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

35

System overview

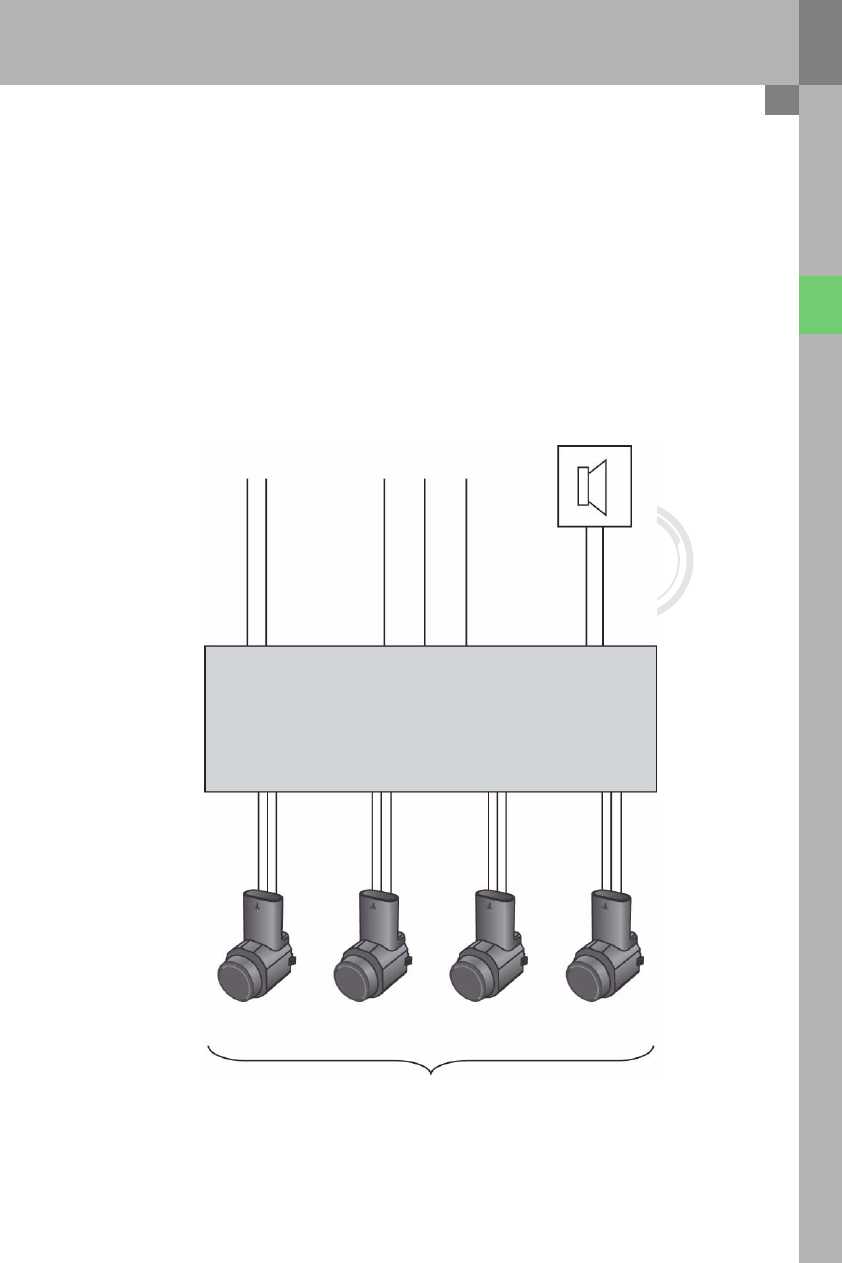

The following lines lead to the acoustic parking system control unit:

●

2 lines from the convenience CAN bus

●

3 lines to the power supply

●

2 lines for the rear parking aid warning buzzer H15

●

3 lines to each of the 4 acoustic parking sensors (2 lines for power supply and one digital signal line
for data exchange)

382_006

Rear parking aid

warning buzzer

H15

Acoustic parking system control unit

J446

C

o

nv

en

ien

c

e C

A

N

 bus H

igh

C

o

nv

en

ien

c

e C

A

N

 bus Lo

w

Te

rm

in

a

l 3

0

Te

rm

in

a

l 1

5

Te

rm

in

a

l 3

1

G203

G204

G205

G206

Acoustic parking sensor in rear bumper cover

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

36

Infotainment

Chorus, concert and symphony radios in 2-DIN housing

Tuner

RDS FM/AM radio

Display of stored station with RDS name display

FM tuner with phase diversity

Internal and external drives

Internal CD drive, CD text capable: information stored on the audio CD about the artist and title is
shown on the display
The internal drive in the concert and symphony radios is MP3 compatible.

Control of an optional auxiliary 6-disc CD changer or an optional auxiliary iPod adaptor

A new generation of radios is used in the Audi TT Coupé ‘07.
The main new features are an FM tuner with phase diversity as well as MP3 compatible CD drives in the
concert and symphony radios.

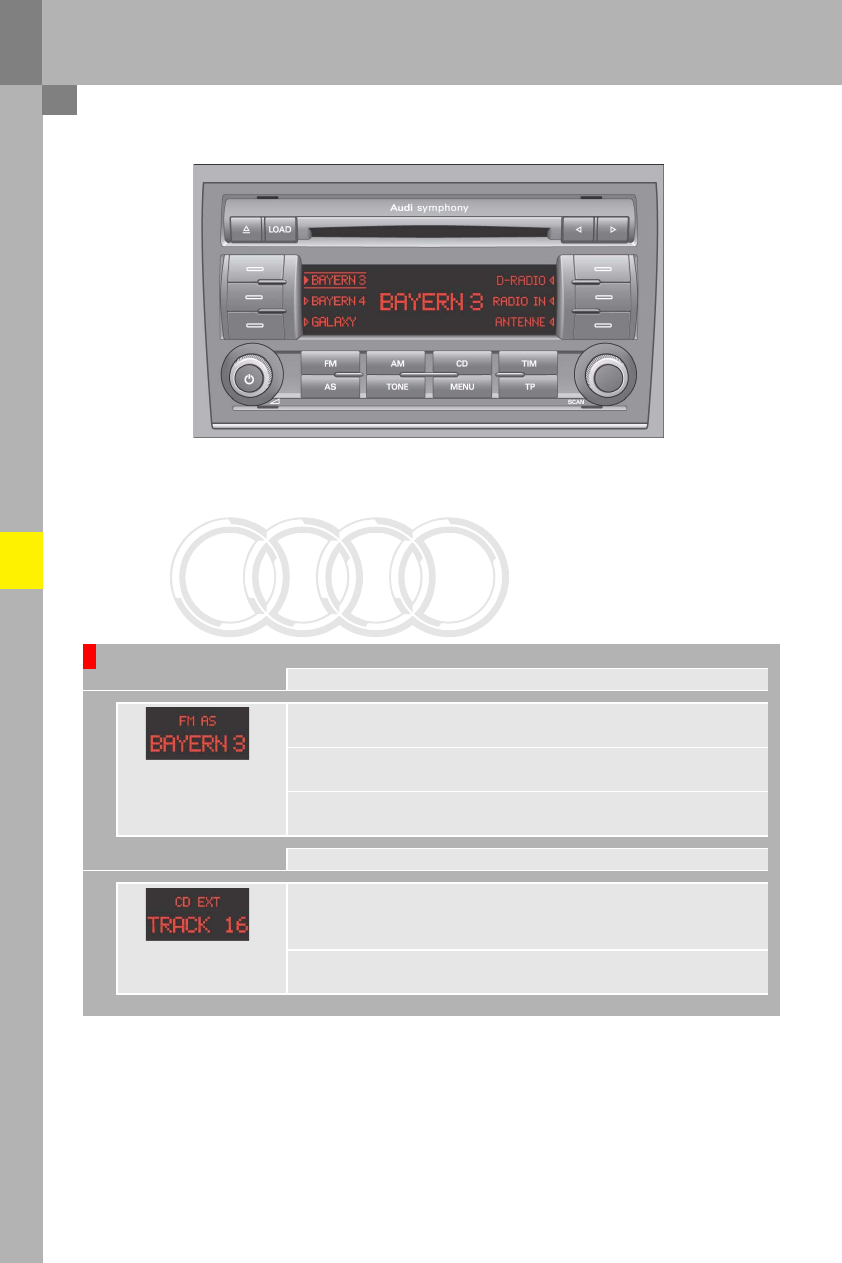

382_058

Specifications - all radios
