3 - Vacant







4 - Vacant







5 - Fuse 5 on fuse holder B -SB5-

5 A

- Alarm horn -H12-

Anti-theft alarm sensor -G578-

30

6 - Fuse 6 on fuse holder B -SB6-

30 A - Headlight washer system pump -V11-

30

7 - Fuse 7 on fuse holder B -SB7-

15 A

20 A

1)6)

10 A

5)

  Fuel pressure regulating valve -N276-

1)



2)

Fuel pump control unit -G6-

4)

Control relay -J789-

5)

Supplementary fuel pump -V393-

3)

Engine component current supply relay -J757-

6)

30

8 - Fuse 8 on fuse holder B -SB8-

30 A - Wiper motor control unit -J400-

30

9 - Fuse 9 on fuse holder B -SB9-

25 A - Front left seat heating -Z45-

Front right seat heating -Z46-

30

10 - Fuse 10 on fuse holder B -SB10-

10 A - Driver seat lumbar support longitudinal adjustment motor -V125-

Front passenger seat lumbar support longitudinal adjustment motor -V126-

30

11 - Vacant







12 - Fuse 12 on fuse holder B -SB12-

40 A - Fresh air blower control unit -J126-

Fresh air blower -V2-

30

Note

♦

1)

 engine codes CDAA, CCZA, CCTA only

♦

2)

 engine codes BWA, BPY, CDMA, CDLB only

♦

3)

 engine codes CBBB, CFGB only

♦

4)

 engine codes BUB, CBRA only

♦

5)

 engine codes CEPA only

♦

6)

 engine codes CESA, CETA only

1.3.2

Position of fuses of fuse carrier 2 (brown), fuse holder B in electronics box, engine compartment

No.   Current Flow Diagram designation

Nomina

l value

  Function/component

Terminal

1 - Fuse 1 on fuse holder B -SB1-

15 A - Fuel system pressurisation pump -G6-

4)

Exhaust flap 1 valve -N321-

5)

87

 Audi TT

Fitting Locations

No.  801 / 1

Edition  04.2010

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

2 - Fuse 2 on fuse holder B -SB2-

10 A

30 A

5)

- Lambda probe -G39-

4)

Lambda probe after catalytic converter -G130-

4)

Fuel pump control unit -J538-

5)

87

3 - Fuse 3 on fuse holder B -SB3-

5 A

- Air mass meter -G70-

4)

87

4 - Fuse 4 on fuse holder B -SB4-

10 A - Lambda probe 2 -G108-

4)

Lambda probe 2 after catalytic converter -G131-

4)

87

5 - Fuse 5 on fuse holder B -SB5-

5 A

10 A

5)

- Engine component current supply relay -J757-

2)

Automatic glow period control unit -J179-

3)

Supplementary fuel pump relay -J832-

3)

Fuel pump relay -J17-

3)

Lambda probe -G39-

5)

87

6 - Fuse 6 on fuse holder B -SB6-

10 A - Fuel system diagnostic pump -V144-

4)

Secondary air pump relay -J299-

4)

Lambda probe -G39-

1)2)3)6)

Lambda probe after catalytic converter -G130-

1)2)5)6)

Secondary air inlet valve -N112-

4)

Secondary air inlet valve 2 -N320-

4)

87

7 - Fuse 7 on fuse holder B -SB7-

10 A - Charge pressure control solenoid valve -N75-

3)

Activated charcoal filter system solenoid valve 1 -N80-

4)

Variable intake manifold change-over valve -N156-

4)

Camshaft control valve 1 -N205-

4)

Exhaust camshaft control valve 1 -N318-

4)

Exhaust gas recirculation cooler change-over valve -N345-

3)

Radiator fan control unit -J293-

1)3)4)5)6)

Fuel system diagnostic pump -V144-

1) 6)

Intake manifold flap valve -N316-

6)

87

8 - Fuse 8 on fuse holder B -SB8-

20 A

1)

2)5)6)

30 A

4)

5 A

3)

- Ignition coils -N...-

1)2)4)5)6)

Low heat output relay -J359-

3)

High heat output relay -J360-

3)

87

9 - Fuse 9 on fuse holder B -SB9-

15 A

1)

6)

25 A

2)

30 A

3)

25 A

4)5)

- Engine control unit -J623-

87

10 - Fuse 10 on fuse holder B -SB10-

10 A - Continued coolant circulation pump -V51-

1)2)4)5)

Continued coolant circulation relay -J151-

1)2)4)6)

Exhaust gas recirculation cooler pump -V400-

3)

Refrigerant circulation solenoid valve -N492-

5)

Additional coolant pump relay -J496-

5)

87

 Audi TT

Fitting Locations

No.  801 / 1

Edition  04.2010

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

11 - Fuse 11 on fuse holder B -SB11-

5 A

- Clutch position sender -G476-

87

12 - Fuse 12 on fuse holder B -SB12-

10 A

15 A

3)

- Engine component current supply relay -J757-

1)6)

Activated charcoal filter system solenoid valve 1 -N80-

1)2)6)

Charge pressure control solenoid valve -N75-

1)2)6)

Camshaft control valve 1 -N205-

1)6)

Turbocharger air recirculation valve -N249-

1)2)6)

Fuel pressure regulating valve -N276-

3)

Fuel metering valve -N290-

3)

Intake manifold flap valve -N316-

1)

Valve for oil pressure control -N428-

1)6)

Secondary air inlet valve -N112-

6)

Actuator 1 for camshaft adjustment -F366-

6)

87

Note

♦

1)

 engine codes CDAA, CCZA, CCTA only

♦

2)

 engine codes BWA, BPY, CDMA, CDLB only

♦

3)

 engine codes CBBB, CFGB only

♦

4)

 engine codes BUB, CBRA only

♦

5)

 engine codes CEPA only

♦

6)

 engine codes CESA, CETA only

 Audi TT

Fitting Locations

No.  801 / 1

Edition  04.2010

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

1.4

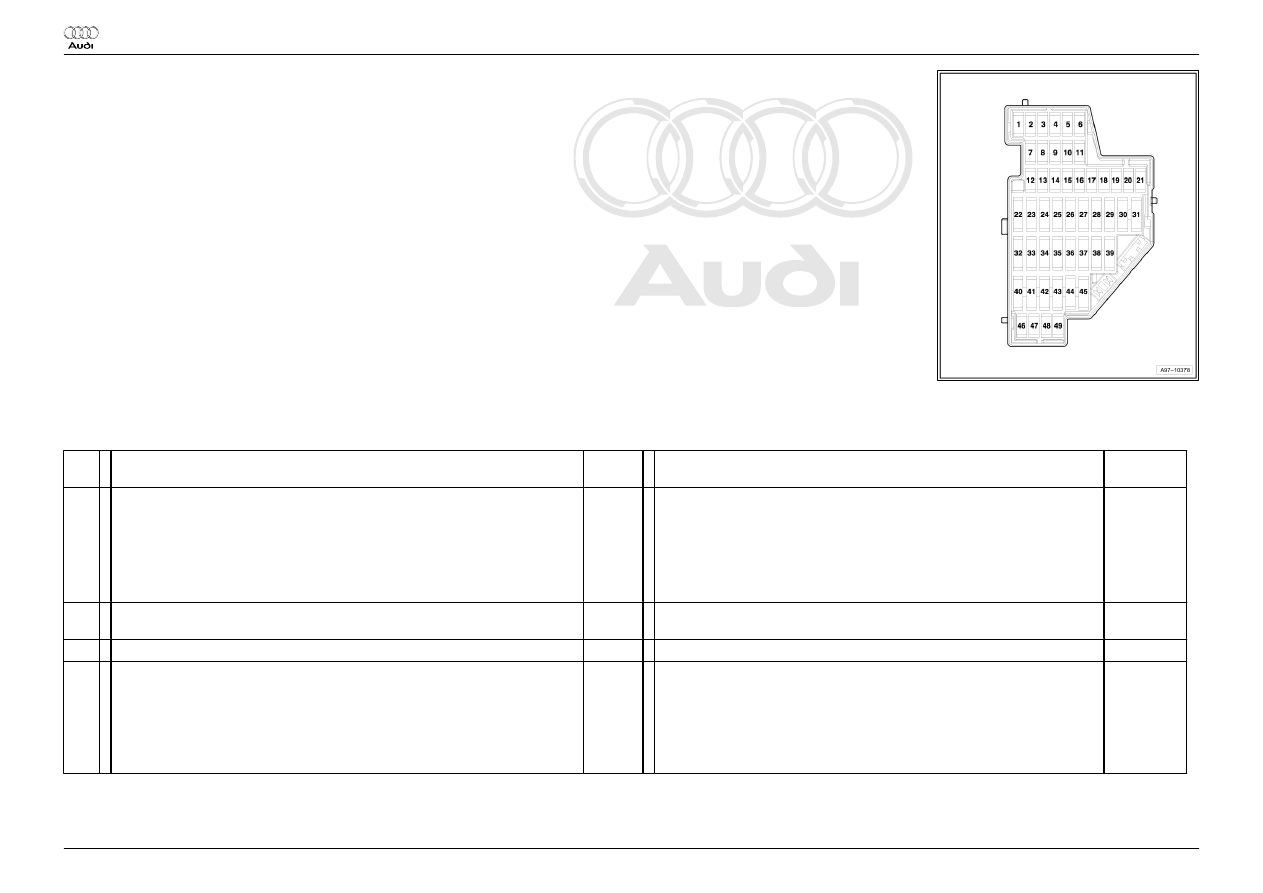

Location of fuses (SC) on fuse holder C

Torque settings
⇒ Electrical system, Repair Group 97, removing and installing

fuse holders

Fuse colours
40 A - orange
30 A - green
25 A - white
20 A - yellow
15 A - blue
10 A - red
7,5 A - brown
5 A - beige

1.4.1

Position of fuses in fuse holder C, left dash panel

No.   Current Flow Diagram designation

Nomina

l value

  Function/component

Terminal

1 - Fuse 1 on fuse holder C -SC1-

10 A - Fuel pump relay -J17-

Electric fuel pump 2 relay -J49-

1)

Fuel pump control unit -J538-

Engine control unit -J623-

Front passenger side airbag deactivated warning lamp -K145-

Light switch illumination bulb -L9-

16-pin connector, diagnostic connector -T16-

15

2 - Fuse 2 on fuse holder C -SC2-

5 A

- ABS control unit -J104-

Brake light switch -F-

15

3 - Fuse 3 on fuse holder C -SC3-

5 A

- Power output module for left headlight -J667-

15

4 - Fuse 4 on fuse holder C -SC4-

5 A

- Oil level and oil temperature sender -G266-

Tyre pressure monitor button -E226-

Tyre pressure monitor control unit 2 -J793-

TCS and ESP button -E256-

Headlight range control, control unit -J431-

High pressure sender -G65-

Reversing light switch -F4-

15

 Audi TT

Fitting Locations

No.  801 / 1
