Audi TT (2007 year). Manual - part 196

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

253

254

255

256

257

258

259

260

261

262

263

264

265

266

8J0-061200410

J

623

J

293

M

M

J

538

SF

6

SF

8

672

V

7

V

177

0.5

ge/vi

T94

/50

T4c

/3

6.0

br

T4c

/4

1.0

bl/rt

46

T4c

/2

6.0

rt/gn

20

T4c

/1

0.35

ge/bl

T94

/76

T10k

/2

1.5

rt/bl

T10k

/1

30

6a

6.0

rt

6

8

1.0

sw/bl

32

T10k

/3

15

6

8a

46

20

6

32

ws = white

sw = black

ro

= red

br

= brown

gn

= green

bl

= blue

gr

= grey

li

= purple

ge

= yellow

or

= orange

rs

= pink

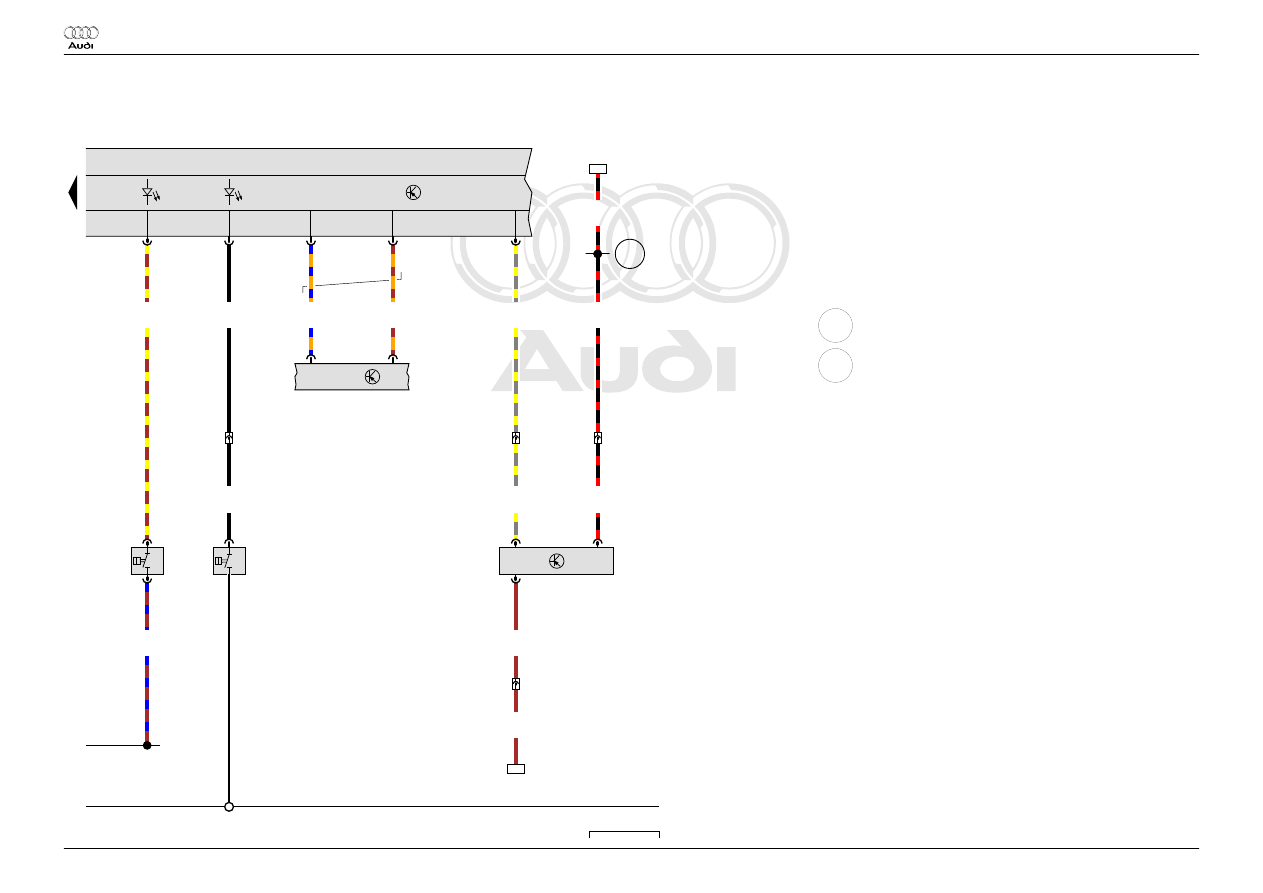

Radiator fan control unit, Fuel pump control unit, Engine

control unit, Radiator fan

J293 Radiator fan control unit

J538 Fuel pump control unit

J623 Engine control unit

SF6 Fuse 6 in fuse holder F

SF8 Fuse 8 in fuse holder F

T4c 4-pin connector

T10k 10-pin connector

T94 94-pin connector

V7

Radiator fan

V177 Radiator fan 2

672 Earth point 2, on front of left longitudinal member

 Audi TT

Current Flow Diagram

No.  61 / 20

 04.2010

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

267

268

269

270

271

272

273

274

275

276

277

278

279

280

8J0-061210410

J

538

390

43

G

6

M

G

J

285

410

410

J

519

G

1

1.5

br

T10k

/6

31

4.0

br

1

5

2

3

4

0.35

vi

T10k

/7

T52b

/38

0.35

br/bl

T10k

/5

0.35

vi/sw

T10k

/4

T32

/27

0.35

bl/ge

T10k

/8

T32

/25

0.35

br/bl

*

T32

/28

ws = white

sw = black

ro

= red

br

= brown

gn

= green

bl

= blue

gr

= grey

li

= purple

ge

= yellow

or

= orange

rs

= pink

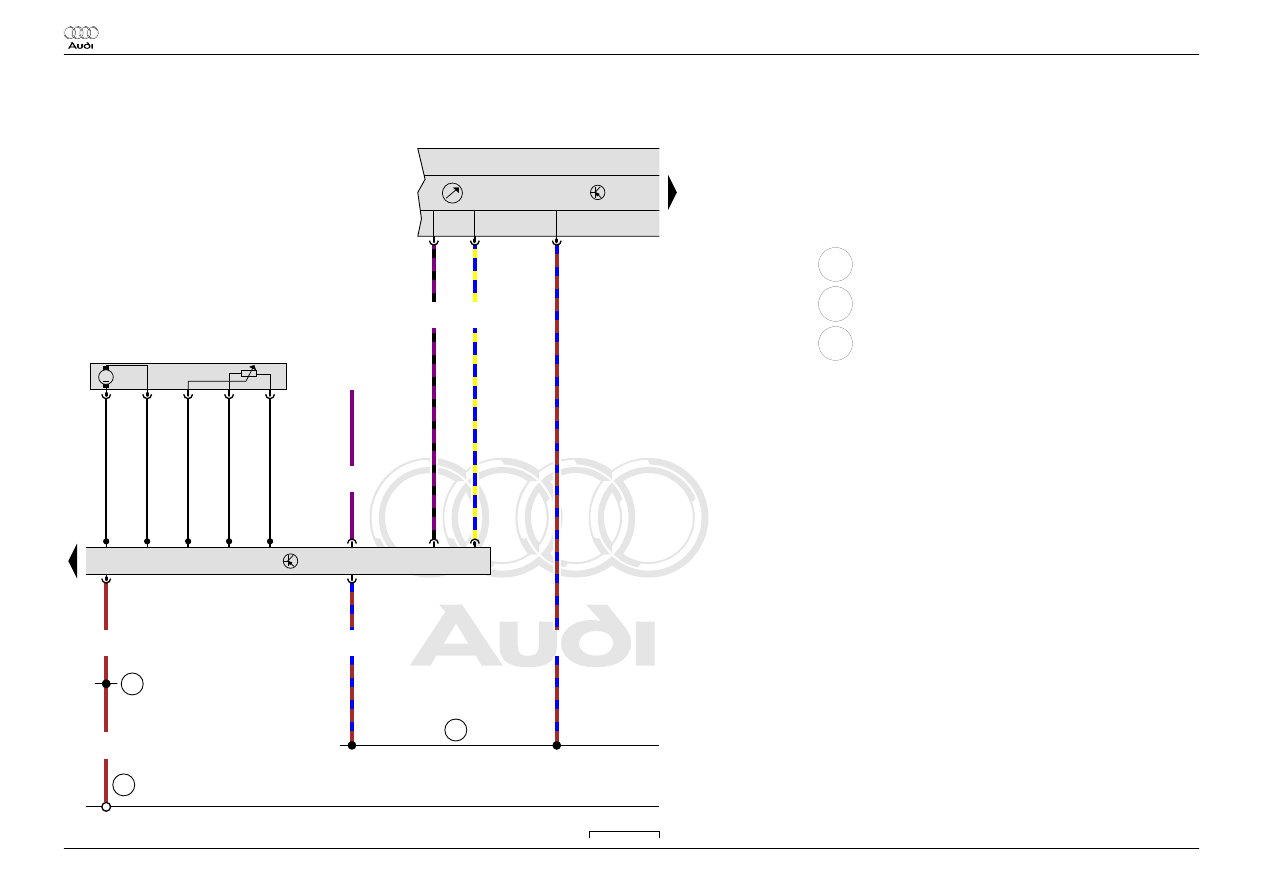

Fuel gauge sender, Fuel system pressurisation pump,

Control unit in dash panel insert, Fuel pump control unit

G

Fuel gauge sender

G1

Fuel gauge

G6

Fuel system pressurisation pump

J285 Control unit in dash panel insert

J519 Onboard supply control unit

J538 Fuel pump control unit

T10k 10-pin connector

T32 32-pin connector

T52b 52-pin connector

43

Earth point, lower part of right A-pillar

390 Earth connection 25, in main wiring harness

410 Earth connection 1 (sender earth) in main wiring harness

*

Output for sender earth

 Audi TT

Current Flow Diagram

No.  61 / 21

 04.2010

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

281

282

283

284

285

286

287

288

289

290

291

292

293

294

8J0-061220410

J

285

410

Y

24

F

66

F

22

K

28

K

3

J

533

G

266

B278

0.35

br/ge

T32

/21

1

0.35

br/bl

2

0.35

sw

T32

/15

T14

/1

0.5

sw

T14

/1

1

0.35

or/bl

*

T32

/29

T20d

/18

0.35

or/br

*

T32

/30

T20d

/8

0.5

gr/ge

T32

/8

T6a

/6

0.5

gr/ge

T6a

/6

3

0.5

sw/rt

1

T6a

/4

0.5

sw/rt

T6a

/4

0.5

br

2

31

T6a

/5

0.5

sw/rt

35

0.5

br

36

T6a

/5

35

36

ws = white

sw = black

ro

= red

br

= brown

gn

= green

bl

= blue

gr

= grey

li

= purple

ge

= yellow

or

= orange

rs

= pink

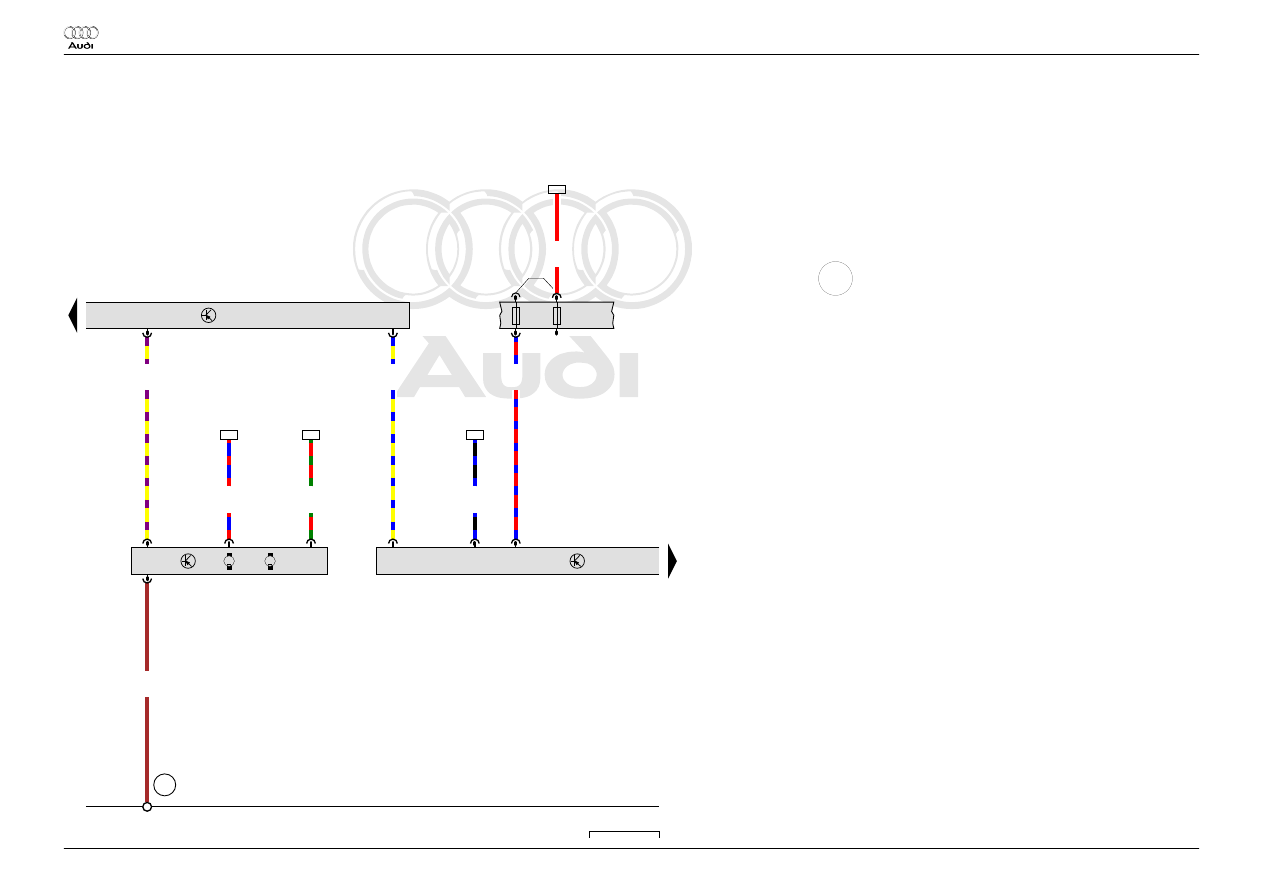

Oil pressure switch, Coolant shortage indicator switch, Oil

level and oil temperature sender, Control unit in dash panel

insert

F22 Oil pressure switch

F66 Coolant shortage indicator switch

G266 Oil level and oil temperature sender

J285 Control unit in dash panel insert

J533 Data bus diagnostic interface

K3

Oil pressure warning lamp

K28 Coolant temperature and coolant shortage warning lamp

T6a 6-pin connector, front left in engine compartment

T14 14-pin connector, front left in engine compartment

T20d 20-pin connector

T32 32-pin connector

Y24 Display in dash panel insert

410 Earth connection 1 (sender earth) in main wiring harness

B278 Positive connection 2 (15a) in main wiring harness

*

Data bus wire (CAN bus)

 Audi TT

Current Flow Diagram

No.  61 / 22

 04.2010

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

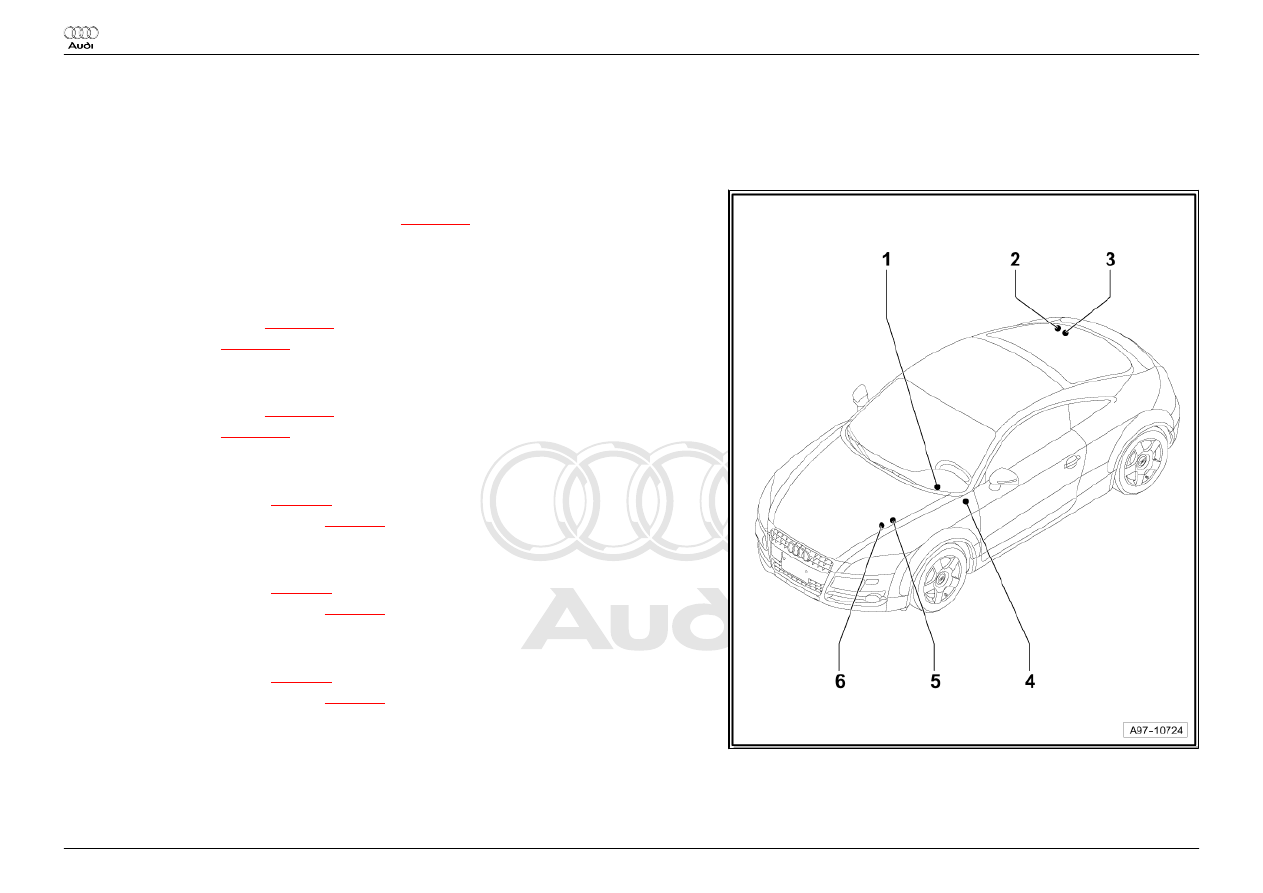

1

Fuses

1.1

Overview of fuses

1 - Thermal fuse below the dash panel

❑ Driver seat adjustment thermal fuse 1 -S44-

⇒ page 18

❑ Location: Front left under dash panel

2 -

Fuses (SD) on fuse holder D

❑ Location: In luggage compartment, rear right, on the battery
❑ Location main fuse box

⇒ page 15

❑ Position of fuses

⇒ page 17

3 - Fuses (SF) on fuse holder F

❑ Location: In luggage compartment, rear right
❑ Location main fuse box

⇒ page 12

❑ Position of fuses

⇒ page 14

4 - Fuses (SC) on fuse holder C

❑ Location: Front left dash panel
❑ Location electronics box

⇒ page 9

❑ Position of fuses electronics box

⇒ page 9

5 - Fuse (SB) on fuse holder B

❑ Location: In engine compartment, front left
❑ Location electronics box

⇒ page 4

❑ Position of fuses electronics box

⇒ page 5

6 - Fuses (SA) on fuse holder A

❑ Location: In engine compartment, front left
❑ Location electronics box

⇒ page 2

❑ Position of fuses electronics box

⇒ page 3

 Audi TT

Fitting Locations

No.  801 / 1

Edition  04.2010
