SECTION II

TM 9-2320-289-20P

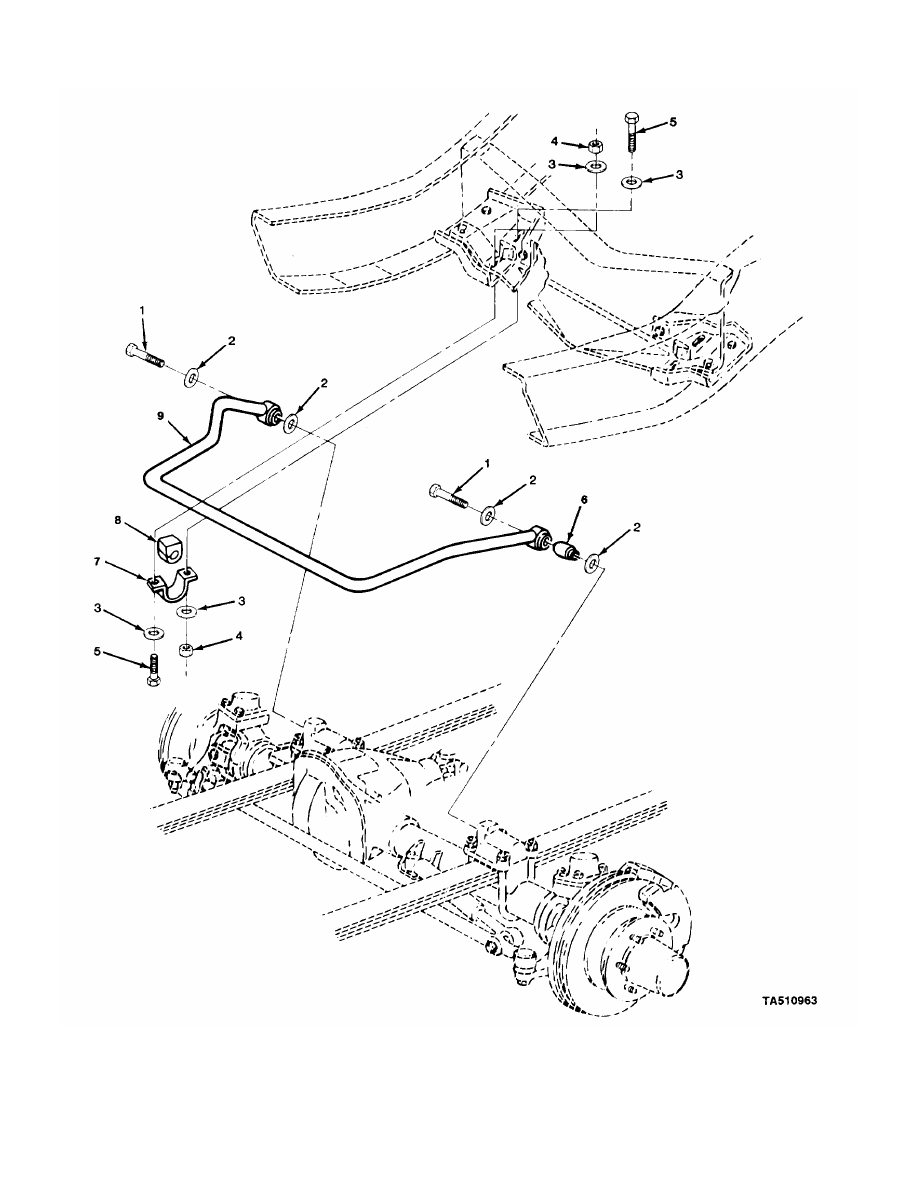

FIGURE 123. FRONT STABILIZER BAR

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 1605 TORQUE, RADIUS, AND
STABILIZER RODS

FIG. 123 FRONT STABILIZER BAR

1

PAOZZ

11862

328130

BOLT,SELF-LOCKING

2

2

PAOZZ

11862

328131

WASHER,FLAT

4

3

PAOZZ

24617

3990160

WASHER,FLAT

8

4

PAOZZ

11862

9422299

NUT,SELF-LOCKING,HE

4

5

PAOZZ

96906

MS90728-89

SCREW,CAP,HEXAGON H

4

6

PAOZZ

11862

328128

BUSHING,SLEEVE

2

7

PAOZZ

11862

14015726

STRAP,RETAINING

2

8

PAOZZ

11862

14015724

BUSHING,NONMETALLIC

2

9

PAOFF

11862

328132

SHAFT ASSEMBLY,FRON

1

END OF FIGURE

123-1

SECTION II

TM 9-2320-289-20P

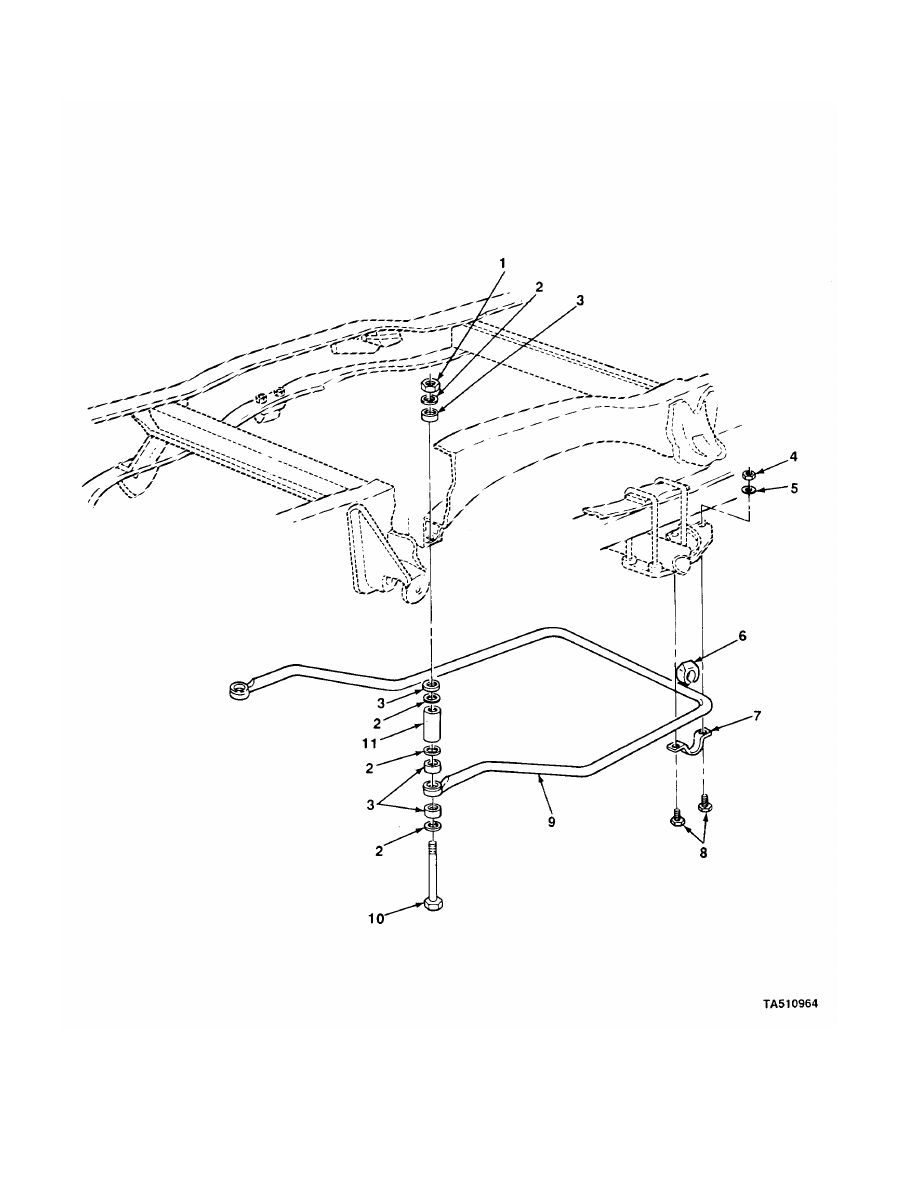

FIGURE 124. REAR STABILIZER BAR (M1028A2 AND M1028A3).

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 1605 TORQUE, RADIUS, AND
STABILIZER RODS

FIG. 124 REAR STABILIZER BAR
(M1028A2 AND M1028A3)

1

KFOZZ

11862

1365065

NUT,SPECIAL PART OF KIT P/N 6258545

2

UOC:254,256

2

KFOZZ

11862

3993729

RETAINER,WASHER SPE PART OF KIT P/N

4

6258545
UOC:254,256

3

PAOZZ

11862

6270704

GROMMET STABIL LINK PART OF KIT P/N

4

6258545
UOC:254,256

4

PAOZZ

96906

MS51967-8

NUT,PLAIN,HEXAGON

4

UOC:254,256

5

PAOZZ

96906

MS35338-46

WASHER,LOCK

2

UOC:254,256

6

PAOZZ

11862

404062

BUSHING,SLEEVE

2

UOC:254,256

7

PAOZZ

11862

406887

BRACKET,VEHICULAR C

2

UOC:254,256

8

PAOZZ

96906

MS90728-65

SCREW,CAP,HEXAGON H

2

UOC:254,256

9

PAOZZ

11862

328107

BAR,STABILIZER

1

UOC:254,256

10

KFOZZ

11862

328111

BOLT,STAB,LINK PART OF KIT P/N

2

6258545
UOC:254,256

11

KFOZZ

11862

328108

SPACER,STAB,LINK PART OF KIT P/N

2

6258545
UOC:254,256

END OF FIGURE

124-1

SECTION II

TM  9-2320-289-20P

TA510965

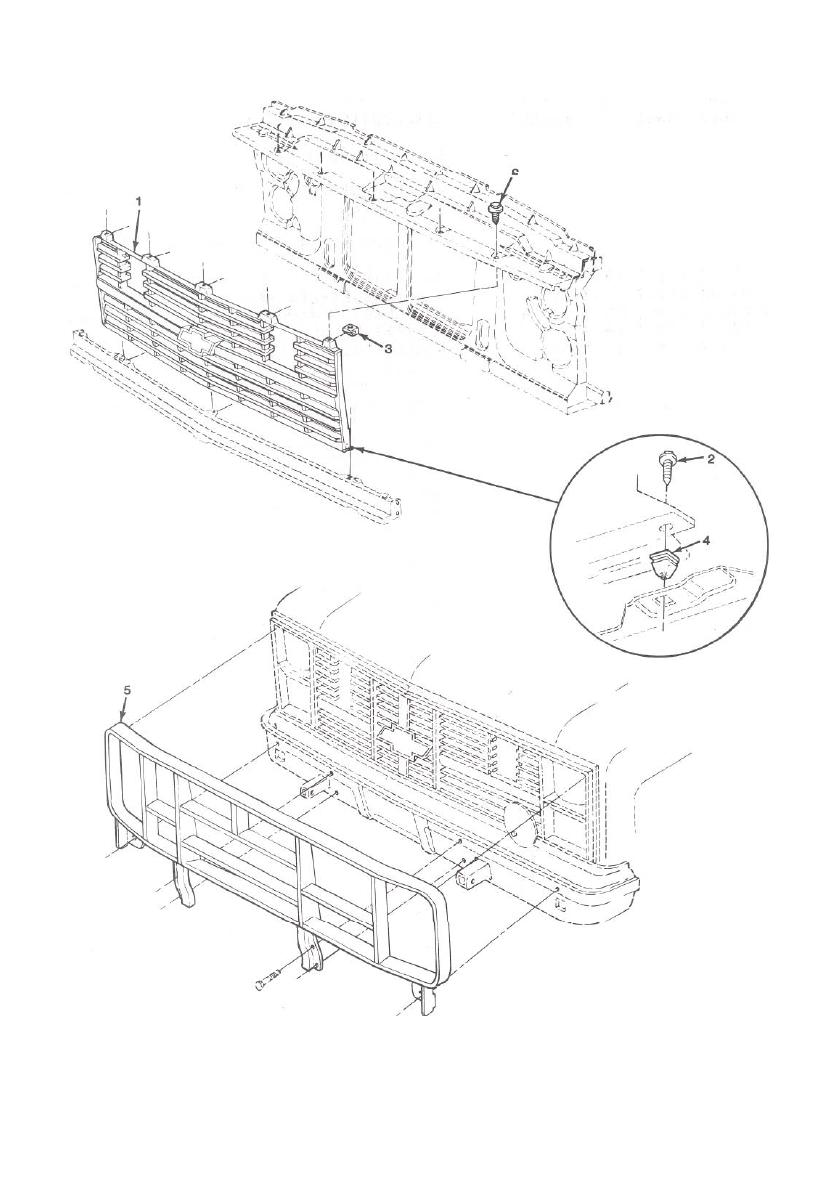

FIGURE 125. BRUSH GUARD AND GRILLE.

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 18 BODY, CAB, FOOD, AND HULL

GROUP 1801 BODY, CAB, HOOD, AND HULL
ASSEMBLIES

FIG. 125 BRUSH GUARD AND GRILLE

1

PFOZZ

11862

15554915

GRILLE,RADIATOR,VEH

1

2

PAOZZ

24617

11503395

SCREW,ASSEMBLED WAS

8

3

PAOZZ

96906

MS90724-34

NUT,SHEET SPRING

5

4

PAOZZ

11862

347347

GROMMET,NONMETALLIC

3

5

PFOZZ

11862

14072488

GUARD,GRILLE,RADIAT

1

END OF FIGURE

125-1

SECTION II

TM 9-2320-289-20P

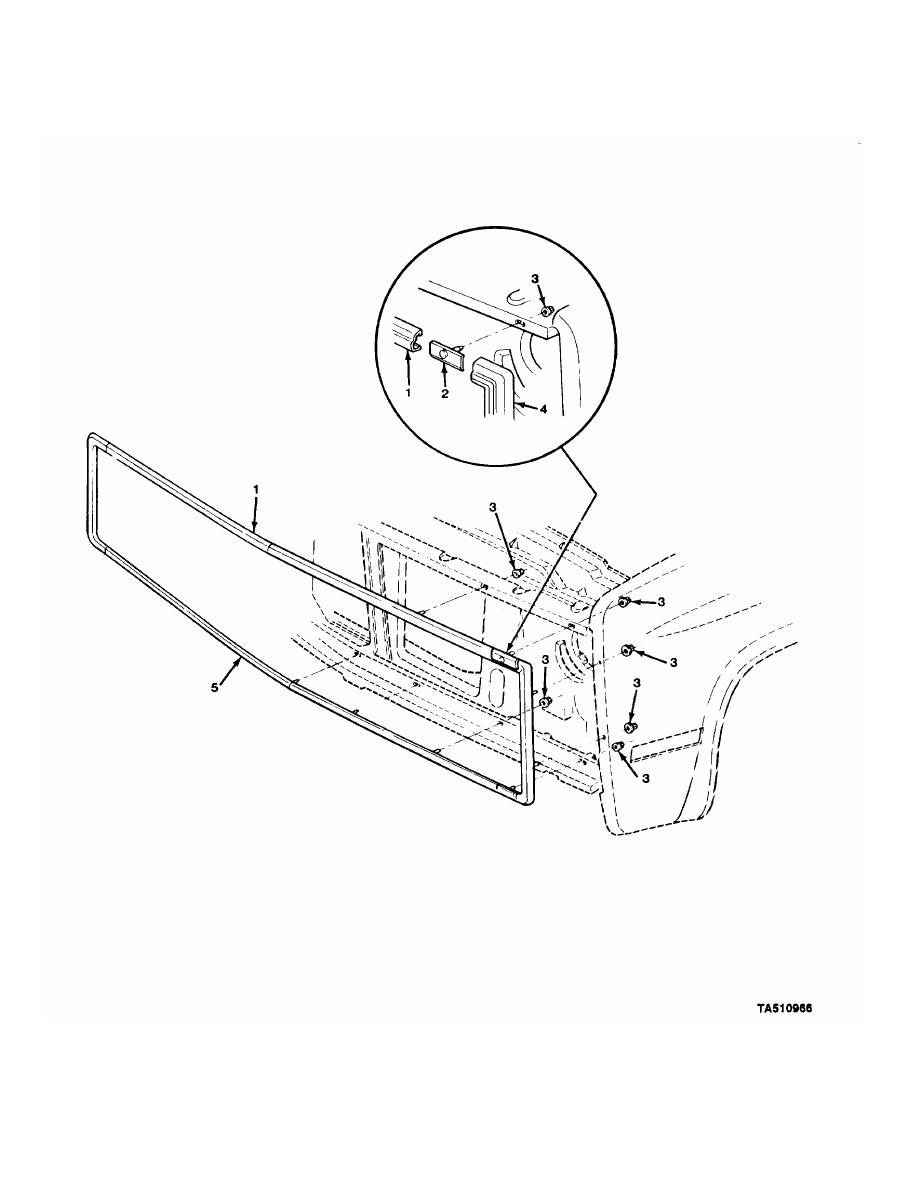

FIGURE 126. FRONT MOLDINGS.

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 1801 BODY, CAB, HOOD, AND HULL
ASSEMBLIES

FIG. 126 FRONT MOLDINGS

1

PAOZZ

11862

15599285

MOLDING ASSEMBLY,FR

1

2

PAOZZ

11862

14072850

RETAINER,MOLDING

4

3

PAOZZ

24617

9420621

PUSH ON NUT

18

4

PAOZZ

11862

15599283

MOLDING,METAL LEFT

1

4

PAOZZ

11862

15599284

MOLDING,METAL RIGHT

1

5

PAOZZ

11862

15599286

MOLDING,METAL

1

END OF FIGURE

126-1
