SECTION II

TM 9-2320-289-20P

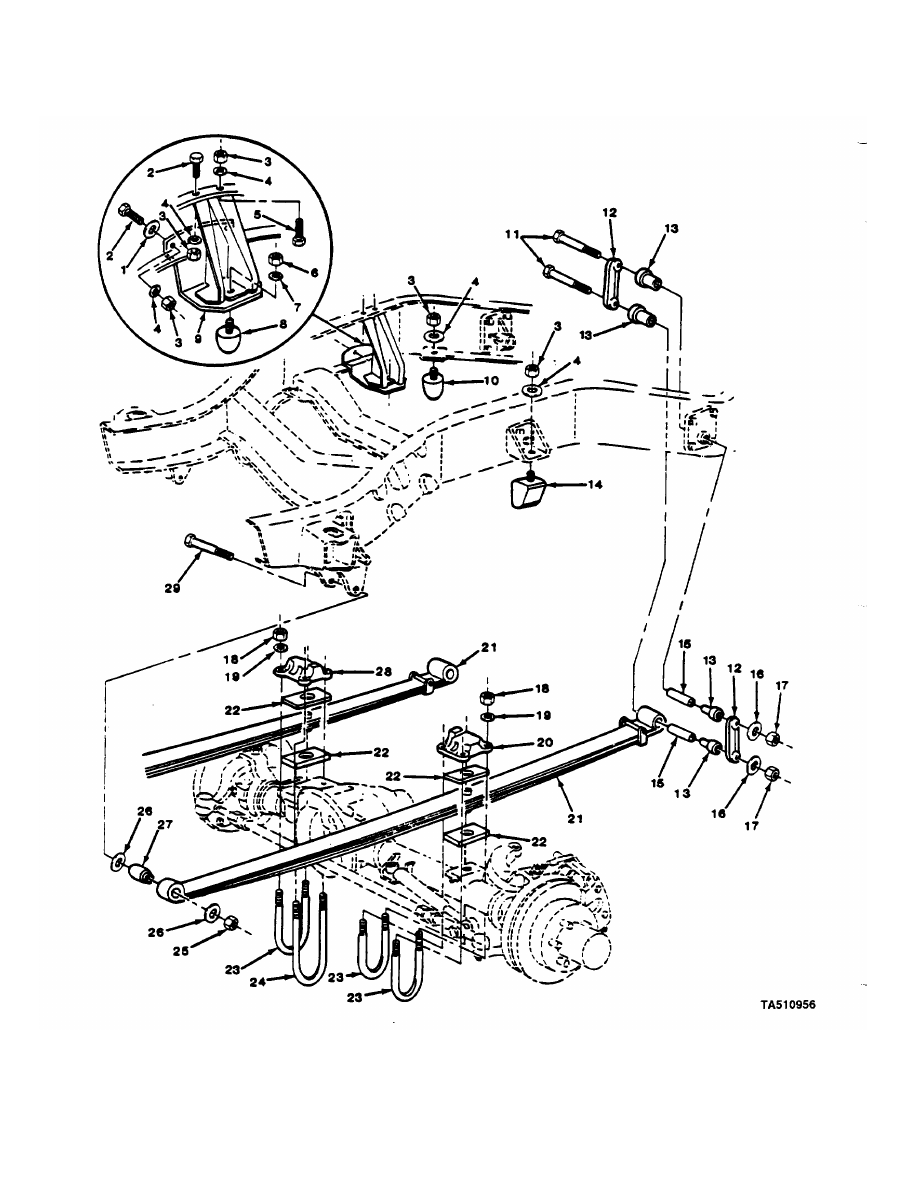

FIGURE 119. FRONT SPRINGS AND RELATED PARTS (M1009).

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 1601 SPRINGS

FIG. 119 FRONT SPRINGS AND RELATED
PARTS (M1009)

1

PAOZZ

96906

MS27183-14

WASHER,FLAT

2

UOC:209

2

PAOZZ

96906

MS90728-60

SCREW,CAP,HEXAGON H

3

UOC:209

3

PAOZZ

96906

MS51967-8

NUT,PLAIN,HEXAGON

8

UOC:209

4

PAOZZ

96906

MS35338-46

WASHER,LOCK

8

UOC:209

5

PAOZZ

96906

MS90728-63

SCREW,CAP,HEXAGON H

1

UOC:209

6

PAOZZ

96906

MS51967-14

NUT,PLAIN,HEXAGON

1

UOC:209

7

PAOZZ

96906

MS35340-48

WASHER,LOCK

1

UOC:209

8

PAOZZ

11862

14029200

BUMPER,NONMETALLIC

1

UOC:209

9

PAOZZ

11862

15522381

BRACKET,BUMPER

1

UOC:209

10

PAOZZ

11862

359878

BUMPER ASSEMBLY,FRO

2

UOC:209

14

PAOZZ

11862

359877

BUMPER ASSEMBLY,FRO

2

UOC:209

END OF FIGURE

119-1

SECTION II

TM 9-2320-289-20P

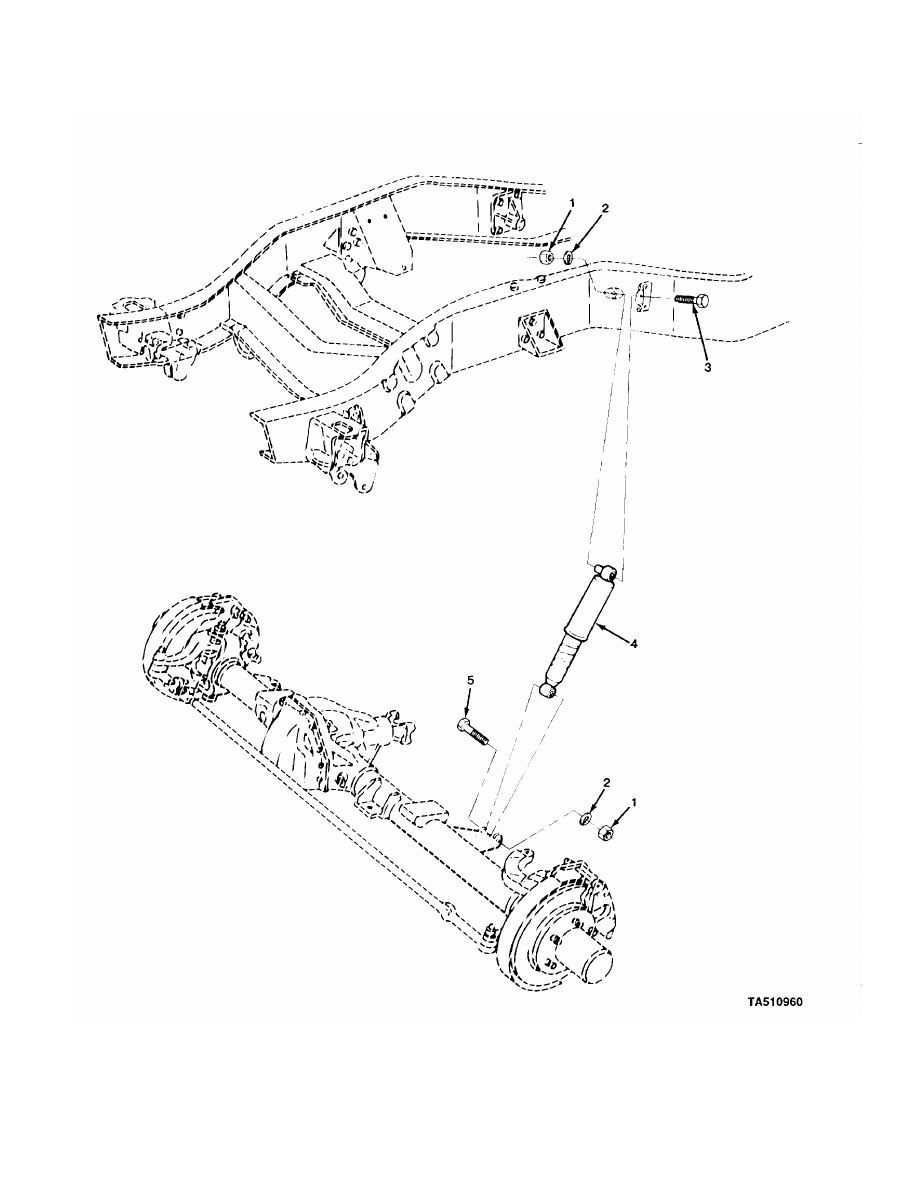

FIGURE 120. FRONT

SHOCK ABSORBERS.

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 1604 SHOCK ABSORBER EQUIPMENT

FIG. 120 FRONT SHOCK ABSORBERS

1

PAOZZ

96906

MS51967-14

NUT,PLAIN,HEXAGON

4

2

PAOZZ

96906

MS35340-48

WASHER,LOCK

4

3

PAOZZ

96906

MS90728-121

SCREW,CAP,HEXAGON H

2

4

PAOZZ

11862

3187843

SHOCK ABSORBER,DIRE

2

UOC:209

4

PAOZZ

11862

3187846

SHOCK ABSORBER,DIRE

2

UOC:194,208,210,230,231,252,254,256

5

PAOZZ

96906

MS90728-119

SCREW,CAP,HEXAGON H

2

END OF FIGURE

120-1

SECTION II

TM 9-2320-289-20P

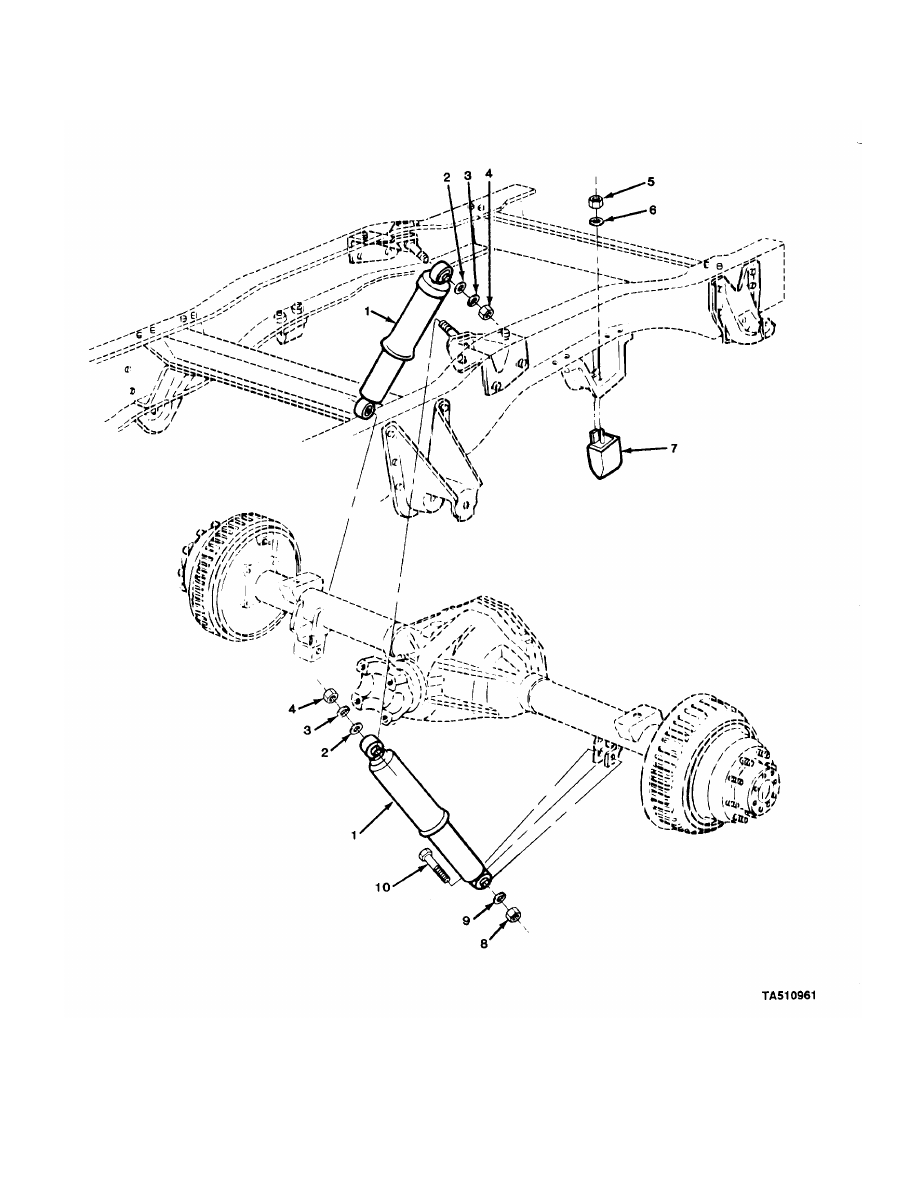

FIGURE 121. REAR SHOCK ABSORBERS (ALL EXCEPT M1009).

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 1604 SHOCK ABSORBER EQUIPMENT

FIG. 121 REAR SHOCK ABSORBERS (ALL
EXCEPT M1009)

1

PAOZZ

11862

3187845

SHCOK ABSORBER,DIRE

2

UOC:194,208,210,230,231,252,254,256

2

PAOZZ

96906

MS27183-18

WASHER,FLAT

2

UOC:194,208,210,230,231,252,254,256

3

PAOZZ

96906

MS35340-49

WASHER,LOCK

2

UOC:194,208,210,230,231,252,254,256

4

PAOZZ

96906

MS51967-14

NUT,PLAIN,HEXAGON

2

UOC:194,208,210,230,252,254,256

5

PAOZZ

96906

MS51967-8

NUT,PLAIN,HEXAGON

2

UOC:194,208,210,230,231,252,254,256

6

PAOZZ

96906

MS35338-46

WASHER,LOCK

2

UOC:194,208,210,230,231,252,254,256

7

PAOZZ

11862

3764438

BUMPER,RUBBER ASSEM

2

UOC:194,208,210,230,231,252,254,256

8

PAOZZ

96906

MS51967-17

NUT,PLAIN,HEXAGON

2

UOC:194,208,210,230,231,252,254,256

9

PAOZZ

96906

MS35338-49

WASHER,LOCK

2

UOC:194,208,210,230,231,252,254,256

10

PAOZZ

11862

9419138

SCREW,CAP,HEXAGON H

2

UOC:194,208,210,230,231,252,254,256

END OF FIGURE

121-1

SECTION II

TM 9-2320-289-20P

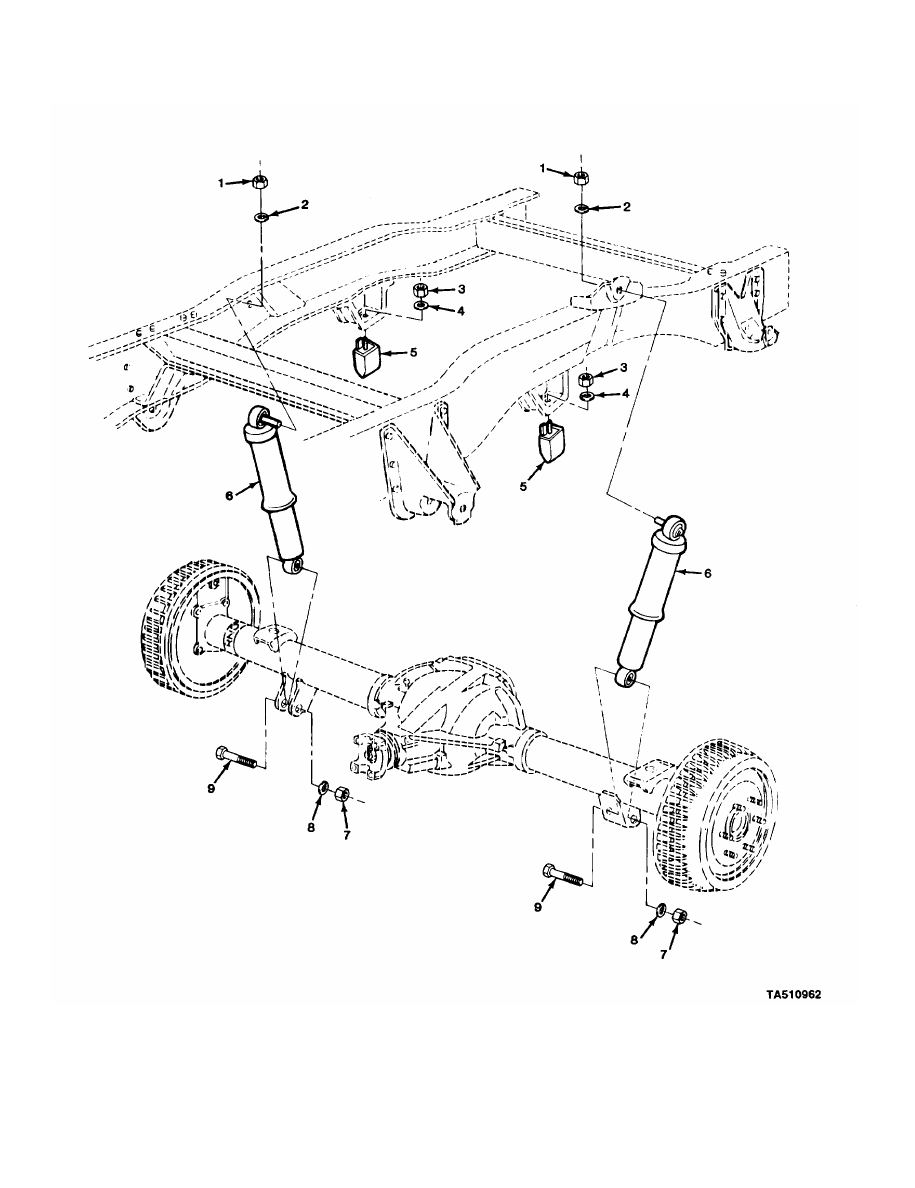

FIGURE 122. REAR SHOCK ABSORBERS (M1009).

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 1604 SHOCK ABSORBER EQUIPMENT

FIG. 122 REAR SHOCK ABSORBERS
(M1009)

1

PAOZZ

96906

MS51968-20

NUT,PLAIN,HEXAGON

2

UOC:209

2

PAOZZ

96906

MS35340-50

WASHER,LOCK

2

UOC:209

3

PAOZZ

96906

MS51967-8

NUT,PLAIN,HEXAGON

2

UOC:209

4

PAOZZ

96906

MS35338-46

WASHER,LOCK

2

UOC:209

5

PAOZZ

11862

3764438

BUMPER,RUBBER ASSEM

2

UOC:209

6

PAOZZ

11862

3187844

SHOCK ABSORBER,LEVE

2

UOC:209

7

PAOZZ

96906

MS51967-17

NUT,PLAIN,HEXAGON

2

UOC:209

8

PAOZZ

96906

MS35338-49

WASHER,LOCK

2

UOC:209

9

PAOZZ

11862

9419138

SCREW,CAP,HEXAGON H

2

UOC:209

END OF FIGURE

122-1
