SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 1503 PINTLES AND TOWING
ATTACHMENTS

FIG. 115 PINTLE ASSEMBLY AND CLEVIS
(M1009)

1

PAOZZ

11862

14067770

EXTENSION,TIE DOWN

2

UOC:209

2

PAOZZ

96906

MS51967-14

NUT,PLAIN,HEXAGON

10

UOC:209

3

PAOZZ

96906

MS35340-48

WASHER,LOCK

6

UOC:209

4

PAOZZ

96906

MS51967-12

NUT,PLAIN,HEXAGON

4

UOC:209

5

PAOZZ

11862

3790768

WASHER,FLAT

10

UOC:209

6

PAOZZ

11862

14067773

BRACKET,REINFORCEME LEFT

1

UOC:209

6

PAOZZ

11862

14067774

BRACKET,TOW HOOK RIGHT

1

UOC:209

7

PAOZZ

11862

14067771

BRACKET,DOUBLE ANGL LEFT

1

UOC:209

7

PAOZZ

11862

14067772

BRACKET,DOUBLE ANGL RIGHT

1

UOC:209

8

PAOZZ

96906

MS90728-111

SCREW,CAP,HEXAGON H

4

UOC:209

9

PAOZZ

96906

MS90728-119

SCREW,CAP,HEXAGON H

2

UOC:209

10

PAOOO

96906

MS51335-1

PINTLE ASSEMBLY,TOW

1

UOC:209

11

PAOZZ

74410

XA-T-61-SR

.COLLAR,SHAFT

1

UOC:209

12

PAOZZ

96906

MS15001-1

.FITTING,LUBRICATION

1

UOC:209

13

PAOZZ

74410

XB-767-10

.CAP,PROTECTIVE,DUST

1

UOC:209

14

PAOZZ

74410

XA-T-88

.WASHER,FLAT

1

UOC:209

15

PAOZZ

96906

MS35692-94

.NUT,PLAIN,SLOTTED,H

1

UOC:209

16

PAOZZ

96906

MS24665-628

.PIN,COTTER

1

UOC:209

17

XDOZZ

74410

XB-766

.NUT,PLAIN,HEXAGON

4

UOC:209

18

PAOZZ

74410

XB-T-45-1

.WASHER,LOCK

4

UOC:209

19

PAOOO

96906

MS51335-1

.PINTLE ASSEMBLY,TOW

1

UOC:209

20

MOOZZ

74410

XX123

..CHAIN (5" LG) MAKE FROM CHAIN, P/

1

N RRC271BTY2CLDIA072
UOC:209

21

PAOZZ

96906

MS87006-53

..HOOK,CHAIN,S

1

115-1

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

UOC:209

22

PAOZZ

80020

36344N24

.PIN,COTTER.

1

UOC:209

23

PAOZZ

96906

MS21318-47

..SCREW,DRIVE

1

UOC:209

24

PAOZZ

74410

XA-T-61-SF

.BRACKET,PINTLE HOOK

1

UOC:209

25

PAOZZ

96906

MS90727-117

SCREW,CAP,HEXAGON H

4

UOC:209

26

PAOZZ

96906

MS51967-8

NUT,PLAIN,HEXAGON

4

UOC:209

27

PAOZZ

96906

MS35338-46

WASHER,LOCK

4

UOC:209

28

PAOZZ

96906

MS27183-14

WASHER,FLAT

4

UOC:209

29

PAOZZ

96906

MS90728-60

SCREW,CAP,HEXAGON H

4

UOC:209

30

PAOZZ

11862

14067794

PIN,STRAIGHT,HEADED

2

UOC:209

31

PAOZZ

11862

14067793

SHACKLE

2

UOC:209

32

PAOZZ

96906

MS24665-497

PIN,COTTER

2

UOC:209

33

PAOZZ

96906

MS90728-92

SCREW,CAP,HEXAGON H

6

UOC:209

34

PAOZZ

11862

14067789

SPACER,PLATE

2

UOC:209

35

PAOZZ

11862

14067776

BRACKET,TOW HOOK

1

UOC:209

36

PAOZZ

96906

MS27183-15

WASHER,FLAT

2

UOC:209

37

PAOZZ

96906

MS90728-87

SCREW,CAP,HEXAGON H

2

UOC:209

38

PAOZZ

96906

MS27183-18

WASHER,FLAT

2

UOC:209

39

PAOZZ

96906

MS90728-117

SCREW,CAP,HEXAGON H

2

UOC:209

40

PAOZZ

11862

14067775

BRACKET,TOW HOOK

1

UOC:209

41

PAOZZ

11862

480567

NUT,CLIP-ON

2

UOC:209

END OF FIGURE

115-2

TM 9-2320-289-20P

SECTION II

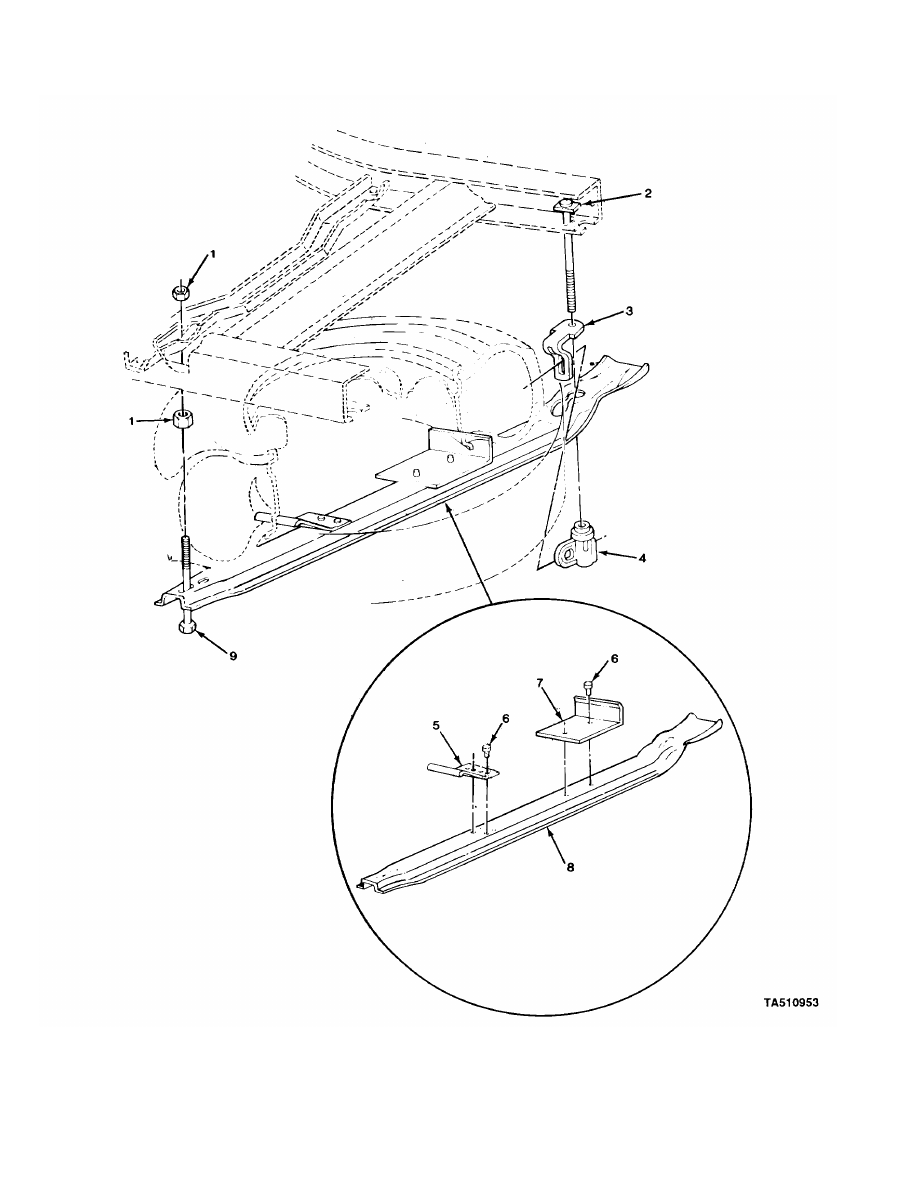

FIGURE 116. SPARE WHEEL CARRIER (ALL EXCEPT M1009).

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 1504 SPARE WHEEL CARRIER AND
TIRE LOCK

FIG. 116 SPARE WHEEL CARRIER (ALL
EXCEPT M1009)

1

PAOZZ

96906

MS51967-14

NUT,PLAIN,HEXAGON

2

UOC:194,208,210,230,231,252,254,256

2

PAOZZ

11862

3991022

BOLT,MACHINE

1

UOC:194,208,210,230,231,252,254,256

3

PAOZZ

11862

15599915

HOLD DOWN,SPARE TIR

1

UOC:194,208,210,230,231,252,254,256

4

PAOZZ

11862

6274031

NUT,PLAIN,HEXAGON

1

UOC:194,208,210,230,231,252,254,256

5

PAOZZ

11862

350037

PILOT,WHEEL CARRIER

1

UOC:194,208,210,230,231,252,254,256

6

PAOZZ

24617

189448

RIVET,SOLID

4

UOC:194,208,210,230,231,252,254,256

7

PAOZZ

11862

6274036

PILOT,WHEEL CARRIER

1

UOC:194,208,210,230,231,252,254,256

8

PAOZZ

11862

350036

STRAP,SPARE WHEEL

1

UOC:194,208,210,230,231,252,54,256

9

PAOZZ

11862

371603

SCREW,CAP,HEXAGON H

1

UOC:194,208,210,230,231,252,254,256

END OF FIGURE

116-1

SECTION II

TM 9-2320-289-20P

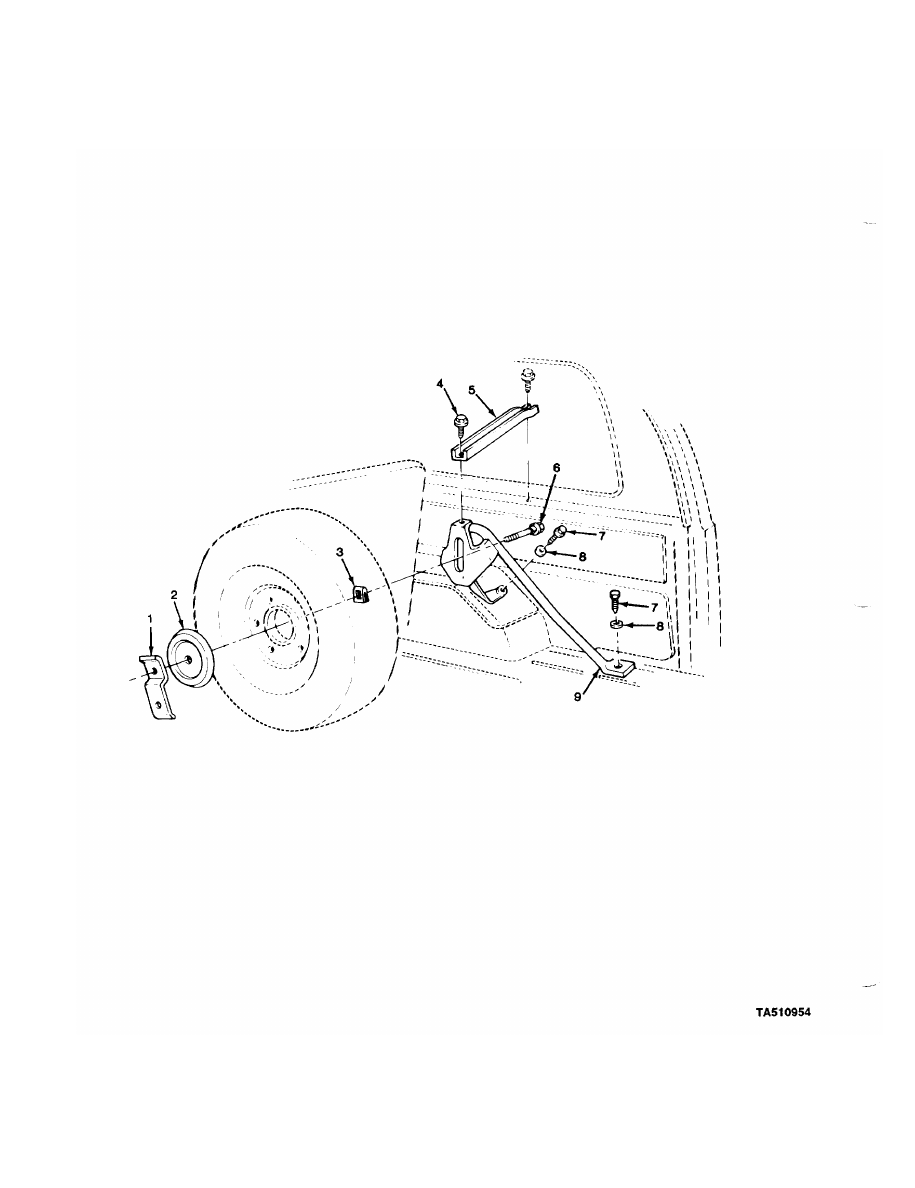

FIGURE 117. SPARE WHEEL CARRIER (M1009).

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 1504 SPARE WHEEL CARRIER AND
TIRE LOCK

FIG. 117 SPARE WHEEL CARRIER (M1009)

1

PAOZZ

11862

330046

RETAINER,SPARE TIRE

1

UOC:209

2

PAOZZ

11862

14027926

PLATE,RESILIENT MOU

1

UOC:209

3

PAOZZ

11862

3725668

PUSH ON NUT

1

UOC:209

4

PAOZZ

24617

443945

SCREW

2

UOC:209

5

PAOZZ

11862

14007545

BRACE,SPARE WHEEL S

1

UOC:209

6

PAOZZ

11862

15599432

BOLT,SQUARE NECK

1

UOC:209

7

PAOZZ

11862

3954730

SETSCREW

2

UOC:209

8

PAOZZ

96906

MS27183-18

WASHER,FLAT

2

UOC:209

9

PAOZZ

11862

343951

SUPPORT ASSEMBLY,WH

1

UOC:209

END OF FIGURE

117-1

SECTION II

TM 9-2320-289-20P

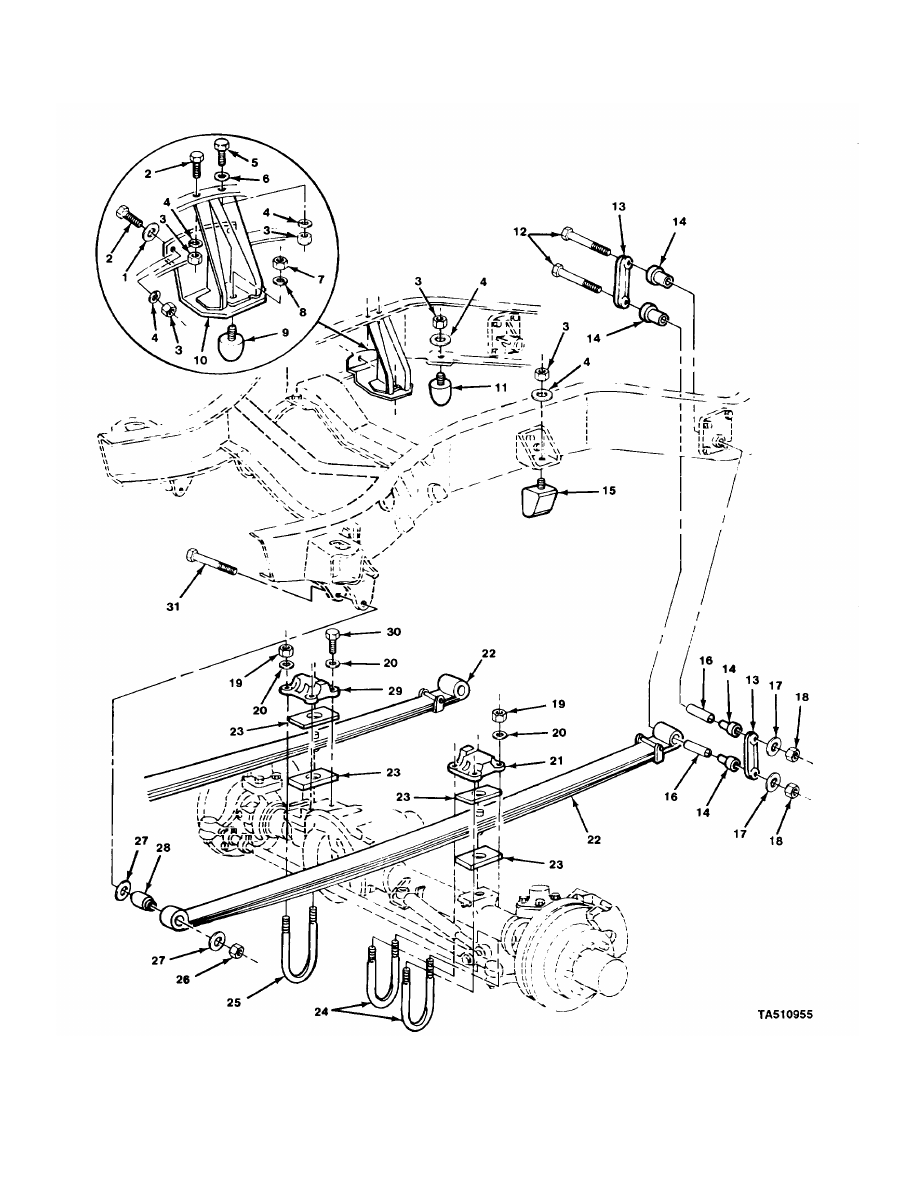

FIGURE 118. FRONT SPRINGS AND RELATED PARTS (ALL EXCEPT M1009).

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 16 SPRINGS AND SHOCK ABSORBERS

GROUP 1601 SPRINGS

FIG. 118 FRONT SPRINGS AND RELATED
PARTS (ALL EXCEPT M1009)

1

PAOZZ

96906

MS27183-14

WASHER,FLAT

2

UOC:194,208,210,230,231,252,254

2

PAOZZ

96906

MS90728-60

SCREW,CAP,HEXAGON H

4

UOC:194,208,210,230,231,252,254,256

3

PAOZZ

96906

MS51967-8

NUT,PLAIN,HEXAGON

8

UOC:194,208,210,230,231,252,254,256

4

PAOZZ

96906

MS35338-46

WASHER,LOCK

10

UOC:194,208,210,230,231,252,254,256

5

PAOZZ

96906

MS90728-62

SCREW,CAP,HEXAGON H

1

UOC:194,208,210,230,231,252,254,256

6

PAOZZ

96906

MS27183-16

WASHER,FLAT

1

UOC:194,208,210,230,231,252,254,256

7

PAOZZ

96906

MS51967-14

NUT,PLAIN,HEXAGON

1

UOC:194,208,210,230,231,252,254

8

PAOZZ

96906

MS35340-48

WASHER,LOCK

1

UOC:194,208,210,230,231,252,254,256

9

PAOZZ

11862

14029200

BUMPER,NONMETALLIC

1

UOC:194,208,210,231,252,254,256

10

PAOZZ

11862

14045654

BRACKET ASSEMBLY,FR

1

UOC:194,208,210,230,231,252,254,256

11

PAOZZ

11862

359878

BUMPER ASSEMBLY,FRO

2

UOC:194,208,210,230,231,252

15

PAOZZ

11862

359877

BUMPER ASSEMBLY,FRO

2

UOC:194,208,210,230,231,252,254,256

END OF FIGURE

118-1
