SPECIFICATIONS

660

Type designations

The decals in the vehicle contain information
such as chassis number, type designation,
color code, etc.

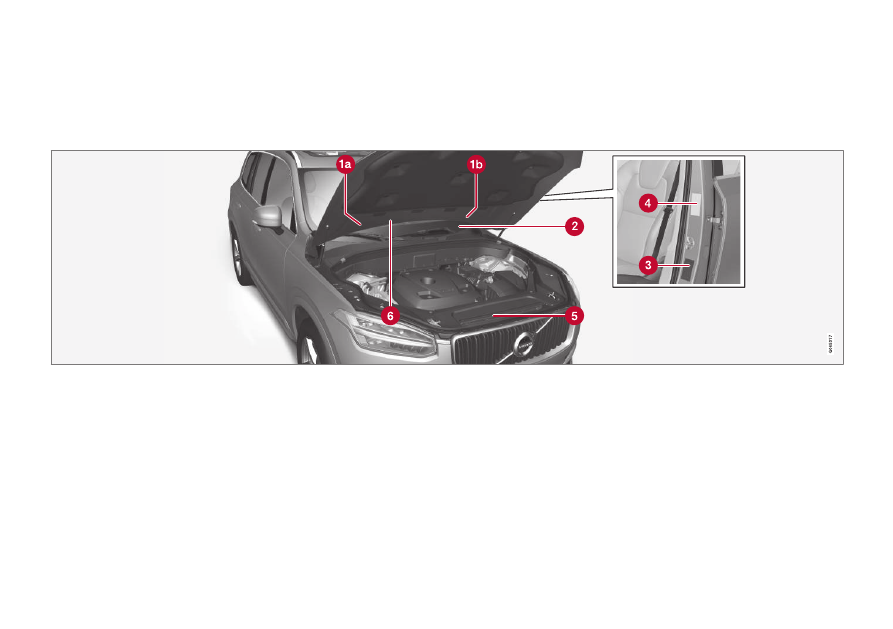

Location of decals

The illustration is general and details may vary depending on market and model.

SPECIFICATIONS

}}

661



Vehicle Emission Control Information.

US models.

 Your Volvo is designed to meet all

applicable emission standards, as evidenced
by the certification label on the underside of
the hood. For further information regarding
these regulations, please consult your Volvo
retailer.



Vehicle Emission Control Information.

Canadian models.

 Your Volvo is designed to

meet all applicable emission standards, as evi-
denced by the certification label on the under-
side of the hood. For further information regar-
ding these regulations, please consult your
Volvo retailer.



Vehicle Identification Number (VIN).

 The

VIN plate is located on the top left surface of
the dashboard. The Vehicle Identification
Number (VIN) should always be quoted in all
correspondence concerning your vehicle with
the retailer and when ordering parts.



Tire inflation pressures.

 This label indi-

cates the correct inflation pressures for the
tires that were on the vehicle when it left the
factory.

||

SPECIFICATIONS

662



Federal Motor Vehicle Safety Standards

(FMVSS) specifications (USA) and Ministry
of Transport (CMVSS) standards (Canada).

Your Volvo is designed to meet all applicable
safety standards, as evidenced by the certifi-
cation label on the driver's side B-pillar (the
structural member at the side of the vehicle, at
the rear of the driver's door opening). This
label also includes codes for paint color, etc.
For further information regarding these regula-
tions, please consult your Volvo retailer. U.S.
models have the upper decal; Canadian mod-
els have the lower one.



Engine oil.

 This label contains the recom-

mended engine oil specifications.



Decal A/C.

 Refrigerant R1234yf.

NOTE

Related information

•

Air conditioning specifications (p. 670)

SPECIFICATIONS

}}

* Option/accessory.

663

Dimensions

The vehicle's length, height, etc. are shown in
the table.

Dimensions

mm

inches

A

Ground clearance

A

217

F,E

218

D

8,5

F,E

8,6

D

B

Wheelbase

2984

117.5

C

Length

4953

195.0

D

Load length, floor,
folded backrest

2040

1260

B

1260

C

80.3

49.6

B

49.6

C

Dimensions

mm

inches

E

Load length, floor

1220

D

554

E

554

F

48.0

D

21.8

E

21.8

F

F

Height

G

1776

F,E

1778

D

69.9

F,E

70.0

D

G

Load height

816

32.1

Dimensions

mm

inches

H

Wheel track, front

H

1665

I

1673

J

65.6

I

65.9

J

Wheel track, front

K

1668

I

1676

J

65.7

I

66.0

J

||

SPECIFICATIONS

664

Dimensions

mm

inches

I

Wheel track, rear

H

1667

I

1675

J

65.6

I

65.9

J

Wheel track, rear

K

1671

I

1679

J

65.8

I

66.1

J

J

Load width, floor

1192

46.9

K

Width

1923

L

1931

M

1958

N

75.7

L

76.0

M

77.1

N

L

Width incl. rearview
mirrors

2140

84.3

M Width incl. folded

rearview mirrors

2008

79.1

A

For curb weight plus 1 person. (Varies slightly depending on

tire dimensions, chassis variant, etc.).

B

From the second row of seats in 6-seat models

*

.

C

From the second row of seats in 7-seat models

*

.

D

Vehicles with 5 seats.

E

Vehicles with 6 seats.

F

Vehicles with 7 seats.

G

Including roof antenna, at curb weight.

H

Vehicles without pneumatic suspension.

I

Vehicles with 19-inch wheels.

J

Vehicles with 20, 21 and 22-inch wheels.

K

Vehicles with pneumatic suspension.

L

Chassis width.

M

Width for vehicles with 19-inch wheels.

N

Width for vehicles with 20, 21 and 22-inch wheels.

Related information

•

Weights (p. 665)

SPECIFICATIONS

}}

665

Weights

The following table lists important weight
data for your vehicle.

Category

Version

USA

(lbs)

Canada

(kg)

Gross vehicle weight

7-seat, AWD (All Wheel Drive)

6060

2750

6-seat, AWD (All Wheel Drive)

6030

2735

Other models

6005

–

Capacity weight

7-seat

1210

550

6-seat

1160

525

Permissible axle weights, front

7-seat, AWD (All Wheel Drive)

2885

1310

6-seat, AWD (All Wheel Drive)

2865

1300

Other models

2865

–

Permissible axle weights, rear

7-seat, AWD (All Wheel Drive)

3280

1490

6-seat, AWD (All Wheel Drive)

3285

1490

Other models

3280

–

Curb weight

7-seat

4420–5170

2050–2350

6-seat

4510–5080

2060–2310

Max. roof load

–

220

100

||

SPECIFICATIONS

666

CAUTION

•

When loading the vehicle, the maxi-
mum gross vehicle weight and permis-
sible axle weights may not be excee-
ded.

Related information

•

Type designations (p. 660)

•

Towing capacity and tongue weight
(p. 667)

SPECIFICATIONS

* Option/accessory.

667

Towing capacity and tongue

weight

Towing capacity and tongue weight are
shown in the table.

Category

USA

(lbs)

Canada

(kg)

Max. trailer weights

Without brakes:

1650

750

With brakes (AWD):

5000

2250

With brakes (FWD):

4000

1800

Max. tongue weight

AWD:

500

225

FWD:

400

180

CAUTION

•

The maximum trailer weights listed are
only applicable for altitudes up to
3280 ft (1,000 m) above sea level.
With increasing altitude the engine
power and therefore the car's climbing
ability are impaired because of the
reduced air density, so the maximum
trailer weight has to be reduced
accordingly. The weight of the car and
trailer must be reduced by 10% for
every further 3280 ft (1,000 m) (or
part thereof).

Related information

•

Type designations (p. 660)

•

Weights (p. 665)

•

Driving with a trailer (p. 457)

•

Trailer Stability Assist

*

 (p. 459)

SPECIFICATIONS

668

Engine specifications

Engine specifications (output, etc.) for each
engine variant are shown in the table below.

The specifications for Special Edition vehicles
may vary.

NOTE

Not all engines are available on all markets.

Engine

Engine code

A

Output

(kW/rps)

Output

(hp/rpm)

Torque

(Nm/rps)

Torque

(ft. lbs./rpm)

Number of cylinders

T5 / T5 AWD

B4204T23

187/92

250/5500

350/25–80

258/1500-4800

4

T6 AWD

B4204T27

235/95

316/5700

400/37–90

295/2200–5400

4

A

The engine code, component and manufacturer serial numbers can be found on the engine.

Related information

•

Type designations (p. 660)

•

Engine oil specifications (p. 669)

SPECIFICATIONS

669

Engine oil specifications

Engine oil of type VCC RBS0-2AE 0W-20
must be used. Lower oil grades may not offer
the same fuel economy, engine performance
or engine protection.

Volvo recommends:

General

See the Service and warranty booklet for infor-
mation about oil change intervals.

NOTE

This vehicle is delivered from the factory
with synthetic oil.

Do not use oil additives.

Oil viscosity

The wrong oil viscosity can shorten engine
service life during normal use.
VCC RBS0-2AE 0W-20 provides good fuel
economy and engine protection. See the vis-
cosity chart.

Viscosity chart

Oil volume

Engine oil volumes (including oil filter) are
shown in the table.

Liter (approx)

5.6

US qts (approx)

5.9

Related information

•

Type designations (p. 660)

•

Checking and filling engine oil (p. 606)

•

Engine oil (p. 605)

Transmission fluid specifications

Under normal driving conditions, the trans-
mission fluid will not need to be changed dur-
ing the transmission's service life. However,
it may need to be changed if the vehicle is
driven frequently in adverse driving condi-
tions.

Automatic transmission

Prescribed transmission fluid:

AW-1

Related information

•

Type designations (p. 660)

SPECIFICATIONS

670

Brake fluid specifications

The medium in the hydraulic brake system is
called brake fluid and is used to transfer pres-
sure from e.g. a brake pedal via a master
brake cylinder, which in turn actuates the
brake calipers.

Recommended grade:

 Volvo Original or simi-

lar fluid that meets a combination of Dot 4, 5.1
and ISO 4925 class 6.

NOTE

Changing or filling brake fluid should be
entrusted to an authorized Volvo work-
shop.

Related information

•

Engine compartment overview (p. 604)

Fuel tank volume

The fuel tank's refillable volume is shown in
the table below.

All models

Liter (approx)

71

US gallons (approx)

18.8

Related information

•

Refueling (p. 444)

•

Octane rating (p. 446)

Air conditioning specifications

The climate system in the vehicle uses a
freon-free R1234yf refrigerant. For informa-
tion regarding the refrigerant, refer to the
decal located on the inside of the hood.

The prescribed grades and volumes for fluids
and lubricants in the air conditioning system
are shown below.

A/C Decal

Decal for R1234yf

SPECIFICATIONS

* Option/accessory.

671

Explanation of symbols for R1234yf

Symbol Explanation

Caution

Mobile air condition system
(MAC)

Lubricant

Only a trained and certified tech-
nician can perform service on the
mobile air conditioning system
(MAC)

Flammable refrigerant

Refrigerant

The refrigerant amount (charge level) is prin-
ted on a decal on the inside of the hood.

Vehicles with R1234yf refrigerant

Refrigerant amount.

WARNING

The air conditioning system contains the

refrigerant R1234yf under pressure. In

accordance with SAE J2845 (Technician

Training for Safe Service and Containment

of Refrigerants Used in Mobile A/C Sys-

tem), service and repairs to the refrigerant

system may only be performed by trained

and certified technicians in order to ensure

the safety of the system.

Compressor oil

Volume

Prescribed grade

60 ml (2.03 fl. oz.)

80 ml

A

 (2.71 fl. oz.

A

)

PAG SP-A2

A

Vehicles with A/C for the third row of seats

*

.

Evaporator

CAUTION

The A/C system evaporator must never be
repaired or replaced with a previously used
evaporator. The new evaporator must be
certified and labeled in accordance with
SAE J2842.

Related information

•

Climate control system service (p. 602)

SPECIFICATIONS

672

Approved tire pressure

The following tire pressures are recom-
mended by Volvo for your vehicle. Refer to

the tire inflation placard for information spe-
cific to the tires installed on your vehicle at
the factory.

Tire dimensions

Cold tire pressure for up to seven people (depending on number of seats)

Front

psi (kPa)

Rear

psi (kPa)

235/60 R18

235/55 R19

275/45 R20

275/40 R21

275/35 R22

38 (260)

38 (260)

Temporary spare tire

T125/80 R18

T125/70 R19

60 (420)

60 (420)

Related information

•

Type designations (p. 660)

•

Checking tire pressure (p. 551)

•

Recommended tire pressure (p. 553)
