MAINTENANCE AND SERVICE

* Option/accessory.

627

Function

Ampere

Type

Door module in left-side front door

20

Micro

Active chassis control module

*

20

Micro

–

–

Micro

Sensus control module

10

Micro

–

–

MCase

B

–

–

Micro

Door module in right-side front door

20

Micro

–

–

Micro

TV

*

 (certain markets only)

5

Micro

Primary fuse for fuses 52, 53, 57 and 58

15

Micro

A

Vehicles with 48 V support battery only.

B

This type of fuse should be replaced by a workshop. An authorized Volvo workshop is recommended.

Related information

•

Fuses and fuseboxes (p. 615)

•

Replacing fuses (p. 615)

MAINTENANCE AND SERVICE

* Option/accessory.

628

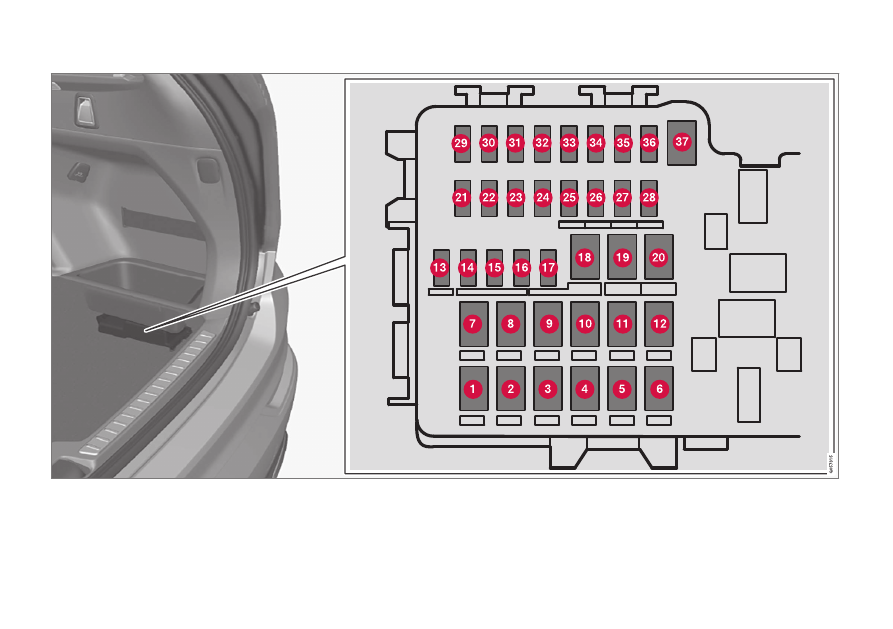

Fuses in the cargo compartment

The fuses in the cargo compartment help pro-
tect electrical components such as the power
seats

*

, airbags and seat belt tensioners.

MAINTENANCE AND SERVICE

}}

629

The fuse box is located under the storage compartment on the right-hand side.

Fuse pliers are provided on the inside of the
fuse box cover to assist in removing and
inserting fuses.

There are also spaces for several extra fuses in
the

distribution box in the engine compart-

ment

.

||

MAINTENANCE AND SERVICE

* Option/accessory.

630

Positions

Function

Ampere

Type

–

–

MCase

A

–

–

MCase

A

Pneumatic suspension

*

 compressor

40

MCase

A

Rear auxiliary electric heater (right-hand side)

*

30

MCase

A

–

–

MCase

A

Rear auxiliary electric heater (left-hand side)

*

30

MCase

A

Door module right side, rear

20

MCase

A

–

–

MCase

A

–

–

–

–

Power tailgate

*

25

MCase

A

Power front passenger seat

*

Door module right side, front

20

MCase

A

Towbar

*

 control module

40

MCase

A

Seat belt tensioner module (right side)

40

MCase

A

Internal relay windings

5

Micro

MAINTENANCE AND SERVICE

}}

* Option/accessory.

631

Function

Ampere

Type

–

–

Micro

–

–

Door module left side, rear

20

Micro

USB hub/accessory port

5

Micro

Module for electrically folding third-row seats

*

20

Micro

Towbar

*

 control module

25

MCase

A

Accessory module

40

Power driver seat

*

Door module left side, front

20

MCase

A

Seat belt tensioner module (left side)

40

MCase

A

Park Assist Camera

*

5

Micro

–

–

Micro

–

–

Micro

–

–

Micro

–

–

Micro

–

–

Micro

–

–

Micro

Heated rear seat (left side)

*

15

Micro

||

MAINTENANCE AND SERVICE

* Option/accessory.

632

Function

Ampere

Type

–

–

Micro

Blind Spot Information (BLIS)

*

Exterior reverse signal control module

5

Micro

–

–

Micro

Seat belt tensioner module, left

5

Micro

Emissions system actuator (gasoline, certain engine variants)

5

Micro

–

–

Micro

All Wheel Drive (AWD) control module

*

15

Micro

Heated rear seat (right side)

*

15

Micro

–

–

MCase

A

A

This type of fuse should be replaced by a workshop. An authorized Volvo workshop is recommended.

Related information

•

Fuses and fuseboxes (p. 615)

•

Replacing fuses (p. 615)

MAINTENANCE AND SERVICE

* Option/accessory.

633

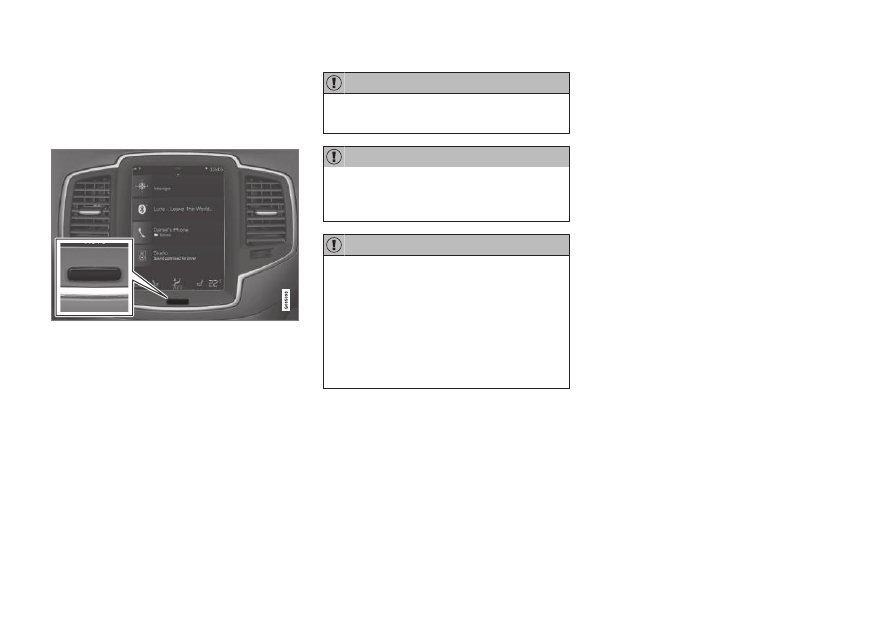

Replacing bulbs

Bulb types vary depending on model and
equipment level. If a light bulb

14

 breaks, it can

If you are experiencing problems with any
lights other than light bulbs, contact a work-
shop

15

.

If there is a problem with an LED

16

 light, the

entire lamp unit will normally need to be
replaced.

NOTE

WARNING

The vehicle electrical system must be in

ignition mode

0

 when bulbs are replaced.

CAUTION

Never touch the bulb glass with your bare
fingers. Grease and oils from your fingers
vaporize in the heat and will leave a
deposit on the reflector, which may dam-
age it.

NOTE

If the error message persists after the
defective bulb has been replaced, we rec-
ommend a visit to an authorized Volvo
workshop.

NOTE

Exterior lighting such as headlights and
taillights may develop temporary conden-
sation on the inside of the lens. This is nor-
mal. All exterior lighting is designed to
resist this. Condensation is normally ven-
ted out of the lamp housing once the light
has been lit for some period of time.

NOTE

Bulbs for Active Bending Lights

*

 contain

traces of mercury and should therefore
always be deposited at an authorized Volvo
workshop.

Related information

•

Location of exterior lights (p. 635)

•

Removing the plastic cover to replace
bulbs (p. 634)

•

Removing the rectangular headlight cover
(p. 634)

•

Replacing the low beam headlight bulbs
(p. 636)

•

Replacing the high beam headlight bulbs
(p. 636)

•

Replacing daytime running lights/front
parking light bulbs (p. 637)

•

Replacing front turn signal bulbs (p. 638)

•

Bulb specifications (p. 639)

14

Some vehicles do not have any light bulbs.

15

An authorized Volvo workshop is recommended.

16

LED (Light Emitting Diode)

MAINTENANCE AND SERVICE

634

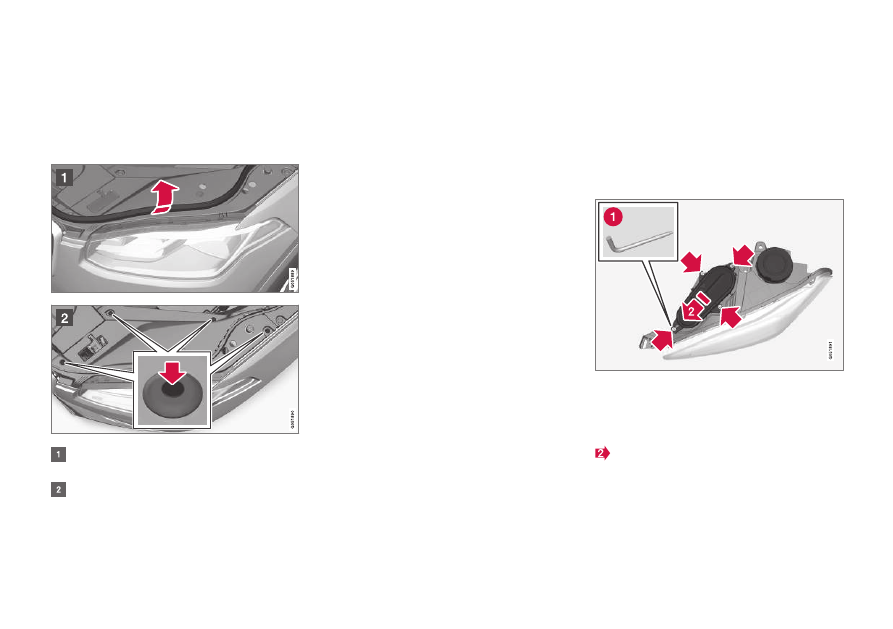

Removing the plastic cover to

replace bulbs

The headlight bulbs can be replaced without
the assistance of a workshop, but before a
bulb can be replaced, the plastic cover over
the headlight needs to be removed.

Lift the rubber strip by pressing it inward
into the engine compartment.

Release the pins in the plastic cover's four
clips by pressing them down with a
screwdriver or similar object and remove
the covering.

Put the cover back in place in the reverse
order.

Related information

•

Replacing bulbs (p. 633)

•

Replacing the low beam headlight bulbs
(p. 636)

•

Replacing the high beam headlight bulbs
(p. 636)

•

Replacing daytime running lights/front
parking light bulbs (p. 637)

•

Replacing front turn signal bulbs (p. 638)

•

Bulb specifications (p. 639)

Removing the rectangular

headlight cover

Most of the bulbs in the headlight housing
can be accessed when the rectangular cover
is removed.

Before the rectangular cover can be removed,
the plastic covering over the headlight must
be removed.

Left headlight.

1. Undo the four screws of the cover using a

Torx tool, dimension T20 (1). Do not undo
these completely; 3–4 turns is enough.

Push the cover to the side.

3. Remove the cover.

Put the cover back in place in the reverse
order.

MAINTENANCE AND SERVICE

* Option/accessory.

635

Related information

•

Replacing bulbs (p. 633)

•

Replacing the low beam headlight bulbs
(p. 636)

•

Replacing the high beam headlight bulbs
(p. 636)

•

Replacing daytime running lights/front
parking light bulbs (p. 637)

•

Replacing front turn signal bulbs (p. 638)

•

Bulb specifications (p. 639)

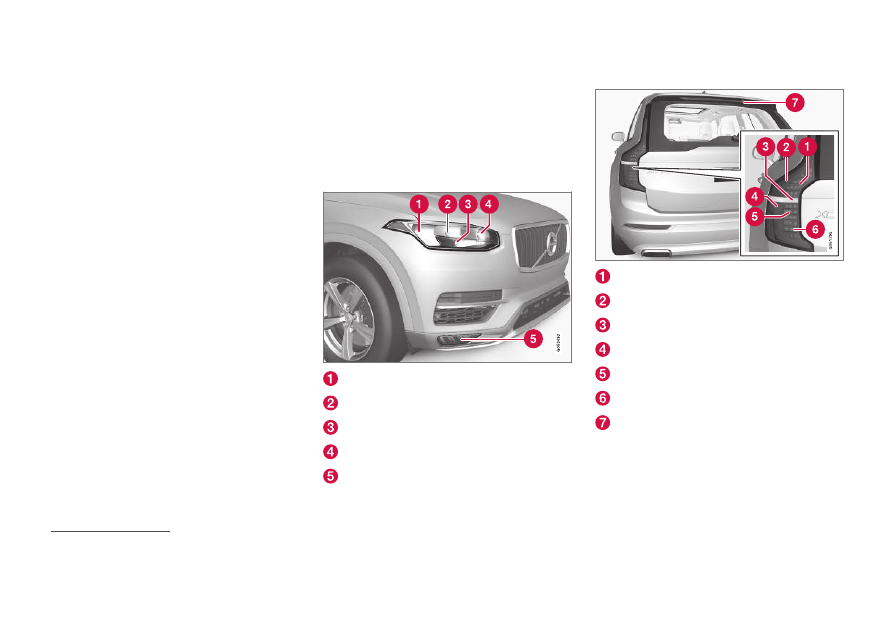

Location of exterior lights

The vehicle's exterior lighting consists of sev-
eral different bulbs. LED

17

 bulbs must be

replaced by a workshop. An authorized Volvo
workshop is recommended.

Front bulbs (vehicles with halogen
headlights)

Low beams

High beams

Daytime running light/parking light

Turn signal

Front fog light/cornering illumination

*

(LED)

Rear bulbs

Brake light (LED)

Parking light (LED)

Backup light

18

Parking light (LED)

Turn signal (LED)

Fog light (LED)

Brake light

‒

central, high-mounted (LED)

Related information

•

Replacing bulbs (p. 633)

•

Bulb specifications (p. 639)

•

Lighting control and panel (p. 156)

17

LED (Light Emmitting Diode)

18

Contact a workshop for replacement

‒

an authorized Volvo workshop is recommended.

MAINTENANCE AND SERVICE

636

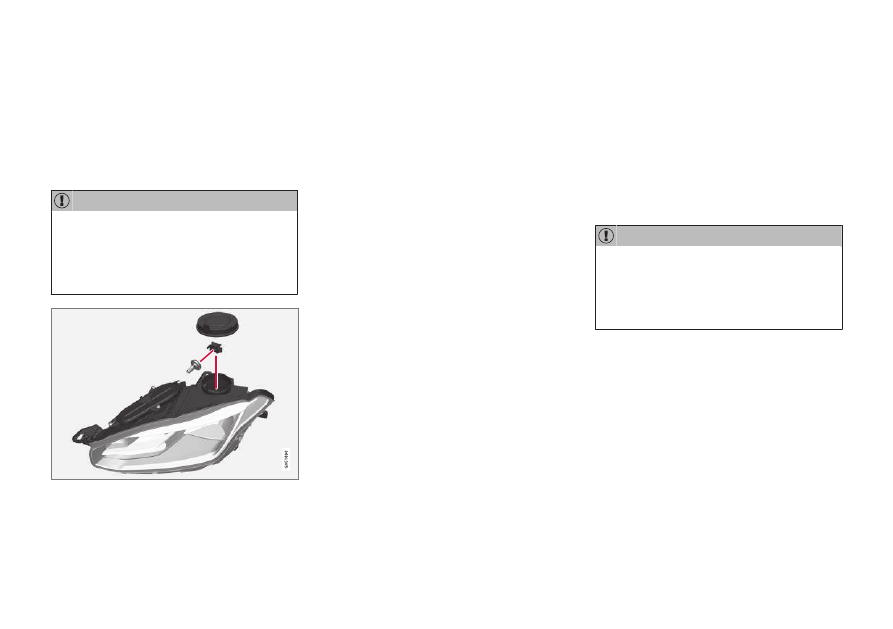

Replacing the low beam headlight

bulbs

The low beam bulbs in the halogen head-
lights can be changed without the help of a
workshop.

Before the bulbs can be replaced, the plastic
covering over the headlight must be removed.

CAUTION

Never touch the bulb glass with your bare
fingers. Grease and oils from your fingers
vaporize in the heat and will leave a
deposit on the reflector, which may dam-
age it.

Left headlight.

1. Remove the round low beam rubber cover

from the headlight housing.

2. Remove the connector from the bulb.

3. Remove the bulb by pressing it slightly

upward and then pulling it out.

4. Insert the new bulb in the socket. The

bulb's guiding pin should point straight
up.

5. Press the connector into place.

6. Put the round rubber cover back in place.

Related information

•

Location of exterior lights (p. 635)

•

Removing the plastic cover to replace
bulbs (p. 634)

•

Removing the rectangular headlight cover
(p. 634)

•

Bulb specifications (p. 639)

Replacing the high beam headlight

bulbs

The high beam bulbs in the halogen head-
lights can be changed without the help of a
workshop.

Before the bulbs can be replaced, the plastic
covering over the headlight must be removed.

Before the lamp can be replaced, the rectan-
gular headlight cover must be removed.

CAUTION

Never touch the bulb glass with your bare
fingers. Grease and oils from your fingers
vaporize in the heat and will leave a
deposit on the reflector, which may dam-
age it.

MAINTENANCE AND SERVICE

}}

637

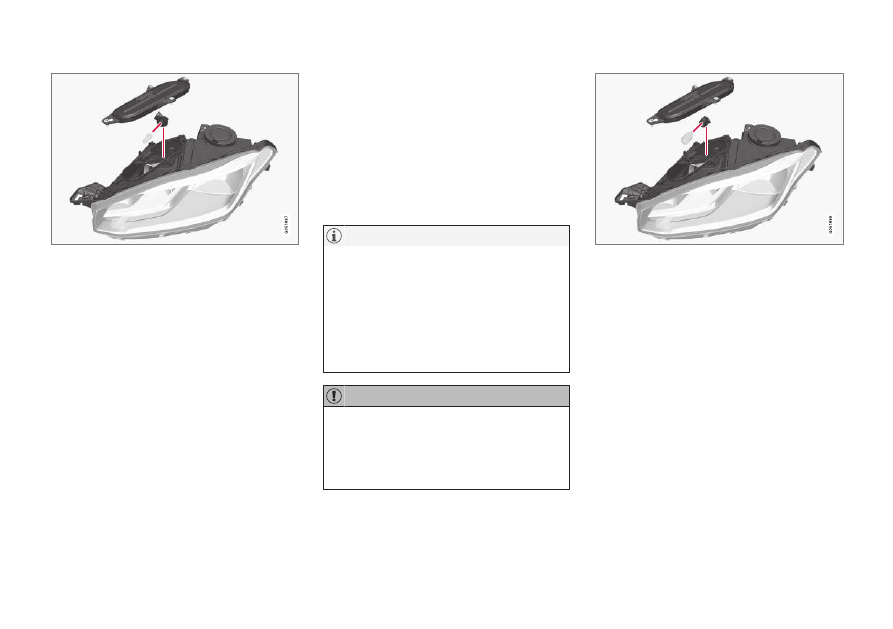

Left headlight.

1. Remove the bulb by turning the bulb

holder upward and then pulling it straight
out.

2. Carefully pry the plastic sleeve by the con-

nector's locking lug to release it.

3. Remove the connector from the bulb.

4. Replace the bulb.

5. Position the bulb in the socket and turn it

downward.

Related information

•

Location of exterior lights (p. 635)

•

Removing the plastic cover to replace
bulbs (p. 634)

•

Removing the rectangular headlight cover
(p. 634)

•

Bulb specifications (p. 639)

Replacing daytime running lights/

front parking light bulbs

The daytime running light/parking light bulbs
in the halogen headlights can be changed
without the help of a workshop.

Before the bulbs can be replaced, the plastic
covering over the headlight must be removed.

Before the lamp can be replaced, the rectan-
gular headlight cover must be removed.

NOTE

Daytime running lights/parking lights are
easier to reach if the high beam headlight
bulbs are removed. The high beam head-
lights are mounted above and to the side of
the daytime running lights/parking lights.
Remove the high beam headlight bulb by
turning the bulb holder upward and then
pulling it straight out.

CAUTION

Never touch the bulb glass with your bare
fingers. Grease and oils from your fingers
vaporize in the heat and will leave a
deposit on the reflector, which may dam-
age it.

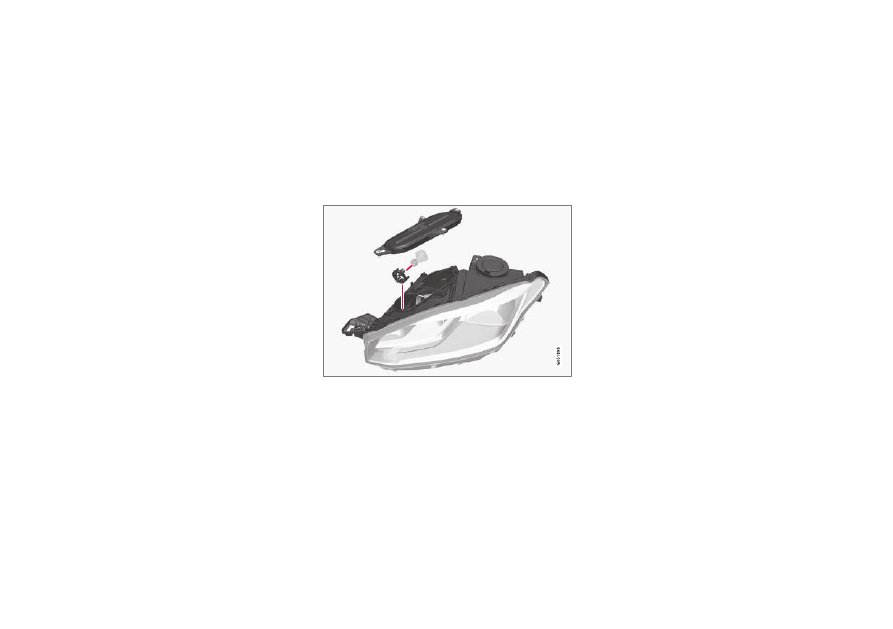

Left headlight.

1. Pull the daytime running light/parking

light bulb holder straight out.

2. Remove the bulb by pulling it straight out.

3. Replace the bulb.

4. Position the bulb holder in the socket and

push it into place.

5. If the high beam bulb holder has come

loose, position it in the socket and turn
downward.

Related information

•

Location of exterior lights (p. 635)

•

Removing the plastic cover to replace
bulbs (p. 634)

•

Removing the rectangular headlight cover
(p. 634)

MAINTENANCE AND SERVICE

638

•

Bulb specifications (p. 639)

•

Replacing the high beam headlight bulbs
(p. 636)

Replacing front turn signal bulbs

The turn signal bulbs in the halogen head-
lights can be changed without the help of a
workshop.

Before the bulbs can be replaced, the plastic
covering over the headlight must be removed.

Before the lamp can be replaced, the rectan-
gular headlight cover must be removed.

Left headlight.

1. Press the retaining catches together and

pull the bulb holder straight out.

2. The bulb holder and bulb must be

replaced as one unit.

3. Position the bulb holder in the socket and

push it into place.

Related information

•

Location of exterior lights (p. 635)

•

Removing the plastic cover to replace
bulbs (p. 634)

•

Removing the rectangular headlight cover
(p. 634)

•

Bulb specifications (p. 639)

MAINTENANCE AND SERVICE

* Option/accessory.

639

Bulb specifications

Specifications for replaceable light bulbs.

If you are experiencing problems with any
lights other than light bulbs, contact a work-
shop

19

. If there is a problem with an LED

20

light, the entire lamp unit will normally need
to be replaced.

Function

W

A

Type

Low beams

55

H11

High beams

65

H9

Front turn signal

24

PY24W

PWY24W

Daytime running light/
parking light, front

21/5

W21/5W

A

Watt

Related information

•

Location of exterior lights (p. 635)

•

Replacing bulbs (p. 633)

Cleaning the interior

Use cleaning agents and car care products
recommended by Volvo. Clean regularly and
treat stains immediately. It is important to
vacuum before using a cleaning agent.

CAUTION

•

Some colored clothing (for example,
dark jeans and suede garments) may
stain the upholstery. If this occurs, it is
important to clean and treat these
parts of the upholstery as soon as pos-
sible.

•

Never use strong solvents such as
washer fluid, gasoline, mineral spirit or
concentrated alcohol to clean the inte-
rior as this can damage the upholstery
as well as other interior materials.

•

Never spray cleaning agent directly
onto components that have electrical
buttons and controls. Wipe instead
with a damp cloth with cleaning agent.

•

Sharp objects and Velcro can damage
the car's textile upholstery.

•

Only use cleaning agent on the type of
material it is intended for.

Related information

•

Cleaning the center display (p. 640)

•

Cleaning fabric upholstery and ceiling liner
(p. 641)

•

Cleaning the seat belt (p. 642)

•

Cleaning textile floor and inlay mats
(p. 642)

•

Cleaning leather upholstery

*

 (p. 643)

•

Cleaning the leather steering wheel
(p. 644)

•

Cleaning interior plastic, metal and wood
surfaces (p. 644)

19

An authorized Volvo workshop is recommended.

20

LED (Light Emitting Diode)

MAINTENANCE AND SERVICE

* Option/accessory.

640

Cleaning the center display

Marks, stains, finger smudges etc. on the
center display may affect its performance and
readability. Clean the screen regularly with a
microfiber cloth.

1. Turn off the center display by pressing and

holding the Home button.

2. Wipe the screen clean with the microfiber

cloth provided or use another microfiber
cloth of similar quality. Wipe the screen
with a clean, dry microfiber cloth using
small, circular motions. If necessary, mois-
ten the cloth slightly.

3. Reactivate the display by pressing the

Home button briefly.

CAUTION

The microfiber cloth must be free of sand
and dirt when cleaning the center display.

CAUTION

When cleaning the center display, apply
only light pressure to the screen. Pressing
too hard could damage the screen.

CAUTION

Do not spray liquid or corrosive chemicals
directly onto the center display. Do not use
window cleaners, cleaning agents, aerosol
sprays, solvents, alcohol, ammonia or
detergents that contain abrasives.

Never use abrasive cloths, paper towels or
tissue paper, as these may scratch the cen-
ter display.

Related information

•

Cleaning the interior (p. 639)

•

Cleaning fabric upholstery and ceiling liner
(p. 641)

•

Cleaning the seat belt (p. 642)

•

Cleaning textile floor and inlay mats
(p. 642)

•

Cleaning leather upholstery

*

 (p. 643)

•

Cleaning the leather steering wheel
(p. 644)

•

Cleaning interior plastic, metal and wood
surfaces (p. 644)

MAINTENANCE AND SERVICE

}}

* Option/accessory.

641

Cleaning the head-up display

*

 and

instrument panel

Carefully wipe the glass covering the head-up
display unit with a clean and dry microfiber
cloth. If necessary, the cloth may be slightly
moistened.

Never use strong stain removers. For difficult
cleaning conditions, a special cleaning agent
can be purchased at a Volvo retailer.

Related information

•

Activating and deactivating the head-up
display

*

 (p. 147)

•

Head-up display

*

 (p. 146)

Cleaning fabric upholstery and

ceiling liner

Use of textile cleaner is recommended when
cleaning textile materials. Clean as needed
and treat stains immediately.

CAUTION

Never scrape or rub a stain because this
may damage the upholstery.

CAUTION

Never use stain removers or strong sol-
vents because these may damage the
upholstery.

Cleaning textile upholstery

1. Start by vacuuming the upholstery.
2. Follow the instructions of the textile

cleaner.

3. When cleaning upholstery, a spray extrac-

tion cleaner is recommended for sucking
up cleaning fluids and rinse water.

CAUTION

Certain dyed clothing (such as denim and
suede garments) may stain the upholstery.
Difficult stains, like oil, can be difficult to
remove.

CAUTION

Always clean all of the upholstery, even if it
only has isolated stains. This helps to pre-
vent permanent water rings.

NOTE

Do not remove the upholstery when clean-
ing.

Cleaning the ceiling liner

1. Carefully brush the ceiling liner using a

soft brush.

2. Follow the instructions of the textile

cleaner.

3. Then use a soft, lint-free cloth to wipe the

ceiling liner.

CAUTION

Failure to take care during cleaning could
lead to damage to the ceiling liner.

Related information

•

Cleaning the interior (p. 639)

•

Cleaning the center display (p. 640)

•

Cleaning the seat belt (p. 642)

•

Cleaning textile floor and inlay mats
(p. 642)

•

Cleaning leather upholstery

*

 (p. 643)

MAINTENANCE AND SERVICE

* Option/accessory.

642

•

Cleaning the leather steering wheel
(p. 644)

•

Cleaning interior plastic, metal and wood
surfaces (p. 644)

Cleaning the seat belt

Use cleaning agents and car care products
recommended by Volvo. Clean regularly and
treat stains immediately. It is important to
vacuum before using a cleaning agent.

Use water and a synthetic soap solution. Spe-
cially designed textile cleaning agents are
available for purchase at Volvo retailers. Make
sure the belt is dry before it is retracted.

Related information

•

Cleaning the interior (p. 639)

•

Cleaning the center display (p. 640)

•

Cleaning fabric upholstery and ceiling liner
(p. 641)

•

Cleaning textile floor and inlay mats
(p. 642)

•

Cleaning leather upholstery

*

 (p. 643)

•

Cleaning the leather steering wheel
(p. 644)

•

Cleaning interior plastic, metal and wood
surfaces (p. 644)

Cleaning textile floor and inlay

mats

Use of textile cleaner is recommended when
cleaning textile mats. Clean regularly and
treat stains immediately. It is important to
vacuum before using a cleaning agent.

Remove the inlay mats to clean the floor mats
and inlay mats separately. Each inlay mat is
secured into place with pins.

1. Remove the inlay mat by grasping the

inlay mat at each pin and lifting the mat
straight up.

2. Use a vacuum to remove dust and dirt.

NOTE

Do not swing or strike the inlay mats vio-
lently against another object to remove dirt
as this could damage the mats.

3. After vacuuming, a specially designed tex-

tile cleaning agent should be used to
remove stains on floor mats.

4. After cleaning, put the inlay mat back into

place by pressing it in at each pin.
