When not in use, the jack

should be

kept in its storage compartment under
the cargo compartment floor.

•

The jack provided with your vehicle is
intended to be used only in temporary
situations such as changing wheels in
the event of a flat tire. Only the jack
that came with your particular model
should be used to lift the vehicle. If the
vehicle needs to be lifted more fre-
quently or for a prolonged period, using
a garage jack or hoist is recommended.
Always follow this device's instructions
for use.

Removing a wheel

Read through all instructions before starting.
Before raising the vehicle using a jack or lift,
take out all the tools you will need.

1. Turn on the vehicle's hazard warning

flashers if a wheel change must be per-
formed in an area with traffic.

2. Make sure that the parking brake is

engaged and put the gear selector in

position.

3. Place chocks in front of and behind the

wheels that are still on the ground. For
example, use heavy wooden blocks or
large stones.

4. Using the lug wrench, screw the towing

eye into place as far as possible.

5. Remove the plastic covers from the wheel

bolts using the designated tool.

6. With the vehicle still on the ground, use

the lug wrench/towing eye to loosen the
wheel bolts ½-1 turn by pressing down-
ward (counterclockwise). Always start
with the locking wheel bolts

7. Follow the instructions for safely lifting the

vehicle using a jack.

8. Raise the vehicle until the wheel to be

changed can move freely. Unscrew the
wheel bolts and lift off the wheel.

Installing a wheel

1. Clean the contact surfaces between the

wheel and the wheel hub.

2. Lift the wheel into place. Tighten the

wheel bolts securely.

not

grease the wheel bolt threads.

3. Lower the vehicle so that the wheel can-

not rotate.

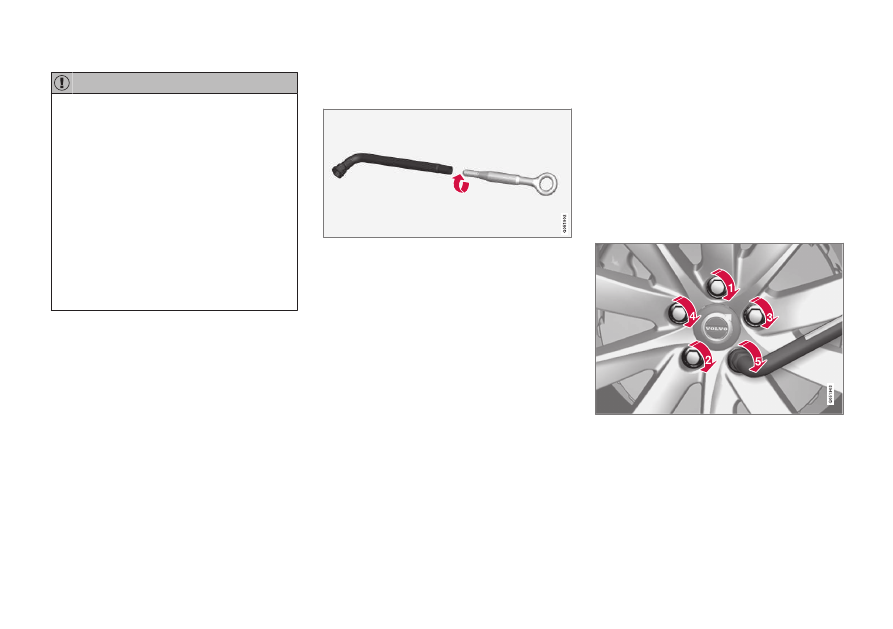

4. Tighten the wheel bolts in a crisscross pat-

tern (as shown in illustration). It is impor-
tant that the wheel bolts are securely
tightened. Tighten to 140 Nm (103 ft. lbs.).
Use a torque wrench to check torque.

5. Press the plastic covers over the wheel

bolts.

6. Check the tire inflation pressure and store

the new inflation pressure in the tire pres-
sure monitoring system

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WHEELS AND TIRES

* Option/accessory.

516

WARNING

The wheel bolts may need to be tightened

again several days after a wheel change.

Temperature fluctuations and vibrations

can cause them to loosen slightly.

Hoisting the vehicle (p. 555)

•

After inflating a tire, always replace the
valve cap to help prevent valve damage
caused by gravel, dirt, etc.

•

Use plastic valve caps only. Metal caps
could corrode and become difficult to
remove.

Related information

•

•

Saving new reference values for tire infla-
tion pressure monitoring

•

(p. 511)

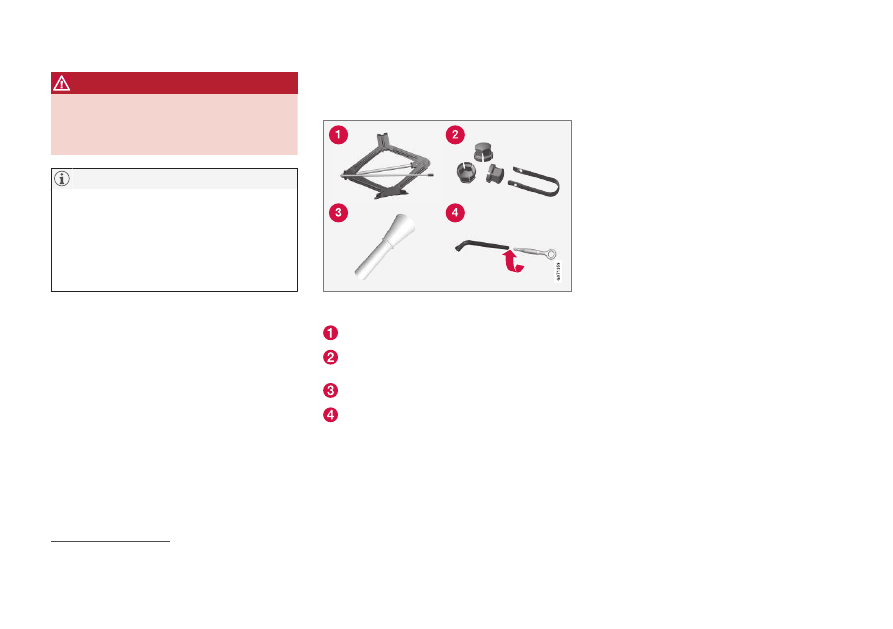

Tool kit

Tools for e.g. towing or changing wheels are
provided in the vehicle's cargo compartment.

All the tools are located in a foam block under the

cargo compartment floor.

Jack

Tool for removing the plastic wheel bolt
covers
Funnel for refilling fluids

Wheel bolt key

and towing eyelet

If the vehicle is equipped with a spare tire

, a

jack and lug wrench are provided.

Related information

•

Folding up the cargo compartment floor
(p. 540)

•

Tire sealing system (p. 522)

•

Jack

(p. 517)

•

•

Attaching and removing the towing eyelet
(p. 419)

Not available on all models.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WHEELS AND TIRES

}}

* Option/accessory.

517

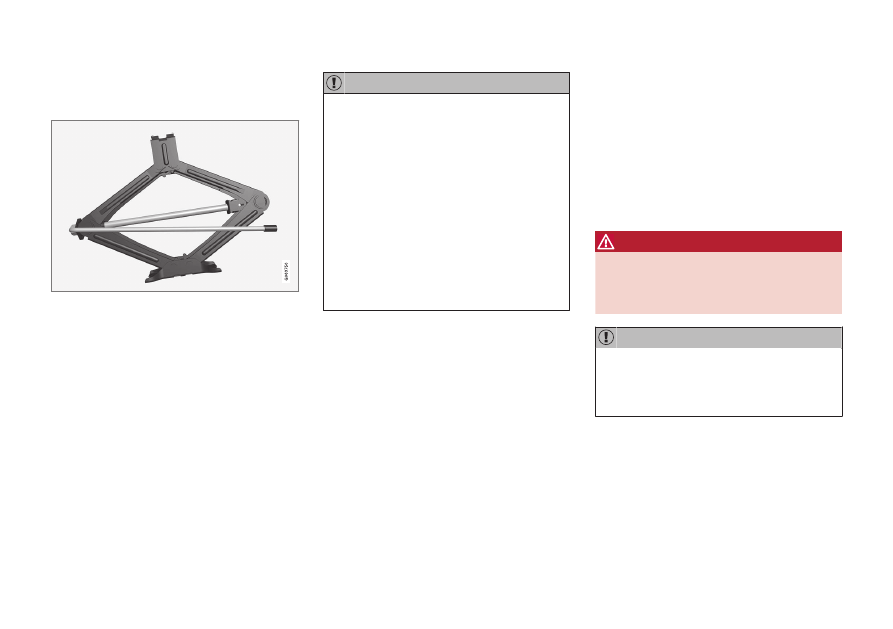

Jack

The jack can be used to lift the vehicle to e.g.
change a wheel.

Folding up the cargo compartment floor
(p. 540)

•

When not in use, the jack

should be

kept in its storage compartment under
the cargo compartment floor.

•

The jack needs to be cranked together to the
correct position in order to fit.

Related information

•

•

Hoisting the vehicle (p. 555)

•

Wheel bolts

The wheel bolts hold the wheel in place on
the wheel hub.

Only use rims that have been tested and
approved by Volvo and are included in Volvo's
original product range.

Use a torque wrench to check that the wheel
bolts are tightened correctly.

not

grease the wheel bolt threads.

WARNING

The wheel bolts may need to be tightened

again several days after a wheel change.

Temperature fluctuations and vibrations

can cause them to loosen slightly.

The wheel bolts should be tightened to
140 Nm (103 ft. lbs.). Over-tightening or
under-tightening could damage the threa-
ded joints.

Locking wheel bolt kit

To loosen or tighten the locking wheel bolts,
turn the wrench in the locking bolt until it fully
engages in the code grooves. When removing
a wheel, always start with the locking wheel
bolts. When mounting a wheel, end with the
locking bolt.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WHEELS AND TIRES

518

Make sure you have a solid connection
between bolt and wheel bolt key when
loosening/tightening the wheel bolts.
Applying force at an angle could damage
the slots in the wheel bolts and the wheel
bolt key and make it impossible to install or
remove the wheel.

When the wheel bolt key is not being used,
stow it in its designated location in the foam
block under the cargo compartment floor. This
is important to remember so that the tool is
available if the vehicle is taken to a workshop.
If you lose the key, contact your Volvo retailer.

Related information

•

•

Spare wheel

The spare wheel is a Temporary Spare and
can be used to temporarily replace a punc-
tured tire on one of the vehicle's regular
wheels.

The spare wheel is only intended for tempo-
rary use. Replace it with a normal wheel as
soon as possible.

The driving characteristics of the vehicle
change and ground clearance reduces when
the spare wheel is used. Do not wash the vehi-
cle in an automatic car wash while using the
Temporary Spare.

The recommended tire pressure must be
maintained regardless of at which position the
temporary spare wheel is used on the vehicle.

If the spare wheel is damaged, a replacement
can be purchased from a Volvo retailer.

WARNING

Current legislation prohibits the use of the

"Temporary Spare" wheel other than as a

temporary replacement for a punctured

tire. It must be replaced as soon as possi-

ble by a standard tire. Roadholding and

handling may be affected with the "Tempo-

rary Spare" wheel in use.

WARNING

•

Never drive faster than 80 km/h
(50 mph) with a spare tire mounted on
the vehicle.

•

The vehicle must never be driven with
more than one "Temporary Spare"
wheel mounted.

•

Driving with a spare wheel may alter
the driving characteristics of the vehi-
cle. Replace the spare wheel with a
normal wheel as soon as possible.

•

The spare wheel is smaller than the
normal wheel, which affects the vehi-
cle's ground clearance. Watch for high
curbs and do not wash the vehicle in
an automatic car wash when a spare
wheel is mounted.

•

Follow the manufacturer's recom-
mended tire inflation pressure for the
spare wheel.

•

On all-wheel drive vehicles, the drive
on the rear axle can be disconnected.

•

If the spare wheel is mounted on the
front axle, snow chains must not be
used.

•

The spare wheel must not be repaired.

Not available on all models.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WHEELS AND TIRES

}}

519

The vehicle must not be driven with tires of
different dimensions or with a spare wheel
other than the one that came with the vehi-
cle. The use of different size wheels can
seriously damage your vehicle's transmis-
sion.

Related information

•

Recommended tire pressure (p. 509)

•

Handling the spare wheel

Follow these instructions regarding handling
the spare wheel.

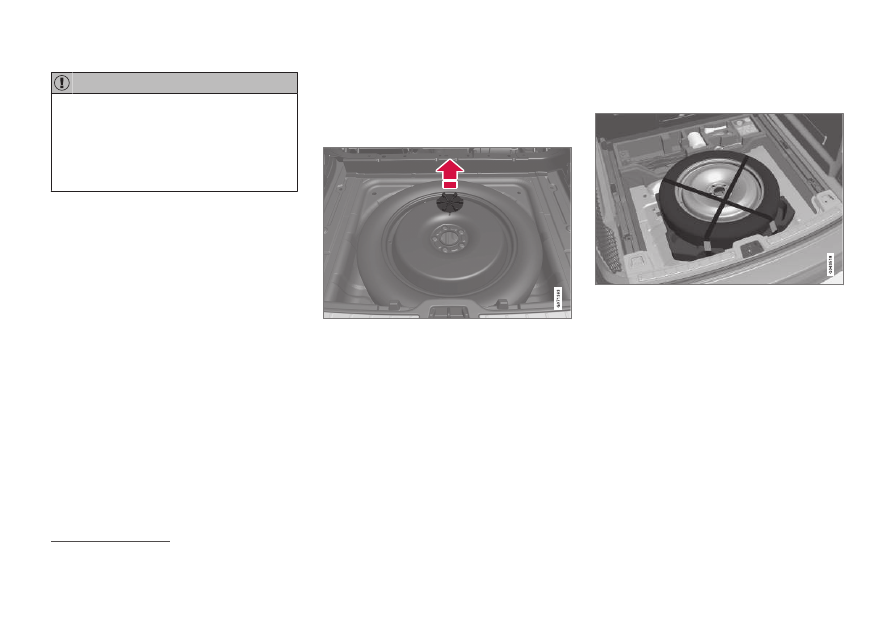

Accessing the spare wheel

This illustration is generic and appearance may vary.

Vehicles with 48 V support battery.

The spare tire is located in the spare wheel
well under the cargo compartment with the
outside of the wheel facing downward. The
spare tire is secured with a bolt that goes
through the tire and attaches it to the body.
The foam block contains all tools needed to
change a wheel.

1. Lift the rear edge of the cargo compart-

ment floor.

2. Unscrew the retaining bolt.

3. Lift out the spare wheel.

Accessing the spare wheel

This illustration is generic and appearance may vary.

Vehicles without 48 V support battery.

The spare tire is located under the floor of the
cargo compartment and is held in place by a
strap. The foam block contains all tools nee-
ded to change a wheel.

1. Lift the rear edge of the cargo compart-

ment floor.

2. Release the straps and lift out the spare

wheel.

Not available on all models.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WHEELS AND TIRES

520

Stowing a flat tire

1. Screw the spare tire's retaining bolt back

on.

Folding up the cargo compartment floor
(p. 540)

Do not attempt to unscrew the lower part
of the retaining bolt if it is attached to the
body, as this could cause it to break.

If the retaining bolt becomes dislodged
from its lower attachment point in the
body under the spare tire, replace it in the
hole and turn clockwise to secure it again.

WARNING

On vehicles with 48 V batteries, the bolt is

attached to the battery box instead of the

body. If the lower part of the retaining bolt

is not dislodged when the spare tire is

taken out, it should be removed to help

prevent injury when the flat tire is replaced.

2. Put the tools back in their correct posi-

tions in the foam block.

3. Then lower the trunk/cargo compartment

floor and place the punctured tire in the
trunk/cargo compartment.

Related information

•

Spare wheel (p. 518)

•

•

•

Snow tires

Snow tires are designed for winter driving
conditions.

Volvo recommends snow tires with specific
dimensions. The tire dimensions vary depend-
ing on engine type. When driving with snow
tires, the correct type of tires must be moun-
ted on all four wheels.

Tips for changing snow tires

When switching between regular tires and
snow tires, mark the tires according to which
side they were mounted on, e.g.

for left and

for right.

Contact a Volvo retailer for assistance deter-
mining the most suitable rims and tires.

Studded tires

Studded tires should be broken in by driving
500–1000 km (300–600 miles) slowly and
gently to help the studs settle properly in the
tires. This gives the tire, and especially the
studs, a longer service life.

Legal requirements concerning the use of
studded tires may vary. Always follow local
laws and regulations.

Tread depth

Road conditions with ice, slush and low tem-
peratures place considerably higher demands

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WHEELS AND TIRES

}}

521

on tires than summer conditions. Volvo there-
fore recommends not driving on snow tires
that have a tread depth of less than 4 mm
(0.15 inch).

Related information

•

Tread wear indicator (p. 503)

•

Winter driving (p. 403)

•

•

Volvo Cars support site (p. 21)

Snow chains

Using snow chains and/or snow tires can
help improve traction in winter driving condi-
tions.

Volvo does not recommend use of snow
chains on wheel dimensions larger than
18 inches

WARNING

Use Volvo genuine snow chains or equiva-

lent snow chains that are suitable for the

vehicle model and the tire and wheel sizes.

Only

one-sided

snow chains are permit-

ted.
If uncertain about snow chains, Volvo rec-

ommends contacting an authorized Volvo

workshop. Use of the wrong snow chains

could cause serious damage to the vehicle

and result in an accident.

Snow chains can be used on the vehicle,
with the following restrictions:

•

Always follow the manufacturer's
installation instructions carefully. Install
chains as tightly as possible and
retighten periodically.

•

Only put snow chains on the front
wheels (also applies to all-wheel drive
vehicles).

•

If accessory, aftermarket or "custom"
tires and wheels with different dimen-
sions than the original tires and wheels
are used, snow chains in some cases
may NOT be used. Sufficient distance
between the chains and brakes, sus-
pension and body components must
be maintained.

•

Check local regulations regarding the
use of snow chains before installing.

•

Never exceed the snow chain manu-
facturer's specified maximum speed
limit. Under no circumstances should
you exceed 50 km/h (30 mph).

•

Avoid bumps, holes or sharp turns
when driving with snow chains.

•

Avoid driving on surfaces without
snow as this wears out both the snow
chains and the tires.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WHEELS AND TIRES

522

•

The handling of the vehicle can be
adversely affected when driving with
chains. Avoid fast or sharp turns as
well as locked wheel braking.

•

Some types of strap-on chains affect
brake components and therefore must
NOT be used.

Consult a Volvo retailer for more information
about snow chains.

Related information

•

Winter driving (p. 403)

Tire sealing system

The temporary tire sealing system can be
used to seal a puncture in a tire or to check
and adjust the pressure in the tire.

Models equipped with a spare wheel

do not

have the tire sealing system.

WARNING

California Proposition 65

Operating, servicing and maintaining a pas-

senger vehicle can expose you to chemi-

cals including engine exhaust, carbon mon-

oxide, phthalates, and lead, which are

known to the State of California to cause

cancer and birth defects or other reproduc-

tive harm. To minimize exposure, avoid

breathing exhaust, do not idle the engine

except as necessary, service your vehicle in

a well ventilated area and wear gloves or

wash your hands frequently when servicing

your vehicle. For more information go to

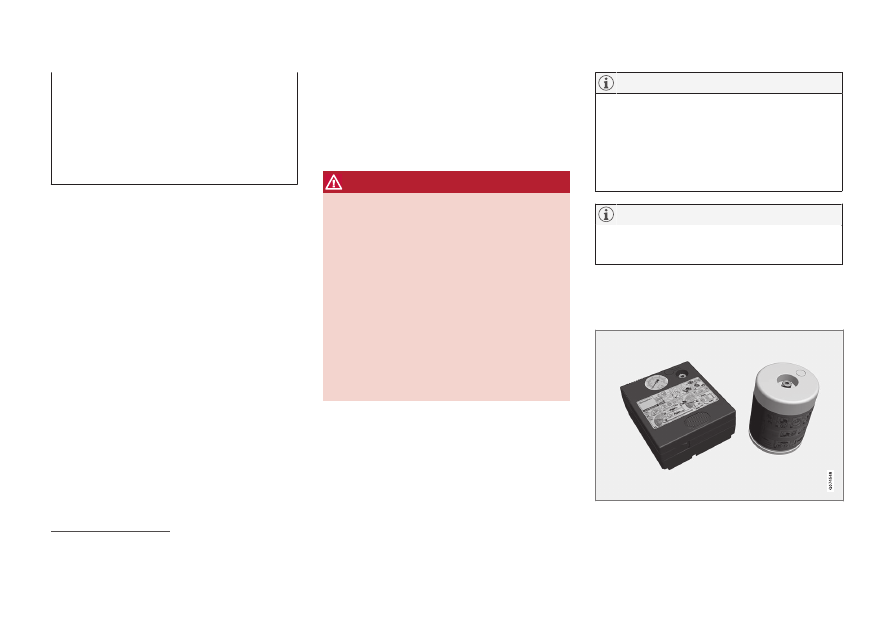

The tire sealing system consists of a compres-
sor and a bottle containing sealing compound.
The sealing functions as a temporary repair.

The sealing compound effectively seals
tires with punctures in the tread but may
not be able to fully seal tires with punctu-
res in the sidewall. Do not use the tire seal-
ing system on tires with large tears, cracks
or similar damage.

Using the tire sealing system (p. 523)

The compressor is intended for temporary
tire sealing and is approved by Volvo.

Location

The tire sealing system is located in a foam
block under the cargo compartment floor.

Certain models only.

Not available on all models.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WHEELS AND TIRES

}}

523

Sealing compound expiration date

The sealing compound bottle must be
replaced if its expiration date has passed (see
the decal on the bottle). Handle the old bottle
as hazardous waste.

Related information

•

•

Inflate tires with the compressor included
in the tire sealing system (p. 527)

•

Tires (p. 500)

Using the tire sealing system

The temporary tire sealing system (TMK

)

can be used to seal a puncture in a tire. Read
through all instructions before use.

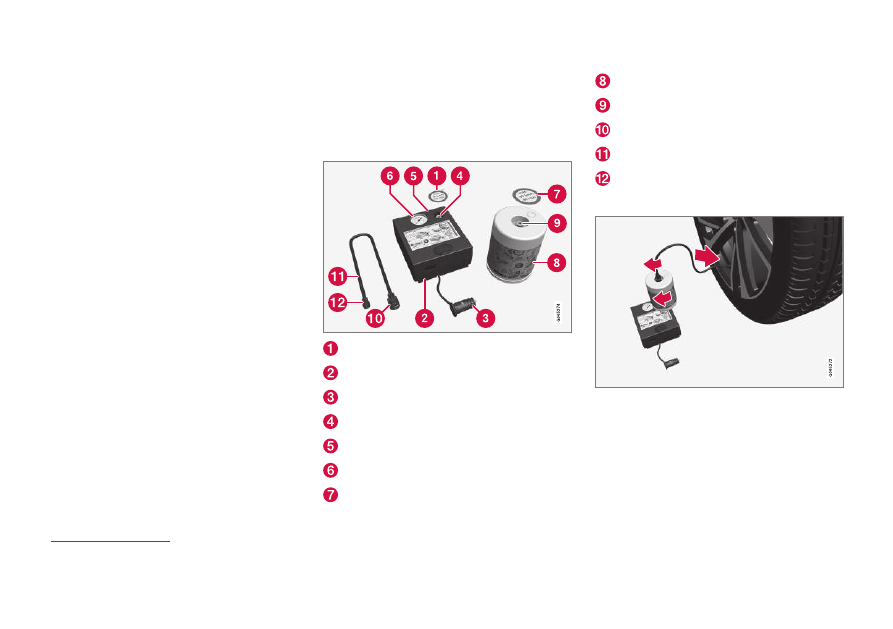

Overview

Speed limit sticker

Switch

Electrical cable

Bottle holder

Air release valve

Air pressure gauge

Decal, wheel-side warning

Sealing compound bottle

Bottle opening

Connection for bottle

Hose

Connection valve

Connecting

Temporary Mobility Kit

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WHEELS AND TIRES

524

WARNING

Please keep the following points in mind

when using the tire sealing system:

•

The sealing compound bottle (no. 8 in
the illustration) contains 1) rubber latex,
natural and 2) ethanediol. These sub-
stances are harmful if swallowed.

•

The contents of this bottle may cause
allergic skin reactions or otherwise be
potentially harmful to the respiratory
tract, the skin, the central nervous sys-
tem, and the eyes.

Precautions:

•

Keep out of reach of children.

•

Do not ingest the contents.

•

Avoid prolonged or repeated contact
with the skin. Remove any clothing
that has come into contact with seal-
ant.

•

Wash thoroughly after handling.

First aid:

•

Skin: Wash affected areas of the skin
with soap and water. Get medical
attention if symptoms occur.

•

Eyes: Flush with plenty of water for
least 15 minutes, occasionally lifting
the upper and lower eyelids. Get medi-
cal attention if symptoms occur.

•

Inhalation: Move the exposed person
to fresh air. If irritation persists, get
medical attention.

•

Ingestion: Do NOT induce vomiting
unless directed to do so by medical
personnel. Get medical attention.

•

Disposal: Dispose of this material and
its container at a hazardous or special
waste collection point.

WARNING

Do not remove the bottle or the hose while

the tire sealing system is being used.

Preparations

Turn on the vehicle's hazard warning
flashers if the tire sealing system is to be
used in an area with traffic.

If the puncture was caused by a nail or
similar object, do not remove it. It will help
seal the hole.

2. Peel off the speed limit sticker from the

side of the compressor. Affix the decal to a
clearly visible location on the windshield
to remind the driver not to exceed this
speed limit. Do not drive faster than
80 km/h (50 mph) while using a tire that
has been temporarily repaired with the tire
sealing system.

Also peel off the warning decal and affix it
securely to the side of the wheel.

3. Make sure the switch is in the

(Off)

position and take out the electric cable
and the hose.

4. Attach the sealing compound bottle to the

compressor, making sure that the red
arrows on the compressor and bottle are
aligned, and then turn clockwise until it
clicks into place.

The bottle is equipped with a check valve
that prevents fluid leakage when the bot-
tle is not connected to the compressor.

5. Attach the hose in the bottle opening and

turn clockwise until it clicks into place.

6. Unscrew the tire's valve cap and screw

the hose's valve connector as far as possi-
ble onto the valve.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WHEELS AND TIRES

}}

525

Begin tire sealing procedure

Connect the electrical cable to the nearest
12 V outlet and start the vehicle.

Make sure that none of the vehicle's other
12 V sockets are used while the compres-
sor is running.

WARNING

Never leave children unattended in the

vehicle while the engine is running.

WARNING

Inhaling exhaust fumes could lead to seri-

ous injury. Never leave the engine running

in an enclosed space or a space without

sufficient ventilation.

8. Start the compressor by moving the

switch to the

(On) position.

When the compressor starts, the pressure
can increase up to 6 bar (88 psi), but the
pressure will decrease after
approx. 30 seconds.

WARNING

Never stand next to a tire being inflated

with the compressor. If cracks, bulges, etc.

form on the tire, switch off the compressor

immediately. The vehicle should not be

driven. Call roadside assistance to have the

vehicle towed to a workshop for inspec-

tion/replacement of the tire. Volvo recom-

mends an authorized workshop.

9. Inflate the tire for 7 minutes.

To help avoid overheating, the compressor
should never be used for more than
10 minutes at a time.

10. Switch off the compressor and check the

inflation pressure using the air pressure
gauge. The inflation pressure should be
between 1.8 bar (22 psi) and 2.5 bar
(36 psi). If the inflation pressure is too
high, use the air release valve to release
air.

The sealing compound bottle must be
removed in order to access the air release
valve. Remove the bottle in the following
order:

1. Remove the hose from the tire's valve.
2. Remove the hose from the bottle.
3. Remove the bottle from the compres-

sor.

4. Reconnect the hose directly to the

compressor.

5. Screw the hose back on to the tire's

valve.

6. Release air using the air release valve.

WARNING

If pressure falls below 1.8 bar (22 psi), the

hole in the tire may be too large. The vehi-

cle should not be driven. Call roadside

assistance to have the vehicle towed to a

workshop for inspection/replacement of

the tire. Volvo recommends an authorized

workshop.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WHEELS AND TIRES

526

11. Switch off the compressor and remove

the electrical cable.

12. Unscrew the hose from the tire's valve and

screw the valve cap back on.

•

After inflating a tire, always replace the
valve cap to help prevent valve damage
caused by gravel, dirt, etc.

•

Use plastic valve caps only. Metal caps
could corrode and become difficult to
remove.

13. Clean the hose before stowing it and

make sure that no sealing compound is
leaking out.

14. Immediately drive the vehicle at least

3 km (2 miles) at a maximum speed of
80 km/h (50 mph) to allow the sealing
compound to seal the tire, and then
recheck the inflation pressure.

WARNING

During the tire's first revolution, some seal-

ing compound may spray out of the punc-

ture hole. Before driving away, make sure

that no one is near the vehicle who could

be sprayed with sealing compound. Make

sure no one is within 2 meters (7 feet) of

the vehicle.

15.

Rechecking the inflation pressure

Connect the hose to the tire's valve and
screw the hose connector onto the valve
as far as possible. The compressor must
be switched off.

16. Check the inflation pressure on the air

pressure gauge.

•

If the pressure is under 1.3 bar (19 psi),
the tire is not sufficiently sealed. The
vehicle should not be driven. Call road-
side assistance to have the vehicle
towed.

•

If the inflation pressure is higher than
1.3 bar (19 psi), the tire must be inflated
to the inflation pressure specified on
the tire pressure decal on the driver's
side door pillar (1 bar = 100 kPa =
14.5 psi). If the inflation pressure is too
high, use the air release valve to release
air.

WARNING

Check inflation pressure regularly.

Volvo recommends driving to the nearest
authorized Volvo workshop to have the tire
replaced/repaired. Inform the workshop that
the tire contains sealing compound.

The sealing compound bottle and the hose
must be replaced after use. Volvo recom-
mends contacting an authorized Volvo work-
shop for replacement.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WHEELS AND TIRES

}}

527

WARNING

After using the tire sealing system, the

vehicle should not be driven farther than

approximately 200 km (120 miles).

Recommended tire pressure (p. 509)

The compressor is an electric device. Fol-
low local regulations for disposal.

Related information

•

•

Tire sealing system (p. 522)

•

Inflate tires with the compressor included
in the tire sealing system (p. 527)

•

Contacting Volvo (p. 26)

Inflate tires with the compressor

included in the tire sealing system

The vehicle's original tires can be inflated
using the compressor in the tire sealing sys-
tem.

1. The compressor must be switched off.

Make sure that the switch is in the

(Off)

position and take out the electrical cable
and the hose.

2. Attach the hose directly onto the com-

pressor's bottle holder and turn clockwise
until it clicks into place.

Move the warning sticker to the side of
the compressor; it doesn't need to be
affixed to the wheel side if the sealing
compound is not used.

3. Unscrew the tire's valve cap and screw

the hose's valve connector as far as possi-
ble onto the valve.

4. Connect the electrical cable to the nearest

12 V outlet and start the vehicle.

WARNING

Inhaling exhaust fumes could lead to seri-

ous injury. Never leave the engine running

in an enclosed space or a space without

sufficient ventilation.

WARNING

Never leave children unattended in the

vehicle while the engine is running.

5. Start the compressor by moving the

switch to the

(On) position.

Risk of overheating. The compressor
should not be running for longer than 10
minutes at a time.

6. Inflate the tire to the pressure specified on

the tire pressure decal on the driver's side
door pillar. If the inflation pressure is too
high, use the air release valve to release
air.

7. Switch off the compressor. Remove the

hose and the electrical cable.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WHEELS AND TIRES

528

8. Screw the valve cap back onto the tire.

•

After inflating a tire, always replace the
valve cap to help prevent valve damage
caused by gravel, dirt, etc.

•

Use plastic valve caps only. Metal caps
could corrode and become difficult to
remove.
