Volvo XC40 (2021 year). Manual in english

DISPLAYS AND VOICE CONTROL

Amber symbols

Information

A problem has occurred in one of
the vehicle's systems. Read the
message in the instrument panel.

The information symbol may also
illuminate in combination with
other symbols.

Fault in brake system

A fault has occurred in the brake
system. Read the message in the
instrument panel.

Fault in ABS system

The system is not functioning
properly. The vehicle's regular
brakes will still work, but without
the ABS function.

Emission control system

Fault in emission control system.
Have the vehicle checked by a
workshop. Volvo recommends
contacting an authorized Volvo
workshop.

Rear fog light

Rear fog light on.

Tire pressure system

Tire pressure low.

If there is a fault in the tire pres-
sure system, the symbol will first
flash for approximately 1 minute
and then glow steadily. This may
occur if the system cannot detect
or alert the driver of low tire pres-
sure as intended.

Fault in headlight system

A fault has occurred in the head-
light system. Read the message
in the instrument panel.

Lane Keeping Aid

Lane Keeping Aid is alerting/
intervening.

Stability system

Steady glow: a fault has occurred
in the system.

Flashing: the system is working.

Stability system, Sport mode

Sport mode is activated.

Blue symbols

Active high beam

Active high beam is activated
and on.

High beams

High beams on.

Green symbols

Auto-hold brake

The function is activated and the
brakes or the parking brake are
being used.

Front fog light

Front fog light on.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DISPLAYS AND VOICE CONTROL

}}

Parking lights

Parking lights on.

Left/right turn signals

Turn signal in use.

White/gray symbols

Active high beam

Active high beam is activated but
not on.

Preconditioning

Engine and passenger compart-
ment heater/air conditioning is
preconditioning the vehicle.

Lane Keeping Aid

White symbol: Lane Keeping Aid
is on and lane marker lines are
detected.

Gray symbol: Lane Keeping Aid
is on but no lane marker lines are
detected.

Rain sensor

The rain sensor is activated.

Related information

•

Instrument panel (p. 84)

Instrument panel licenses

A license is an agreement on the right to con-
duct a certain activity or the right to use
someone else's right according to terms and
conditions specified in the agreement. The
following text is Volvo's agreement with the
manufacturer or developer.

Freetype Project License

3rd Party Software Disclaimers and License
Agreements Confidential ID 06-00004-004
39 / 75 Revision 06.00A, 2015-06-09
2006-Jan-27 Copyright 1996-2002, 2006
by David Turner, Robert Wilhelm, and Werner
Lemberg.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DISPLAYS AND VOICE CONTROL

Introduction

The FreeType Project is distributed in several
archive packages; some of them may contain,
in addition to the FreeType font engine,
various tools and contributions which rely on,
or relate to, the FreeType Project. This license
applies to all files found in such packages, and
which do not fall under their own explicit
license. The license affects thus the FreeType
font engine, the test programs, documentation
and makefiles, at the very least. This license
was inspired by the BSD, Artistic, and IJG
(Independent JPEG Group) licenses, which all
encourage inclusion and use of free software
in commercial and freeware products alike. As
a consequence, its main points are that: o We
don't promise that this software works.
However, we will be interested in any kind of
bug reports. (`as is' distribution) o You can use
this software for whatever you want, in parts
or full form, without having to pay us. (`royalty-
free' usage) o You may not pretend that you
wrote this software. If you use it, or only parts
of it, in a program, you must acknowledge
somewhere in your documentation that you
have used the FreeType code. (`credits') We
specifically permit and encourage the
inclusion of this software, with or without
modifications, in commercial products. We
disclaim all warranties covering The FreeType
Project and assume no liability related to The
FreeType Project. Finally, many people asked
us for a preferred form for a credit/disclaimer

to use in compliance with this license. We
thus encourage you to use the following text:

"Portions of this software are copyright

2013 The FreeType Project
(www.freetype.org). All rights reserved."

Legal Terms

0. Definitions – Throughout this license, the
terms `package', `FreeType Project', and
`FreeType archive' refer to the set of files
originally distributed by the authors (David
Turner, Robert Wilhelm, and Werner Lemberg)
as the `FreeType Project', be they named as
alpha, beta or final release. `You' refers to the
licensee, or person using the project, where
`using' is a generic term including compiling
the project's source code as well as linking it
to form a `program' or `executable'. This
program is referred to as `a program using the
FreeType engine'. This license applies to all
files distributed in the original FreeType
Project, including all source code, binaries and
documentation, unless otherwise stated in the
file in its original, unmodified form as
distributed in the original archive. If you are
unsure whether or not a particular file is
covered by this license, you must contact us
to verify this. The FreeType Project is
copyright (C) 1996-2000 by David Turner,
Robert Wilhelm, and Werner Lemberg. All
rights reserved except as specified below.

1. No Warranty – THE FREETYPE PROJECT
IS PROVIDED `AS IS' WITHOUT WARRANTY
OF ANY KIND, EITHER EXPRESS OR
IMPLIED, INCLUDING, BUT NOT LIMITED
TO, WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR
PURPOSE. IN NO EVENT WILL ANY OF THE
AUTHORS OR COPYRIGHT HOLDERS BE
LIABLE FOR ANY DAMAGES CAUSED BY
THE USE OR THE INABILITY TO USE, OF
THE FREETYPE PROJECT. '

2. Redistribution – This license grants a
worldwide, royalty-free, perpetual and
irrevocable right and license to use, execute,
perform, compile, display, copy, create
derivative works of, distribute and sublicense
the FreeType Project (in both source and
object code forms) and derivative works
thereof for any purpose; and to authorize
others to exercise some or all of the rights
granted herein, subject to the following
conditions: o Redistribution of source code
must retain this license file (`FTL.TXT')
unaltered; any additions, deletions or changes
to the original files must be clearly indicated in
accompanying documentation. The copyright
notices of the unaltered, original files must be
preserved in all copies of source files. o
Redistribution in binary form must provide a
disclaimer that states that the software is
based in part of the work of the FreeType
Team, in the distribution documentation. We

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DISPLAYS AND VOICE CONTROL

}}

also encourage you to put an URL to the
FreeType web page in your documentation,
though this isn't mandatory. These conditions
apply to any software derived from or based
on the FreeType Project, not just the
unmodified files. If you use our work, you must
acknowledge us. However, no fee need be
paid to us.

3. Advertising – Neither the FreeType authors
and contributors nor you shall use the name of
the other for commercial, advertising, or
promotional purposes without specific prior
written permission. We suggest, but do not
require, that you use one or more of the
following phrases to refer to this software in
your documentation or advertising materials:
`FreeType Project', `FreeType Engine',
`FreeType library', or `FreeType Distribution'.
As you have not signed this license, you are
not required to accept it. However, as the
FreeType Project is copyrighted material, only
this license, or another one contracted with
the authors, grants you the right to use,
distribute, and modify it. Therefore, by using,
distributing, or modifying the FreeType
Project, you indicate that you understand and
accept all the terms of this license.

4. Contacts – There are two mailing lists
related to FreeType: o freetype@nongnu.org.
Discusses general use and applications of
FreeType, as well as future and wanted
additions to the library and distribution. If you

are looking for support, start in this list if you
haven't found anything to help you in the
documentation. o freetype-
devel@nongnu.org. Discusses bugs, as well
as engine internals, design issues, specific
licenses, porting, etc. Our home page can be
found at http://www.freetype.org

HarfBuzz / UCDN License

•

2010,2011,2012 Google, Inc.

•

2012 Mozilla Foundation

•

2011 Codethink Limited

•

2008,2010 Nokia

Corporation and/or its subsidiary(-ies)

•

2009 Keith Stribley

•

2009 Martin Hosken and SIL

International

•

2007 Chris Wilson

•

2006 Behdad Esfahbod

•

2005 David Turner

•

2004,2007,2008,2009,2010 Red Hat,
Inc.

•

1998-2004 David Turner and

Werner Lemberg

For full copyright notices consult the individual
files in the package. Permission is hereby
granted, without written agreement and
without license or royalty fees, to use, copy,
modify, and distribute this software and its

documentation for any purpose, provided that
the above copyright notice and the following
two paragraphs appear in all copies of this
software. IN NO EVENT SHALL THE
COPYRIGHT HOLDER BE LIABLE TO ANY
PARTY FOR DIRECT, INDIRECT, SPECIAL,
INCIDENTAL, OR CONSEQUENTIAL
DAMAGES ARISING OUT OF THE USE OF
THIS SOFTWARE AND ITS
DOCUMENTATION, EVEN IF THE
COPYRIGHT HOLDER HAS BEEN ADVISED
OF THE POSSIBILITY OF SUCH DAMAGE.
THE COPYRIGHT HOLDER SPECIFICALLY
DISCLAIMS ANY WARRANTIES,
INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE. THE SOFTWARE
PROVIDED HEREUNDER IS ON AN "AS IS"
BASIS, AND THE COPYRIGHT HOLDER HAS
NO OBLIGATION TO PROVIDE
MAINTENANCE, SUPPORT, UPDATES,
ENHANCEMENTS, OR MODIFICATIONS.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DISPLAYS AND VOICE CONTROL

Libunibreak License

This library is released under an open-source
licence, the zlib/libpng licence. Please check
the file LICENCE for details. Apart from using
the algorithm, part of the code is derived from
the data provided under http://
www.unicode.org/Public. And the Unicode
Terms of Use may apply: URL:http://
www.unicode.org/copyright.html

LICENSE:

•

This software is provided 'as-is', without any
express or implied warranty. In no event will
the author be held liable for any damages
arising from the use of this software.
Permission is granted to anyone to use this
software for any purpose, including
commercial applications, and to alter it and
redistribute it freely, subject to the following
restrictions:

1. The origin of this software must not be

misrepresented; you must not claim that
you wrote the original software. If you use
this software in a product, an
acknowledgement in the product

documentation would be appreciated but
is not required.

2. Altered source versions must be plainly

marked as such, and must not be
misrepresented as being the original
software.

3. This notice may not be removed or altered

from any source distribution.

Unicode Inc. License Agreement

EXHIBIT 1 UNICODE, INC. LICENSE
AGREEMENT - DATA FILES AND
SOFTWARE Unicode Data Files include all
data files under the directories http://
www.unicode.org/Public/, http://
www.unicode.org/reports/, and http://
www.unicode.org/cldr/data/ . Unicode
Software includes any source code published
in the Unicode Standard or under the
directories http://www.unicode.org/Public/,
http://www.unicode.org/reports/, and http://
www.unicode.org/cldr/data/. NOTICE TO
USER: Carefully read the following legal
agreement. BY DOWNLOADING,
INSTALLING, COPYING OR OTHERWISE
USING UNICODE INC.'S DATA FILES ("DATA
FILES"), AND/OR SOFTWARE
("SOFTWARE"), YOU UNEQUIVOCALLY
ACCEPT, AND AGREE TO BE BOUND BY,
ALL OF THE TERMS AND CONDITIONS OF
THIS AGREEMENT. IF YOU DO NOT AGREE,
DO NOT DOWNLOAD, INSTALL, COPY,
DISTRIBUTE OR USE THE DATA FILES OR

SOFTWARE. COPYRIGHT AND
PERMISSION NOTICE Copyright

1991-2010 Unicode, Inc. All rights reserved.
Distributed under the Terms of Use in http://
www.unicode.org/copyright.html. Permission
is hereby granted, free of charge, to any
person obtaining a copy of the Unicode data
files and any associated documentation (the
"Data Files") or Unicode software and any
associated documentation (the "Software") to
deal in the Data Files or Software without
restriction, including without limitation the
rights to use, copy, modify, merge, publish,
distribute, and/or sell copies of the Data Files
or Software, and to permit persons to whom
the Data Files or Software are furnished to do
so, provided that (a) the above copyright
notice(s) and this permission notice appear
with all copies of the Data Files or Software,
(b) both the above copyright notice(s) and this
permission notice appear in associated
documentation, and (c) there is clear notice in
each modified Data File or in the Software as
well as in the documentation associated with
the Data File(s) or Software that the data or
software has been modified. THE DATA FILES
AND SOFTWARE ARE PROVIDED "AS IS",
WITHOUT WARRANTY OF ANY KIND,
EXPRESS OR IMPLIED, INCLUDING BUT
NOT LIMITED TO THE WARRANTIES OF
MERCHANTABILITY, FITNESS FOR A
PARTICULAR PURPOSE AND
NONINFRINGEMENT OF THIRD PARTY

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DISPLAYS AND VOICE CONTROL

}}

RIGHTS. IN NO EVENT SHALL THE
COPYRIGHT HOLDER OR HOLDERS
INCLUDED IN THIS NOTICE BE LIABLE FOR
ANY CLAIM, OR ANY SPECIAL INDIRECT OR
CONSEQUENTIAL DAMAGES, OR ANY
DAMAGES WHATSOEVER RESULTING
FROM LOSS OF USE, DATA OR PROFITS,
WHETHER IN AN ACTION OF CONTRACT,
NEGLIGENCE OR OTHER TORTIOUS
ACTION, ARISING OUT OF OR IN
CONNECTION WITH THE USE OR
PERFORMANCE OF THE DATA FILES OR
SOFTWARE. Except as contained in this
notice, the name of a copyright holder shall
not be used in advertising or otherwise to
promote the sale, use or other dealings in
these Data Files or Software without prior
written authorization of the copyright holder.

ZLIB Data Compression Library License
Agreement

(C) 1995-2010 Jean-loup Gailly and Mark
Adler This software is provided 'as-is', without
any express or implied warranty. In no event
will the authors be held liable for any damages
arising from the use of this software.
Permission is granted to anyone to use this
software for any purpose, including
commercial applications, and to alter it and
redistribute it freely, subject to the following
restrictions:

1. The origin of this software must not be

misrepresented; you must not claim that

you wrote the original software. If you use
this software in a product, an
acknowledgment in the product
documentation would be appreciated but
is not required.

2. Altered source versions must be plainly

marked as such, and must not be
misrepresented as being the original
software.

3. This notice may not be removed or altered

from any source distribution.

Jean-loup Gailly Mark Adler jloup@gzip.org
madler@alumni.caltech.edu If you use the zlib
library in a product, we would appreciate

not

receiving lengthy legal documents to sign. The
sources are provided for free but without
warranty of any kind. The library has been
entirely written by Jean-loup Gailly and Mark
Adler; it does not include third-party code. If
you redistribute modified sources, we would
appreciate that you include in the file
ChangeLog history information documenting
your changes. Please read the FAQ for more
information on the distribution of modified
source versions.

GLEW License (Modified BSD License)

The OpenGL Extension Wrangler Library

•

Redistribution and use in source and binary
forms, with or without modification, are
permitted provided that the following
conditions are met: Redistributions of source
code must retain the above copyright notice,
this list of conditions and the following
disclaimer.

Redistributions in binary form

must reproduce the above copyright notice,
this list of conditions and the following
disclaimer in the documentation and/or other
materials provided with the distribution.

The

name of the author may be used to endorse or
promote products derived from this software
without specific prior written permission. THIS
SOFTWARE IS PROVIDED BY THE
COPYRIGHT HOLDERS AND
CONTRIBUTORS "AS IS" AND ANY
EXPRESS OR IMPLIED WARRANTIES,
INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE DISCLAIMED.
IN NO EVENT SHALL THE COPYRIGHT
OWNER OR CONTRIBUTORS BE LIABLE
FOR ANY DIRECT, INDIRECT, INCIDENTAL,
SPECIAL, EXEMPLARY, OR
CONSEQUENTIAL DAMAGES (INCLUDING,
BUT NOT LIMITED TO, PROCUREMENT OF
SUBSTITUTE GOODS OR SERVICES; LOSS
OF USE, DATA, OR PROFITS; OR BUSINESS

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DISPLAYS AND VOICE CONTROL

100

INTERRUPTION) HOWEVER CAUSED AND
ON ANY THEORY OF LIABILITY, WHETHER
IN CONTRACT, STRICT LIABILITY, OR TORT
(INCLUDING NEGLIGENCE OR
OTHERWISE) ARISING IN ANY WAY OUT
OF THE USE OF THIS SOFTWARE, EVEN IF
ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.

Related information

•

Instrument panel (p. 84)

App menu in instrument panel

The App menu in the instrument panel pro-
vides quick access to commonly used func-
tions for certain apps.

The illustration is generic.

The App menu in the instrument panel can be
used instead of the center display and is then
controlled using the right-side steering wheel
keypad. The app menu makes it easier to
switch between different apps or functions
within the apps without having to let go of the
steering wheel.

App menu functions

Different apps provide access to different
types of functions. The following apps and
their functions can be controlled from the App
menu:

App

Functions

Trip com-
puter

Select a trip odometer,
change instrument panel dis-
play settings, etc.

Media
player

Select active source for
media player.

Phone

Call a contact from the call
list.

Navigation

Guide to destination, etc.

Related information

•

Instrument panel (p. 84)

•

Center display overview (p. 106)

•

Handling the App menu in the instrument
panel (p. 101)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DISPLAYS AND VOICE CONTROL

101

Handling the App menu in the

instrument panel

The App menu in the instrument panel is con-
trolled using the right-side steering wheel
keypad.

App menu and right-side steering wheel keypad. The

illustration is generic.

Open/close

Left/right

Up/down

Confirm

Opening and closing the app menu

–

Tap open/close (1).
> The App men opens/closes.

NOTE

The App menu cannot be opened while
there is an unacknowledged message in
the instrument panel. The message must
be acknowledged before the App menu
can be opened.

The App menu turns off automatically after a
period of inactivity or after certain selections
are made.

Navigating and making selections in
the App menu

1. Navigate between apps by tapping left or

right (2).
> Functions for the previous/next app will

be shown in the App menu.

2. Scroll through the functions for the

selected app using the up or down arrows
(3).

3. Confirm or make a selection for the func-

tion by pressing confirm (4).
> The function will be activated and, for

some selections, the App menu will
then close.

The next time the App menu is opened, the
functions for the most recently selected app
will be displayed automatically.

Related information

•

App menu in instrument panel (p. 100)

•

Messages in the instrument panel
(p. 102)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DISPLAYS AND VOICE CONTROL

102

Messages in the instrument panel

The instrument panel shows messages in
certain circumstances to inform or assist the
driver.

Example of message in an 8-inch instrument panel.

The illustration is generic - details may vary accord-

ing to vehicle model.

Example of message in the instrument panel. The

illustration is generic - details may vary according to

vehicle model.

High-priority messages for the driver are dis-
played in the instrument panel.

The messages may appear in different parts of
the instrument panel depending on what other
information is currently being displayed. The
message will disappear from the instrument
panel after a short period of time or after it has
been acknowledged or any required action has

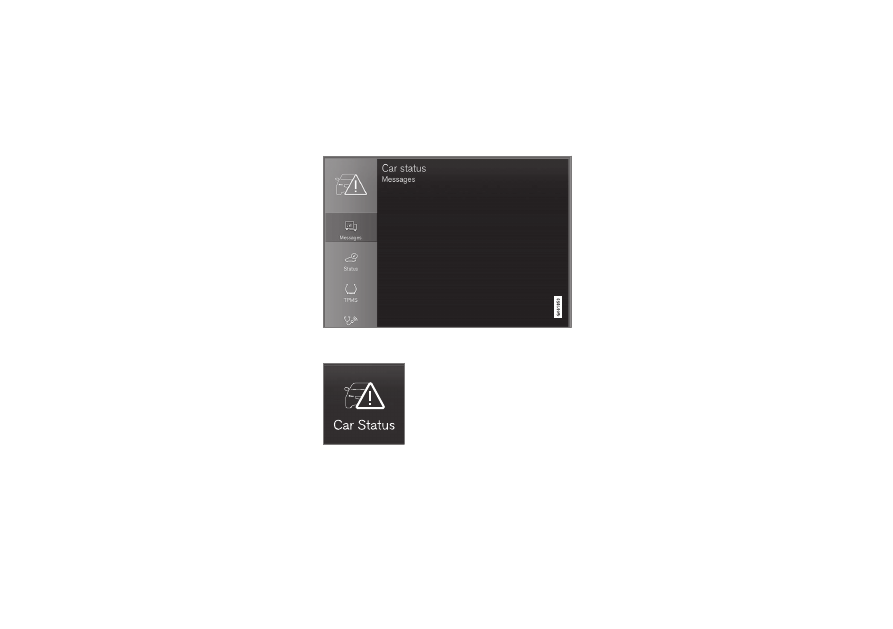

been taken. Messages that need to be saved
are stored in the

Car Status

app, which can

be opened from the App view in the center
display.

The message may be shown along with
graphics, symbols or buttons to e.g. acknowl-
edge the message or accept a request.

Service messages

The following table lists a selection of impor-
tant service messages and what they mean.

Message

Meaning

Stop safely

Stop and switch off the
engine. Serious risk of
damage - contact a
workshop

Turn off
engine

Stop and switch off the
engine. Serious risk of
damage - contact a
workshop

Service urgent
Drive to work-
shop

Contact a workshop

have the vehicle inspec-
ted immediately.

Service
required

Contact a workshop

have the vehicle inspec-
ted as soon as possible.

Regular main-
tenance

Book time for
maintenance

Time for service - contact
a workshop

. Shown

before the next service
date.

Regular main-
tenance

Time for main-
tenance

Time for service - contact
a workshop

. Shown on

the next service date.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DISPLAYS AND VOICE CONTROL

}}

103

Message

Meaning

Regular main-
tenance

Maintenance
overdue

Time for service - contact
a workshop

. Shown

when the date for service
has passed.

Temporarily
off

A function has been tem-
porarily deactivated and
will be reactivated auto-
matically while driving or
after the engine is restar-
ted.

Part of message, shown along with information on the loca-

tion of the problem.

An authorized Volvo workshop is recommended.

Related information

•

Handling messages in the instrument
panel (p. 103)

•

Handling messages saved from the instru-
ment panel (p. 104)

•

Messages in the center display (p. 136)

Handling messages in the

instrument panel

Messages in the instrument panel are con-
trolled using the right-side steering wheel
keypad.

Examples of messages in the instrument panel

and

the right-side steering wheel keypad.

Examples of messages in the instrument panel

and

the right-side steering wheel keypad. The illustration

is generic - details may vary according to vehicle

model.

Left/right

Confirm

Some messages in the instrument panel con-
tain one or more buttons for e.g. confirming
the message or accepting a request.

With 8" instrument panel.

With 12" instrument panel.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DISPLAYS AND VOICE CONTROL

104

Handling new messages

For messages with buttons:

1. Navigate between the buttons by tapping

left or right (1).

2. Confirm your selection by pressing con-

firm (2).
> The message will disappear from the

instrument panel.

For messages without buttons:

–

Close the message by pressing confirm
(2) or let the message automatically time-
out after a short period.
> The message will disappear from the

instrument panel.

Messages that need to be saved are stored in
the

Car Status

app, which can be opened

from the App view in the center display. The
message

Vehicle message stored in Car

Status app

will simultaneously appear in the

center display.

Related information

•

Messages in the instrument panel (p. 102)

•

Handling messages saved from the instru-
ment panel (p. 104)

•

Messages in the center display (p. 136)

Handling messages saved from the

instrument panel

Messages saved from the instrument panel
and center displays are handled in the center
display.

Saved messages can be viewed in the

Car Status

app.

The messages displayed in
the instrument panel that
need to be saved are stored
in the

Car Status

app in the

center display. The message

Vehicle message stored in
Car Status app

will simulta-

neously appear in the center display.

Reading saved messages

To read a saved message immediately:

–

Tap the button to the right of the message

Vehicle message stored in Car Status
app

in the center display.

> The saved message will be displayed in

the

Car Status

app.

To read saved messages at a later time:

1. Open the

Car Status

app from App view

in the center display.
> The app will open in the bottom tile of

Home view.

2. Select the

Messages

tab in the app.

> A list of saved messages will be dis-

played.

3. Tap a message to expand/minimize it.

> More information about the message

will appear in the list and the image to
the left of the app will display informa-
tion about the message in graphic form.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DISPLAYS AND VOICE CONTROL

105

Handling saved messages

Booking service for saved messages:

–

With the message in expanded form, tap

Request appoint.

Call to make

Appointment

for assistance booking

service.
> With

Request appoint.

: The

Appointments

tab will open in the app

and create a request for a service/repair
appointment.

With

Call to make Appointment

: The

phone app will open and call a service
center to make an appointment for
service or repairs.

–

With the message in expanded form, tap

Owner's manual

to read relevant infor-

center display and provide information
related to the message.

Saved messages in the app are automatically
deleted each time the engine is started.

Related information

•

Messages in the instrument panel (p. 102)

•

Handling messages in the instrument
panel (p. 103)

•

Messages in the center display (p. 136)

Market dependent. Volvo ID and selected workshop also need to be registered.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DISPLAYS AND VOICE CONTROL

* Option/accessory.

107

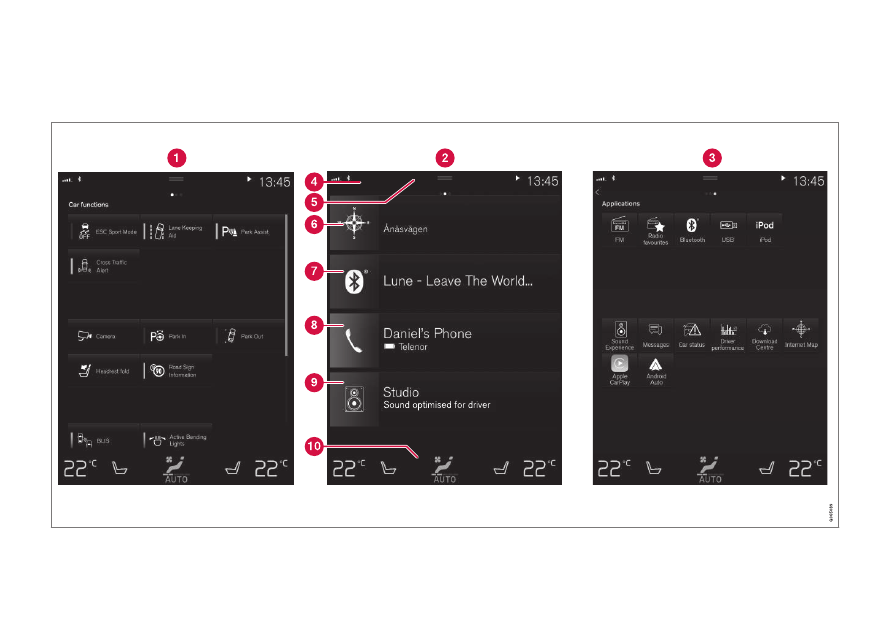

Function view

‒

vehicle functions that can

be activated or deactivated with one tap.
Certain functions, called "trigger func-
tions", open windows with settings
options. One example is the

Camera

Home view

‒

the initial view displayed

when the screen is turned on.
App view

‒

shows downloaded apps

(third-party apps) as well as apps for inte-
grated functions, such as

FM radio

. Tap

an app icon to open that app.
Status bar

‒

current vehicle activities are

shown at the top of the screen. Network
and connection information is shown to
the left of the status bar. Media-related
information, the clock and information
about background activities are shown to
the right.
Top view

‒

pull the tab down to open Top

view. From here, you can access

Settings

Owner's manual

Profile

and messages

stored in the vehicle. In certain cases, con-
textual setting (e.g.

Navigation Settings

)

Navigation Manual

) can also be accessed

in Top view.
Navigation

‒

takes you to map navigation

with e.g. Sensus Navigation

. Tap the tile

to expand it.

Media

‒

most recently used media-related

apps. Tap the tile to expand it.
Phone

‒

used to access phone-related

functions. Tap the tile to expand it.
Fourth tile

‒

most recently used apps or

vehicle functions not associated with the
other tiles. Tap the tile to expand it.
Climate row - information and direct inter-
action to set temperature and seat heating
for example

. Tap the symbol in the center

of the climate bar to open Climate view
and additional setting options.

NOTE

The climate system can be used to cool
down the media system in the center dis-
play if needed. In these cases, the message

Climate system

Cooling the

infotainment system

will be shown in the

instrument panel.

Related information

•

Handling the center display (p. 108)

•

Navigating in the center display's views
(p. 111)

•

Function view in the center display
(p. 118)

•

Apps (p. 429)

•

Symbols in the center display status bar
(p. 120)

•

Changing settings in the center display's
Top view (p. 128)

•

Opening contextual setting in the center
display (p. 129)

•

Media player (p. 449)

•

Phone (p. 465)

•

Climate system controls (p. 201)

•

Turning off and adjusting the volume of
the center display system sounds (p. 127)

•

Changing the appearance of the center
display (p. 127)

•

Changing system language (p. 128)

•

Changing system units of measurement
(p. 128)

•

Cleaning the center display (p. 589)

•

Messages in the center display (p. 136)

In right-hand drive vehicles, these views are mirror images of the ones shown here.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DISPLAYS AND VOICE CONTROL

108

Handling the center display

Many of the vehicle's functions and features
can be controlled and adjusted from the cen-
ter display. The center display is a
touchscreen that reacts to taps and other
gestures.

Using the center display's
touchscreen

The screen reacts differently depending on
whether it is touched by dragging, swiping or

tapping. It is possible to e.g. move between
different views, mark objects and scroll in a
list by touching the screen in various ways.

An infrared light curtain just above the surface
of the screen enables the screen to detect
when a finger is directly in front of the screen.
This technology makes it possible to use the
screen even while wearing gloves.

Two people can interact with the screen at the
same time, e.g. to adjust climate system set-
tings for both the driver and passenger sides.

CAUTION

Do not use sharp objects on the screen as
this could cause scratches.

The following table presents the various pro-
cedures for using the screen:

Procedure

Gesture

Result

Tap once.

Marks an object, confirms a selection or activates a function.

Double-tap.

Zooms in on a digital object, such as a map.

Press and hold.

Grabs hold of an object so it can be moved. Can be used to move apps or points on a map. Press and hold
your finger on the screen and drag the object to the desired position.

Tap once with two
fingers.

Zooms out from a digital object, such as a map.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Volvo XC40 (2021 year). Manual in english - page 5
