Calibrating the compass

Activating and deactivating the

compass

An integrated compass

in the upper right

corner of the rearview mirror shows the
direction the vehicle is traveling.

The compass is automatically activated when
the vehicle is started.

To deactivate/activate the compass manually:

–

Use a paper clip or similar object to press
the button on the bottom of the mirror.
> If the compass is deactivated when the

vehicle is switched off, it will not be
activated the next time the vehicle is
started. The compass will then need to
be activated manually.

Related information

•

Compass

•

Calibrating the compass

Calibrating the compass

The globe is divided into 15 magnetic zones.
The compass

should be calibrated if the

vehicle is driven from one zone to another.

1. Stop the vehicle in a large, open area away

from steel constructions and high-voltage
power lines.

2. Start the engine and switch off all electri-

cal equipment (climate system, wipers,
etc.) and make sure all doors are closed.

Calibration may fail or not even be initiated
if electrical equipment is not turned off.

3. Hold the button on the bottom of the rear-

view mirror pressed for about 3 seconds
(using e.g. a paper clip). The number of the
current magnetic zone is shown.

Rearview mirror with compass is available as an option only on certain markets and models.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

STARTING AND DRIVING

* Option/accessory.

459

Magnetic zones.

4. Press the button on the underside of the

mirror repeatedly until the desired mag-
netic zone (

1–15

) appears (see the map of

magnetic zones).

5. Wait until the display again shows

, or

press and hold the button on the under-
side of the rearview mirror for approx.
6 seconds until

is displayed.

6. Drive slowly in a circle at a speed of no

more than 10 km/h (6 mph) until a com-
pass direction is shown in the display. This
indicates that calibration is complete.
Drive in a circle two more times to fine-
tune the calibration.

Vehicles with heated windshields

is shown in the display when the wind-
shield heating function is activated, per-
form step 6 above with the heating func-
tion on.

8. Repeat the above procedure as needed.

Related information

•

Compass

Activating and deactivating the compass

•

-------------------------------------------------------------------------------------------------------------------------------------------------------------

AUDIO, MEDIA AND INTERNET

* Option/accessory.

462

Audio, media and Internet

The audio and media system consists of a
media player and a radio. A cellular phone can
also be connected through Bluetooth to use
hands-free functions or play music in the
vehicle. When the vehicle is connected to the
Internet, it is also possible to use apps to play
media.

Audio and media overview

The functions can be controlled using voice
commands, the steering wheel keypad or the
center display. The number of speakers and
amplifiers varies depending on the audio sys-
tem installed in the vehicle.

System updates

The audio and media system is continuously
improved. It is recommended to download
system updates as soon as they are available.

Related information

•

Media player (p. 483)

•

•

Phone (p. 499)

•

•

Driver distraction (p. 41)

•

Voice Control (p. 149)

•

Ignition modes (p. 401)

•

•

Handling system updates via Download
Center (p. 585)

•

License agreement for audio and media
(p. 523)

Sound settings

Sound reproduction quality is preset but can
also be adjusted.

The system's volume is normally adjusted
using the volume control below the center dis-
play or the right-side steering wheel keypad.
This applies, for example, when playing music
or the radio or during phone calls and active
traffic messages.

Sound reproduction

The audio system is precalibrated using digital
signal processing. This calibration takes into
account speakers, amplifiers, passenger com-
partment acoustics, listener position, etc. for
each combination of vehicle model and audio
system. There is also a dynamic calibration
that takes into account the volume control set-
ting and the vehicle's speed.

Personal settings

Different settings are available in Top view
under

Settings

Sound

depending on the

vehicle's sound system.

Premium Sound

(Bowers & Wilkins)

•

Tone

- setting for e.g. bass, treble, equal-

izer, etc.

•

Balance

- balance between right/left and

front/rear speakers.

•

System Volumes

– adjusts volume in the

various systems of the car, e.g.

Voice

-------------------------------------------------------------------------------------------------------------------------------------------------------------

AUDIO, MEDIA AND INTERNET

* Option/accessory.

463

Control

Park Assist

and

Phone

Ringtone

High Performance Pro

(Harman

Kardon)

•

Equalizer

- setting of equalizer.

•

Balance

- balance between right/left and

front/rear speakers.

•

System Volumes

– adjusts volume in the

various systems of the car, e.g.

Voice

Control

Park Assist

and

Phone

Ringtone

High Performance

•

Tone

- setting for e.g. bass, treble, equal-

izer, etc.

•

Balance

- balance between right/left and

front/rear speakers.

•

System Volumes

– adjusts volume in the

various systems of the car, e.g.

Voice

Control

Park Assist

and

Phone

Ringtone

Related information

•

Sound experience

(p. 463)

•

Media player (p. 483)

•

Voice control settings (p. 154)

•

Phone settings (p. 506)

•

Audio, media and Internet (p. 462)

•

Navigating in the center display's views
(p. 119)

Sound experience

Sound experience is an app that provides
access to additional sound settings.

Open

Sound Experience

from the center dis-

play's App view. Depending on the sound sys-
tem installed in the vehicle, the following set-
tings are possible:

Premium Sound

(Bowers & Wilkins)

•

Studio

– sound settings can be adjusted

to be primarily adapted for

Driver

All

and

Rear

•

Individual stage

- surround sound mode

with settings for intensity and enclosure.

•

Concert hall

- reproduces the acoustics

of Gothenburg's Concert Hall.

•

Jazz club

– reproduces the acoustics of

the Nefertiti Jazz Club.

Reproduces the acoustics of the Nefertiti Jazz Club.

High Performance Pro

(Harman

Kardon)

•

Seat Optimization

– sound settings can

be adjusted to be primarily adapted for

Driver

All

and

Rear

•

Surround

- surround sound mode with

level settings.

•

Tone

- setting for e.g. bass, treble, equal-

izer, etc.

Related information

•

Sound settings (p. 462)

•

-------------------------------------------------------------------------------------------------------------------------------------------------------------

AUDIO, MEDIA AND INTERNET

* Option/accessory.

464

Apps

The App view contains apps that provide
access to certain vehicle services.

Swipe the center display screen from right to
left

to access the App view from the Home

view. This view displays downloaded apps
(third-party apps) as well as apps for inte-
grated functions, such as

FM radio

App view. (generic illustration; basic apps vary

depending on market and model)

Several basic apps are always available. More
apps such as web radio and music services
can be downloaded when the car is connected
to the Internet.

Some apps can only be used when the vehicle
is connected to the Internet.

Start an app by pressing the app in the center
display's app view.

All apps used should be updated to the latest
version.

Related information

•

Download apps (p. 465)

•

Updating apps (p. 465)

•

Deleting apps (p. 466)

•

•

•

Hard disk storage space (p. 522)

•

•

Applies for left-hand drive vehicles. For right-hand drive vehicles, swipe in the other direction.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

AUDIO, MEDIA AND INTERNET

}}

* Option/accessory.

465

Download apps

New apps can be downloaded when the vehi-
cle is connected to the Internet.

Data downloading can affect other services
such as transfer data, e.g. web radio. If the
affect on other services is experienced as
problematic, the download can be interrup-
ted. Alternatively, it may be appropriate to
switch off or cancel other services.

When downloading using a phone, pay
extra attention to the data traffic costs.

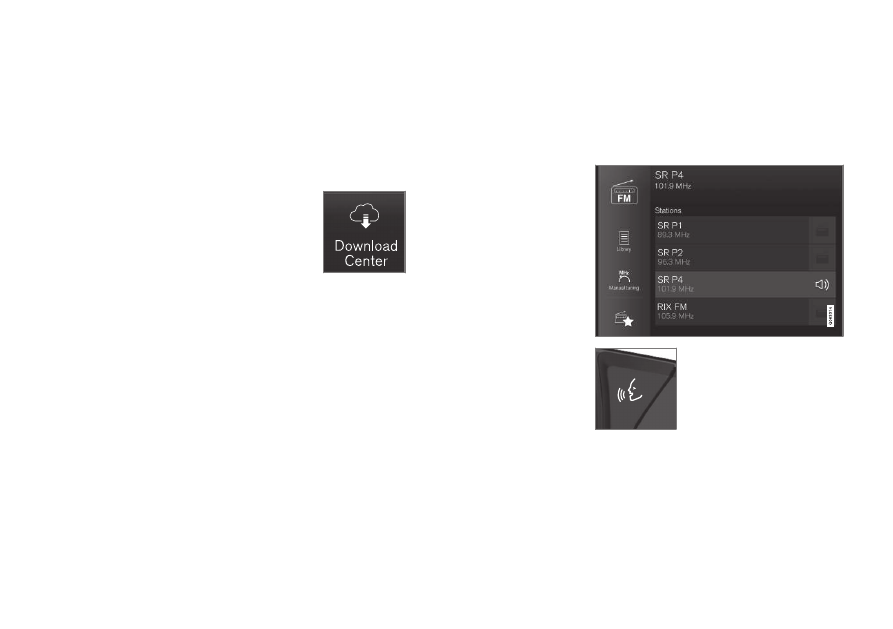

1. Open the

Download Center

app in App

view.

2. Select

New apps

to open a list of apps

that are available but are not installed in
the vehicle.

3. Tap on the row for an app in order to

expand in the list and get more informa-
tion about the app.

4. Select

Install

to start the download and

installation of the app.
> The current status of the download and

installation will be shown.

If a download cannot be started imme-
diately, a message will be displayed.
The app will remain in the list and it will
be possible to reattempt downloading.

Canceling a download

–

Tap

Abort

to cancel a download in pro-

gress.

Note that only a download can be cancelled.
An installation cannot be cancelled once it has
begun.

Related information

•

•

Updating apps (p. 465)

•

Deleting apps (p. 466)

•

Handling system updates via Download
Center (p. 585)

•

•

Hard disk storage space (p. 522)

Updating apps

Apps can be updated when the vehicle is
connected to the Internet.

When downloading using a phone, pay
extra attention to the data traffic costs.

If an app is being used while an update is in
progress, it will be restarted to complete the
update.

Update all

1. Open the

Download Center

app in App

view.

2. Select

Install all

> The update will begin.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

AUDIO, MEDIA AND INTERNET

* Option/accessory.

466

Update certain apps

1. Open the

Download Center

app in App

view.

2. Select

Application updates

to open a list

of all available updates.

3. Find the desired app and select

Install

> The update will begin.

Related information

•

Handling system updates via Download
Center (p. 585)

•

Download apps (p. 465)

•

Deleting apps (p. 466)

•

•

Deleting apps

When the vehicle is connected to the Inter-
net, it is possible to uninstall apps.

If the app is being used, it must be closed
before it can be uninstalled.

1. Open the

Download Center

app in App

view.

2. Select

Application updates

to open a list

of all installed apps.

3. Find the desired app and select

Uninstall

to begin uninstalling the app.
> When the app has been uninstalled, it

will be removed from the list.

Related information

•

Handling system updates via Download
Center (p. 585)

•

Download apps (p. 465)

•

Updating apps (p. 465)

•

•

Starting the radio (p. 467)

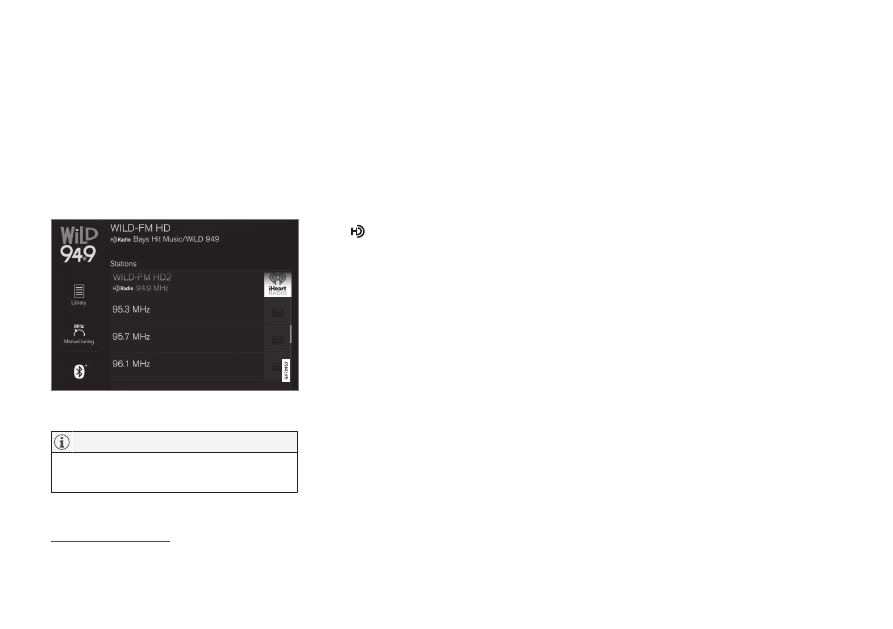

Radio

The radio can receive broadcasting from the
FM waveband with HD Radio

™

Technology

and SiriusXM

Satellite radio

. When the

vehicle has an Internet connection, it is also
possible to listen to web radio.

The radio can be controlled
using voice commands, the
right-side steering wheel key-
pad or the center display.

Related information

•

•

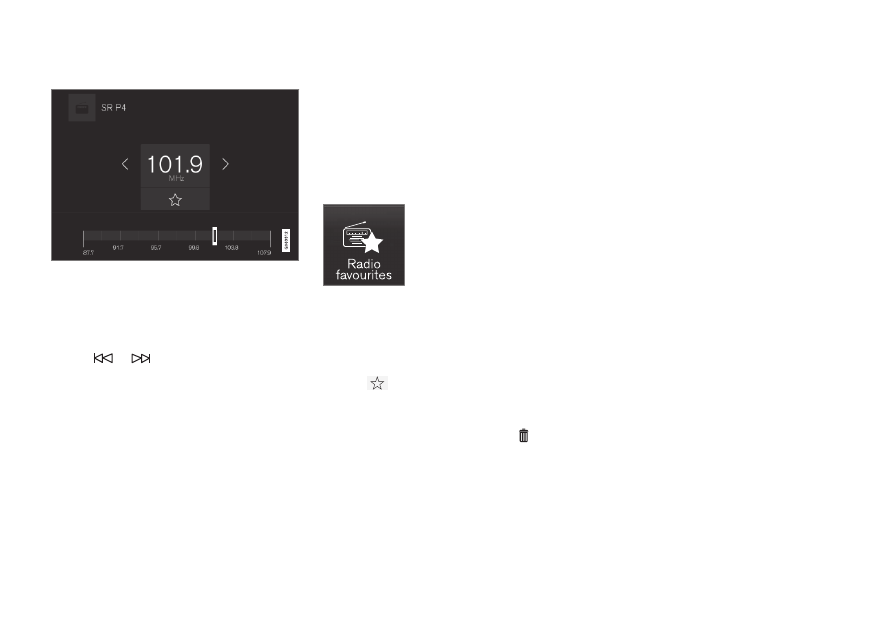

Storing radio channels in the Radio favor-
ites app (p. 469)

•

-------------------------------------------------------------------------------------------------------------------------------------------------------------

AUDIO, MEDIA AND INTERNET

468

Changing waveband and radio

station

Instructions for changing wavebands, wave-
band lists and radio stations in the selected
list are provided here.

Changing wavebands

Swipe from App view on the center display
and select the desired waveband (e.g.

) or

open the App menu in the instrument panel
with the right-side steering wheel keypad and
make your selection there.

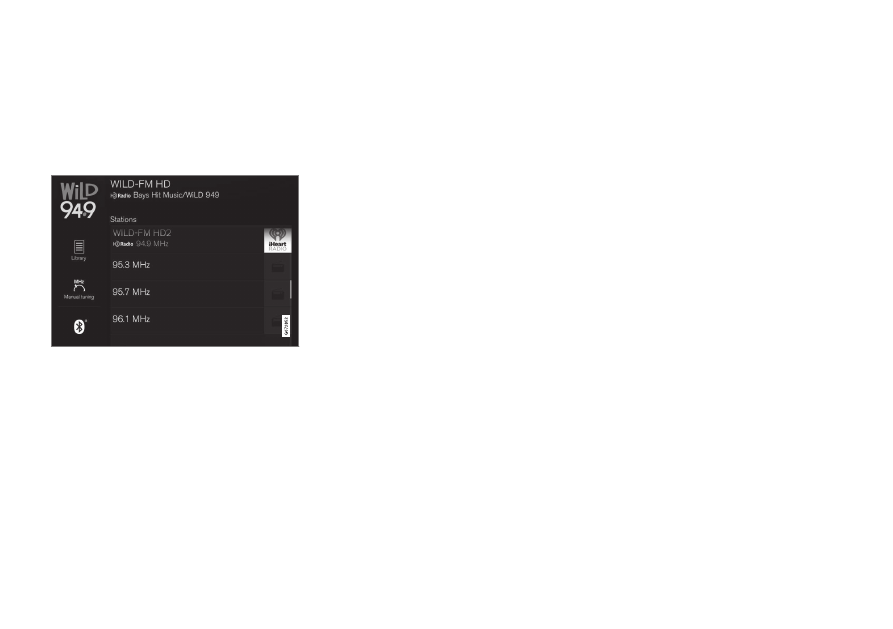

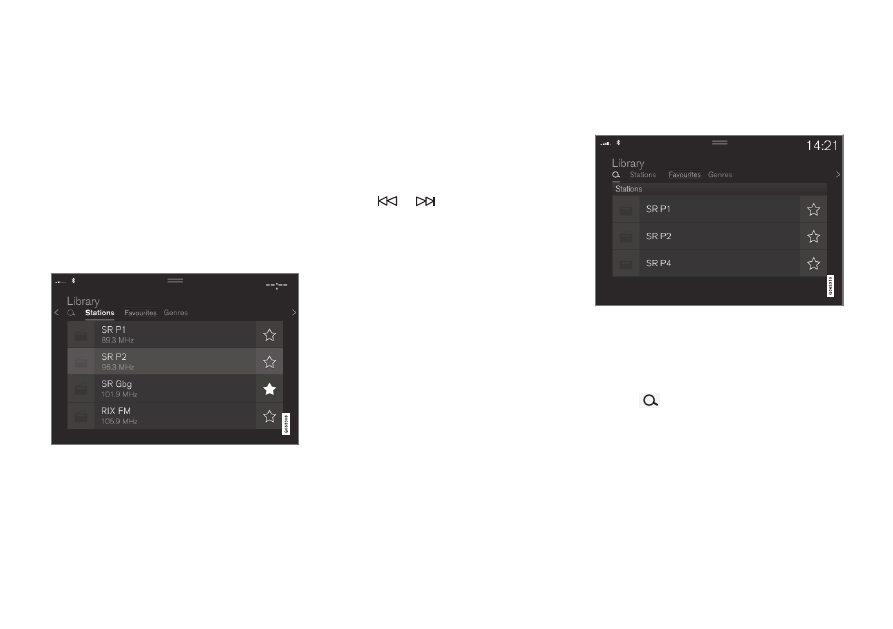

Changing a list in a waveband

1. Tap

Library

2. Select playback from

Stations

Favorites

Genres

3. Tap the desired station in the list.

Favorites

– only plays selected favorite chan-

nels.

Genres

- only plays channels broadcasting the

selected genre or program type, e.g. pop, clas-
sical, etc.

Changing radio stations in a selected
list

–

Press

under the center display

or on the right-side steering wheel key-
pad.
> Move step-by-step through the

selected list.

It is also possible to change radio station in
the selected list via the center display.

Related information

•

•

Voice control for radio and media (p. 153)

•

•

Storing radio channels in the Radio favor-
ites app (p. 469)

•

App menu in instrument panel (p. 108)

•

Searching for a radio station

The radio automatically compiles a list of the
radio stations that are sending out the stron-
gest signals in the vehicle's current location.

Searching is performed in different ways
depending on the waveband selected:

•

FM, stations, genres and frequency.

1. Tap

Library

2. Tap

> Search view will displayed and the key-

board will open.

3. Enter a search word/phrase.

> The search will start and change as

characters are entered. Search results
will be displayed by category.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

AUDIO, MEDIA AND INTERNET

469

Searching for a station manually

Searching manually makes it possible to find
and tune to stations that are not on the auto-
matically compiled list of the strongest sta-
tions in the area.

–

Tap

Manual tuning

, drag the control or

tap

. Press and hold to skip to

the next available station in the frequency
band. You can also use the right-side
steering wheel keypad.

Related information

•

Starting the radio (p. 467)

•

•

Voice control for radio and media (p. 153)

•

•

Storing radio channels in the Radio

favorites app

It is possible to add a radio station in the

Radio favorites

app and in the list of favor-

ites for the waveband (e.g. FM). Instructions
for adding and removing radio channels are
provided below.

Radio favorites

The radio favorites app
shows stored radio channels
from all wavebands.

1. Open the

Radio favorites

app from App

view.

2. Tap the desired station in the list to listen.

Adding and deleting radio favorites

1. Tap

to add a radio channel to the

waveband's list of favorites or the Radio
favorites app.

2. Tap

Library

, select

Edit

and tap

delete a radio channel from the list of
favorites.

When you delete a radio channel from the
Radio favorites app, the channel will also be
deleted from that waveband's list of favorites.

Related information

•

Starting the radio (p. 467)

•

•

•

Voice control for radio and media (p. 153)

•

•

App menu in instrument panel (p. 108)

•

-------------------------------------------------------------------------------------------------------------------------------------------------------------

AUDIO, MEDIA AND INTERNET

* Option/accessory.

470

Radio settings

There are a number of different radio func-
tions that can be activated and deactivated.

Canceling a traffic message

A current broadcast (e.g. a traffic message)
can be temporarily interrupted by pressing

in the right-side steering wheel keypad or

tapping

Cancel

in the center display.

Activating and deactivating radio
functions

Pull down Top view and select

Settings

Media

and the desired waveband to see avail-

able functions.

AM/FM Radio

•

HD Radio FM

: HD Radio

™

Technology:

makes it possible to achieve a sound qual-
ity comparable with a CD.

•

Show Broadcast Information

: shows

information on program content, artists,
etc.

•

Freeze Program Name

: select to stop

the program service name from scrolling
continuously. Instead it freezes after 20
seconds.

SiriusXM

Satellite radio

Pull down Top view and select

Settings

Media

SiriusXM

to show a list of available

options.

Related information

•

Symbols in the center display status bar
(p. 128)

•

Settings for SiriusXM

Satellite radio

(p. 477)

•

RBDS

RBDS radio

RBDS (Radio Broadcast Data System) ena-
bles certain functionality

, such as:

•

Searches for program types or new broad-
casts

•

Text information about currently broadcast
programs

Related information

•

•

AM radio availability varies depending on model and/or market.

Certain stations only.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

AUDIO, MEDIA AND INTERNET

}}

471

HD Radio

™

HD Radio is a brand name registered by the
DTS, Inc.

. They are the developer of a broad-

casting technology called IBOC or In Band On
Channel, which refers to the method of trans-
mitting a digital radio broadcast signal cen-
tered on the same frequency as the AM or FM
station's present frequency.

Introduction

Display when the radio is receiving an HD Radio

broadcast (generic illustration)

HD Radio volume may fade in and out at
times due to coverage limitations.

The IBOC system is referred to as a "hybrid"
since it is both analog and digital. During
hybrid operation, receivers still continue to
receive the analog (non-digital) signal. HD
Radio receivers incorporate both modes of
reception, where the receiver will automati-
cally switch to the analog signal if the digital
signal cannot be decoded or is lost by the
receiver.

When you have tuned to an HD Radio station,
the

symbol will appear in the infotain-

ment system display. The symbol will be dis-
played in different colors:

•

Grayed-out symbol

: no HD Radio broad-

cast reception

•

White symbol

: the radio is actively receiv-

ing an HD broadcast

•

Orange symbol

: the radio is receiving an

HD broadcast with digital sound

More information about HD Radio and IBOC
can be found on DTS, Inc.'s website,
www.dts.com.

Artist Experience

™

A radio station's logo and album art can be
displayed. If a station opts to provide this
information, it is broadcast once every 12
minutes, which means that there may be a
delay before the logo/album art appear on the
screen. The radio can store 100 station logos

so the next time the radio is tuned to the same
station, the logo will be displayed immedi-
ately. Album art is synched with the artist that
you are currently listening to.

Ball game mode

This feature means that a main FM station
(HD1) will broadcast live events, where the
content of the programming is more important
than sound quality, in analog mode only to
help prevent the delay between analog and
digital broadcasting. The HD Radio symbol
will be white during live broadcasts and "Live"
will be displayed next to the symbol.

Benefits of digital broadcasting

•

Better sound (FM sounds near CD qual-
ity).

•

Some FM frequencies offer a greater
number of listening choices through multi-
casting (consisting of a frequency's main
channel and any sub-channels that may
also be available on that particular fre-
quency.)

•

When receiving a digital signal there is no
multipath disturbance or hisses/pops/
crackling due to outside influences.

HD Radio

™

technology is manufactured under license from DTS, Inc. U.S. and Foreign Patents. HD Radio

™

and the HD and HD Radio logos are proprietary trademarks of DTS, Inc.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

AUDIO, MEDIA AND INTERNET

472

How HD Radio

™

Technology

broadcasting works

HD Radio works similarly to conventional
radio and broadcasts of this type are available
in many areas of the United States. However,
there are a few key differences:

•

Instead of transmitting one analog signal,
stations send out a bundled signal – both
analog and digital.

•

An HD Radio receiver can receive both
digital and analog broadcasts. Depending
on the terrain and location of the vehicle
(which will influence the signal strength),
the receiver will determine which signal to
receive.

Related information

•

Activating and deactivating the HD
Radio

•

•

sub-channels (p. 473)

•

limitations (p. 473)

•

•

Activating and deactivating the HD

Radio

™

HD Radio is deactivated when the car leaves
the factory.

When listening to an HD Radio station and
driving through areas with weak HD signals
(fringe areas), you may experience that the
radio repeatedly switches between analog/
digital and digital/analog reception. If this hap-
pens, it may be desirable to switch HD off.

Carry out the following to activate or deacti-
vate HD Radio:

1. Drag down the top view and tap on

Settings

2. Press

Media

and

FM Radio

3. Press

HD Radio FM

to activate/deacti-

vate the function.

If HD radio is deactivated, the radio will be
unable to receive digital broadcasts but it will
continue to function as a conventional radio
(analog FM receiver). Please note that when
HD is switched off, it will not be possible to
tune in to sub-channels.

Activating or deactivating HD Radio only
affects the currently selected waveband.

Related information

•

•

sub-channels (p. 473)

•

Opening contextual setting in the center
display (p. 137)

limitations (p. 473)

•

-------------------------------------------------------------------------------------------------------------------------------------------------------------

AUDIO, MEDIA AND INTERNET

}}

473

HD Radio

™

sub-channels

In many cases, a main HD Radio station (FM
wavebands only) will also have sub-channels
offering additional types of programming or
music.

Sub-channels

Example of an HD Radio station with sub-channels

If any sub-channels are available, they will lis-
ted below the main channel on the screen. In
this example, WILD-FM HD2 is a sub-chan-
nel.

Selecting sub-channels

To listen to a station's sub-channel(s), tap the
station on the screen or press the forward/
back arrow keys on the right-side steering
wheel keypad or below the screen.

Sub-channels can also be saved as radio
favorites.

If you tap a sub-channel favorite, it may take
up to

6 seconds

before the channel becomes

audible. If you tap a station while you are out
of digital range of the transmitter,

reception

will be displayed.

Related information

•

Activating and deactivating the HD
Radio

(p. 471)

•

(p. 472)

•

•

•

limitations (p. 473)

HD Radio

™

limitations

Limitations

•

Main channel vs. sub-channels (FM
only)

: The main channel is the only chan-

nel that can receive in hybrid mode (both
digital and analog). If a frequency has sub-
channels, they are broadcast in digital
mode only. The main FM channel will be
displayed as, for example, "WRIF-FM
HD1". The sub-FM channels will be dis-
played as"WRIF-FM HD2", "WRIF-FM
HD3", etc.

•

Reception coverage area

: Due to current

IBOC transmitter power limitations, the
reception coverage area in digital mode is
somewhat more limited than the station's
analog coverage area. Be aware that, like
all radio transmission technology, terrain,
time of day, vegetation and buildings can
have a positive or negative effect on radio
reception.

•

Analog to digital/digital to analog
blending

: Analog to digital blending will

occur as the signal strength reaches a pre-
set threshold in the receiver. This will be
noticeable in fringe areas (areas with weak
reception) and is normal.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

AUDIO, MEDIA AND INTERNET

* Option/accessory.

474

There may be a noticeable difference in
sound quality when a change from ana-
logue to digital or digital to analogue
occurs, such as:

•

Volume increase or decrease

•

Equalizer settings, i.e., Bass/ Mid-
range/Treble cut or boost

•

Time alignment (Digital program mate-
rial in extreme cases can be as much
as 8 seconds behind the analogue).
This will noticeable as a "stuttering"
effect.

The above items are dependant on the
broadcaster's equipment settings and
do not indicate a fault in the vehicle's
radio receiver or antenna systems

Related information

•
