Using the electrical outlets (p. 563)

•

-------------------------------------------------------------------------------------------------------------------------------------------------------------

LOADING, STORAGE AND PASSENGER COMPARTMENT

563

Using the electrical outlets

The 12 V outlet can be used for devices
intended for this such as MP3 players, cool-
ers and cellular phones.

The ignition must be in at least mode

for the

outlets to supply current. The outlets will then
be active as long as there is sufficient charge
in the start battery.

If the engine is turned off and the vehicle is
locked, the outlets will be deactivated. If the
engine is turned off and the vehicle remains
unlocked, the sockets will remain active for up
to 7 minutes.

Bear in mind that using the electrical out-
lets when the engine is off could cause the
starter battery to have too low of a charge
level, which could limit other functionality.

Accessories connected to the electrical
outlets can be activated even when the
vehicle electrical system is off or if precon-
ditioning is used. For this reason, discon-
nect plugs when they are not in use to pre-
vent the starter battery from becoming dis-
charged.

WARNING

•

Do not use accessories with large or
heavy plugs – they could damage the
outlet or come loose while you are driv-
ing.

•

Do not use accessories that could
cause disruptions to e.g. the vehicle's
radio receiver or electrical system.

•

Position the accessory so that there is
no risk of it injuring the driver or pas-
sengers in the event of heavy braking
or a collision.

•

Pay attention to connected accessories
as they can generate heat that could
burn passengers or the interior.

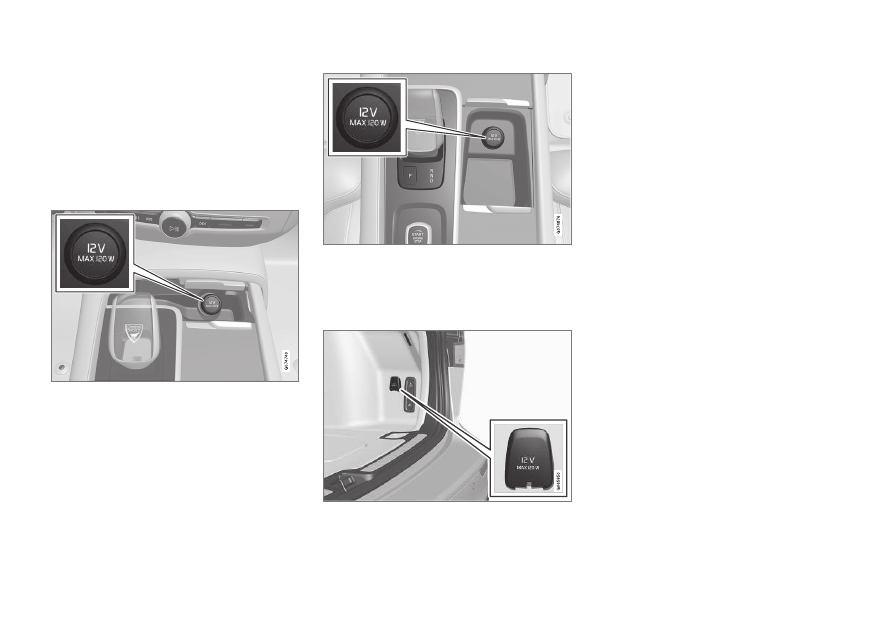

Using 12 V outlets

1. Remove the stopper (tunnel console) or

fold down the cover (trunk/cargo com-
partment) over the socket and plug in the
device.

2. Unplug the device and put the stopper

back in (tunnel console) or fold up the
cover (trunk/cargo compartment) when
the socket is not in use or left unattended.

Electrical outlets (p. 562)

The maximum power is 120 W (10 A) per
outlet.

Related information

•

•

-------------------------------------------------------------------------------------------------------------------------------------------------------------

LOADING, STORAGE AND PASSENGER COMPARTMENT

* Option/accessory.

564

Using the glove compartment

Locking and unlocking the glove box

The glove compartment can be locked when
the vehicle is left at a workshop, hotel, etc.
The glove compartment can then only be
locked/unlocked with the glove compartment
key.

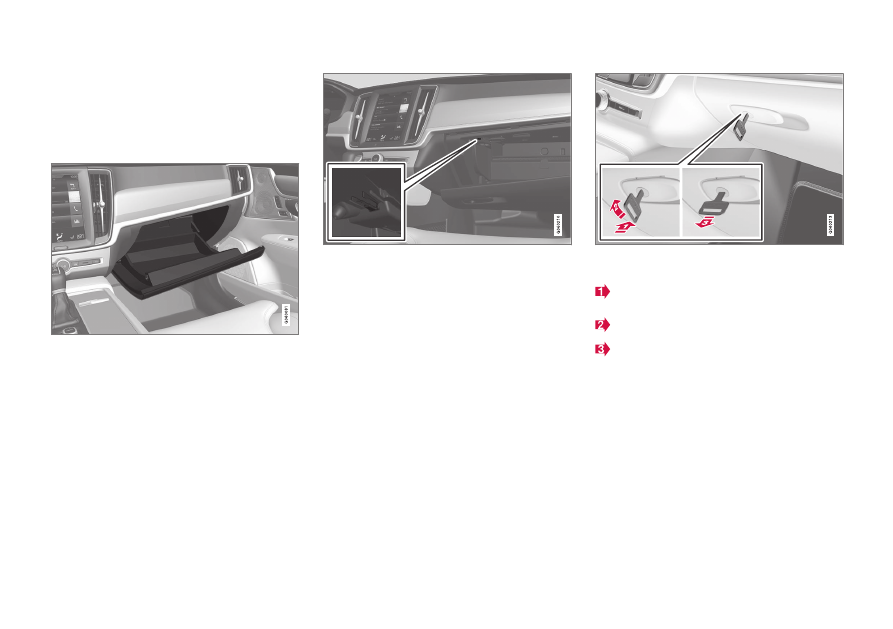

Storage compartment for the key. The illustration is

generic – the design may vary.

The illustration is generic – the design may vary.

To lock the glove compartment:
Insert the key into the lock on the glove
compartment.
Turn the key 90 degrees clockwise.

Remove the key from the lock.

–

To unlock, perform the above steps in
reverse.

Using the glove box as a cooled area

The glove compartment can be used to cool
e.g. drinks or food. Cooling is possible when
the climate system is active (i.e. when the
ignition is in mode

or when the engine is

running).

-------------------------------------------------------------------------------------------------------------------------------------------------------------

LOADING, STORAGE AND PASSENGER COMPARTMENT

* Option/accessory.

565

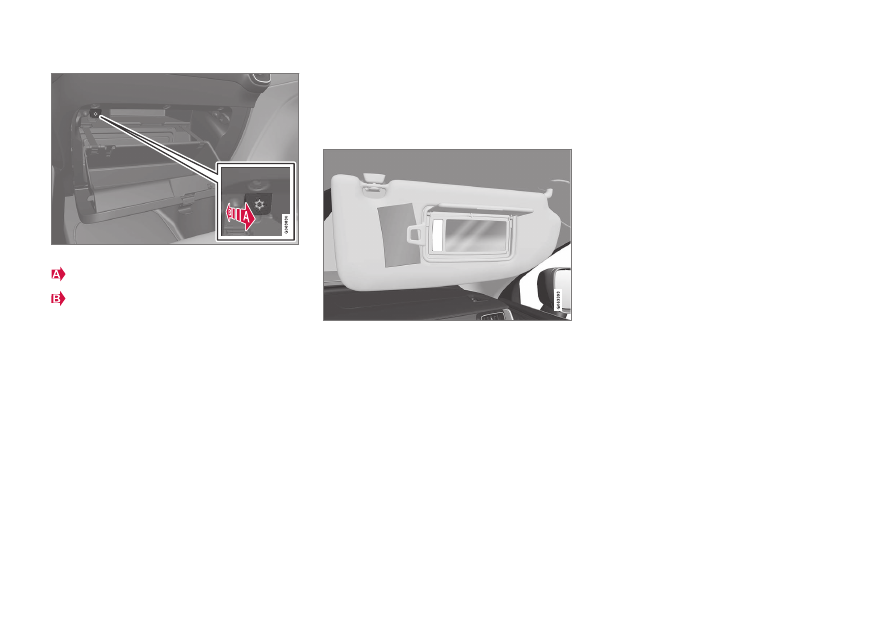

The illustration is generic – the design may vary.

Activate cooling.

Deactivate cooling.

–

Activate or deactivate cooling by moving
the control as far as possible toward the
passenger compartment/glove compart-
ment.

Related information

•

•

Private Locking (p. 264)

Sun visors

In the ceiling in front of the driver's and front
passenger's seats, there are sun visors that
can be lowered and angled to the side as
necessary.

The illustration is generic – the design may vary.

The mirror lighting

comes on automatically

when the visor is lifted up.

The mirror frame has a holder for e.g. cards or
tickets.

Related information

•

Cargo compartment

The vehicle has a flexible cargo compartment
that makes it possible to carry and secure
large objects.

The cargo capacity of the vehicle can be con-
siderably increased by folding down the rear
seat backrests. Use the load anchoring eyelets
or grocery bag holders to help secure objects
in place, and the retractable cargo compart-
ment cover

to help conceal objects in the

cargo compartment.

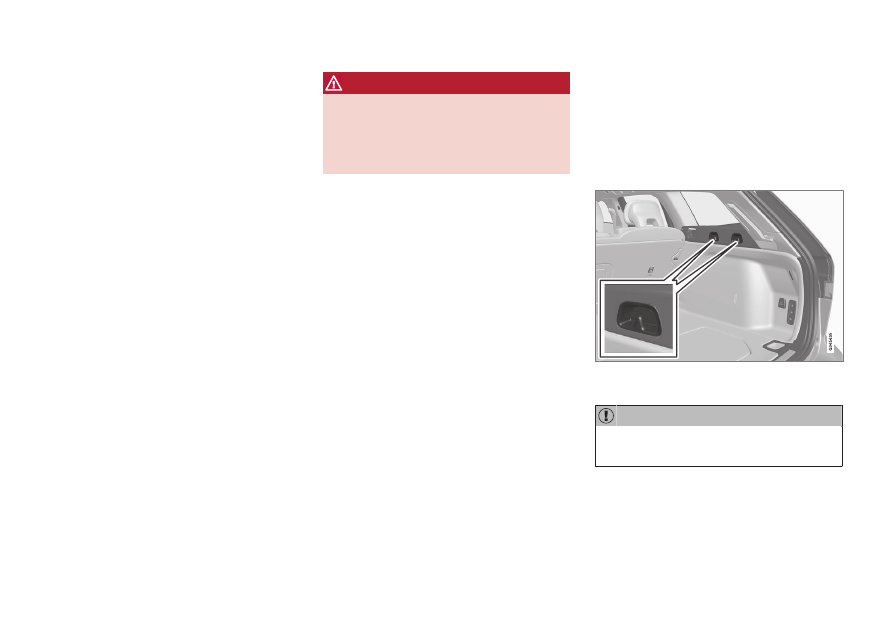

The towing eyelet and tire sealing system, or
the temporary spare tire

, are located under

the cargo compartment floor.

Related information

•

Grocery bag holders (p. 567)

•

•

Installing and removing the cargo com-
partment cover

•

(p. 569)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

LOADING, STORAGE AND PASSENGER COMPARTMENT

* Option/accessory.

566

Loading recommendations

There are a number of things that are impor-
tant to consider when carrying loads in or on
the vehicle.

Load-carrying capacity is determined by the
vehicle's curb weight. The total weight of all
passengers and any installed accessories
reduces the vehicle's load-carrying capacity by
the corresponding amount.

WARNING

The vehicle's driving characteristics change

depending on the weight and position of

the load.

Loading the cargo compartment/trunk

Keep the following in mind when loading:

•

Position objects so they are pressing
against the rear seat backrests.

•

Heavy objects should be positioned as low
as possible. Avoid placing heavy objects
on folded-down seat backrests.

•

Cover sharp corners with a soft cloth or
similar to help prevent damage to the
upholstery.

•

Use the load anchoring eyelets and ten-
sioning straps or similar to secure all
objects.

WARNING

In a head-on collision at a speed of

50 km/h (30 mph), an unsecured object

weighing 20 kg (44 pounds) can reach a

projectile weight equivalent to 1000 kg

(2200 pounds).

WARNING

If objects are loaded higher than the upper

edge of the side windows, leave a 10 cm

(4 in.) space between the objects and the

window. Objects placed closer to this

could impede the function of the inflatable

curtain concealed inside the headlining.

WARNING

Always secure the load. Otherwise, it may

shift during heavy braking and injure peo-

ple in the vehicle.
Cover sharp edges and sharp corners with

something soft.
Turn off the engine and apply the parking

brake when loading/unloading long

objects. Otherwise, it is possible for the

load to reach the gear lever or gear selector

and move it to a drive position – which

could cause the vehicle to begin rolling.

Extra cargo space

The rear seat backrests can be folded down to
increase cargo space in the cargo compart-

ment/trunk and simplify loading. If the rear
seat backrests are folded down, make sure
that no objects loaded into the vehicle prevent
the WHIPS system for the front seats from
functioning correctly.

A ski hatch in the rear seat can be folded
down to carry skis or other long, thin objects.

Related information

•

Folding down the rear seat backrests
(p. 192)

•

•

Rear seat ski hatch (p. 569)

•

Roof loads and load carriers (p. 567)

•

Leveling control

and suspension (p. 423)

•

Weights (p. 643)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

LOADING, STORAGE AND PASSENGER COMPARTMENT

}}

567

Roof loads and load carriers

Volvo-developed load carriers are recom-
mended for carrying loads on the roof of the
vehicle.

Volvo load carriers are specially designed to
help prevent damage to your vehicle and help
ensure maximum safety while driving. Volvo
load carriers are available from authorized
Volvo retailers.

Carefully follow the installation instructions
provided with the load carriers.

•

Distribute the load evenly throughout the
load carriers. Place heavier cargo at the
bottom of the load.

•

Check periodically to ensure that the load
carriers and load are properly secured.
Secure the load firmly using tie straps or
similar.

•

If the load is longer than the vehicle, such
as a canoe or kayak, attach the towing
eyelet in its front outlet and secure the tie
straps in it.

•

The vehicle's wind resistance and fuel
consumption increase with the size of the
load.

•

Drive smoothly. Avoid rapid acceleration,
hard braking and fast cornering.

WARNING

The vehicle's center of gravity and driving

characteristics are altered by roof loads.
Follow the vehicle's specifications regar-

ding weights and maximum permitted

load.

Related information

•

•

Weights (p. 643)

Grocery bag holders

Grocery bag holders (hooks) help keep shop-
ping bags in place and prevent them from
falling over and spilling their contents in the
cargo compartment.

On the sides of the cargo
compartment

There are two grocery bag holders in the side
panel on each side of the cargo compartment.

The grocery bag holders are only intended
to hold weights up to 5 kg (11 lbs).

-------------------------------------------------------------------------------------------------------------------------------------------------------------

LOADING, STORAGE AND PASSENGER COMPARTMENT

* Option/accessory.

568

Under the floor hatch

There are two grocery bag holders and an
elastic band

in the hatch in the cargo com-

partment floor. The strap can be attached in
four different positions.

Open the hatch to access the grocery bag
holders. Use the provided elastic strap to
secure shopping bags in a suitable position.
Bags with handles of a suitable size can also
be hung on the hooks.

Related information

•

Using the glove compartment (p. 564)

•

•

Installing and removing the cargo net

(p. 573)

•

Installing and removing the cargo com-
partment cover

(p. 569)

•

Installing and removing the steel cargo
grid

(p. 571)

Load anchoring eyelets

The load anchoring eyelets in the cargo com-
partment can be used to secure objects with
straps, a net, etc.

WARNING

Hard, sharp and/or heavy objects in or pro-

truding from the vehicle can cause injury in

the event of hard braking.
Always secure large and heavy objects

with a seat belt or cargo retaining straps.

Related information

•

•

Weights (p. 643)

Additional elastic straps can be ordered from a Volvo retailer.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

LOADING, STORAGE AND PASSENGER COMPARTMENT

* Option/accessory.

569

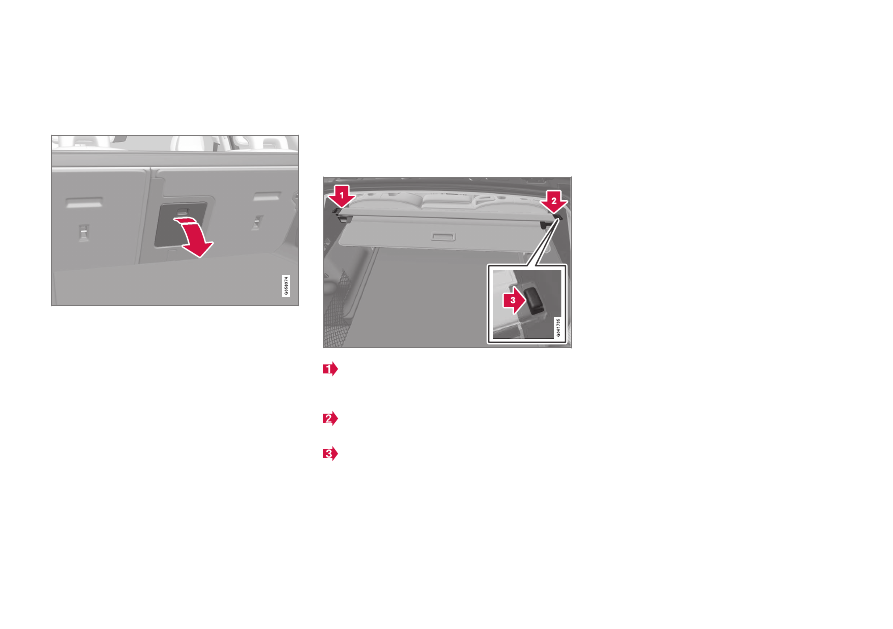

Rear seat ski hatch

The hatch in the rear seat backrest can be
opened to transport long, narrow objects
such as skis.

The illustration is generic - details may vary accord-

ing to vehicle model.

1. In the cargo compartment, grasp the ski

hatch handle and pull it down.

2. Fold down the armrest in the rear seat.

If the private locking function is used, the ski
hatch must be closed.

Related information

•

•

Private Locking (p. 264)

•

Operating the cargo compartment cover

Installing and removing the cargo

compartment cover

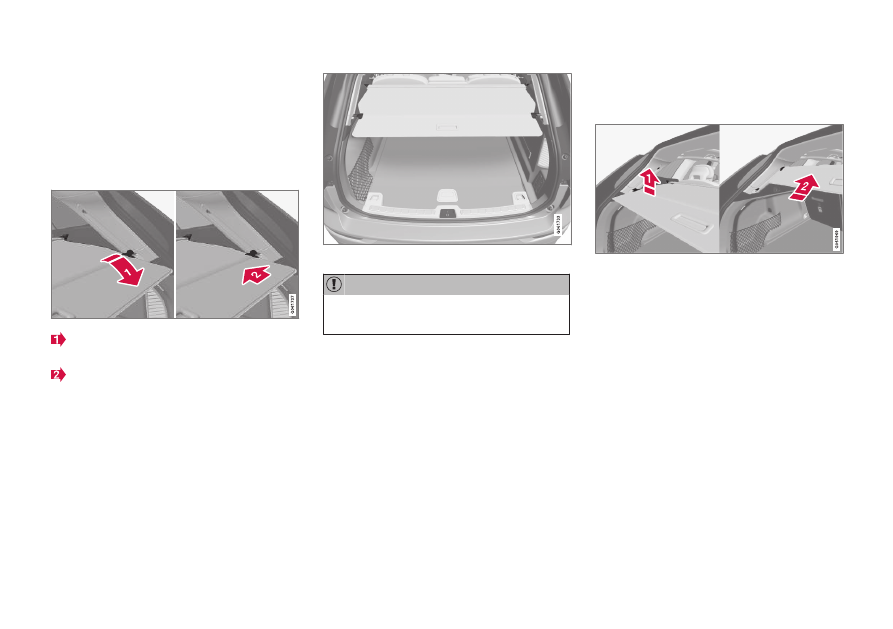

The cover can be rolled out to conceal objects
in the cargo compartment.

Installing the cargo compartment
cover

Press the end piece on one side of the
cover into the retaining bracket in the side
panel of the cargo compartment.

Then put the other end piece in the recess
in the side panel on the opposite side.

Push the end piece down on both sides,
one at a time.
> When a click is heard and the red

marks on each end piece are no longer
visible, the cover is in place. Check that
it is secure.

Removing the cargo compartment
cover

In retracted position:

1. Press the button on one of the cover's

ends and lift out that end.

2. Carefully lift the cover up and out.

> The other end will release automatically

and the cover can then be lifted out of
the cargo compartment.

Related information

•

(p. 570)

•

-------------------------------------------------------------------------------------------------------------------------------------------------------------

LOADING, STORAGE AND PASSENGER COMPARTMENT

* Option/accessory.

570

Operating the cargo compartment

cover

The cover can be used in two positions: fully
open to completely cover the cargo compart-
ment or partially retracted to make it easier to
reach further into the cargo compartment.

Fully open

Grasp the handle and pull the cover out as
far as possible.

Press the attachment pins in the recesses
in the rear pillars of the cargo compart-
ment.
> The cover will be secured in the fully

open position.

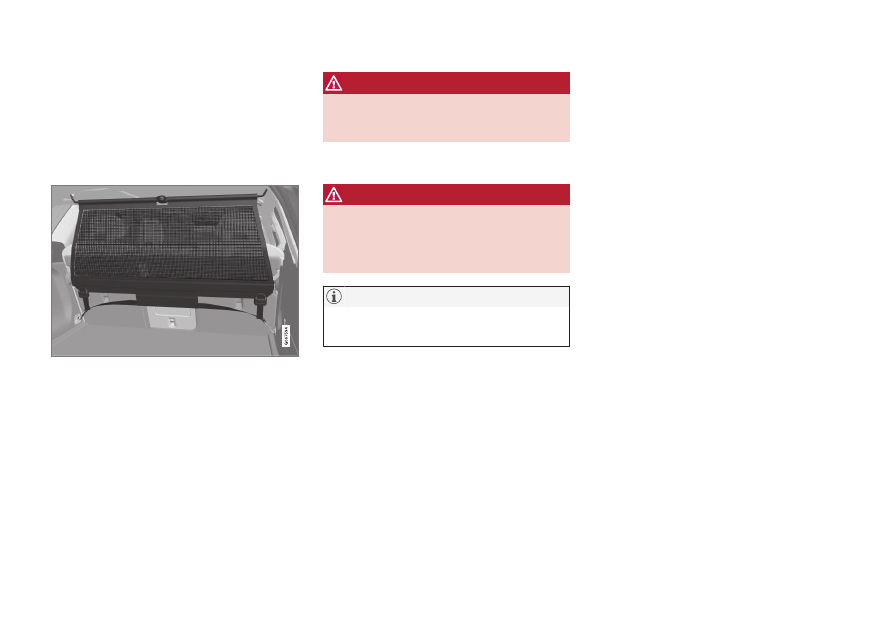

Cover in the fully open position.

Do not place objects on top of the cargo
compartment cover.

Loading mode

From the fully opened position:

–

Press the handle section of the cargo com-
partment slightly upward.
> The cover will move up until it stops in

the partially retracted position.

Returning to the fully open position from the
partially retracted position:

1. Grasp the handle and pull the cover down

as far as possible. Angle the handle
slightly upward so that the attaching pins
can more easily move past the first set of
grooves.

2. Release the handle so that the attaching

pins engage into the grooves.
> The cover will be secured in the fully

open position.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

LOADING, STORAGE AND PASSENGER COMPARTMENT

}}

* Option/accessory.

571

Installing and removing the cargo com-
partment cover

When in the loading position, the cargo
compartment cover can obstruct visibility
to the rear. Make sure that the cargo com-
partment cover is fully extended or fully
retracted during driving.

Retracting the cover

1. From the fully opened position:

Lift the cover's handle and pull it rearward
to release the cover's attaching pins from
the grooves. Let the cover retract.

From the partially retracted position:

Grasp the handle and pull the cover out of
the groves to the fully open position. Lift
the handle and pull it rearward to release
the cover's attaching pins from the
grooves. Let the cover retract.

2. Let the cover retract with its attaching

pins above the side panels until it stops in
the fully retracted position.

Related information

•

(p. 569)

Installing and removing the steel

cargo grid

The steel cargo grid prevents loads or pets in
the cargo compartment from being thrown
forward into the passenger compartment
during hard braking.

For safety reasons, the steel grid must always
be installed and secured correctly.

WARNING

Under no circumstances may a person be

in the cargo compartment when the vehi-

cle is moving. Heavy braking or a collision

could lead to serious injury.

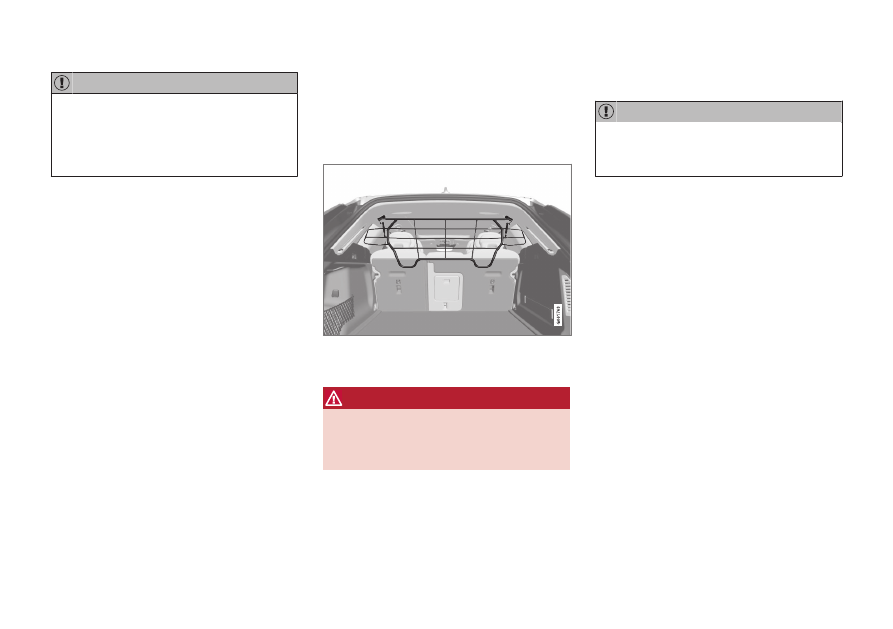

Installation

The steel cargo grid may only be used in
the rear position (behind the rear seat)
described here.

Before installing the steel grid, the existing
plastic ceiling mounting consoles must be
replaced with steel consoles. Volvo recom-
mends that the ceiling consoles are only
replaced by an authorized Volvo workshop or
retailer.

1. Fold down the rear seat backrests.

2. Make sure that the steel grid is facing the

right direction. Lift the grid into the vehicle
through one of the rear doors.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

LOADING, STORAGE AND PASSENGER COMPARTMENT

572

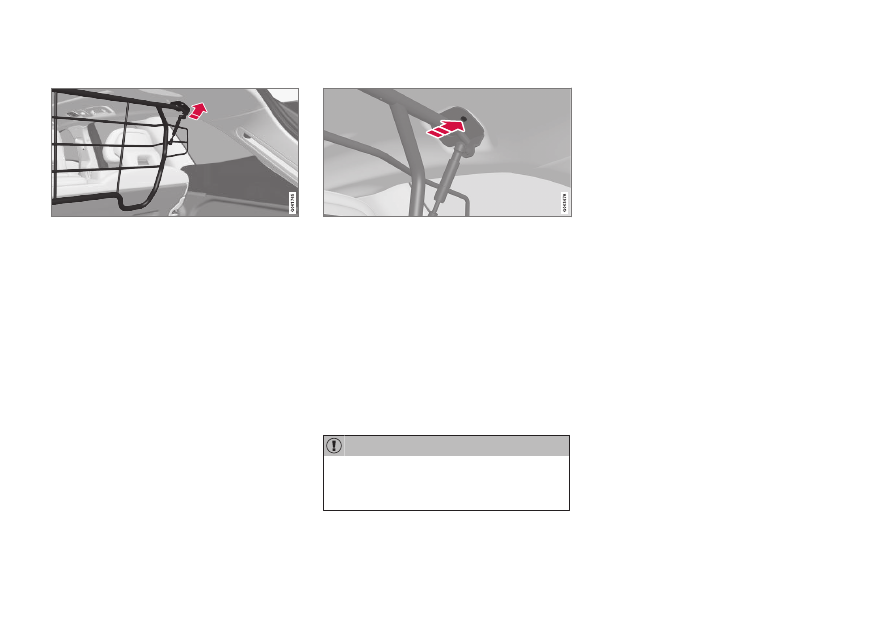

Position the grid's attachment points in
the ceiling consoles.

The next step will be easier if two people
hold the steel grid in the right position.

Screw the provided screw into place using
the provided 6 mm Allen wrench. Repeat
on the other side. Recommended torque:
20 Nm (15 ft-lb).
> Check to make sure the steel grid is

securely in place.

5. Return the backrest to the upright posi-

tion.

For more information on necessary tools and
procedures for installing/removing, see the
assembly instructions provided with the steel
grid.

The steel cargo grid cannot be folded up or
down when a cargo compartment cover is
mounted.

Related information

•

•

-------------------------------------------------------------------------------------------------------------------------------------------------------------

LOADING, STORAGE AND PASSENGER COMPARTMENT

}}

* Option/accessory.

573

Installing and removing the cargo

net

The cargo net helps prevent objects in the
cargo compartment from entering the pas-
senger compartment in the event of a sudden
stop or hard braking.

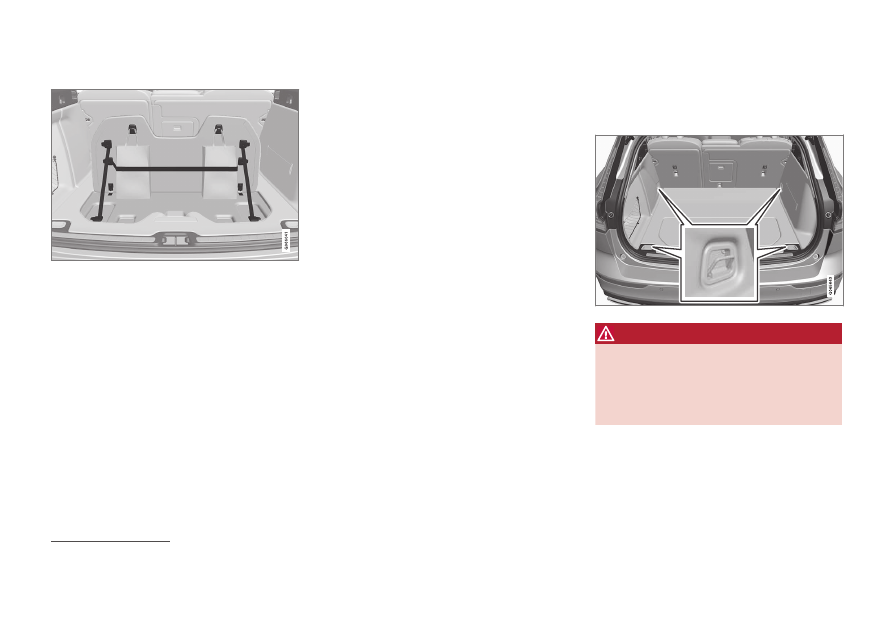

The cargo net is attached at four points.

For safety reasons, the cargo net must always
be mounted and secured according to the fol-
lowing description.

The net is made of strong nylon weave and
can be attached in two different locations in
the vehicle:

•

Rear mounting - behind the rear seats.

•

Front mounting - behind the front seats.

WARNING

Objects in the cargo compartment must

always be securely anchored, even with a

correctly installed cargo net.

Installing the cargo net

WARNING

All of the cargo net's upper consoles,

hooks and straps must be securely moun-

ted and attached before the net is used.
Never use the net if it is damaged.

With front mounting, the cargo net is most
easily installed via a rear door.

1. Fold out the cargo net and make sure that

the upper rod folds out and locks into
position.

2. Insert one of the net's hooks into the front

or rear ceiling mounting point with the
strap lock facing you.

3. Insert the net's other upper hook into the

ceiling mounting point on the opposite
side.

The telescopic spring-loaded hooks make
mounting easier.

Make sure that the net's hooks are pushed
forward as far as possible into their
respective mounting points.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

LOADING, STORAGE AND PASSENGER COMPARTMENT

574

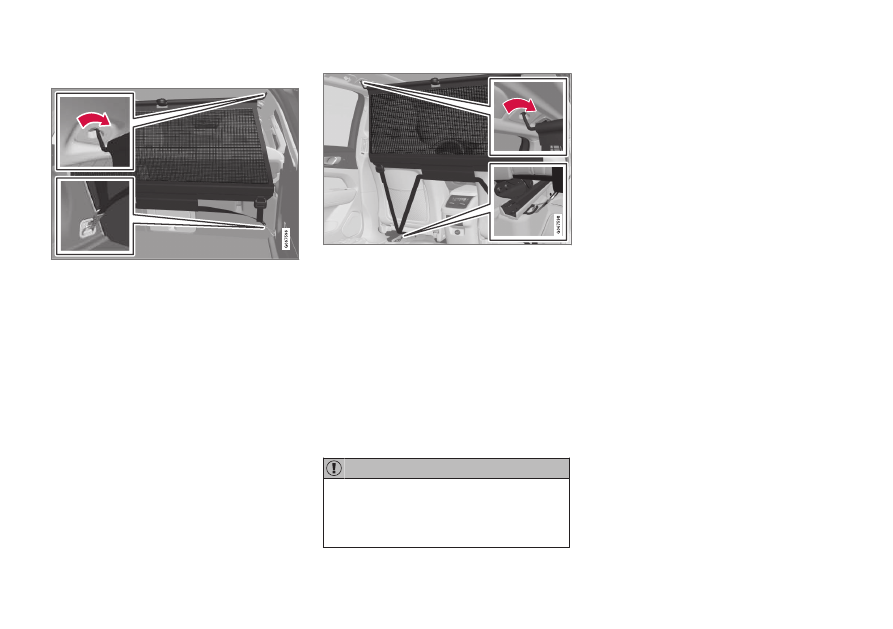

Rear mounting.

For rear mounting:

With the cargo net hooked into the rear
ceiling mounting points, attach the net's
straps into the front cargo anchoring eye-
lets in the cargo compartment.

Front mounting.

For front mounting:

With the cargo net mounted in the front
ceiling mounting points, hook the straps
into the outer eyelets on the front seat rails
behind the seats. Attaching the net is eas-
ier if the seat backrests are upright and the
seats are moved slightly forward.

Move the seat or backrest only until it
touches the net. Moving it with too much
force or applying too much pressure to the
net could lead to damage.

If a seat or backrest is pressed with too
much force back against the cargo net, the
net and its ceiling brackets could be dam-
aged.

5. Pull the straps until the cargo net is taut.

Removing the cargo net

The cargo net can be easily removed and
folded up.

1. Loosen the cargo net by pressing the but-

ton on the strap locks on each side and
pulling to allow some slack.

2. Press in the catches and release both of

the strap hooks.

3. Unhook the upper hooks and remove the

net from the ceiling mounting points.

4. Press the red button on the rod so that it

can be folded. Fold and roll up the net.
Store the net in its case.

Related information

•

•

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MAINTENANCE AND SERVICE

576

Volvo's service program

To keep the vehicle as safe and reliable as
possible, follow the Volvo service schedule
specified in the Warranty and Maintenance
Records Information booklet.

WARNING

California Proposition 65

Operating, servicing and maintaining a pas-

senger vehicle can expose you to chemi-

cals including engine exhaust, carbon mon-

oxide, phthalates, and lead, which are

known to the State of California to cause

cancer and birth defects or other reproduc-

tive harm. To minimize exposure, avoid

breathing exhaust, do not idle the engine

except as necessary, service your vehicle in

a well ventilated area and wear gloves or

wash your hands frequently when servicing

your vehicle. For more information go to

Volvo recommends having an authorized
Volvo workshop perform service and mainte-
nance. Volvo workshops have the staff, service
literature and special tools that can provide
the highest quality of service.

To ensure the Volvo warranty is not invali-
dated, check and follow the Warranty and
Service Records Information booklet.

Introduction

The maintenance services contain several
checks that require special instruments and
tools and therefore must be performed by a
qualified technician. To keep your Volvo in top
condition, specify time-tested and proven
Genuine Volvo Parts and Accessories.

The Federal Clean Air Act - U.S.

The Federal Clean Air Act requires vehicle
manufacturers to furnish written instructions
to the ultimate purchaser to assure the proper
servicing and function of the components that
control emissions. These services, which are
listed in the "Warranty and Service Records
Information" booklet, are not covered by the
warranty. You will be required to pay for labor
and material used.

Maintenance

Your Volvo passed several major inspections
before it was delivered to you, in accordance
with Volvo specifications. The maintenance
procedures outlined in the Warranty and Serv-
ice Records Information booklet, many of
which will positively affect your vehicle's emis-
sions, should be performed as indicated. It is
recommended that receipts for vehicle emis-
sion maintenance be retained in case ques-
tions arise concerning maintenance. Inspec-
tion and maintenance should also be per-
formed anytime a malfunction is observed or
suspected.

Applicable warranties - U.S./Canada

In accordance with applicable U.S. and Cana-
dian regulations, the following list of warran-
ties is provided.

•

New Vehicle Limited Warranty

•

Parts and Accessories Limited Warranty

•

Corrosion Protection Limited Warranty

•

Seat Belt and Supplemental Restraint
Systems Limited Warranty

•

Emission Design and Defect Warranty

•

Emission Performance Warranty

These are federal warranties; other warranties
are provided as required by state/provincial
law. Refer to your separate Warranty and
Service Records Information booklet for
detailed information concerning each of the
warranties.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MAINTENANCE AND SERVICE

}}

577

Periodic maintenance helps minimize
emissions

•

Refer to your Service and Warranty
Booklet for a comprehensive service
and maintenance schedule up to
240,000 km (150,000 miles). This
program contains inspections and ser-
vices necessary for the proper function
of your vehicle and includes compo-
nents that affect vehicle emissions.

•

The Warranty and Service Records
Information booklet also contains
detailed information concerning the
warranties that apply to your vehicle.

On-board Diagnostic System

OBD II is part of your vehicle's computerized
engine management system. It stores diag-
nostic information about your vehicle's emis-
sion controls. It can light the Check Engine
light (MIL) if it detects an emission control
"fault." A "fault" is a component or system
that is not performing within an expected
range. A fault may be permanent or temporary.
OBD II will store a message about any fault.

Emission inspection readiness

How do states use OBD II for emission
inspections?

Many states connect a computer directly to a
vehicle's OBD II system. The inspector can
then read "faults." In some states, this type of
inspection has replaced the tailpipe emission
test.

How can my vehicle fail OBD II emission
inspection?

Your vehicle can fail OBD II emission inspec-
tion for any of the following reasons:

•

If your Check Engine (MIL) light is lit, your
vehicle may fail inspection.

•

If your vehicle's Check Engine light was lit,
but went out without any action on your
part, OBD II will still have a recorded fault.
Your vehicle may pass or fail, depending
on the inspection practices in your area.

•

If you had recent service that required dis-
connecting the battery, OBD II diagnostic
information may be incomplete and "not
ready" for inspection. A vehicle that is not
ready may fail inspection.

How can I prepare for my next OBD II
emission inspection?

•

If your Check Engine (MIL) light is lit or
was lit but went out without service, have

your vehicle diagnosed and, if necessary,
serviced by a qualified Volvo technician.

•

If you recently had service for a lit Check
Engine light, or if you had service that
required disconnecting the battery, a
period of driving is necessary to bring the
OBD II system to "ready" for inspection.
Two half-hour trips of mixed stop-and-go/
highway driving are typically needed to
allow OBD II to reach readiness. Your
Volvo retailer can provide you with more
information on planning a trip.

•

Maintain your vehicle in accordance with
your vehicle's maintenance schedule.

Owner maintenance

Periodic maintenance requirements and inter-
vals are described in your vehicle's Warranty
and Service Records Information booklet.

The following points can be carried out
between the normally scheduled maintenance
services.

Each time the vehicle is refueled:

•

Check the engine oil level.

•

Clean the windshield, windshield wipers,
headlights, and taillights.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MAINTENANCE AND SERVICE

578

Monthly:

•

Check cold tire pressure in all tires.
Inspect the tires for wear.

•

Check that engine coolant and other fluid
levels are between the indicated "min"
and "max" markings.

•

Clean interior glass surfaces with a glass
cleaner and soft paper towels.

•

Wipe driver information displays with a
soft cloth.

•

Visually inspect battery terminals for cor-
rosion. Corrosion may indicate a loose ter-
minal connector, or a battery near the end
of its useful service life. Consult your Volvo
retailer for additional information.

As needed:

Wash the vehicle, including the undercarriage,
to reduce wear that can be caused by a
buildup of dirt, and corrosion that can be
caused by salt residues.

Clean leaves and twigs from air intake vents at
the base of the windshield, and from other pla-
ces where they may collect.
