MAINTENANCE AND SERVICE

}}

* Option/accessory.

631

On the inside of the cover there are tweezers
that facilitate the procedure for the removal
and fitting of fuses.

The

fuse box in the engine compartment

also provides space for several spare fuses.

Positions

On the inside of the cover is a label that shows
the location of the fuses.

Function

Ampere

Type

Intermediate voltage module

A

10

Micro

–

–

MCase

B

–

–

Micro

Movement detector

*

5

Micro

–

–

Micro

Driver display

5

Micro

Keypad in centre console

5

Micro

Sun sensor

5

Micro

–

–

Micro

–

–

Micro

Steering wheel module

5

Micro

Module for start knob and for parking brake control

5

Micro

Steering wheel module for heated steering wheel

*

15

Micro

–

–

Micro

||

MAINTENANCE AND SERVICE

* Option/accessory.

632

Function

Ampere

Type

–

–

Micro

–

–

Micro

Rear lamp housing control unit

15

Micro

Control module for climate control system

10

Micro

Steering lock

7,5

Micro

Diagnostic socket OBDII

10

Micro

Centre display

5

Micro

Fan module for climate control system, front

40

MCase

B

USB HUB

5

Micro

Controls lighting; Interior lighting; Dimming of interior rearview mirror

*

; Rain and light sensor

*

; Keypad in tunnel con-

sole, by legroom for rear seat

*

; Power front seats

*

; Control panels in rear doors; Fan module for climate control left/right

7,5

Micro

Control module for driver support functions

5

Micro

Sunroof

*

20

Micro

Head-up display

*

5

Micro

Passenger compartment lighting

5

Micro

Wireless charging plate

5

Micro

Display in roof console (Seatbelt reminder/Indicator for airbag on the front passenger seat)

5

Micro

MAINTENANCE AND SERVICE

}}

* Option/accessory.

633

Function

Ampere

Type

–

–

Micro

–

–

Micro

–

–

Micro

Fuses in cargo area

10

Micro

Control module for online car; Control module for Volvo On Call

5

Micro

Door module in left-hand rear door

20

Micro

Audio control device (amplifier)

40

MCase

B

–

–

MCase

B

Module for multi-band antenna

5

Micro

Modules for seat comfort (massage) front

*

5

Micro

Alcohol lock

*

5

Micro

–

–

Micro

Control module for fuel pump

15

Micro

Relay coil for transmission oil pump

Converter medium voltage; Integrated starter motor

5

Micro

Opening the boot lid/tailgate with foot motion

*

5

Micro

Seat heating, driver's side front

15

Micro

||

MAINTENANCE AND SERVICE

* Option/accessory.

634

Function

Ampere

Type

Seat heating, passenger side front

15

Micro

Coolant pump

7,5

Micro

–

–

Micro

Door module in left-hand front door

20

Micro

Control module for suspension (active chassis)

*

20

Micro

–

–

Micro

Sensus control module

10

Micro

–

–

MCase

B

–

–

Micro

Door module in right-hand front door

20

Micro

–

–

Micro

TV

*

 (certain markets)

5

Micro

Primary fuse for fuses 52, 53, 57 and 58

15

Micro

A

Only applies to cars with 48 V support battery.

B

This type of fuse should be replaced by a workshop. An authorised Volvo workshop is recommended.

Related information

•

Fuses and central electrical units (p. 623)

•

Replacing a fuse (p. 623)

MAINTENANCE AND SERVICE

}}

* Option/accessory.

635

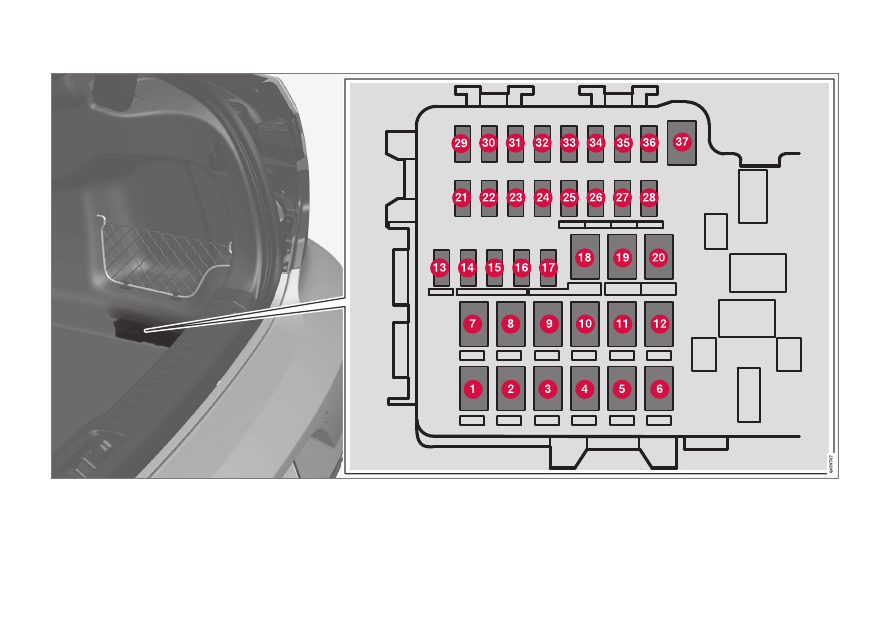

Fuses in cargo area

Fuses in the cargo area protect, amongst
other things, power seats

*

, airbags and seat-

belt tensioners.

||

MAINTENANCE AND SERVICE

636

The central electrical unit is located on the right-hand side.

On the inside of the cover there are tweezers
that facilitate the procedure for the removal
and fitting of fuses.

The

fuse box in the engine compartment

also provides space for several spare fuses.

MAINTENANCE AND SERVICE

}}

* Option/accessory.

637

Positions

On the inside of the cover is a label that shows
the location of the fuses.

Function

Ampere

Type

Rear window defroster

30

MCase

A

Central electronic module

40

MCase

A

Compressor for air suspension

*

40

MCase

A

Lock motor for backrest on rear right-hand side

15

MCase

A

–

–

MCase

A

Lock motor for backrest on rear left-hand side

15

MCase

A

Door module right-hand side rear

B

20

MCase

A

Control module for reduction of nitrous oxides (diesel)

30

MCase

A

Power operated boot lid

*

25

MCase

A

Electrically operated front passenger seat

*

Door module right-hand side front

20

MCase

A

Towbar control module

*

40

MCase

A

Seatbelt pretensioner module, right-hand side

40

MCase

A

Internal relay coils

5

Micro

Control module for reduction of nitrous oxides (diesel)

15

Micro

||

MAINTENANCE AND SERVICE

* Option/accessory.

638

Function

Ampere

Type

Door module left-hand side rear

20

Micro

Alcohol lock

*

, USB hub/accessory port

5

Micro

–

–

Micro

Towbar control module

*

25

MCase

A

Accessory module

40

Power driver seat

*

Door module left-hand side front

20

MCase

A

Seatbelt pretensioner module, left-hand side

40

MCase

A

Parking camera

*

5

Micro

Rear light module back-up power supply

10

Micro

–

–

Micro

–

–

Micro

–

–

Micro

–

–

Micro

–

–

Micro

Seat heating left-hand side rear

*

15

Micro

–

–

Micro

MAINTENANCE AND SERVICE

* Option/accessory.

639

Function

Ampere

Type

Blind Spot Information (BLIS)

*

: control module, exterior reversing sound

5

Micro

–

–

Micro

Seatbelt pretensioner modules, left-hand side

5

Micro

Actuator for exhaust gases (petrol, certain engine variants)

5

Micro

–

–

Micro

All Wheel Drive (AWD) control module

*

15

Micro

Seat heating right-hand side rear

*

15

Micro

–

–

MCase

A

A

This type of fuse should be replaced by a workshop. An authorised Volvo workshop is recommended.

B

Applicable only to cars with hybrid motors or a 48V support battery.

Related information

•

Fuses and central electrical units (p. 623)

•

Replacing a fuse (p. 623)

MAINTENANCE AND SERVICE

640

Bulb replacement

Lamp types vary depending on model and
equipment level. If a bulb

15

 breaks, it can be

Contact a workshop

16

 if faults occur in lamps

other than bulbs.

If a fault occurs in LED

17

 lamps, the entire

lamp unit usually must be replaced.

NOTE

WARNING

The car's electrical system must be in igni-

tion position

0

 when replacing bulbs.

IMPORTANT

Never touch the glass part of the bulbs
with your fingers. Grease from your fingers
is vaporised by the heat, coating the reflec-
tor and then causing damage.

NOTE

If an error message remains after the bro-
ken bulb has been replaced then we rec-
ommend visiting an authorised Volvo
workshop.

NOTE

Outside lighting such as headlamps and
rear lamps may temporarily have conden-
sation on the inside of the lens. This is nor-
mal, all exterior lighting is designed to
withstand this. Condensation is normally
vented out of the lamp housing when the
lamp has been switched on for a time.

Related information

•

Exterior lamp positions (p. 641)

•

Removing the plastic cover for bulb
replacement (p. 640)

•

Replacing the dipped beam bulb (p. 642)

•

Replacing the main beam lamp (p. 643)

•

Replacing daytime running light bulb/posi-
tion lamp bulb, front (p. 643)

•

Replacing the front direction indicator
bulb (p. 644)

•

Bulb specifications (p. 645)

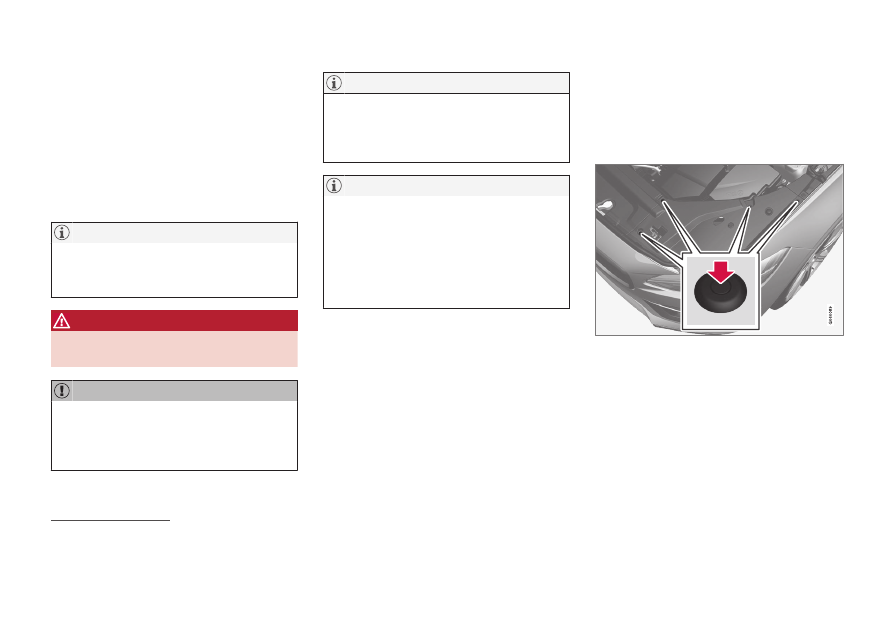

Removing the plastic cover for

bulb replacement

The bulb in the halogen headlamp can be
replaced without the help of a workshop, but
the plastic cover over the headlamp must be
removed before a bulb can be replaced.

–

Press down the pins into the plastic cov-
er's four clips using a screwdriver or simi-
lar and lift away the cover.

15

Some cars have no bulbs.

16

An authorised Volvo workshop is recommended.

17

LED (Light Emitting Diode)

MAINTENANCE AND SERVICE

}}

* Option/accessory.

641

NOTE

Points to remember when the cover is
refitted:

•

The pin in the clip needs to be pressed
back fully before the clip is refitted in
the cover.

•

When the cover is refitted, the pin
must be pressed in until the end sur-
face is level with the surface of the clip.

Related information

•

Bulb replacement (p. 640)

•

Replacing the dipped beam bulb (p. 642)

•

Replacing the main beam lamp (p. 643)

•

Replacing daytime running light bulb/posi-
tion lamp bulb, front (p. 643)

•

Replacing the front direction indicator
bulb (p. 644)

•

Bulb specifications (p. 645)

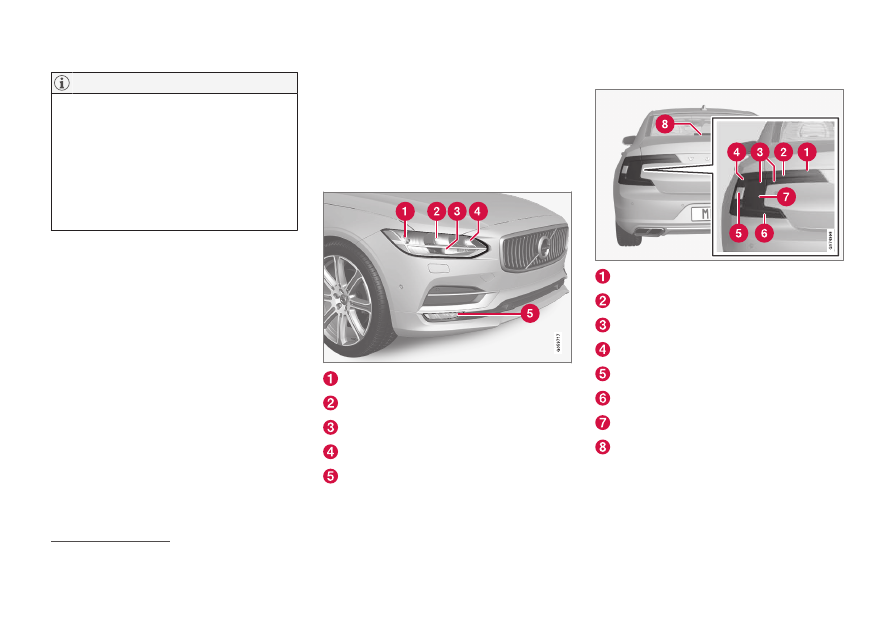

Exterior lamp positions

The exterior lighting of the car uses a number
of different lamps. An LED

18

 type lamp must

be replaced by a workshop. An authorised
Volvo workshop is recommended.

Lamps, front (car with halogen
headlamps)

Dipped beam

Main beam

Daytime running lights/position lamps

Indicator

Front fog lamps/cornering lights

*

 (LED)

Lamps, rear

Fog lamp (LED)

Position lamps (LED)

Direction indicator (LED)

Position lamps (LED)

Reversing lamps (LED)

Position lamps (LED)

Brake light (LED)

Brake light - central, high-level (LED)

18

LED (Light Emmitting Diode)

||

MAINTENANCE AND SERVICE

642

Related information

•

Bulb replacement (p. 640)

•

Bulb specifications (p. 645)

•

Lighting control (p. 150)

Replacing the dipped beam bulb

The dipped beam bulb in the halogen head-
lamp can be replaced without assistance
from a workshop.

Before the bulb can be replaced, the plastic
cover over the headlamp must be removed.

IMPORTANT

Never touch the glass part of the bulbs
with your fingers. Grease from your fingers
is vaporised by the heat, coating the reflec-
tor and then causing damage.

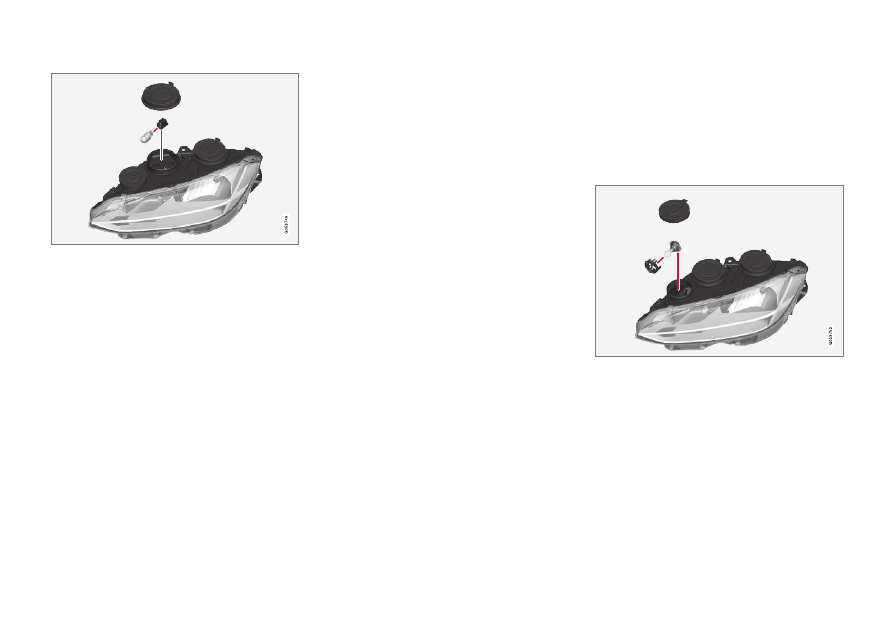

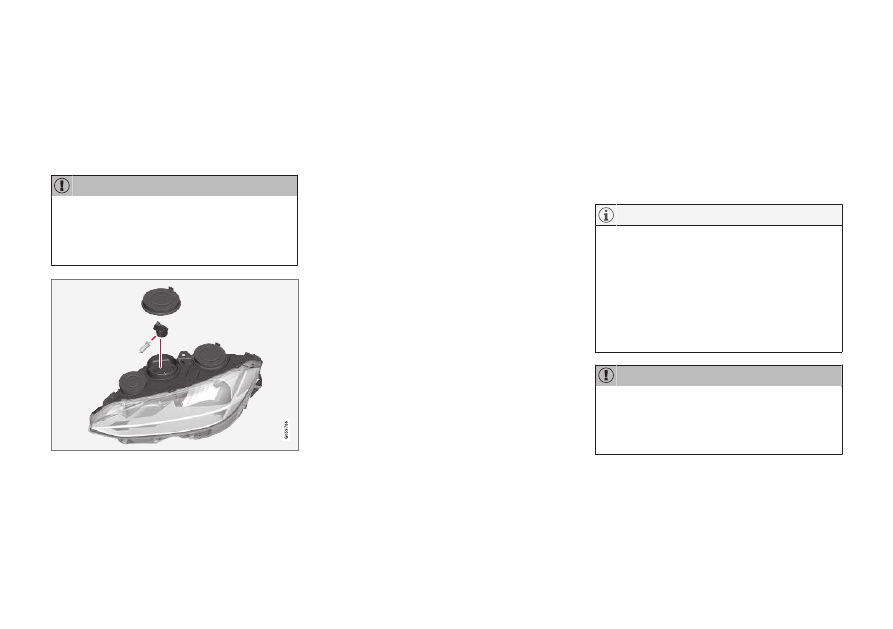

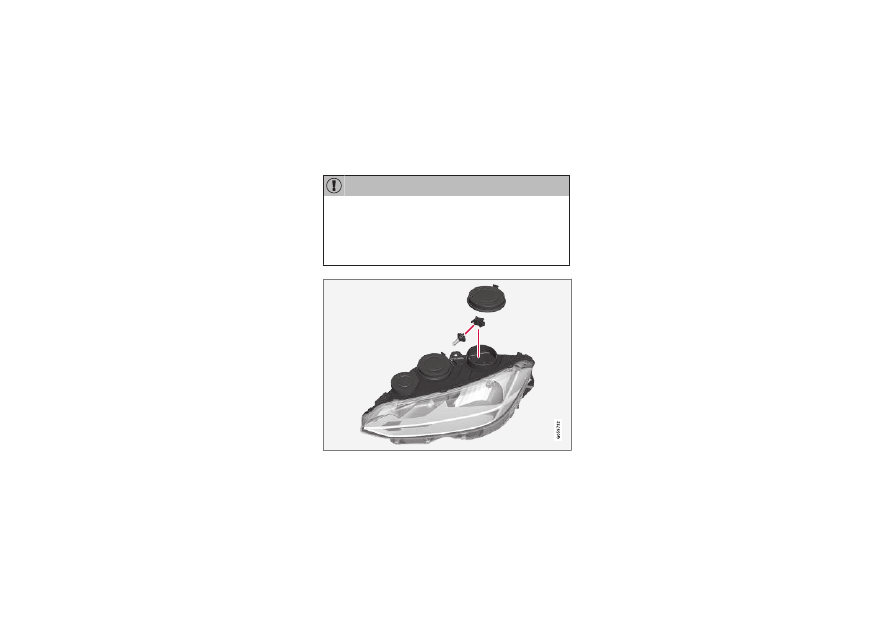

Left-hand headlamp.

1. Detach the headlamp's rubber cover for

the dipped beam bulb.

2. Unplug the connector from the bulb.

3. Detach the bulb by pushing it gently

upwards and pulling it straight out.

4. Fit a new bulb in the socket. The bulb's

guide pin must be aimed straight
upwards.

5. Press in the connector.

6. Refit the headlamp's rubber cover.

Related information

•

Exterior lamp positions (p. 641)

•

Removing the plastic cover for bulb
replacement (p. 640)

•

Bulb specifications (p. 645)

MAINTENANCE AND SERVICE

}}

643

Replacing the main beam lamp

The main beam bulb in the halogen headlamp
can be replaced without assistance from a
workshop.

Before the bulb can be replaced, the plastic
cover over the headlamp must be removed.

IMPORTANT

Never touch the glass part of the bulbs
with your fingers. Grease from your fingers
is vaporised by the heat, coating the reflec-
tor and then causing damage.

Left-hand headlamp.

1. Detach the headlamp's rubber cover for

the main beam bulb.

2. Detach the bulb by turning the bulb holder

upward and then pulling straight out.

3. Carefully prize the plastic cover at the con-

nector's lock lug so that the lock lug relea-
ses.

4. Unplug the connector from the bulb.

5. Replace the bulb.

6. Fit the bulb in the socket and screw in.

7. Refit the headlamp's rubber cover.

Related information

•

Exterior lamp positions (p. 641)

•

Removing the plastic cover for bulb
replacement (p. 640)

•

Bulb specifications (p. 645)

Replacing daytime running light

bulb/position lamp bulb, front

The daytime running light bulb/position lamp
bulb in the halogen headlamp can be
replaced without assistance from a work-
shop.

Before the bulb can be replaced, the plastic
cover over the headlamp must be removed.

NOTE

The bulb for the daytime running light/
position lamp is easier to access if the
main beam bulb is detached. The main
beam bulb is fitted diagonally above the
daytime running light bulb/position lamp
bulb. Detach the main beam bulb by rotat-
ing its bulb holder upwards and then pull-
ing straight out.

IMPORTANT

Never touch the glass part of the bulbs
with your fingers. Grease from your fingers
is vaporised by the heat, coating the reflec-
tor and then causing damage.

||

MAINTENANCE AND SERVICE

644

Left-hand headlamp.

1. Detach the headlamp's rubber cover for

the daytime running light bulb/position
lamp bulb.

2. Pull the bulb holder for the daytime run-

ning light bulb/position lamp bulb straight
out.

3. Detach the bulb by pulling it straight out.

4. Replace the bulb.

5. Fit the bulb holder into the socket and

press it into place.

6. If the main beam bulb's bulb holder has

been removed, fit it into the socket and
screw in.

7. Refit the headlamp's rubber cover.

Related information

•

Exterior lamp positions (p. 641)

•

Removing the plastic cover for bulb
replacement (p. 640)

•

Bulb specifications (p. 645)

•

Replacing the main beam lamp (p. 643)

Replacing the front direction

indicator bulb

The direction indicator bulb in the halogen
headlamp can be replaced without assistance
from a workshop.

Before the bulb can be replaced, the plastic
cover over the headlamp must be removed.

Left-hand headlamp.

1. Detach the headlamp's rubber cover for

the indicator bulb.

2. Press the catches together and pull the

bulb holder straight out.

3. Replace with a new bulb holder with bulb.

4. Fit the bulb holder into the socket and

press it into place.

5. Refit the headlamp's rubber cover.

MAINTENANCE AND SERVICE

}}

645

Related information

•

Exterior lamp positions (p. 641)

•

Removing the plastic cover for bulb
replacement (p. 640)

•

Bulb specifications (p. 645)

Bulb specifications

Specifications for replaceable bulbs.

Contact a workshop

19

 if faults occur in lamps

other than bulbs. If a fault occurs in LED

20

lamps, the entire lamp unit usually must be
replaced.

Function

W

A

Type

Dipped beam

55

H7

Main beam

65

H9

Front direction indica-
tors

24

PY24W

PWY24W

daytime running lights/
position lamps, front

21/5

W21/5W

A

Watt

Related information

•

Exterior lamp positions (p. 641)

•

Bulb replacement (p. 640)

Cleaning the interior

Use cleaning agents and car care products
recommended by Volvo. Clean regularly, and
deal with stains straight away. Vacuuming is
important prior to using cleaning agents.

IMPORTANT

•

Certain items of coloured clothing (e.g.
dark jeans and suede garments) may
stain the upholstery. If this occurs, it is
important to clean and treat these
parts of the upholstery as soon as pos-
sible.

•

Never use strong solvents such as
washer fluid, pure petrol or white spirit
or concentrated alcohol to clean the
interior, since this may damage the
upholstery as well as other interior
materials.

•

Never spray the cleaning agent directly
onto components that have electrical
buttons and controls. Wipe them
instead using a moistened cloth con-
taining the cleaning agent.

•

Sharp objects and Velcro may damage
the fabric upholstery.

•

Only use cleaning agents on the type
of material for which they were
intended.

19

An authorised Volvo workshop is recommended.

20

LED (Light Emitting Diode)

||

MAINTENANCE AND SERVICE

* Option/accessory.

646

Related information

•

Cleaning the centre display (p. 646)

•

Cleaning fabric upholstery and headlining
(p. 647)

•

Cleaning the seatbelts (p. 648)

•

Cleaning textile floor and entrance mats
(p. 649)

•

Cleaning leather upholstery

*

 (p. 649)

•

Cleaning the leather steering wheel
(p. 650)

•

Cleaning interior plastic, metal and wood
parts (p. 650)

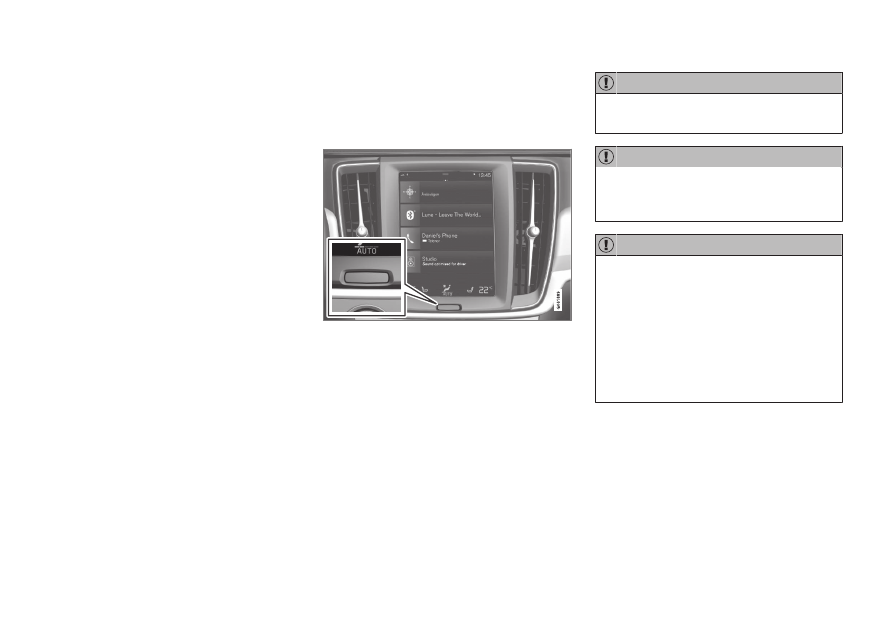

Cleaning the centre display

Dirt, stains and grease from fingers can affect
the centre display's performance and reada-
bility. Clean the screen frequently with a
microfibre cloth.

1. Turn off the centre display with a long

press on the home button.

2. Wipe the screen with the microfibre cloth

supplied or use another microfibre cloth of
equivalent quality. Wipe the screen with a
clean and dry microfibre cloth using small
circular movements. If necessary, lightly
moisten the microfibre cloth with clean
water.

3. Activate the display with a short press on

the home button.

IMPORTANT

The microfibre cloth used to clean the cen-
tre display must be free from sand and dirt.

IMPORTANT

When cleaning the centre display, only use
gentle pressure on the screen. Heavy pres-
sure can damage the screen.

IMPORTANT

Do not spray any liquid or caustic chemi-
cals directly on the centre display. Do not
use window cleaning agent, other cleaning
agents, aerosol spray, solvents, alcohol,
ammonia or cleaning agent containing
abrasive.

Never use abrasive cloths, paper towels or
tissue paper, since they may scratch the
centre display.

Related information

•

Cleaning the interior (p. 645)

•

Cleaning fabric upholstery and headlining
(p. 647)

•

Cleaning the seatbelts (p. 648)

•

Cleaning textile floor and entrance mats
(p. 649)

•

Cleaning leather upholstery

*

 (p. 649)
