DISPLAYS AND VOICE CONTROL

* Option/accessory.

80

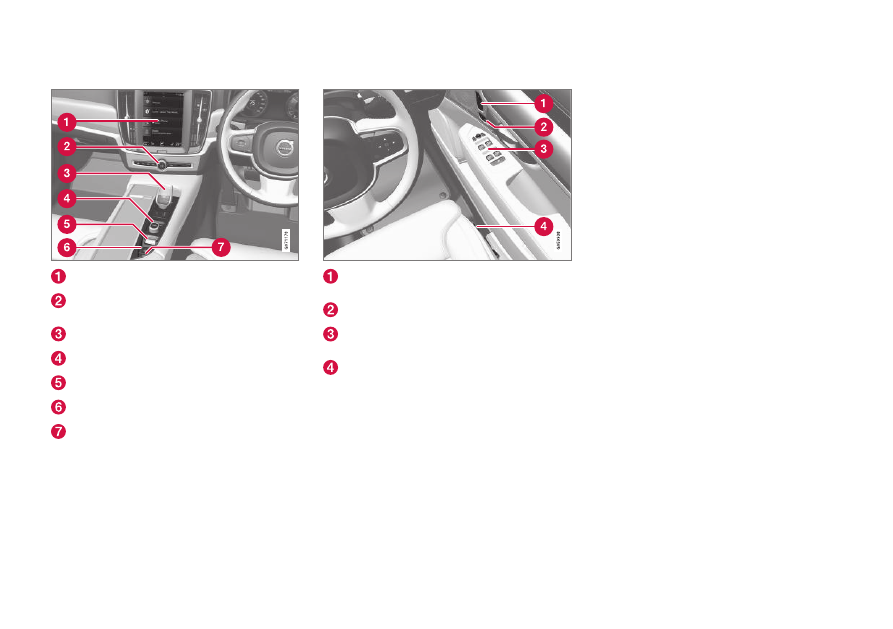

Centre and tunnel console

Centre display

Hazard warning flashers, defrosting,
media
Gear selector

Start knob

Drive mode control

*

Parking brake

Automatic braking when stationary

Driver's door

Memories for power front seat

*

, door mir-

ror and head-up display

*

 settings

Central locking

Power windows, door mirrors, electric
child lock

*

Adjusting front seat

Related information

•

Manual front seat (p. 184)

•

Adjusting the power

*

 front seat (p. 185)

•

Adjusting the steering wheel (p. 198)

•

Lighting control (p. 150)

•

Starting the car (p. 428)

•

Driver display (p. 81)

•

Overview of centre display (p. 106)

•

Gearbox (p. 441)

DISPLAYS AND VOICE CONTROL

}}

* Option/accessory.

81

Driver display

The driver display shows information about
the car and driving.

The driver display contains gauges, indicators
and indicator and warning symbols. The con-
tent of the driver display depends on the car's
equipment, settings and which functions are
active at that time.

The driver display is activated as soon as a
door is opened, i.e. in ignition position

0

. The

driver display extinguishes after a while if it is
not used. To reactivate it, proceed with one of
the following:

•

Depress the brake pedal.

•

Activate ignition position

I

.

•

Open one of the doors.

The driver display is available in two versions,
8-inch and 12-inch

*

.

WARNING

If the driver display should extinguish, not

illuminate on activation/start or be fully or

partially illegible, the car must not be used.

You should visit a workshop immediately.

Volvo recommends an authorised Volvo

workshop.

WARNING

In the event of a fault in the driver display

the information on e.g. brakes, airbags or

other safety systems may not be shown. In

which case, the driver cannot check the

status of the car's systems or receive cur-

rent warnings and information.

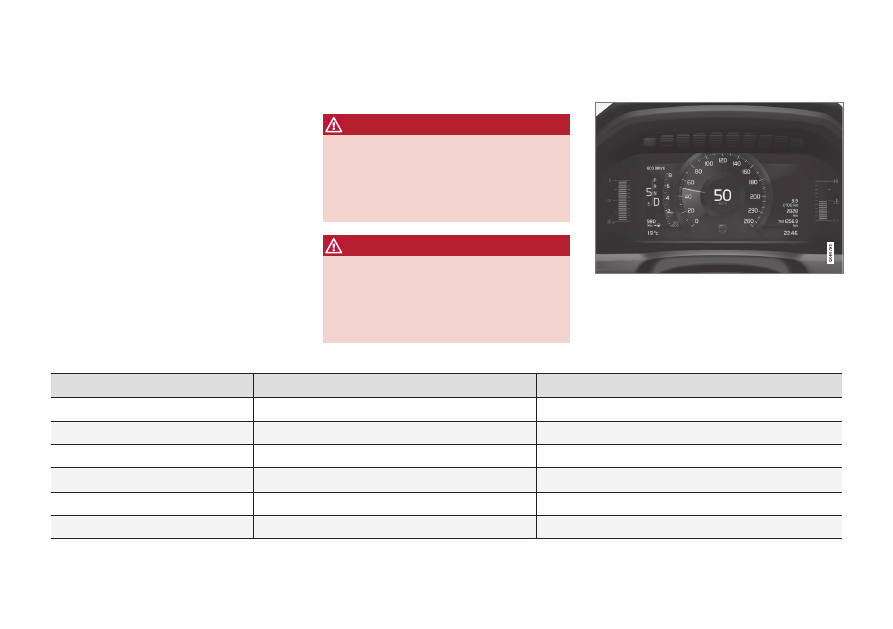

Driver display, 8-inch

The figure is schematic - parts may vary depending

on car model.

Location in the driver display:

On the left

In the middle

On the right

Fuel gauge

Speedometer

Media player

Drive mode

Road Sign Information

*

Phone

Gear shift indicator

Cruise control and speed limiter information

Navigation information

*

Tachometer/ECO gauge

A

Door and seatbelt information

Clock

Distance to empty tank

Start/stop function status

App menu (activated via steering wheel keypad)

Outside temperature gauge

–

Instantaneous fuel consumption

||

DISPLAYS AND VOICE CONTROL

* Option/accessory.

82

On the left

In the middle

On the right

Indicator and warning symbols

–

Odometer

B

–

–

Trip meter

–

–

Indicator and warning symbols

–

–

Voice recognition

–

–

Engine temperature gauge

–

–

Messages, in some cases with graphics

A

Depends on drive mode selected.

B

Accumulated mileage.

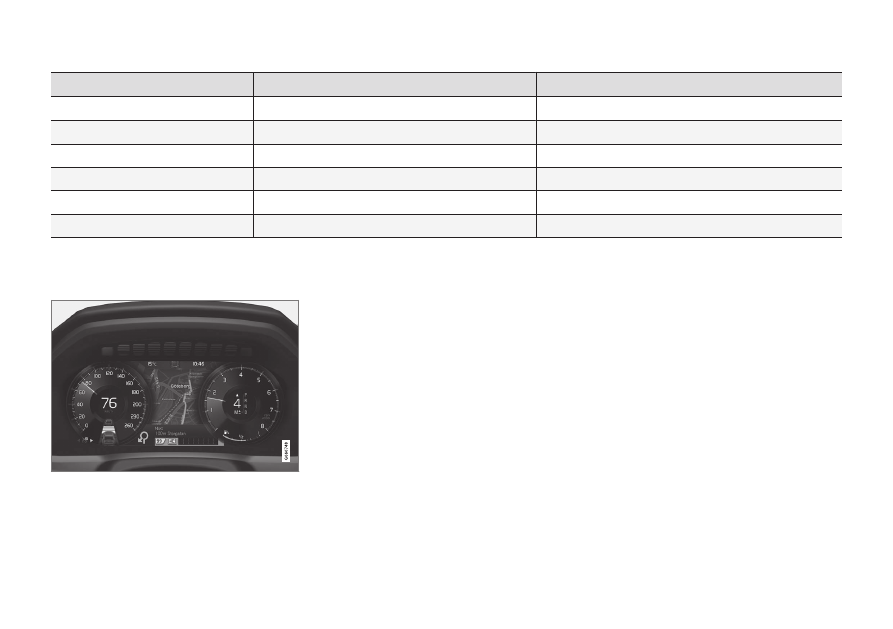

Driver display, 12-inch

*

The figure is schematic - parts may vary depending

on car model.

DISPLAYS AND VOICE CONTROL

}}

* Option/accessory.

83

Location in the driver display:

On the left

In the middle

On the right

Speedometer

Indicator and warning symbols

Tachometer/ECO gauge

A

Trip meter

Outside temperature gauge

Gear shift indicator

Odometer

B

Clock

Drive mode

Cruise control and speed limiter information

Messages, in some cases with graphics

Fuel gauge

Road Sign Information

*

Door and seatbelt information

Start/stop function status

–

Media player

Distance to empty tank

–

Navigation map

*

Instantaneous fuel consumption

–

Phone

App menu (activated via steering wheel keypad)

–

Voice recognition

–

A

Depends on drive mode selected.

B

Accumulated mileage.

Dynamic symbol

The dynamic symbol in its
basic form.

The centre of the driver display contains a
dynamic symbol that changes appearance for
different types of message. An amber or red
marker around the symbol indicates the

degree of severity of a control or warning mes-
sage.

||

DISPLAYS AND VOICE CONTROL

* Option/accessory.

84

Examples of indicator symbol.

With an animation, the basic shape can be
turned into a graphic showing where a prob-
lem is situated, or in order to clarify informa-
tion.

Related information

•

Driver display settings (p. 85)

•

Indicator and warning symbols (p. 92)

•

Trip computer (p. 86)

•

Messages in the driver display (p. 102)

•

Managing the app menu in the driver dis-
play (p. 101)

•

Drive modes

*

 (p. 452)

DISPLAYS AND VOICE CONTROL

* Option/accessory.

85

Driver display settings

Settings for the driver display's display
options can be made via the driver display's
app menu and via the centre display's set-
tings menu.

Settings via the driver display's app
menu

The figure is schematic - parts may vary depending

on car model.

The app menu is opened and controlled using
the right-hand keypad on the steering wheel.

In the app menu, you can choose which infor-
mation is shown on the driver display from:

•

trip computer

•

media player

•

phone

•

navigation system

*

.

Settings via the centre display

Selecting information type

1. Tap on

Settings

 in the centre display's

top view.

2. Press

My Car

Displays

Driver

Display Information

.

3. Select what should be shown in the back-

ground:

•

Show no information in background

•

Show information for current
playing media

•

Show navigation even if no route is
set

1

Selecting theme

1. Tap on

Settings

 in the centre display's

top view.

2. Tap on

My Car

Displays

Display

Themes

3. Select a theme (appearance) for the driver

display:

•

Glass

•

Minimalistic

•

Performance

•

Chrome Rings

Selecting language

1. Tap on

Settings

 in the centre display's

top view.

2. Tap on

System

System Languages

and Units

System Language

 to select

language.
> A change will affect the language in all

displays.

These settings are personal and are saved
automatically to the active driver profile.

Related information

•

Driver display (p. 81)

•

Managing the app menu in the driver dis-
play (p. 101)

•

Other settings in the centre display's top
view (p. 129)

1

The 12-inch

*

 driver display shows the map, the 8-inch driver display only shows guidance.

DISPLAYS AND VOICE CONTROL

86

Fuel gauge

The fuel gauge in the driver display shows the
fuel level in the tank.

The figure is schematic - parts may vary depending

on car model.

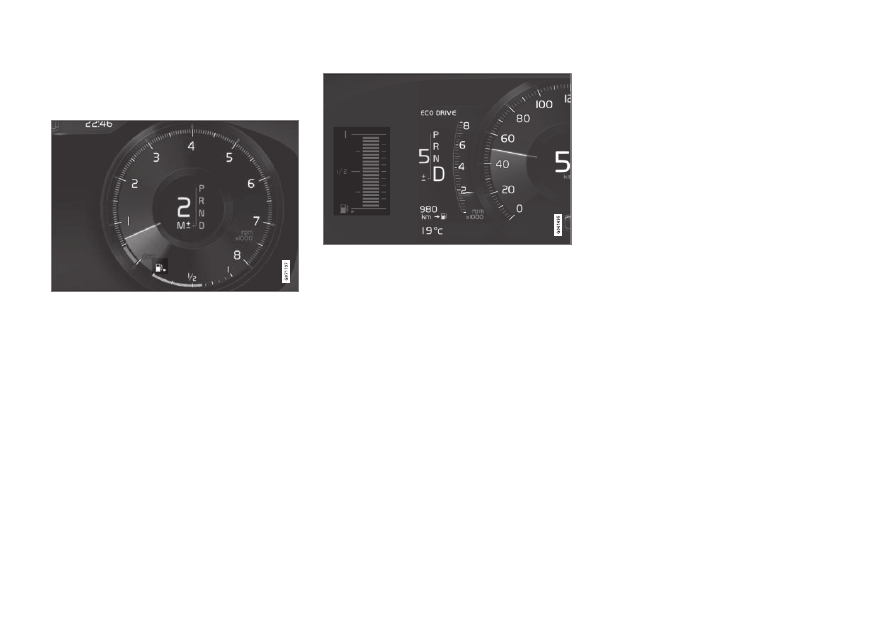

Fuel gauge in the 12-inch driver display:

The beige zone in the fuel gauge indicates the
quantity of fuel in the tank.

When the fuel level is low, the fuel pump sym-
bol illuminates and turns amber colour. The
trip computer also shows the distance to
empty tank.

The figure is schematic - parts may vary depending

on car model.

Fuel gauge in the 8-inch driver display:

The bars in the fuel gauge indicate the quan-
tity of fuel in the tank.

When the fuel level is low, the fuel pump sym-
bol illuminates and turns amber colour. The
trip computer also shows the distance to
empty tank.

Related information

•

Driver display (p. 81)

•

Filling fuel (p. 467)

•

Fuel tank - volume (p. 677)

Trip computer

The car's trip computer records vales such as
e.g. distance, fuel consumption and average
speed whilst driving.

In order to facilitate fuel-efficient driving, infor-
mation is recorded about both instantaneous
and average fuel consumption. The informa-
tion from the trip computer can be shown in
the driver display.

DISPLAYS AND VOICE CONTROL

}}

* Option/accessory.

87

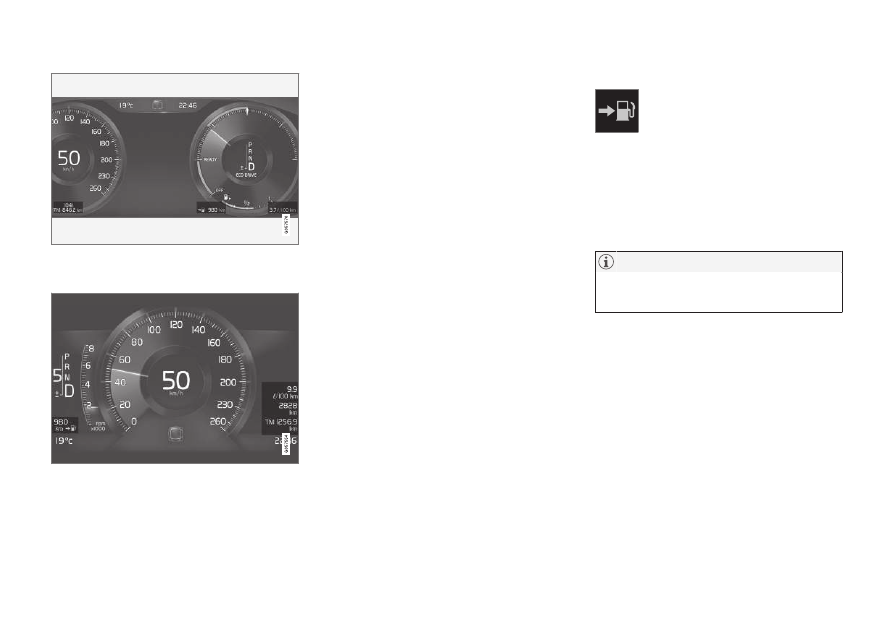

Examples of trip computer information in the 12-inch
driver display

*

. The figure is schematic - parts may

vary depending on car model.

Examples of trip computer information in the 8-inch

driver display. The figure is schematic - parts may

vary depending on car model.

The following meters are included in the trip
computer:

•

Trip meter

•

Odometer

•

Instantaneous fuel consumption

•

Distance to empty tank

•

Tourist - alternative speedometer

Units for distance, speed, etc. can be changed
via system settings in the centre display.

Trip meter

There are two trip meters, TM and TA.

TM can be reset manually and TA is reset
automatically if the car is not used for at least
four hours.

The following information is registered while
driving:

•

Mileage

•

Driving time

•

Average speed

•

Average fuel consumption

The values apply from the trip meter's latest
reset.

Odometer

The odometer records the car's total mileage.
This value cannot be reset to zero.

Instantaneous fuel consumption

This gauge shows the fuel consumption that
the car has at the moment. The value is upda-
ted approximately every second.

Distance to empty tank

The trip computer calculates the
remaining mileage with the fuel
available in the tank.

The calculation is based on the average fuel
consumption over the last 30 km (20 miles)
and the remaining drivable fuel quantity.

When the gauge shows "----", there is not
enough fuel left to be able to calculate the
remaining mileage. Refuel as soon as possible.

NOTE

There may be a slight deviation if the driv-
ing style has been changed.

An economic driving style generally results in a
longer driving distance.

Tourist - alternative speedometer

The alternative digital speedometer makes it
easier to drive in countries where speed limit
signs are in a different unit than that shown in
the car's instruments.

The digital speed is then shown in the oppo-
site unit to that shown in the analogue speed-
ometer. If the analogue speedometer is gradu-
ated in

mph

, the digital speedometer shows

the corresponding speed in

km/h

 and vice

versa.

||

DISPLAYS AND VOICE CONTROL

88

Related information

•

Show trip data in the driver display
(p. 88)

•

Resetting the trip meter (p. 89)

•

Show trip statistics in the centre display
(p. 89)

•

Driver display (p. 81)

•

Changing system units (p. 129)

Show trip data in the driver display

The trip computer's recorded and calculated
values can be shown in the driver display.

The values are saved in a trip computer app.
Via the app menu, you can choose which
information is shown on the driver display.

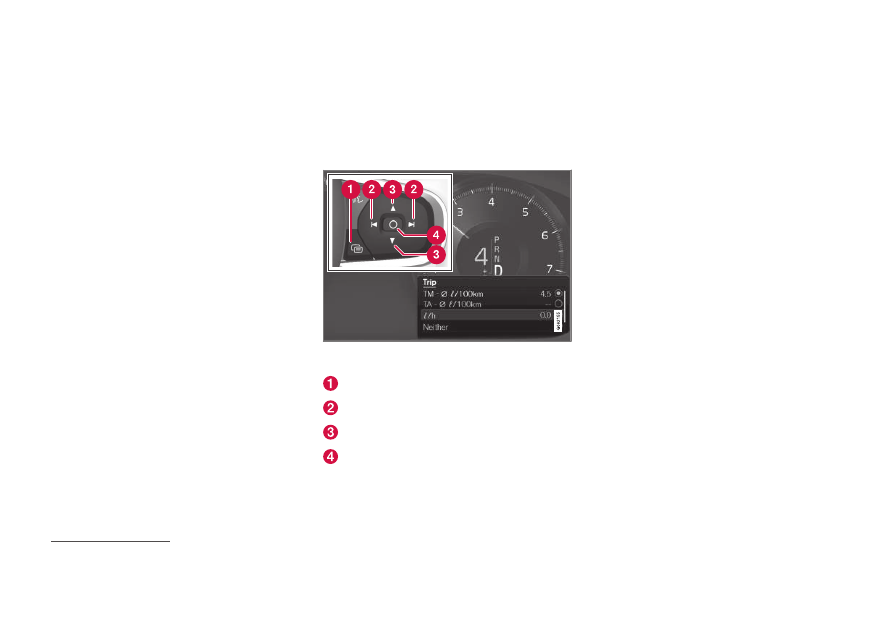

Open and navigate in the app menu

2

 using the right-

hand steering wheel keypad.

App menu

Left/right

Up/down

Confirm

1. Open the app menu in the driver display

by pressing (1).

(It is not possible to open the app menu
while there is an unacknowledged mes-
sage in the driver display. The message
first has to be confirmed by pressing the

O

button (4) before the app menu can be
opened.)

2. Navigate to the trip computer app to left

or right with (2).
> The top four menu rows show meas-

ured values for trip meter TM. The next
four menu rows show measured values
for trip meter TA. Scroll up or down in
the list with (3).

2

The figure is schematic - parts may vary depending on car model.

DISPLAYS AND VOICE CONTROL

}}

89

3. Scroll down to the option buttons to

select which information to show in the
driver display:

•

Odometer

•

Distance to empty tank

•

Tourist (alternative speedometer)

•

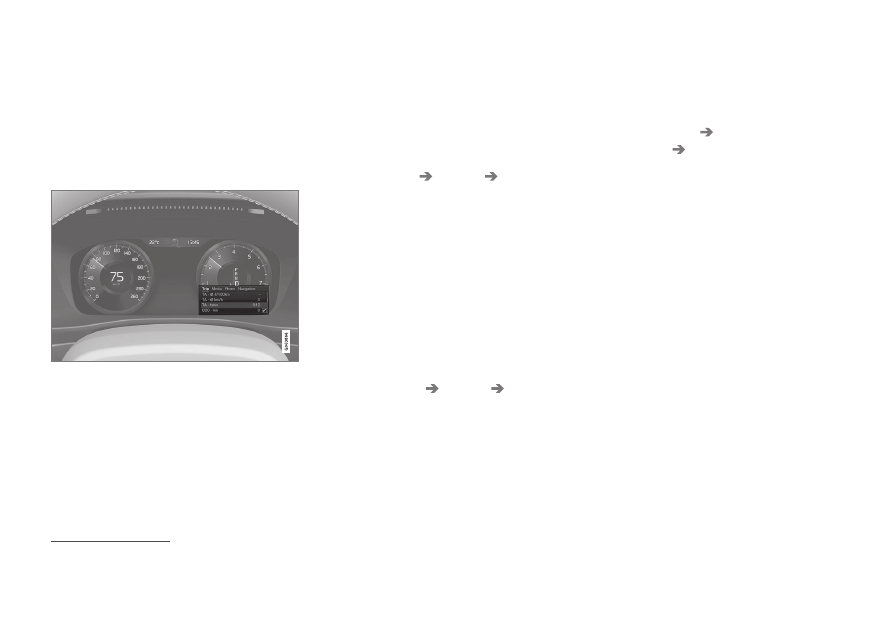

Mileage for trip meter TM, TA, or no
display of mileage

•

Instantaneous fuel consumption, aver-
age consumption for TM or TA, alterna-
tively, no display of fuel consumption

Select or deselect an option with the

O

button (4). The change is made immedi-
ately.

Related information

•

Trip computer (p. 86)

•

Resetting the trip meter (p. 89)

Resetting the trip meter

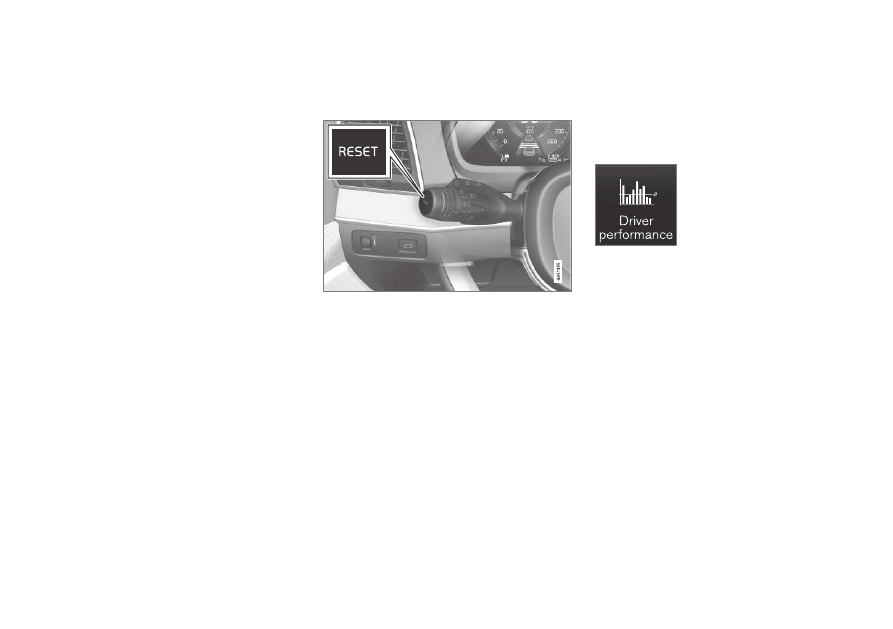

Reset the trip meter using the left-hand stalk
switch.

–

Reset all information in trip meter TM (i.e.
mileage, average consumption, average
speed and driving time) with a long press
on the

RESET

 button on the left-hand

stalk switch.

Pressing the

RESET

 button resets only

the mileage.

The trip meter TA can only be reset automati-
cally when the car has not been used for four
or more hours.

Related information

•

Trip computer (p. 86)

Show trip statistics in the centre

display

Trip statistics from the trip computer are dis-
played graphically in the centre display and
provide an overview that facilitates more fuel-
efficient driving.

Open the

Driver

performance

 app in app

view in order to show the trip
statistics.

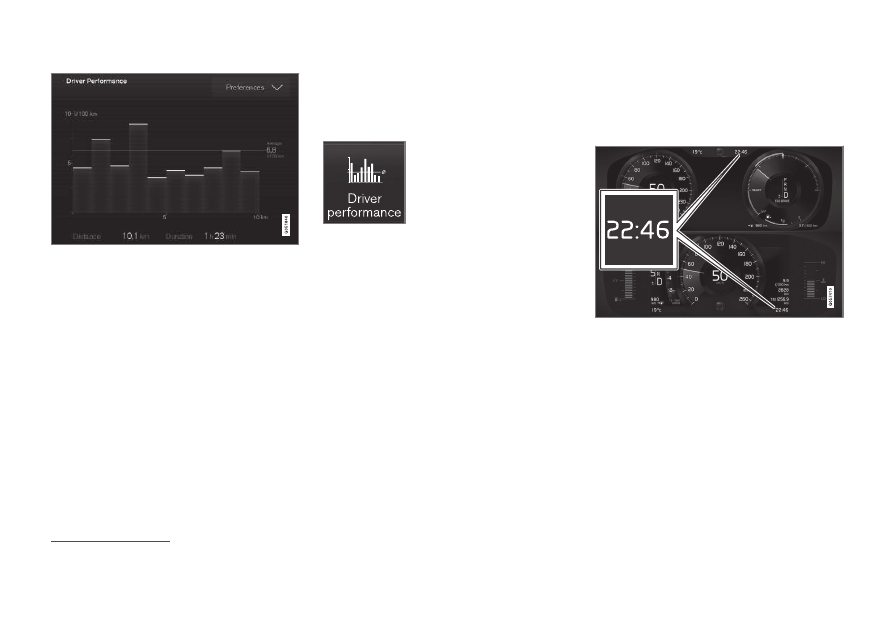

Each bar in the diagram sym-
bolises a distance of 1, 10 or

100 km, alternatively miles. The bars are filled
in from the right as driving progresses. The bar
on the far right shows the value for the current
distance.

The average fuel consumption and total driv-
ing time are calculated since the last time the
trip statistics were reset.

||

DISPLAYS AND VOICE CONTROL

* Option/accessory.

90

Trip statistics from the trip computer

3

.

Related information

•

Settings for trip statistics (p. 90)

•

Trip computer (p. 86)

Settings for trip statistics

Reset or adjust settings for trip statistics.

1. Open the

Driver performance

 app in app

view in order to show the trip statistics.

2. Press

Preferences

 to

•

change graph scale. Select resolution 1,
10 or 100 km/miles for the bar.

•

reset data after every trip. Performed
when the car has been stationary for
more than 4 hours.

•

reset data for the current trip.

Trip statistics, calculated average con-
sumption and total driving time are always
reset simultaneously.

Units for distance, speed, etc. can be changed
via system settings in the centre display.

Related information

•

Show trip statistics in the centre display
(p. 89)

•

Trip computer (p. 86)

•

Resetting the trip meter (p. 89)

Date and time

The clock is shown in both the driver display
and the centre display.

Clock location

Clock location in the 12-inch

*

 and 8-inch driver dis-

play. The figure is schematic - parts may vary

depending on car model.

In certain situations, messages and informa-
tion may cover the clock in the driver display.

In the centre display, the clock is located at
the top right of the status bar.

3

The figure is schematic - parts may vary depending on car model.

DISPLAYS AND VOICE CONTROL

* Option/accessory.

91

Date and time settings

–

Select

Settings

System

Date and

Time

 in the centre display's top view to

change settings for time and date format.

Adjust the date and time by pressing the
up or down arrow on the touch screen.

Automatic time for cars with GPS

When the car is equipped with a navigation
system,

Auto Time

 can be selected. The time

zone is then adjusted automatically based on
the location of the car. For certain types of
navigation systems, the current location
(country) must also be set to obtain the right
time zone. If

Auto Time

 is not selected, time

and data are adjusted with arrow up or arrow
down on the touch screen.

Summer time

In certain countries, it is possible to select the

Auto Daylight Saving Time

 setting for auto-

matic setting of summer time. For other coun-
tries, the

Daylight Saving Time

 setting can

be selected manually.

Related information

•

Driver display (p. 81)

•

Other settings in the centre display's top
view (p. 129)

Outside temperature gauge

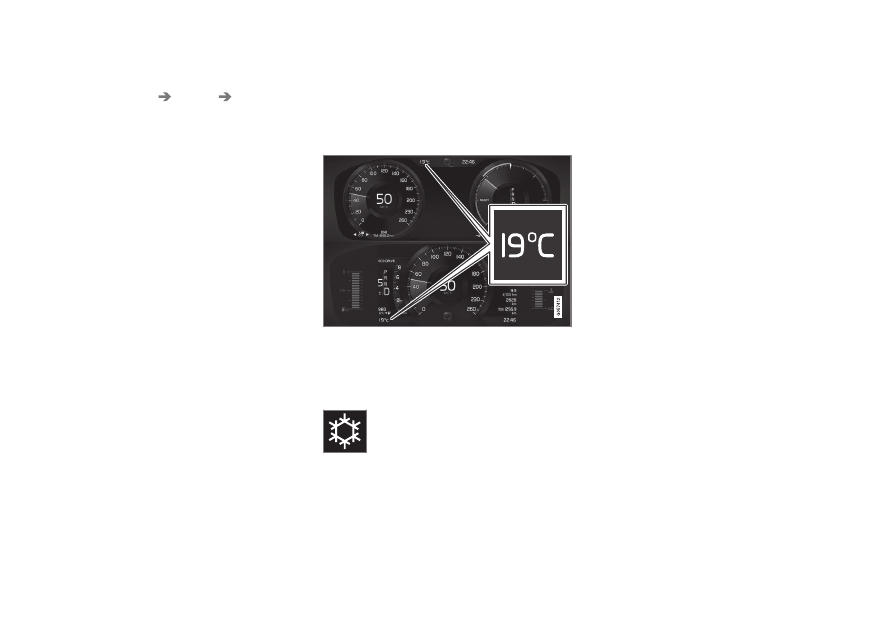

The outside temperature is shown in the
driver display.

A sensor detects the temperature outside of
the car.

Outside temperature gauge location in the 12-inch

*

and 8-inch driver display. The figure is schematic -

parts may vary depending on car model.

If the car has been stationary, the gauge may
display a temperature reading that is too high.

When the outside temperature is in
the range –5 °C to +2 °C (23

°

F to

36

°

F), a snowflake symbol lights up

that warns of potentially slippery

conditions.

The symbol is also illuminated briefly in the
head-up display

*

, if the car is equipped with

one.

Change the unit for the temperature gauge,
etc. via system settings in the centre display's
top view.

Related information

•

Driver display (p. 81)

•

Changing system units (p. 129)

DISPLAYS AND VOICE CONTROL

92

Indicator and warning symbols

The indicator and warning systems alert the
driver to the fact that a function is activated, a
system is working, or a defect or serious error
has occurred.

Red symbols

Warning

The red warning symbol illumi-
nates when a fault has been
detected which could affect the
safety or drivability of the car. An
explanatory text is shown on the
driver display at the same time.

The warning symbol can also illu-
minate in conjunction with other
symbols.

Seatbelt reminder

Illuminates or flashes when
someone in the car is not wear-
ing a seatbelt.

Airbags

An error has been detected in
any of the car's safety systems.

Read the message on the driver
display and contact a workshop.
Volvo recommends that an
authorised Volvo workshop is
contacted.

Fault in brake system

An error has occurred on the
braking system.

Read the message on the driver
display and contact a workshop.
Volvo recommends that an
authorised Volvo workshop is
contacted.

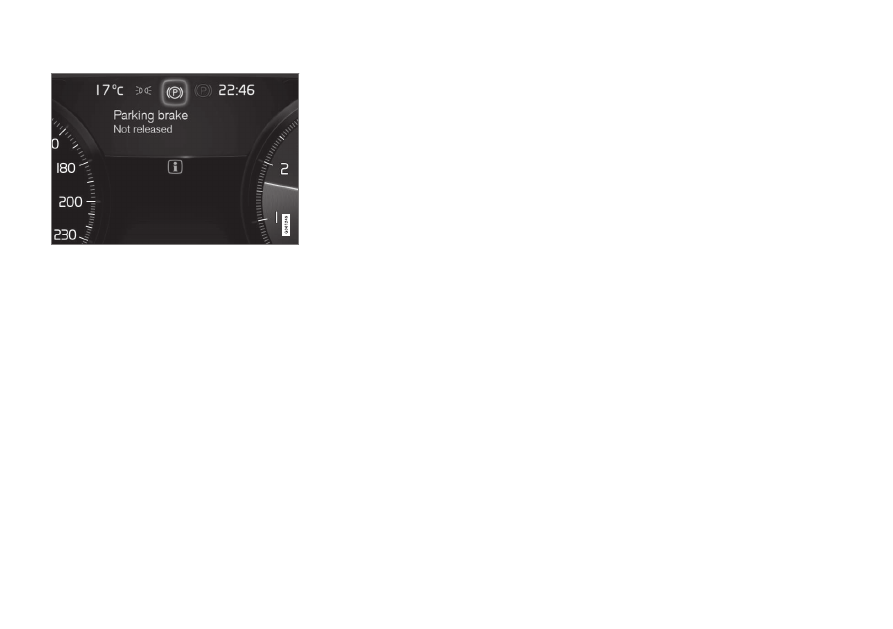

Parking brake

Light illuminated permanently:
The parking brake is activated.

Flashing: an error has occurred
with the parking brake. Read the
message in the driver display.

Faults in the electrical system

An error has occurred on the
electrical system.

Read the message on the driver
display and contact a workshop.
Volvo recommends that an
authorised Volvo workshop is
contacted.

High engine temperature

The engine temperature is too
high. Read the message in the
driver display.

Collision risk

City Safety warns of a risk of col-
lision with other vehicles, pedes-
trians, cyclists or large animals.

Low oil pressure

The engine oil pressure is too
low. Stop the engine immedi-
ately and check the engine oil
level, top up if necessary.

If the symbol lights up and the oil
level is normal, read the message
on the display and contact a
workshop. Volvo recommends
that an authorised Volvo work-
shop is contacted.

Amber symbols

Information

A fault has occurred in one of the
car's systems. Read the message
in the driver display.

The information symbol can also
illuminate in conjunction with
other symbols.

Fault in brake system

An error has occurred on the
braking system. Read the mes-
sage in the driver display.

DISPLAYS AND VOICE CONTROL

}}

93

ABS fault

The system is disengaged. The
car's regular brake system con-
tinues to work, but without the
ABS function.

AdBlue system

 (diesel)

Low AdBlue level or fault in
AdBlue system.

Emissions system

Emissions systems fault. Drive to
a workshop for checking. Volvo
recommends that an authorised
Volvo workshop is contacted.

Rear fog lamp

The rear fog lamp is illuminated.

Tyre pressure system

Low tyre pressure.

If there is a fault in the tyre pres-
sure system, the symbol will
flash for approx. 1 minute and
then illuminate with a constant
glow. This may be because the
system cannot detect or warn of
low tyre pressure as intended.

Fault in the headlamp system

A fault has occurred on the head-
lamp system. Read the message
in the driver display.

Lane assistance

Lane assistance warns/inter-
venes.

Stability system

Light on permanently: a fault has
occurred in the system.

Flashing: the system is working.

Stability system, sport mode

Sport mode is selected.

Blue symbols

Active main beam

Active main beam is activated
and switched on.

Main beam

Main beam is switched on.

Green symbols

Automatic brake

The function is activated and the
service brake or parking brake is
operating.

Front fog lamps

The front fog lamp is switched
on.

Position lamps

The position lamps are switched
on.

Left and right-hand direction
indicator

The direction indicator is being
used.

White/grey symbols

Active main beam

Active main beam is activated,
but does not come on.

Preconditioning

Engine and compartment
heater/air conditioning pre-con-
dition the car.

||

DISPLAYS AND VOICE CONTROL

94

Lane assistance

White symbol: Lane assistance is
on and road lines are detected.

Grey symbol: Lane assistance is
on but road lines are not
detected.

Rain sensor

The rain sensor is activated.

Related information

•

Driver display (p. 81)

License agreement for the driver

display

A license is an agreement for the right to
operate a certain activity or the right to use
someone else's entitlement according to the
terms and conditions in the agreement. The
following text is Volvo's agreement with the
manufacturer or developer.

Boost Software License 1.0

Permission is hereby granted, free of charge,
to any person or organization obtaining a copy
of the software and accompanying
documentation covered by this license (the
"Software") to use, reproduce, display,
distribute, execute, and transmit the Software,
and to prepare derivative works of the
Software, and to permit third-parties to whom
the Software is furnished to do so, all subject
to the following: The copyright notices in the
Software and this entire statement, including
the above license grant, this restriction and
the following disclaimer, must be included in
all copies of the Software, in whole or in part,
and all derivative works of the Software,
unless such copies or derivative works are
solely in the form of machine-executable
object code generated by a source language
processor.

THE SOFTWARE IS PROVIDED "AS IS",
WITHOUT WARRANTY OF ANY KIND,
EXPRESS OR IMPLIED, INCLUDING BUT
NOT LIMITED TO THE WARRANTIES OF

MERCHANTABILITY, FITNESS FOR A
PARTICULAR PURPOSE, TITLE AND NON-
INFRINGEMENT. IN NO EVENT SHALL THE
COPYRIGHT HOLDERS OR ANYONE
DISTRIBUTING THE SOFTWARE BE LIABLE
FOR ANY DAMAGES OR OTHER LIABILITY,
WHETHER IN CONTRACT, TORT OR
OTHERWISE, ARISING FROM, OUT OF OR
IN CONNECTION WITH THE SOFTWARE OR
THE USE OR OTHER DEALINGS IN THE
SOFTWARE.

DISPLAYS AND VOICE CONTROL

}}

95

BSD 4-clause "Original" or "Old" License

Copyright (c) 1982, 1986, 1990, 1991, 1993
The Regents of the University of California. All
rights reserved.

Redistribution and use in source and binary
forms, with or without modification, are
permitted provided that the following
conditions are met:

1. Redistributions of source code must retain

the above copyright notice, this list of
conditions and the following disclaimer.

2. Redistributions in binary form must

reproduce the above copyright notice, this
list of conditions and the following
disclaimer in the documentation and/or
other materials provided with the
distribution.

3. All advertising materials mentioning

features or use of this software must
display the following acknowledgement:
This product includes software developed
by the University of California, Berkeley
and its contributors.

4. Neither the name of the University nor the

names of its contributors may be used to
endorse or promote products derived from
this software without specific prior written
permission.

THIS SOFTWARE IS PROVIDED BY THE
REGENTS AND CONTRIBUTORS ``AS IS''
AND ANY EXPRESS OR IMPLIED

WARRANTIES, INCLUDING, BUT NOT
LIMITED TO, THE IMPLIED WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE ARE
DISCLAIMED. IN NO EVENT SHALL THE
REGENTS OR CONTRIBUTORS BE LIABLE
FOR ANY DIRECT, INDIRECT, INCIDENTAL,
SPECIAL, EXEMPLARY, OR
CONSEQUENTIAL DAMAGES (INCLUDING,
BUT NOT LIMITED TO, PROCUREMENT OF
SUBSTITUTE GOODS OR SERVICES; LOSS
OF USE, DATA, OR PROFITS; OR BUSINESS
INTERRUPTION) HOWEVER CAUSED AND
ON ANY THEORY OF LIABILITY, WHETHER
IN CONTRACT, STRICT LIABILITY, OR TORT
(INCLUDING NEGLIGENCE OR
OTHERWISE) ARISING IN ANY WAY OUT
OF THE USE OF THIS SOFTWARE, EVEN IF
ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.

BSD 3-clause "New" or "Revised" License

Copyright (c) 2011-2014, Yann Collet.

Redistribution and use in source and binary
forms, with or without modification, are
permitted provided that the following
conditions are met:

1. Redistributions of source code must retain

the above copyright notice, this list of
conditions and the following disclaimer.

2. Redistributions in binary form must

reproduce the above copyright notice, this
list of conditions and the following

disclaimer in the documentation and/or
other materials provided with the
distribution.

3. Neither the name of the organisation nor

the names of its contributors may be used
to endorse or promote products derive
from this software without specific prior
written permission.

THIS SOFTWARE IS PROVIDED BY THE
COPYRIGHT HOLDERS AND
CONTRIBUTORS "AS IS" AND ANY
EXPRESS OR IMPLIED WARRANTIES,
INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE DISCLAIMED.
IN NO EVENT SHALL THE COPYRIGHT
HOLDER OR CONTRIBUTORS BE LIABLE
FOR ANY DIRECT, INDIRECT, INCIDENTAL,
SPECIAL, EXEMPLARY, OR
CONSEQUENTIAL DAMAGES (INCLUDING,
BUT NOT LIMITED TO, PROCUREMENT OF
SUBSTITUTE GOODS OR SERVICES; LOSS
OF USE, DATA, OR PROFITS; OR BUSINESS
INTERRUPTION) HOWEVER CAUSED AND
ON ANY THEORY OF LIABILITY, WHETHER
IN CONTRACT, STRICT LIABILITY, OR TORT
(INCLUDING NEGLIGENCE OR
OTHERWISE) ARISING IN ANY WAY OUT
OF THE USE OF THIS SOFTWARE, EVEN IF
ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.
