Fold the head restraints in order to facili-
tate fitting this type of child seat in cars
with folding head restraints on the outer
seats.

Related information

•

Lower mounting points for child seats
(p. 63)

•

•

i-Size/ISOFIX mounting points for child
seats (p. 64)

•

Table for location of child seats using the
car's seatbelts (p. 68)

Lower mounting points for child

seats

The car is equipped with lower mounting
points for child seats in the front seat

and

the rear seat.

The lower mounting points are designed to be
used in conjunction with certain rear-facing
child seats.

Always follow the manufacturer's installation
instructions when connecting a child seat to
the lower mounting points.

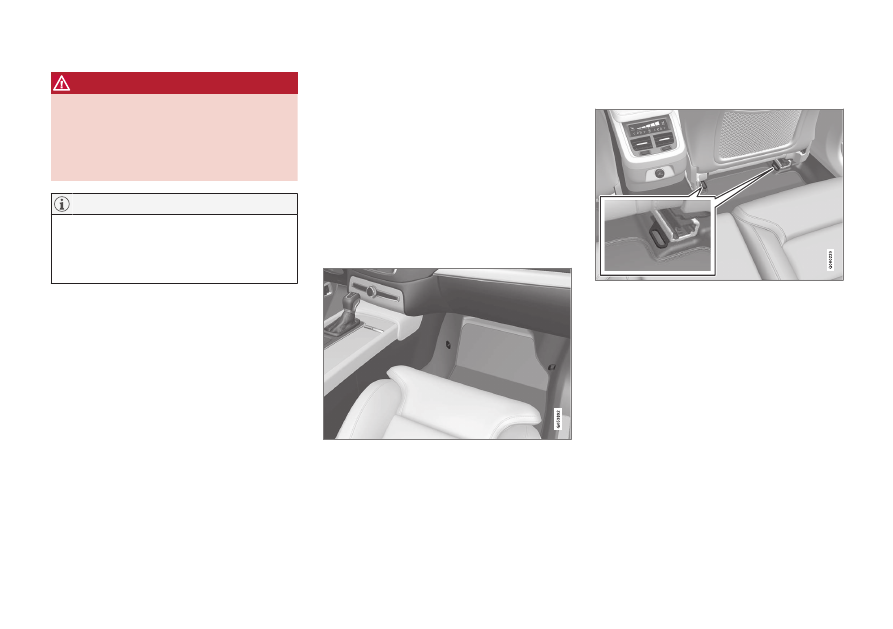

The location of the mounting points

Mounting point locations in the front seat.

The mounting points in the front seat are
located on the sides of the passenger seat's
legroom.

The mounting points in the front seat are only
mounted if the vehicle is equipped with a

switch to activate/deactivate the passenger
airbag

Mounting point locations in the rear seat.

The mounting points in the rear seat are
located on the rear section of the front seat's
floor rails.

Related information

•

Upper mounting points for child seats
(p. 62)

•

•

i-Size/ISOFIX mounting points for child
seats (p. 64)

•

Table for location of child seats using the
car's seatbelts (p. 68)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SAFETY

i-Size/ISOFIX mounting points for

child seats

The car is equipped with i-Size/ISOFIX
mounting points for child seats in the rear
seat.

i-Size/ISOFIX

is a fixture system for car child

seats that is based on an international stand-
ard.

Always follow the manufacturer's installation
instructions when connecting a child seat to
the i-Size/ISOFIX mounting points.

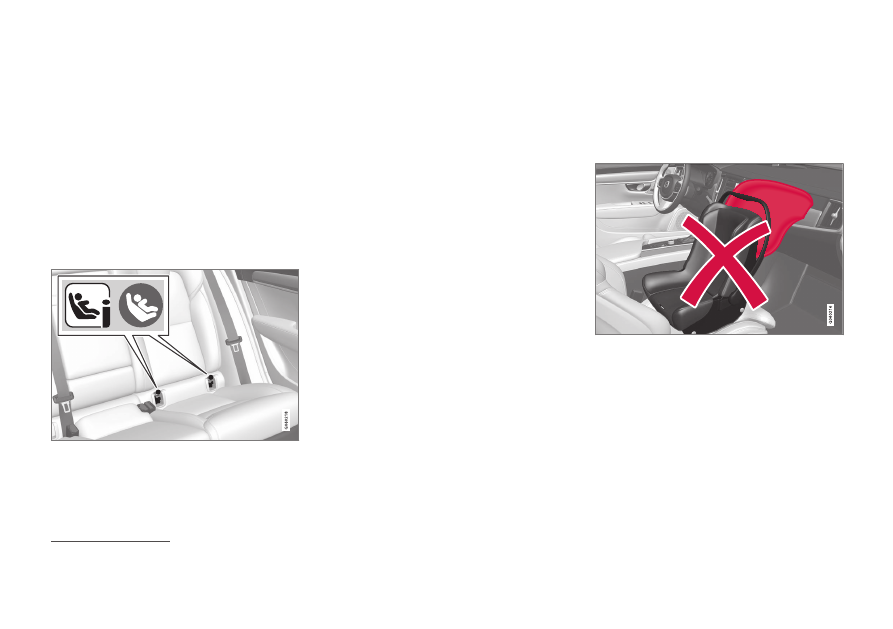

The location of the mounting points

Mounting point locations are indicated by symbols

on the upholstery of the backrest.

The mounting points for i-Size/ISOFIX are
located behind covers in the lower section of
the rear seat's backrest, in the outer seats.

Lift the covers in order to access the mounting
points.

Related information

•

Upper mounting points for child seats
(p. 62)

•

•

Lower mounting points for child seats
(p. 63)

•

Table for location of i-Size child seats
(p. 70)

•

Child seat positioning

It is important to position the child seat in the
right place in the car. The choice of location
depends, amongst other things, on the type
of child seat and whether the passenger air-
bag is activated.

Rear-facing child seat and airbag are not compatible.

Always fit rear-facing child seats in the rear
seat if the passenger airbag is activated. If a
child is sitting on the front passenger seat
then he/she could suffer serious injury if the
airbag deploys.

If the passenger airbag is deactivated then
rear-facing child seats can be fitted on the
front passenger seat.

Names and symbols change depending on market.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SAFETY

}}

Regulations regarding the placement of
children in cars vary from country to coun-
try. Check what does apply.

WARNING

Never allow anybody to stand or sit in front

of the front passenger seat.
Never use a rear-facing child seat on the

front passenger seat if the airbag is acti-

vated.
Front-facing passengers (children and

adults) must never sit on the front passen-

ger seat if the passenger airbag is deacti-

vated.
Failure to follow the advice given above

can endanger life or lead to serious per-

sonal injury.

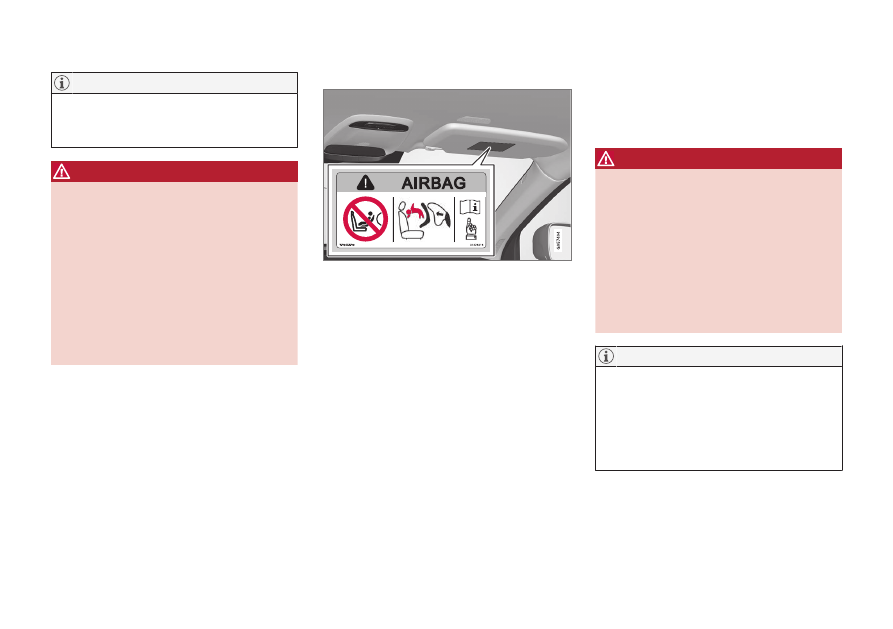

Label for passenger airbag

Label on the passenger side's sun visor.

The warning label for the passenger airbag is
positioned as shown above.

Related information

•

Child seat mounting (p. 65)

•

•

Table for location of child seats using the
car's seatbelts (p. 68)

•

Table for location of i-Size child seats
(p. 70)

•

Child seat mounting

It is important to remember a number of
things when a child restraint system is moun-
ted and used, which depend on where the
child restraint system is positioned.

WARNING

Booster cushions/child seats with steel

braces or some other design that could

rest on the seatbelt buckle's opening but-

ton must not be used, as they could cause

the seatbelt buckle to open accidentally.
Do not secure the straps for the child seat

into the seat's horizontal adjustment bar or

in springs, rails or beams under the seat.

Sharp edges may damage the straps.
Do not allow the upper section of the child

seat to rest against the windscreen.

When using child safety equipment, it is
important to read the installation instruc-
tions included.

In the event of questions when fitting child
safety equipment, contact the manufac-
turer for clearer instructions.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SAFETY

Never leave a child seat loose in the car.
Always secure it according to the instruc-
tions for the child seat, even when it is not
in use.

Long-term installation and use of child
seats may cause wear and tear on the car's
fittings. Volvo recommends using the kick
guard accessory to protect the car's fit-
tings.

Installation in the front seat

•

When fitting rear-facing child seats, check
that the passenger airbag is deactivated.

•

When fitting front-facing child seats,
check that the passenger airbag is acti-
vated.

•

Only use child seats that are recom-
mended by Volvo, are universally approved
or are semi-universal, and where the car is
included on the manufacturer's vehicle list.

•

ISOFIX child seats can only be fitted when
the car is equipped with the ISOFIX con-
sole

accessory.

•

If the child seat is equipped with lower
straps, Volvo recommends that the lower
mounting points are used with these

•

If the child seat is equipped with support
legs, always fit the support leg/support
legs directly to the floor. Never fit a sup-
port leg to a footrest or other object.

•

The ISOFIX guide can be used in order to
facilitate child seat installation.

Installation in the rear seat

•

Only use child seats that are recom-
mended by Volvo, are universally approved
or are semi-universal, and where the car is
included on the manufacturer's vehicle list.

•

A child seat with support legs must not be
fitted in the centre seat.

•

The outer seats are equipped with the
ISOFIX fixture system and are approved
for i-Size

•

The outer seats are equipped with upper
mounting points. Volvo recommends that
child seat's upper straps should be pulled
through the hole in the head restraint
before being tensioned at the mounting
point. If this is not possible, follow the rec-
ommendations from the child seat manu-
facturer.

•

If the child seat is equipped with lower
straps, never adjust the position of the
seat in front after the straps have been fit-
ted in the lower mounting points. Always
remember to remove the lower straps
when the child seat is not installed.

•

If the child seat is equipped with support
legs, always fit the support leg/support
legs directly to the floor. Never fit a sup-
port leg to a footrest or other object.

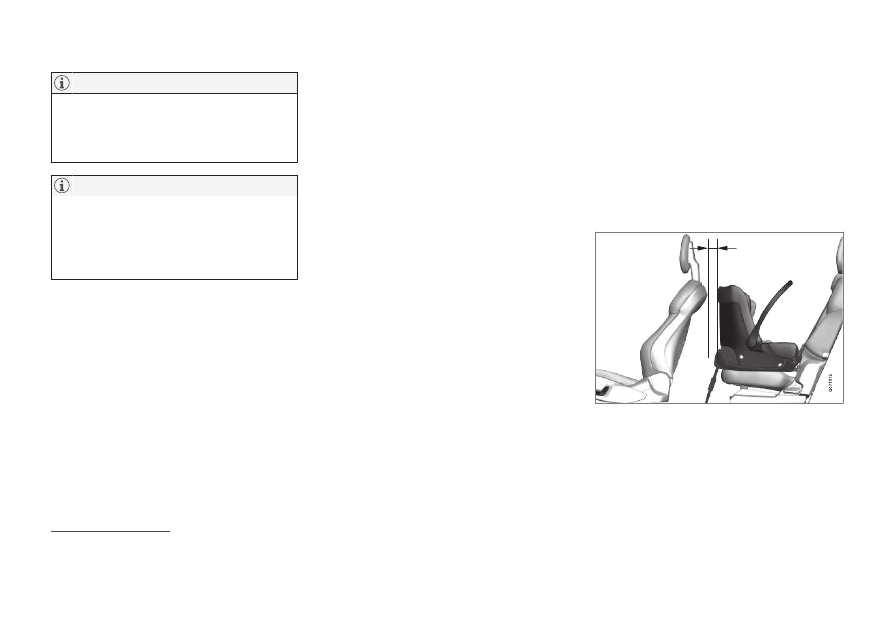

With the installation of an infant seat in the rear seat,

Volvo recommends a distance of at least 50 mm

(2 tum) from the front part of the infant seat to the

rearmost part of the seat in front.

The accessory range varies depending on market.

Varies depending on market.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SAFETY

* Option/accessory.

Table for location of child seats

using the car's seatbelts

The table gives a recommendation for which
child seats suit which locations, and for what
size of child.

Child seat positioning (p. 64)

Always read the owner's manual section
on installing a child seat before installing
one in the car.

Weight

Front seat (with deactivated airbag, only
rear-facing child seats)

Front seat (with activated airbag, only
front-facing child seats)

Outer rear seat Centre rear seat

Group 0

max 10 kg

B, C

Group 0+

max 13 kg

B, C

Group 1

9-18 kg

B, E

U, L

Group 2

15-25 kg

F, G

, B

, H

, L

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SAFETY

* Option/accessory.

Weight

Front seat (with deactivated airbag, only
rear-facing child seats)

Front seat (with activated airbag, only
front-facing child seats)

Outer rear seat Centre rear seat

Group 3

22-36 kg

G, I

, B

, H

U: Suitable for universal category restraints approved for use in this mass group.

UF: Suitable for front-facing universally approved child seats.

L: Suitable for particular child restraints. These restraints may be of the specific vehicle, restricted or semi-universal categories.

B: Built-in restraint approved for this mass group.

X: The seat is not suitable for children in this mass group.

The seat cushion extension must always be retracted for the installation of child seats.

Adjust the backrest to a more upright position.

Volvo recommends: Volvo infant seat (type approval E1 04301146).

Volvo recommends: Volvo reversible seat in the rear-facing position (type approval E5 04192); Volvo rear-facing seat (type approval E5 04212).

Volvo recommends rear-facing child seat for children in this mass group.

Volvo recommends: Volvo reversible seat in the front-facing position (type approval E5 04191); booster cushion with and without back (type approval E5 04216); Volvo booster cushion with back-

rest (type approval E1 04301169); Volvo booster seat (type approval E1 04301312).

Volvo recommends: Römer KidFix XP (type approval E1 04301312).

Volvo recommends: Integrated child seat (type approval E5 04220).

Volvo recommends: booster cushion with and without back (type approval E5 04216); Volvo booster cushion with backrest (type approval E1 04301169).

WARNING

Never use a rear-facing child seat on the

front passenger seat if the passenger air-

bag is activated.

Related information

•

•

Child seat mounting (p. 65)

•

Table for location of i-Size child seats
(p. 70)

•

•

Seatbelts (p. 48)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SAFETY

Table for location of i-Size child

seats

The table gives a recommendation for which
i-Size child seats suit which locations, and for
what size of child.

The child seat must be approved in accord-
ance with UN Reg R129.

Child seat positioning (p. 64)

Always read the owner's manual section
on installing a child seat before installing
one in the car.

Type of child seat

Front seat (with deactivated airbag,

only rear-facing child seats)

Front seat (with activated airbag, only

front-facing child seats)

Outer rear seat Centre rear seat

i-Size child seats

i-U

i-U: Suitable for i-Size "universal" child seat, front-facing and rear-facing.

X: Not suitable for universally approved child seats.

Volvo recommends that children travel in a rear-facing child seat until as late an age as possible, at least until 4 years of age.

Related information

•

•

Child seat mounting (p. 65)

•

Table for location of child seats using the
car's seatbelts (p. 68)

•

i-Size/ISOFIX mounting points for child
seats (p. 64)

•

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SAFETY

}}

Table for location of ISOFIX child

seats

The table gives a recommendation for which
ISOFIX child seats suit which locations, and
for what size of child.

The child seat must be approved in accord-
ance with UN Reg R44 and the car model
must be included in the manufacturer's vehicle
list.

Always read the owner's manual section
on installing a child seat before installing
one in the car.

Weight

Size class

Type of child seat

Front seat (with deacti-
vated airbag, only rear-

facing child seats)

B, C

Front seat (with acti-

vated airbag, only

front-facing child

seats)

B, C

Outer rear seat Centre rear seat

Group 0

max 10 kg

Rear-facing infant seat

B, D

, X

Group 0+

max 13 kg

Rear-facing infant seat

B, D, F

, X

Rear-facing child seat

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SAFETY

Weight

Size class

Type of child seat

Front seat (with deacti-
vated airbag, only rear-

facing child seats)

B, C

Front seat (with acti-

vated airbag, only

front-facing child

seats)

B, C

Outer rear seat Centre rear seat

Group 1

9-18 kg

Front-facing child seat

B, F, G

, X

, IUF

Front-facing child seat

Rear-facing child seat

B, F

, X

Rear-facing child seat

IL: Suitable for particular ISOFIX child restraint systems. These child restraint systems are those of the specific vehicle, restricted or semi-universal
categories.

IUF: Suitable for ISOFIX forward child restraint systems of universal category approved for use in the mass group.

X: Not suitable for ISOFIX child restraint systems.

For child seats with the ISOFIX fixture system there is a size classification to help users choose the right type of child seat. The size class can be read on the child seat's label.

Works for the installation of ISOFIX child seats that are semi-universally approved (IL) if the car is equipped with the ISOFIX console accessory (the accessory range varies depending on market).

There are no upper mounting points for child seats here.

The seat cushion extension must always be retracted for the installation of child seats.

Volvo recommends: Volvo infant seat secured using the ISOFIX fixture system (type approval E1 04301146).

Applicable if the car is not fitted with an ISOFIX bracket.

Adjust the backrest so that the head restraint does not interfere with the child seat.

Volvo recommends rear-facing child seat for children in this mass group.

Volvo recommends: BeSafe iZi Kid X3 ISOfix (type approval E5 04200).

WARNING

Never use a rear-facing child seat on the

front passenger seat if the passenger air-

bag is activated.

If an i-Size/ISOFIX child seat has no size
classification, the car model must be
included on the vehicle list for the child
seat.

Volvo recommends contacting an author-
ised Volvo dealer for information about
which i-Size/ISOFIX child seats Volvo rec-
ommends.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SAFETY

* Option/accessory.

Integrated child seat

The integrated child seats on the outer posi-
tions in the rear seat allow children to sit
comfortably and safely.

The child seat is specially designed to provide
children with good safety, together with the
car's seatbelt. The seat cushion can be raised
in two positions depending on the weight of
the child.

The child seat is approved for children who
weigh 15-36 kg (33-80 lbs) and are at least
95 cm (37 inches) tall.

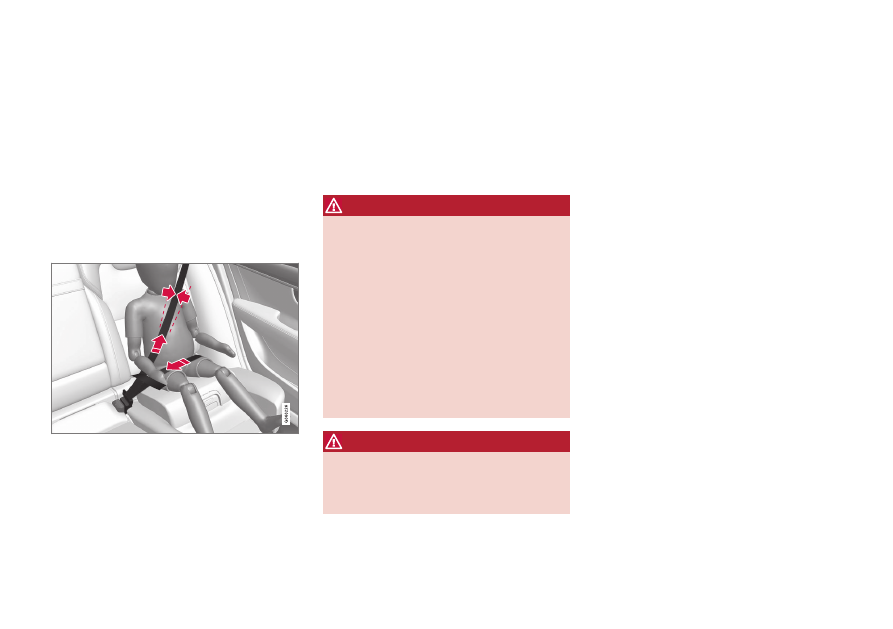

Correct position, the seatbelt should be positioned in

on the shoulder.

Check before driving that:

•

the seat cushion is raised to the correct
position for the weight of the child

•

the seat cushion in locked in position

•

the seatbelt is in contact with the child's
body and is not slack or twisted

•

the seatbelt does not lie across the child's
throat or below the shoulder

•

the lap section of the seatbelt is posi-
tioned low over the pelvis to provide opti-
mal protection.

WARNING

Volvo recommends that repair or replace-

ment of the integrated child seat is only

performed by an authorised Volvo work-

shop. Do not make any modifications or

additions to the child seat. If an integrated

child seat has been subjected to a heavy

load, e.g. in connection with a collision,

then the seat cushion, seatbelt and back-

rest, or possibly the whole seat, must be

replaced. Even if the child seat appears to

be undamaged, it may not afford the same

level of protection. This also applies if the

seat cushion was in lowered position dur-

ing a collision or similar. The seat cushion

must also be replaced if it is heavily worn.

WARNING

If the instructions for the integrated child

seat are not followed then the child could

sustain serious injury in the event of an

accident.

Related information

•

Folding up the seat cushion in the inte-
grated child seat

•

(p. 75)

•

Folding down the seat cushion in the inte-
grated child seat

(p. 76)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SAFETY

}}

* Option/accessory.

Folding up the seat cushion in the

integrated child seat

The seat cushion should always be folded up
when the integrated child seat is in use.

The seat cushion can be folded up in two posi-
tions. The position that should be used
depends on the weight of the child.

Lower posi-

tion

Upper posi-

tion

Weight 22-36 kg

(50-80 lbs)

15-25 kg
(33-55 lbs)

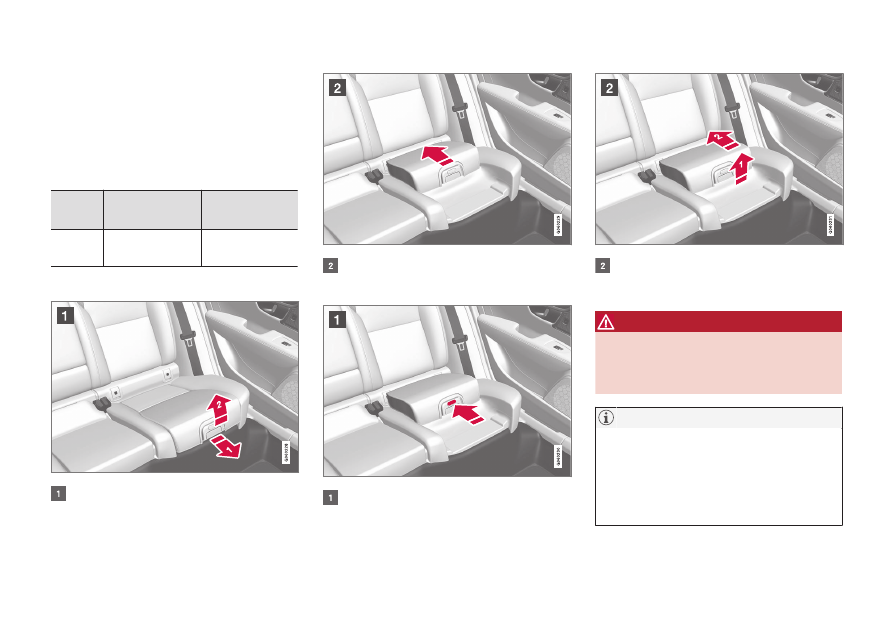

Lower position:

Pull the handle forwards and upwards to
release the seat cushion.

Press the seat cushion backwards to lock.

Upper position, start from the lower position:

Press the button to release the seat cush-
ion.

Lift the seat cushion up at the front edge
and press it back against the backrest to
lock.

WARNING

If the instructions for the integrated child

seat are not followed then the child could

sustain serious injury in the event of an

accident.

Folding down the seat cushion in the inte-
grated child seat

It is not possible to adjust the seat cushion
from the upper position to the lower posi-
tion. From the upper position, the seat
cushion must first be fully lowered into the
rear seat, and then folded up to the lower
position.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SAFETY

* Option/accessory.

Related information

•

Integrated child seat

(p. 74)

•

(p. 76)

Folding down the seat cushion in

the integrated child seat

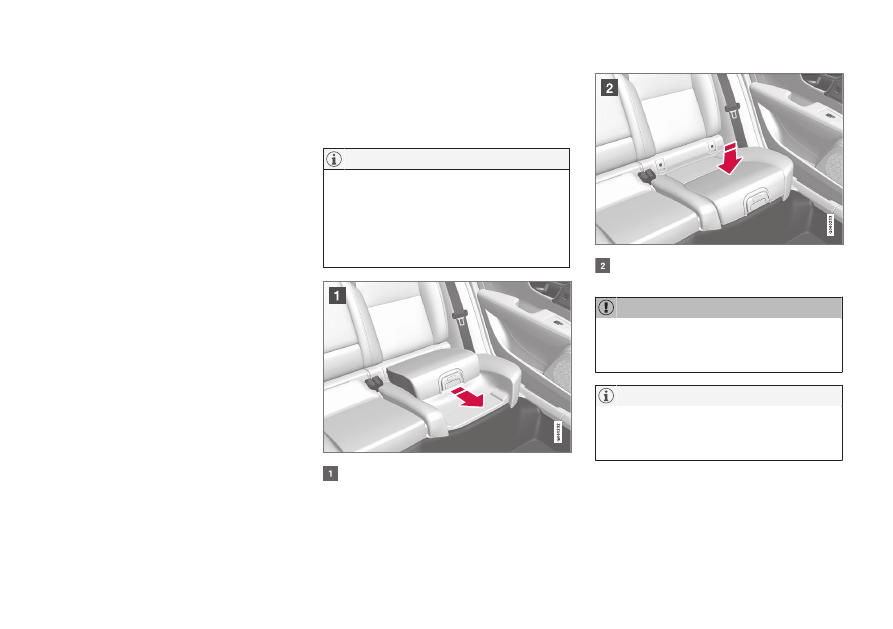

The seat cushion should be folded down into
the rear seat when the integrated child seat is
not being used.

Pull the handle forwards to release the
seat cushion.

Press down with your hand in the centre
of the seat cushion in order to lock it.

IMPORTANT

Check that there are no loose objects (e.g.
toys) left behind in the space under the
child seat's seat cushion before lowering.
