MAINTENANCE AND SERVICE

}}

597

Fuse pliers are provided on the inside of the
fuse box cover to assist in removing and
inserting fuses.

There are also spaces for several extra fuses in
the fusebox.

Positions

There is a decal with a diagram of the loca-
tions of the fuses on the inside of the cover.

Function

Ampere

Type

–

–

Micro

–

–

Micro

–

–

Micro

Control module for actuator for engaging/changing gears, automatic transmission

5

Micro

High-voltage coolant heater control module

5

Micro

Control module for A/C; heat exchanger cut-off valve; cut-off valve for coolant through the climate system

5

Micro

Hybrid battery control module; high-voltage converter for combined high-voltage generator/starter motor with 500 V–
12 V voltage converter

5

Micro

–

–

Micro

Converter for controlling feed to rear axle electric motor

10

Micro

Hybrid battery control module; high-voltage converter for combined high-voltage generator/starter motor with 500 V–
12 V voltage converter

10

Micro

Charge module

5

Micro

Cut-off valve for hybrid battery coolant; coolant pump 1 for hybrid battery

15

Micro

Coolant pump for electric drive system

15

Micro

-------------------------------------------------------------------------------------------------------------------------------------------------------------

||

MAINTENANCE AND SERVICE

* Option/accessory.

598

Function

Ampere

Type

Hybrid component cooling fan

25

MCase

A

–

–

MCase

A

–

–

MCase

A

–

–

MCase

A

Calculation module

5

Micro

–

–

Micro

–

–

Micro

–

–

Micro

–

–

Micro

Front USB port in tunnel console, front

*

7.5

Micro

12 V outlet in tunnel console, front

15

Micro

–

–

Micro

12 V outlet in trunk/cargo compartment

*

15

Micro

–

–

Micro

Driver-side headlight, LED

B

15

Micro

Passenger-side headlight, LED

B

15

Micro

–

–

Micro

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MAINTENANCE AND SERVICE

}}

* Option/accessory.

599

Function

Ampere

Type

–

–

MCase

A

–

–

MCase

A

Headlight washers

*

25

MCase

A

Windshield washer

25

MCase

A

–

–

Micro

Horn

20

Micro

Alarm siren

*

5

Micro

Brake system control module (valves, parking brake)

30

MCase

A

Wipers

30

MCase

A

–

–

MCase

A

–

–

MCase

A

Parking heater

*

20

MCase

A

–

–

MCase

A

–

–

MCase

A

–

–

MCase

A

Fed when ignition is on: Engine control module; transmission components, electrical power steering, central electrical
module

5

Micro

-------------------------------------------------------------------------------------------------------------------------------------------------------------

||

MAINTENANCE AND SERVICE

600

Function

Ampere

Type

Exterior vehicle sound (certain markets)

5

Micro

Passenger-side headlight, LED

B

15

Micro

–

–

Micro

–

–

Micro

–

–

Micro

Airbags; Passenger weight sensor

5

Micro

Driver-side headlight, LED

B

15

Micro

Accelerator pedal sensor

5

Micro

Transmission control module; gear selector control module

15

Micro

Engine control module

5

Micro

–

–

Micro

–

–

Micro

–

–

Micro

–

–

Micro

Engine control module; actuator; throttle unit; turbo-charger valve

20

Micro

Solenoids, Fuel leakage control valve; Overpressure coupling

10

Micro

Vacuum regulator; Electric bypass valve: Ventilation valve

7.5

Micro

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MAINTENANCE AND SERVICE

}}

601

Function

Ampere

Type

Spoiler damper control module; Cooler damper control module

Fuel leakage control pump

5

Micro

–

–

Micro

Heated oxygen sensor front and rear

15

Micro

Oil pump solenoid; A/C magnetic coupling; Heated oxygen sensor front, center and rear

15

Micro

–

–

Micro

Engine control module

20

Micro

Ignition coils; spark plugs

15

Micro

–

–

MCase

A

–

–

MCase

A

Transmission oil pump control module

30

MCase

A

–

–

MCase

A

–

–

MCase

A

–

–

MCase

A

–

–

MCase

A

–

–

MCase

A

A

This type of fuse should be replaced by a workshop. An authorized Volvo workshop is recommended.

B

LED (Light Emitting Diode)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MAINTENANCE AND SERVICE

}}

603

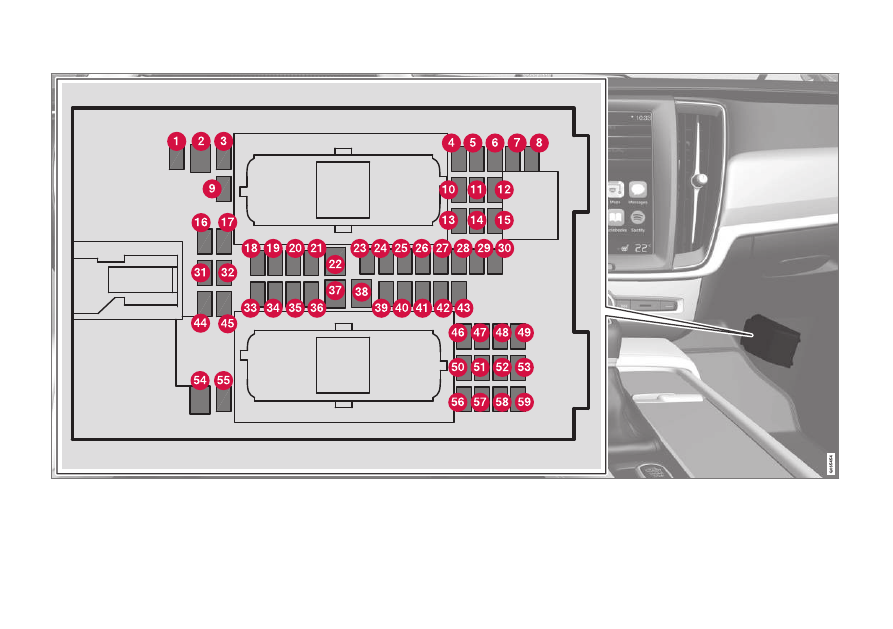

Fuses under the glove

compartment

Fuses under the glove compartment provide
protection for e.g. electrical outlets, displays
and door modules.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

||

MAINTENANCE AND SERVICE

604

Fuse pliers are provided on the inside of the
fuse box cover to assist in removing and
inserting fuses.

There are also spaces for several extra fuses in
the

distribution box in the engine compart-

ment

.

Positions

There is a decal with a diagram of the loca-
tions of the fuses on the inside of the cover.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MAINTENANCE AND SERVICE

}}

* Option/accessory.

605

Function

Ampere

Type

Medium voltage module

A

10

Micro

–

–

MCase

B

–

–

Micro

Movement sensor

*

5

Micro

–

–

Micro

Instrument panel

5

Micro

Center console buttons

5

Micro

Sun sensor

5

Micro

–

–

Micro

–

–

Micro

Steering wheel module

5

Micro

Module for start knob and parking brake controls

5

Micro

Heated steering wheel

*

 module

15

Micro

–

–

Micro

–

–

Micro

–

–

Micro

–

–

Micro

-------------------------------------------------------------------------------------------------------------------------------------------------------------

||

MAINTENANCE AND SERVICE

* Option/accessory.

606

Function

Ampere

Type

Climate system control module

10

Micro

–

–

Micro

Data link connector OBD-II

10

Micro

Center display

5

Micro

Climate system blower module (front)

40

MCase

B

USB HUB

5

Micro

Instrument lighting; Interior lighting; Rearview mirror auto-dim function

*

; Rain and light sensors

*

; Rear tunnel console

keypad, rear seat

*

; Power front seats

*

; Rear door control panels; Climate system blower module left/right

7.5

Micro

Control module for driver support functions

5

Micro

Panoramic roof with sun curtain

*

20

Micro

Head-up display

*

5

Micro

Passenger compartment lighting

5

Micro

Wireless charging pad

5

Micro

Ceiling console display (seat belt reminder/front passenger side airbag indicator)

5

Micro

–

–

Micro

–

–

Micro

–

–

Micro

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MAINTENANCE AND SERVICE

}}

* Option/accessory.

607

Function

Ampere

Type

–

–

Micro

Control module for Internet-connected vehicle; Control module for Volvo On Call

5

Micro

–

–

Micro

Infotainment control module (amplifier)

40

MCase

B

–

–

MCase

B

Multi-band antenna module

5

Micro

Front seat massage function

*

5

Micro

–

–

Micro

–

–

Micro

Fuel pump control module

15

Micro

Relay coil for transmission oil pump

Converter medium voltage; Integrated starter motor

5

Micro

Opening trunk/tailgate with foot movement

*

5

Micro

Driver's seat heating

15

Micro

Front passenger's seat heating

15

Micro

Coolant pump

7.5

Micro

–

–

Micro

-------------------------------------------------------------------------------------------------------------------------------------------------------------

||

MAINTENANCE AND SERVICE

* Option/accessory.

608

Function

Ampere

Type

Power driver's seat

*

20

Micro

Active chassis control module

*

20

Micro

–

–

Micro

Sensus control module

10

Micro

–

–

MCase

B

–

–

Micro

Power front passenger seat

*

20

Micro

–

–

Micro

TV

*

 (certain markets only)

5

Micro

Primary fuse for fuses 52, 53, 57 and 58

15

Micro

A

Vehicles with 48 V support battery only.

B

This type of fuse should be replaced by a workshop. An authorized Volvo workshop is recommended.

Related information

•

Fuses and fuseboxes (p. 594)

•

Replacing fuses (p. 595)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MAINTENANCE AND SERVICE

}}

* Option/accessory.

609

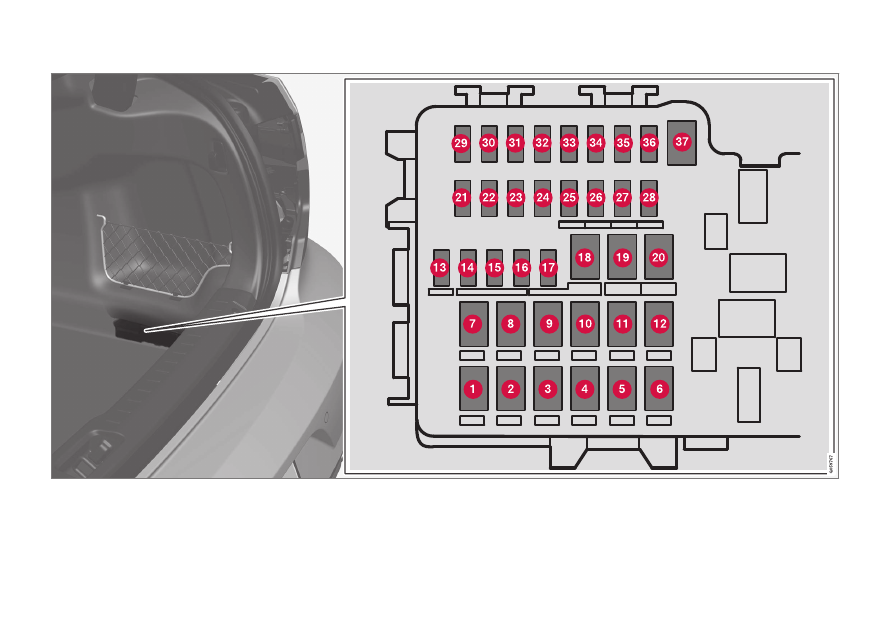

Fuses in the trunk

The fuses in the trunk protect electrical com-
ponents such as the power seats

*

, airbags

and seat belt tensioners.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

||

MAINTENANCE AND SERVICE

610

The fuse box is located on the right-hand side.

Fuse pliers are provided on the inside of the
fuse box cover to assist in removing and
inserting fuses.

There are also spaces for several extra fuses in
the

distribution box in the engine compart-

ment

.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MAINTENANCE AND SERVICE

}}

* Option/accessory.

611

Positions

There is a decal with a diagram of the loca-
tions of the fuses on the inside of the cover.

Function

Ampere

Type

Heated rear window

30

MCase

A

Central electrical module

40

MCase

A

–

–

MCase

A

Lock motor for rear seat backrest, right side

15

MCase

A

–

–

MCase

A

Lock motor for rear seat backrest, left side

15

MCase

A

Door module right side, rear

B

20

MCase

A

–

–

MCase

A

–

–

MCase

A

Power front passenger seat

*

Door module right side, front

20

MCase

A

Towbar

*

 control module

40

MCase

A

Seat belt tensioner module (right side)

40

MCase

A

Internal relay windings

5

Micro

–

–

Micro

-------------------------------------------------------------------------------------------------------------------------------------------------------------

||

MAINTENANCE AND SERVICE

* Option/accessory.

612

Function

Ampere

Type

Door module left side, rear

20

Micro

USB hub/accessory port

5

Micro

–

–

Micro

Towbar

*

 control module

25

MCase

A

Accessory module

40

Power driver seat

*

Door module left side, front

20

MCase

A

Seat belt tensioner module (left side)

40

MCase

A

Park Assist Camera

*

5

Micro

–

–

Micro

–

–

Micro

–

–

Micro

Micro

–

–

Micro

–

–

Micro

Heated rear seat (left side)

*

15

Micro

–

–

Micro

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MAINTENANCE AND SERVICE

* Option/accessory.

613

Function

Ampere

Type

Blind Spot Information (BLIS)

*

; Exterior reverse signal control module

5

Micro

–

–

Micro

Seat belt tensioner module, right

5

Micro

Emissions system actuator (gasoline, certain engine variants)

5

Micro

–

–

Micro

All Wheel Drive (AWD) control module

*

15

Micro

Heated rear seat (right side)

*

15

Micro

–

–

MCase

A

A

This type of fuse should be replaced by a workshop. An authorized Volvo workshop is recommended.

B

Only applies to vehicles with hybrid motors or 48 V support batteries.

Related information

•

Fuses and fuseboxes (p. 594)

•

Replacing fuses (p. 595)

-------------------------------------------------------------------------------------------------------------------------------------------------------------
