Activating and deactivating the heated
windscreen

•

(p. 218)

•

Activating and deactivating the heated
rear window and door mirrors (p. 219)

Pinch protection for windows and

sun blinds

All power windows and sun blinds

have

pinch protection which is deployed if they are
blocked by any object while opening or clos-
ing.

In the event of blocking, the movement stops
and then reverses automatically to approx.
50 mm (approx. 2 inches) from the blocked
position (or to full ventilation position).

It is possible to force pinch protection when
closing has been cancelled, e.g. when ice is
formed, by continuing to press the control in
one and the same direction.

If any fault arises with the pinch protection, a
reset sequence can be tested.

WARNING

If the starter battery is disconnected, the

automatic opening and closing function

must be reset to work properly. A reset

must take place for pinch protection to

work.

Related information

•

Reset sequence for pinch protection
(p. 165)

•

Operating power windows (p. 166)

•

Operating the panorama roof

(p. 171)

Does not apply to the windscreen or panorama roof

which are always laminated and thus do not have this symbol.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WINDOWS, GLASS AND MIRRORS

* Option/accessory.

165

Reset sequence for pinch

protection

If a problem occurs with the electrical func-
tions for the electric windows, a reset
sequence can be tested.

WARNING

If the starter battery is disconnected, the

automatic opening and closing function

must be reset to work properly. A reset

must take place for pinch protection to

work.

If a problem persists, or if it concerns the pan-
oramic roof, contact a workshop

Reset the power window

1. Start with the window in closed position.

2. Then operate the controls in the manual

position 3 times upwards to closed posi-
tion.
> The system is initialised automatically.

Related information

•

Pinch protection for windows and sun
blinds (p. 164)

•

Operating power windows (p. 166)

Power windows

Each door has a control panel for the electri-
cally-driven power windows. The driver's
door has controls for operating all windows
and also to activate the child safety locks.

Driver's door control panel.

Electric child safety locks

that deactivate

the controls in the rear doors to prevent
doors or windows from being opened
from the inside.
Controls for rear windows.

Controls for front windows.

WARNING

Children, other passengers or objects may

be trapped by the moving parts.

•

Always operate the windows with cau-
tion.

•

Do not allow children to play with the
controls.

•

Never leave children alone in the car.

•

Remember to always switch off the
power supply to the power windows
by setting the car's electrical system in
ignition position

, and then take the

remote control key with you when leav-
ing the car.

•

Never put an object or part of the body
through the windows, even if the car's
electrical system is fully disconnected.

Related information

•

Operating power windows (p. 166)

•

Pinch protection for windows and sun
blinds (p. 164)

•

Reset sequence for pinch protection
(p. 165)

An authorised Volvo workshop is recommended.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WINDOWS, GLASS AND MIRRORS

* Option/accessory.

166

Operating power windows

Using the driver's door control panel, all
power windows can be operated - using the
control panels in the other doors operates the
power window in the individual door.

The power windows are equipped with pinch
protection. If any fault arises with the pinch
protection, a reset sequence can be tested.

WARNING

Children, other passengers or objects may

be trapped by the moving parts.

•

Always operate the windows with cau-
tion.

•

Do not allow children to play with the
controls.

•

Never leave children alone in the car.

•

Remember to always switch off the
power supply to the power windows
by setting the car's electrical system in
ignition position

, and then take the

remote control key with you when leav-
ing the car.

•

Never put an object or part of the body
through the windows, even if the car's
electrical system is fully disconnected.

Operating the power windows.

Operating without auto. Move one of the
controls gently up or down. The power
windows move up or down as long as the
control is held in position.
Operating with auto. Move one of the con-
trols up or down to the end position and
release it. The window runs automatically
to its end position.

In order for the power windows to be used,
the ignition position must be

. The power

windows can be operated for a few minutes
after the car has been switched off and after
the ignition has been switched off - although
not after a door has been opened. It is only
possible to operate one control at a time.

It can also be operated using a remote control
key or keyless opening

with the door handle.

WARNING

Check that children or other passengers

are not at risk of crushing when all the win-

dows are closed with a remote control key

or keyless opening

with a door handle.

One way to reduce the pulsating wind
noise when the rear windows are open is
to also open the front windows slightly.

The windows cannot be opened at speeds
above approx. 180 km/h (approx.
112 mph), but they can be closed.

The driver always bears responsibility for
following traffic regulations in force.

Pinch protection for windows and sun
blinds (p. 164)

It may not be possible to operate windows
at low temperatures.

Related information

•

Power windows (p. 165)

•

•

Reset sequence for pinch protection
(p. 165)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WINDOWS, GLASS AND MIRRORS

* Option/accessory.

167

•

Locking and unlocking with the remote
control key (p. 241)

•

Rearview and door mirrors

The rearview mirrors and door mirrors can be
used to give the driver better visibility to the
rear.

Interior rearview mirror

The interior rearview mirror is adjusted by
angling it manually. The interior rearview mir-
ror is equipped with HomeLink

, automatic

dimming

and compass

Door mirrors

WARNING

Both mirrors are bent to provide optimal

vision. Objects may appear to be further

away than they actually are.

The door mirror positions are adjusted with
the joystick in the driver's door control panel.
There are also a number of automatic settings
that can be linked to the memory function but-
tons for the power seat

Related information

•

•

•

Adjusting rearview mirror dimming
(p. 168)

•

Angling the door mirrors (p. 169)

•

Storing position for seat, door mirrors and
head-up display

(p. 184)

•

Activating and deactivating the heated
rear window and door mirrors (p. 219)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WINDOWS, GLASS AND MIRRORS

* Option/accessory.

168

Adjusting rearview mirror dimming

Bright light from behind could be reflected in
the rearview mirrors and dazzle the driver.
Use dimming when disturbed by light from
behind.

Manual dimming

The interior rearview mirror can be dimmed
with a control in the mirror's lower edge.

Control for manual dimming.

1. Use dimming by moving the control in

towards the passenger compartment.

2. Return to normal mode by moving the

control towards the windscreen.

The control for manual dimming is not availa-
ble on mirrors with automatic dimming.

Automatic dimming

Bright light from behind is automatically
dimmed by the interior rearview and door mir-
rors. Automatic dimming is always active
while driving, apart from when gearbox
reverse position is selected.

When sensitivity is changed there is no
immediately noticeable change in dim-
ming, but the change takes place gradu-
ally.

Dimming sensitivity will affect both the interior
rearview mirror and the door mirrors.

To change dimming sensitivity:

1. Press

Settings

in the top view in the cen-

tre display.

2. Press

My Car

Mirrors and

Convenience

3. Under

Rearview Mirror Auto Dimming

select

Normal

Dark

Light

The interior rearview mirror contains two sen-
sors - one forward facing and one rearward
facing - that work together to identify and
eliminate dazzling light. The forward facing
sensor detects ambient light, while the rear-
ward facing sensor detects the light from vehi-
cle headlights behind.

For the door mirrors to be equipped with auto-
matic dimming, the interior rearview mirror
must also be equipped with automatic dim-
ming.

Rearview and door mirrors (p. 167)

If the sensors are obscured by e.g. parking
permits, transponders, sun visors or
objects in the seats or in the cargo area in
such a way that light is prevented from
reaching the sensors, then the dimming
function of the interior rearview and door
mirrors is reduced.

Related information

•

•

Angling the door mirrors (p. 169)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WINDOWS, GLASS AND MIRRORS

}}

* Option/accessory.

169

Angling the door mirrors

To ensure better visibility to the rear, the door
mirrors need to be set to the preferences of
the driver. There are a number of automatic
settings that can also be linked to the mem-
ory function buttons for the power seat

Using controls for door mirrors

Controls for door mirrors.

The door mirror positions are adjusted with
the joystick in the driver's door control panel.
Ignition position must be at least

1. Press the

button for the left-hand door

mirror or the

button for the right-hand

door mirror. The light in the button illumi-
nates.

2. Adjust the position with the joystick in the

centre.

3. Press the

button again. The light

should no longer be illuminated.

Folding in rearview mirrors
electrically

The mirrors can be retracted for parking/driv-
ing in narrow spaces.

1. Depress the

and

buttons simultane-

ously.

2. Release them after approximately 1 sec-

ond. The mirrors automatically stop in the
fully retracted position.

Fold out the mirrors by pressing down the

and

buttons simultaneously. The mirrors

automatically stop in the fully extended posi-
tion.

Resetting to neutral

Mirrors that have been moved out of position
by an external force must be reset electrically
to the neutral position for electric retracting/
extending

to work correctly.

1. Fold in the door mirrors by pressing down

the

and

buttons simultaneously.

2. Fold them out again by pressing the

and

buttons simultaneously.

3. Repeat the above procedure as necessary.

The mirrors are now reset in neutral position.

Angling during parking

A door mirror can be angled down for the
driver to view the side of the road when park-
ing, for example.

–

Engage reverse gear and press the

button.

Note that the button may need to be pressed
twice, depending on whether it was already
preselected. The button flashes when the door
mirror is angled down. When reverse gear is
disengaged, the door mirror automatically
starts to return after approx. 3 seconds and
then reaches its original position after approx.
8 seconds.

Automatic angling during parking

With this setting, the door mirror is automati-
cally angled down when reverse gear is
selected. The folded position is preset and
cannot be adjusted.

1. Tap on

Settings

in the centre display's

top view.

2. Press

My Car

Mirrors and

Convenience

3. Under

Exterior Mirror Tilt at Reverse

select

Off

Driver

Passenger

Both

activate/deactivate and to select which
review mirror should be angled.

Only in combination with power seat with memory buttons

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WINDOWS, GLASS AND MIRRORS

* Option/accessory.

170

You can make the door mirror return to its
original position by pressing the

button

twice.

Automatic retraction when locking

When the car is locked/unlocked with the
remote control key, the door mirrors can be
automatically retracted/extended. However, if
the mirrors have been folded in manually then
they have to be folded out manually as well.

1. Tap on

Settings

in the centre display's

top view.

2. Press

My Car

Mirrors and

Convenience

3. Select

Fold Mirror When Locked

to acti-

vate/deactivate.

Related information

•

Rearview and door mirrors (p. 167)

•

Adjusting rearview mirror dimming
(p. 168)

•

Storing position for seat, door mirrors and
head-up display

(p. 184)

•

Activating and deactivating the heated
rear window and door mirrors (p. 219)

Panorama roof

The panorama roof is divided into two glass
sections. The front section can be opened
vertically at the rear edge (ventilation posi-
tion) or horizontally (open position). The rear
section is fixed roof glass.

The panoramic roof has a wind deflector and
a sun blind made of perforated fabric and
located under the glass roof to provide extra
protection from factors such as strong sun-
light.

The panoramic roof and sun blind are operated
with a control located in the roof.

In order that the panoramic roof and the sun
blind can be operated, the car's electrical sys-
tem must be in ignition position

WARNING

Children, other passengers or objects may

be trapped by the moving parts.

•

Always operate the windows with cau-
tion.

•

Do not allow children to play with the
controls.

•

Never leave children alone in the car.

•

Remember to always switch off the
power supply to the power windows
by setting the car's electrical system in
ignition position

, and then take the

remote control key with you when leav-
ing the car.

•

Never put an object or part of the body
through the windows, even if the car's
electrical system is fully disconnected.

•

Do not open the panoramic roof when
load carriers are fitted.

•

Do not place any heavy objects on the
panoramic roof.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WINDOWS, GLASS AND MIRRORS

}}

* Option/accessory.

171

Operating the panorama roof

•

Remove ice and snow before opening
the panoramic roof. Take care not to
scratch surfaces or damage strips.

•

Do not operate the panoramic roof if it
has frozen closed.

Wind deflector

The panorama roof has a wind deflector that is
raised when the panorama roof is in the open
position.

Related information

•

(p. 171)

•

Automatic closing of the panoramic roof's

sun blind (p. 174)

•

Pinch protection for windows and sun
blinds (p. 164)

•

Locking and unlocking with the remote
control key (p. 241)

•

Operating the panorama roof

The panoramic roof and sun blind are oper-
ated with a control in the roof panel and both
are equipped with pinch protection.

WARNING

Children, other passengers or objects may

be trapped by the moving parts.

•

Always operate the windows with cau-
tion.

•

Do not allow children to play with the
controls.

•

Never leave children alone in the car.

•

Remember to always switch off the
power supply to the power windows
by setting the car's electrical system in
ignition position

, and then take the

remote control key with you when leav-
ing the car.

•

Never put an object or part of the body
through the windows, even if the car's
electrical system is fully disconnected.

•

Do not open the panoramic roof when
load carriers are fitted.

•

Do not place any heavy objects on the
panoramic roof.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WINDOWS, GLASS AND MIRRORS

* Option/accessory.

172

•

Remove ice and snow before opening
the panoramic roof. Take care not to
scratch surfaces or damage strips.

•

Do not operate the panoramic roof if it
has frozen closed.

In order that the panoramic roof and the sun
blind can be operated, the car's electrical sys-
tem must be in ignition position

It can also be operated using a remote control
key or keyless opening

with the door handle.

WARNING

Check that children or other passengers

are not at risk of crushing when all the win-

dows are closed with a remote control key

or keyless opening

with a door handle.

Check that the panoramic roof is properly
closed when closing.

The movement of the roof is stopped if the
control is released during manual operation, or
when the glass reaches the comfort position

or the maximum opening or closing position.

The movement of both panoramic roof and
sun blind are also stopped if the roof control is
operated again in the opposite direction to the
current direction of movement.

The panoramic roof and the sun blind are also
equipped with pinch protection. If any fault
arises with the pinch protection, a reset
sequence can be tested.

For manual opening, the sun blind must be
fully open before the panoramic roof can
be opened. When the procedure is
reversed, the panoramic roof must be fully
closed before the sun blind can be fully
closed.

Automatic closing of the panoramic roof's

It may not be possible to operate windows
at low temperatures.

Open and close ventilation position

Ventilation position, vertically at the rear edge.

Open by pressing the control upward
once.
Close by pressing the control downward
once.

When the ventilation position is selected the
front glass cover is raised at its rear edge. If
the sun blind is fully closed when ventilation
position is selected, then it opens automati-
cally approx. 50 mm (approx. 2 inches).

The sun blind follows automatically if the pan-
oramic roof is closed from ventilation position.

Comfort position is a position where wind noise and resonance noise are at a comfortably low level while driving.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WINDOWS, GLASS AND MIRRORS

* Option/accessory.

173

Fully open and close the panoramic
roof using the roof control

Operation, manual mode

Operation, automatic mode

Manual operation

1. To open the sun blind - press the control

backwards to the position for manual
opening.

2. Open the panoramic roof to comfort posi-

tion - press the control backwards a sec-
ond time to the position for manual open-
ing.

3. Open the panoramic roof to maximum

position - press the control backwards a
third time to the position for manual open-
ing.

Close by repeating the preceding procedure in
reverse order - press the control forward/

downward to the manual closing position
instead.

Automatic operation

1. Open the sun blind to maximum position -

press the control backward to the position
for automatic opening and release.

2. Open the panoramic roof to comfort posi-

tion - press the control backwards a sec-
ond time to the position for automatic
opening and release.

3. Open the panoramic roof to maximum

position - press the control backwards a
third time to the position for automatic
opening and release.

Close by repeating the preceding procedure in
reverse order - press the control forward/
downward to the automatic closing position
instead.

Automatic operation - rapid opening or
closing

The panoramic roof and sun blind can be
opened or closed simultaneously:

–

To open - press the control rearward to
the automatic operation position twice
and release.

–

To close - press the control forward/
downward to the automatic operation
position twice and release.

Related information

•

Panorama roof

(p. 170)

•

sun blind (p. 174)

•

Pinch protection for windows and sun
blinds (p. 164)

•

Locking and unlocking with the remote
control key (p. 241)

•

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WINDOWS, GLASS AND MIRRORS

* Option/accessory.

174

Automatic closing of the

panoramic roof's

sun blind

With this function, the sun blind is closed
automatically 15 minutes after the car has
been locked if it is parked in hot weather. This
is in order to lower the passenger compart-
ment temperature and protect the car's
upholstery from sun-fading.

The function is deactivated when the car is
supplied from the factory and can be activated
or deactivated in the centre display.

1. Press

Settings

in the top view in the cen-

tre display.

2. Press

My Car

Locking

Select

Auto Close Sunroof Curtain

activate/deactivate.

Operating the panorama roof

The sun blind is also closed when all win-
dows are closed using the remote control
key or keyless opening

with a door handle.

Related information

•

Panorama roof

(p. 170)

•

(p. 171)

•

Pinch protection for windows and sun
blinds (p. 164)

•

Locking and unlocking with the remote
control key (p. 241)

•

Wiper blades and washer fluid

Together with the washer fluid, the wipers
aim to improve visibility as well as headlamp
pattern.

Washer fluid direct from the wiper blades and
heating

of the wiper blades gives improved

vision.

Information indicating that the washer fluid
needs topping up appears in the driver display
when there is approx. 1 litre (1 qt) of washer
fluid remaining.

Related information

•

•

Using automatic rear windscreen wiping
when reversing (p. 179)

•

•

•

•

•

•

•

•

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WINDOWS, GLASS AND MIRRORS

175

Using windscreen wipers

The windscreen wipers are designed to clean
the windscreen. Different settings for the
windscreen wipers are set using the right-
hand stalk switch.

Right-hand stalk switch.

The thumbwheel is used to set rain sensor
sensitivity and wiper swipe frequency.

Single sweep

Lower the stalk switch and release to
make one sweep.

Windscreen wipers off

Move the stalk switch to position

switch off the windscreen wipers.

Intermittent wiping

Move the lever up to switch the wipers
to intermittent wiping. Set the number

of sweeps per time unit with the thumbwheel
when intermittent wiping is selected.

Continuous wiping

Raise the stalk switch for the wipers to
sweep at normal speed.

Raise the stalk switch further for the
wipers to sweep at high speed.

Before activating the wipers - ensure that
the wiper blades are not frozen in, and that
any snow or ice on the windscreen and
rear window is scraped away.

Use plenty of washer fluid when the wipers
are cleaning the windscreen. The wind-
screen must be wet when the windscreen
wipers are operating.

Related information

•

•

Using automatic rear windscreen wiping
when reversing (p. 179)

•

•

•

•

•

•

•

•

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WINDOWS, GLASS AND MIRRORS

176

Using the rain sensor

The rain sensor automatically starts the wind-
screen wipers based on how much water it
detects on the windscreen. Rain sensor sen-
sitivity can be adjusted with the thumbwheel
on the right-hand stalk switch.

Right-hand stalk switch.

Rain sensor button

Thumbwheel sensitivity/frequency

When the rain sensor is activated, the rain
sensor symbol

is shown in the driver

display.

Activating the rain sensor

When activating the rain sensor, the car must
be running or in ignition position

while

the windscreen wiper stalk switch is in posi-
tion

or in the position for a single sweep.

Activate the rain sensor by pressing the rain
sensor button

Move the lever down to make the wipers
move.

Turn the thumbwheel upward for higher sensi-
tivity and downward for lower sensitivity. An
extra sweep is made when the thumbwheel is
turned upward.

Deactivating the rain sensor

Deactivate the rain sensor by pressing the rain
sensor button

or moving the stalk

switch up to another wiper program.

The rain sensor is deactivated automatically in
ignition position

or when the engine is

switched off.

The rain sensor is deactivated automatically
when wiper blades are set in service position.
The rain sensor is reactivated when service
mode has been deactivated.

The windscreen wipers could start and be
damaged in an automatic car wash. Deac-
tivate the rain sensor while the car is run-
ning or when the car's electrical system is
in ignition position

. The symbol in the

driver display extinguishes.

Related information

•

Using automatic rear windscreen wiping
when reversing (p. 179)

•

•

•

•

•

•

•

•

•

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WINDOWS, GLASS AND MIRRORS

}}

177

Using the rain sensor's memory

function

The rain sensor automatically starts the wind-
screen wipers based on how much water it
detects on the windscreen.

Activating/deactivating the memory
function

The memory function for the rain sensor can
be activated in such a way that the rain sensor
button does not need to be depressed each
time the car is started:

1. Press

Settings

in the top view in the cen-

tre display.

2. Press

My Car

Wipers

3. Select

Rain Sensor Memory

to activate/

deactivate the memory function.

Related information

•

•

Using automatic rear windscreen wiping
when reversing (p. 179)

•

•

•

•

•

•

•

•

Using windscreen and headlamp

washers

Windscreen and headlamp washers are
designed to clean the windscreen and head-
lamps. Windscreen and headlamp washers
are started using the right-hand stalk switch.

Starting windscreen and headlamp
washers

Washing function, right-hand stalk switch.

–

Move the right-hand stalk switch toward
the steering wheel to start the windscreen
and headlamp washers.
> The windscreen wipers will make sev-

eral more sweeps once the stalk switch
has been released.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WINDOWS, GLASS AND MIRRORS

* Option/accessory.

178

Avoid activating the washer system when
it is frozen or the washer reservoir is
empty, otherwise there is a risk of damag-
ing the pump.

Headlamp washing

To save fluid, the headlamps are washed auto-
matically at a defined interval when the head-
lamps are switched on.

Reduced washing

If only approx. 1 litre (1 qt) of washer fluid
remains in the reservoir and the message

Washer fluid

Level low, refill

, together with

the

symbol, is shown in the driver dis-

play, then the supply of washer fluid to the
headlamps is switched off. This is to prioritise
cleaning the windscreen and the visibility
through it. The headlamps are only washed if
main or dipped beam is switched on.

Related information

•

Using automatic rear windscreen wiping
when reversing (p. 179)

•

•

•

•

•

•

•

•

•

Using the rear window wiper and

washer

The rear windscreen washer and wiper are
designed to clean the rear window. Washing/
wiping is started and settings are changed by
means of the right-hand steering wheel stalk
switch.

Activating the rear window wiper and
washer

The rear window wiper motor is equipped
with overheating protection which means
that it is switched off if it overheats. The
rear window wiper works again after a
cooling-down period.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WINDOWS, GLASS AND MIRRORS

}}

179

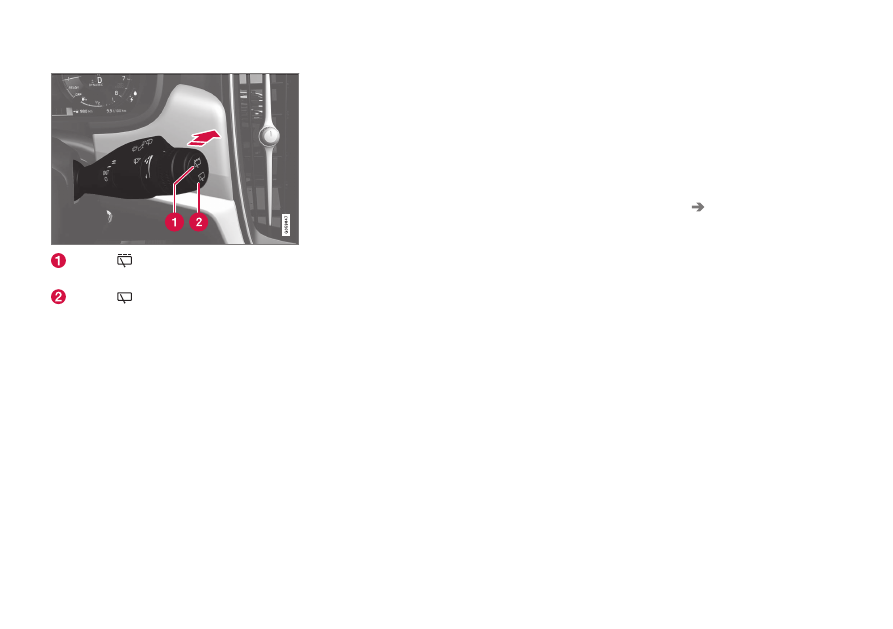

Select

for intermittent wiping with

the rear window wiper.

Select

for continuous speed with the

rear window wiper.

–

Move the right-hand steering wheel stalk
switch forward to start rear window
washing and wiping.

Related information

•

•

Using automatic rear windscreen wiping
when reversing (p. 179)

•

•

•

•

•

•

•

•

Using automatic rear windscreen

wiping when reversing

Engaging reverse gear while the windscreen
wipers are switched on initiates rear window
wiping. The function stops when reverse gear
is disengaged.

1. Press

Settings

in the top view in the cen-

tre display.

2. Press

My Car

Wipers

3. Select

Auto Rear Wiper

to activate/deac-

tivate wiping when reversing.

If the rear windscreen wiper is already operat-
ing at a constant speed then no change takes
place when reverse gear is engaged.

Related information

•

•

•

•

•

•

•

•
