SPECIFICATIONS

632

Type designations

The decals in the car contain information
such as chassis number, type designation,
colour code, etc.

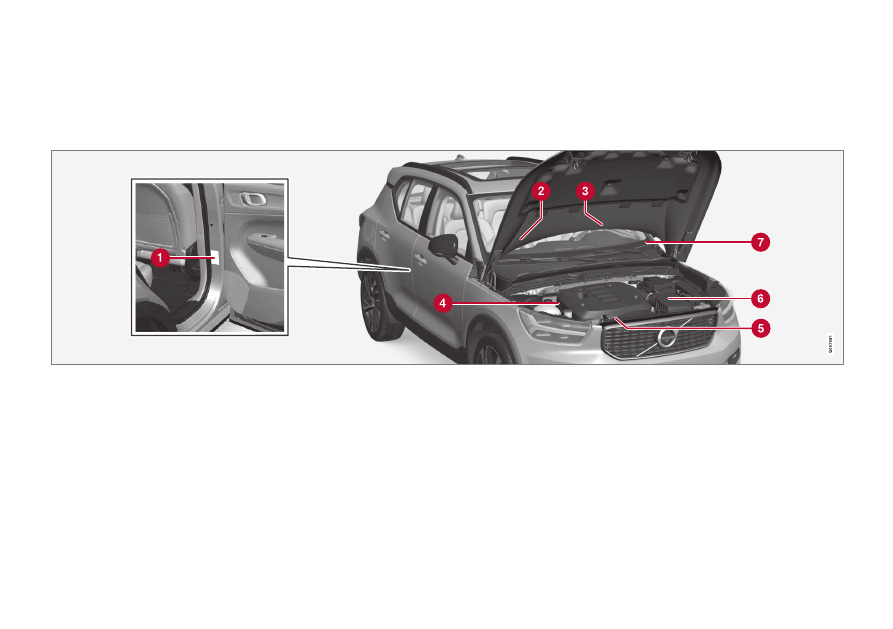

Label location

The illustration is schematic - details may vary depending on market and model.

Knowing the car's type designation, vehicle
identification and engine numbers can facili-
tate all contact with an authorised Volvo
dealer regarding the car and when ordering
spare parts and accessories.

SPECIFICATIONS

}}

633

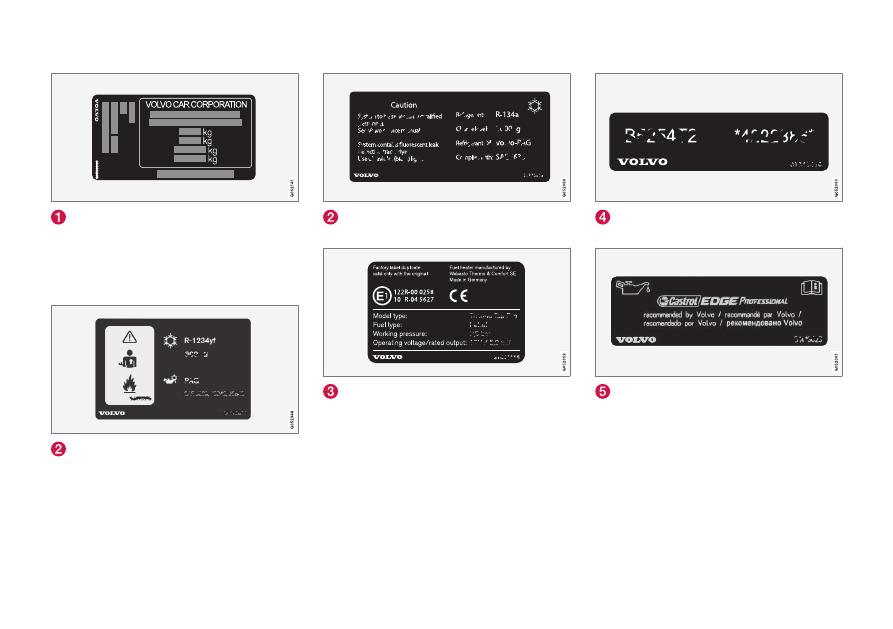

 Decal for type designation, vehicle identifi-

cation number, permissible maximum weights
and code designation for exterior colour and
type approval number. The decal is positioned
on the door pillar, and will be visible when the
right-hand rear door is opened.

 Decal A/C system for cars with refrigerant

R1234yf.

 Decal A/C system for cars with refrigerant

R134a.

 Label for parking heater.

 Decal for engine code and the engine's

serial number.

 Label for engine oil.

||

SPECIFICATIONS

634

 Decal for gearbox type designation and

serial number.

 Decal for the car's identification number -

VIN (Vehicle Identification Number).

Further information on the car is presented in
the registration document.

NOTE

It is not intended that the decals illustrated
in the owner's manual should be exact rep-
licas of those in the car. They are included
to show their approximate appearance and
locations in the car. The information that
applies to your particular car can be found
on the decal on the car.

Related information

•

Air conditioning – specifications (p. 644)

SPECIFICATIONS

}}

635

Dimensions

Measurement of car length, height, etc. can
be read in the table.

Dimensions

mm

inches

A

Ground clear-
ance

A

205

8.1

B

Wheelbase

2702

106.4

C

Length

4425

174.2

D

Load length,
floor, folded
seat

1670

65.7

Dimensions

mm

inches

E

Load length,
floor

887

34.9

F

Height

B

1658

65.3

G

Load height

733

28.9

H

Front track

1601

63.0

I

Rear track

1626

64.0

J

Load width,
floor

1059

41.7

Dimensions

mm

inches

K

Width

1873
(1863

C

)

73.7
(73.3

C

)

||

SPECIFICATIONS

636

Dimensions

mm

inches

L

Width includ-
ing door mir-
rors

2034

80.1

M Width includ-

ing folded-in
door mirrors

1910

75.2

A

At kerb weight + 1 person. (Varies slightly depending on

tyre dimension, chassis option, etc.)

B

Including roof antenna, for kerb weight.

C

Body width.

Related information

•

Weights (p. 637)

SPECIFICATIONS

637

Weights

Max. gross vehicle weight, etc. can be read
on a label in the car.

Kerb weight includes the driver, the fuel tank
90% full, plus and all oils and fluids.

The weight of passengers and accessories,
and towball load (when a trailer is hitched)
influence the load capacity and are not
included in the kerb weight.

Permitted max. load = Gross vehicle weight -
Kerb weight.

NOTE

The documented kerb weight applies to
cars in the standard version - i.e. a car
without extra equipment or accessories.
This means that for every accessory added
the loading capacity of the car is reduced
correspondingly by the weight of the
accessory.

Examples of accessories that reduce load
capacity are the different equipment levels
(e.g. Kinetic, Momentum, Summum), as
well as other accessories such as towbar,
load carrier, space box, audio system, auxil-
iary lamps, GPS, fuel-driven heater, safety
grille, carpets, cargo cover, power seats,
etc.

Weighing the car is a certain way of ascer-
taining the kerb weight of your own partic-
ular car.

WARNING

The car's driving characteristics change

depending on how heavily it is loaded and

how the load is distributed.

The decal is positioned on the door pillar, and will be

visible when the right-hand rear door is opened.

Max. gross vehicle weight

Max. train weight (car+trailer)

Max. front axle load

Max. rear axle load

Equipment level

Max. load: See registration document.

Max. roof load: 75 kg.

Related information

•

Type designations (p. 632)

•

Towing capacity and towball load
(p. 638)

SPECIFICATIONS

638

Towing capacity and towball load

Towing capacity and towball load for driving
with a trailer can be read in the tables.

Max. weight braked trailer

NOTE

Use of vibration dampers on the towbar is
recommended for trailers heavier than
1800 kg.

Engine

Engine code

A

Gearbox

Max. weight braked trailer (kg)

Max. towball load (kg)

T4 Twin Engine

B3154T10

Automatic

1800

100

T5 Twin Engine

B3154T5

Automatic

1800

100

A

The engine code, component number and serial number can be found on the engine.

IMPORTANT

When driving with a trailer, it is permitted
to exceed the vehicle's gross vehicle
weight (including towball load) by a maxi-
mum of 100 kg (220 lbs), provided that
speed is limited to 100 km/h (62 mph).
National legal requirements for the vehicle
combination, such as speed, etc. must be
observed.

Max. weight unbraked trailer

Max. weight unbraked trailer (kg)

Max. towball load (kg)

750

50

SPECIFICATIONS

* Option/accessory.

639

Related information

•

Type designations (p. 632)

•

Weights (p. 637)

•

Driving with a trailer (p. 463)

•

Trailer stability assist

*

 (p. 465)

SPECIFICATIONS

640

Engine specifications

Engine specifications (power, etc.) for each
respective engine alternative can be found in
the table below.

The Twin Engine variant is driven both by a
petrol engine and an electric drive motor
(ERAD – Electric Rear Axle Drive).

NOTE

Not all engines are available in all markets.

NOTE

If there is no engine data in the table, this
is available in an enclosed supplement.

Engine

Engine code

A

Output

(kW/rpm)

Output

(hp/rpm)

Torque

(Nm/rpm)

No. of cylinders

T4 Twin Engine

B3154T10

95/5000

129/5000

245/1600–3000

3

T5 Twin Engine

B3154T5

132/5800

180/5800

265/1500–3000

3

A

The engine code, component number and serial number can be found on the engine.

Electric drive motor

Max. power output:

 60 kW (82 hp).

Torque:

 160 Nm.

Related information

•

Type designations (p. 632)

•

Engine oil – specifications (p. 641)

•

Coolant – specifications (p. 643)

SPECIFICATIONS

641

Engine oil – specifications

Engine oil grade and volume for each respec-
tive engine alternative can be read in the
table.

Volvo recommends:

Engine

Engine code

A

Oil grade

Volume, incl. oil filter

(litres, approx.)

T4 Twin Engine

B3154T10

Castrol Edge Professional V 0W-20 or VCC RBS0-2AE 0W-20

5.6

T5 Twin Engine

B3154T5

5.6

A

The engine code, component number and serial number can be found on the engine.

Related information

•

Type designations (p. 632)

•

Adverse driving conditions for engine oil
(p. 642)

•

Checking and filling with engine oil
(p. 588)

•

Engine oil (p. 587)

SPECIFICATIONS

642

Adverse driving conditions for

engine oil

Adverse driving conditions can lead to abnor-
mally high oil temperature or oil consump-
tion. Below are some examples of adverse
driving conditions.

Check the oil level more frequently for long
journeys:

•

towing a caravan or trailer

•

in mountainous regions

•

at high speeds

•

in temperatures colder than -30 °C
(-22 °F) or hotter than +40 °C (+104 °F).

The above also apply to shorter driving dis-
tances at low temperatures.

Choose a fully synthetic engine oil for adverse
driving conditions. It provides extra protection
for the engine.

Volvo recommends:

IMPORTANT

In order to fulfil the requirements for the
engine's service intervals all engines are
filled with a specially adapted synthetic
engine oil at the factory. The choice of oil
has been made very carefully with regard
to service life, starting characteristics, fuel
consumption and environmental impact.

An approved engine oil must be used in
order that the recommended service inter-
vals can be applied. Only use a prescribed
grade of oil for both filling and oil change,
otherwise there is a risk of the service life,
starting characteristics, fuel consumption
and environmental impact of the car being
affected.

If engine oil of the prescribed grade and
viscosity is not used, engine related com-
ponents may become damaged. Volvo dis-
claims any liability for any such damage.

Volvo recommends that oil changes are
carried out at an authorised Volvo work-
shop.

Related information

•

Engine oil – specifications (p. 641)

•

Engine oil (p. 587)

SPECIFICATIONS

643

Coolant – specifications

Prescribed grade:

 Ready-mixed coolant

approved by Volvo. If concentrated coolant is
used, mix with 50% water (of approved
water quality, not salt water, etc.). Consult a
Volvo dealer if unsure.

Only coolant approved by Volvo should be
used in order to prevent impairment of the
cooling system, engine problems, etc.

WARNING

Swallowing coolant is hazardous, it may

cause damage to organs (kidneys). The

product contains ethylene glycol, inhibitor,

water, etc.

Related information

•

Topping up coolant (p. 590)

Transmission fluid – specifications

The transmission fluid needs to be replaced
every 60,000 km.

Automatic gearbox

Prescribed transmis-
sion fluid:

Dual clutch oil,
D1

Related information

•

Type designations (p. 632)

Brake fluid – specifications

Brake fluid is the medium in a hydraulic brake
system that is used to transfer pressure from
e.g. a brake pedal via a master brake cylinder,
which in turn acts on the brake callipers.

Prescribed grade:

 Volvo Original or equiva-

lent fluid compliant with a combination of
Dot 4, 5.1 and ISO 4925 class 6.

NOTE

It is recommended that brake fluid is
changed or filled by an authorised Volvo
workshop.

Related information

•

Engine compartment overview (p. 586)

SPECIFICATIONS

644

Fuel tank - volume

The fuel tank's filling capacity can be read in
the table below.

All models

Litres (approx)

48

US gallons (approx)

12.7

Related information

•

Filling fuel (p. 453)

Air conditioning – specifications

The car's climate control system uses a freon-
free refrigerant either R1234yf or R134a
depending on market. Information about
which refrigerant the car's climate control
system uses is printed on a decal located on
the inside of the bonnet.

Prescribed grades and volumes of fluids and
lubricants in the air conditioning system can
be read below.

A/C decal

Decal for R134a

Decal for R1234yf

SPECIFICATIONS

645

Symbol explanation R1234yf

Symbol Meaning

Caution

Mobile air conditioning system
(MAC)

Lubricant type

A trained and certified technician
is required in order to service the
mobile air conditioning system
(MAC)

Flammable refrigerants

Refrigerant

Refrigerant amount is printed on the decal
located on the inside of the bonnet.

Cars with R134a refrigerant

 Refrigerant amount.

WARNING

The air conditioning system contains pres-

surised refrigerant R134a. This system

must only be serviced and repaired by an

authorised workshop.

Cars with R1234yf refrigerant

 Refrigerant amount.

WARNING

The air conditioning system contains pres-

surised refrigerant R1234yf. In accordance

with SAE J2845 (Technician Training for

Safe Service and Containment of Refriger-

ants Used in Mobile A/C System), service

and repair of the refrigerant system must

only be performed by trained and certified

technicians in order to ensure the safety of

the system.

Compressor oil

Volume

Prescribed grade

100 ml (3.38 fl. oz.)

PAG SP-A2

Evaporator

IMPORTANT

The A/C system's evaporator must never
be repaired or replaced with a previously
used evaporator. A new evaporator must
be certified and labelled in accordance
with SAE J2842.

Related information

•

Servicing the climate control system
(p. 584)

SPECIFICATIONS

646

Fuel consumption and CO

2

emissions

The information in the tables below is in
accordance with WLTP (Worldwide Harmon-
ised Light-Duty Vehicles Test Procedure),
which is an international test method for
vehicles equivalent to a passenger car
designed for laboratory testing.

The fuel consumption for a vehicle is meas-
ured in litres per 100 km and carbon dioxide
emissions (CO

2

) are measured in gram CO

2

per km.

Explanation

Weighted combined value. The
value is weighted between elec-
tric mode and fuel mode over the
entire drive cycle.

gram CO

2

/km

litres/100 km

Certified value for the car's
potential range ("up to") in km in
electric mode. The value should
not be interpreted as an expected
range, and the range is difficult to
achieve during normal driving.

Urban and suburban driving

Average value over all four drive
cycle phases (urban, suburban,
extra-urban and motorway driv-
ing)

Automatic gearbox

Low value

High value

NOTE

If there is no consumption and emissions
data in the table, this is available in an
enclosed supplement.

NOTE

The capacity of the hybrid battery dimin-
ishes with age and use, which may result
in increased use of the internal combustion
engine and, as a consequence, reduced
fuel economy and reduced range during
electric operation.

T4 Twin Engine (B3154T10)

–

–

-

A

-

A

–

–

-

A

-

A

SPECIFICATIONS

}}

647

T5 Twin Engine (B3154T5)

–

–

-

A

-

A

–

–

-

A

-

A

A

Drive mode PURE

The values in the table above for fuel con-
sumption, CO

2

 emissions, and range for elec-

tric mode are based on special drive cycles
(see below). The car's weight may increase
depending on its equipment level. Together
with how heavily the car is loaded, this affects
fuel consumption and CO

2

 emissions, and

reduces its range in electric mode. According
to WLTP, each car has unique fuel consump-
tion, CO

2

 emission values and electric range

values, depending on how the car is equipped.
These values range between the low value and
high value in the table above. In many mar-
kets, you can find your car's unique fuel con-
sumption, CO

2

 emission values and electric

range values in the car's registration docu-
ment.

The certified values for the car should not be
interpreted as the expected values. The certifi-
cation values are the comparative values

obtained during special drive cycles (see
below).

There are several reasons for fuel consumption
that is higher and an electric range that is
shorter than the values in the table. Examples
of these include:

•

If the car is not regularly charged from the
mains.

•

If the car is equipped with extra equip-
ment that affects its weight.

•

Driving style.

•

If the customer chooses wheels other than
those mounted as standard on the basic
version of the model, this could increase
rolling resistance.

•

High speed causes increased air resis-
tance.

•

Fuel quality, road and traffic conditions,
weather and the condition of the car.

A combination of the examples above could
increase consumption considerably.

There may be huge deviations in fuel con-
sumption if comparing to the drive cycle pro-
files (see below), which are used in the certifi-
cation of the car and on which consumption
figures in the table are based. For further infor-
mation, please refer to the referenced regula-
tions.

NOTE

Extreme weather conditions, driving with a
trailer or driving at high altitudes, in combi-
nation with poorer fuel quality than recom-
mended, are factors that considerably
increase the car's fuel consumption.

WLTP standard

From and including 1 September 2018, a new
standard was introduced for calculating con-
