Volvo V90 Twin Engine (2020 year). Manual in english - page 23

Activate park assist camera (p. 400)

•

•

Park assist camera locations and

surveillance areas

The function can display a composite 360°
view and separate views for each of the four
cameras: rear, front, left or right camera view.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

* Option/accessory.

396

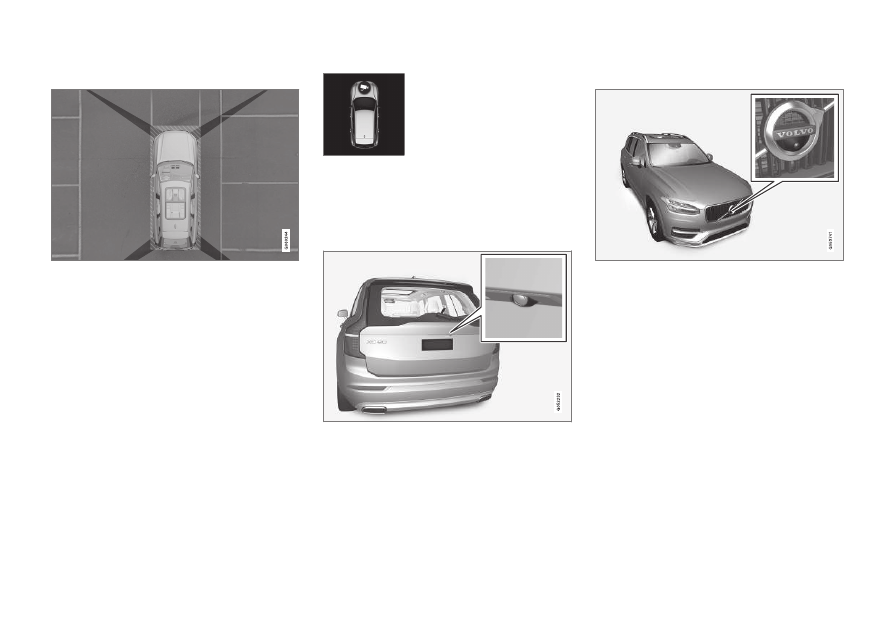

360° view

The "field of vision" of the parking cameras with

approximate coverage area.

The

360° view

function activates all parking

cameras, whereupon the four sides of the car
are shown simultaneously in the centre dis-
play, which helps the driver to observe what is
around the car when manoeuvring at slow
speeds.

From the 360° view, each camera view can
be activated separately:

•

Press the screen for the desired “field of
vision” of the camera, e.g. on the surface
in front of/above the front camera.

A camera symbol on the cen-
tre display's car symbol indi-
cates which of the cameras is
active.

If the car is also equipped
with

Park Assist System

then distance to detected obstacles is illus-
trated with fields in different colours.

The cameras can be activated automatically or
manually.

Backwards

The backwards-facing camera is fitted above the reg-

istration plate.

The backward-facing camera shows a wide
area behind the car. For certain models, part
of the bumper can be seen as well as the tow-
bar in some cases.

Objects shown in the centre display may
appear slightly tilted — this is normal.

Forwards

The forwards parking camera is located in the grille.

The front camera can be helpful on an exit
road with limited visibility to the sides, e.g.
when there are high hedges. It is active at
speeds up to 25 km/h (16 mph) - following
which, the front camera is switched off.

If the car does not reach 50 km/h (30 mph)
and the speed falls below 22 km/h (14 mph)
within 1 minute after the forward-facing cam-
era has been extinguished, the camera is reac-
tivated.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

}}

* Option/accessory.

397

The sides

The side cameras are positioned in each door mirror.

The side cameras can show what is along
each side of the car.

Related information

•

Park assist camera

(p. 394)

•

•

Park assist lines for park assist

camera

The Park assist cameras indicate the position
of the car in relation to its surroundings by
displaying lines on the screen.

Example of park assist lines.

Park assist lines show the intended route for
the car's external dimensions with the current
steering wheel angle - this can facilitate paral-
lel parking, reversing into tight spaces and
when connecting a trailer.

The lines on the screen are projected as if they
were at ground level behind the car and
respond directly to steering wheel move-
ments, showing the driver the path the car will
take - also when the car is turning.

These park assist lines include the car's most
protruding parts, e.g. towbar, door mirrors and
corners.

•

When reversing with a trailer which is
not connected electrically to the car,
the park assist lines on the display
show the route the

car

will take – not

the trailer.

•

The screen shows no park assist lines
when a trailer is connected electrically
to the car's electrical system.

•

Park assist lines are not shown when
zooming in.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

* Option/accessory.

398

Park assist camera locations and surveil-
lance areas

•

Remember, that with the rear camera
view selected, the monitor only dis-
plays the area behind the car. Be
aware of the sides and front of the car
when manoeuvring in reverse.

•

The same applies vice versa - note
what happens to the rear parts of the
car when the front camera view is
selected.

•

Note that the park assist lines show
the

shortest

route. Therefore, pay extra

attention to the car's sides so that they
do not go against/over something
when the steering wheel is turned
when driving forward or that the front
sweeps against/over something when
the steering wheel is turned when
reversing.

Park assist lines in 360° view

360° view with park assist lines.

With the 360° view, park assist lines are
shown behind, in front of and at the side of the
car (depending on the direction of travel):

•

When driving forwards: Front lines

•

When reversing: Side lines and reversing
lines.

With front or rear camera selected, the park
assist lines appear regardless of the car's
direction of travel.

With one side camera selected, the park assist
lines only appear when reversing.

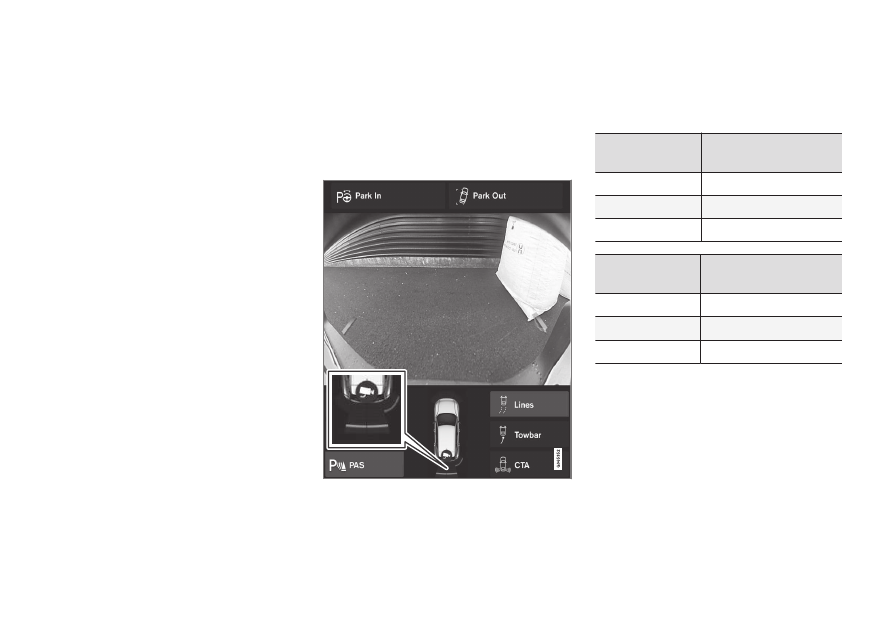

Towbar assist line

Towbar with park assist line.

Towbar

- activates the towbar assist line.

Zoom

- zoom in/out.

The camera can facilitate connecting up to a
trailer by showing an assist line representing
the towbar's intended "path" to the trailer.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

}}

* Option/accessory.

399

1. Press

Towbar

(1).

> The park assist lines for the towbar's

intended "path" appear - the car's park
assist lines disappear simultaneously.

Park assist lines for both car and tow-
bar cannot be shown at the same time.

2. Press

Zoom

(2) when a more precise

manoeuvring is required.
> The camera view zooms in.

Related information

•

Park assist camera

(p. 394)

•

(p. 395)

•

Park assist camera locations and surveil-
lance areas

•

Towbar

(p. 479)

Sensor fields for parking

assistance system

If the car is equipped with parking assistance
system

then the distance is shown in the

360° view with coloured fields for each sen-
sor that registers an obstacle.

Sensor fields backwards and forwards

The screen can show coloured sensor fields on the

car symbol.

The fields for the sensors for forwards and
reverse change colour as the distance to the
obstacle decreases – from AMBER through
ORANGE to RED.

Field colour

reverse

Distance in metres

(feet)

Yellow

0,6-1,5 (2,0-4,9)

Orange

0,3–0,6 (1,0–2,0)

Red

0-0,3 (0-1,0)

Field colour

forwards

Distance in metres

(feet)

Yellow

0,6–0,8 (2,0–2,6)

Orange

0,3–0,6 (1,0–2,0)

Red

0-0,3 (0-1,0)

For RED sensor fields, the pulsating acoustic
signal changes over to a constant tone.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

* Option/accessory.

400

Sensor field to the sides

Warning signals depend on the intended route
of the car. When the steering wheel is turned,
therefore, there may also be a warning for
obstacles diagonally in front of or diagonally
behind the car, not just straight ahead or
directly behind.

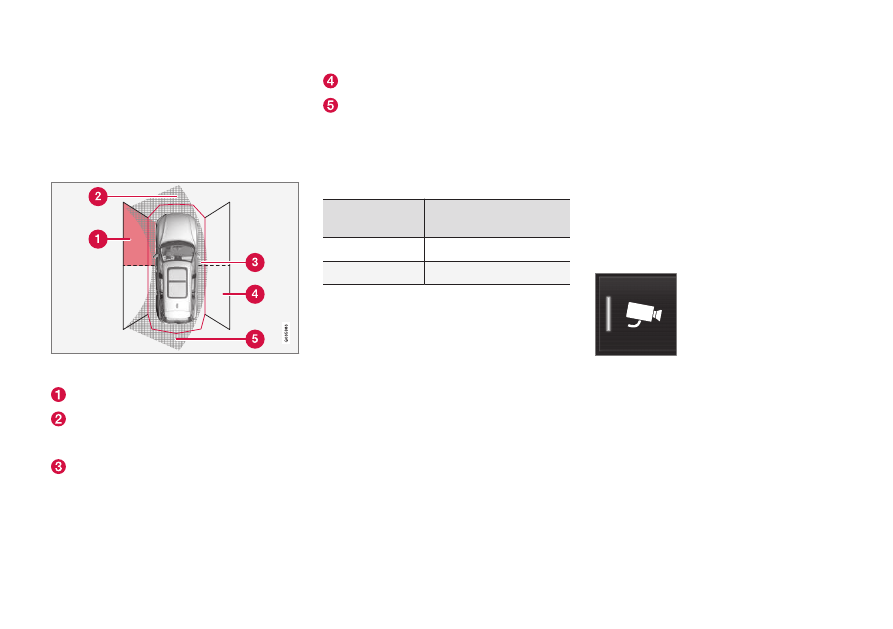

Parking sensor sectors where obstacles can be

detected.

Left-hand side front sensor field

Obstacle sector in the car's intended route
forwards – depending on steering wheel
angle
Sector with RED field colour and inten-
sively pulsing tone

Right-hand side rear sensor field

Obstacle sector in the car's intended route
in reverse – depending on steering wheel
angle.

The colour of the side fields changes with
reduced distance to the obstacle – from
AMBER to RED.

Colour of side

fields

Distance in metres

(feet)

Yellow

0,25–0,9 (0,8–3,0)

Red

0–0,25 (0–0,8)

In the case of RED sensor fields, the acoustic
signal changes from pulsing to intensively
pulsing.

Related information

•

•

•

(p. 395)

•

Limitations of Parking assistance (p. 392)

Activate park assist camera

The park assist camera is activated automati-
cally when reverse gear is engaged or man-
ually with one of the centre display's function
buttons.

Camera view when reversing

When reverse gear is engaged, the screen
shows the 360° view if it or any of the side
views was the last used camera view, other-
wise the rear view is shown.

Camera view for manual camera
activation

Activate the parking camera
with this button in the centre
display's function view.

The screen then initially
shows the last used camera
view. However, after each

engine start, the previously shown side view is
replaced by the 360° view and the previously
shown zoomed rear view is replaced by the
rear view.

•

GREEN button indication – the function is
activated.

•

GREY button indication – the function is
deactivated.

Automatic deactivation of camera

The front view extinguishes at 25 km/h
(16 mph) to avoid distracting the driver – it

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

* Option/accessory.

401

reactivates automatically if the speed drops to
22 km/h (14 mph) within 1 minute, on the con-
dition that the speed has not exceeded
50 km/h (31 mph).

Other camera views are extinguished at
15 km/h (9 mph) and not reactivated.

Related information

•

Park assist camera

(p. 394)

•

•

Driving support systems (p. 282)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

402

Symbols and messages for Park

assist camera

Symbols and messages for Park assist cam-
era can be shown in the driver display and/or
the centre display. Here are some examples.

Symbol

Message

Specification

The rearward parking assistance sensors are

deactivated

, so there are no acoustic warnings

and field marks for obstacles/objects.

The camera is disengaged.

Park Assist System

Sensors blocked, cleaning nee-
ded

One or more of the function's sensors are blocked - check and correct as soon as possible.

Park Assist System

Unavailable Service required

The system does not function as it should. A workshop should be contacted

An authorised Volvo workshop is recommended.

A text message can be cleared by briefly
pressing the

button, located in the centre

of the steering wheel's right-hand keypad.

If a message persists, contact a workshop

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

* Option/accessory.

404

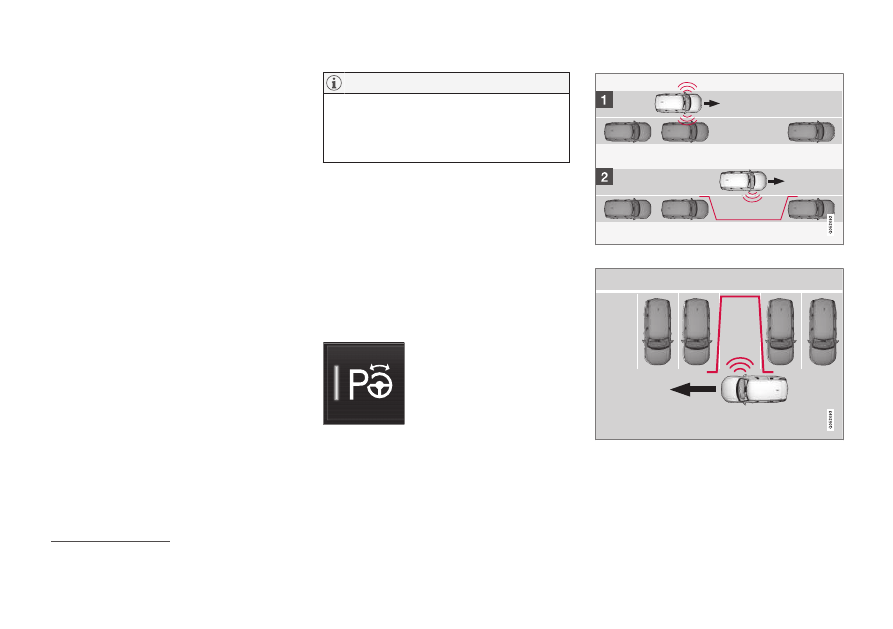

Park Assist Pilot

Park Assist Pilot (PAP

116

) can assist the driver

to manoeuvre the car while parking. The
function can also assist with steering when
driving out from parallel parking.

The function first checks if a space is large
enough and if so then assists the driver to
steer the car into the space.

The centre display indicates with symbols,
graphics and text the various operations to be
carried out and when to do so.

WARNING

•

The function is supplementary driver
support intended to facilitate driving
and make it safer – it cannot handle all
situations in all traffic, weather and
road conditions.

•

Related information

•

•

Parking variants with Park Assist Pilot

(p. 405)

•

Using Park Assist Pilot

(p. 406)

•

Leaving parallel parking with Park Assist
Pilot

(p. 408)

•

Limitations of Park Assist Pilot

(p. 409)

•

Messages for Park Assist Pilot

(p. 411)

116

Park Assist Pilot

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

* Option/accessory.

405

Parking variants with Park Assist

Pilot

Park Assist Pilot (PAP

117

) can be used for

both parallel and perpendicular parking.

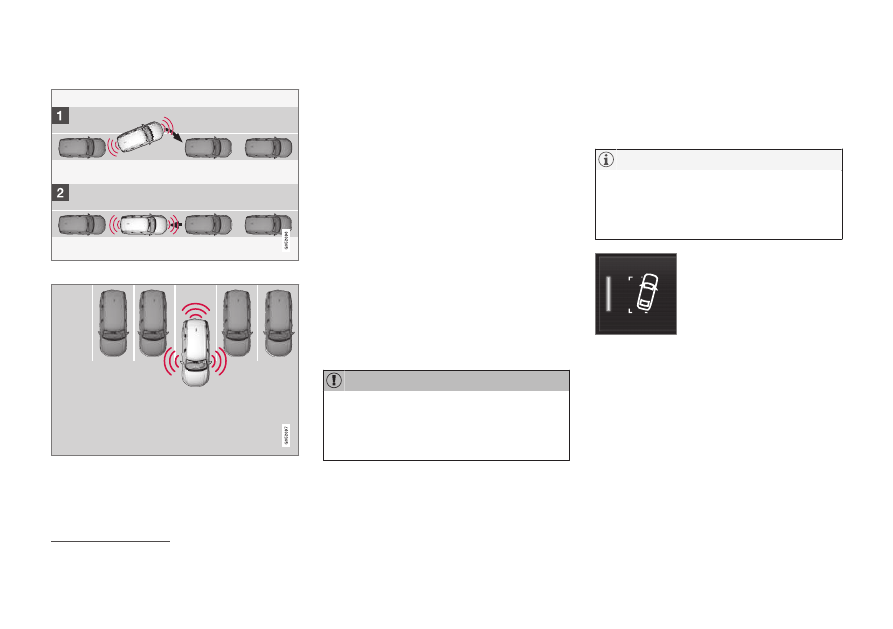

Parallel parking

The principal of parallel parking.

The function parks the car using the following
steps:

1. A parking space is identified and meas-

ured.

2. The car is reversed into the space.
3. The car is positioned in the space by

means of driving forward/backward.

With the

Park Out

function, a parallel-parked

car can also get help from the function with
leaving the parking space.

Perpendicular parking

Principle for perpendicular parking.

The function parks the car using the following
steps:

1. A parking space is identified and meas-

ured.

2. The car is reversed into the space and

then positioned in the space by means of
driving forward/backward.

When leaving a parking space, the

Park

Out

function must only be used for a paral-

lel-parked car - it does not work for a per-
pendicular-parked car.

Related information

•

Leaving parallel parking with Park Assist
Pilot

•

(p. 408)

117

Park Assist Pilot

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

* Option/accessory.

406

Using Park Assist Pilot

Park Assist Pilot (PAP

118

) helps the driver

park via three steps. The function can also
help the driver to leave a parking space.

This function measures space and steers the
car – the driver's job is to:

•

keep an eye on what is happening around
the car

•

follow the instructions in the centre dis-
play

•

select a gear (reverse/forward) – an
acoustic signal indicates when the driver
should change gear

•

regulate and maintain a safe speed

•

brake and stop.

Symbols, graphic and/or text appear on the
centre display when the different steps are to
be performed.

The function can be activated if the following
criteria are met once the engine has been
started:

•

No trailer is attached to the car

•

Speed is lower than 30 km/h (20 mph).

The distance between the car and parking
spaces should be 0.5–1.5 metres
(1.6–5.0 ft) while the function is searching
for a parking space.

Parking with Park Assist Pilot

The function parks the car using the following
steps:

1. A parking space is identified and meas-

ured.

2. The car is reversed into the space.
3. The car is positioned into the space - the

system may then request that the driver
changes gear and brakes.

Find and measure parking spaces

The function can be activated
in the centre display's func-
tion view.

It can also be accessed from
the camera views.

•

GREEN button indication – the function is
activated.

•

GREY button indication – the function is
deactivated.

Principle for searching before parallel parking.

Principle for searching before perpendicular parking.

Drive no faster than 30 km/h (20 mph) for
parallel parking or 20 km/h (12 mph) for per-
pendicular parking.

118

Park Assist Pilot

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

}}

407

1. Tap on the

Park In

button in the function

view or in the camera view.
> The function searches for a parking

space and checks whether it is big
enough.

2. Be prepared to stop the car when the

graphic and message on the centre dis-
play state that a suitable parking space
has been found.
> A pop-up window is shown.

3. Select

Parallel parking

Perpendicular

parking

and select reverse gear.

The function searches the area for parking,
displays instructions and guides the car in
on its passenger side. But if required the
car can also be parked on the driver's side
of the street:

•

Activate the direction indicator to the
driver's side - then the system
searches for a parking space on that
side of the car instead.

Reversing in to the parking space

Principle for reversing into parallel parking.

Principle for reversing into perpendicular parking.

1. Check that the area behind the car is clear,

then engage reverse gear.

2. Reverse slowly and carefully without

touching the steering wheel - and no
faster than 7 km/h (4 mph).

3. Be prepared to stop the car when instruc-

ted by the graphic and message on the
centre display.

•

Keep your hands away from the steer-
ing wheel when the function is acti-
vated.

•

Make sure that the steering wheel is
not hindered in any way and can rotate
freely.

•

To achieve optimum results - wait until
the steering wheel is fully turned
before starting to drive backward/
forward.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

* Option/accessory.

408

Positioning the car in the parking space

Principle for positioning during parallel parking.

Principle for positioning during perpendicular park-

ing.

1. Move the gear selector to the gear posi-

tion as instructed by the system, wait until
the steering wheel has been turned and
drive forward slowly.

2. Be prepared to stop the car when instruc-

ted by the graphic and message on the
centre display.

3. Select reverse gear and drive slowly back-

wards.

4. Be prepared to brake the car when

instructed by the graphic and message on
the centre display.

The function is deactivated automatically and
the graphics and message show that parking
is complete. It may be necessary for the driver
to correct the car’s position. Only the driver
can determine whether the car is properly
parked.

The warning distance is shorter when the
sensors are used by Park Assist Pilot
(PAP

119

) compared with when Park Assist

System uses the sensors.

Related information

•

Limitations of Park Assist Pilot

•

(p. 409)

Leaving parallel parking with Park

Assist Pilot

The

Park Out

function can help the driver to

leave a parking space when the car is parallel
parked.

When leaving a parking space, the

Park

Out

function must only be used for a paral-

lel-parked car - it does not work for a per-
pendicular-parked car.

The

Park Out

function is acti-

vated in the centre display's
function view or in the cam-
era view.

•

GREEN button indication – the function is
activated.

•

GREY button indication – the function is
deactivated.

1. Tap on the

Park Out

button in the func-

tion view or in the camera view.

2. Use the direction indicator to select the

direction in which the car should leave the
parking space.

119

Park Assist Pilot

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

}}

* Option/accessory.

409

3. Be prepared to stop the car when instruc-

ted by the graphic and message on the
centre display - follow the instructions in
the same way as for the parking proce-
dure.

Note the steering wheel can "spring" back
when the function is completed - the driver
may then need to turn the steering wheel back
to the maximum steering angle in order to
leave the parking space.

If the function considers that the driver can
leave the parking space without any extra
manoeuvring then the function will be stop-
ped, even if the driver may consider that the
car is still in the parking space.

Related information

•

Limitations of Park Assist Pilot

•

(p. 409)

Limitations of Park Assist Pilot

The Park Assist Pilot (PAP

120

) function cannot

detect everything in all situations and may
therefore have limited functionality.

WARNING

•

The parking sensors have blind spots
where obstacles cannot be detected.

•

Pay particular attention if there are
people and animals near the car.

•

Bear in mind that the front of the car
may swing out towards oncoming traf-
fic during the parking manoeuvre.

Objects situated higher than the sensor
detection area are not included when cal-
culating the parking manoeuvre, which
could cause the function to swing into the
parking space too early – such parking
spaces should be avoided for this reason.

A driver should be aware about the following
examples of Park Assist Pilot limitations:

Parking is discontinued

A parking sequence will be discontinued:

•

if the driver moves the steering wheel

•

if the car is driven too quickly - above
7 km/h (4 mph)

•

if the driver presses

Cancel

in the centre

display

•

when the anti-lock brakes or the Elec-
tronic stability control are engaged - e.g.
when a wheel loses grip on a slippery road

•

as the steering servo for speed-dependent
steering wheel resistance is working at
reduced power – e.g. when cooling due to
overheating

Where applicable, a message in the centre
display states the reason for a parking
sequence being discontinued.

120

Park Assist Pilot

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

* Option/accessory.

410

Under certain circumstances, the function
is unable to find parking spaces - one rea-
son for this may be the fact that there is
interference with the sensors from external
sound sources which emit the same ultra-
sound frequencies as those with which the
system works.

Examples of such sources include horns,
wet tyres on asphalt, pneumatic brakes
and exhaust noises from motorcycles etc.

Dirt, ice and snow covering the sensors
will reduce their function and may prevent
measurement.

Driver responsibility

The driver should bear in mind that the func-
tion is an aid – not an infallible, fully-automatic
function. The driver must therefore be pre-
pared to interrupt a parking step.

There are also a few details to bear in mind
while parking, e.g.:

•

The driver is always responsible for deter-
mining whether the space selected by the
function is suitable for parking.

•

Do not use the function if snow chains or
a spare wheel are fitted.

•

Do not use the function if cargo items are
protruding from the car.

•

Heavy rain or snow may cause the system
to measure the parking space incorrectly.

•

During the search and check-measure-
ment of the parking space, the function
may miss objects positioned deep in the
parking space.

•

Parking spaces on narrow streets are not
always feasible, since the space required
for manoeuvring may not be sufficient.

•

Use approved tyres

121

with the correct tyre

pressure - this affects the ability of the
function to park the car.

•

The function bases itself on the locations
of vehicles already parked nearby – if they
are inappropriately parked, your own car's
tyres and wheel rims may be damaged by
contact with the kerb.

•

Perpendicular parking spaces may be
missed or offered unnecessarily if one

parked car is protruding more than other
parked cars.

•

The function is designed for parking on
straight streets – not sharp curves or
bends. For this reason, make sure the car
is parallel to the potential parking spaces
when the function measures the space.

Related information

•

Speed-dependent steering force (p. 282)

•

•
