Recommended tyre pressure (p. 560)

The compressor is an electrical device. Fol-
low local regulations related to waste man-
agement.

Related information

•

•

Emergency puncture repair kit (p. 574)

•

Inflating tyres with the compressor from
the puncture repair kit (p. 578)

Inflating tyres with the compressor

from the puncture repair kit

The car's original tyres can be inflated using
the compressor in the emergency puncture
repair kit.

1. The compressor must be switched off.

Make sure that the switch is in position

(Off), and take out the electrical cable and
the air hose.

2. Unscrew the tyre's dust cap and screw in

the air hose's valve connection to the bot-
tom of the thread on the tyre's air valve.

Check that the pressure reducing valve on
the air hose is fully screwed in.

3. Connect the electrical cable to the closest

12 V socket and start the car.

WARNING

Inhaling car exhaust fumes could result in

danger to life. Never leave the engine run-

ning in sealed areas or areas that lack suffi-

cient ventilation.

WARNING

Do not leave children in the car without

supervision when the engine is running.

4. Start the compressor by flicking the

switch to position

(On).

Risk of overheating. The compressor must
not run for more than 10 minutes.

5. Inflate the tyre to the pressure specified

on the tyre pressure label on the driver
side door pillar. Release air using the pres-
sure reducing valve if the tyre pressure is
too high.

6. Switch off the compressor. Detach the air

hose and the electrical cable.

7. Refit the dust cap on the tyre.

•

After a tyre has been inflated, always
refit the dust cap in order to avoid dam-
age to the valve from gravel, dirt, etc.

•

Only use plastic dust caps. Metal dust
caps can rust and become difficult to
unscrew.

The compressor is an electrical device. Fol-
low local regulations related to waste man-
agement.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

LOADING, STORAGE AND PASSENGER COMPARTMENT

* Option/accessory.

582

Passenger compartment interior

Overview of the passenger compartment's
interior and storage locations.

Front seat

Storage compartment in the door panel and by the

steering wheel, glovebox and sun visors.

Storage spaces with cup holder, electrical socket,
mesh pocket

and USB port in the tunnel console.

Rear seat

Storage compartment in the door panel, cup holder

in the centre seat backrest, storage pocket

on the

front seat backrest and also electrical sockets in the

tunnel console.

WARNING

Keep loose objects such as mobile phones,

cameras, remote controls for accessories,

etc. in the glove compartment or other

compartments. Otherwise they may injure

people in the car in the event of sudden

braking or a collision.

Electrical sockets (p. 584)

Keep in mind that high gloss surfaces, for
example, are easily scratched by metal
objects. Do not place keys, phones and
other items on sensitive surfaces.

Related information

•

•

Using the glovebox (p. 587)

•

Sun visors (p. 589)

•

Tunnel console (p. 583)

•

Connecting a device via USB port (p. 514)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

LOADING, STORAGE AND PASSENGER COMPARTMENT

* Option/accessory.

583

Tunnel console

The tunnel console is located between the
front seats.

Storage compartment with cup holder.

Storage compartment with 12 V socket
and USB port under the armrest.
Climate controls for the rear seat climate
functions

or storage compartment.

WARNING

Keep loose objects such as mobile phones,

cameras, remote controls for accessories,

etc. in the glove compartment or other

compartments. Otherwise they may injure

people in the car in the event of sudden

braking or a collision.

Keep in mind that high gloss surfaces, for
example, are easily scratched by metal
objects. Do not place keys, phones and
other items on sensitive surfaces.

One of the detectors for the alarm

located under the tunnel console's cup
holder. Avoid leaving coins, keys and other
metal objects in the cup holder, since this
may trigger the alarm.

Related information

•

Electrical sockets (p. 584)

•

•

Climate controls (p. 209)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

LOADING, STORAGE AND PASSENGER COMPARTMENT

* Option/accessory.

584

Electrical sockets

There are two 12 V electrical sockets and one
230 V electrical socket

in the tunnel con-

sole, and there is one 12 V electrical socket

in the cargo area.

If a problem occurs with an electrical socket,
contact a workshop - an authorised Volvo
workshop is recommended.

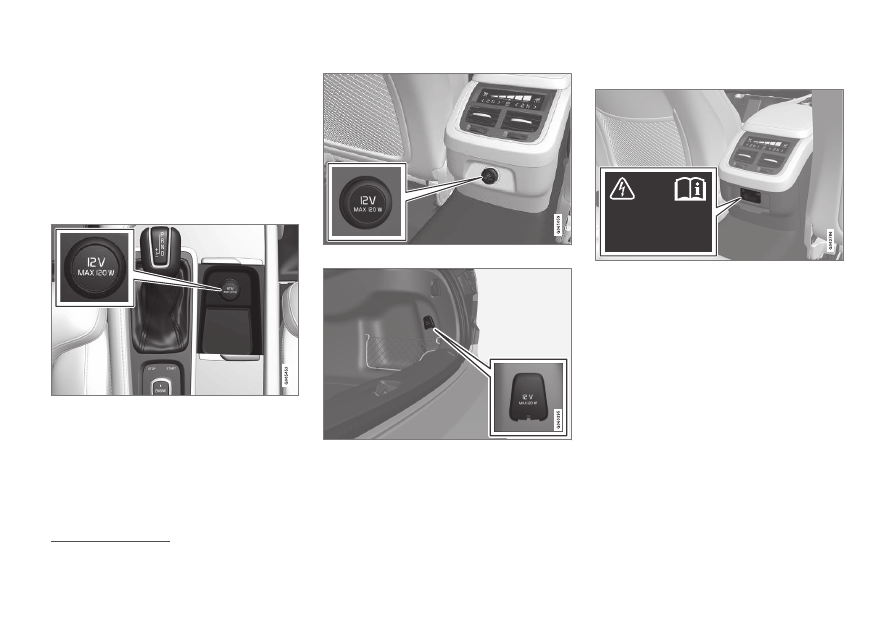

12 V electrical socket

12 V electrical socket in tunnel console, front seat.

The 12 V sockets can be used for various
accessories designed for this, such as music
players, cooler boxes and mobile phones.

12 V electrical socket in tunnel console, rear seat.

12 V electrical socket in cargo area

High voltage socket

Electrical socket in the tunnel console, rear seat.

The high-voltage socket

can be used for vari-

ous accessories designed for this, such as
chargers or laptops.

Status indication, high-voltage socket

An LED

lamp on the socket indicates the sta-

tus of the socket:

LED (Light Emitting Diode)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

LOADING, STORAGE AND PASSENGER COMPARTMENT

585

Status indication

Reason

Action

Steady green light

The socket is delivering current to a connected device.

None.

Blinking orange light The temperature of the socket's voltage converter is too high (because

for example the accessory draws too high a current or the passenger
compartment is too warm).

Remove the plug and let the voltage converter cool
down before reinserting the plug.

The connected accessory draws too much current (intermittently or
continuously) or is defective.

None. The accessory cannot be connected to the
socket.

Extinguished lamp

The socket does not sense that a plug has been inserted.

Check that the plug is properly inserted into the
socket.

The socket is not active.

Switch the car's electrical system to the lowest
ignition position

The socket has been active but is now deactivated.

Start the engine and/or charge the starter battery.

Related information

•

Using electrical sockets (p. 586)

•

-------------------------------------------------------------------------------------------------------------------------------------------------------------

LOADING, STORAGE AND PASSENGER COMPARTMENT

* Option/accessory.

586

Using electrical sockets

12 V sockets can be used for various acces-
sories designed for this, such as music play-
ers, cooler boxes and mobile phones.

High-voltage sockets

can be used for various

accessories designed for this, such as charg-
ers and portable computers.

For the sockets to supply current, the car's
electrical system must be set in the lowest
ignition position

. The sockets are then active

as long as the starter battery level does not
become too low.

If the engine is switched off and the car is
locked, the sockets are deactivated. If the
engine is switched off and the car is not
locked, or is locked with double lock tempo-
rarily deactivated, then the sockets continue to
be active for a further seven minutes.

Remember that use of the electrical socket
with the engine switched off entails a risk
of discharging the starter battery, which
can limit functionality.

Accessories that are connected to the elec-
trical sockets may be activated even when
the car's electrical system is disconnected
or if preconditioning is used. For this rea-
son, disconnect the connectors when they
are not in use in order to avoid the starter
battery being discharged.

WARNING

•

Do not use accessories with large or
heavy connectors - they can damage
the socket or come loose when driving.

•

Do not use accessories that can cause
interference to the car's radio receiver
or electrical system for example.

•

Position the accessory so that it is not
at risk of injuring the driver or passen-
gers in the event of heavy braking or
collision.

•

Keep an eye on connected accessories
as they can generate heat that can
burn passengers or the interior.

Using 12 V sockets

1. Remove the blanking plug (tunnel con-

sole) or fold down the cover (cargo area)
in front of the socket and plug in the
accessory's connector.

2. Unplug the accessory's connector and

refit the blanking plug (tunnel console) or
fold up the cover (cargo area) when the
socket is not in use or if the socket is left
unattended.

Maximum socket output is 120 W (10 A)
per socket.

Using high-voltage sockets

1. Pull down the socket cover and insert the

accessory's plug.
> The LED

lamp on the socket indicates

the status.

2. Check that the lamp is illuminated with a

steady green light - only then is current
available at the socket.

LED (Light Emitting Diode)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

LOADING, STORAGE AND PASSENGER COMPARTMENT

}}

* Option/accessory.

587

3. Disconnect the accessory by pulling out

the plug - do not pull on the cable.

Pull up the cover when the socket is not
being used or the socket is left unatten-
ded.

Electrical sockets (p. 584)

Maximum socket output is 150 W.

WARNING

Never modify or repair the high-voltage

socket yourself. Volvo recommends that an

authorised Volvo workshop should be con-

tacted.

WARNING

•

Only use accessories that are undam-
aged and fault-free. The accessories
must have a CE marking, UL marking
or an equivalent safety marking.

•

Accessories must be rated for 230 V
and 50 Hz with connectors designed
for the socket.

•

Never allow sockets, connectors or
accessories to come into contact with
water or other liquids. Do not touch or
use the socket if it appears to be dam-
aged or has come into contact with
water or other liquid.

•

Do not connect junction sockets,
adapters or extension cables to the
socket as these can override the sock-
et's safety features.

•

The socket is equipped with a protec-
tive cover, ensure that nothing pro-
trudes in or damages the socket pre-
venting the cover from doing its job.
Do not leave children in the car unsu-
pervised when the socket is active.

Failure to follow the advice given above

can lead to severe or fatal electric shocks.

Related information

•

•

Using the glovebox

The glovebox is located on the passenger
side. The printed owner's manual and maps
can be kept in the glovebox, for example.
There is also space for a pen and card holder.

Locking and unlocking the glovebox

The glovebox can be locked, e.g. when the car
is taken in for service, left at a hotel or similar.
The glovebox can only be locked/unlocked
with the accompanying key.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

LOADING, STORAGE AND PASSENGER COMPARTMENT

588

The key's designated storage space. The figure is

schematic - the design may vary.

The figure is schematic - the design may vary.

Locking the glovebox:
Insert the key in the glovebox lock cylin-
der.
Turn the key 90 degrees clockwise.

Pull out the key.

–

Unlock by carrying this out in reverse
order.

Using the glovebox as a cooled area

The glovebox can be used for cooling of e.g.
drinks or food. The cooling works when the
climate control system is active (i.e. when the
car is set in ignition position

or when the

engine is running).

The figure is schematic - the design may vary.

Activating cooling.

Deactivating cooling.

–

Activate or deactivate the cooling by mov-
ing the control to the end position toward
the passenger compartment/glovebox.

Related information

•

•

Private locking (p. 271)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

LOADING, STORAGE AND PASSENGER COMPARTMENT

}}

* Option/accessory.

589

Sun visors

There are sun visors in the roof in front of the
driver seat and the front seat passenger seat
which can be folded down and angled out to
the side when necessary.

The figure is schematic - the design may vary.

The mirror lighting

is switched on automati-

cally when the guard is lifted up.

The mirror frame incorporates a holder for e.g.
cards or tickets.

Related information

•

Cargo area

Inside the car's cargo area, it is possible to
secure the load so that it stays in place while
driving.

With folding

backrests in the rear seat, the

cargo area can be made more spacious. There
are load retaining eyelets and bag holders
available for holding the load securely in place.

If the car is equipped with a spare wheel then
this is attached on the cargo area floor. The
car's towing eye and puncture repair kit are
stored under the cargo area floor.

Related information

•

Load retaining eyelets (p. 591)

•

Bag hooks (p. 591)

•

Recommendations for loading

There are a number of things that are impor-
tant to bear in mind when loading the car.

Payload depends on the car's kerb weight. The
total of the weight of the passengers and all
accessories reduces the car's payload by a
corresponding weight.

WARNING

The car’s driving properties change

depending on the weight and positioning

of the load.

Loading in the cargo area

Good things to remember when loading:

•

Position the load firmly against the rear
seat's backrest.

•

Heavy objects should be placed as low as
possible. Avoid placing heavy loads on
lowered backrests.

•

Cover sharp edges with something soft to
avoid damaging the upholstery.

•

Secure all loads to the load retaining eye-
lets with straps or web lashings.

WARNING

A loose object weighing 20 kg (44 pounds)

can, in a frontal collision at a speed of

50 km/h (30 mph) carry the impact of an

item weighing 1000 kg (2200 pounds).

-------------------------------------------------------------------------------------------------------------------------------------------------------------

LOADING, STORAGE AND PASSENGER COMPARTMENT

* Option/accessory.

590

WARNING

Leave 10 cm (4 inches) space between the

load and the side windows if the car is loa-

ded to above the top edge of the door win-

dows. Otherwise, the intended protection

of the inflatable curtain, which is concealed

in the headlining, may be compromised.

WARNING

Always secure the load. During heavy brak-

ing the load may otherwise shift, causing

injury to the car's occupants.
Cover sharp edges and sharp corners with

something soft.
Switch off the engine and apply the park-

ing brake when loading/unloading long

items. Otherwise you may accidentally

knock the gear lever or gear selector with

the load into a drive position - and the car

could then move off.

Increasing the space in the cargo area

To expand the cargo area and simplify loading,
the rear seat's backrest can be lowered

. Note

that objects must not prevent the function of
the WHIPS system for the front seats if any of
the rear seat's backrests is folded down.

A through-load hatch

in the rear seat can be

folded down for carrying long and narrow
loads.

Related information

•

Load retaining eyelets (p. 591)

•

Lowering the backrests in the rear seat

(p. 192)

•

Through-load hatch in the rear seat

(p. 592)

•

Roof load and loading on load carriers
(p. 590)

•

•

Roof load and loading on load

carriers

For loading on the car's roof, the load carriers
that Volvo have developed are recommended.

This is in order to avoid damage to the car and
in order to achieve the maximum possible
safety during a journey. Volvo's load carriers
are available for purchase at authorised Volvo
retailers.

Carefully follow the installation instructions
supplied with the carriers.

•

Distribute the load evenly over the load
carriers. Put the heaviest objects at the
bottom.

•

Check periodically that the load carriers
and load are properly secured. Lash the
load securely with retaining straps.

•

If the load is longer than the car at the
front, e.g. a canoe or kayak, fit the towing
eye to its front socket and attach the bun-
gee to this.

•

The size of the area exposed to the wind,
and therefore fuel consumption, increase
with the size of the load.

•

Drive gently. Avoid quick acceleration,
heavy braking and hard cornering.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

LOADING, STORAGE AND PASSENGER COMPARTMENT

591

WARNING

The car's centre of gravity and driving cha-

racteristics are altered by roof loads.
Follow the car's specifications with regard

to weights and maximum permitted load.

Related information

•

•

Weights (p. 659)

Bag hooks

Bag hooks keep carrier bags in place and pre-
vent them from overturning and spreading
their contents across the cargo area.

Along the sides

There is a bag hook in the side panel on each
side of the cargo area.

The bag hooks may be loaded with a maxi-
mum of 5 kg (11 lbs).

Related information

•

Using the glovebox (p. 587)

•

Load retaining eyelets

Use the load retaining eyelets to attach
straps in order to anchor items in the cargo
area.

WARNING

Hard, sharp and/or heavy objects which

protrude may cause injury under violent

braking.
Always secure large and heavy objects

with a seatbelt or cargo retaining straps.

Related information

•

•

Weights (p. 659)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

LOADING, STORAGE AND PASSENGER COMPARTMENT

* Option/accessory.

592

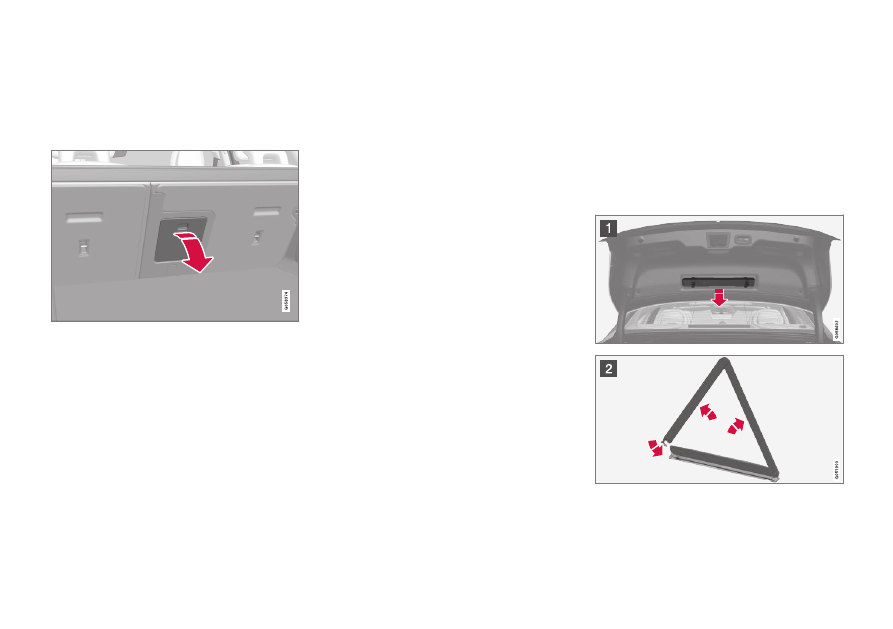

Through-load hatch in the rear

seat

The hatch in the rear seat's backrest can be
opened to transport long narrow items, e.g.
skis.

The figure is schematic - parts may vary depending

on car model.

1. In the cargo area, grip the hatch's handle

and fold down the hatch.

2. Fold forward the armrest in the rear seat.

If the private locking function is used then the
through-load hatch must be closed.

Related information

•

Load retaining eyelets (p. 591)

•

Private locking (p. 271)

•

First aid kit

The first aid kit contains first aid equipment.

Store the first aid kit in an appropriate place in
the cargo area, e.g. in the space on the right-
hand side. The first aid kit has Velcro straps
and can be attached directly to the panel.

Related information

•

Cargo area (p. 589)

Warning triangle

Use the warning triangle to warn other road
users if the car is stationary in traffic.

Also activate the hazard warning flashers.

Storage spaces

The warning triangle is fitted with two clips on
the inside of the boot lid.

Folding up the warning triangle

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MAINTENANCE AND SERVICE

596

Volvo service programme

To keep the car as safe and reliable as possi-
ble, follow the Volvo service programme as
specified in the Service and Warranty Book-
let.

Volvo recommends engaging an authorised
Volvo workshop to perform the service and
maintenance work. Volvo workshops have the
personnel, special tools and service literature
that can provide the highest quality of service.

For the Volvo warranty to apply, check and
follow the instructions in the Service and
Warranty Booklet.

Service and repair

Service the car regularly. Follow Volvo's rec-
ommended service intervals.

If inspection and repair are required then only
an authorised Volvo workshop may carry out
the work.

WARNING

Do not carry out any repairs of your own on

this vehicle. Electrical cables and/or com-

ponents that have detached must only be

rectified by an authorised workshop - an

authorised Volvo workshop is recom-

mended.

Charging cable with control unit

Book service and repair (p. 599)

Do not modify the control unit in any way.

Related information

•

Car status (p. 598)

•

•

Connection of equipment to the car's
diagnostic socket (p. 40)

•

Servicing the climate control system
(p. 603)

•

Brake system maintenance (p. 442)

•

Engine compartment overview (p. 605)

Data transfer between car and

workshop via Wi-Fi

Volvo's workshops have a specific Wi-Fi net-
work for data transfer between your car and
the workshop. Your workshop visit will be
simpler and more efficient when the transfer
of diagnostic information and software can
take place via the workshop's network.

During a workshop visit, your service techni-
cian may want to connect your car to the
workshop's network via Wi-Fi to perform
fault-tracing and software download. For this
type of communication, the car only connects
to a workshop's network. It is not possible to
connect the car to another Wi-Fi network,
such as at home, in the same way as to a
workshop's network.

Connection with the remote control
key

Connection is normally handled by the service
technician who then uses the remote control
key buttons. That's why it's important to take
a key with buttons with you for the workshop
visit. Press three times on the lock button on
the remote control key to connect the car to
the workshop's network via Wi-Fi.

When the car is connected to a Wi-Fi net-
work, the

symbol appears in the centre

display.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MAINTENANCE AND SERVICE

}}

* Option/accessory.

597

WARNING

The car must not be driven when con-

nected to the workshop's networks and

systems.

Related information

•

Managing system updates via the Down-
load Centre (p. 597)

•

Book service and repair (p. 599)

Download Center

Several of the car's systems can be updated
from the centre display with an online car

The

Download Centre

app is

started from app view in the
centre display and enables:

•

searching for and updating system soft-
ware

•

updating map data for Sensus Navigation

•

downloading, updating and uninstalling
apps.

Related information

•

Managing system updates via the Down-
load Centre (p. 597)

•

Downloading apps (p. 499)

•

Updating apps (p. 500)

•

Deleting apps (p. 500)

•

Internet-connected car

(p. 531)

•

Navigating in the centre display's views
(p. 113)

Managing system updates via the

Download Centre

Functions for online car and infotainment can
be updated via the Download Centre.
Updates can be made one at a time or all at
once.

Searching for update

If an update is available, the
message

New software

updates available

is shown

in the centre display's status
bar.

For system updates to be possible, the car
must be connected to the Internet

–

Go to

Download Centre

in the centre dis-

play's app view.
> If no search has been performed since

the last time the infotainment system
was started, a search is performed. No
search is performed if a software instal-
lation is in progress.

A number on

System updates

shows

how many updates are available. One
tap shows a list of the updates that can
be installed in the car.

Data is transferred (data traffic) when using the Internet, and this may involve a cost.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MAINTENANCE AND SERVICE

* Option/accessory.

598

Data download may affect other services
that transmit data, e.g. Internet radio. If the
effect on other services is experienced as
disruptive then the download can be inter-
rupted. Alternatively, it may be appropriate
to switch off or interrupt other services.
