KEY, LOCKS AND ALARM

}}

* Option/accessory.

239

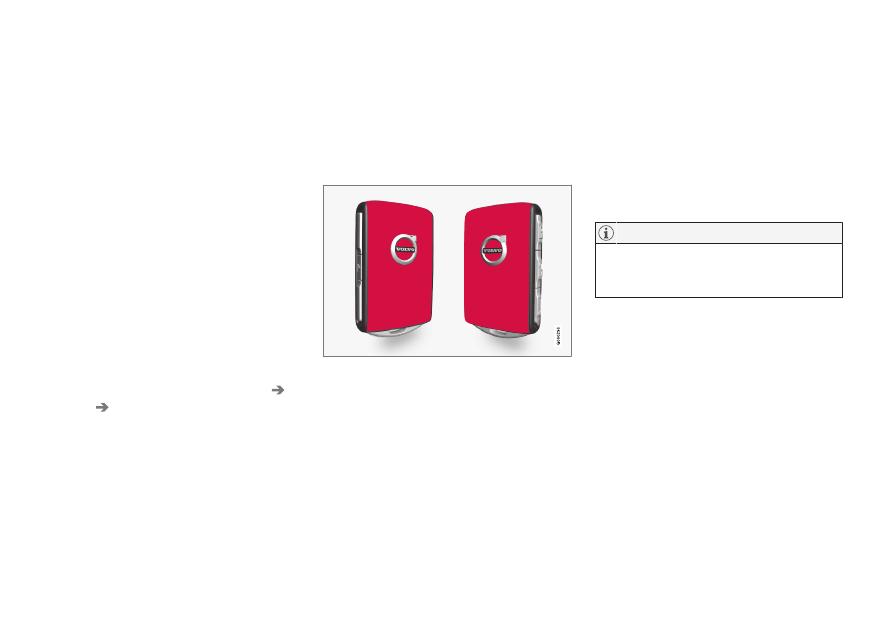

Red Key - restricted remote control
key

*

A Red Key is a key that makes it possible to
set restrictions for some of the car's proper-
ties, e.g. the car's maximum speed and the
loudspeaker system's maximum volume. A key
for any car owner who wants their car to be
driven responsibly even when someone else is
driving it.

Interference

Remote control key functions for keyless star-
ting and keyless locking and unlocking

*

 can be

disrupted by electromagnetic fields and
screening.

NOTE

Avoid storing the remote control key close
to metal objects or electronic apparatus,
e.g. mobile phones, tablets, laptops or
chargers - preferably no closer than
10-15 cm (4-6 inches).

If there is still interference - use the remote
control key's detachable key blade to unlock
and then place the key in the backup reader in
the cup holder to disarm the car and allow the
car to be started.

NOTE

When the remote control key is placed in
the cup holder, make sure that no other car
keys, metal objects or electronic apparatus
(e.g. mobile phones, tablets, laptops or
chargers) are in the cup holder. Several car
keys close to each other in the cup holder
can cause interference with each other.

Related information

•

Starting the car (p. 434)

•

Locking and unlocking with the remote
control key (p. 239)

•

Remote control key range (p. 241)

•

Replacing the battery in the remote con-
trol key (p. 241)

•

Detachable key blade (p. 247)

•

Immobiliser (p. 250)

•

Linking remote control key to driver profile
(p. 136)

Locking and unlocking with the

remote control key

The buttons on the remote control key can be
used to lock and unlock all doors and the
boot lid simultaneously.

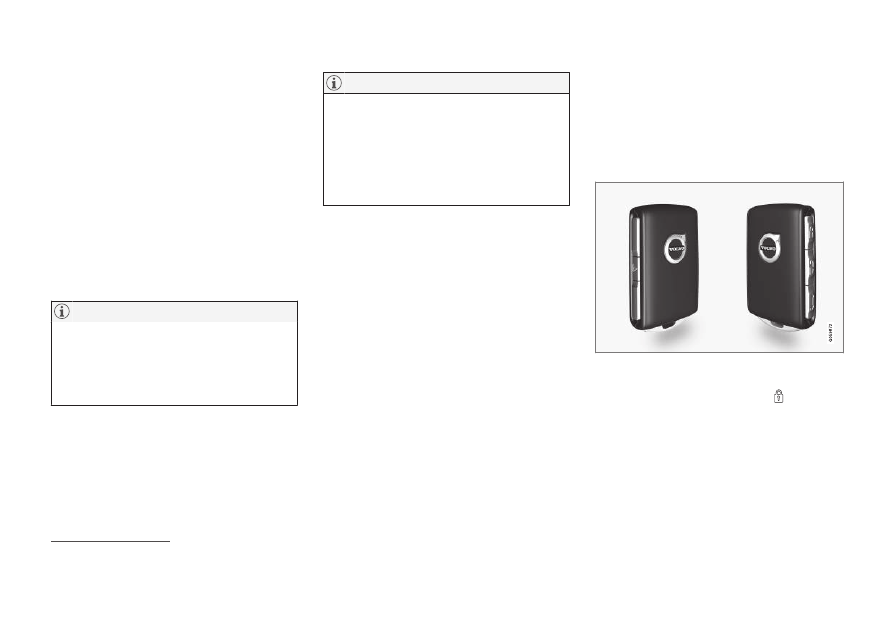

Locking with the remote control key

The figure is schematic - parts may vary depending

on car model.

–

Press the remote control key

 button to

lock the car.

For the lock sequence to be activated, the
driver door must be closed

4

. If any of the other

doors or the boot lid are open, these are
locked and alarmed

*

 only when they are

closed. The alarm's movement detectors

*

 are

activated when all the doors and the boot lid
are closed and locked.

4

If the car is equipped with keyless locking/unlocking

*

 then all side doors must be closed.

||

KEY, LOCKS AND ALARM

* Option/accessory.

240

NOTE

Be aware of the risk of locking the remote
control key in the car.

•

A remote control key or key tag left in
the car will be deactivated when the
car is locked and the alarm is armed
using another valid key. The "Double
lock" function is also deactivated. The
key left behind is reactivated when the
car is unlocked.

•

A Red Key left in the car will be deacti-
vated even when the car is locked
using Volvo On Call, and reactivated
when the car is unlocked using Volvo
On Call or with another valid key.

Locking when the boot lid is open

NOTE

If the car has been locked while the boot
lid is open, be careful not to leave the
remote control key in the cargo area when
the boot lid is closed and the car is com-
pletely locked

5

.

Unlocking with the remote control key

–

Press the remote control key

 button to

unlock the car.

Automatic relocking

If none of the doors or the boot lid is opened
within 2 minutes of unlocking, they are locked
automatically. This function prevents the car
from being left unlocked unintentionally.

When the remote control key does not
work

NOTE

Always try moving closer to the car and
making another unlock attempt.

If it is not possible to lock or unlock with the
remote control key, the battery may be dis-
charged - in which case, lock or unlock the
driver's door with the detachable key blade.

Related information

•

Settings for remotely controlled and inside
unlocking (p. 240)

•

Remote control key (p. 237)

•

Replacing the battery in the remote con-
trol key (p. 241)

•

Locking and unlocking with the detacha-
ble key blade (p. 248)

Settings for remotely controlled

and inside unlocking

It is possible to select different sequences for
remotely controlled unlocking.

To change setting:

1. Tap on

Settings

 in the centre display's

top view.

2. Press

My Car

Locking

Remote and

Interior Unlock

.

3. Select option:

•

All Doors

 - unlocks all doors simultane-

ously.

•

Single Door

 - unlocks the driver's

door. Unlocking all of the doors
requires two presses on the remote
control key's unlock button.

The settings made here also affect central
unlocking via opening handles from the inside.

Related information

•

Locking and unlocking with the remote
control key (p. 239)

•

Locking and unlocking from inside the car
(p. 264)

5

If the car is equipped with keyless locking/unlocking and the key is detected inside the car, the boot lid will not lock when it is closed.

*

KEY, LOCKS AND ALARM

}}

* Option/accessory.

241

Remote control key range

In order for the remote control key to work
properly it needs to be within a certain dis-
tance from the car.

For manual use

The remote control key's functions for e.g.
locking/unlocking that are activated by press-
ing on

 or

 have a range that extends

approx. 20 metres (65 feet) from the car.

If the car does not verify a button being
pressed - move closer and try again.

For keyless

*

 use

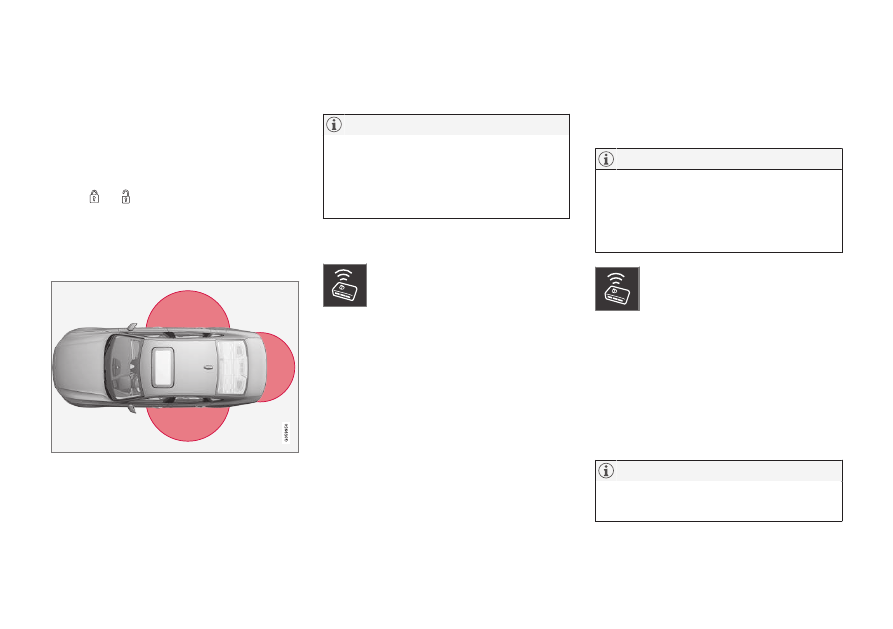

The marked area in the illustration shows areas cov-

ered by the system's antennas.

For keyless use, a remote control key or the
button-less key (Key Tag) must be within a
semicircular area with a radius of approx.

1.5 metres (5 feet) on both long sides and
approx. 1 metre (3 feet) from the boot lid.

NOTE

The remote control key functions may be
disrupted by surrounding radio waves,
buildings, topographical conditions, etc.
The car can always be locked/unlocked
with the key blade.

If the remote control key is removed
from the car

If the remote control key is removed
from the car when the engine is run-
ning, the warning message

Car key

not found



Removed from car

 is

shown in the driver display and an acoustic
reminder sounds when the last door is closed.

The message extinguishes when the key is
returned to the car, followed by a press of the
right-hand keypad's

O

 button, or when the last

door is closed.

Related information

•

Remote control key (p. 237)

•

Antenna locations for the start and lock
systems (p. 263)

•

Keyless and touch-sensitive surfaces

*

(p. 260)

Replacing the battery in the

remote control key

The battery in the remote control key needs
to be replaced when it has become dis-
charged.

NOTE

All batteries have a limited service life and
must eventually be replaced (does not
apply to Key Tag). The service life of the
battery varies depending on how often the
vehicle/key is used.

The battery for the remote control key should
be replaced if

•

the information symbol illuminates and the
message

Car key battery low

 is shown in

the driver display

•

the locks repeatedly do not react to sig-
nals from the remote control key within
20 metres (65 feet) of the car.

NOTE

Always try moving closer to the car and
making another unlock attempt.

||

KEY, LOCKS AND ALARM

* Option/accessory.

242

The battery in the button-less key

6

 (Key Tag)

cannot be replaced - a new key can be
ordered from an authorised Volvo workshop.

IMPORTANT

A discharged Key Tag must be handed
over to an authorised Volvo workshop. The
key must be deleted from the car since it is
still possible to use it to start the car via
back-up start.

Opening the key and changing the
battery

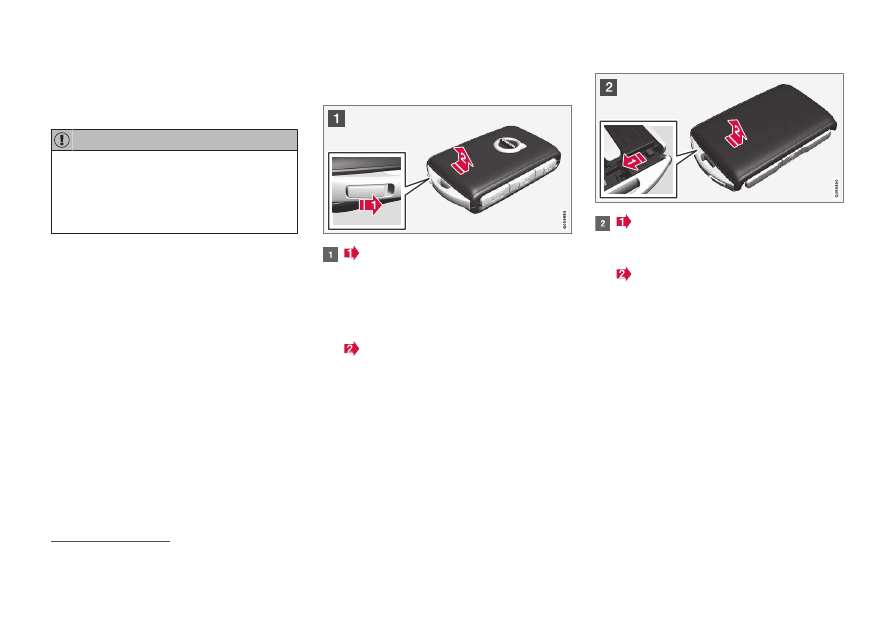

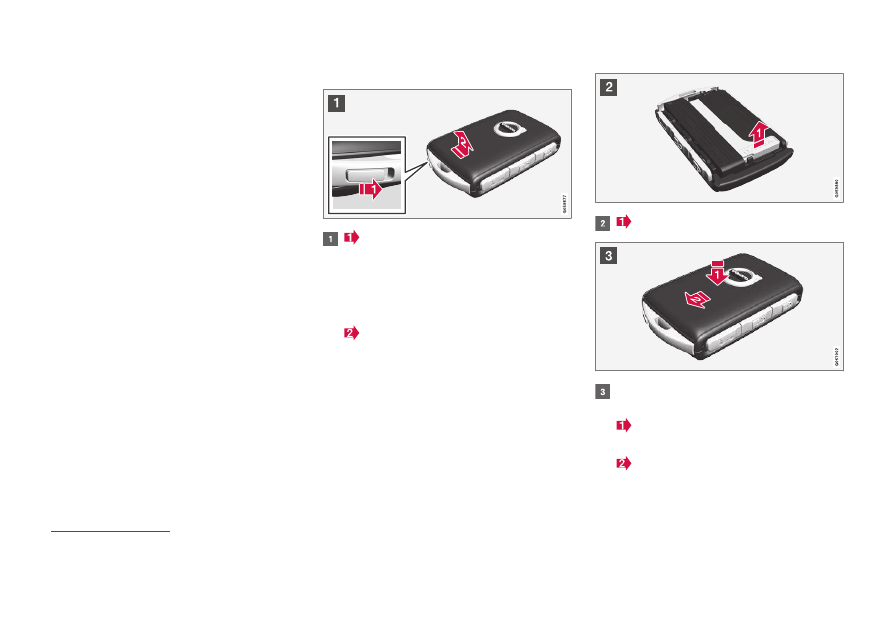

 Hold the remote control key with the

front visible and the Volvo logo facing the
right way - slide the button at bottom
edge by the key ring to the right. Slide the
front side's shell a few millimetres
upwards.

 The shell will then come free and can

be lifted off the key.

 Turn the key, move the button to the

side and slide the back shell a few milli-
metres upwards.

 The shell will then come free and can

be lifted off the key.

6

Supplied with cars equipped with keyless locking/unlocking

*

.

KEY, LOCKS AND ALARM

}}

243

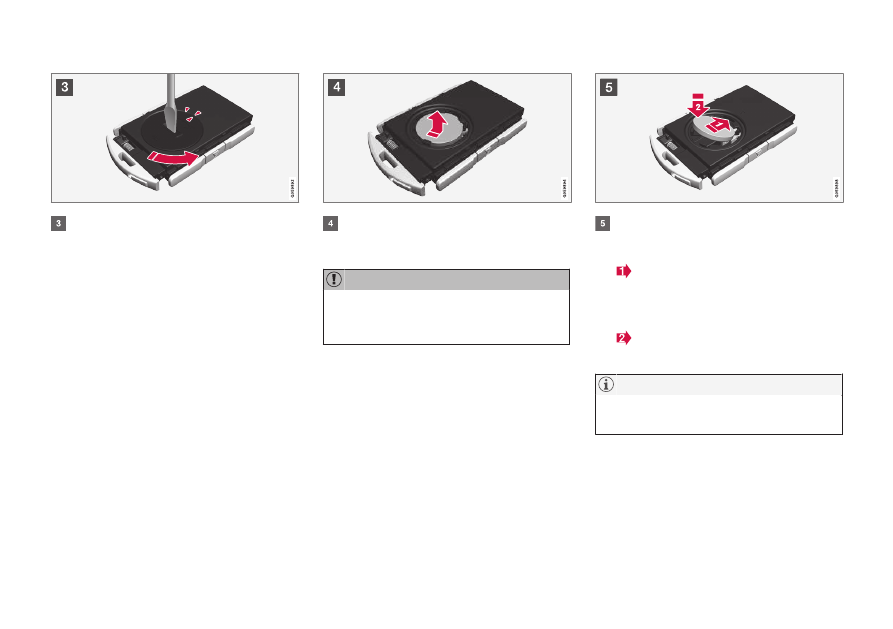

Use a screwdriver or similar to turn the
battery cover anticlockwise until the mark-
ings meet at the

OPEN

 text.

Carefully lift away the battery cover by
pressing e.g. a fingernail into the recess.

Then prize the battery cover upwards.

The battery (

+

) side is facing upwards.

Then carefully prize loose the battery as
illustrated.

IMPORTANT

Avoid touching new batteries and their
contact surfaces with your fingers as this
may impair their function.

Install a new battery with the (

+

) side up.

Avoid touching the remote control key's
battery contacts with your fingers.

 Place the battery in the holder with the

edge down. Then slide the battery for-
wards so that it fastens under the two
plastic catches.

 Press the battery down so that it fas-

tens under the upper black plastic catch.

NOTE

Use batteries with the designation
CR2032, 3 V.

||

KEY, LOCKS AND ALARM

244

NOTE

Volvo recommends that the batteries to be
used in the remote control key fulfil UN
Manual of Test and Criteria, Part III, sub-
section 38.3. Batteries fitted in the factory
or replaced by an authorised Volvo work-
shop fulfil the above criteria.

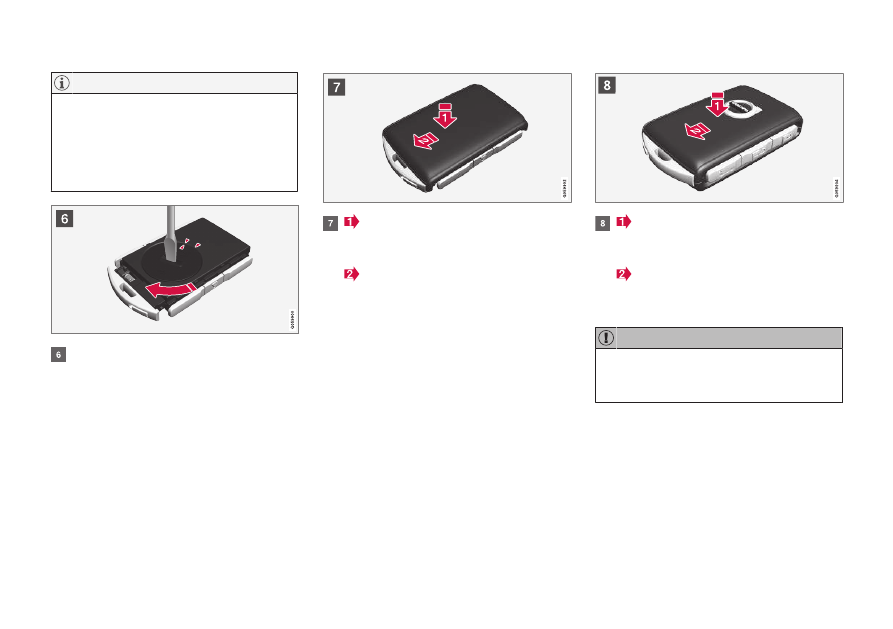

Refit the battery cover and turn it clock-
wise until the marking aligns with the

CLOSE

 text.

 Reposition the rear side's shell and

press it down until a clicking sound can be
heard.

 Then slide the shell back.

> A further click will indicate that the

shell is properly positioned and securely
attached.

 Turn the remote control key over and

refit the front side's shell by pressing it
down until a clicking sound can be heard.

 Then slide the shell back.

> A further click will indicate that the

shell is securely attached.

IMPORTANT

Make sure that exhausted batteries are dis-
posed of in a manner which is kind to the
environment.

Related information

•

Locking and unlocking with the detacha-
ble key blade (p. 248)

•

Starting the car (p. 434)

•

Remote control key (p. 237)

KEY, LOCKS AND ALARM

* Option/accessory.

245

Ordering more remote control keys

The car is supplied with two remote control
keys. A button-less key is supplied if the car
is equipped with keyless locking and unlock-
ing

*

. Additional keys can be ordered.

A total of twelve keys can be programmed and
used for one single car. If additional keys are
ordered, additional driver profiles are added -
one per new remote control key. This also
applies for the key tag.

Loss of a remote control key

If you lose a remote control key then a new
one can be ordered at a workshop - an author-
ised Volvo workshop is recommended. The
remaining remote control keys must be taken
to the workshop. The code of the missing key
must be erased from the system as a theft
prevention measure.

The current number of keys registered to the
car can be checked via driver profiles in the
centre display's top view, select

Settings

System

Driver Profiles

.

Related information

•

Remote control key (p. 237)

Red Key - restricted remote

control key

*

A Red Key makes it possible for the car's
owner to set limitations for certain of the
car's properties. The limitations are intended
to encourage the car to be driven in a safe
manner, e.g. when being loaned out.

For a Red Key, it is possible to define the car's
maximum speed, set speed reminders and
determine the loudspeaker system's maxi-
mum volume. In addition, some of the car's
driver support systems will always be active.
Other functions of the key are the same as
those of a normal remote control key.

The restrictions are intended to act as meas-
ures to reduce the risk of accidents, thereby
making it feel safer to hand over the car to e.g.
young drivers, valet parking or a workshop.

Driver profile for Red Key

A Red Key is connected to a special Red Key
driver profile, and when it is active, the key's
settings cannot be changed. It is not possible
to change to another driver profile either; this
requires a normal remote control key.

The Red Key driver profile is activated when
the car is unlocked with a Red Key without a
normal remote control key in the vicinity.

NOTE

In the event of a change of driver, the car
must be locked and unlocked in order to
activate a new driver profile.

Ordering Red Key

One or more Red Key can be ordered from a
Volvo dealer. A total of eleven keys with
restrictions can be programmed and used for
a single car - at least one must be a normal
remote control key.

Related information

•

Settings for Red Key

*

 (p. 246)

•

Remote control key (p. 237)

KEY, LOCKS AND ALARM

* Option/accessory.

246

Settings for Red Key

*

The holder of a regular remote control key
can change settings for a Red Key. However,
certain driver support functions are always
active.

To change setting:

1. Unlock the car with the normal remote

control key.

2. Tap on

Settings

 in the centre display's

top view.

3. Press

System

Driver Profiles

Red

Key

.

> The following settings can be defined:

•

Set Time Gap For Adaptive Cruise
Control

*

•

Reduced Maximum Volume

•

Max Speed Limit

•

Speed Limit Warning

Details and settings on first use

Set Time Gap For Adaptive Cruise Control

Set the time gap (1 is the shortest and 5 is
the longest gap)

.

On first use, the setting is

5.0

.

Reduced Maximum Volume

Lower maximum volume for media
sources

.

On first use, the function is "On".

Max Speed Limit

Set a maximum speed for this key

.

On first use, the function is "On" and the
speed is 120 km/h (75 mph).

•

Setting interval: 50-250 km/h
(30-160 mph)

•

Increments: 1 km/h (1 mph)

Speed restriction symbol.

Speed Limit Warning

Warns when car moves above set values

.

On first use, the function is "On" and the val-
ues are 50, 70 and 90 km/h (30, 45 and
55 mph).

•

Setting interval: 0-250 km/h (0-160 mph)

•

Increments: 1 km/h (1 mph)

•

Max. number of simultaneous reminders:
6

Driver support functions

The following driver support functions will
always be active for the user of a Red Key:

•

Blind Spot Information (BLIS)

*

•

Lane assistance (LKA)

*

•

Distance Warning

*

•

City Safety

•

Driver Alert Control (DAC)

*

•

Road Sign Information

*

Related information

•

Red Key - restricted remote control key

*

(p. 245)

KEY, LOCKS AND ALARM

}}

* Option/accessory.

247

Detachable key blade

The remote control key contains a detachable
key blade of metal with which a number of
functions can be activated and some opera-
tions carried out.

The key blade's unique code is provided by
authorised Volvo workshops, which are rec-
ommended when ordering new key blades.

The key blade's application areas

Using the remote control key's detachable key
blade

•

the left-hand

7

 front door can be opened

manually if central locking cannot be acti-
vated with the remote control key

•

all doors are emergency-locked

•

the rear doors' mechanical child safety
locks can be activated and deactivated.

The button-less key

8

 does not have a detacha-

ble key blade. If necessary, use the detachable
key blade from the normal remote control key.

Detaching the key blade

 Hold the remote control key with the

front visible and the Volvo logo facing the
right way - slide the button at bottom
edge by the key ring to the right. Guide
the front side's shell a few millimetres
upwards.

 The shell will then come free and can

be lifted off the key.

 Detach the key blade by angling it up.

Return the key blade to its intended posi-
tion in the remote control key after use.

 Refit the shell by pressing it downward

until a clicking sound is heard.

 Then slide the shell back.

> A further click will indicate that the

shell is securely attached.

7

This applies whether the car is left-hand drive or right-hand drive.

8

Supplied with cars equipped with keyless locking/unlocking

*

.

||

KEY, LOCKS AND ALARM

248

Related information

•

Locking and unlocking with the detacha-
ble key blade (p. 248)

•

Remote control key (p. 237)

Locking and unlocking with the

detachable key blade

Amongst other things, the detachable key
blade can be used to unlock the car from the
outside - e.g. if the remote control key's bat-
tery has become discharged.

Unlocking

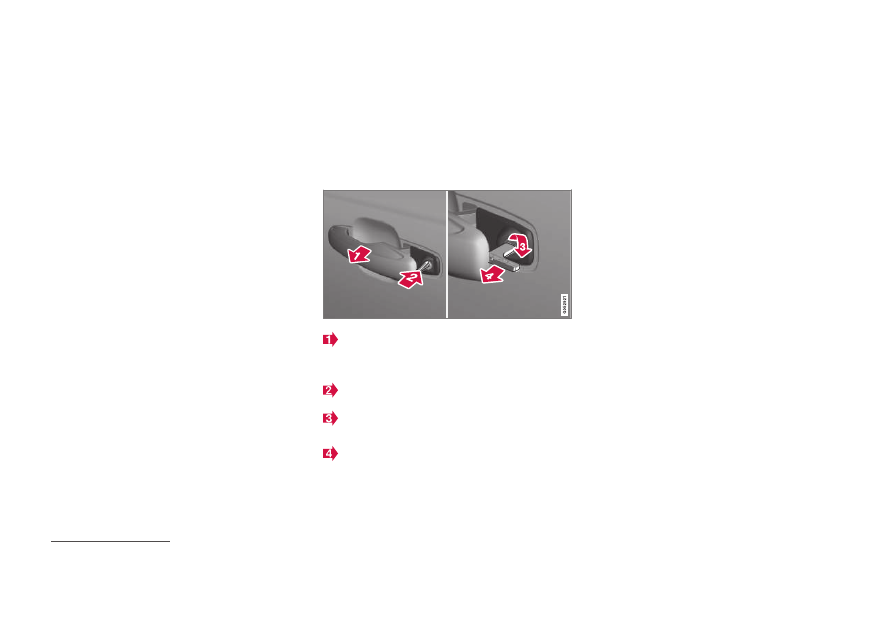

Pull out the front door handle on the left-
hand side

9

 to its end position so that the

lock cylinder become visible.

Insert the key in the lock cylinder.

Turn clockwise 45 degrees so that the key
blade is pointing straight back.

Turn the key back 45 degrees to its star-
ting position. Remove the key from the
lock cylinder and release the handle so
that the rear section of the handle is rest-
ing against the car again.

5. Pull out the handle.

> The door opens.

Locking will be performed in the same way,
but with an anticlockwise turn 45 degrees
instead of clockwise in step (3).

9

This applies whether the car is right-hand drive or left-hand drive.

KEY, LOCKS AND ALARM

* Option/accessory.

249

Switch off the alarm and start the car

*

NOTE

When the door is unlocked using the key
blade and is then opened, the alarm is trig-
gered.

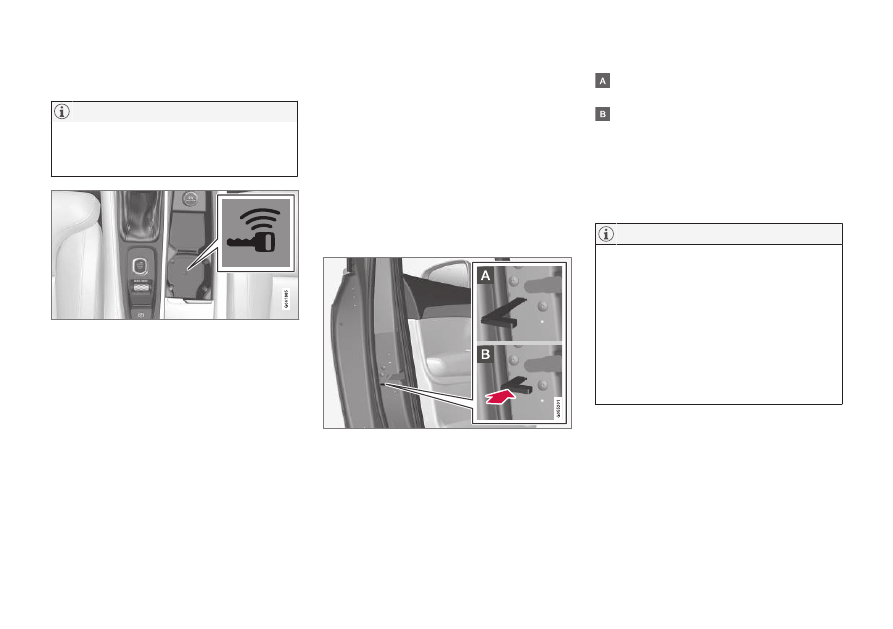

The backup reader's location in the cup holder.

Deactivate the alarm as follows:

1. Place the remote control key on the key

symbol in the backup reader in the bottom
of the cup holder in the tunnel console.

2. Then turn the start knob clockwise and

release it.
> The alarm signal stops sounding and

the alarm is switched off.

Locking

It is also possible to lock the car with the
remote control key's detachable key blade e.g.

in the event of a loss of power or if the key's
battery has become discharged.

The left-hand front door can be locked with its
lock cylinder and the detachable key blade.

Other doors have no lock cylinders and
instead have a lock switch on the end of each
door which must be depressed using the key
blade - they are then mechanically locked/
blocked to prevent them being opened from
outside.

The doors can still be opened from the inside.

Manual locking of the door. Not to be mixed up with

the child safety locks.

–

Remove the detachable key blade from
the remote control key. Insert the key
blade in the hole for lock reset and press
the key in until it bottoms, approx. 12 mm
(0.5 inches).

The door can be opened from both the
outside and the inside.
The door is blocked against opening from
the outside. To return to position A, the
inner door handle must be opened.

The doors can also be unlocked with the
unlock button on the remote control key or
with the central locking button on the driver's
door.

NOTE

•

A door's lock reset only locks that par-
ticular door - not all doors simultane-
ously.

•

A manually locked rear door with acti-
vated manual or electric child safety
locks cannot be opened from either the
outside or the inside. A rear door that is
locked in this way can only be
unlocked with the remote control key
or central locking button.

Related information

•

Starting the car (p. 434)

•

Detachable key blade (p. 247)

•

Activating and deactivating alarms

*

(p. 274)

•

Replacing the battery in the remote con-
trol key (p. 241)

•

Remote control key (p. 237)

KEY, LOCKS AND ALARM

250

Immobiliser

The electronic immobiliser is a theft protec-
tion system that prevents an unauthorised
person from starting the car.

The car can only be started with the correct
remote control key.

The following error message in the driver dis-
play is related to the electronic immobiliser:

Symbol Message

Specification

Car key not
found

See
Owner's
manual

Error reading the
remote control
key during star-
ting - place the
key on the key
symbol in the cup
holder and try
again.

Related information

•

Remote control key (p. 237)

•

Ordering more remote control keys
(p. 245)

KEY, LOCKS AND ALARM

}}

* Option/accessory.

251

Type approval for the remote

control key system

Type approval for the car's remote key sys-
tem can be seen in the following tables.

Lock system keyless start (Passive
Start) and keyless locking/unlocking
(Passive Entry

*

)

CEM marking for the remote control key system. For

supplementary type approval numbers, see following

tables.

Country/Area

Type approval

Europe

Delphi Deutschland GmbH, 42367 Wuppertal hereby declares that
this VO3-134TRX conforms to the essential property requirements and
other relevant provisions contained in directive 2014/53/EU (RED).

The full text of the EU declaration of conformity can be found at
support.volvocars.com.

Jordan

TRC/LPD/2014/250

Serbia

P1614120100

Argentina

CNC ID: C-14771

||

KEY, LOCKS AND ALARM

252

Country/Area

Type approval

Brazil

MT-3245/2015

Indonesia

Nomor: 38301/SDPPI/2015

Malaysia

RDBV/29A/1118/S(18-4233), RDBV/23A/1018/S(18-4231)

Mexico

IFETEL: RLVDEVO15-0396

Russia

The United Arab Emi-
rates

ER37847/15

DA0062437/11

KEY, LOCKS AND ALARM

}}

253

Country/Area

Type approval

Namibia

TA-2016-02

South Africa

TA-2014-1868

Remote control key

Country/Area

Type approval

Europe

Huf Hülsbeck & Fürst GmbH & Co. KG hereby declares that this type of radio
equipment HUF8423 conforms to directive 2014/53/EU.

The full text of the EU declaration of conformity can be found at
support.volvocars.com.

Wavelength: 433.92 MHz

Maximum radiated transmission power: 10 mW

Manufacturer: Huf Hülsbeck & Fürst GmbH & Co. KG, Steeger Str. 17, 42551
Velbert, Germany

Jordan

TRC/LPD/2015/104

||

KEY, LOCKS AND ALARM

254

Country/Area

Type approval

Morocco

AGREE PAR L'ANRT MAROC

Numéro d’agrément: MR 10668 ANRT 2015

Date d’agrément: 24/07/2015

Mexico

IFETEL

Marca: HUF

Modelo (s): HUF8423

NOM-121-SCT1-2009

La operación de este equipo está sujeta a las siguientes dos condiciones: (1)
es posible que este equipo o dispositivo no cause interferencia perjudicial y (2)
este equipo o dispositivo debe aceptar cualquier interferencia, incluyendo la
que pueda causar su operación no deseada.

Namibia

TA-2015-102
