DISPLAYS AND VOICE CONTROL

104

Service messages

Shown below is a selection of important serv-
ice messages and their meanings.

Message

Specification

Stop safely

A

Stop and switch off the
engine. Serious risk of
damage - consult a work-
shop

B

.

Turn off
engine

A

Stop and switch off the
engine. Serious risk of
damage - consult a work-
shop

B

.

Service urgent
Drive to work-
shop

A

Contact a workshop

B

 to

check the car immedi-
ately.

Service
required

A

Contact a workshop

B

 to

check the car as soon as
possible.

Regular main-
tenance

Book time for
maintenance

Time for regular service -
contact a workshop

B

.

Shown before the next
service date.

Regular main-
tenance

Time for main-
tenance

Time for regular service -
contact a workshop

B

.

Shown at the next serv-
ice date.

Message

Specification

Regular main-
tenance

Maintenance
overdue

Time for regular service -
contact a workshop

B

.

Shown when the service
date has passed.

Temporarily
off

A

A function has been tem-
porarily switched off and
is reset automatically
while driving or after
starting again.

A

Part of message, shown together with information on

where the problem has arisen.

B

An authorised Volvo workshop is recommended.

Related information

•

Managing messages in the driver display
(p. 104)

•

Handling a message saved from the driver
display (p. 105)

•

Message in centre display (p. 138)

Managing messages in the driver

display

Messages in the driver display are handled
using the steering wheel's right-hand keypad.

Examples of messages in the driver display and the

steering wheel's right-hand keypad. The figure is

schematic - parts may vary depending on car model.

Left/right

Confirm

Some messages in the driver display contain
one or more buttons for acknowledging the
message or accepting a request, for example.

DISPLAYS AND VOICE CONTROL

}}

105

Managing a new message

For messages with buttons:

1. Navigate between the buttons by pressing

on the left or right (1).

2. Confirm the selection by pressing on con-

firm (2).
> The message disappears from the

driver display.

For messages without buttons:

–

Close the message by pressing on confirm
(2), or allow the message to close auto-
matically after a while.
> The message disappears from the

driver display.

If a message needs to be saved, it is placed in
the

Car Status

 app, which is opened from the

app view in the centre display. The message

Car message stored in Car Status
application

 is shown in the centre display in

conjunction with this.

Related information

•

Messages in the driver display (p. 103)

•

Handling a message saved from the driver
display (p. 105)

•

Message in centre display (p. 138)

Handling a message saved from

the driver display

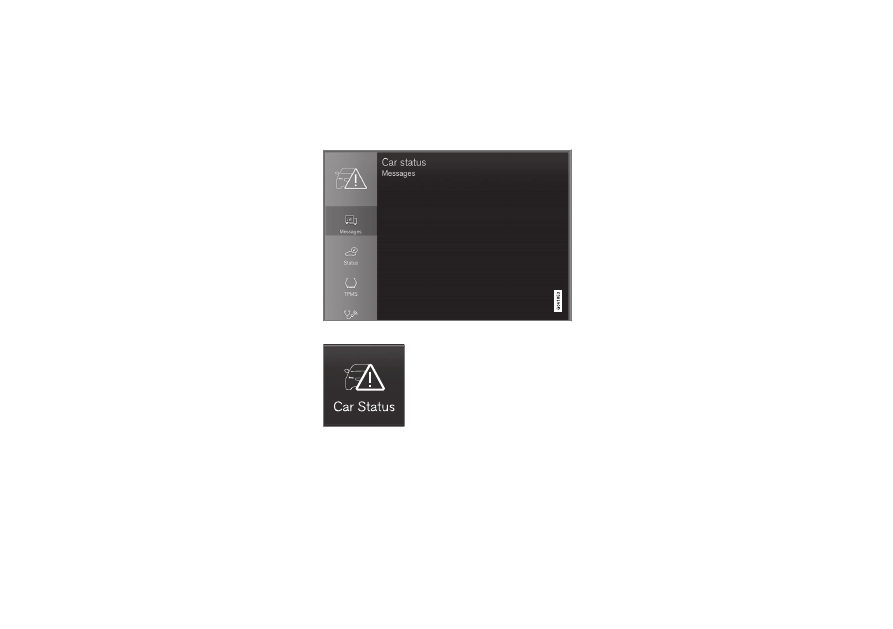

Whether saved from the driver display or the
centre display, messages are managed in the
centre display.

Saved messages can be seen in the

Car Status

 app.

Messages that are shown in
the driver display and that
need to be saved are added
in the

Car Status

 app in the

centre display. The message

Car message stored in Car
Status application

 is shown

in the centre display in conjunction with this.

Reading a saved message

To read a saved message immediately:

–

Press the button to the right of the

Car

message stored in Car Status
application

 message in the centre dis-

play.
> The saved message is shown in the

Car

Status

 app.

To read a saved message later:

1. Open the

Car Status

 app from the app

view in the centre display.
> The app is opened in the bottom tile of

the home view.

2. Select the

Messages

 tab in the app.

> A list of saved messages is shown.

3. Tap on a message to expand/minimise.

> More information on the message is

shown in the list and the image to the
left in the app shows information about
the message graphically.

||

DISPLAYS AND VOICE CONTROL

106

Managing a saved message

In maximised mode, some messages have
two buttons available to book service or read
the owner's manual.

To book service for a saved message:

–

In maximised mode for the message,
press

Request appoint.

/

Call to make

Appointment

4

 for help in booking service.

> With

Request appoint.

: The

Appointments

 tab opens in the app

and creates a request to book service
and repair work.

With

Call to make Appointment

: The

phone app is initiated and calls a serv-
ice centre to book service and repair
work.

To read the owner's manual for a saved mes-
sage:

–

In maximised mode for the message,
press

Owner's manual

 to read about the

message in the owner's manual.
> The owner's manual opens in the cen-

tre display and shows information
linked to the message.

Saved messages in the app are deleted auto-
matically each time the engine is started.

Related information

•

Messages in the driver display (p. 103)

•

Managing messages in the driver display
(p. 104)

•

Message in centre display (p. 138)

4

Market dependent. Volvo ID and selected workshop also need to be registered.

DISPLAYS AND VOICE CONTROL

}}

107

Overview of centre display

Many of the car's functions are controlled
from the centre display. Presented here is the
centre display and its options.

||

DISPLAYS AND VOICE CONTROL

108

Three of the centre display's basic views. Swipe right or left to access the function or app view respectively

5

.

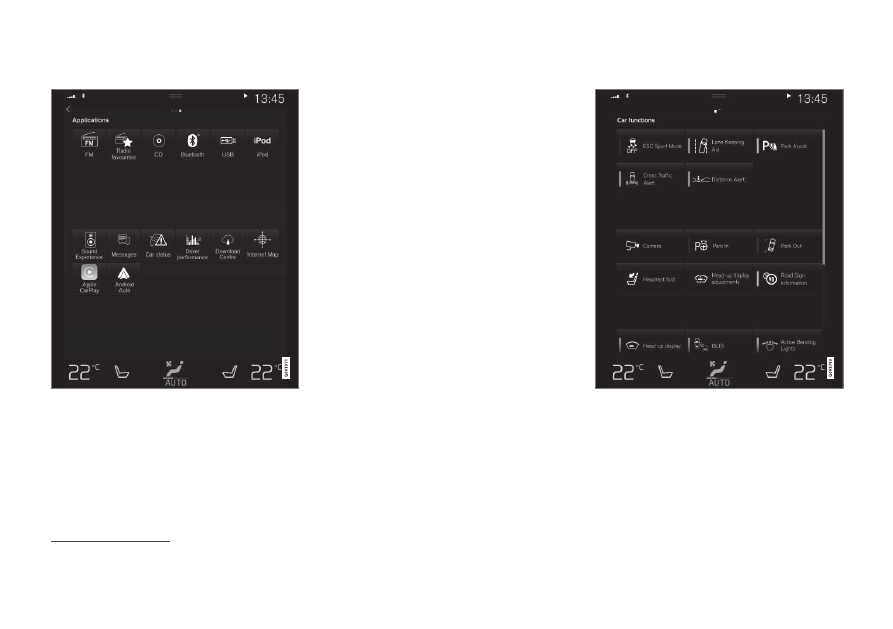

Function view - car functions that are acti-
vated or deactivated with a press. Certain

functions are also so-called trigger func-
tions, which means they open a window

with setting options. Examples of these
include

Camera

. Settings for the head-up

5

The views are reversed for right-hand drive cars.

DISPLAYS AND VOICE CONTROL

* Option/accessory.

109

display

*

 are also made from the function

view, but adjustments are made using the
steering wheel's right-hand keypad.
Home view - the first view that is shown
when the screen is started.
Application view (app view) - apps that
have been downloaded (third-party apps)
and apps for embedded functions, such as

FM radio

. Tap on an app icon to open the

app.
Status bar - the activities in the car are
shown right at the top of the screen. Net-
work and connection information is shown
on the left-hand side of the status bar,
while media-related information, the clock
and indication about on-going background
activity are shown on the right.
Top view - drag the tab down in order to
access the top view.

Settings

,

Owner's

manual

,

Profile

 and the car's saved mes-

sages are accessed from here. In some
cases contextual settings (e.g.

Navigation

Settings

) and the contextual owner's

manual (e.g.

Navigation Manual

) can also

be accessed in the top view.

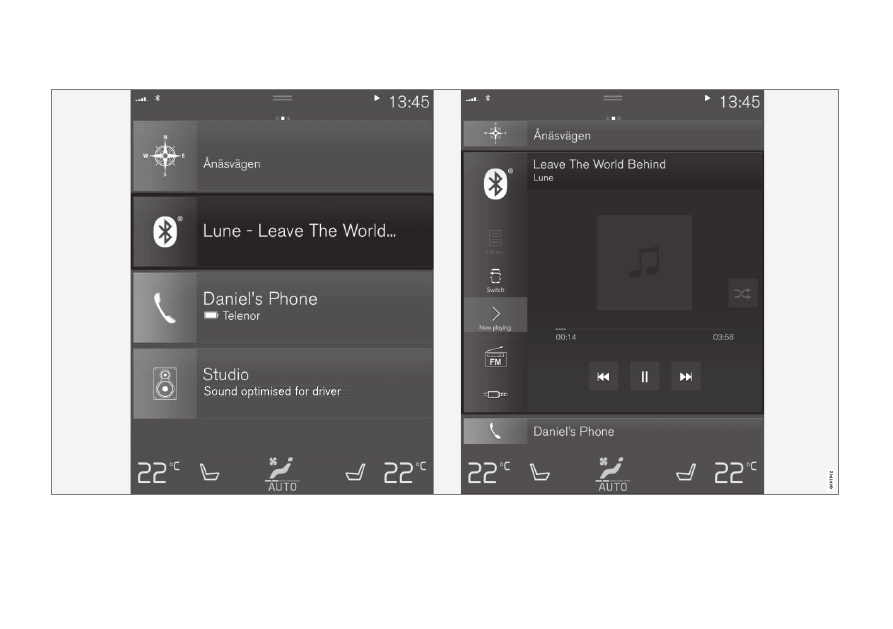

Navigation - leads to map navigation, with
e.g. Sensus Navigation

*

. Tap on the sub-

view to expand it.
Media - recently used apps associated
with media. Tap on the subview to expand
it.

Phone - the phone function can be
reached from here. Tap on the subview to
expand it.
Extra subview - recently used apps or car
functions that do not belong in any of the
other subviews. Tap on the subview to
expand it.
Climate row - information and direct inter-
action to set temperature and seat heating
for example

*

. Tap on the symbol in the

centre of the climate row in order to open
the climate view with more setting
options.

Related information

•

Managing the centre display (p. 110)

•

Navigating in the centre display's views
(p. 113)

•

Function view in centre display (p. 120)

•

Apps (p. 498)

•

Symbols in the centre display's status bar
(p. 122)

•

Other settings in the centre display's top
view (p. 130)

•

Open contextual setup in the centre dis-
play (p. 131)

•

Owner's manual in centre display (p. 19)

•

Media player (p. 507)

•

Phone (p. 523)

•

Climate controls (p. 209)

•

Switching off and changing the volume of
the system sound in the centre display
(p. 129)

•

Changing the appearance in the centre
display (p. 129)

•

Changing system language (p. 130)

•

Changing system units (p. 130)

•

Cleaning the centre display (p. 636)

•

Message in centre display (p. 138)

DISPLAYS AND VOICE CONTROL

110

Managing the centre display

Many of the car's functions are controlled and
regulated from the centre display. The centre
display is a touch screen that reacts to touch.

Using the touch screen functionality in
the centre display

The screen reacts differently depending on
whether you press, drag or swipe across it.
Actions such as browsing between different
views, marking objects, scrolling in a list and

moving apps can be performed by touching
the screen in different ways.

An infrared light curtain just above the surface
of the screen enables the screen to detect a
finger that is just in front of the screen. This
technology makes it possible to use the
screen even with gloves on.

Two people can interact with the screen at the
same time, e.g. to adjust the climate for the
driver and passenger side respectively.

IMPORTANT

Do not use sharp objects on the screen as
they may scratch it.

The table below presents the different proce-
dures for operating the screen:

Procedure

Execution

Result

Press once.

Highlights an object, confirms a selection or activates a function.

Press twice in quick suc-
cession.

Zooms in on a digital object, such as the map.

Press and hold.

Grabs an object. Can be used to move apps or map points on the map. Press and hold your finger
against the screen and at the same time drag the object to the desired location.

Tap once with two fin-
gers.

Zooms out from a digital object, such as the map.

DISPLAYS AND VOICE CONTROL

}}

111

Procedure

Execution

Result

Drag

Changes between different views, scrolls a list, text or view. Hold depressed and drag in order to
move apps or map points on the map. Drag horizontally or vertically across the screen.

Swipe/drag quickly

Changes between different views, scrolls a list, text or view. Drag horizontally or vertically across the
screen.

Note that touching the upper section of the screen may cause the top view to open.

Drag apart

Zooms in.

Drag together

Zooms out.

||

DISPLAYS AND VOICE CONTROL

112

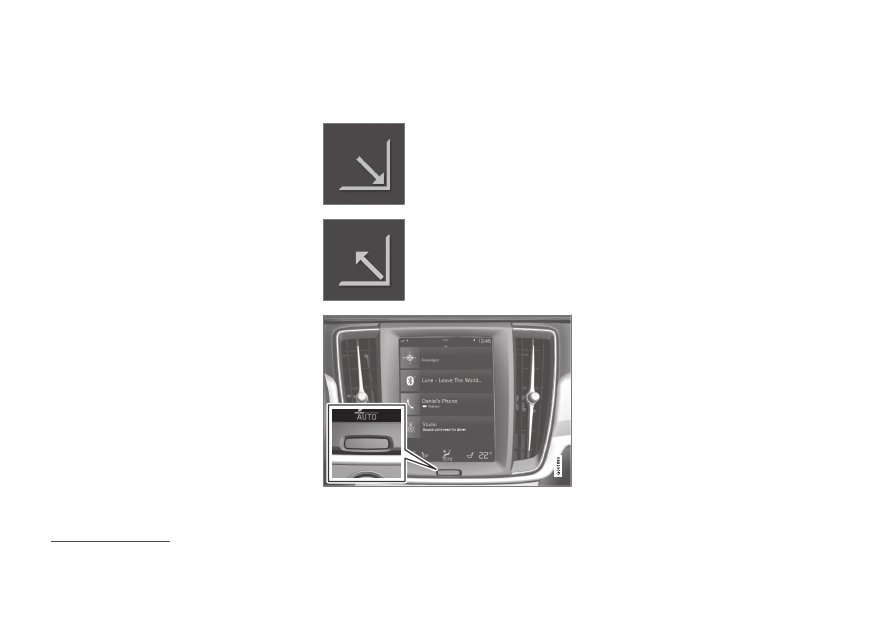

Returning to home view from another
view

1. Briefly press the home button below the

centre display.
> The last position of the home view is

shown.

2. Briefly press again.

> All subviews of the home view are set

to their default mode.

NOTE

In home view standard mode - briefly press
the home button. An animation that
describes access to the different views is
shown on the screen.

Scrolling in a list, article or view

When a scroll indicator is visible in the screen,
it is possible to scroll downward or upward in
the view. Swipe downwards/upwards any-
where in the view.

The scroll indicator appears in the centre display

when it is possible to scroll in the view.

Using the controls in the centre
display

Temperature control.

The control is used for many of the car's func-
tions. Regulate e.g. temperature by means of
one of the following:

•

drag the control to the desired tempera-
ture,

•

tap on

+

 or

−

 in order to raise or lower the

temperature gradually, or

•

tap on the desired temperature on the
control.

Related information

•

Activating and deactivating centre display
(p. 113)

•

Moving apps and buttons in centre display
(p. 122)

•

Keyboard in centre display (p. 124)

DISPLAYS AND VOICE CONTROL

}}

* Option/accessory.

113

Activating and deactivating centre

display

The centre display can be dimmed and reacti-
vated using the home button beneath the
screen.

Home button for the centre display.

The effect of using the home button that the
screen dims and the touchscreen no longer
reacts to touch. The climate row will still be
shown. All functions connected to the screen
are still running, such as climate, audio, guid-
ance

*

 and apps. When the centre display is

dimmed, it is a good opportunity to clean the
screen. The dimming function can also be
used to fade the screen so that it does not dis-
turb while driving.

1. Give a long press on the physical home

button below the screen.
> The screen goes dark except for the cli-

mate row, which continues to be
shown. All functions connected to the
screen are still running.

2. Reactivate the screen - briefly tap on the

home button.
> The view that was displayed before the

screen was switched off will be shown
again.

NOTE

The screen cannot be deactivated when a
prompt to perform an action is shown on
the screen.

NOTE

The centre display deactivates automati-
cally when the engine is off and the driver's
door is opened.

Related information

•

Cleaning the centre display (p. 636)

•

Changing the appearance in the centre
display (p. 129)

•

Overview of centre display (p. 107)

Navigating in the centre display's

views

There are five different basic views in the cen-
tre display: home view, top view, climate
view, application view (app view) and func-
tion view. The screen is started automatically
when the driver's door is opened.

Home view

Home view is the view that is shown when the
screen is started. It consists of four subviews:

Navigation

,

Media

,

Phone

 and an extra sub-

view.

An app or car function selected from the app
or function view starts in the respective sub-
view of the home view. E.g.

FM radio

 starts in

the

Media

 tile.

The extra tile shows the last used app or car
function that is not associated with any of the
other three areas.

The subviews show brief information about
each different app.

NOTE

When the car is started, the home view's
various sub-views show information on the
current status of apps.

||

DISPLAYS AND VOICE CONTROL

* Option/accessory.

114

NOTE

In home view standard mode - briefly press
the home button. An animation that
describes access to the different views is
shown on the screen.

Status bar

The activities in the car are shown at the top of
the screen. Network and connection informa-
tion is shown on the left-hand side of the sta-
tus bar, while media-related information, the
clock and indication that background activity
is in progress are shown on the right.

Top view

Top view dragged down.

A tab is located in the centre of the status bar
at the top of the screen. Open the top view by

pressing on the tab or by dragging/swiping
from the top downwards across the screen.

In the top view, access is always available to:

•

Settings

•

Owner's manual

•

Profile

•

The car's saved messages.

In the top view, access is given to the follow-
ing in some cases:

•

Contextual setting (e.g.

Navigation

Settings

). Change settings directly in the

top view when an app (e.g. navigation) is
running.

•

Navigation Manual

). Gain access directly

in the top view to articles in the digital
owner's manual that are related to the
content displayed on screen.

Exit the top view - press outside the top view,
on the home button or at the bottom of the
top view and drag upward. The underlying
view is then visible and available for use again.

NOTE

The top view is not available during star-
ting/shutdown or when a message is
shown on the screen. It is also not availa-
ble when climate view is shown.

Climate view

The climate row is always visible at the bot-
tom of the screen. The most common climate
settings can be made directly there, such as
setting temperature and seat heating

*

.

Press the symbol in the centre of the
climate row to open the climate view
and gain access to more climate set-
tings.

Press the symbol to close the cli-
mate view and return to the previous
view.

DISPLAYS AND VOICE CONTROL

}}

* Option/accessory.

115

Application view

Application view with the car's apps.

Swipe from right to left

6

 across the screen in

order to access the application view (app
view) from the home view. Apps that have
been downloaded (third-party apps) and apps
for embedded functions, such as

FM radio

,

are found here. Certain apps show brief infor-
mation directly in the app view, such as the

number of unread text messages for

Messages

.

Tap on an app to open it. The app then opens
in the tile to which it belongs, e.g.

Media

.

You can scroll down in the app view, depend-
ing on the number of apps. Do this by swip-
ing/dragging from the bottom and up.

Go back to the home view again by swiping
from left to right

6

 across the screen, or by

pressing the home button.

Function view

The function view with buttons for different car func-

tions.

Swipe from left to right

6

 across the screen in

order to access the function view from the
home view. From here you can activate or
deactivate different car functions, e.g.

BLIS

*

,

Lane Keeping Aid

*

 and

Park Assist

*

.

6

Applies to left-hand drive cars. For right-hand drive cars - swipe in the opposite direction.

||

DISPLAYS AND VOICE CONTROL

116

Depending on the amount of functions, it is
also possible here to scroll downward in the
view. Do this by swiping/dragging from the
bottom and up.

Unlike in app view, where an app is opened
with a press, a function is activated or deacti-
vated by pressing the relevant function button.
Some functions (trigger functions) open in a
new window when pressed.

Go back to the home view again by swiping
from right to left

6

 across the screen, or by

pressing the home button.

Related information

•

Managing subviews in centre display
(p. 117)

•

Symbols in the centre display's status bar
(p. 122)

•

Other settings in the centre display's top
view (p. 130)

•

Open contextual setup in the centre dis-
play (p. 131)

•

Owner's manual in centre display (p. 19)

•

Driver profiles (p. 134)

•

Climate controls (p. 209)

•

Apps (p. 498)

•

Function view in centre display (p. 120)

•

Overview of centre display (p. 107)

6

Applies to left-hand drive cars. For right-hand drive cars - swipe in the opposite direction.

DISPLAYS AND VOICE CONTROL

}}

117

Managing subviews in centre

display

Home view consists of four subviews:

Navigation

,

Media

,

Phone

 and an extra sub-

view. These views can be expanded.

||

DISPLAYS AND VOICE CONTROL

118

Expanding a subview from default mode

Standard mode and expanded mode of a subview in the centre display.

DISPLAYS AND VOICE CONTROL

119

Expanding a subview:

–

For tiles

Navigation

,

Media

 and

Phone

:

Press anywhere on the subview. When a
tile is expanded, the extra tile in the home
view is temporarily forced away. The other
two tiles are minimised and only certain
information is shown. When the extra tile
is tapped, the other three tiles are mini-
mised and only certain information is dis-
played.

The expanded view provides access to the
basic functions of the app.

Closing an expanded subview:

–

The subview can be closed in three differ-
ent ways.

•

Tap on the upper part of the expanded
subview.

•

Tap on another tile (this tile will then
open in expanded mode instead).

•

Briefly press the physical home button
below the centre display.

Opening or closing a subview in full
screen mode

The extra tile

7

 and the tile for

Navigation

 can

be opened out in full screen mode, with even
more information and more setting options.

When a new subview is opened in full-screen
mode, no information from the other subviews
is shown.

In expanded mode, open the
app in full screen - press on
the symbol.

Press on the symbol to go
back to the expanded mode,
or press the home button at
the bottom of the screen.

Home button for the centre display.

There is always the option to go back to home
view by pressing the home button. To go back
to the home view's standard view from full
screen mode – press twice on the home but-
ton.

Related information

•

Managing the centre display (p. 110)

•

Activating and deactivating centre display
(p. 113)

•

Navigating in the centre display's views
(p. 113)

7

Does not apply to all apps or car functions opened via the extra tile.
