DRIVER SUPPORT

||

reversing, such as when reversing out of a park-

cle/object that is blocking, at which the blind

ing space.

sector rapidly decreases.

CTA is primarily designed to detect vehicles. In

Examples of further limitations:

favourable conditions, it may also be able to

• Dirt, ice and snow covering sensors can

detect smaller objects, such as cyclists and

reduce functionality and make it impossible

pedestrians.

to provide warnings. CTA cannot detect haz-

CTA is only active during reversing and is acti-

ards if it is covered.

vated automatically when reverse is selected at

• CTA is deactivated when a trailer is con-

the gearbox.

nected to the car’s electrical system.

• If CTA detects something approaching from

the side, an acoustic warning signal sounds.

IMPORTANT

The signal comes from either the left or the

The car is parked deep inside a parking slot.

Repair of the BLIS and CTA functions' com-

right speaker depending on which direction

Blind CTA sector.

ponents or repainting the bumpers must only

the approaching object is coming from.

Sector where CTA can detect/"see".

be performed by a workshop - an authorised

• CTA also warns by illuminating the BLIS

Volvo workshop is recommended.

lamps.

• An additional warning is provided in the form

Maintenance

of an illuminated icon in the display screen's

The sensors for the BLIS and CTA functions are

PAS graphics (p. 254).

located inside the rear wing/bumper on each

corner of the car.

Limitations

CTA does not perform optimally in all situations,

but has a certain limitation - for example, the CTA

sensors cannot "see" through other parked vehi-

cles or obstructing objects.

Here are some examples of when CTA's "field of

vision" may be limited from the beginning and

approaching vehicles cannot therefore be

In an angled parking slot CTA can be completely "blind"

on one side.

detected until they are very close:

However, when the driver is slowly reversing the

car, the angle is changed in relation to the vehi-

240

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

BLIS and CTA - symbols and

Related information

messages

•

BLIS (p. 237)

In situations where the BLIS (Blind Spot

•

CTA* (p. 239)

Information System) (p. 237) and CTA (p. 239)

functions fail or are interrupted, the combined

instrument panel may show a symbol, supple-

mented by an explanatory message. Follow any

recommendation given.

Message examples:

Message

Specification

Keep this surface clean - also on the left-hand side.

CTA OFF

CTA has been deactivated

• To ensure optimal functionality, the areas in

manually. BLIS is active.

front of the sensors must be kept clean.

BLIS and

BLIS and CTA are temporarily

• Do not affix any objects, tape or labels in the

CTA OFF

disabled because a trailer is

area of the sensors.

Trailer

connected to the car’s electri-

Related information

attached

cal system.

• BLIS (p. 237)

BLIS and

BLIS and CTA are not work-

• BLIS and CTA - symbols and messages

CTA Service

ing.

(p. 241)

required

• Visit a workshop if the

message remains - an

authorised Volvo work-

shop is recommended.

A text message can be acknowledged by briefly

pressing the OK button on the direction indicator

stalk.

* Option/accessory.

241

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

Road Sign Information* (RSI)

Activate RSI as follows:

WARNING

The Road Sign Information function (RSI²⁸)

1. Search and locate the function in the menu

• The Road Sign Information function is

helps the driver to observe speed-related road

system MY CAR, see MY CAR (p. 113).

supplementary driver support intended to

signs and certain prohibition signs as the car

facilitate driving and make it safer - it

2. Highlight Road sign information by press-

passes them.

cannot handle all situations in all traffic,

ing the OK/MENU button once and go back

weather and road conditions.

out with EXIT.

• Road Sign Information is not a substitute

Related information

for the driver's attention and judgement.

• Road Sign Information (RSI)* - operation

The driver is always responsible for

(p. 243)

ensuring the car is driven in a safe man-

ner, at the appropriate speed, with an

• Road Sign Information* (RSI) - limitations

appropriate distance to other vehicles,

(p. 245)

and in accordance with current traffic

rules and regulations.

RSI On/Off

The function for Road Sign Information is select-

Examples of readable signs²⁹.

able - the driver can select On or Off.

RSI provides information about such things as

current speed, when a motorway or road is star-

ting/ending, when overtaking is prohibited or

when the direction of travel is one-way.

If both a sign for motorway/road for motorised

traffic and a sign showing the maximum permit-

ted speed are passed, RSI decides to show the

sign symbol for motorway/road for motorised

traffic.

28 Road Sign Information

29 Road signs are market-dependent - illustrations in these instructions only show a few examples.

242

* Option/accessory.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

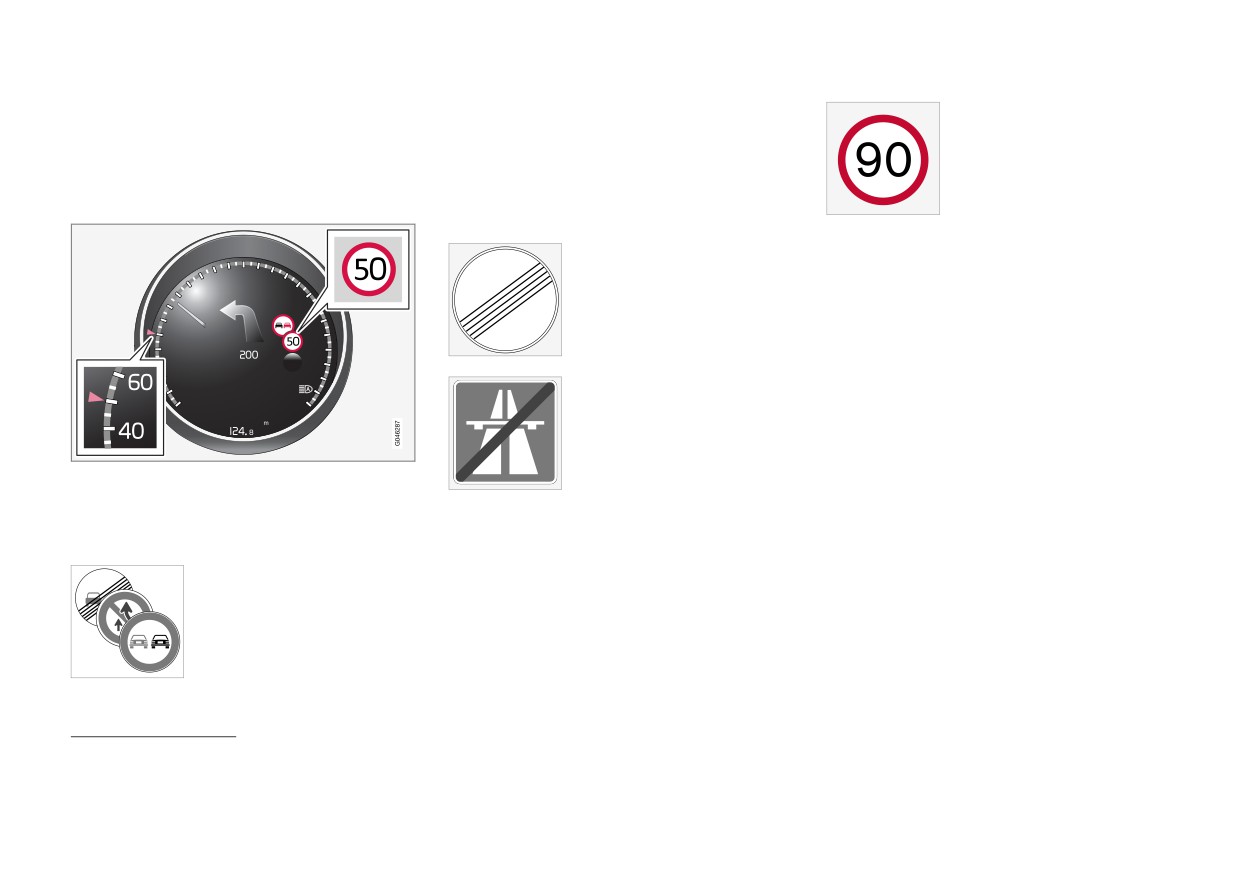

Road Sign Information (RSI)* -

End of speed limit or motorway

Example of a direct speed

operation

When RSI detects an "indirect speed sign" that

sign³¹.

means end of current speed limit - e.g. at end of

The Road Sign Information function (RSI³⁰) reg-

motorway - a symbol with the corresponding road

isters and shows road signs in different ways

sign is shown in the combined instrument panel.

depending on the sign and the situation.

Examples of indirect speed sign³¹ are:

The symbol in the combined instrument panel

End of all restrictions.

extinguishes after approx. 5 minutes and remains

extinguished until the next speed-related sign is

passed.

Sensus Navigation

If the car is equipped with Sensus Navigation,

speed information is read from the navigation

End of motorway.

unit in the following cases:

• On detection of signs that indirectly indicate

a speed limit, such as motorway, dual car-

riageway and city limit signs.

Example³¹ of detected speed information.

• If a previously detected speed sign is

When RSI has recorded a road sign with an

The symbol in the combined instrument panel

assumed not to apply any longer, but no new

imposed speed, the combined instrument panel

extinguishes after 10-30 seconds and remains

sign has been detected.

displays the sign as a symbol.

extinguished until the next speed-related sign is

An additional³¹ sign, such as

passed.

"no overtaking", may be shown

together with the speed limit

Changed speed limit

symbol.

On passing a direct speed sign when the speed

limit changes, a symbol with the corresponding

road sign is shown in the combined instrument

panel.

30 Road Sign Information

31 Road signs are market-dependent - the illustrations in these instructions only show examples.

}}

* Option/accessory.

243

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

||

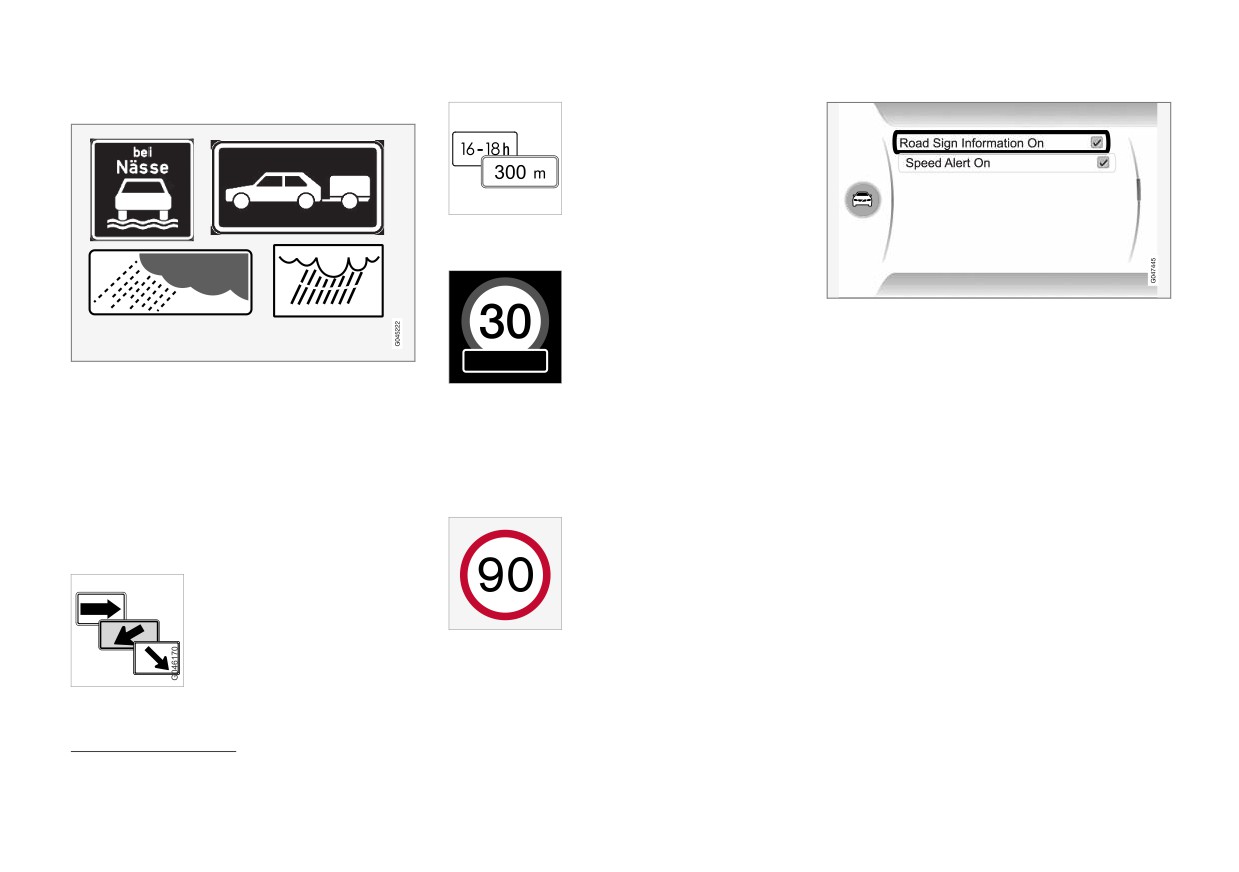

Additional signs

Some speeds are applicable

only after e.g. a specific dis-

tance or at a certain time of

day. The driver's attention is

drawn to the situation by

means of a symbol for an addi-

tional sign under the symbol

showing speed.

A symbol for additional sign in

the form of an empty frame

under the combined instrument

Activate Speed alert as follows:

panel's speed symbol³¹ means

1. Search and locate the function in the menu

that RSI has detected an addi-

Examples of additional signs³¹.

system MY CAR, see MY CAR (p. 113).

tional sign with supplementary

Sometimes different speed limits are signposted

information for the current

2. Highlight Speed alert by pressing the OK/

speed limit.

MENU button once and go back out with

for the same road - an additional sign then indi-

EXIT.

cates the circumstances under which the differ-

Speed Alert On/Off

ent speeds apply. The road section may be par-

The Speed Limit Warning subfunction for RSI

Related information

ticularly susceptible to accidents in rain and/or

is selectable - the driver can select On or Off.

• Road Sign Information* (RSI) (p. 242)

fog, for example.

The speed warning is given in

• Road Sign Information* (RSI) - limitations

An additional sign relating to rain is displayed

the form of the combined

(p. 245)

only if the windscreen wipers are in use.

instrument panel's symbol³¹ for

• MY CAR (p. 113)

The speed applicable on an exit

maximum permitted speed

is indicated in certain markets

temporarily flashing when the

by means of an additional sign

speed is exceeded by 5 km/h

containing an arrow.

(5 mph) or more.

Speed signs linked to this type

of additional sign are displayed

only if the driver is using the direction indicator.

31 Road signs are market-dependent - the illustrations in these instructions only show examples.

244

* Option/accessory.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

||

Related information

Driver Alert Control (DAC)*

irrespective of whether or not DAC issues a

• Driver Alert Control (DAC)* (p. 246)

DAC is intended to attract the driver's attention

warning.

• Lane assistance* (p. 249)

when he or she starts to drive less consistently,

e.g. if the driver becomes distracted or starts to

NOTE

fall asleep.

The function must not be used to extend a

period of driving. Always plan breaks at regu-

The objective for DAC is to detect slowly deterio-

lar intervals, and make sure you are well

rating driving ability and it is primarily intended for

rested.

major roads.

Limitation

In some cases the system may issue a warning

despite driving ability not deteriorating, for exam-

ple:

• in strong side winds

• on rutted road surfaces.

DAC is not intended for city traffic.

NOTE

The camera sensor has certain limitations,

A camera detects the side markings painted on

see Collision warning system* - camera sen-

sor limitations (p. 234).

the carriageway and compares the section of the

road with the driver's steering wheel movements.

The driver is alerted if the vehicle does not follow

Related information

the carriageway evenly.

• Driver Alert System* (p. 245)

In some cases driving ability is not affected

• Driver Alert Control (DAC)* - operation

despite driver fatigue. In which case there may

(p. 247)

not be any warning issued for the driver. For this

• Driver Alert Control (DAC)* - symbols and

reason it is always important to stop and take a

messages (p. 248)

break in the event of any signs of driver fatigue,

• Lane assistance* (p. 249)

246

* Option/accessory.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

Driver Alert Control (DAC)* -

WARNING

operation

An alarm should be taken very seriously, as a

Settings are made from the centre console dis-

sleepy driver is often not aware of his/her

play screen and its menu system.

own condition.

On/Off

In the event of an alarm or a feeling of tired-

ness; stop the car in a safe manner as soon

The Driver Alert function can be set in standby

as possible and rest.

mode via the menu system MY CAR (p. 113):

Studies have shown that it is equally as dan-

• Checked box - function activated.

gerous to drive while tired as it is under the

• Unchecked box - the function is deactivated.

influence of alcohol.

Function

Driver Alert is activated when speed exceeds

Related information

65 km/h (40 mph) and remains active as long as

• Driver Alert System* (p. 245)

the speed is above 60 km/h (37 mph).

• Driver Alert Control (DAC)* (p. 246)

If the vehicle is being driven erratically,

the driver is notified by an acoustic sig-

nal plus the text message (p. 248)

Driver Alert Time for a break - the

linked symbol is illuminated in the combined

instrument panel at the same time. The warning

is repeated after a time if driving ability does not

improve.

The warning symbol can go off:

• Press the left stalk switch OK button.

* Option/accessory.

247

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

Driver Alert Control (DAC)* -

instrument panel or in the centre console's

Here are some examples:

symbols and messages

screen in different situations.

Driver Alert Control - DAC (p. 246) can show

symbols and text messages in the combined

Symbol^A

Message

Specification

Driver Alert Time for a

The vehicle has been driven inconsistently - the driver is alerted by an acoustic warning signal + text.

break

Windscreen sensors

The camera sensor is temporarily disengaged.

blocked See manual

Shown in the event of snow, ice or dirt on the windscreen for example.

• Clean the windscreen surface in front of the camera sensor.

Read about the limitations of the camera sensor, see Collision warning system* - camera sensor limitations

(p. 234).

Driver Alert system Serv-

The system is disengaged.

ice required

• Visit a workshop if the message remains - an authorised Volvo workshop is recommended.

A The symbols are schematic.

Related information

• Driver Alert System* (p. 245)

• Driver Alert Control (DAC)* - operation

(p. 247)

• Lane assistance* (p. 249)

248

* Option/accessory.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

Lane assistance*

Lane Keeping Aid - function

WARNING

Lane Keeping Aid is one of the functions in the

Certain settings can be made for the Lane Keep-

LKA is merely a driver's aid and does not

Driver Alert System - sometimes also referred to

ing Aid (Lane Keeping Aid) function.

engage in all driving situations or traffic,

as LKA (Lane Keeping Aid).

weather or road conditions.

Off & On

The function is intended for use on motorways

The driver always bears ultimate responsibility

Lane Keeping Aid is active within the speed

and similar major roads in order to reduce the

for ensuring that the vehicle is driven safely

range 65-200 km/h (40-125 mph) on roads with

risk of the vehicle accidentally leaving its own

and that applicable laws and road traffic regu-

clearly visible side lines. The function is temporar-

lane in certain situations.

lations are followed.

ily deactivated on narrow roads with less than 2.6

metres between the lane side lines.

Related information

• Lane Keeping Aid - function (p. 249)

• Lane Keeping Aid - operation (p. 251)

• Lane Keeping Aid - limitations (p. 251)

• Lane Keeping Aid - symbols and messages

(p. 253)

• Driver Alert System* (p. 245)

A camera reads the painted side lines of the

road/lane. If the car is about to cross a side line

Press the centre console's button to activate or

then Lane Keeping Aid will actively steer the car

deactivate the function. The button's lamp illumi-

back into the lane with a slight steering torque in

nates when the function is switched on.

the steering wheel.

Some combinations of the selected equipment

If the car reaches or crosses a side line then

leave no vacant space for an On/Off button in

Lane Keeping Aid will also alert the driver with

the centre console - in which case, the function

vibration in the steering wheel.

is instead operated in the car's menu system MY

CAR (p. 113). Here, proceed as follows:

}}

* Option/accessory.

249

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

||

• Search for Lane Keeping Aid and then

If the car approaches the left or right side line of

Dynamic cornering

select On or Off.

the lane and the direction indicator is not acti-

vated, the car is steered back into the lane.

In addition, the following selections can be made

in MY CAR:

Warning with vibration in the steering

• Warning with vibration in the steering wheel:

wheel

Vibration only - On or Off.

• Active steering: Steering assist only- On or

Off.

• Both Warning with vibration in the steering

wheel and Active steering: Full function -

On or Off.

Active steering

LKA does not engage in sharp inside curves.

Lane Keeping Aid strives to keep the car within

In certain cases Lane assistance will allow the

the side lines for the lane.

car to cross lane lines without engaging active

steering or activating a warning. Using an adja-

cent lane for cutting a corner when there is a

LKA steers and alerts with steering wheel vibration³⁵.

clear line of vision is an example of this.

If the car crosses a side line then Lane Keeping

Aid will alert the driver with vibration in the steer-

Related information

ing wheel³⁶. This occurs regardless of whether

• Lane assistance* (p. 249)

the car is actively steered back by applying a

slight steering torque.

LKA intervenes and steers away.

35 The figure shows 3 vibrations when the side line is crossed.

36 Steering wheel vibration varies - the longer the time for which the car has crossed the side line, the more pulses there are.

250

* Option/accessory.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

Lane Keeping Aid - operation

Lane Keeping Aid - limitations

Lane Keeping Aid is complemented in the com-

Lane Keeping Aid's camera sensor has limita-

bined instrument panel with intuitive graphics in

tions in a similar way to the human eye.

different situations. Here are some examples:

For more information, see Collision warning sys-

tem* - camera sensor limitations (p. 234) and

NOTE

(p. 232).

LKA is temporarily deactivated for as long as

the direction indicator is switched on.

NOTE

In certain demanding situations Lane assis-

tance may have difficulty assisting the driver

in the right way - in which case it is recom-

LKA engages on the right side.

mended to deactivate the function.

Lane Keeping Aid intervenes and steers away

Examples of such situations may be:

from the side line - this is indicated with:

• roadworks

• RED line for the side in question.

• winter road conditions

Related information

• poor road surface

• Lane assistance* (p. 249)

• very sporty driving style

• poor weather with reduced visibility.

LKA "sees" the following side lines.

Hands on the steering wheel

If Lane Keeping Aid is active and detects/"sees"

In order for Lane Keeping Aid to operate, the

the side lines, the LKA symbol indicates this with

driver must have his/her hands on the steering

WHITE lines.

wheel. LKA continually monitors this. If hands are

• GREY side line - Lane Keeping Aid does not

not detected on the steering wheel then a text

see a line on that side of the car.

message is shown, prompting the driver to

actively steer the car.

If the driver does not follow the request to begin

steering then Lane Keeping Aid goes into

}}

* Option/accessory.

251

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

Lane Keeping Aid - symbols and

bined instrument panel in combination with an

Message examples:

messages

explanatory message - follow the recommenda-

tion given if appropriate.

In situations where there is no Lane assistance

function, a symbol may be shown in the com-

Symbol

Message

Specification

Windscreen sensors

The camera sensor is temporarily disengaged.

blocked See manual

Shown in the event of snow, ice or dirt on the windscreen for example.

• Clean the windscreen in front of the camera sensor.

Read about the limitations of the camera sensor, see Collision warning system* - camera sensor limitations

(p. 234) and (p. 232).

Lane Keeping Aid Service

The system is disengaged.

required

• Visit a workshop if the message remains - an authorised Volvo workshop is recommended.

Lane Keeping Aid Inter-

LKA has been set to standby mode. The lines of the LKA symbol indicate when the function is active again.

rupted

Related information

• Lane assistance* (p. 249)

* Option/accessory.

253

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

Park Assist*

Related information

Park assist syst* - function

Parking assistance is used as an aid to parking.

•

Park assist syst* - cleaning the sensors

The parking assistance system is automatically

An acoustic signal as well as symbols on the

(p. 257)

activated when the engine is started - the

centre console's display screen indicate the dis-

switch's On/Off lamp is illuminated. If parking

•

Park assist syst* - function (p. 254)

tance to the detected obstacle.

assistance is switched off with the button, the

•

Park assist syst* - forward (p. 256)

lamp goes out.

Parking assistance sound level can be adjusted

•

Park assist syst* - fault indication (p. 257)

during the ongoing acoustic signal using the cen-

•

Park assist syst* - backward (p. 255)

tre console's VOL knob or in the car's menu sys-

tem MY CAR, see MY CAR (p. 113).

•

Park assist camera (p. 258)

•

Park Assist Pilot (PAP)* (p. 262)

Parking assistance is available in two variants:

• Rear only

• Both front and rear.

NOTE

Since a towbar is configured with the car's

electrical system, towbar protrusion is

included when the function measures the dis-

tance to an object behind the car.

On/Off for the sensors for parking assistance and

CTA³⁷.

The centre console's display screen shows an

WARNING

overview of the relationship between the car and

• Parking assistance does not relinquish

detected obstacle.

the driver's own responsibility during

parking.

• The sensors have blind spots where

obstacles cannot be detected.

• Be aware of e.g. people and animals near

the car.

37 Side warning, CTA (Cross Traffic Alert) (p. 239)

254

* Option/accessory.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

Park assist syst* - backward

IMPORTANT

Parking assistance is used as an aid to parking.

Objects e.g. chains, thin glossy poles or low

An acoustic signal as well as symbols on the

barriers may be in the "signal shadow" and

centre console's display screen indicate the dis-

are then temporarily not detected by the sen-

tance to the detected obstacle.

sors - the pulsating tone may then unexpect-

edly stop instead of changing over to the

expected constant tone.

The sensors cannot detect high objects, such

as projecting loading docks.

• In such situations, pay extra attention and

manoeuvre/reposition the car particularly

Display screen view - showing an obstacle left front and

slowly or stop the current parking

right rear.

manoeuvre - there may be a high risk of

Marked sectors show which of the four sensor(s)

damage to vehicles or other objects since

detected an obstacle. The closer to the car sym-

information from the sensors is not

bol a selected sector box is, the shorter the dis-

always reliable in such situations.

tance between the car and a detected obstacle.

The frequency of the signal increases the shorter

The distance covered to the rear of the car is

Related information

the distance to an obstacle, in front of or behind

about 1.5 metres. The acoustic signal for obsta-

• Park Assist* (p. 254)

the car. Other sound from the audio system is

cles behind comes from one of the rear loud-

• Park assist syst* - cleaning the sensors

speakers.

muted automatically.

(p. 257)

When the distance is within 30 cm the tone is

Rear parking assistance is activated when

• Park assist syst* - forward (p. 256)

constant and the active sensor's field nearest the

reverse gear is engaged.

car is filled in. If the detected obstacle is within

• Park assist syst* - fault indication (p. 257)

When reversing with e.g. a trailer on the towbar,

the distance for the constant tone both behind

• Park assist syst* - backward (p. 255)

rear parking assistance is switched off automati-

and in front of the car, then the tone sounds

cally - otherwise the sensors would react to the

• Park assist camera (p. 258)

alternately from the loudspeakers.

trailer.

• Park Assist Pilot (PAP)* (p. 262)

}}

* Option/accessory.

255

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

||

Park assist syst* - forward

tion is reactivated when the speed falls below 10

NOTE

Parking assistance is used as an aid to parking.

km/h (6 mph).

When reversing with e.g. a trailer or bike car-

An acoustic signal as well as symbols on the

rier on the towbar - without Volvo genuine

IMPORTANT

centre console's screen indicate distance to

trailer wiring - parking assistance may need to

detected obstacles.

When auxiliary lamps are fitted: Remember

be switched off manually in order that the

that these must not obscure the sensors - the

sensors do not react to them.

The parking assistance system is automatically

auxiliary lamps may then be perceived as an

activated when the engine is started - the

obstacle.

switch's On/Off lamp is illuminated. If parking

Related information

assistance is switched off with the button, the

• Park Assist* (p. 254)

Related information

lamp goes out.

• Park assist syst* - cleaning the sensors

• Park Assist* (p. 254)

(p. 257)

• Park assist syst* - cleaning the sensors

• Park assist syst* - function (p. 254)

(p. 257)

• Park assist syst* - forward (p. 256)

• Park assist syst* - function (p. 254)

• Park assist syst* - fault indication (p. 257)

• Park assist syst* - fault indication (p. 257)

• Park assist camera (p. 258)

• Park assist syst* - backward (p. 255)

• Park Assist Pilot (PAP)* (p. 262)

• Park assist camera (p. 258)

• Park Assist Pilot (PAP)* (p. 262)

The distance covered in front of the car is about

0.8 metres. The acoustic signal for obstacles in

front comes from one of the front loudspeakers.

Forward parking assistance is active up to

10 km/h (6 mph). If the Parking Assistance Sys-

tem is deactivated because the car is moving too

quickly - 11 km/h (7 mph) or above - the func-

256

* Option/accessory.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

Park assist syst* - fault indication

• Park Assist Pilot (PAP)* (p. 262)

Park assist syst* - cleaning the

Parking assistance is used as an aid to parking.

sensors

An acoustic signal as well as symbols on the

Parking assistance is used as an aid to parking.

centre console's display screen indicate the dis-

An acoustic signal as well as symbols on the

tance to the detected obstacle.

centre console's display screen indicate the dis-

tance to the detected obstacle.

If the combined instrument panel's

information symbol illuminates with

The sensors for parking assistance must be

constant glow and the text message

cleaned regularly to ensure that they work prop-

Park Assist System Service required is

erly. Clean them with water and car shampoo.

shown then parking assistance is disengaged.

IMPORTANT

Under some circumstances, the parking sen-

sors can give false warning signals due to

external sound sources which emit the same

ultrasound frequencies as those with which

the system works.

Examples of such sources include horns, wet

tyres on asphalt, pneumatic brakes and

exhaust noises from motorcycles etc.

Sensor location, front.

Related information

• Park Assist* (p. 254)

• Park assist syst* - cleaning the sensors

(p. 257)

• Park assist syst* - function (p. 254)

• Park assist syst* - forward (p. 256)

• Park assist syst* - backward (p. 255)

• Park assist camera (p. 258)

}}

* Option/accessory.

257

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

||

Park assist camera

Function and operation

The parking camera is an auxiliary system and is

activated when the reverse gear is selected.

The camera image is shown on the centre con-

sole's screen.

NOTE

Since a towbar is configured with the car's

electrical system, towbar protrusion is

included when the function measures the dis-

tance to an object behind the car.

Sensor location, rear.

Camera location next to the opening handle.

WARNING

NOTE

The camera shows what is behind the car and if

•

The parking camera is an aid and can

Dirt, ice and snow covering the sensors will

something appears from the sides.

never replace the responsibilities of the

reduce their function and may prevent meas-

driver when reversing.

The camera shows a wide area behind the car

urement.

and part of the bumper and any towbar.

•

The camera has blind spots where obsta-

cles cannot be detected.

Objects on the screen may appear to tilt slightly -

Related information

this is normal.

•

Be aware of people and animals near the

• Park Assist* (p. 254)

car.

• Park assist syst* - function (p. 254)

NOTE

• Park assist syst* - forward (p. 256)

Objects on the display screen may be closer

• Park assist syst* - fault indication (p. 257)

to the car than they appear to be on the

screen.

• Park assist syst* - backward (p. 255)

• Park assist camera (p. 258)

If another view is active then the parking camera

• Park Assist Pilot (PAP)* (p. 262)

system takes over automatically and its camera

image is displayed on the screen.

258

* Option/accessory.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

When reverse gear is selected, two unbroken

Park assist lines

NOTE

lines are shown graphically which illustrate where

the car's rear wheels will roll with the current

• When reversing with a trailer which is not

steering wheel angle - this facilitates parallel

connected electrically to the car, the lines

parking, reversing into tight spaces and for hitch-

on the display show the route the car will

ing a trailer. The car's approximate external

take - not the trailer.

dimensions are illustrated by means of dashed

• The screen shows no lines when a trailer

lines. The park assist lines can be deactivated -

is connected electrically to the car's elec-

see section Settings (p. 261).

trical system.

If the car is also equipped with Parking assis-

• The parking camera is deactivated auto-

tance sensors * (p. 254) then their information is

matically when towing a trailer if a Volvo

shown graphically as coloured areas in order to

genuine trailer cable is used.

illustrate the distance to detected obstacles, see

heading "Cars with reversing sensors" later in the

Examples of how the park assist lines can be displayed

for the driver.

IMPORTANT

text.

The lines on the screen are projected as if they

Remember that the display only shows the

The camera is active approx. 5 seconds after

were at ground level behind the car and are

area behind the car - so pay attention to the

reverse gear has been disengaged or until the

directly related to steering wheel movement,

sides and front of the car when turning the

car's speed exceeds 10 km/h (6 mph) forward or

which shows the driver the path the car will then

steering while reversing.

35 km/h (22 mph) backward.

take - also when the car is turning.

Light conditions

The camera image is adjusted automatically

according to prevailing light conditions. Because

of this, the image may vary slightly in brightness

and quality. Poor light conditions can result in a

slightly reduced image quality.

NOTE

Keep the camera lens clear of dirt, snow and

ice to ensure optimum function. This is partic-

ularly important in poor light.

}}

* Option/accessory.

259

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

||

Boundary lines

Cars with reversing sensors*

Related information

• Park assist camera - settings (p. 261)

• Park assist camera - limitations (p. 262)

• Park Assist* (p. 254)

• Park Assist Pilot (PAP)* (p. 262)

Different lines in the system.

Coloured areas (x 4 - one per sensor) show distance.

Boundary line, free reversing zone

If the car is also equipped with Parking assis-

tance (p. 254) the distance is shown with col-

"Wheel tracks"

oured fields for each sensor that registers an

obstacle.

The dashed line (1) frames in a zone up to

about 1.5 m back from the bumper. It is also the

The colour of the areas changes with decreasing

limit of the car's most protruding parts, such as

distance to the obstacle - from light yellow to yel-

door mirrors and corners - also when the car is

low, via orange to red.

turning.

The wide "wheel tracks" (2) between the side

Colour / paint

Distance (metres)

lines indicate where the wheels will roll and can

Light yellow

0,7-1,5

extend about 3.2 m back from the bumper if no

obstacle is in the way.

Yellow

0,5-0,7

Orange

0,3-0,5

Red

0-0,3

260

* Option/accessory.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

Park assist camera - settings

Options*

1. Press OK/MENU when a camera view is

Cars with the front camera option have a CAM

shown - the screenchanges to a menu with

Activate switched-off camera

button on the climate panel.

various options.

If the camera function is switched off when

2. Turn to reach the desired option with TUNE.

reverse gear is selected, it is activated in the fol-

3. Highlight the option by pressing OK/MENU

lowing way:

once and go back out with EXIT.

Towbar

The camera can be used to advantage when

hitching a trailer. A park assist line for the tow-

bar's intended "trajectory" toward the trailer can

be shown on the screen - exactly as for the

"wheel tracks".

A choice can be made between showing the

"wheel tracks" or the towbar's trajectory - both

Button location may vary depending on options for other

options cannot be shown simultaneously.

equipment.

1. Press OK/MENU when a camera view is

• Press CAM to activate the camera

shown.

Main source menu³⁸.

- the screenshows the current camera view.

2. Turn to reach the Tow bar trajectory guide

1. Give one or two long presses on EXIT to

To change view between the reversing camera

line option with TUNE.

access the main source menu.

and front camera:

3. Highlight the option by pressing OK/MENU

2. Turn to the "Camera" option with TUNE and

• Press CAM or turn TUNE.

once and go back out with EXIT.

press OK/MENU.

Change setting

3. In the following menu: - Turn to the desired

camera view with TUNE and press OK/

The default setting is that the camera is activated

when reverse gear is selected.

MENU - the screen shows the current cam-

era view.

The settings for the parking camera can be

changed when the screen shows a camera view:

38 See the Sensus Infotainment supplement for more information about the menu system.

}}

* Option/accessory.

261

Content      ..     9      10      11      12     ..
