Volvo V90 Twin Engine (2018 year). Instruction

CLIMATE CONTROL

212

Symbols and messages for parking

climate control

A number of symbols and messages regarding
parking climate control can be shown in the
driver display.

This symbol illuminates in the driver
display

when the parking heater is

active.

Symbol

Message

Specification

Parking climate

Service required

Parking climate control is disengaged. Contact a workshop

to check the function as soon as possi-

ble.

Parking climate

Temporarily unavailable

Parking climate control is temporarily disengaged. If the problem persists for some time, contact a
workshop

to check the function.

Parking climate

Unavailable Fuel level too low

Parking climate control cannot be activated when the fuel level is too low to start the parking heater.
Filling the vehicle's normal fuel tank.

Parking climate

Unavailable Charge level too low

Parking climate control cannot be activated if the charge level of the hybrid battery is too low to start
the parking heater. Charging the battery.

Applies to fuel-driven heater.

CLIMATE CONTROL

213

Symbol

Message

Specification

Parking climate

Unavailable, not connected to the
mains

The parking climate control cannot be activated if the charging cable is not connected. Connect the
charging cable.

Parking climate

Limited Charge level too low

Parking climate control is operated with limited functionality when the charge level of the hybrid bat-
tery is too low to start the parking heater. Charging the battery.

An authorised Volvo workshop is recommended.

Applies to fuel-driven heater.

Applies to electric heater.

Related information

•

Parking climate (p. 205)

•

Starting/stopping preconditioning (p. 206)

•

Starting/switching off climate comfort reten-
tion (p. 210)

•

Timer for preconditioning (p. 208)

•

Heater (p. 214)

•

Managing messages in the driver display and
the centre display (p. 114)

CLIMATE CONTROL

214

Heater

The heater helps the engine and passenger
compartment reach the correct temperature
before and during driving.

The heater has two subfunctions:

•

Parking heater - heats the passenger com-
partment, if necessary, when the parking cli-
mate control's preconditioning is activated.

•

Additional heater - heats the passenger
compartment and engine, if necessary, dur-
ing driving.

Either a fuel-driven heater or an electric heater is
used, depending on the market

The heater is fitted in the front right-hand wheel
housing.

NOTE

When the heater is running

, smoke may be

emitted from the right-hand front wheel hous-
ing and a low hum may be heard. A ticking
sound from the fuel pump may also be heard
from the rear section of the car. This is per-
fectly normal.

Battery and charging

The heater is powered by the car's hybrid battery.
If the charge level of the hybrid battery is too low,
then the heater is switched off automatically and
the driver display shows a message.

NOTE

Make sure that there is enough charge in the
battery if the heater needs to be used.

Fuel and refuelling

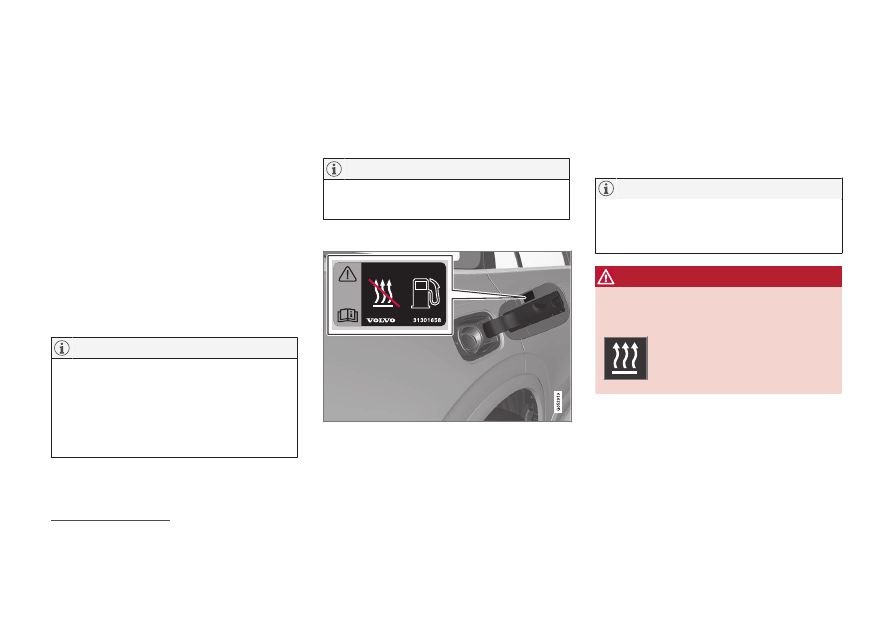

Warning label on fuel filler flap.

The heater uses fuel from the car's normal fuel
tank.

If the car is parked on a steep hill, the front of the
car should point downhill to ensure that there is a
supply of fuel to the heater.

If the level in the fuel tank is too low then the
heater is switched off automatically and the driver
display shows a message.

NOTE

Make sure there is enough fuel in the car's
normal fuel tank if the heater needs to be
used.

WARNING

Fuel which spills out could be ignited. Switch

off the fuel-driven heater before starting to

refuel.

Check in the driver display that the

heater is switched off. This symbol

is lit when it is working as a parking

heater.

Related information

•

Parking heater (p. 215)

•

Additional heater (p. 216)

•

Parking climate (p. 205)

An authorised Volvo dealer has information regarding which markets use which type of heater.

Applicable to fuel-driven auxiliary heater.

Applies to fuel-driven heater.

CLIMATE CONTROL

}}

215

Parking heater

The parking heater heats the passenger com-
partment as necessary before driving if the car's
preconditioning is activated.

The parking heater is one of two subfunctions of
the car's heater. The heater is fitted in the front
right-hand wheel housing.

This symbol illuminates in the driver
display

when the parking heater is

active.

NOTE

When the heater is running

, smoke may be

emitted from the right-hand front wheel hous-
ing and a low hum may be heard. A ticking
sound from the fuel pump may also be heard
from the rear section of the car. This is per-
fectly normal.

The parking heater starts automatically if the
parking climate's preconditioning is activated and
the passenger compartment needs to be heated
up.

It is switched off automatically when the right
temperature, the time of a set timer or the heat-
er's maximum running time has been reached.

The heater's maximum running time is
40 minutes.

NOTE

Make sure there is enough fuel in the car's
normal fuel tank if the parking heater needs
to be used

Make sure that there is enough charge in the
hybrid battery if the parking heater needs to
be used.

WARNING

Do not use preconditioning

•

In unventilated spaces indoors. Exhaust
gases are emitted if the heater starts.

•

In locations with combustible or flamma-
ble material nearby. Fuel, gas, long grass,
sawdust, etc. may ignite.

•

When there is a risk that the heater’s
exhaust line may be blocked. For exam-
ple, deep snow inside the front right-hand
wheel housing can obstruct the heater’s
ventilation.

Remember that the preconditioning can be

started by a timer that has been set for a long

time in advance.

WARNING

If there is a smell of fuel, unusual amounts of

smoke, black smoke, or unusual sounds com-
ing from the parking heater

, switch off the

heater and, if possible, pull out its fuse. Volvo

recommends that an authorised Volvo work-

shop should be contacted for repair.

Applies to fuel-driven heater.

Applicable to fuel-driven auxiliary heater.

CLIMATE CONTROL

216

Related information

•

Heater (p. 214)

•

Additional heater (p. 216)

•

Parking climate (p. 205)

•

Fuses in engine compartment (p. 569)

Additional heater

The auxiliary heater helps to heat the passenger
compartment and engine while driving.

The additional heater is one of two subfunctions
of the car's heater. The heater is fitted in the
front right-hand wheel housing.

NOTE

When the heater is running

, smoke may be

emitted from the right-hand front wheel hous-
ing and a low hum may be heard. A ticking
sound from the fuel pump may also be heard
from the rear section of the car. This is per-
fectly normal.

The additional heater starts and is controlled
automatically when heating is required while the
car is being driven.

It switches off automatically when the car is
switched off.

NOTE

Make sure there is enough fuel in the car's
normal fuel tank if the auxiliary heater needs
to be used

Activating/deactivating automatic start
for the additional heater

It is possible to set whether automatic start for
the additional heater should be activated/deacti-
vated.

1. Press

Settings

in the top view in the centre

display.

2. Press

Climate

3. Select

Additional Heater

to activate/deac-

tivate automatic start of the additional heater.

NOTE

Volvo recommends that the automatic start
for the additional heater should be switched
off for short driving distances

NOTE

If the auxiliary heater's automatic starting is
deactivated, this may impede comfort in the
passenger compartment as the climate con-
trol system will then have no heat source dur-
ing electrical operation.

Related information

•

Heater (p. 214)

•

Parking heater (p. 215)

Applicable to fuel-driven auxiliary heater.

LOADING AND STORAGE

* Option/accessory.

218

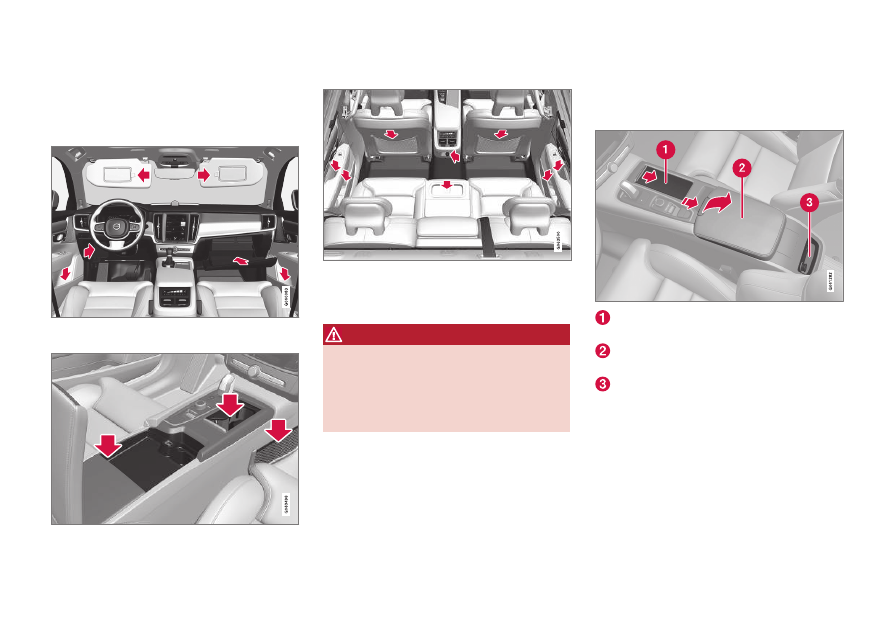

Passenger compartment interior

Overview of the passenger compartment's inte-
rior and storage locations.

Front seat

Storage compartment in the door panel and by the

steering wheel, glovebox and sun visors.

Storage spaces with cup holder, electrical socket, mesh
pocket

* and USB port in the tunnel console.

Rear seat

Storage compartment in the door panel, cup holder

* in

the centre seat backrest, storage pocket

* on the front

seat backrest and also electrical sockets in the tunnel

console.

WARNING

Keep loose objects such as mobile phones,

cameras, remote controls for accessories, etc.

in the glove compartment or other compart-

ments. Otherwise they may injure people in

the car in the event of sudden braking or a

collision.

Related information

•

Tunnel console (p. 218)

•

Using the glovebox (p. 224)

•

Sun visors (p. 225)

•

Electrical sockets (p. 220)

Tunnel console

The tunnel console is located between the front
seats.

Storage compartment with cup holder for
driver and passenger.
Storage compartment with 12 V socket and
USB port under the armrest.
Climate controls for the rear seat climate
functions

* or storage compartment.

LOADING AND STORAGE

* Option/accessory.

219

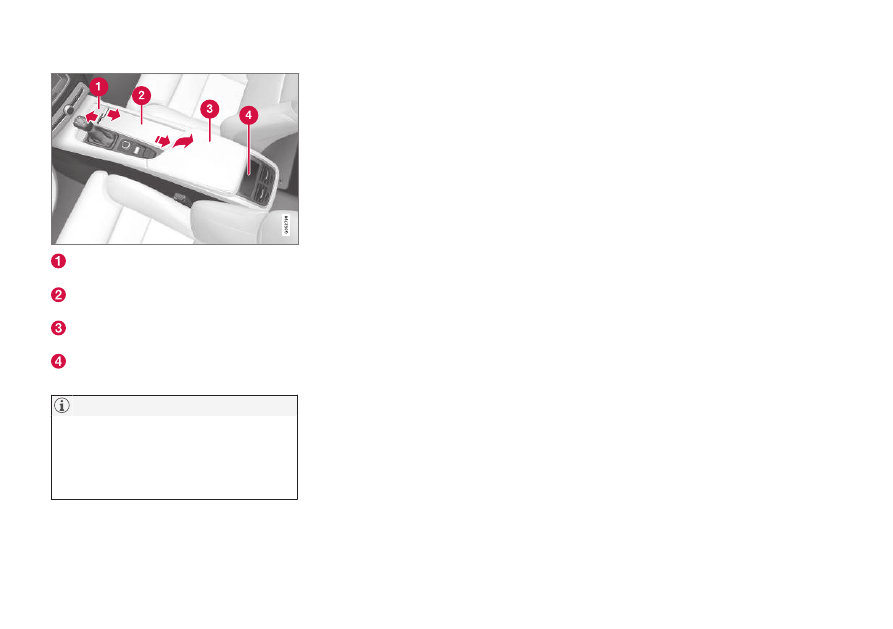

Storage compartment with hatch

*. The hatch

is opened/closed with a push on the handle.
Storage compartment with cup holder for
driver and passenger as well as 12V socket.
Storage compartment and USB port under
the armrest.
Climate controls for the rear seat climate
functions

* or storage compartment.

NOTE

One of the detectors for the alarm

* is located

under the tunnel console's cup holder. Avoid
leaving coins, keys and other metal objects in
the cup holder, since this may trigger the
alarm.

Related information

•

Passenger compartment interior (p. 218)

•

Electrical sockets (p. 220)

•

Connecting a device via USB port (p. 486)

•

Climate controls at the rear of the tunnel
console (p. 188)

LOADING AND STORAGE

* Option/accessory.

220

Electrical sockets

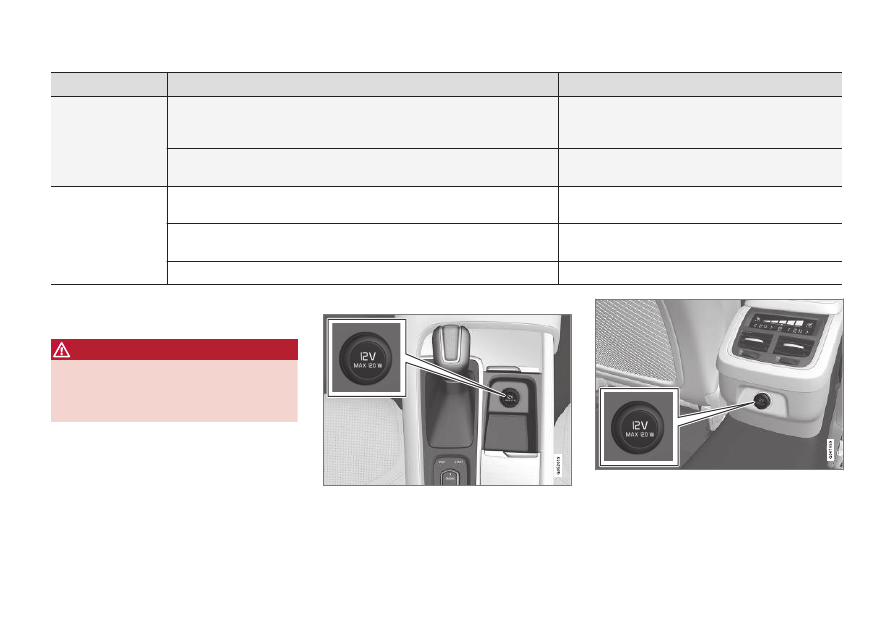

In the tunnel console there are two 12 V electri-
cal sockets and one 230 V electrical socket

*, in

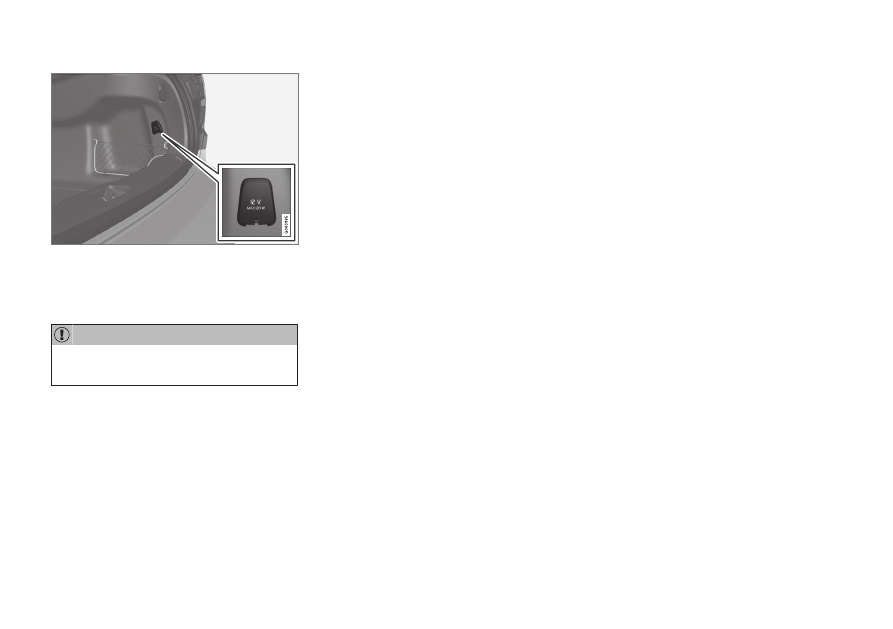

the cargo area there is one 12 V electrical
socket

For the sockets to supply current, the car's elec-
trical system must be set in the lowest ignition
position I. The sockets are then active as long as
the starter battery level does not become too low.

If the engine is switched off and the car is locked,
the sockets are deactivated. If the engine is
switched off and the car is not locked, or is
locked with blocked lock position temporarily
deactivated, then the sockets continue to be
active for a further ten minutes.

NOTE

Remember that use of the electrical socket
with the engine switched off entails a risk of
discharging the starter battery, which can limit
functionality.

Accessories that are connected to the electri-
cal sockets may be activated even when the
car's electrical system is disconnected or if
preconditioning is used. For this reason, dis-
connect the connectors when they are not in
use in order to avoid the starter battery being
discharged.

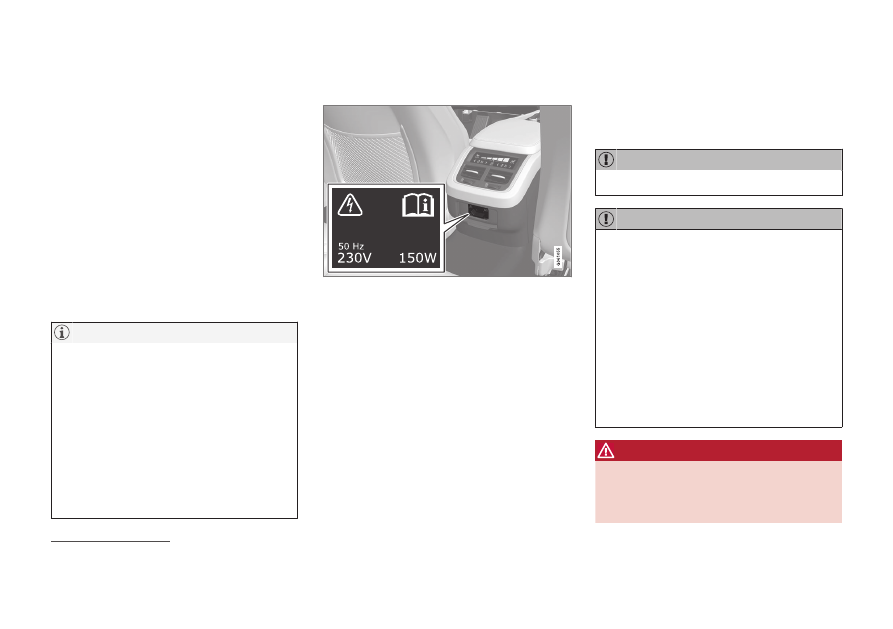

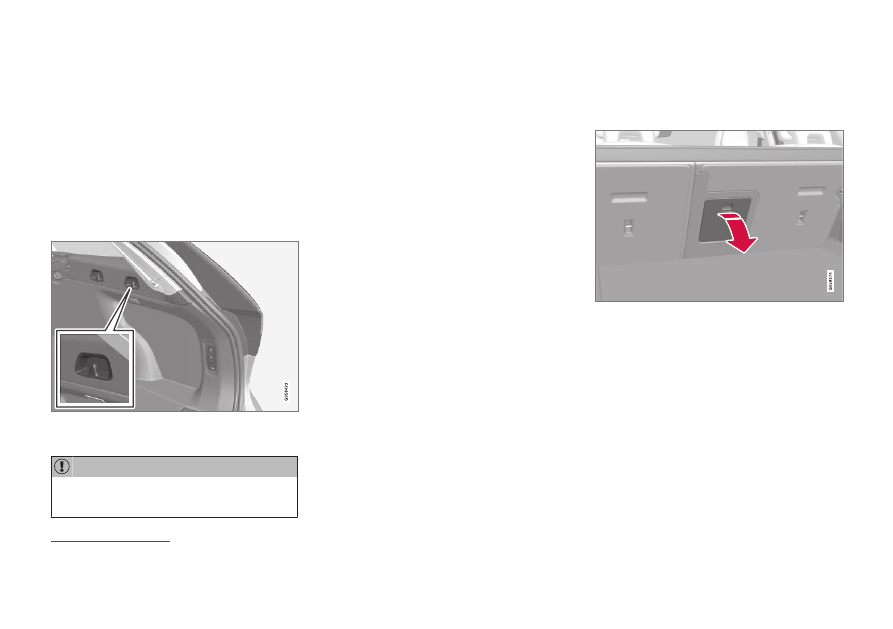

Electrical socket in the tunnel console -
rear seat

Electrical socket in the tunnel console, rear seat.

The socket can be used for various accessories
requiring a 230 V supply, e.g. chargers and lap-
top computers.

Using the socket

1. Pull down the socket cover and insert the

accessory's plug.
> The LED

lamp on the socket indicates

the status.

2. Check that the lamp is illuminated with a

steady green light - only then is current avail-
able at the socket.

3. Disconnect the accessory by pulling out the

plug - do not pull on the cable.

Pull up the cover when the socket is not
being used or the socket is left unattended.

IMPORTANT

Maximum socket output is 150 W.

IMPORTANT

•

Do not use accessories with large or
heavy connectors - they can damage the
socket or come loose when driving.

•

Do not use accessories that can cause
interference to the car's radio receiver or
electrical system for example.

•

Position the accessory so that it is not at
risk of injuring the driver or passengers in
the event of heavy braking or collision.

•

Keep an eye on connected accessories
as they can generate heat that can burn
passengers or the interior.

WARNING

•

Only use accessories that are undam-
aged and fault-free. The accessories
must be rated for 230 V and 50 Hz with
connectors designed for the socket. The

LED (Light Emitting Diode)

LOADING AND STORAGE

}}

221

accessories must have a CE marking, UL
marking or an equivalent safety marking.

•

Never allow sockets, connectors or
accessories to come into contact with
water or other liquids. Do not touch or
use the socket if it appears to be dam-
aged or has come into contact with water
or other liquid.

•

Do not connect junction sockets, adapt-
ers or extension cables to the socket as
these can override the socket's safety
features.

•

The socket is equipped with a protective
cover, ensure that nothing protrudes in or
damages the socket preventing the cover
from doing its job. Do not leave children
in the car unsupervised when the socket
is active.

Failure to follow the advice given above can

lead to severe or fatal electric shocks.

Status indication

An LED

lamp on the socket indicates the status

of the socket:

Status indication

Reason

Action

Steady green light

The socket is delivering current to a connected device.

None.

LED (Light Emitting Diode)

LOADING AND STORAGE

222

Status indication

Reason

Action

Blinking orange light The temperature of the socket's voltage converter is too high (because for

example the accessory draws too high a current or the passenger compart-
ment is too warm).

Remove the plug and let the voltage converter cool
down before reinserting the plug.

The connected accessory draws too much current (intermittently or continu-
ously) or is defective.

None. The accessory cannot be connected to the
socket.

Extinguished lamp

The socket does not sense that a plug has been inserted.

Check that the plug is properly inserted into the
socket.

The socket is not active.

Switch the car's electrical system to the lowest igni-
tion position I.

The socket has been active but is now deactivated.

Start the engine and/or charge the starter battery.

If the problem persists, contact a workshop - an
authorised Volvo workshop is recommended.

WARNING

Never modify or repair the 230 V electrical

socket yourself. Volvo recommends that an

authorised Volvo workshop should be contac-

ted.

12 V electrical socket

12 V electrical socket in tunnel console, front seat.

12 V electrical socket in tunnel console, rear seat.

LOADING AND STORAGE

* Option/accessory.

223

12 V electrical socket in cargo area

The sockets can be used for various accessories
designed for 12 V, such as music players, cooler
boxes and mobile phones.

IMPORTANT

Maximum socket output is 120 W (10 A) per
socket.

Using the sockets

1. Remove the blanking plug (tunnel console)

or fold down the cover (cargo area) and plug
in the accessory.

2. Unplug the accessory's connector and refit

the blanking plug (tunnel console) or fold up
the cover (cargo area) when the socket is
not being used or if the socket is left unat-
tended.

Related information

•

Passenger compartment interior (p. 218)

LOADING AND STORAGE

* Option/accessory.

224

Using the glovebox

The glovebox is located on the passenger side.

The printed owner's manual and maps can be
kept in the glovebox, for example. There is also a
pen holder on the inside of the lid. There is also a
card holder at the upper edge of the glovebox.

Locking/unlocking the glovebox

The glovebox can be locked, e.g. when the car is
taken in for service, left at a hotel or similar. The
glovebox can only be locked/unlocked with the
accompanying key.

The key's designated storage space

Locking the glovebox:
Insert the key in the glovebox lock cylinder.

Turn the key 90 degrees clockwise.

Pull out the key.

–

Unlock by carrying this out in reverse order.

Using the glovebox as a cooled area

The glovebox can be used for cooling of e.g.
drinks or food. The cooling works when the cli-
mate control system is active (i.e. when the car is
set in ignition position II or when the engine is
running).

Cooling activated

Cooling deactivated

–

Activate/deactivate the cooling by moving
the control to the end position toward the
passenger compartment/glovebox.

Related information

•

Passenger compartment interior (p. 218)

•

Using private locking (p. 250)

LOADING AND STORAGE

}}

* Option/accessory.

225

Sun visors

The rear of each sun visor includes a vanity mir-
ror with card holder.

Vanity mirror with lighting plus card holder.

The vanity mirror lighting

* is switched on auto-

matically when the lid is lifted.

The vanity mirror frame incorporates a holder for
e.g. cards or tickets.

Related information

•

Passenger compartment interior (p. 218)

Cargo area

The car has a flexible cargo area that makes it
possible to transport and secure large objects.

By folding down the backrests in the rear seat,
the cargo area can become quite spacious. Use
load retaining eyelets or bag holders to secure
the load, and the extendable cargo cover

* to con-

ceal the load if desired.

If the car is equipped with a spare wheel

* then

this is attached on the cargo area floor. The car's
towing eye and puncture repair kit are stored
under the cargo area floor.

Related information

•

Through-load hatch in the rear seat (p. 228)

•

Lowering the backrests in the rear seat
(p. 134)

•

Recommendations for loading (p. 225)

•

Tool kit (p. 540)

Recommendations for loading

There are a number of things to remember when
loading the car.

Payload depends on the car's kerb weight. The
total of the weight of the passengers and all
accessories reduces the car's payload by a cor-
responding weight.

WARNING

The car’s driving properties change depend-

ing on the weight and positioning of the load.

Loading in the cargo area

•

Position the load firmly against the rear
seat's backrest.

•

Centre the load.

•

Heavy objects should be placed as low as
possible. Avoid placing heavy loads on low-
ered backrests.

•

Cover sharp edges with something soft to
avoid damaging the upholstery.

•

Secure all loads to the load retaining eyelets
with straps or web lashings.

WARNING

A loose object weighing 20 kg (44 pounds)

can, in a frontal collision at a speed of

50 km/h (30 mph) carry the impact of an

item weighing 1000 kg (2200 pounds).

LOADING AND STORAGE

* Option/accessory.

226

WARNING

The protection provided by the inflatable cur-

tain in the headlining may be compromised or

eliminated by high loads.

•

Never load cargo above the backrest.

WARNING

Always secure the load. During heavy braking

the load may otherwise shift, causing injury to

the car's occupants.
Cover sharp edges and sharp corners with

something soft.
Switch off the engine and apply the parking

brake when loading/unloading long items.

Otherwise you may accidentally knock the

gear lever or gear selector with the load into a

drive position - and the car could then move

off.

Increasing the space in the cargo area

To expand the cargo area and simplify loading,
the rear seat's backrest can be lowered. Note
that objects must not prevent the function of the
WHIPS system for the front seats if any of the
rear seat's backrests is folded down.

A through-load hatch in the rear seat can be
folded down for carrying long and narrow loads.

Roof load and loading on load carriers

For loading on the car's roof, the load carriers

that Volvo have developed are recommended.
This is in order to avoid damage to the car and in
order to achieve the maximum possible safety
during a journey.

Carefully follow the installation instructions sup-
plied with the carriers.

•

Check periodically that the load carriers and
load are properly secured. Lash the load
securely with retaining straps.

•

Distribute the load evenly over the load carri-
ers. Put the heaviest objects at the bottom.

•

The size of the area exposed to the wind, and
therefore fuel consumption, increase with the
size of the load.

•

Drive gently. Avoid quick acceleration, heavy
braking and hard cornering.

WARNING

The car's centre of gravity and driving charac-

teristics are altered by roof loads.
Read about maximum permitted roof load in

the section on Weights.

Related information

•

Load retaining eyelets (p. 227)

•

Through-load hatch in the rear seat (p. 228)

•

Lowering the backrests in the rear seat
(p. 134)

•

•

•

•

Volvo's load carriers are available for purchase at authorised Volvo dealers.

LOADING AND STORAGE

}}

* Option/accessory.

227

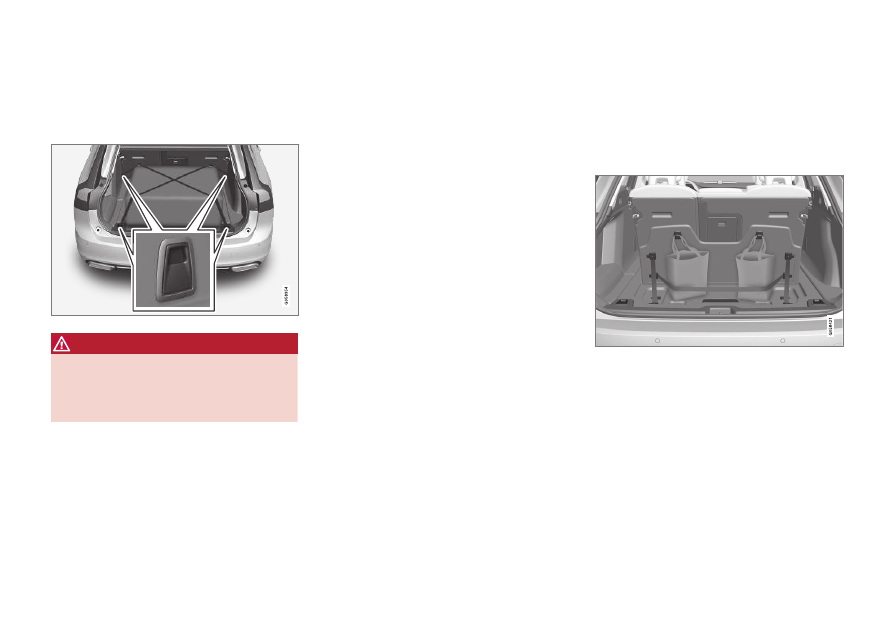

Load retaining eyelets

The folding load retaining eyelets are used to
fasten straps in order to anchor items in the
cargo area.

WARNING

Hard, sharp and/or heavy objects which pro-

trude may cause injury under violent braking.
Always secure large and heavy objects with a

seatbelt or cargo retaining straps.

Related information

•

Recommendations for loading (p. 225)

•

•

•

•

•

Bag hooks

Bag hooks, together with an elastic strap, hold
bags in place and prevent them from falling over
and spreading their contents across the cargo
area.

Under the floor hatch

LOADING AND STORAGE

* Option/accessory.

228

There are two bag hooks and an elastic strap

the cover, which is part of the floor hatch in the
cargo area. The strap can be fitted in four differ-
ent positions.

Lift up the cover in order to use the bag hooks.
Fasten the bags in a suitable position with the
enclosed elastic strap. If the bags have handles
and are a suitable height - hang them in the
hooks.

Along the sides

There are two bag hooks in the side panel on
each side of the cargo area.

IMPORTANT

The bag hooks may be loaded with a maxi-
mum of 5 kg (11 lbs).

Related information

•

Recommendations for loading (p. 225)

•

Safety grille

* (p. 232)

•

Safety net
