Climate control - sensors

The climate control system has a number of sen-
sors to help control the climate in the car.

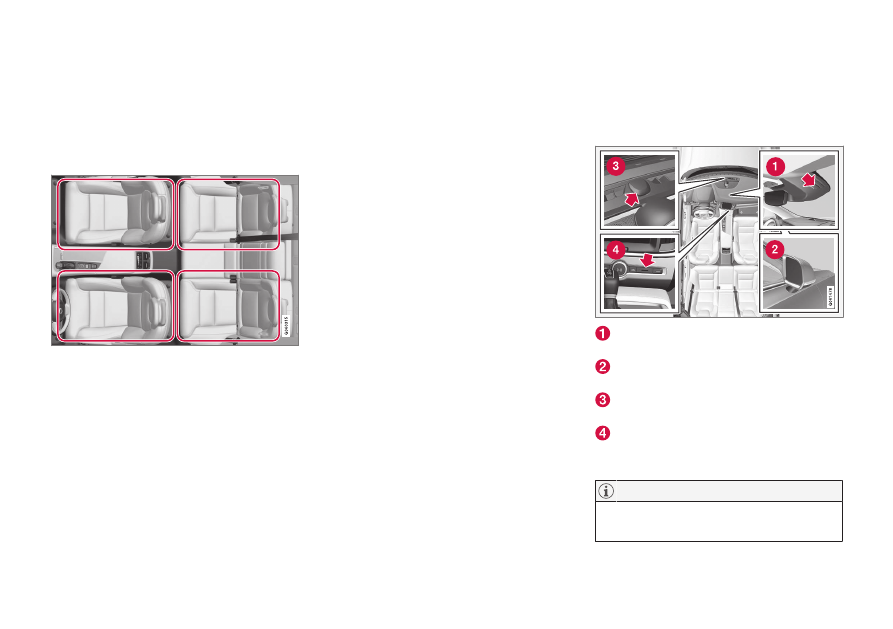

Sensor location

Moisture sensor - in the casing by the inte-
rior rearview mirror.
Outside temperature sensor - in the right-
hand door mirror.
Sun sensor - on the upper side of the instru-
ment panel.
Temperature sensor for the passenger com-
partment - by the physical buttons in the
centre console.

Do not cover or block the sensors with cloth-
ing or other objects.

CLIMATE CONTROL

}}

* Option/accessory.

183

With the Interior Air Quality System

* there is also

an air quality sensor that is fitted into the climate
control system air intake.

Related information

•

Perceived temperature (p. 183)

•

•

Perceived temperature

The climate control system regulates the climate
in the passenger compartment based on the
perceived temperature, not on actual tempera-
ture.

The temperature you select in the passenger
compartment corresponds to the physically per-
ceived temperature as affected by factors such
as the ambient temperature, air speed, humidity,
solar radiation, etc. in and around the car at the
time.

The system includes a sun sensor which detects
on which side the sun is shining into the passen-
ger compartment. This means that the tempera-
ture can differ between the right and left-hand
side's air vents despite the controls being set for
the same temperature on both sides.

Related information

•

Climate control - sensors (p. 182)

•

•

Air quality

The materials selected for the passenger com-
partment and the air cleaning system ensure that
the air quality in the passenger compartment is
high.

Materials in the passenger
compartment

The interior of the passenger compartment is
designed to be pleasant and comfortable, even
for people with contact allergies and for asthma
sufferers.

Tested materials have been developed in order to
minimise the quantity of dust in the passenger
compartment and to contribute to making the
passenger compartment easier to keep clean.

The carpets in both the passenger compartment
and the cargo area are removable and easy to
remove and clean.

Use cleaning agents and car care products rec-
ommended by Volvo to clean the interior.

Air cleaning system

In addition to the passenger compartment filter,
Clean Zone Interior Package

* and the Interior Air

Quality System

* also help to maintain high air

quality in the passenger compartment.

Clean Zone

The Clean Zone function checks whether or not
all conditions have been met for good air quality
in the passenger compartment.

CLIMATE CONTROL

* Option/accessory.

184

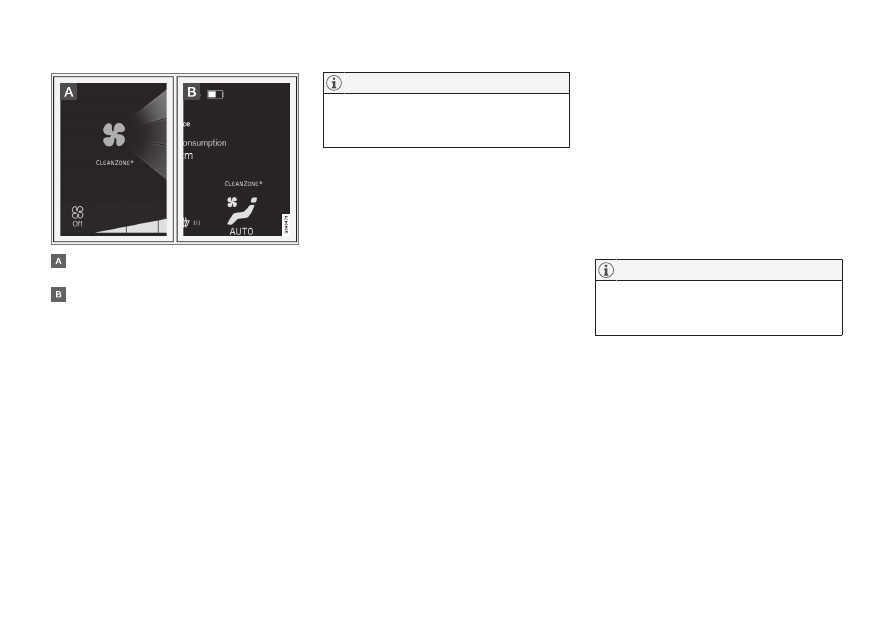

The indicator is visible in the climate view in
the centre display.
The indicator is visible in the climate row
when the climate view is not open.

If the conditions have not been met then the

Clean Zone

text is white. When all conditions

have been met, this is indicated by the text
changing colour to blue.

Conditions that are checked:

•

That all doors and the tailgate are closed.

•

That all side windows and the panorama
roof

* are closed.

•

That the air quality system Interior Air Quality
System

* is activated.

•

That the ventilation fan is activated.

•

That the air recirculation is deactivated.

Clean Zone does not indicate that the air
quality is good. It only indicates that the con-
ditions for good air quality have been met.

Related information

•

Passenger compartment filter (p. 184)

•

•

Clean Zone Interior Package

•

Cleaning the interior (p. 585)

•

•

Passenger compartment filter

All air entering the car's passenger compartment
is cleaned with a filter.

Replacing the passenger compartment
filter

To maintain high climate system performance,
the filter must be changed at regular intervals.
Follow the Volvo Service Programme for the rec-
ommended replacement intervals. If the car is
used in a severely contaminated environment, it
may be necessary to replace the filter more often.

There are different types of passenger com-
partment filter. Make sure that the correct fil-
ter is fitted.

Related information

•

Clean Zone Interior Package

•

•

Volvo service programme (p. 546)

•

CLIMATE CONTROL

* Option/accessory.

185

Clean Zone Interior Package

Clean Zone Interior Package (CZIP) comprises
a series of modifications that keep the passen-
ger compartment even clearer from allergy and
asthma-inducing substances.

The following is included:

•

An enhanced fan function that means that
the fan starts when the car is unlocked with
the remote control key. The fan fills the pas-
senger compartment with fresh air. The func-
tion starts when required and is disengaged
automatically after a time or when one of the
passenger compartment doors is opened.
The amount of time the fan runs is reduced
gradually due to reduced need up until the
car is 4 years old.

•

The fully automatic air quality system Interior
Air Quality System (IAQS).

Related information

•

Passenger compartment filter (p. 184)

•

•

Interior Air Quality System

Interior Air Quality System (IAQS) is a fully auto-
matic air quality system that separates gases
and particles to reduce the levels of odours and
contaminants in the passenger compartment.

IAQS is a part of the Clean Zone Interior
Package (CZIP) and cleans the air in the passen-
ger compartment from contaminants such as par-
ticles, hydrocarbons, nitrous oxides and ground-
level ozone.

If the air quality sensor senses that the outside
air is contaminated, the air intake is closed and
air recirculation is activated.

The air quality sensor must always be enabled
to ensure the best air in the passenger com-
partment.

In a cold climate recirculation is limited so as
to prevent misting.

In the event of misting, the defrost functions
for windscreen, side windows and rear win-
dow should be used.

Activating/deactivating the air quality
sensor

It is possible to set whether the air quality sensor
should be activated/deactivated.

1. Press

Settings

in the top view in the centre

display.

2. Press

Climate

3. Select

Air Quality Sensor

to activate/deac-

tivate the air quality sensor.

Related information

•

Passenger compartment filter (p. 184)

•

•

Clean Zone Interior Package

Activating/deactivating air recirculation
(p. 196)

•

CLIMATE CONTROL

* Option/accessory.

186

Climate controls

The climate control system's functions are con-
trolled from the centre display, physical buttons
in the centre console and the climate panel at
the rear of the tunnel console.

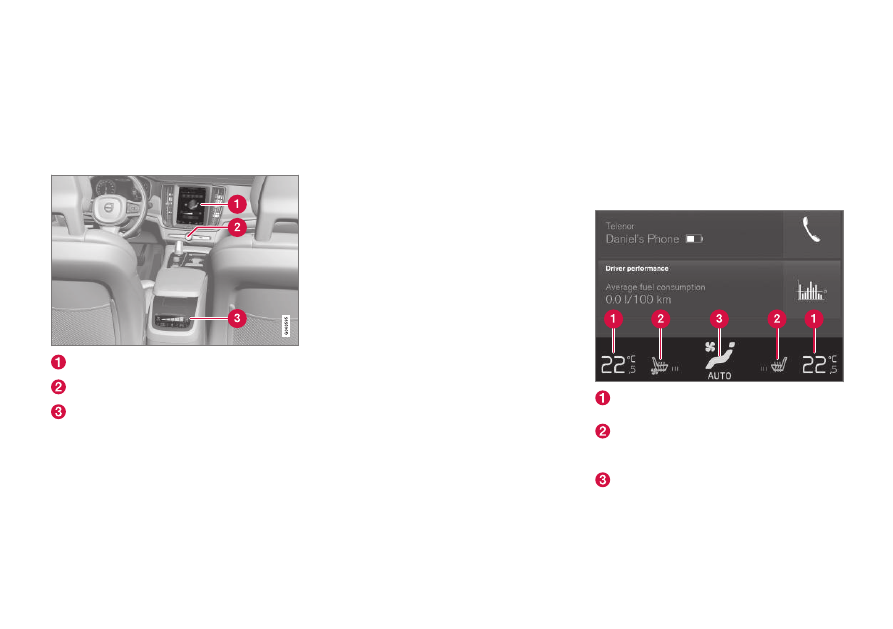

Overview of climate controls

Climate controls in the centre display.

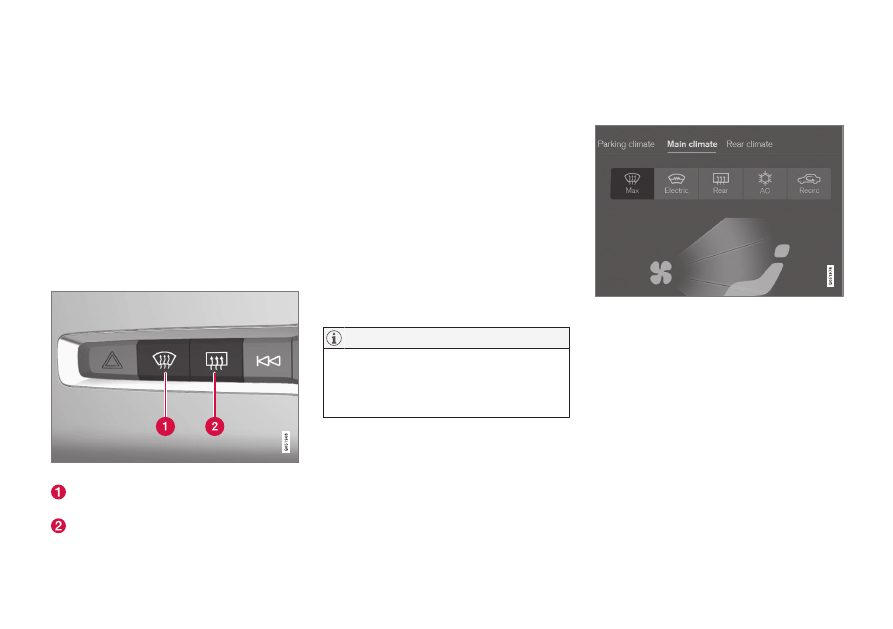

Defrost buttons in the centre console.

Climate controls at the rear of the tunnel
console.

Related information

•

•

Climate controls at the rear of the tunnel
console (p. 188)

•

•

Activating/deactivating defrost of windows
and door mirrors (p. 194)

Climate controls in the centre

display

All climate functions can be regulated from the
climate row and the climate view in the centre
display.

Climate row

The most common climate functions can be
regulated from the climate row.

Temperature controls for driver and passen-
ger side.
Controls for heated

* and ventilated* driver

and front passenger seat, as well as heated
steering wheel

Button for access to the climate view. The
graphic on the button shows activated cli-
mate settings.

CLIMATE CONTROL

}}

* Option/accessory.

187

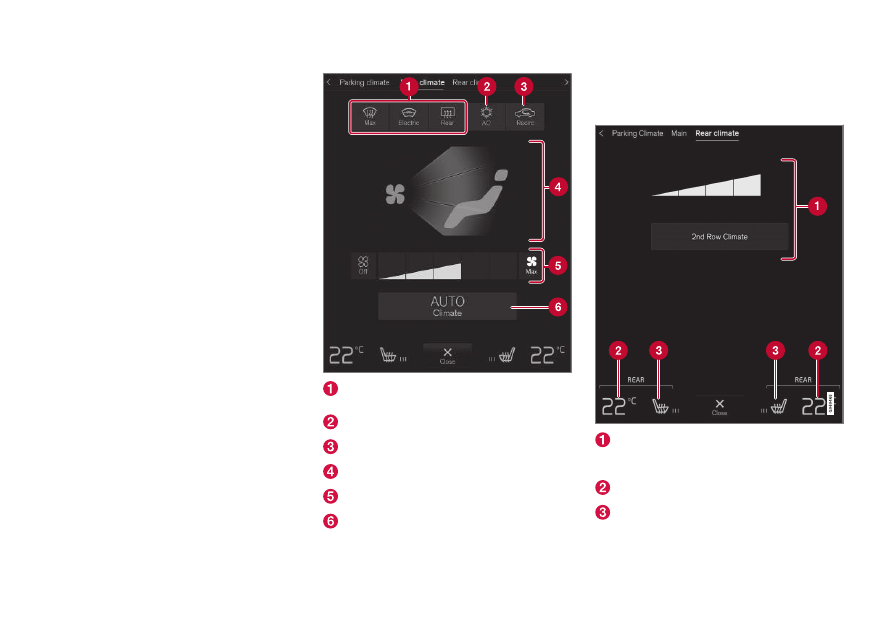

Climate view

One tap on the centre button in the climate row
gives access to the climate view. The climate view
is divided into the tabs

Main climate

Rear

climate

and

Parking climate

. Change between

the tabs by swiping left/right or by pressing the
respective heading.

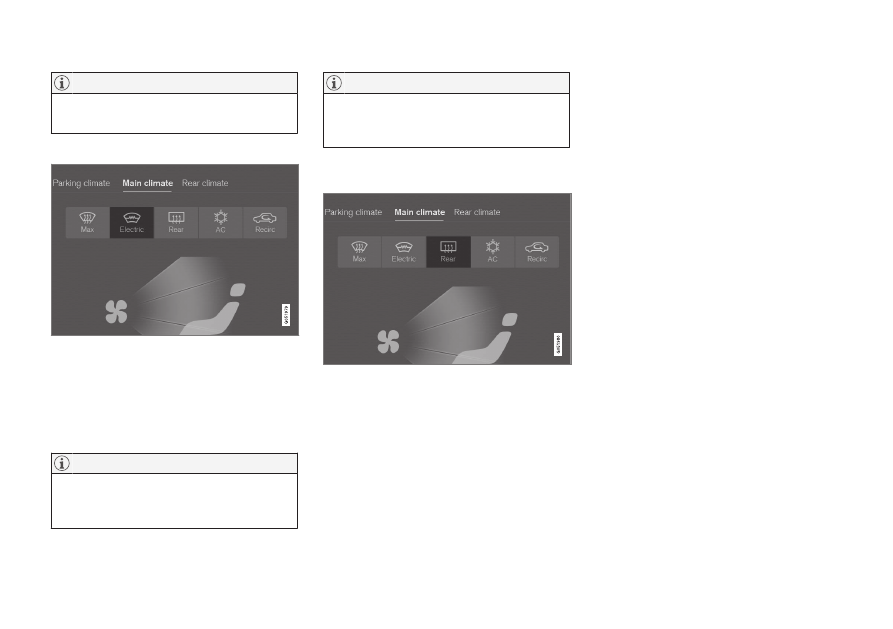

Main climate

In addition to the climate row's functions, other
main climate functions can also be controlled in
the

Main climate

tab.

Max

Electric

Rear

- Controls for defrosting

the windows and door mirrors.

- Controls for air conditioning.

Recirc

- Controls for air recirculation.

Controls for air distribution.

Fan controls for front seat.

AUTO

- Auto regulating the climate.

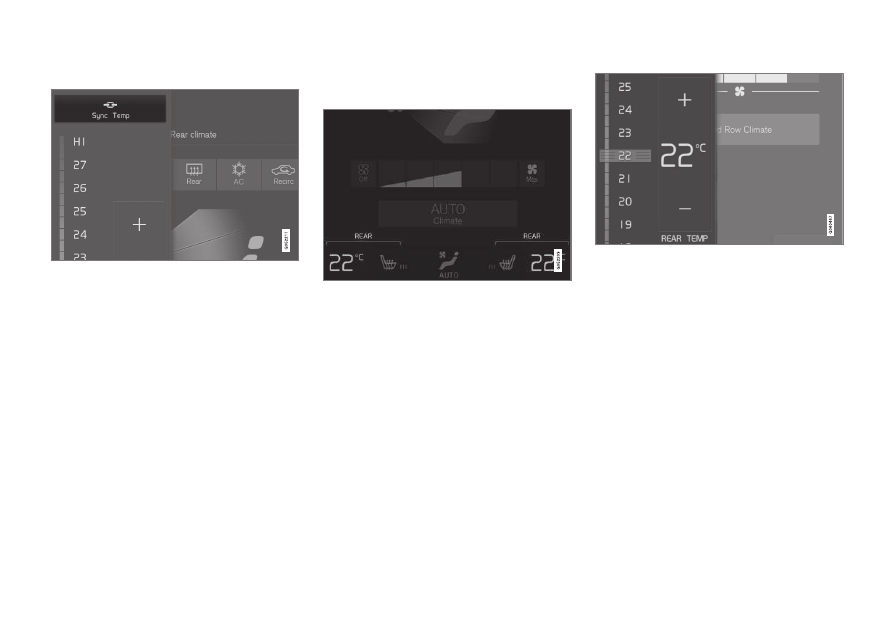

Rear climate control

All climate functions for the rear seat can be
regulated in the

Rear climate

tab.

2nd row climate

- Controls for climate func-

tionality in the rear seat. Fan controls for rear
seat.
Temperature controls for rear seat.

Controls for heated rear seat

CLIMATE CONTROL

* Option/accessory.

188

Parking climate

The car's parking climate control can be regula-
ted in the

Parking climate

tab.

Related information

•

Activating/deactivating defrost of windows
and door mirrors (p. 194)

•

•

Activating/deactivating air conditioning
(p. 189)

•

Activating/deactivating air recirculation
(p. 196)

•

Changing the air distribution (p. 197)

•

Regulating the fan level (p. 192)

•

•

Activating/deactivating heating of the seats

•

(p. 202)

•

Activating/deactivating ventilation of the
seats

* (p. 203)

•

Activating/deactivating heating of steering
wheel

* (p. 204)

•

Parking climate (p. 205)

Climate controls at the rear of the

tunnel console

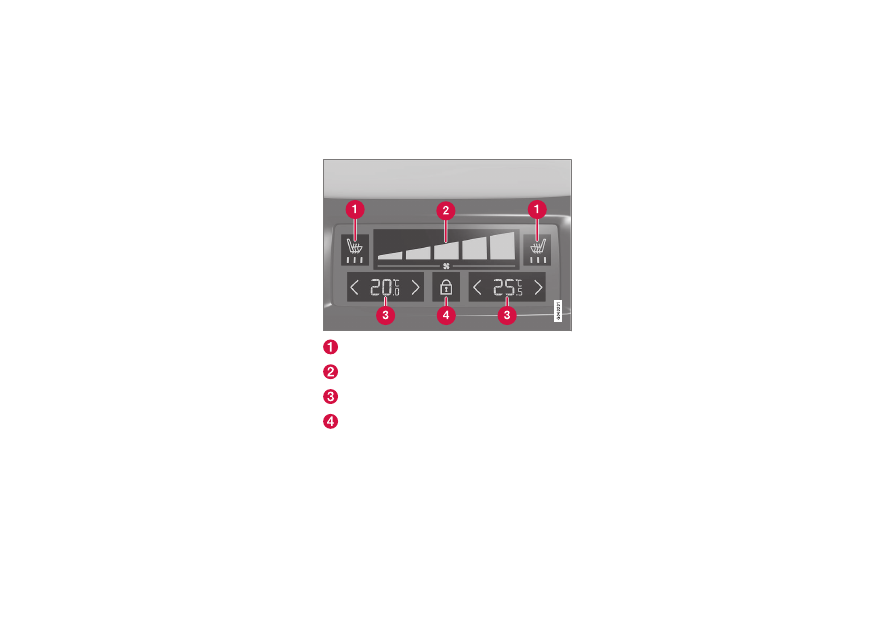

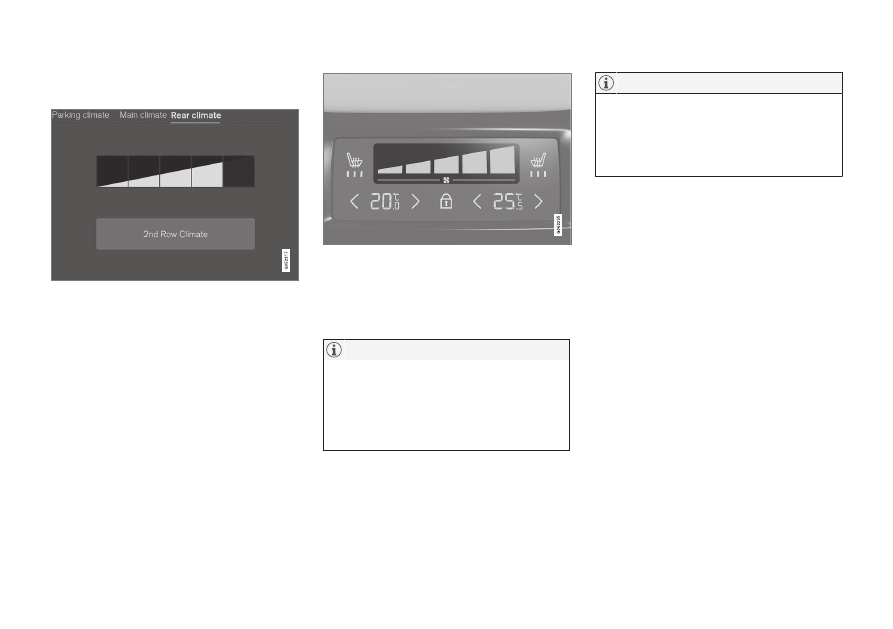

The rear seat's climate functions are controlled
from the climate panel at the rear of the tunnel
console.

Controls for heated rear seat

Fan controls for rear seat.

Temperature controls for rear seat.

Locking/unlocking button on the climate
panel.

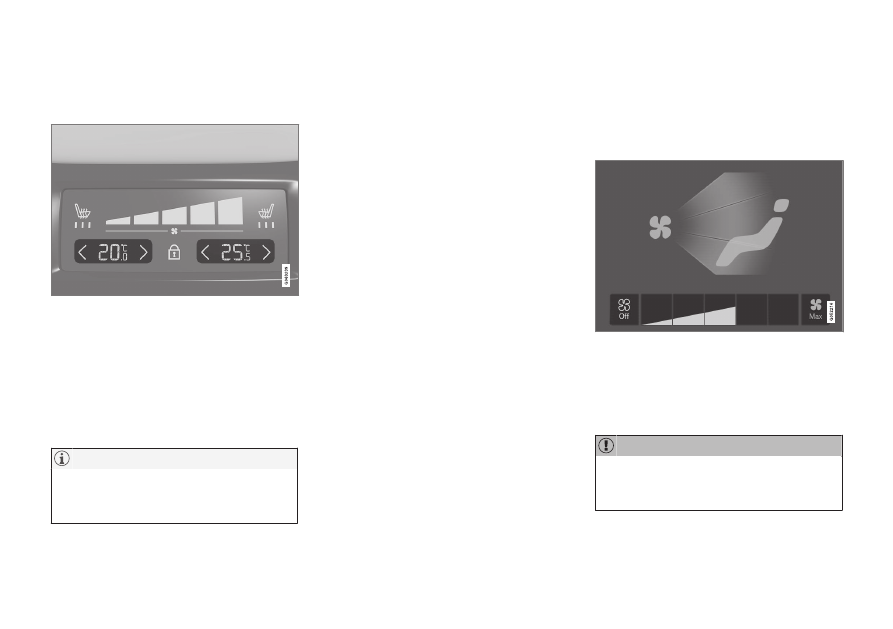

The climate panel has a screen lock to prevent
unintentional change of fan speed and tempera-
ture. When the screen is locked, only the seat
controls

* and the unlocking button are shown.

After unlocking, the fan speed and temperature
can be changed via the climate panel and all

selected climate settings are shown. The screen
locks automatically after a period of inactivity.

Related information

•

Activating/deactivating heating of the seats

•

(p. 202)

•

Regulating the fan level (p. 192)

•

CLIMATE CONTROL

}}

189

Auto-regulating the climate

With auto climate control activated, multiple cli-
mate functions are controlled automatically.

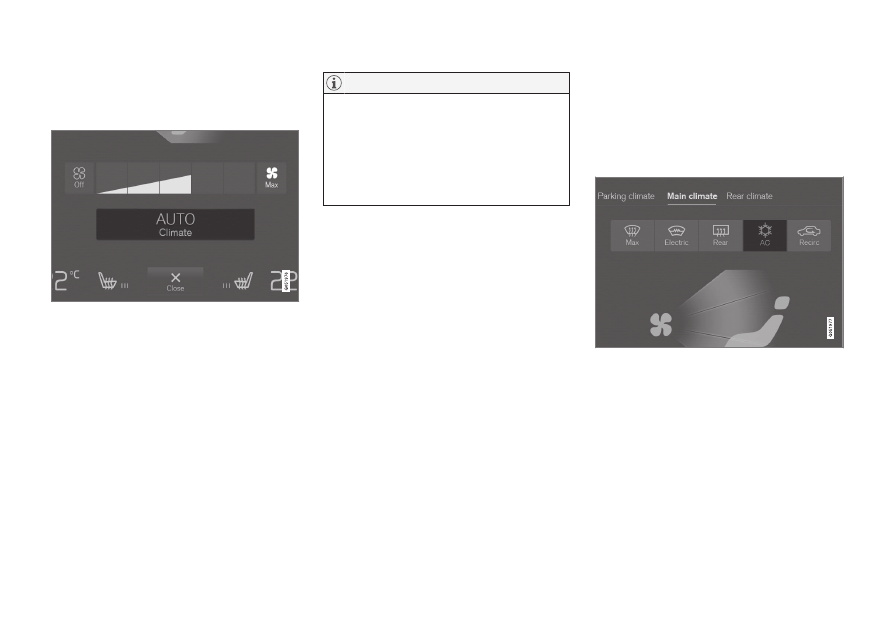

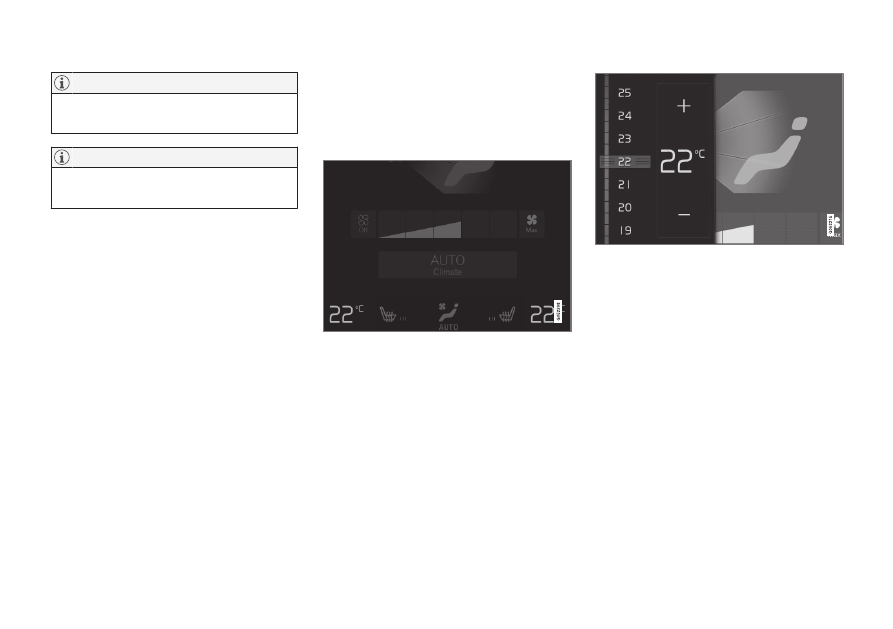

Auto-regulation button in the climate view.

1. Open the climate view in the centre display.

2. Give a short or long press on

AUTO

•

Short press - air recirculation, air condi-
tioning and air distribution are controlled
automatically.

•

Long press - air recirculation, air condi-
tioning and air distribution are controlled
automatically, temperature and fan level
are changed to standard settings: 22
°C/72 °F and level

(level

in the rear

seat).

> Auto-regulation of the climate is activated

and the button illuminates.

Temperature and fan speed can be changed
without deactivating the automatically-regula-
ted climate control system. The automatically-
regulated climate control system is deacti-
vated when the air distribution is changed
manually or when maximum defroster is acti-
vated.

Related information

•

Activating/deactivating air conditioning
(p. 189)

•

•

Activating/deactivating air recirculation
(p. 196)

•

Changing the air distribution (p. 197)

•

Regulating the fan level (p. 192)

•

Activating/deactivating air

conditioning

The air conditioning cools and dehumidifies
incoming air as required.

Activating/deactivating the main air
conditioning

The air conditioning button in the climate view.

1. Open the climate view in the centre display.

2. Press

> The air conditioning is activated/deacti-

vated and the button illuminates/extin-
guishes.

When the air conditioning is activated, the
climate control system automatically con-
trols starting and switching off as
required.

CLIMATE CONTROL

* Option/accessory.

190

Close all side windows and the panoramic
roof

* for air conditioning to work optimally.

It is not possible to activate the air condition-
ing when the fan control is in

Off

position.

Related information

•

•

Regulating the temperature

The temperature can be set separately for the
left and right-hand sides and separately for the
front and rear seats.

Regulating temperature for front seat

Temperature buttons in the climate row.

1. Press the left or right-hand side temperature

button in the centre display's climate row to
open the controls.

Temperature control.

2. Regulate the temperature by either of the

following:

•

drag the control to the desired tempera-
ture, or

•

press

−

to raise/lower the temperature

gradually.

> The temperature changes and the button

shows the set temperature.

CLIMATE CONTROL

}}

191

Synchronising the temperature

Synchronisation button on the driver's side temperature

controls.

1. Press the driver's side temperature button in

the centre display's climate row in order to
open the controls.

2. Press

Synchronise temperature

> The temperature for all zones in the car is

synchronised with the temperature set for
the driver's side and the synchronisation
symbol is shown adjacent to the tempera-
ture button.

Synchronisation is stopped by a further press on

Synchronise temperature

or by changing the

passenger side or rear seat temperature settings.

Regulating temperature for rear seat

From the front seat

Temperature buttons in the Rear climate tab in the cli-

mate view.

1. Open the climate view in the centre display

and select the tab for

Rear climate

2. Press the left or right-hand side temperature

button to open the control.

Temperature control.

3. Regulate the temperature by means of the

following:

•

drag the control to the desired tempera-
ture

•

press

−

to raise/lower the temperature

gradually.

> The temperature changes and the button

shows the set temperature.

CLIMATE CONTROL

192

From the rear seat

1. Press the unlocking button on the tunnel

console climate panel to access the controls.

Temperature control on the climate panel at the rear of

the tunnel console.

2. Press the left or right-hand side

buttons

on the tunnel console's climate panel in
order to lower/raise the temperature gradu-
ally.
> The temperature changes and the screen

in the climate panel shows the set tem-
perature.

Heating or cooling cannot be hastened by
selecting a higher or lower temperature than
the actual desired temperature.

Related information

•

•

Climate controls at the rear of the tunnel
console (p. 188)

•

•

Perceived temperature (p. 183)

•

Regulating the fan level

The fan can be set to five different automatic fan
levels as well as

Off

and

Max

. The fan level can

be set separately for front and rear seats.

Regulating fan level for front seat

Fan control buttons in the climate view.

1. Open the climate view in the centre display.

2. Tap on the desired fan level,

Off

Max

> Fan level is changed and the buttons for

the selected level illuminate.

IMPORTANT

If the fan is fully switched off then the air con-
ditioning is not engaged, which results in a
risk of misting on the insides of the windows.

CLIMATE CONTROL

193

Regulating fan level for rear seat

From the front seat

The fan control buttons in the tab Rear climate in the

climate view.

1. Open the climate view in the centre display

and select the tab for

Rear climate

2. Tap on the desired fan level,

The rear seat's fan level can be switched off
by tapping on

2nd row climate

> Fan level is changed and the buttons for

the selected level illuminate.

From the rear seat

1. Press the unlocking button on the tunnel

console climate panel to access the controls.

Fan controls on the climate panel at the rear of the tun-

nel console.

2. Tap on the desired fan level,

> Fan level is changed and the buttons for

the selected level illuminate.

The fan level for the rear seat cannot be set if
the fan level for the front seat is in position

Off

The rear seat fan speed can only be switched
off from the climate view in the centre display.

The climate control system automatically
adjusts the air flow within the selected fan
level based on requirements. This means that
the fan speed may change even though the
fan level is the same.

Related information

•

Climate controls at the rear of the tunnel
console (p. 188)

•

•

CLIMATE CONTROL

* Option/accessory.

194

Activating/deactivating defrost of

windows and door mirrors

The three functions max defroster, heated wind-
screen

*, and heated rear window and door mir-

rors are used to quickly remove misting and ice
from the windows and door mirrors.

From physical buttons in the centre
console

The centre console contains physical buttons for
quick access to the defrost functions.

With heated windscreen

* the max defroster can

only be activated individually from the climate
view in the centre display.

Physical buttons in the centre console.

Button for heated windscreen

* and max

defroster.
Button for heated rear window and door mir-
rors.

Cars without heated windscreen:

–

Press the button (1).
> Max defroster is activated/deactivated

and the button illuminates/extinguishes.

Cars with heated windscreen:

–

Press the button (1) repeatedly in order to
switch between the three levels:

•

Activated heated windscreen

•

Activated heated windscreen and max
defroster

•

Deactivated.

> Heated windscreen and max defroster are

activated/deactivated and the button illu-
minates/extinguishes.

Max defroster starts with a certain delay in
order to avoid a short increase in fan level if
the heated windscreen is deactivated by two
quick presses of the button.

Rear window and door mirror defrosters:

–

Press the button (2).
> Heated rear window and door mirrors are

activated/deactivated and the button illu-
minates/extinguishes.

From the climate view in the centre
display

Activating/deactivating max defroster

Max defroster button in the climate view.

1. Open the climate view in the centre display.

2. Press

Max

> Max defroster is activated/deactivated

and the button illuminates/extinguishes.

Max defroster deactivates auto-regulation
of the climate and air recirculation, acti-
vates air conditioning and changes the
fan level to

and the temperature to

When max defroster is deactivated, the
climate control system returns to the pre-
vious settings.

CLIMATE CONTROL

* Option/accessory.

195

Changing the fan level to

increases the

noise level.

Activating/deactivating heated windscreen

The button for heated windscreen in the climate view.

1. Open the climate view in the centre display.

2. Press

Electric

> Heated windscreen is activated/deacti-

vated and the button illuminates/extin-
guishes.

A triangular area at the end of each side of
the windscreen is not electrically heated,
where de-icing may take longer.

The heated windscreen may affect the per-
formance of transponders and other commu-
nication equipment.

Activating/deactivating heated rear window
and door mirrors

The button for heated rear window and door mirrors in

the climate view.

1. Open the climate view in the centre display.

2. Press

Rear

> Heated rear window and door mirrors are

activated/deactivated and the button illu-
minates/extinguishes.

Activating/deactivating automatic start
of heated windows

It is possible to set whether automatic start of
heated windscreen

* and heated rear window and

door mirrors should be activated/deactivated
when the engine is started. With automatic start
activated, heating will start when there is a risk of
ice or misting on the windscreen/window. The
heating switches off automatically when the
windscreen/window is sufficiently warm and the
ice or misting is gone.

1. Press

Settings

in the top view in the centre

display.

2. Press

Climate

3. Select

Auto Front Defroster

to activate/

deactivate automatic start of heated wind-
screen.

Select

Auto Rear Defroster

to activate/

deactivate automatic start of heated rear
window and door mirrors.

Related information

•

•
