Volvo V70r (2004 year). Instruction

WARNING!
When adding accessories, equipment, luggage and other cargo to your vehicle, the total loaded weight capacity of
the vehicle must not be exceeded.

1) Rear seat backrest up, load height - upper edge of backrest
2) Rear seat backrest folded down, load height - upper edge of front seat backrests/lower edge of rear window
3) Rear seat backrest folded down, load height - head lining (ceiling)

* When driving for prolonged periods at temperatures above 86° F (30° C), the maximum recommended weight is
2000 lbs (900 kg).
**See also section "Trailer towing"

All specifications are subject to change without prior notice.

pg. 146 Dimensions and weights

Weights

USA

Canada

Gross vehicle weight (GVW)*

V70 man.

4630 lbs

2100 kg

V70 aut.

4690 lbs

2130 kg

V70 Turbo man.

4690 lbs

2130 kg

V70 Turbo aut.

4730 lbs

2150 kg

V70 AWD

4890 lbs

2220 kg

V70 AWD-R man. 4890 lbs

2220 kg

V70 AWD-R aut. 4890 lbs

2220 kg

V70

4890 lbs

2220 kg

Capacity weight

930 lbs

420 kg

Curb weight

V70

3390-3610 lbs 1540-1645 kg

V70 AWD

3715-3740 lbs 1685-1700 kg

V70 AWD-R

3805-3870 lbs 1740-1760 kg

V70

3765-3795 lbs 1710-1725 kg

Permissible axle weight, front*

V70 man.

2290 lbs

1040 kg

V70 aut.

2330 lbs

1060 kg

V70 Turbo man.

2290 lbs

1040 kg

V70 Turbo aut.

2330 lbs

1060 kg

V70 AWD

2400 lbs

1090 kg

V70 AWD-R man. 2380 lbs

1080 kg

V70 AWD-R aut. 2400 lbs

1090 kg

V70

2490 lbs

1130 kg

Permissible axle weight, rear*

V70, V70 Turbo

2470 lbs

1120 kg

V70 AWD

2580 lbs

1170 kg

V70 AWD-R

2580 lbs

1170 kg

V70

2620 lbs

1190 kg

* The max permissible axle loads or the gross vehicle weight must not be exceeded.

pg. 147 Engine specifications

Engine specifications
Designation: Volvo B 5234 T3

Output

247 hp at 5200 rpm (184 kW/87 rps)

Max. torque

243 ft. lbs. at 2400-5200 rpm (330 Nm/42-87 rps)

Number of cylinders 5

Bore

3.19" (81 mm)

Stroke

3.54" (90 mm)

Displacement

2.3 liters

Compression ratio

8.5:1

Number of valves

Designation: Volvo B 5254 T2

Output

208 hp at 5000 rpm (154 kW/83 rps)

Max. torque

236 ft. lbs. at 1500-4500 rpm (320 Nm/25-75 rps)

Number of cylinders 5

Bore

3.27" (83 mm)

Stroke

3.67" (93.2 mm)

Displacement

2.5 liters

Compression ratio

9.0:1

Number of valves

Designation: Volvo B 5244 T3

Output

197 hp at 6000 rpm (147 kW/100 rps)

Max. torque

210 ft. lbs. at 1800-5000 rpm (285 Nm/30-83 rps)

Number of cylinders 5

Bore

3.27" (83 mm)

Stroke

3.54" (90 mm)

Displacement

2.4 liters

Compression ratio

9.0:1

Number of valves

Designation: Volvo B 5244 S

Output

168 hp at 6000 rpm (125 kW/100 rps)

Max. torque

166 ft. lbs. at 4500 rpm (225 Nm/75 rps)

Number of cylinders 5

Bore

3.27" (83 mm)

Stroke

3.54" (90 mm)

Displacement

2.4 liters

Compression ratio

10.3:1

Number of valves

Designation: Volvo B 5254 T4

Output

300 hp at 5500 rpm* (220 kW/92 rps)*

Max. torque

295 ft. lbs. at 1950-5250 rpm** (400 Nm/31-95 rps)**

Number of cylinders 5

Bore

3.27" (83 mm)

Stroke

3.67" (93.2 mm)

Displacement

2.5 liters

Compression ratio

8.5:1

Number of valves

* Automatic transmission: 300 hp at 6000 rpm, 220 kW at 100 rps
** Automatic transmission: 258 ft. lbs at 1850-6000 rpm, 350Nm at 32-100 rps

Charge air cooler (Intercooler)
Turbocharged engines employ a turbo-compressor to force air into the engine inlet manifold and a charge air cooler to
cool the compressed inlet air. The resulting increase in air flow raises pressure in the intake manifold and increases
engine power over that developed by A normally-aspirated engine. The charge air cooler (which resembles a radiator)
is located between the turbo-compressor and inlet manifold.

pg. 148 Oil/fluid specifications and volumes

Engine Oil

Meeting or exceeding ILSAC specification GF-2, including ACEA A1, API SJ, SJ/CF, and SJ/Energy Conserving.

Oil additives must not be used.

Volume:
Capacity (including oil filter):
Non-turbo models: 5.8 US qts. (5.5 liters)
Turbo models (not V70R) 6.1 US qts. (5.8 liters)
V70R: 5.5 US qts (5.2 liters)

Manual transmission oil

M56 (five speed): 2.2 US qts. (2.1 liters)
M66 (6 speed): 2.1 US qts. (2.0 liters)

Automatic Transmission Fluid

AW5: Only Volvo transmission oil (1161540-8). Do not mix with other oils.

Volume: 7.9 US qts (7.5 liters)

Cooling system

Type: Positive pressure, closed system. The thermostat begins to open at 194 °F (90 °C)

Coolant: Volvo original coolant/antifreeze

Power steering fluid

ATF fluid
Volume: 0.95 US qts (0.9 liters)

Brake fluid

DOT 4+ boiling point >536°F(280°C), P/N 9437433
Volume: 0.64 US qts (0.6 liters)

Climate control system - refrigerant (R 134a)

Oil: PAG
Volume: 2.2 lbs (1,000 g) R134a

Fuel

Minimum octane requirement - AKI 87 (RON 91)
Fuel tank volume:
Front wheel drive models:18.5 US gal. (70 liters)
All Wheel Drive models: 19 US gal. (72 liters)
V70R: 18 US gal. (68 liters)

Washer fluid reservoir

Volume: 4.7 US qts (4.5 liters)

All specifications are subject to change without prior notice.

pg. 149 Fuel system, Distributor ignition system, Suspension

Fuel system

The engine is equipped with a multiport fuel injection system.

Distributor ignition system

Firing order: 1-2-4-5-3
Electronic ignition setting: Not adjustable
Spark plugs: Champion RC8PYP 8 (or equivalent)

Spark plug gap: 0.028-0.032" (0.7-0.8 mm)
Tightening torque: 18.4 ft. lbs. (25 Nm)

WARNING!
The ignition system operates at very high voltages. Special safety precautions must be followed to prevent injury.
Always turn the ignition off when:

Replacing ignition components e.g. plugs, coil, etc.
Do not touch any part of the ignition system while the engine is running. This may result in a shock and bodily

injury.

Front suspension

Spring strut suspension with integrated shock absorbers and control arms linked to the support frame. Power-assisted
rack and pinion steering. Safety type steering column. The alignment specifications apply to an unladen car but include
fuel, coolant and spare wheel.

Rear suspension

Individual rear wheel suspension with longitudinal support arms, double link arms and track rods.

All specifications are subject to change without prior notice.

pg. 150 Electrical system

Electrical system

12 Volt, negative ground.
Voltage-controlled generator. Single-wire system with chassis and engine used as conductors. Grounded on chassis.

Battery
Voltage: 12 Volt, capacity: 600 A/115 min reserve capacity.
The battery contains corrosive and poisonous acids. It is of the utmost importance that old batteries are disposed of
correctly. Your Volvo retailer can assist you in this matter.

Generator
Rated output: max. current: 140 A

Starter motor:
Output: 1.7 kW

Bulbs

Bulb

US no. Power

Socket

Headlights

- High beam

HB3

60W

- Low beam

55W

Bi-Xenon headlights*

(option)

35W

D2R

Front parking lights

W2.1x9.5d

Front direction indicators

(yellow) 21 W

BAU 15d

Front fog lights

55 W

- V70R

55 W

Rear direction indicators

(yellow) 21W

BAU 15 s

Tail lights

BA 15 s

Brake lights

1156

21W

BA 15 s

Backup lights

1156

21W

BA 15 s

Rear fog light/rear parking lights

21/4W

BA 15 s

License plate light

5 W

W 2.1x9.5d

Door step courtesy lights

Front

SV 8.5

Cargo area lights

5 W

SV 8.5

Glove compartment light

2 W

BA 9s

Vanity mirror light(s)

12V 1.2W -

Instrument lighting

3 W

W 2.1x9.5d

* Bi-Xenon headlight bulbs (option) contain trace amounts of mercury. These bulbs should always be disposed of by
an authorized Volvo retailer.

WARNING!
Bi-Xenon headlights (option) - due to the high voltage used by these headlights, these bulbs should only be replaced
by an authorized Volvo service technician.

All specifications are subject to change without prior notice.

pg. 151 On Call Roadside Assistance

Volvo On Call Roadside Assistance

Your new Volvo comes with a four-year On Call Roadside Assistance program. Additional information, features, and
benefits are described in a separate information package in your glove compartment.

If you have misplaced your package, dial:
In the U.S.A.
1-800-63-VOLVO (1-800-638-6586)
In Canada:
1-800-263-0475

2 0 0 4

VOLVO

V70

Chapter 10 - Audio systems

pg. 153 Audio systems

HU-613 overview 154

HU-803 overview 155

Audio system functions 156

Specifications 167

General information 168

NOTE: The text on the face of the radio, describing the button functions, may vary slightly depending on which audio
system you have in your car.

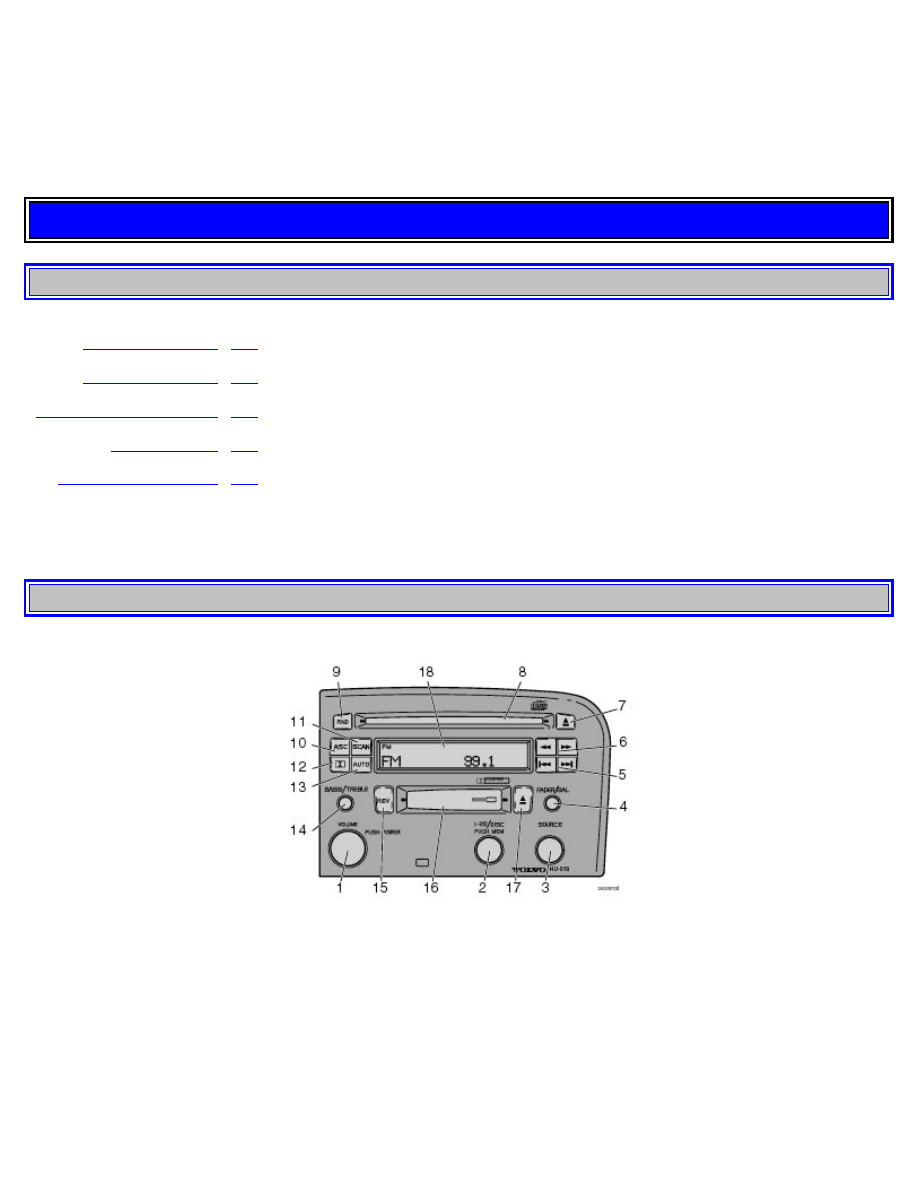

pg. 154 Audio system HU-613 - overview

1. On/off - press
   Volume - turn
2. Selector knob for:
   Stored radio frequencies
   CD changer - selecting disc
3. Selector knob:
   Radio
   Cassette
   CD
   CD changer

   TV (option on certain models)
4. Fader - press and turn
   Balance - press, pull and turn
5. Radio - Station seek up/down
   Cassette - selecting next/previous track
   CD - Selecting next/previous track
6. Radio - Manual station selection
   Cassette - Fast winding forward/backward
   CD - Fast forwards/backward
7. CD eject
8. CD slot
9. CD random play
10. Active Sound Control (ON or OFF)
11. Scan function
12. Dolby B Noise Reduction
13. Automatic presetting of radio stations
14. Bass - press and turn
   Treble - press, pull and turn
15. Tape direction selector
16. Cassette opening
17. Cassette eject
18. Display

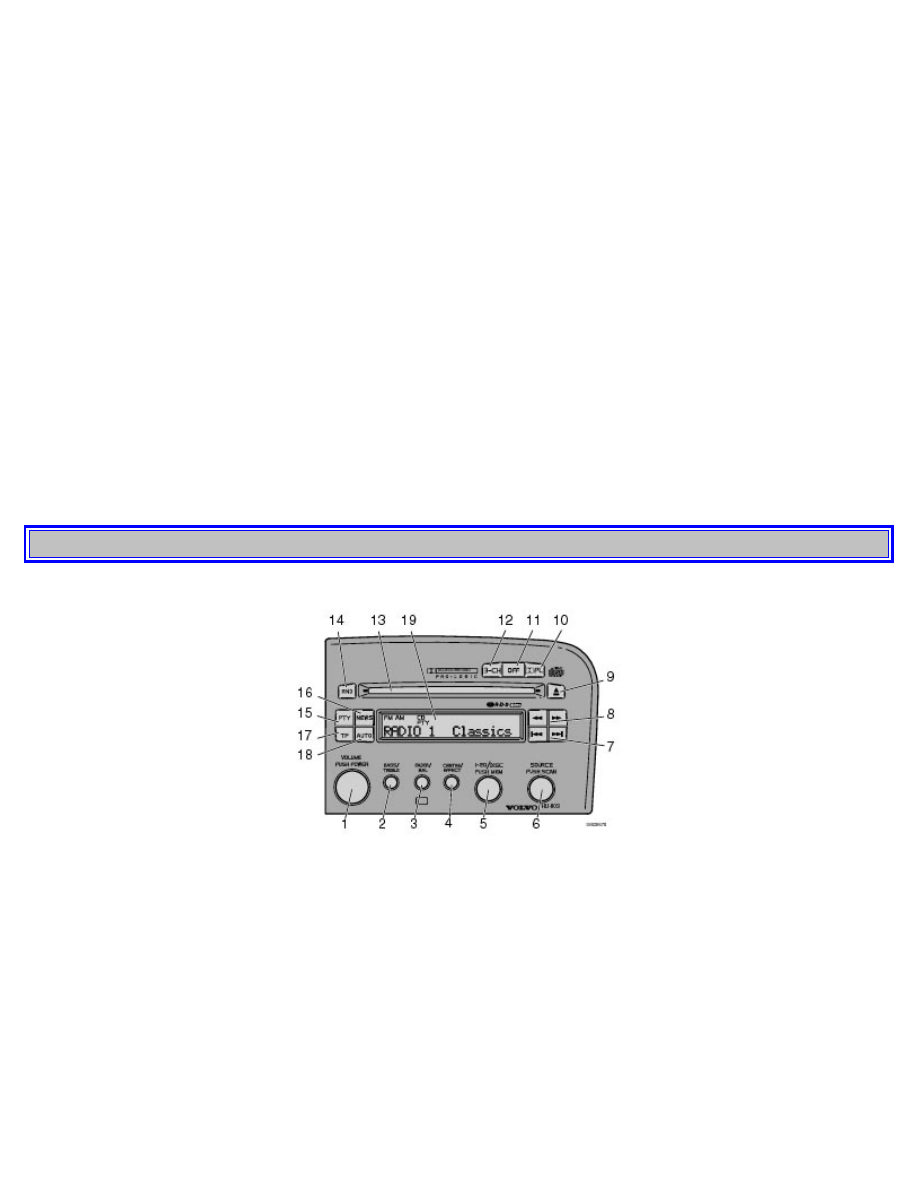

pg. 155 Audio system HU-803 - overview

1. On/off - press
   Volume - turn
2. Bass - press and turn
   Treble - press, pull and turn
3. Fader - press and turn
   Balance - press, pull and turn
4. Center volume - press and turn
   Effect channel volume - press, pull and turn

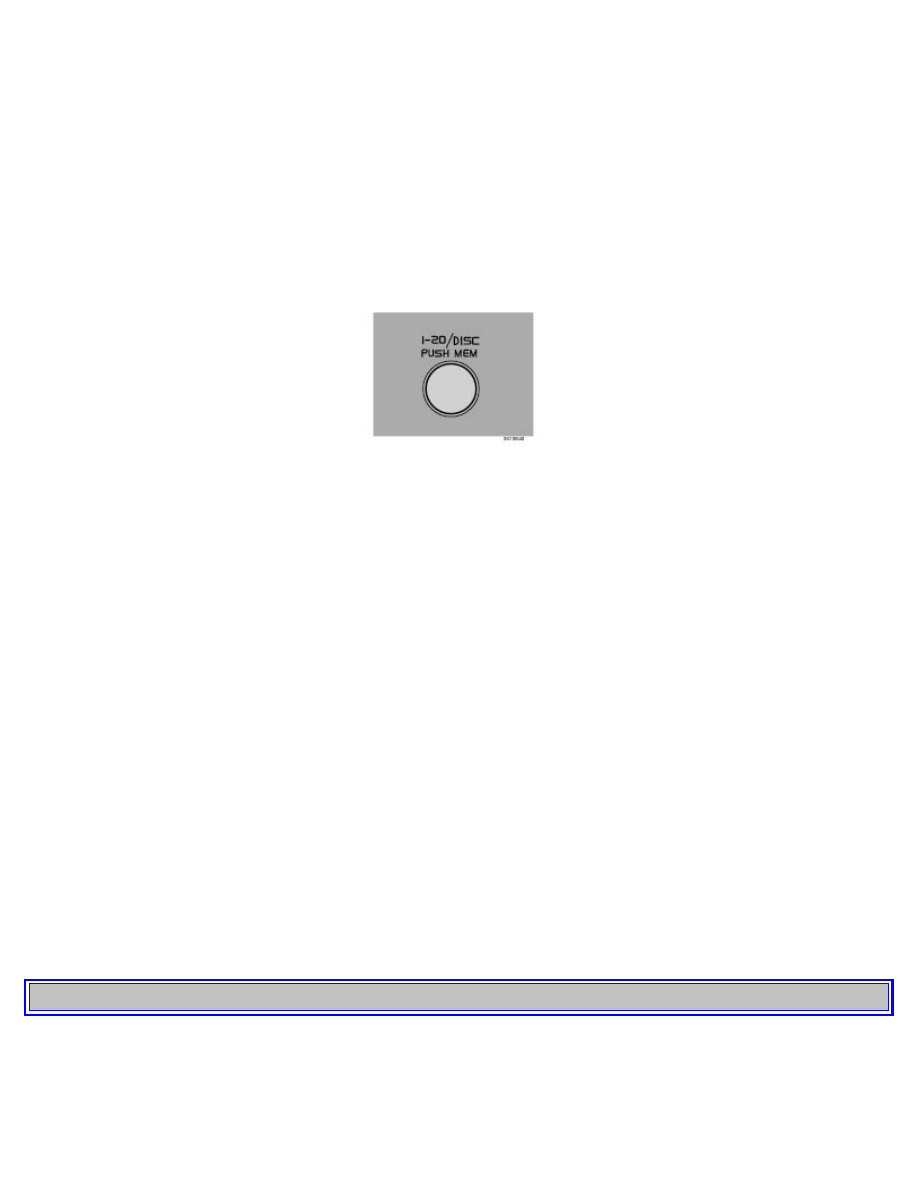

5. Selector knob for:
   Stored radio frequencies
   CD - selecting disc
6. Selector knob:
   Radio

   Internal CD changer
   Station scan - press
   TV (option on certain models)
   External CD changer (option)
7. Radio - Station seek up/down
   CD - Selecting next/previous track
8. Radio - Manual station selection
   CD - Fast forward/backward
9. CD eject
10. Dolby Pro Logic - switching on
11. 2 channel stereo
12. 3 channel stereo
13. CD slot

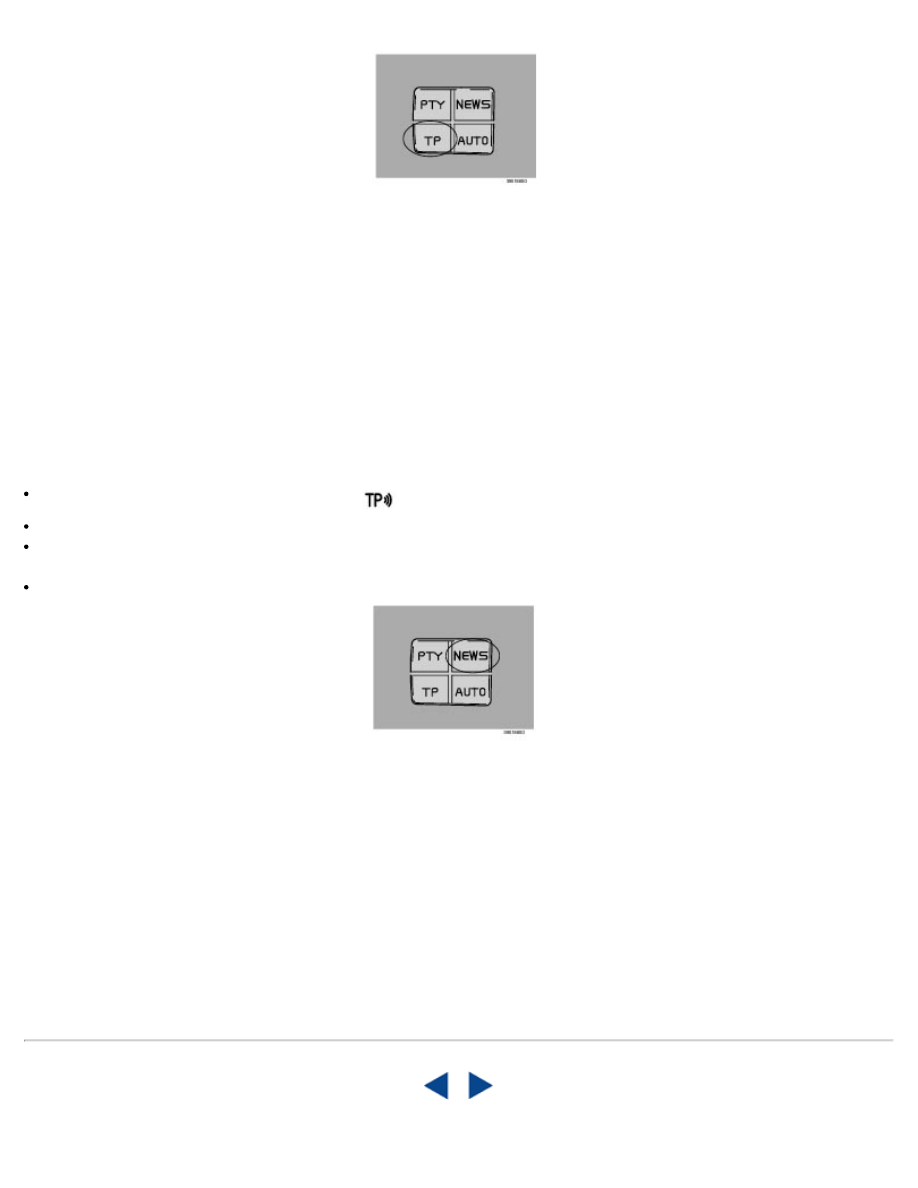

14. CD random play
15. Program type
16. News
17. Traffic information
18. Automatic presetting of radio stations
19. Display

pg. 156 Audio systems HU-613/HU-803

Switch on/off

Press the knob to switch on or turn off the radio.

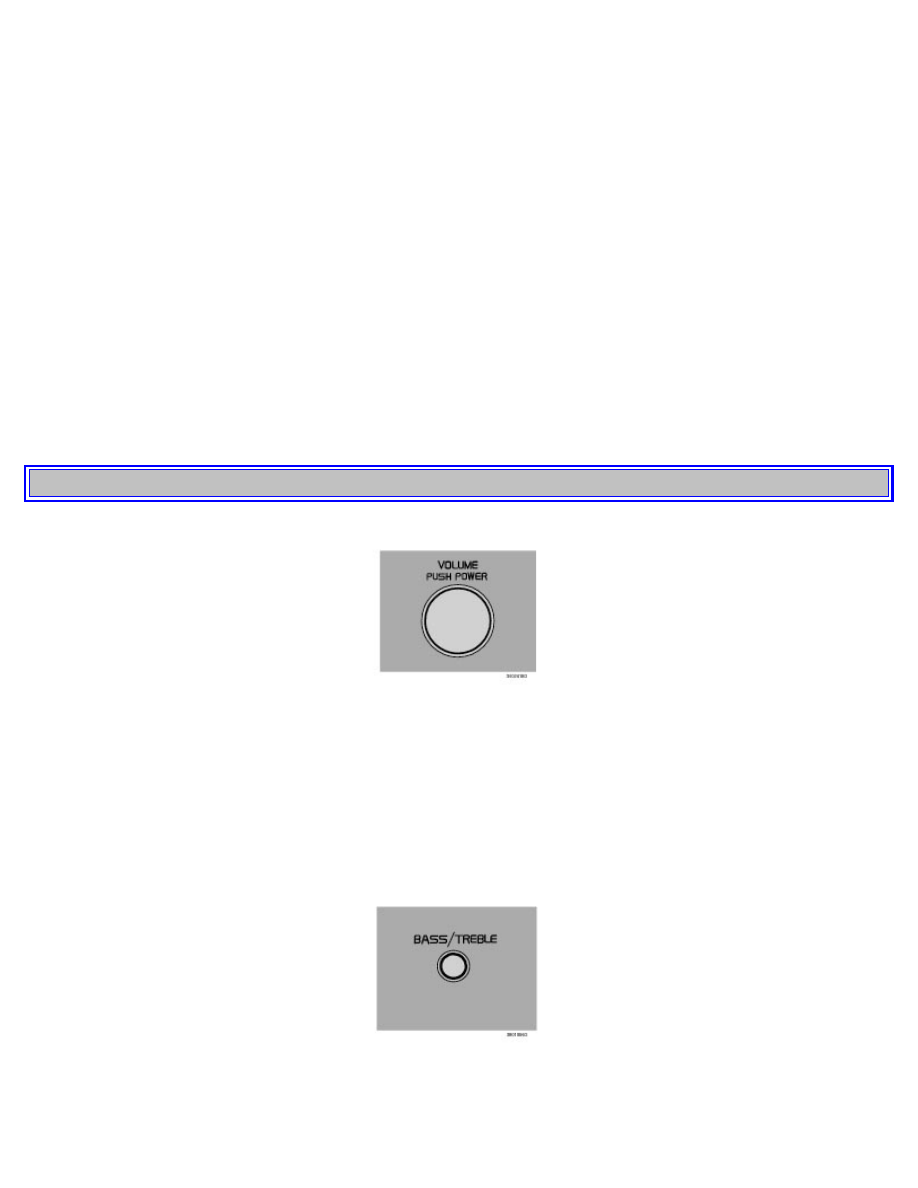

Volume control

Turn the knob clockwise to increase volume. Volume control is electronic and does not have an end stop. If you have
a key pad in the steering wheel, increase or decrease the volume with the + or - buttons.

Bass

Adjust the bass by pressing the button to extend the control and turning it to the left (less bass) or to the right (more
bass). A "detent" indicates "equalized" bass. Press the button back in when you have made the adjustment.

Treble

Adjust the treble by pressing the button to extend the control, pulling it out as far as possible, and then turning it to the
left (less treble) or to the right (more treble). A "detent" indicates "equalized" treble. Press the button back in when you
have made the adjustment.

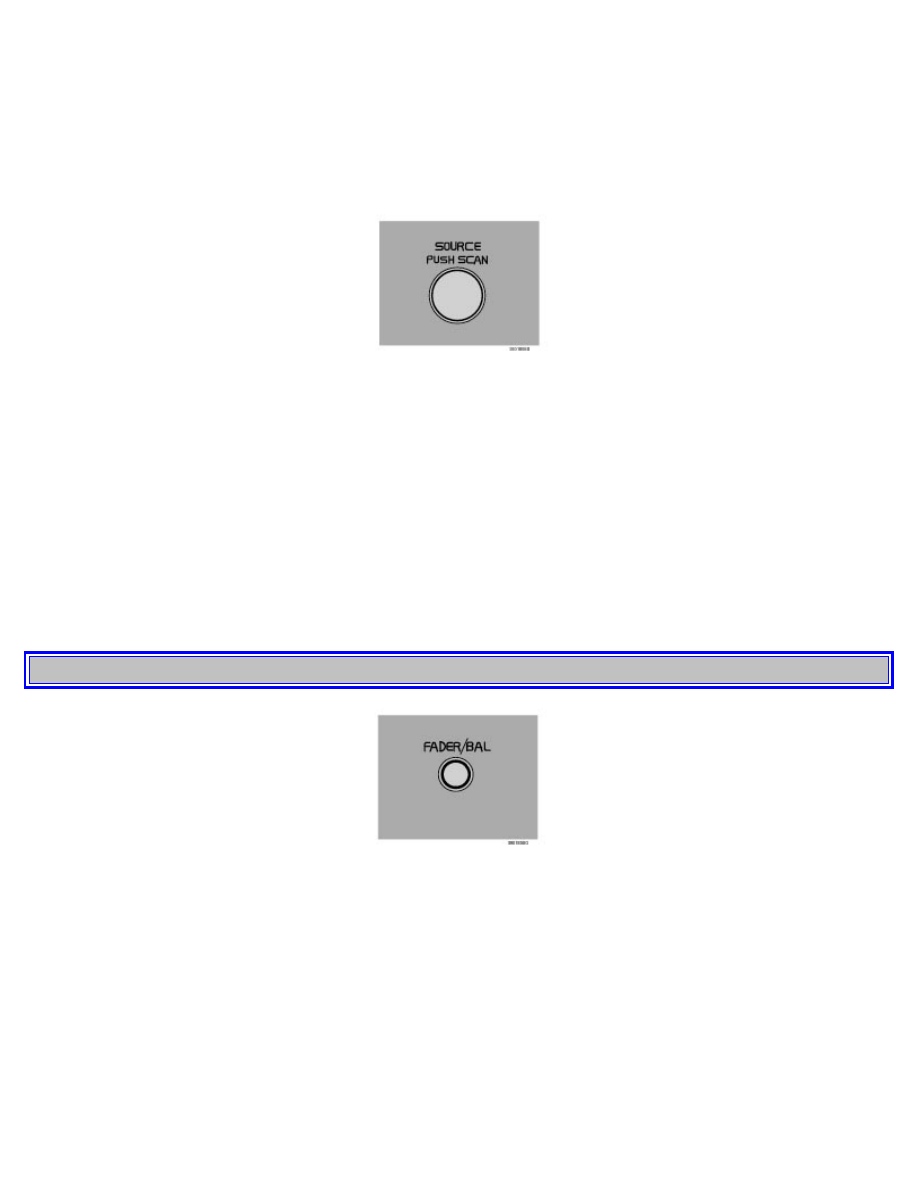

Band selector

Turn "SOURCE" knob to select FM or AM. The station and band are displayed. You can also select cassette deck,
CD, or optional CD changer with this knob.

Active sound control (ASC)

The ASC (Active Sound Control) automatically adapts volume to vehicle speed.
Press the ASC button (HU-613) for several seconds to switch this function ON or OFF. This function is included in
the Advanced User Mode on the HU-803 equipped with this feature.
"ASC ON" or "ASC OFF" will be shown in the display for several seconds.

pg. 157 Audio systems HU-613/HU-803

Fader - Balance front/rear

Adjust front/rear speaker balance by pressing the button to extend the control and turning it to the left (more sound
from the rear speakers) or to the right (more sound from the front speakers). A "detent" indicates "equalized" balance.
Press the button back in when you have made the adjustment.

Balance right/left

Adjust left/right speaker balance by pressing the button to extend the control, pulling it out as far as possible and then
turning it to the left (more sound from the left speakers) or to the right (more sound from the right speakers). A
"detent" indicates "equalized" balance. Press the button back in when you have made the adjustment.

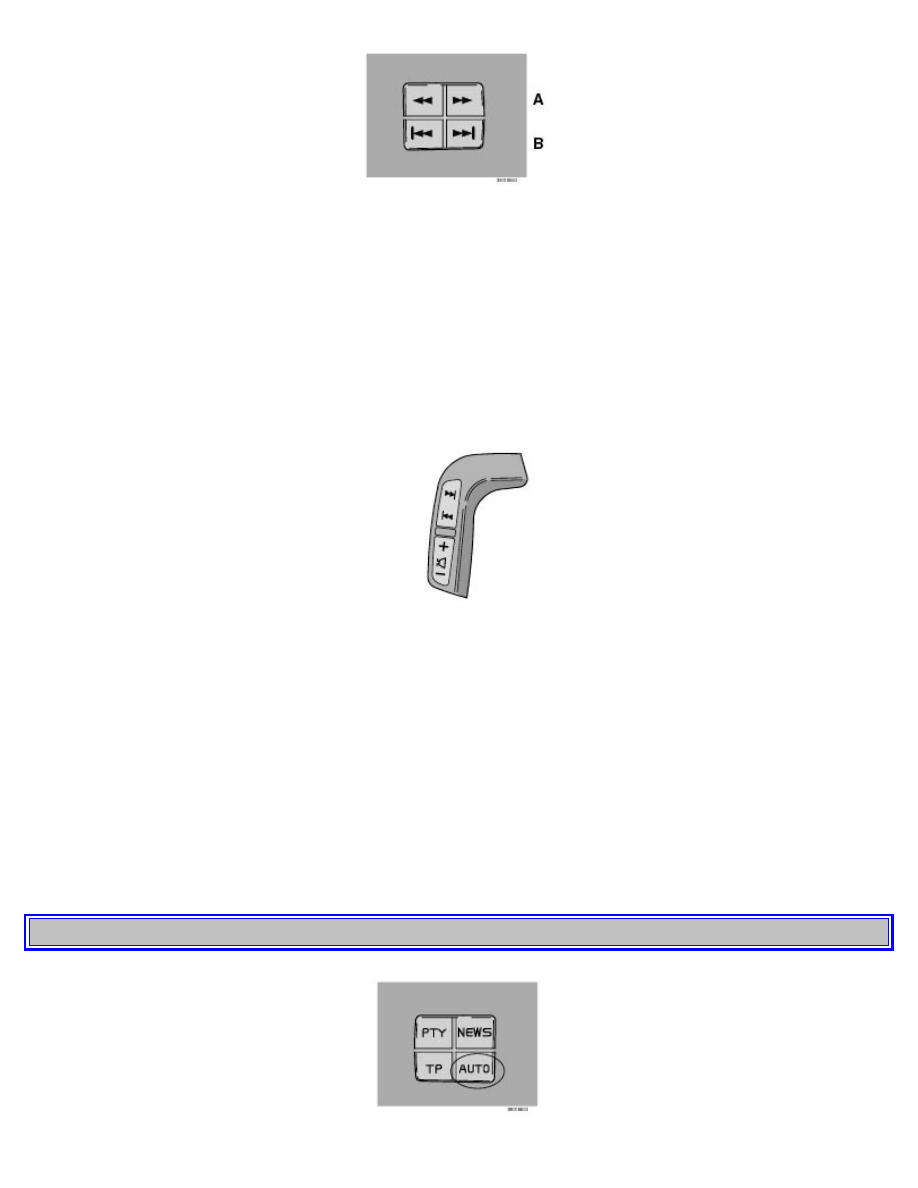

A - Setting station

Press the left side of the button to select lower frequencies and the right side for higher frequencies. Set frequencies are
displayed.

B - Station seek up/down

Press the left side (lower frequency) or right side (higher frequency) of the button to start the seek function. The radio
seeks the next audible station and tunes it in. Repeat the procedure to continue the seek function.

Audio system controls on the steering wheel

Station seek up/down

If you have a key pad in the steering wheel press the right or left arrow to switch between preset stations.

Scan function

Press the SCAN button (HU-613) or the SOURCE button (HU-803) to start the station scan function. When a station
is found, scanning stops for several seconds, after which scanning will continue.
Press the SCAN or SOURCE button when a station has been found if you would like to listen to that station and to
discontinue the scan function.

pg. 158 Audio systems HU-613/HU-803 - radio

A - Automatic station preset

This function seeks and stores up to 10 strong AM or FM stations in a separate memory. This function is especially
useful in areas where you are not familiar with the radio stations.

1. Press in the "AUTO" button for at least 2 seconds. A number of strong signal stations (max. 10) from the currently
selected waveband are now stored automatically in the memory. An "A" and "AUTO" is displayed. If there is no
station with sufficient signal strength "NO STATION" is displayed.

2. Turn "1-20/DISC" button if you wish to change to another of the auto-stored stations.
Another auto-stored station is selected with each turn.

Programming stations

1. Tune in the desired frequency.

2. Press the "1-20/DISC" button. Select a number by turning forwards or backwards. Press again to store the selected
frequency and station.

Preset

To choose a pre-set station, turn "1-20/DISC" button to the stored number. The currently selected station is displayed.

Radio Data System (RDS, also referred to as RBDS) -HU- 803 only

This feature, which may not work in your area, functions only with FM broadcasts. The HU-803 radio in your car is
equipped with an advanced system allowing information from broadcasters to be transmitted visually, as text, together
with the audio signal. This information is then decoded by the radio and made available for several new and unique
features.
The RDS or Radio Data System operates in the FM band only, and the information transmitted is supplied
exclusively by participating broadcasters. Volvo has no control over the accuracy of the data or information. Please
refer to the following pages regarding specific descriptions and operation of these functions.
Coverage by local broadcasters may be limited at this time, but as the technology and benefits grow, you will find the
radio in your car is equipped to take advantage of this system.

pg. 159 Audio systems HU-803 - radio

Traffic information (TP) -HU- 803 only

This feature may not be apply in your area and only functions with FM broadcasts. (See previous page)

Push the "TP" button for traffic information from RDS stations. "TP" is displayed when the function is connected.

When the unit is in Cassette or CD mode, the FM radio function will seek in the background for a station with a strong
signal broadcasting traffic information. If a cassette or CD are playing when the radio receives a traffic bulletin, that
function is interrupted and the bulletin is broadcast with the volume pre-selected for traffic information.

When the bulletin is finished the unit immediately returns to the previously set volume and continues playing the
cassette or CD.

Traffic information can only be heard when

is displayed.

If only TP is displayed, this indicates that no traffic information is being received at the time.
If you do not wish to listen to an ongoing traffic bulletin, press the "TP" button. The TP function will remain active

and the radio will continue to monitor traffic information.

To turn the TP function off, press the TP button. TP is no longer shown in the display.

News on/off - HU-803 only

This feature may not apply in your area and only functions with FM broadcasts. (See previous page)

Press the "NEWS" button to activate the news function. The text NEWS is displayed. Press the "NEWS" button again
if you want to switch off the function.

As soon as a news broadcast begins, the news program will interrupt the Cassette, CD or CD changer.

If you do not wish to listen to the news program, press the "NEWS" button again. The news function will remain active
and the radio will continue to monitor news programs.

2 0 0 4

VOLVO

V70

HomeLink® Universal Transceiver (option)

pg. 169 HomeLink® Universal Transceiver (option)

HomeLink® Universal Transceiver

HomeLink® is an advanced system that can be programmed to learn the codes of three different remote controlled-
devices (e.g., garage door openers, remote lighting, entry door lock). HomeLink®'s sun visor-mounted transceiver,
powered by your car's electrical system, may then be used in place of your hand-held remote controls.

NOTE: For your security, the HomeLink® Universal Transceiver is designed to not function if you lock your car
from the outside.

Programming the transceiver

1. The ignition switch must be turned to the "accessory" position (II) before programming the HomeLink® Universal
Transceiver.

2. Begin by erasing all 3 factory default channels. Hold down the two outside buttons (buttons 1 and 3 in the
illustration) on the HomeLink® Universal Transceiver for about 20 seconds, until HomeLink®'s indicator light begins
to flash. Then release the buttons.

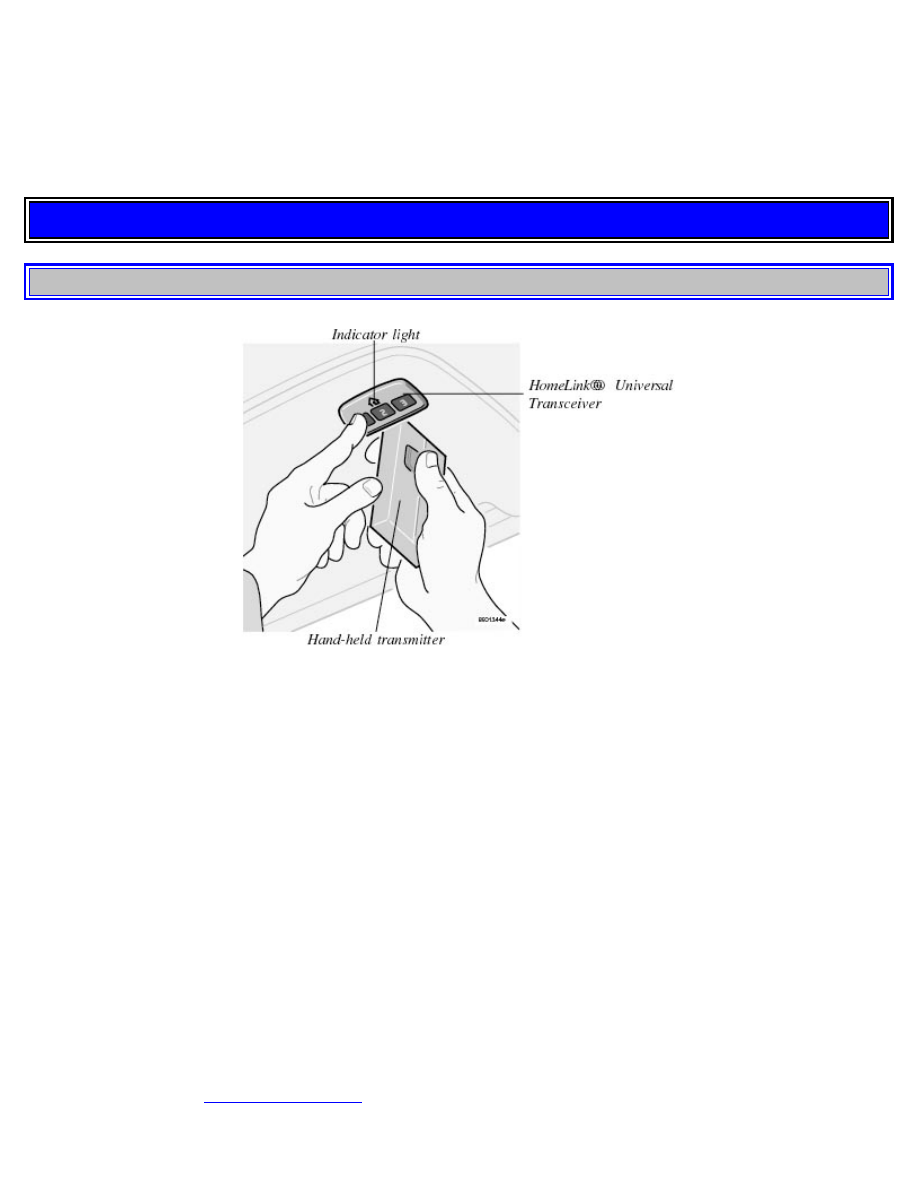

3. Hold your hand-held transmitter (garage door opener, for example) 2 to 5 in. (5 to 12 cm) away from the
HomeLink® surface, keeping the indicator light in view. For placement questions, contact HomeLink® toll-free 1-
800-355-3515 (Internet:

Volvo V70r (2004 year). Instruction - part 7
