Remote control key - functions

The remote control key in basic version has

functions such as locking and unlocking the

doors.

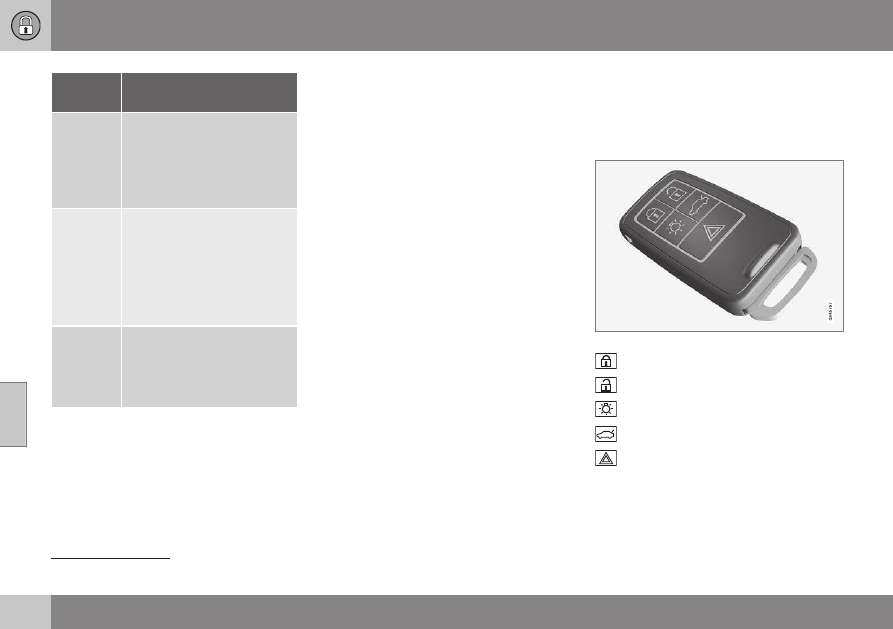

Functions

Remote control key in basic version.

Locking

Unlocking

Approach light duration

Tailgate

Panic function

Only certain markets and in combination with Volvo On Call*.

06 Locks and alarm

Option/accessory, for more information, see Introduction.

171

Remote control key with PCC*( Personal Car

Communicator).

Information

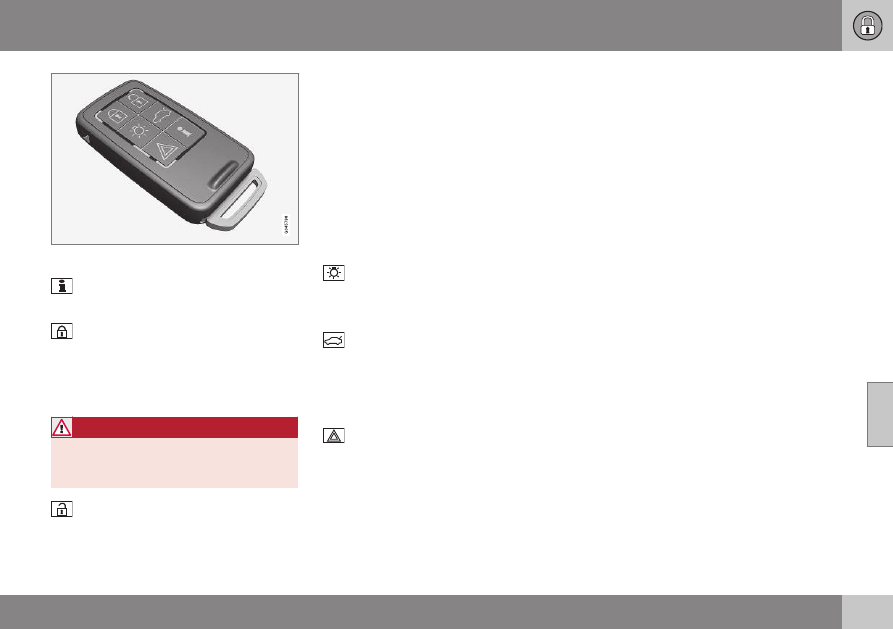

Function buttons

Locking – Locks the doors and tailgate

while the alarm is activated.
Press and hold to close all the windows and

sunroof* simultaneously. For more informa-

WARNING

If the sunroof and windows are closed

using the remote control key, check that

nobody's hands are trapped.

Unlocking – Unlocks the doors and tail-

gate while the alarm is deactivated.

Press and hold to open all windows simulta-

neously. For more information, see Global

opening (p. 184).
The function can be changed from unlocking

all doors simultaneously, to unlocking the

driver's door only with one press of the but-

ton and, after a further press of the button -

within ten seconds - unlocking the remaining

doors.
The function can be changed in the menu

system MY CAR. For a description of the

menu system, see MY CAR (p. 116).

Approach light duration – Used to

switch on the car's lighting at a distance. For

more information, see Approach lighting

(p. 99).

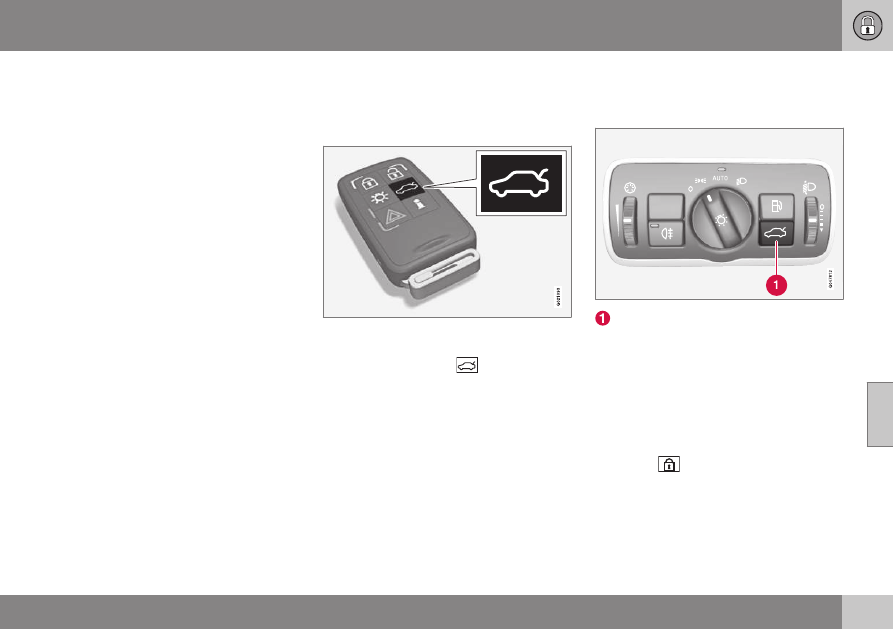

Tailgate - Unlocks and disarms the

alarm for the tailgate only. For more informa-

tion, see Locking/unlocking - tailgate

(p. 185). On cars with Power operated tail-

gate (p. 186)* the tailgate is opened after the

button is kept depressed.

Panic function – Used to attract atten-

tion in an emergency.
Press and hold the button for at least 3 sec-

onds or press it twice within 3 seconds to

activate the direction indicators and the horn.
The function can be turned off with the same

button once it has been active for at least

5 seconds. Otherwise the function switches

off automatically after approx. 3 minutes.

Related information

•

Remote control key with PCC* - unique

•

functions (p. 172)

•

Locking/unlocking - from the outside

06 Locks and alarm

172

Option/accessory, for more information, see Introduction.

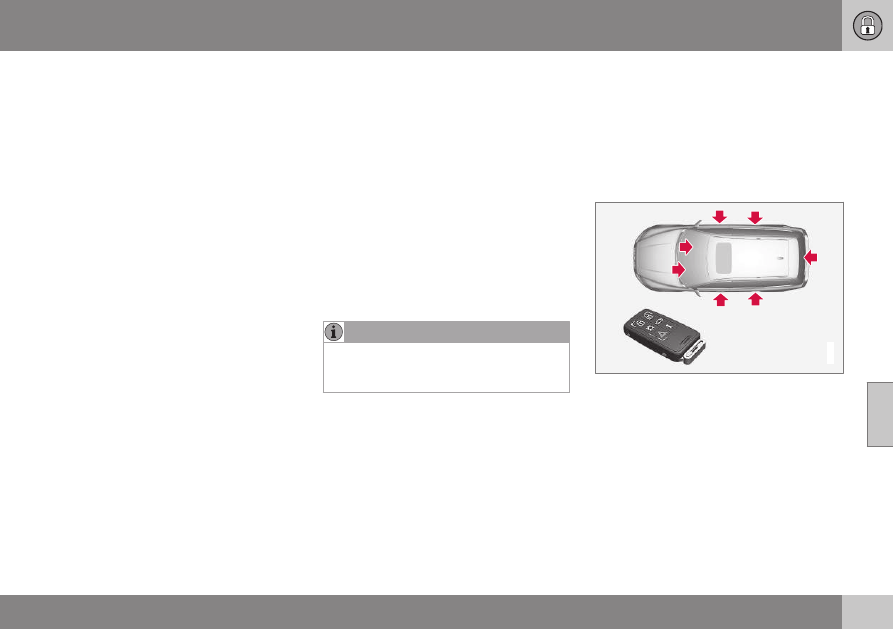

Remote control key - range

Remote control key functions (in its basic ver-

sion) have a range of approx. 20 metres from

the car.

If the car does not verify a button being

pressed - move closer and try again.

with the key blade (p. 175).

The remote control key functions may be

disrupted by surrounding radio waves,

buildings, topographical conditions, etc.

The car can always be locked/unlocked

If the remote control key is removed from the

car when the engine is running or key position

I or II (p. 80) is active, and if all doors are

closed, then a warning message is shown in

the information display in the combined

instrument panel and an audio reminder sig-

nal sounds at the same time.
The message is extinguished and the audible

reminder signal stops when the remote con-

trol key is brought back to the car after

either/or:

•

The remote control key has been inserted

in the ignition switch.

•

Speed exceeds 30 km/h.

•

The OK button has been pressed.

Related information

•

•

functionality compared with a remote control

Remote control key with PCC* -

unique functions

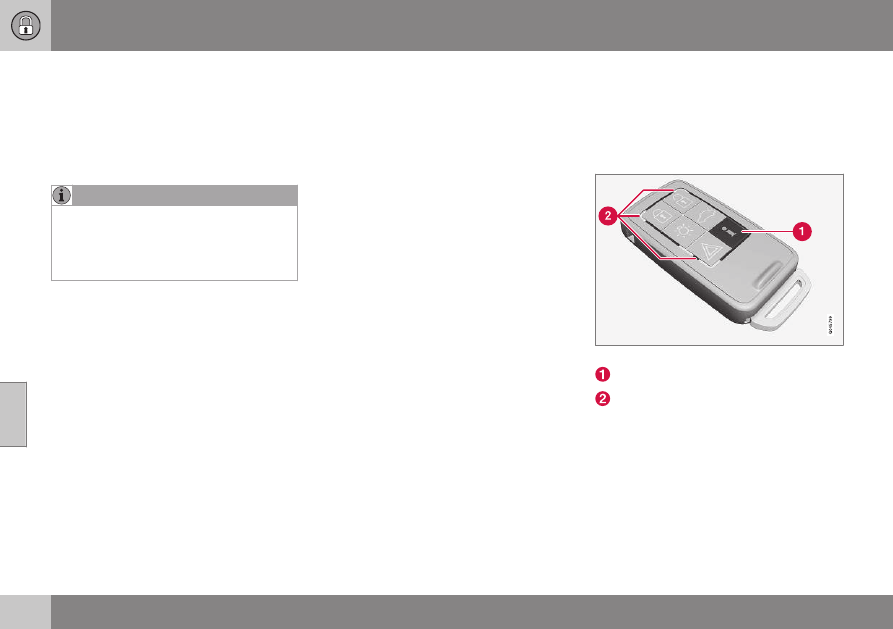

A remote control key with PCC has enhanced

key in basic version (p. 167) in the form of an

information button and indicator lamps.

Remote control key with PCC.

Information button

Indicator lamps

Using the information button enables access

to certain information from the car via the

indicator lamps.

06 Locks and alarm

}}

Option/accessory, for more information, see Introduction.

173

Using the information button

–

Press the information button

> All indicator lamps flash for approxi-

mately 7 seconds and the light travels

around on the remote control key. This

indicates that information from the car

is being scanned.
If any of the other buttons are pressed

during this time then the reading is

interrupted.

Remote control key with PCC* - range

If none of the indicator lamps illumi-

nates with repeated use of the information

button and in different locations (as well as

after 7 seconds and after the light has

travelled around on the PCC), contact a

workshop - an authorised Volvo workshop

is recommended.

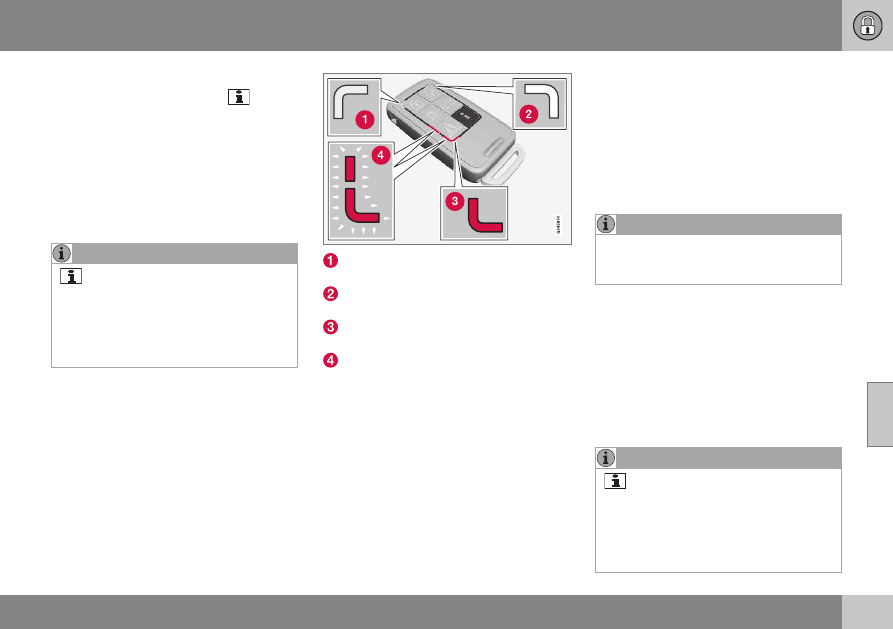

Indicator lamps display information in accord-

ance with the following illustration:

Green continuous light – the car is

locked.
Yellow continuous light – the car is

unlocked.
Red continuous light – the alarm has

been triggered since the car was locked.
Red light flashing alternately in both indi-

cator lamps – The alarm was triggered

less than 5 minutes ago.

Related information

•

(p. 173)

Remote control key with PCC* - range

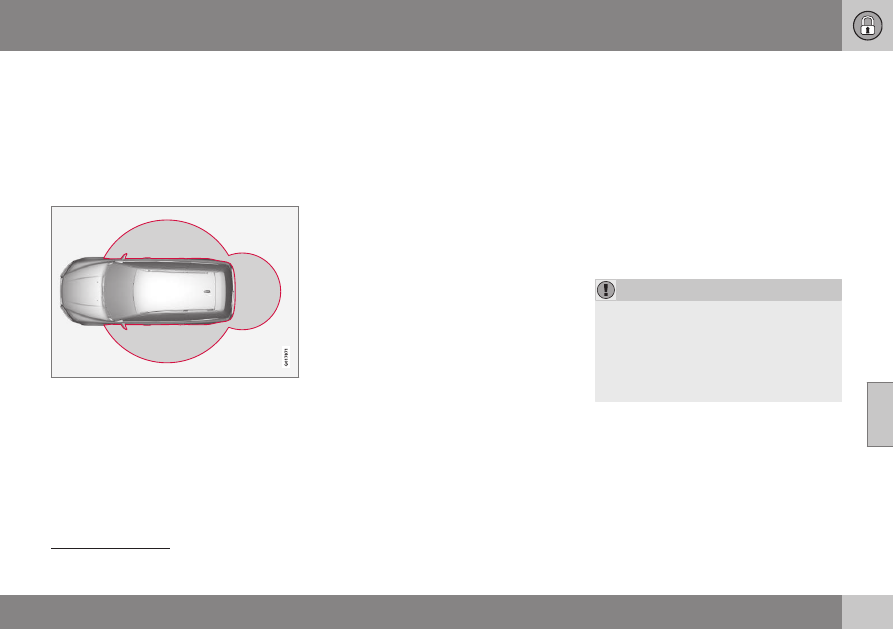

The range of a remote control key with PCC

(Personal Car Communicator) for locking,

unlocking the doors and tailgate is approx. 20

metres from the car - the other functions are

up to approx. 100 metres.

If the car does not verify a button being

pressed - move closer and try again.

The information button function may be

disrupted by surrounding radio waves,

buildings, topographical conditions, etc.

Outside the remote control key's range
If the remote control key is too far away from

the car for the information to be read then the

status the car was last left in is shown, with-

out the light in the indicator lamps travelling

around on the remote control key.
If several remote control keys are used for the

car then it is only the one last used for lock-

ing/unlocking that shows the correct status.

Keyless Drive* - remote control key range

If no indicator lamps illuminate when

the information button is used within range

then this may be because the last commu-

nication between the remote control key

and the car was disrupted by surrounding

radio waves, buildings, topographical con-

ditions, etc.

06 Locks and alarm

174

Option/accessory, for more information, see Introduction.

Related information

•

(p. 178)

•

Remote control key - range (p. 172)

Detachable key blade

A remote control key contains a detachable

key blade of metal with which some functions

can be activated and some operations carried

out.

The key blade's unique code is provided by

authorised Volvo workshops, which are rec-

ommended when ordering new key blades.

Key blade functions
Using the remote control key's detachable

key blade:

•

the driver's door can be opened manually

if central locking cannot be activated with

the remote control key, see Detachable

key blade - unlocking doors (p. 175).

•

the rear doors' mechanical child safety

locks can be activated/deactivated

(p. 188).

•

access to the glovebox and cargo area

(privacy locking (p. 175)*) can be

blocked.

•

the airbag for front passenger seat

(PACOS*) can be activated/deactivated

(p. 34).

Related information

•

•

Detaching/attaching the detachable key blade

Detachable key blade - detaching/

attaching

(p. 174) is carried out as follows:

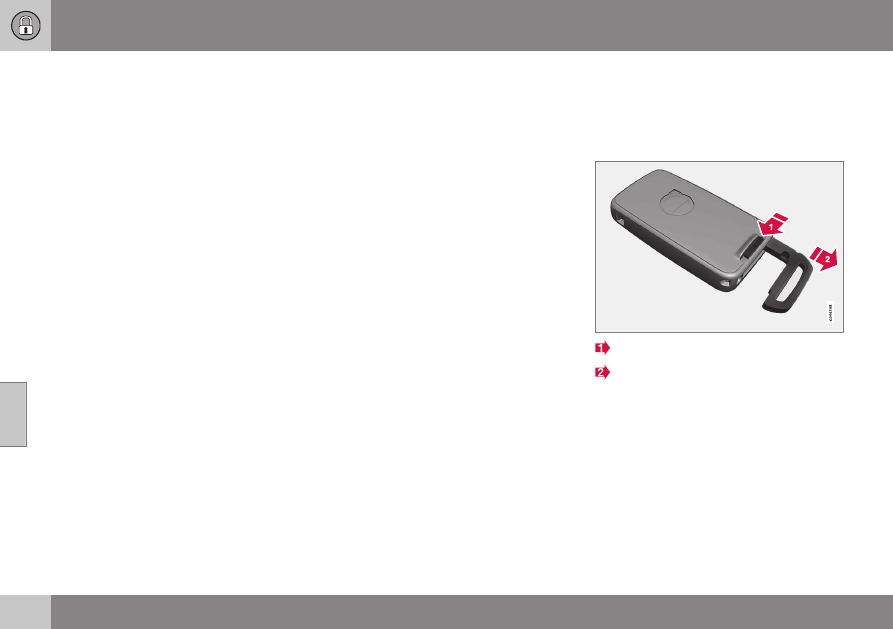

Removing the key blade

Slide the spring-loaded catch to the side.

At the same time pull the key blade

straight out backwards.

Attaching the key blade
Carefully refit the key blade into its location in

the remote control key (p. 167).
1. Hold the remote control key with the slot

pointed up and lower the key blade into

its slot.

2. Lightly press the key blade. You should

hear a "click" when the key blade is

locked in.

06 Locks and alarm

}}

Option/accessory, for more information, see Introduction.

175

Related information

•

Detachable key blade - unlocking doors

(p. 175)

•

Child safety locks - manual activation

(p. 188)

•

Passenger airbag - activating/deactivat-

ing* (p. 34)

Detachable key blade - unlocking

doors

The detachable key blade (p. 174) can be

used if central locking cannot be activated

with the remote control key (p. 167), e.g. if the

key's battery has run out.

If central locking cannot be activated with the

remote control key - e.g. if the batteries are

discharged - then the driver's door can be

opened as follows:
1. Unlock the driver's door with the key

blade in the door handle's lock cylinder.

For illustration and more information, see

Keyless drive* - unlocking with the key

blade (p. 181).

For cars with the Keyless system, see Key-

When the door has been unlocked using

the key blade and is opened, the alarm is

triggered.

2. Deactivate the alarm by inserting the

remote control key in the ignition switch.

less drive* - unlocking with the key blade

(p. 181).

Related information

•

Remote control key - replacing the bat-

•

tery (p. 177)

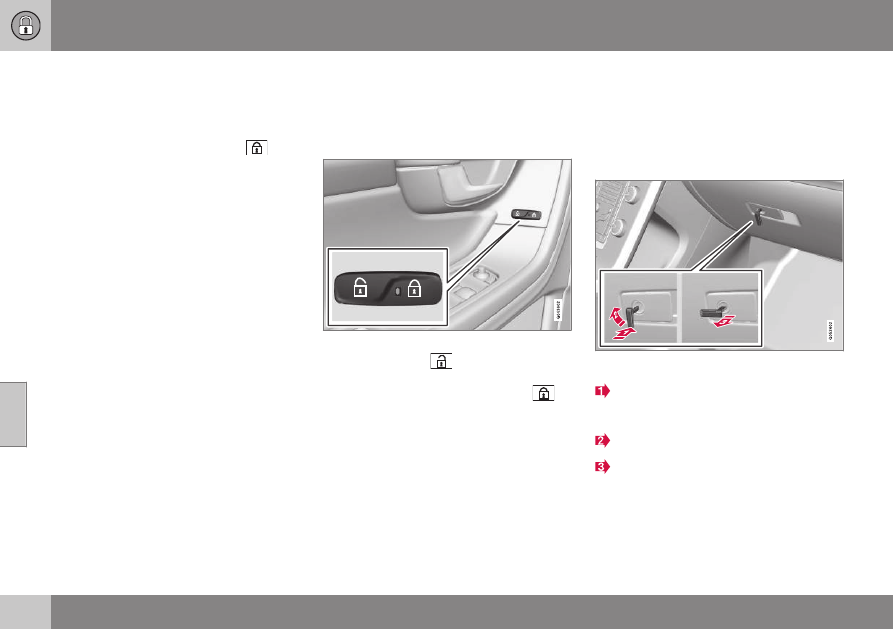

Privacy locking*

Privacy locking is intended for when the car is

left for service, with a hotel parking valet or

similar. The glovebox is then locked and the

tailgate lock is disconnected from the central

locking - the tailgate cannot be opened with

either the central locking button in the front

doors or the remote control key (p. 167).

G017869

Active locks for remote control key with key

blade.

06 Locks and alarm

176

G017870

Active locks for remote control key, without key

blade and privacy locking activated.

This means that the remote control key with-

out key blade can only be used to activate/

deactivate the alarm (p. 190), to open the

doors and to drive the car.
The remote control key without key blade can

then be handed over to the service or hotel

staff - the loose key blade is retained by the

car owner.

Do not forget to pull out the cargo cover

(p. 165)) over the cargo area before closing

the tailgate.

Activate/deactivate

Activating privacy locking.

To activate privacy locking:

Insert the key blade in the glovebox lock

cylinder.
Turn the key blade 180 degrees clock-

wise.
Pull out the key blade. The combined

instrument panel's information display

shows a message at the same time.

The glovebox is then locked and the tailgate

can no longer be unlocked with the remote

control key or the central locking button.

see Locking/unlocking - glovebox (p. 184).

Do not reinsert the key blade into the

remote control key, but keep it in a safe

place instead.

•

Deactivation takes place in reverse order.

For information on locking the glovebox only,

06 Locks and alarm

}}

Option/accessory, for more information, see Introduction.

177

Remote control key - replacing the

battery

The battery

for the remote control key may

need to be replaced.

The battery for the remote control key should

be replaced if:

•

the information symbol in the combined

instrument panel illuminates and the dis-

play shows

Car key battery low See

manual

and/or

•

the locks repeatedly do not react to sig-

nals from the remote control key within

20 metres from the car.

Opening

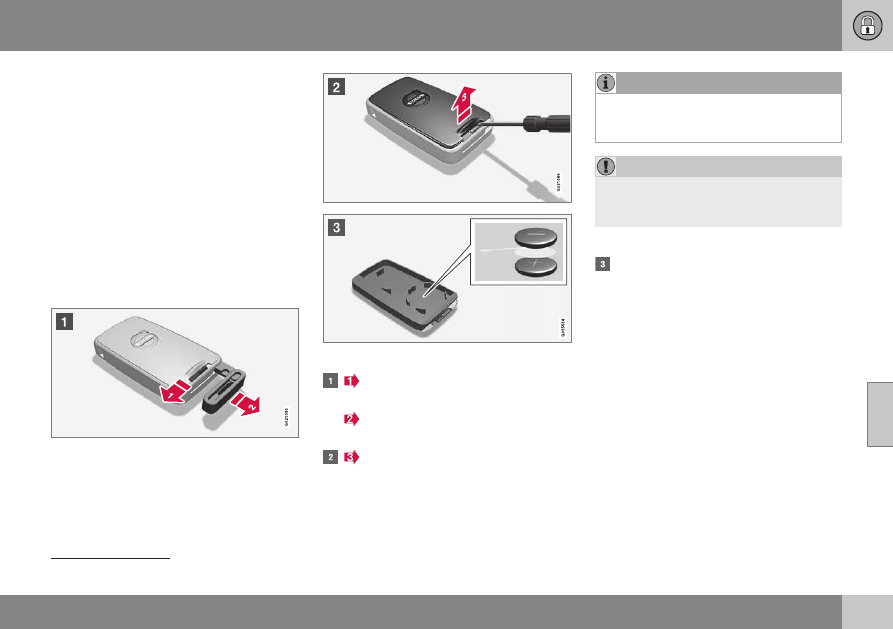

Slide the spring-loaded catch to the

side.

At the same time pull the key blade

straight out backwards.

Insert a 3 mm slot screwdriver in the

hole behind the spring-loaded catch and

gently prize the remote control key up.

Turn the remote control key over with the

buttons facing up, this is to avoid the bat-

teries falling out when it is opened.

IMPORTANT

Avoid touching new batteries and their

contact surfaces with your fingers as this

may impair their function.

Battery replacement

Closely study how the battery/batteries

are secured on the inside of the cover,

with regard to their (+) and (–) sides.

Remote control key (one battery)
1. Carefully prize out the battery.
2. Install a new one with the (+) side down.

Remote control key with PCC* (two
batteries)
1. Carefully prize out the batteries.
2. First install one new one with the (+) side

up.

3. Position the white plastic tab in between

and finally install a second new battery

with the (+) side down.

Remote control key with PCC has two batteries.

06 Locks and alarm

178

Option/accessory, for more information, see Introduction.

Battery type
Use batteries with the designation

CR2430, 3V - one in the remote control key,

two in the remote control key with PCC.

Volvo recommends that the batteries to be

used in the remote control key/PCC fulfil

UN Manual of Test and Criteria, Part III,

sub-section 38.3. Batteries fitted in the

factory or replaced by an authorised Volvo

workshop fulfil the above criteria.

Assembly
1. Press the remote control key together.
2. Hold the remote control key with the slot

pointed up and lower the key blade into

its slot.

3. Lightly press the key blade. You should

hear a "click" when the key blade is

locked in.

IMPORTANT

Make sure that exhausted batteries are

disposed of in a manner which is kind to

the environment.

Related information

•

•

three different levels - key position 0, I and II

Keyless drive*

Cars equipped with Keyless Drive have a star-

ting and locking system that can be operated

keylessly.

With the keyless starting and locking system

the car can be started, locked and unlocked
without the remote control key (p. 167)

inserted in the ignition switch. It is enough to

have the remote control key with you in a

pocket. The system makes it easier and more

convenient to e.g. open the car when your

hands are full.
Both of the remote control keys included with

the car have Keyless functionality. It is possi-

ble to order more remote control keys.
The car's electrical system can be set to

(p. 81) - with the remote control key.

Related information

•

Keyless Drive* - remote control key range

(p. 178)

•

Keyless drive* - secure handling of the

remote control key (p. 179)

•

Keyless drive* - interference to remote

control key function (p. 180)

Keyless Drive* - remote control key

range

In order to unlock the doors or tailgate auto-

matically without pressing a button on the

Only applies to Remote Control Key with PCC.

06 Locks and alarm

Option/accessory, for more information, see Introduction.

179

remote control key

, a remote control key

must be within approx. 1.5 metres from the

car's door handle or tailgate.

The person who wishes to lock or unlock a

door must have the remote control key with

him or her. It is not possible to lock or unlock

a door if the remote control key is on the

opposite side of the car.

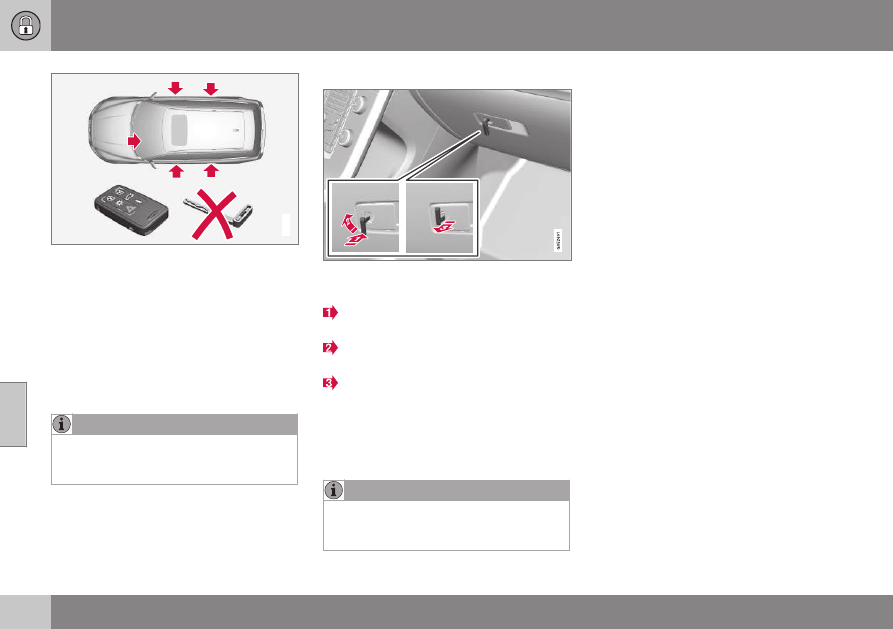

The red rings in the above figure indicate the

range covered by the system's antennas.
If all remote control keys are removed from

the car when the engine is running or key

position I or II (p. 81) is active, and if all doors

are closed, then a warning message is shown

in the information display in the combined

instrument panel and an audio reminder sig-

nal sounds at the same time.

When the remote control key has been

returned to the car, the warning message

goes off and the audible reminder ceases

once either/or:

•

a door has been opened and closed

•

the remote control key has been inserted

in the ignition switch

•

The OK button has been pressed.

Related information

•

Keyless Drive* - antenna location (p. 182)

•

Keyless drive* - secure handling of

the remote control key

It is important to handle the car's remote con-

trol keys with great care.

If one of the remote control keys

has been

left in the car then the Keyless functionality is

deactivated in case the car is e.g. locked with

the other remote control key that belongs to

the car. This prevents unauthorised entry.
The next time the car is unlocked with the

other remote control key the forgotten remote

control key is reactivated again.

IMPORTANT

Avoid leaving the remote control key with

PCC behind in the car. If someone breaks

into your car and takes the remote control

key, it will e.g. be possible to start the car

by pressing the remote control key in the

ignition switch and then pressing the

START/STOP ENGINE button.

Related information

•

interfere with the remote control key's Keyless

Applies to remote control key with PCC (Personal Car Communicator).

06 Locks and alarm

180

Option/accessory, for more information, see Introduction.

Keyless drive* - interference to

remote control key function

Electromagnetic fields and screening can

functions (p. 178).

Remote control key - functions (p. 170).

Do not place/store the PCC near a mobile

phone or metal object - no closer than

10-15 cm.

If interference is experienced nonetheless,

use the remote control key and the key blade

like a remote control key in basic version, see

Related information

•

Remote control key - replacing the bat-

tery (p. 177)

•

Keyless drive* - secure handling of the

remote control key (p. 179)

•

Keyless Drive* - remote control key range

(p. 178)

Keyless drive* - locking

Cars equipped with Keyless drive have a but-

ton on the outer door handles for locking/

unlocking.

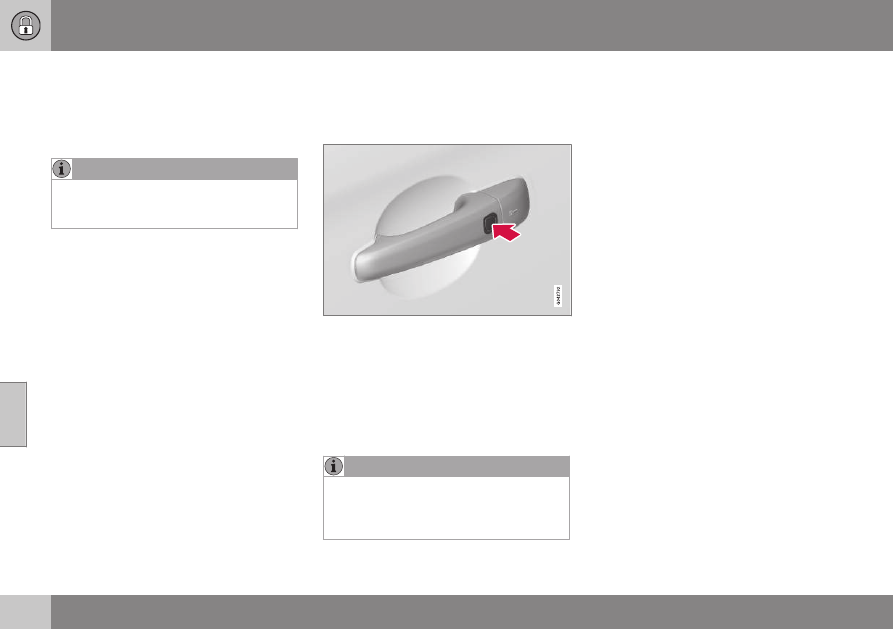

Cars with the keyless system have a button on

the outside door handles.

Lock the doors and the tailgate by pressing

the lock button on one of the door handles on

the outside.
All doors and the tailgate must be closed

before the car can be locked - otherwise the

car is not locked.

In cars with automatic gearbox selectors,

the gear selector must be set to the P

position; otherwise the car can be neither

locked nor alarmed.

Related information

•

•

Alarm indicator (p. 191)

06 Locks and alarm

Option/accessory, for more information, see Introduction.

181

Keyless drive* - unlocking

Unlocking takes place when a hand grasps a

door handle or the tailgate's rubberised pres-

sure plate is actuated - open the door or tail-

gate as normal.

Related information

•

Keyless drive* - locking (p. 180)

•

Keyless drive* - unlocking with the

key blade

If central locking cannot be unlocked with the

remote control key, e.g. if the batteries are

discharged, then the left-hand driver's door

can be opened using the detachable key

blade.

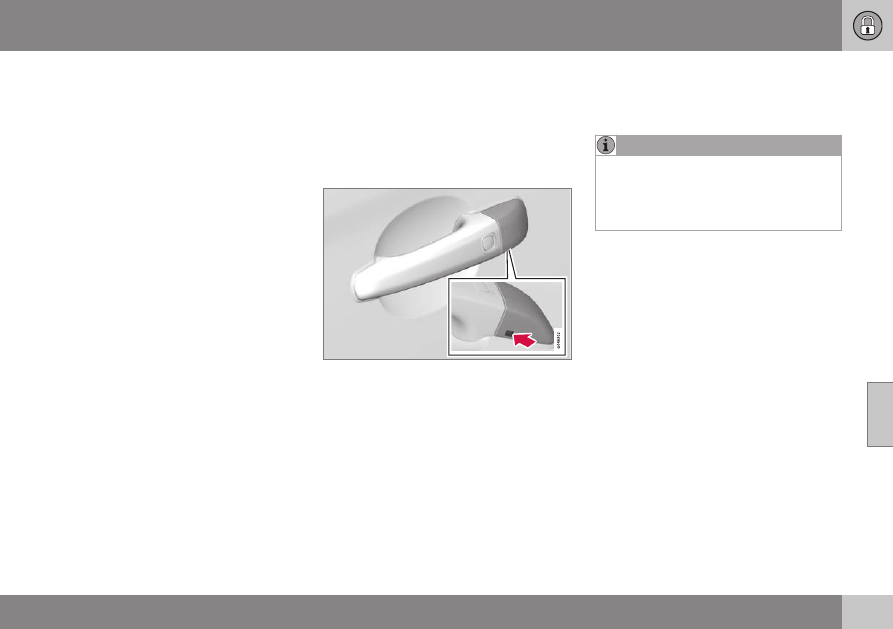

Hole for key blade - to loosen the cover.

To access the lock cylinder, the door handle's

plastic cover must be removed - this is also

done with the key blade:
1. Press the key blade approx. 1 cm straight

up into the hole on the underside of the

door handle/cover - do not prize.
> The plastic cover loosens automati-

cally by means of the torque when the

blade is pushed straight up and into

the opening.

2. Then insert the key blade in the lock cyl-

inder and unlock the door.

3. Refit the plastic cover after unlocking.

PCC in the ignition switch, see Alarm -

When the driver's door is unlocked using

the key blade and is opened, the alarm is

triggered. It is switched off by inserting the

remote control key not working (p. 191).

Related information

•

Detachable key blade - detaching/attach-

•

ing (p. 174)

•

Alarm (p. 190)

06 Locks and alarm

182

Option/accessory, for more information, see Introduction.

Keyless Drive* - lock settings

Lock settings for cars equipped with Keyless

Drive can be adapted by indicating in the

menu system MY CAR which doors are to be

unlocked.

For a description of the menu system, see

MY CAR (p. 116).

Related information

•

Keyless Drive* - antenna location

Cars equipped with Keyless Drive have a

number of built-in antennas positioned at dif-

ferent locations in the car.

Tailgate, by wiper motor

Door handle, left rear

Cargo area, central and furthest in under

the floor
Door handle, right rear

Centre console, under the rear section

Centre console, under the front section.

WARNING

People with pacemaker operations should

not come closer than 22 cm to the keyless

system's antennae with their pacemaker.

This is to prevent interference between the

pacemaker and the keyless system.

Related information

•

out using the remote control key (p. 167). The

06 Locks and alarm

}}

Option/accessory, for more information, see Introduction.

183

Locking/unlocking - from the outside

Locking/unlocking from the outside is carried

remote control key can lock/unlock all doors

and the tailgate simultaneously. Different

sequences for unlocking can be selected, see

Remote control key - functions (p. 170).

In order that the lock sequence can be acti-

vated, the driver's door must be closed - if

any of the other doors or the tailgate is open,

then it/they is/are locked and the alarm is

activated only when it/they are closed. For

cars equipped with keyless locking system*

all doors and the tailgate must be closed.

with the detachable key blade, see Detacha-

Be aware of the risk of locking the remote

control key in the car.

If it is not possible to lock/unlock with the

remote control key, the battery may be dis-

charged - lock or unlock the driver's door

ble key blade - detaching/attaching (p. 174).

Locking/unlocking - from the inside

Remember that the alarm is triggered

when the door is opened after being

unlocked with the key blade - the alarm is

switched off when the remote control key

is inserted into the ignition switch.

WARNING

Be aware of the risk of being locked in the

car when it is locked from the outside

using the remote control key - it is then not

possible to open any of the doors from the

inside with the door controls.
For more information, see Deadlocks*

(p. 187).

Automatic relocking
If none of the doors or the tailgate is opened

within two minutes of unlocking, all are

locked again automatically. This function

reduces the risk that the car is left unlocked

unintentionally. (For cars with alarm, see

Alarm (p. 190).)

Related information

•

•

simultaneously (see also Global opening

Locking/unlocking - from the inside

All of the doors and the tailgate can be locked

or unlocked simultaneously using the central

locking button on the driver's door and pas-

senger door*.

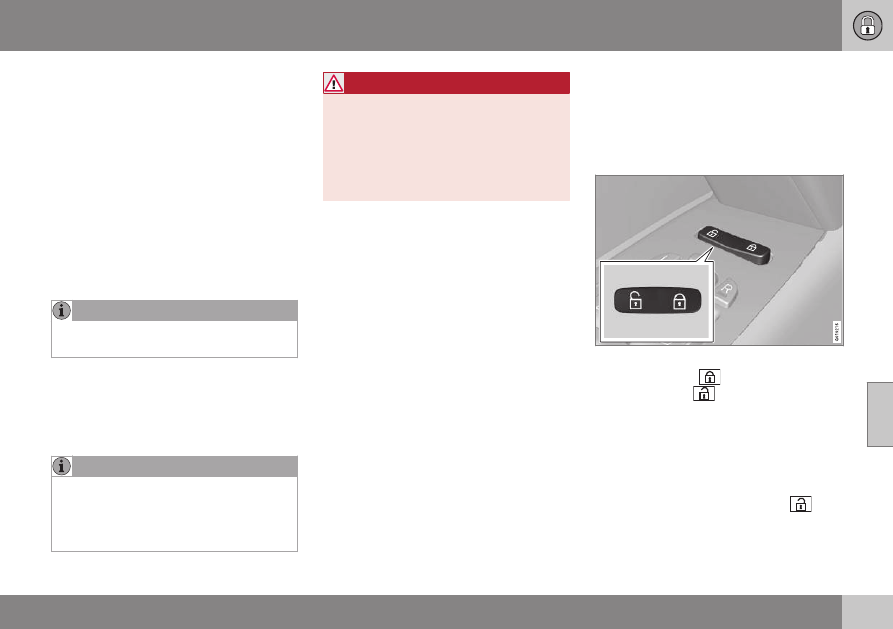

Central locking

Central locking.

•

Press one side

of the button to lock -

the other side

to unlock.

Press and hold to also open all side windows*

simultaneously.

Unlocking
A door can be unlocked from the inside in

two different ways:

•

Press the central locking button

A long press also opens all the side windows*

(p. 184)).

06 Locks and alarm

184

Option/accessory, for more information, see Introduction.

•

Pull the door handle once and release -

the door is unlocked. Pull the door handle

again to open the door.

Locking

•

Press the central locking button

after

the front doors have been closed.

A long press also closes all side windows and

sunroof simultaneously (see also Global

opening (p. 184)).
All doors can also be individually locked man-

ually with their lock buttons - the door in

question must then be closed.

Automatic locking
The doors and tailgate are locked automati-

cally when the car starts to move.
The function can be activated/deactivated in

the menu system MY CAR. For a description

of the menu system, see MY CAR (p. 116).

Related information

•

Locking/unlocking - from the outside

•

Alarm (p. 190)

•

Locking/unlocking - from the inside

Global opening

The global opening function opens or closes

all side windows simultaneously and can be

used for example to quickly air the car during

hot weather.

Central locking button

A long press on the

symbol in the central

locking button opens all side windows simul-
taneously. The same procedure on the
symbol closes all side windows simultane-

ously.

Related information

•

The glovebox (p. 156) can only be locked/

•

Power windows (p. 106)

Locking/unlocking - glovebox

unlocked using the remote control key's

detachable key blade.

For information on the key blade, see Detach-

able key blade - detaching/attaching (p. 174).

Locking the glovebox:

Insert the key blade in the glovebox lock

cylinder in accordance with the illustration

above.
Turn the key blade 90 degrees clockwise.

Pull out the key blade.

•

Unlock by carrying this out in reverse

order.

For information on privacy locking, see Pri-

vacy locking* (p. 175).

06 Locks and alarm

}}

Option/accessory, for more information, see Introduction.

185

Related information

•
