Volvo V70 (2016 year). Instruction - part 8

Air distribution - recirculation (p. 141)

•

Auto-regulation (p. 139)

•

04 Climate control

136

Option/accessory, for more information, see Introduction.

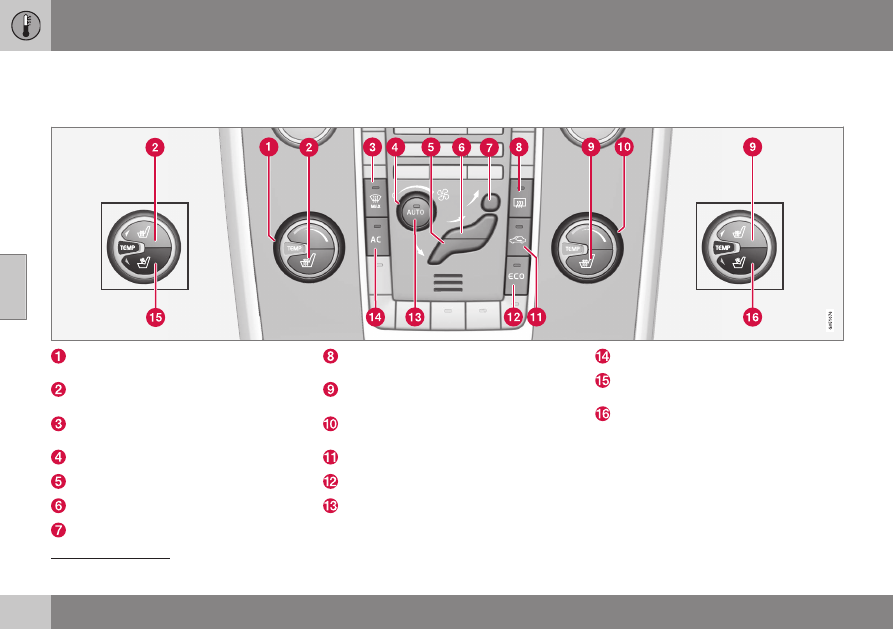

Electronic climate control - ECC

ECC (Electronic Climate Control) maintains

the temperature selected in the passenger

compartment and can be set separately for

the driver's side and passenger side.

The auto function is used to automatically

control temperature, air conditioning, fan

speed, recirculation and air distribution.

Temperature control (p. 139), left-hand

side
Electrically heated front seat (p. 137) , left
side

Heated windscreen* and max. defroster

(p. 140)
Fan (p. 139)

Air distribution (p. 134) - ventilation floor

Air distribution - air vent instrument panel

Air distribution - defroster windscreen

Rear window and door mirror defrosters

(p. 109)
Electrically heated front seat (p. 137),
right-hand side

Temperature control (p. 139), right-hand

side
Recirculation (p. 141)

ECO* (p. 290)

AUTO - Automatic climate control

(p. 139)

AC - Air conditioning on/off (p. 140)

Ventilated front seat (p. 138)*, left-hand

side
Ventilated front seat*, right-hand side

Related information

•

front seat*, see illustration

The button has a different location depending on whether or not the car is equipped with ventilated front seat*.

04 Climate control

}}

Option/accessory, for more information, see Introduction.

137

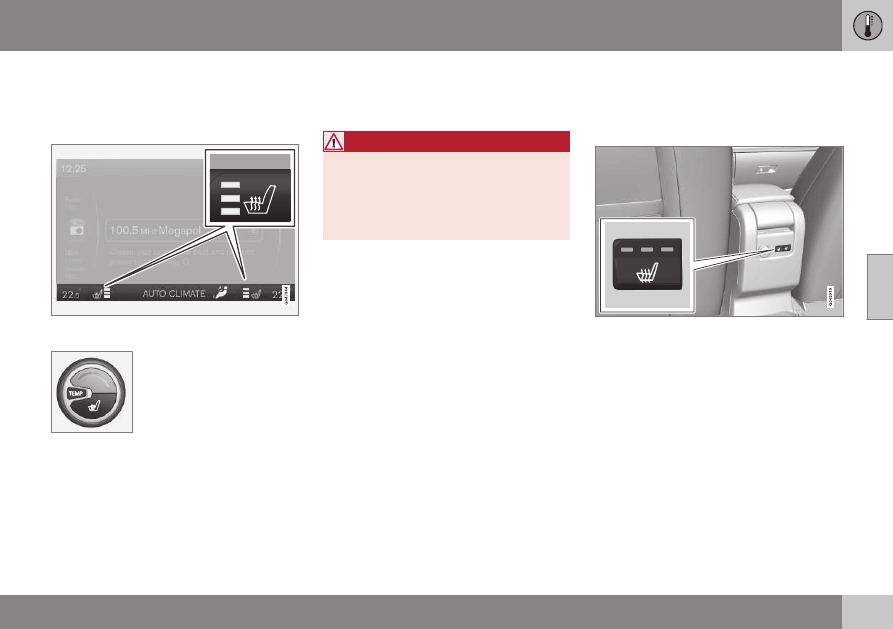

Heated front seats*

The front seat heating has three positions for

increasing the comfort for driver and passen-

ger when it is cold.

Current heat level is shown in the centre console

display screen.

The button has a different

location depending on

whether or not the car is

equipped with ventilated

(p. 136).

Press the button repeatedly in order to acti-

vate the function:

•

Highest heat level - three orange fields

illuminate in the centre console's screen

(see figure above).

•

Lower heat level - two orange fields illu-

minate in the screen.

•

Lowest heat level - one orange field illu-

minates in the screen.

•

Switch off the heat - no field illuminates.

WARNING

Heated seats must not be used by people

who find it difficult to perceive an increase

in temperature due to a lack of sensation

or who otherwise have problems operating

the controls for the heated seats. Other-

wise they may suffer burn injuries.

Automatic start of driver's seat heating
With the automatic start of the driver's seat

heating activated, the driver's seat will have

the highest heat level when the engine is

started.
Automatic start takes place when the car is

cold and the ambient temperature is lower

than approx. +10 °C.
It is possible to activate/deactivate the func-

tion in the menu system MY CAR. For a

description of the menu system, see MY CAR

(p. 116).

Related information

•

Heated rear seat* (p. 137)

•

Heated rear seat*

The heating for the rear seat's

outer posi-

tions has three positions for increasing the

comfort for passengers when it is cold.

Current heat level is shown in the pushbutton's

lamps.

Press the button repeatedly in order to acti-

vate the function:

•

Highest heat level - three lamps illumi-

nate.

•

Lower heat level - two lamps illuminate.

•

Lowest heat level - one lamp illuminates.

•

Switch off the heat - no lamp illuminates.

04 Climate control

138

Option/accessory, for more information, see Introduction.

WARNING

Heated seats must not be used by people

who find it difficult to perceive an increase

in temperature due to a lack of sensation

or who otherwise have problems operating

the controls for the heated seats. Other-

wise they may suffer burn injuries.

Related information

•

Heated front seats* (p. 137)

•

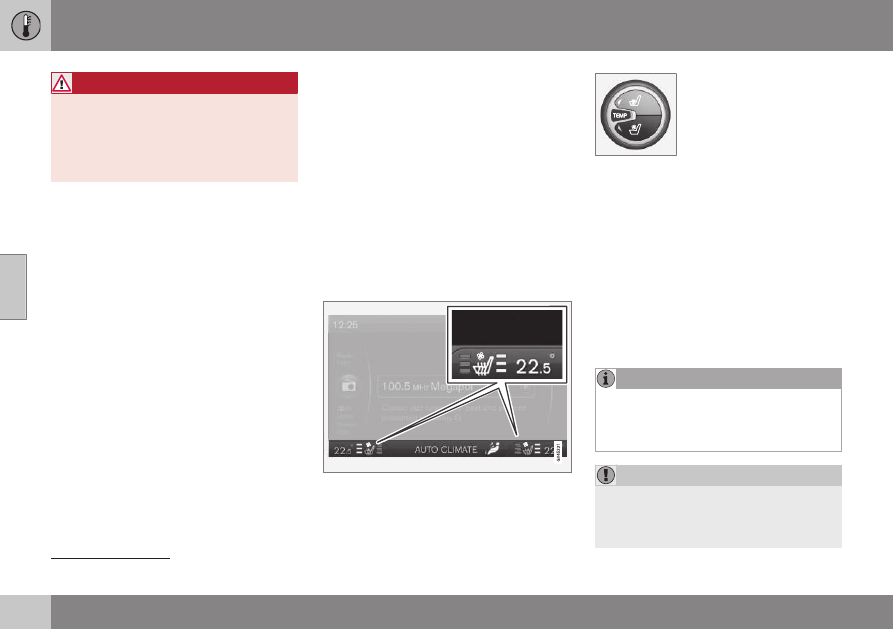

Ventilated front seats*

The ventilation can be used at the same time

as seat heating. For example, the function can

be used to dry damp from clothing.

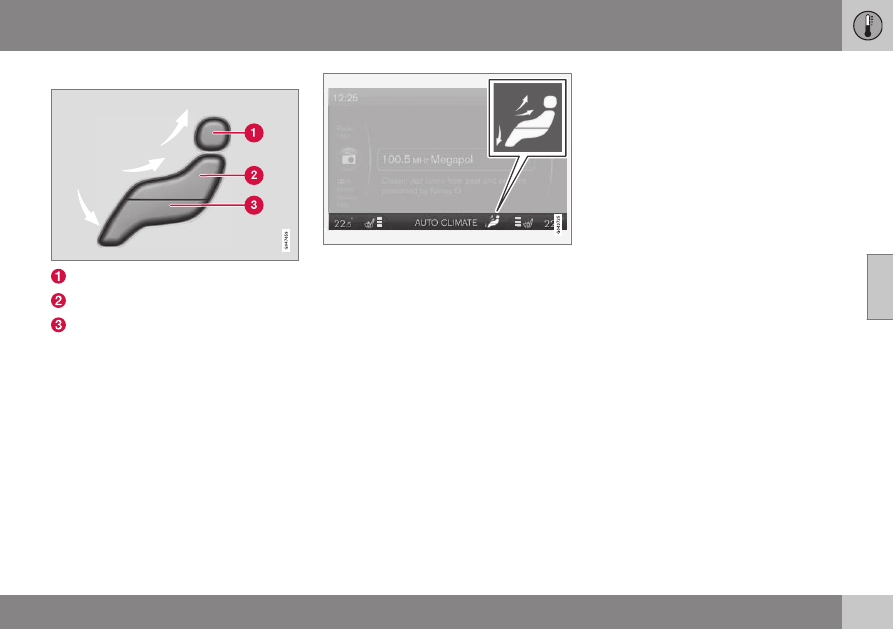

The ventilation system consists of fans in the

seats and backrests that draw air through the

seat upholstery. The cooling effect increases

the cooler the passenger compartment air

becomes. The system can be activated when

the engine is running.
The ventilation is regulated from the climate

control and takes seat temperature, solar

radiation and outside temperature into consi-

deration.

Current comfort level is shown in the centre con-

sole display screen.

For button location, see the

illustration (p. 136).
Press the button repeatedly

in order to activate the func-

tion.

There are three comfort levels that produce

different cooling and dehumidification out-

puts:

•

Comfort level III: Highest output - three

blue fields illuminate in the centre con-

sole's screen (see figure above).

•

Comfort level II: Lower output - two blue

fields illuminate in the screen.

•

Comfort level I: Lowest output - one blue

field illuminates in the screen.

•

Switch off the function - no field illumi-

nates.

Heated rear seat is not specified with the option for integrated two-stage booster seat (p. 50).

The seat ventilation should be used care-

fully by people sensitive to draughts. Com-

fort level I is recommended for long-term

use.

IMPORTANT

The seat ventilation cannot be started

when the passenger compartment tem-

perature is below 5 °C. This is in order to

avoid cooling down the seat occupant.

04 Climate control

}}

139

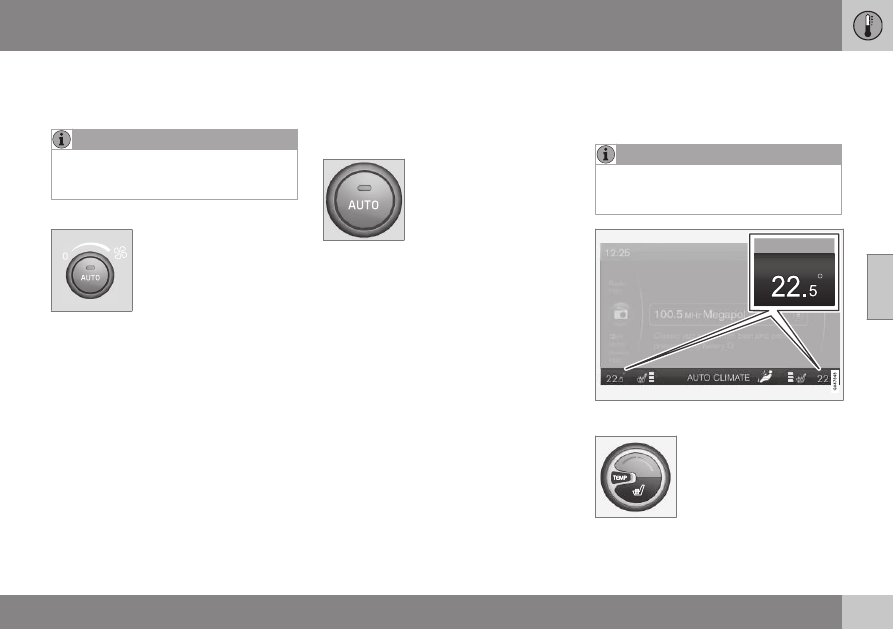

Fan

The fan should always be activated in order to

avoid misting on the windows.

speed is regulated automati-

If the fan is fully switched off then the air

conditioning is not engaged - which can

cause a risk of misting on the windows.

Fan knob

Turn the knob to increase or

decrease fan speed. If AUTO

is selected, then the fan

cally (p. 139) - the fan speed

previously set is disengaged.

Related information

•

Electronic climate control - ECC (p. 136)

•

Auto-regulation

The auto function automatically regulates

temperature (p. 139), air conditioning

(p. 140), fan speed (p. 139), recirculation

(p. 141) and air distribution (p. 134).

If you select one or more

manual functions, the other

functions continue to be

controlled automatically. All

manual settings are disen-

gaged when AUTO is

pressed. The display screen

shows

AUTO CLIMATE

Fan speed in automatic mode can be set in

the menu system MY CAR. For a description

of the menu system, see MY CAR (p. 116).

Related information

•

Temperature control in the passenger

compartment

When the car is started, the most recent tem-

perature setting is resumed.

Heating or cooling cannot be hastened by

selecting a higher or lower temperature

than the actual desired temperature.

Current temperature for each side is shown in

the centre console's display screen.

The temperature can be

adjusted with the knob -

separately for the driver's

side and the passenger side.

04 Climate control

140

Option/accessory, for more information, see Introduction.

Related information

•

Actual temperature (p. 131)

•

•

Electronic climate control - ECC (p. 136)

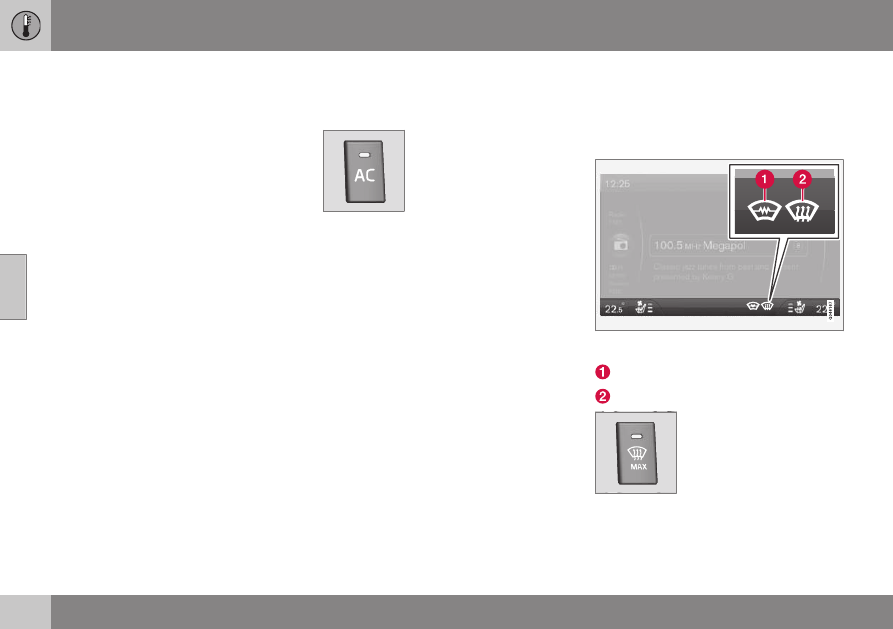

Air conditioning

The air conditioning cools and dehumidifies

incoming air as required.

When the lamp in the AC

button illuminates, the air

conditioning is controlled by

the system's automatic func-

tion.
When the lamp in the AC

button is switched off the air conditioning is

disconnected. Other functions are still con-

trolled automatically. When the max.

defroster function (p. 140) is activated, the air

conditioning is switched on automatically so

that the air is dehumidified at the maximum

setting.

Demisting and defrosting the

windscreen

Heated windscreen* and max. defroster are

used to quickly remove misting and ice from

the windscreen and side windows.

The selected setting is shown in the centre con-

sole's screen.

Heated windscreen*

Max. defroster

The light in the defroster but-

ton illuminates when the

function is active.
Press the button repeatedly

in order to activate the func-

tion.

04 Climate control

}}

Option/accessory, for more information, see Introduction.

141

For cars without heated windscreen:

•

Air flows to the windows - symbol (2) illu-

minates in the screen.

•

Switch off the function - no symbol illumi-

nates.

For cars with heated windscreen:

•

Start the heating for the windscreen

symbol (1) illuminates in the screen.

•

Start the heating for the windscreen

and

air flow to the windows - symbols (1) and

(2) illuminate in the screen.

•

Switch off the function - no symbol illumi-

nates.

Heated windscreen and IR window (p. 19)

may have an impact on the performance of

transponders and other communication

equipment.

A triangular area at the end of each side of

the windscreen is not electrically heated,

where de-icing may take longer.

able when the engine is auto-stopped

Electrically heated windscreen is not avail-

(p. 281).

The following also takes place in order to pro-

vide maximum dehumidification in the pas-

senger compartment:

•

the air conditioning is automatically

engaged

•

recirculation and the air quality system

are automatically disengaged.

The noise level increases as the fan is

operating at max.

When the defroster is switched off the climate

control returns to the previous settings.

Related information

•

description of the menu system, see MY CAR

Air distribution - recirculation

Select recirculation to shut out bad air,

exhaust gases etc. from the passenger com-

partment, i.e. no outside air is taken into the

car when this function is activated.

When recirculation is

engaged the orange lamp in

the button illuminates.

IMPORTANT

If the air in the car is recirculated for too

long then there is a risk of misting on the

insides of the windows.

Timer
With the timer function activated the system

will exit manually activated recirculation mode

according to a time that depends on the out-

side temperature. This reduces the risk of ice,

misting and bad air.
It is possible to activate/deactivate the func-

tion in the menu system MY CAR. For a

(p. 116).

If the character

is shown in the rearview mirror when the heated windscreen is activated then the compass (p. 110)* must be recalibrated.

04 Climate control

}}

143

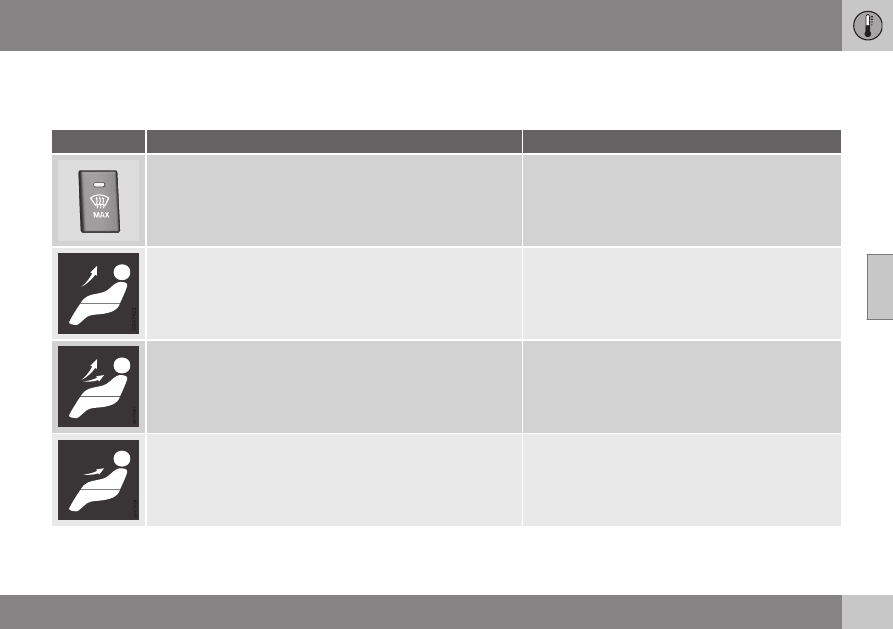

Air distribution - table

Three buttons are used to select the distribu-

tion (p. 134) of the air.

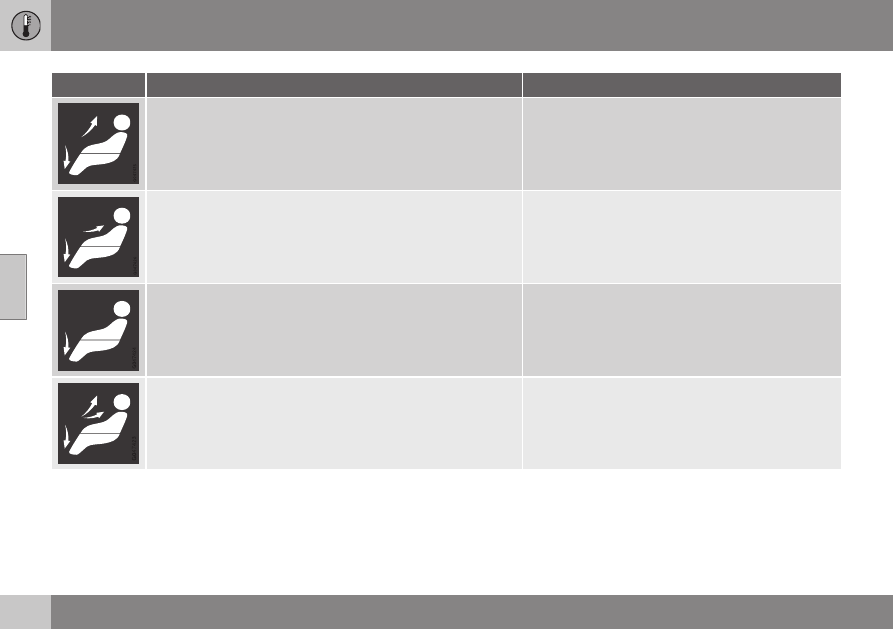

Air distribution

Use

Air to windows. Some air flows from the air vents. The air is not

recirculated. Air conditioning is always engaged.

to remove ice and misting quickly.

Air to windscreen, via defroster vent, and side windows. Some air

flows from the air vents.

to avoid misting and icing in a cold and humid climate

(to achieve this the fan level must not be too low).

Airflow to windows and from dashboard air vents.

to ensure good comfort in warm, dry weather.

Airflow to the head and chest from dashboard air vents.

to ensure efficient cooling in warm weather.

04 Climate control

144

Air distribution

Use

Air to the floor and windows. Some air flows from the dashboard

air vents.

to ensure comfortable conditions and good demisting in

cold or humid weather.

Air to floor and from dashboard air vents.

in sunny weather with cool outside temperatures.

Air to floor. Some air flows to the dashboard air vents and win-

dows.

to direct heat or cold to the floor.

Airflow to windows, from dashboard air vents and to the floor.

to provide cooling along the floor in hot, dry weather or

warming upwards in cold weather.

Related information

•

Air distribution - recirculation (p. 141)

•

04 Climate control

Option/accessory, for more information, see Introduction.

145

Engine block heater and passenger

compartment heater*

Preconditioning prepares the heater, engine

and passenger compartment before depar-

ture so that both wear and energy needs dur-

ing the journey are reduced.
The heater can be started directly (p. 146) or

with a timer (p. 147).

The heater cannot start if the outside tem-

perature exceeds 15 °C. At –5 °C or lower the

maximum running time of the heater is 50

minutes.

WARNING

Do not use the fuel-driven heater indoors.

Exhaust gases are secreted.

edge the message by pressing the indicator

When the fuel-driven auxiliary heater is

active there may be smoke from the right-

hand wheel housing, which is perfectly

normal.

Refuelling

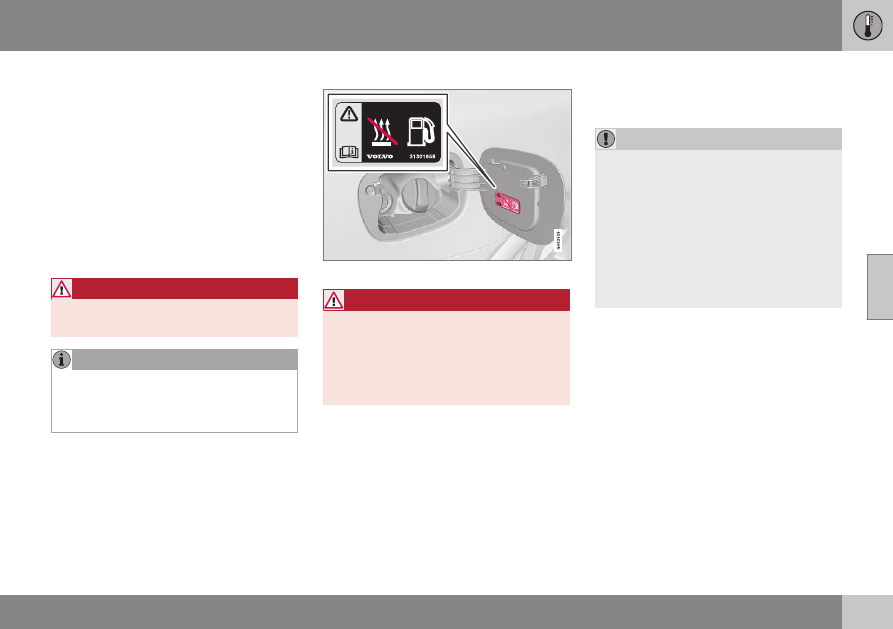

Warning label on fuel filler flap.

WARNING

Fuel which spills out could be ignited.

Switch off the fuel-driven auxiliary heater

before starting to refuel.
Check in the combined instrument panel

that the heater is switched off. The heat

symbol is shown when it is operating.

Parking on a hill
If the car is parked on a steep hill, the front of

the car should point downhill to ensure that

there is a supply of fuel to the fuel-driven

heater.

Battery and fuel
If the battery has insufficient charge or the

fuel level is too low, the heater will be

switched off automatically and a message

appears on the information display. Acknowl-

stalk (p. 113) OK button once.

IMPORTANT

Repeated use of the heater combined with

short journeys leads to the battery dis-

charging and consequential starting prob-

lems.
The car should be driven for the same time

as the heater is used to ensure that the

car's battery is recharged adequately to

replace the energy consumed by the

heater when it is used on a regular basis.

The heater is used for a maximum of 50

minutes each time.

Related information

•

Additional heater* (p. 151)

•

04 Climate control

146

Option/accessory, for more information, see Introduction.

Engine block heater and passenger

compartment heater* - direct start

The engine block heater and passenger com-

partment heater can be started directly.

Direct start can be performed via:

•

information display

•

remote control key*

•

mobile*.

Upon direct start of the engine block and

passenger compartment heater (p. 145), it will

run for 50 minutes.
Heating of the passenger compartment will

begin as soon as the engine coolant has

reached the correct temperature.

same time the car's lock status (p. 172) is

The car can be started and driven while

the heater is running.

Direct start via the information display
1. Press OK to access the menu.
2. Scroll with the thumbwheel to

Parking

heater

and select with OK.

3. Scroll forward in the next menu to

Direct

start

in order to activate the heater and

select with OK.

4. Exit the menu with RESET.

Direct start via the remote control key*

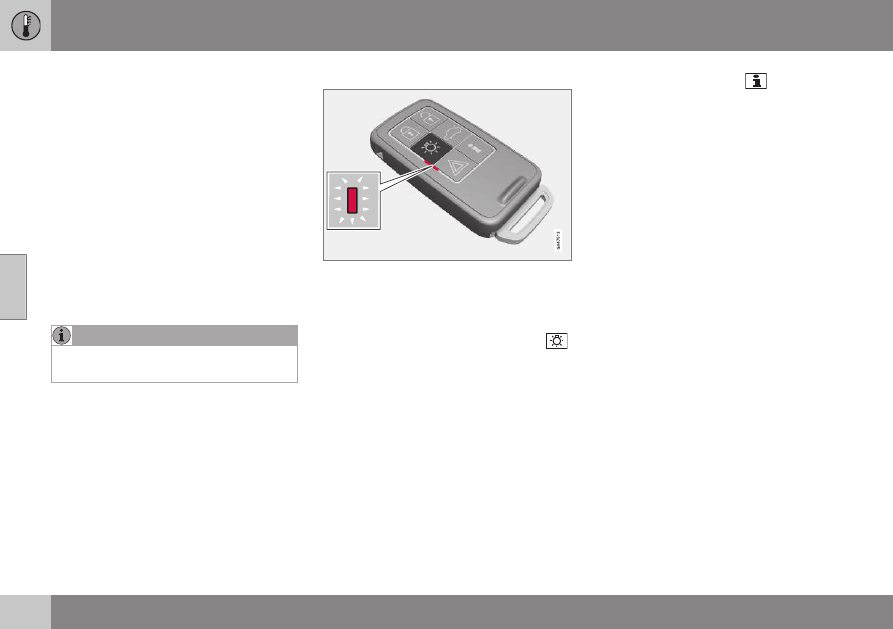

Indicator lamp on remote control key with PCC*.

The engine block heater and passenger com-

partment heater can be activated via the

remote control key:

–

Hold the button for approach lighting
depressed for 2 seconds.
Hazard warning flashers provide informa-

tion in accordance with the following:

•

5 short flashes followed by a constant

glow for approx. 3 seconds - the signal

has reached the car and the heater has

been activated.

•

5 short flashes - the signal has

reached the car but the heater has not

been activated.

•

Hazard warning flashers remain

switched off - the signal has not

reached the car.

If the button for information

is depressed

when the heater is active then the indicator

lamp will show the status for this - at the

shown. While the status is being investigated

the indicator lamp emits a pair of short

flashes followed by a constant glow if the

heater is active.
Status is also shown in the trip computer dur-

ing heating.

Direct start via a mobile*
Activation and information about the selected

settings that can be managed from a mobile

phone will be available via the Volvo On Call*

mobile app.

Related information

•

partment heater* - timer (p. 147)

•

partment heater* - immediate stop

(p. 147)

•

04 Climate control

}}

Option/accessory, for more information, see Introduction.

147

Engine block heater and passenger

compartment heater* - immediate

stop

The engine block heater and passenger com-

partment heater can be deactivated directly

via the information display.

1. Press OK to access the menu.
2. Scroll with the thumbwheel to

Parking

heater

and select with OK.

3. Scroll forward in the next menu to

Stop

order to deactivate the heater and select

with OK.

4. Exit the menu with RESET.

Related information

•

partment heater* - direct start (p. 146)

•

partment heater* - timer (p. 147)

•

The timer of the engine block and passenger

Engine block heater and passenger

compartment heater* - timer

compartment heater (p. 145) is connected to

the car's clock.

Two different times can be selected using the

timer. Here, time refers to the time when the

car is heated and ready. The car's electronic

system calculates when heating should be

started based on the outside temperature.

All timer programming will be cleared if the

car's clock is reset.

Adjusting

1. Press OK to access the menu.
2. Use the thumbwheel (p. 113) to scroll to

one of the timers

Parking heater

and

select with OK.

3. Select one of the two timers using the

thumbwheel and confirm with OK.

4. Briefly press OK to move to the lit hours

setting.

5. Select the required hour using the thumb-

wheel.

6. Briefly press OK to move to the flashing

minutes setting.

7. Select the required minute using the

thumbwheel.

8. Press OK

to confirm the setting.

9. Go back in the menu structure using

RESET.

10. Select the other time (continue from step

2) or exit the menu with RESET.

Starting
1. Press OK to access the menu.
2. Scroll with the thumbwheel to

Parking

heater

and select with OK.

3. Select one of the two timers using the

thumbwheel and activate with OK.

4. Exit the menu with RESET.

Switching off
A timer-started heater can be switched off

manually before the set time has elapsed.

Proceed as follows:
1. Press OK to access the menu.

Setting the timer is only possible with the engine switched off.

Press OK again to activate the timer.

04 Climate control

148

Option/accessory, for more information, see Introduction.

2. Scroll with the thumbwheel to

Parking

heater

and select with OK.

> If a timer is set but not activated then a

clock icon is shown beside the set

time.

3. Select one of the two timers using the

thumbwheel and confirm with OK.

4. Deactivate the timer as follows:

•

long press on OK or

•

short press on OK to continue in the

menu. Then select to stop the timer

and confirm with OK.

5. Exit the menu with RESET.
A timer-started heater can be switched off

directly (p. 147).

Related information

•

engine block and passenger compartment

04 Climate control

}}

Option/accessory, for more information, see Introduction.

149

Engine block heater and passenger

compartment heater* - messages

Symbols and display messages regarding the

heater (p. 145) differ depending on whether

the combined instrument panel (p. 65) is ana-

logue or digital.

When the heater has been activated

the heat symbol illuminates in the

information display.

When one of the timers has been activated,

the symbol for activated timer illuminates in

the display at the same time as the set time is

shown next to the symbol.

Symbol for activated timer in ana-

logue combined instrument panel.

Symbol for activated timer in digital

combined instrument panel.

The table shows symbols and display texts

that appear.

Symbol Message

Specification

The heater is switched on and running.

Fuel operated heater stopped

Battery saving mode

The heater has been stopped by the car's electronics in order to facilitate starting the engine.

04 Climate control

150

Symbol Message

Specification

Fuel operated heater stopped

Low fuel level

Starting the heater is not possible due to fuel level being too low - this is in order to facilitate

starting the engine as well as approx. 50 km driving.

Fuel operated heater Service

required

Heater not working. Contact a workshop for repair. Volvo recommends that you contact an

authorised Volvo workshop.

A display text clears automatically after a time

or after one press on the indicator stalk

(p. 113) OK button.

04 Climate control

Option/accessory, for more information, see Introduction.

151

Additional heater*

In cold climate zones

an additional heater

may be required to obtain the correct operat-

ing temperature in the engine and to obtain

sufficient heating in the passenger compart-

ment.

A fuel-driven additional heater (p. 151) is fit-

ted in cars with diesel engines.

In a semi-cold

climate zone diesel-driven

cars have an electric additional heater

(p. 152) instead of a fuel-driven version.

Cars with certain petrol engines

have an

electric additional heater integrated into the

car's climate control system.

Related information

•

partment heater* (p. 145)

Fuel-driven additional heater*

The car is equipped with either an electric

(p. 152) or a fuel-driven additional heater

(p. 151).

The heater starts automatically when extra

heat is required when the engine is running.
The heater is switched off automatically when

the correct temperature is reached or when

the engine is switched off.

When the additional heater is active there

may be smoke from the right-hand wheel

housing, which is perfectly normal.

Auto mode or shutdown
The additional heater's automatic start

sequence can be switched off if required.

1. Before starting the engine: Select key

Volvo recommends that the fuel-driven

additional heater should be switched off

for short distances.

position I (p. 81).

2. Press OK to access the menu.
3. Scroll with the thumbwheel to

Additional

heater

Settings

and select with OK.

4. Select one of the options

OFF

using the thumbwheel and confirm with

OK.

5. Exit the menu with RESET.
