The same symbol appears if Distance Alert (see Distance Alert – introduction (p. 198)) is activated

Adaptive Cruise Control –

deactivating

Standby mode (temporary deactivation)

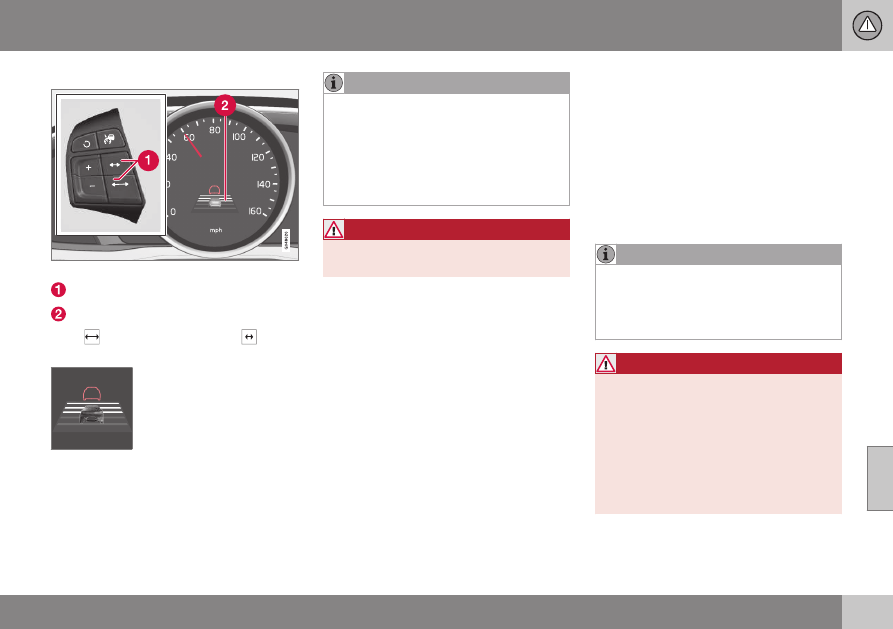

To temporarily deactivate ACC (put it in

standby mode):

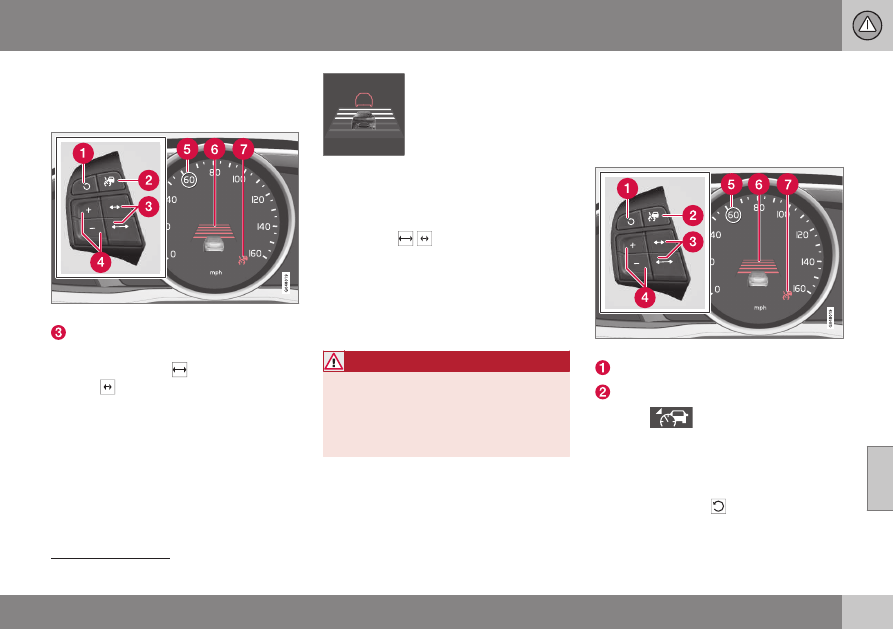

Controls and display

Resume previous settings.

Off/On/Standby mode

•

Press

(2).

This symbol and the marking for the set

speed with change colors from green to

white.
The previously set speed and time interval are
resumed by pressing

(1).

07 Driver support

190

WARNING

The vehicle may accelerate quickly after

has been pressed if its current speed is

considerably lower than the set speed.

Standby mode due to action by the
driver
ACC is temporarily deactivated and put in

standby mode:

•

if the brakes are applied

•

if the gear selector is moved to N

•

if the driver drives faster than the set

speed for more than 1 minute.

In this happens, the driver will have to regu-

late the vehicle's speed.

If the accelerator pedal is only depressed

for a short time, such as when passing

another vehicle, ACC is deactivated tem-

porarily and is reactivated when the pedal

is released.

Automatic standby mode
ACC is linked to other systems such as the

stability system. If this system is not function-

ing properly, ACC will switch off automati-

cally.
In the event of automatic deactivation, an

audible signal will sound and the message

Cruise control Cancelled

is shown in the

instrument panel. The driver must then inter-

vene and adapt the vehicle's speed to the

surrounding traffic and regulate the distance

to the vehicle ahead.
An automatic switch to standby mode may be

caused if:

•

engine speed (rpm) is too high/low

•

The driver's door is opened

•

The driver unbuckles his/her seat belt

•

the vehicle's speed goes below 18 mph

(30 km/h)

•

the wheels lose traction

•

brake temperature is high

•

the radar sensor is obstructed by, for

example, wet snow or rain.

Resuming the set speed
If ACC is in standby mode, it can be reactiva-
ted by pressing the

button on the steering

wheel keypad. The vehicle will return to the

most recently set speed.

WARNING

The vehicle may accelerate quickly after

has been pressed if its current speed is

considerably lower than the set speed.

Turning ACC off completely

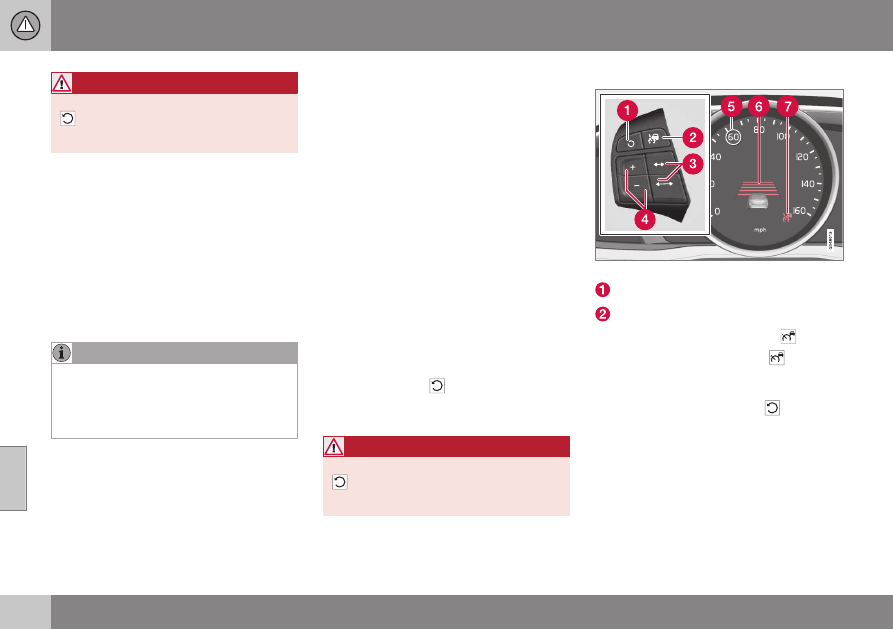

Controls and display

Resume previous settings.

Off/On/Standby mode

•

From standby mode, press (2)

once.

•

From active mode, press (2)

twice.

The set speed and time interval are then

cleared from the system's memory and can-
not be resumed by pressing (1)

Related information

•

07 Driver support

}}

191

Adaptive Cruise Control – passing

another vehicle

Passing another vehicle
If your vehicle’s speed is being regulated by

ACC and the driver indicates that he/she

would like to pass the vehicle ahead by using

the left turn signal, ACC can assist by accel-

erating briefly.
This function is active at speeds above

approximately 45 mph (70 km/h).

WARNING

Please be aware that this function will also

cause the vehicle to accelerate briefly in

certain situations other than passing

another vehicle, for example using the left

turn signal to indicate a lane change or a

turn toward a highway exit at speeds

above approximately 45 mph (70 km/h).

Related information

•

Adaptive Cruise Control (ACC) –

Queue Assist

Queue Assist is an added ACC feature that is

linked to your vehicle's automatic transmis-

sion.

Introduction
Queue Assist is an added ACC feature that is

linked to your vehicle's automatic transmis-

sion.
Queue Assist consists of the following func-

tions:

•

Enhanced speed interval (including when

the vehicle is at a complete stop or is

moving at speed below 18 mph

(30 km/h))

•

Automatic standby mode when ACC

changes target vehicles

•

No automatic braking when at a standstill

•

The parking brake is applied automati-

cally

Please note that the lowest speed that can be

set is 18 mph (30 km/h), although ACC can

maintain a set speed/distance to a vehicle

ahead down to a standstill. Queue Assist

consists of the following features:

Enhanced speed interval

The driver's door must be closed and the

driver's seat belt must be fastened before

ACC can be put in active mode. If the driv-

er's seat belt is taken off or if the driver's

door is opened, ACC will return to standby

mode.

Your vehicle can maintain the set time interval

to the vehicle ahead at any permissible

speed, including a complete stop.
In order to activate ACC at speeds below

18 mph (30 km/h):

•

The vehicle ahead must be within a rea-

sonable distance (not farther away than

approx. 100 ft/30 meters)

•

The lowest speed that can be selected is

18 mph (30 km/h), although ACC will also

help maintain the set time interval to the

vehicle ahead at lower speeds, including

a complete stop.

During short stops (less than approximately

3 seconds) in slow-moving traffic, your vehi-

cle will begin moving again automatically as

soon as the vehicle ahead begins to move.
If it takes more than 3 seconds for the vehicle

ahead to begin moving, ACC will be automat-

ically go into standby mode.

07 Driver support

192

The driver will then have to reactivate ACC in

one of the following ways:

•

By pressing

•

By accelerating up to at least 3 mph

(4 km/h). ACC will then resume following

the vehicle ahead.

Your vehicle will then resume following the

vehicle ahead at the set time interval.

the parking brake (see Parking brake –

ACC can remain active and keep your

vehicle at a standstill for up to 4 minutes.

After 4 minutes have elapsed, the parking

brake will be engaged and ACC will go into

standby mode.
To reactivate ACC, the driver must release

general information (p. 268)).

Automatic standby mode when ACC
changes target vehicles

If the vehicle ahead turns suddenly, there may be

a stationary vehicle ahead

The following only applies at speeds below

approximately 18 mph (30 km/h):
If ACC changes target vehicles (the vehicle

that the radar sensor has detected) from a

moving vehicle to a stationary one, the sys-

tem will apply the brakes in your vehicle.

WARNING

At speeds above 18 mph (30 km/h), ACC

will not react to a stationary vehicle and

apply the brakes but will instead acceler-

ate to the previously set speed. The driver

must actively apply the brakes to stop the

vehicle.

ACC disengages and goes into standby

mode if:

•

Your vehicle's speed goes below 10 mph

(15 km/h) and ACC cannot determine if

the target object is a stationary vehicle or

some other type of object such as e.g., a

speed bump.

•

Your vehicle's speed goes below 10 mph

(15 km/h) and the vehicle ahead turns so

that ACC no longer has a target vehicle to

follow.

No automatic braking when at a
standstill
In certain situations, ACC will no longer apply

the brakes and go into standby mode while

the vehicle is not moving. This means that the

driver will have to apply the brakes.

This happens if:

•

The driver presses the brake pedal

•

The parking brake is activated

•

The gear selected is moved to P, N or R

•

The driver presses the

button to put

ACC in standby mode

The parking brake is applied
automatically
In certain situations, ACC will apply the park-

ing brake in order to continue keeping the

vehicle at a standstill.
This happens if:

•

The driver opens the door or takes off

his/her seat belt

•

The stability system is put in Sport mode

(see Stability system – operation (p. 176))

•

ACC has kept the vehicle at a standstill

for more than 2 minutes

•

The engine has been switched off

•

The brakes have overheated

Related information

•

used by Distance Alert (see Distance Alert –

07 Driver support

}}

193

Radar sensor

The radar sensor is designed to help detect

cars or larger vehicles driving in the same

direction as your vehicle, in the same lane.

The radar sensor and its limitations
In addition to being used by the Adaptive

Cruise Control (ACC), the radar sensor is also

introduction (p. 198)) and Collision Warning

with Full Auto-brake and Pedestrian Detec-

tion (see Collision warning – introduction

(p. 209)).

WARNING

•

If there is visible damage to the front

grille or you suspect that the radar

sensor may be damaged in any way,

contact a trained and qualified Volvo

service technician as soon as possible.

The radar sensor may only function

partially (or not at all) if it is damaged

or is not securely fastened in place.

•

Accessories or other objects, such as

extra headlights, must not be installed

in front of the grille.

•

Modification of the radar sensor could

make its use illegal.

The radar sensor's capacity to detect vehi-

cles ahead is impeded:

•

if the radar sensor is obstructed and can-

not detect other vehicles, for example in

heavy rain, or if snow or other objects are

obscuring the radar sensor.

Keep the area in front of the radar sensor

clean.

•

if the speed of vehicles ahead is signifi-

cantly different from your own speed.

Related information

•

Collision warning – introduction (p. 209)

•

•

Distance Alert – introduction (p. 198)

Adaptive Cruise Control – limitations

The ACC cannot cover all driving situations

and traffic, weather and road conditions.

Situations where ACC may not function
optimally

WARNING

•

The radar sensor has a limited field of

vision. In some situations it may detect

a vehicle later than expected or not

detect other vehicles at all.

•

If ACC is not functioning properly,

cruise control will also be disabled.

07 Driver support

194

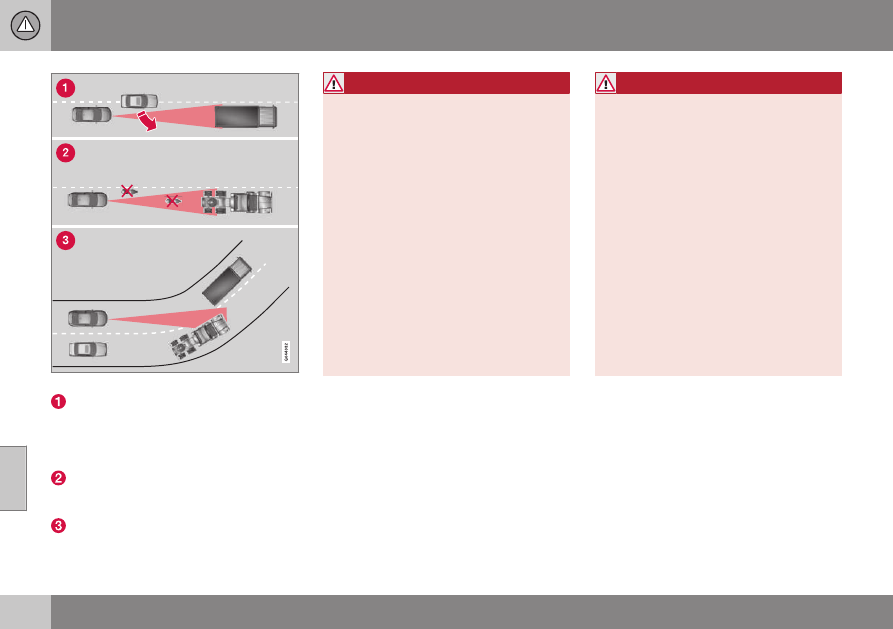

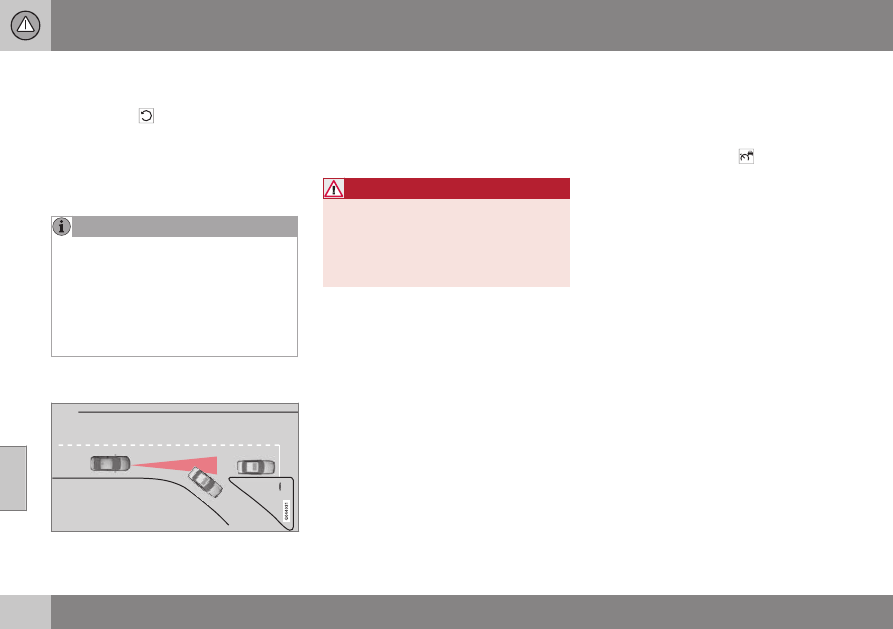

Radar sensor's field of vision (shown in pink)

In certain situations, the radar sensor

cannot detect vehicles at close quarters,

for example a vehicle that suddenly

enters the lane between your vehicle and

the target vehicle.
Small vehicles, such as motorcycles, or

vehicles not driving in the center of the

lane may remain undetected.
In curves, the radar sensor may detect

the wrong vehicle or lose sight of the tar-

get vehicle.

WARNING

•

Adaptive Cruise Control cannot cover

all driving situations and traffic,

weather and road conditions. The

"Function" section provides informa-

tion about limitations that the driver

must be aware of before using this

feature.

•

This system is designed to be a sup-

plementary driving aid. It is not, how-

ever, intended to replace the driver's

attention and judgement. The driver is

responsible for maintaining a safe dis-

tance and speed and must intervene if

Adaptive Cruise Control does not

maintain a suitable speed or suitable

distance to the vehicle ahead.

•

Maintenance of ACC components may

only be performed by a trained and

qualified Volvo technician.

WARNING

•

Adaptive Cruise Control is not a colli-

sion avoidance system. The driver is

always responsible for applying the

brakes if the system does not detect

another vehicle.

•

Adaptive Cruise Control does not react

to people or animals, or small vehicles

such as bicycles and motorcycles. It

also does not react to slow moving,

parked or approaching vehicles, or

stationary objects.

•

Do not use Adaptive Cruise Control in

demanding driving conditions such as

city driving or other heavy traffic situa-

tions, in slippery conditions, when

there is a great deal of water or slush

on the road, during heavy rain or

snow, in poor visibility, on winding

roads or on highway on- or off-ramps.

Related information

•

Stability system – introduction (p. 175) for more information.

07 Driver support

}}

195

Adaptive Cruise Control – symbols

and messages

Symbols and messages in the display
A text message can be erased by pressing

briefly on the OK button on the turn signal

lever.

Symbol Message

Description

Green symbol

A speed has been set.

White symbol

ACC is in standby mode but no speed has been set.

Standard cruise control has been selected manually.

Set ESC to Normal to

enable Cruise

ACC cannot be put in active mode until the stability system is switched normal operating mode, see

Cruise control Cancel-

led

ACC has been automatically switched off. The driver has to regulate the vehicle’s speed/distance to the

vehicle ahead.

Cruise control Unavail-

able

ACC cannot be put in active mode. This may be due to:

•

high brake temperature

•

the radar sensor is obstructed (by heavy rain, snow, etc.)

Radar blocked See

manual

ACC has been temporarily disconnected because the radar is obstructed in some way and cannot detect

other vehicles.
In this situation, the driver can switch to standard cruise control, see Toggling between ACC and CC

(standard Cruise Control) (p. 183)
See Adaptive Cruise Control – limitations (p. 193) for information on the radar sensor’s limitations.

07 Driver support

196

Symbol Message

Description

Cruise control Service

required

ACC is not functioning.
Contact a trained and qualified Volvo service technician.

Press Brake To hold

an audible signal

The vehicle is at a standstill and ACC will release the brakes before the parking brake engages to keep

the vehicle stopped but a problem with the parking brake means that the vehicle may begin to roll.
The driver will have to apply the brakes. The message will remain in the display and the audible signal

will continue until the driver applies the brakes or presses the accelerator pedal.

Below 30 km/h Only

following

This is displayed if you try to activate ACC at speeds below approx. 18 mph (30 km/h) without a vehicle

ahead within range (approx. 100 ft/30 meters).

Related information

•

07 Driver support

197

Adaptive Cruise Control –

troubleshooting

If the message

Radar blocked See manual

is displayed, this means that the radar signals

from the sensor have been obstructed and

that a vehicle ahead cannot be detected.
This, in turn, means that the functions of the

ACC, Distance Alert, and Collision Warning

System with Auto-brake and Pedestrian

Detection will not function.
The table lists possible causes for this mes-

sage being displayed, and suitable actions.

Cause

Action

The surface of the radar in the grille is dirty or obstructed in some

way.

Clean the radar surface, or remove the object causing the obstruction.

Heavy rain or snow is interfering with the radar signals.

No action possible. Heavy precipitation may affect the function of the

radar.

Swirling water or snow from the surface of the road may interfere

with the radar signals.

No action possible. A very wet or snow-covered road surface may affect

the function of the radar.

The surface of the radar is clean but the message remains in the

display.

Wait a short time. It may take several minutes for the radar to detect that

it is no longer obstructed.

Related information

•

07 Driver support

198

Distance Alert – introduction

Distance Alert is part of Adaptive Cruise Con-

trol and is a function that provides information

about the time interval to the vehicle ahead.

Introduction
Distance Alert is active at speeds above

approximately 18 mph (30 km/h). Time inter-

val information is only given for a vehicle that

is driving ahead of your vehicle in the same

direction. No information is provided for vehi-

cles driving toward you, moving very slowly,

or at a standstill.

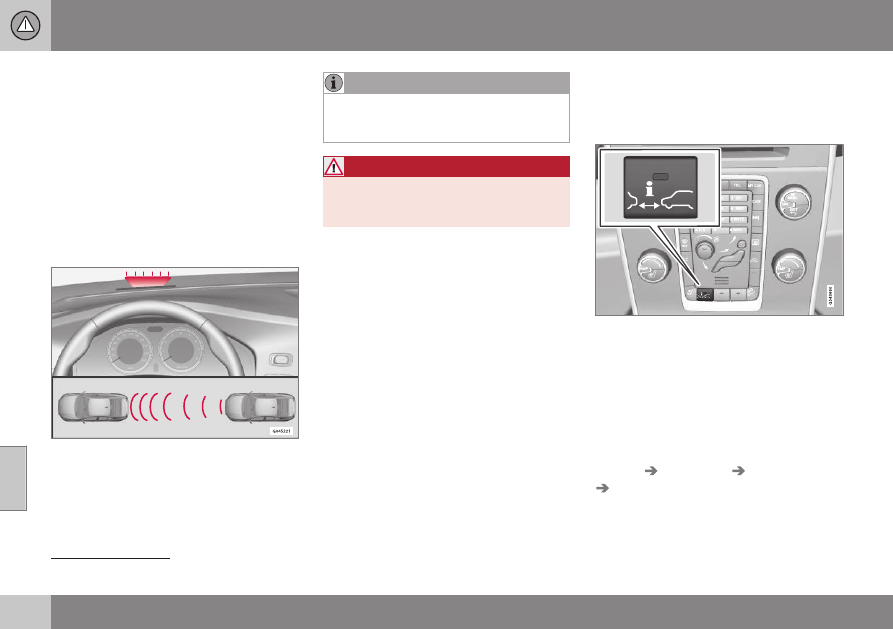

Amber warning light

An amber warning light in the windshield

glows steadily if your vehicle is closer to the

one ahead than the set time interval.

Distance Alert – operation (p. 198)

Distance Alert only monitors distance to

the vehicle ahead while Adaptive Cruise

Control is in standby mode or off.

WARNING

Distance Alert only indicates the distance

to the vehicle ahead. It does not affect the

speed of your vehicle.

Related information

•

•

Distance Alert – limitations (p. 199)

•

Distance Alert – symbols and messages

(p. 201)

Distance Alert – operation

Distance Alert is part of Adaptive Cruise Con-

trol and is a function that provides information

about the time interval to the vehicle ahead.

Press the button in the center instrument

panel to switch this function on or off. The

indicator light in the button illuminates when

the function is on.
Depending on the optional equipment

selected, there may not be room for a Dis-

tance Alert button in the center console. In

this case, the function is controlled through

the menu system. Press MY CAR and go to

Settings

Car settings

Distance alert

On/Off

The illustration is generic; certain details may vary from model to model

07 Driver support

}}

199

Setting a time interval

Controls and display

Time interval: Increase/decrease

Time interval On

Press

to increase the interval or

decrease it.

Five different time intervals

can be selected and are

shown in the display as 1–5

horizontal bars. The greater

the number of bars, the

longer the time interval. One

bar represents approximately

1 second to the vehicle ahead; 5 bars is

approximately 3 seconds.

Adaptive Cruise Control, see Adaptive

•

The higher your vehicle’s speed, the

greater the distance to the vehicle

ahead, measured in feet (meters), for a

given time interval.

•

The set time interval is also used by

Cruise Control – setting speed (p. 188).

WARNING

Only use a time interval that is suitable in

current traffic conditions.

Related information

•

Distance Alert – introduction (p. 198)

•

Distance Alert – limitations (p. 199)

•

Distance Alert – symbols and messages

(p. 201)

Distance Alert – limitations

Distance Alert is part of Adaptive Cruise Con-

trol and is a function that provides information

about the time interval to the vehicle ahead.

Limitations
Distance Alert uses the same radar sensor

used by Adaptive Cruise Control and the Col-

lision Warning system. See Adaptive Cruise

Control – limitations (p. 193) for more infor-

mation on the radar sensor’s limitations.

not detect other vehicles. See Adaptive Cruise Control – limitations (p. 193) for information on the radar

Strong sunlight, reflections, extreme light

contrasts, the use of sunglasses, or if the

driver is not looking straight ahead may

make the visual warning signal in the wind-

shield difficult to see.

WARNING

•

Bad weather or winding roads may

affect the radar sensor’s capacity to

detect vehicles ahead.

•

The size of the vehicle ahead, such as

a motorcycle, may also make it difficult

to detect. This may result in the warn-

ing light illuminating at a shorter dis-

tance than the one that has been set,

or that the light will not come on at all.

07 Driver support

201

Distance Alert – symbols and

messages

Distance Alert is part of Adaptive Cruise Con-

trol and is a function that provides information

about the time interval to the vehicle ahead.

Symbols and text messages
A text message can be erased by pressing

briefly on the OK button on the turn signal

lever.

Symbol Message

Description

Radar blocked See

manual

Distance Alert has been temporarily disconnected because the radar is obstructed in some way and can-

sensor’s limitations.

Collision warn. Serv-

ice required

Distance Alert or Collision Warning with Full Auto-brake and Pedestrian Detection is not functioning prop-

erly. Contact a trained and qualified Volvo service technician.

Related information

•

Distance Alert – introduction (p. 198)

•

Distance Alert – operation (p. 198)

•

Distance Alert – limitations (p. 199)

07 Driver support

202

City Safety – introduction

City Safety™

is a support system designed

to help the driver avoid low speed collisions

when driving in slow-moving, stop-and-go

traffic.

City Safety™ is not active if your vehicle’s

speed is below approximately 2 mph

(4 km/h). This means that City Safety™ will

not react if your vehicle approaches another

vehicle at very low speed, for example, when

parking.
The function is active at speeds up to

approximately 30 mph (50 km/h) and assists

the driver by applying the brakes automati-

cally, thereby avoiding or helping to reduce

the effects of a collision.
City Safety™ is designed to intervene as late

as possible to help avoid unnecessary activa-

tion.
City Safety™ triggers brief, forceful braking if

a low-speed collision is imminent. However,

the system will not intervene in situations

where the driver actively steers the vehicle or

applies the brakes, even if a collision cannot

be avoided. This is done in order to always

give the driver’s actions highest priority.
City Safety™ activates in situations where the

driver has not applied the brakes in time,

which means that the system cannot help the

driver in all situations.
City Safety™ should not be used to alter the

way in which the driver operates the vehicle.

The driver should never rely solely on this

system to safely stop the vehicle.
Normally, the occupants of the vehicle will

not be aware of City Safety™ except when

the system intervenes when a low-speed col-

lision is imminent.
If the vehicle is also equipped with the

optional Collision Warning with Full Auto-

brake and Pedestrian Detection system, the

two systems interact. For more information

about the Collision Warning with Auto-brake

system, see Collision warning – introduction

(p. 209) .

WARNING

•

City Safety™ is a supplemental aid to

the driver. It can never replace the

driver’s attention to traffic conditions

or his/her responsibility for operating

the vehicle in a safe manner.

•

City Safety™ does not function in all

driving situations or in all traffic,

weather or road conditions.

WARNING

•

City Safety™ only reacts to vehicles

traveling in the same direction as your

vehicle and does not react to small

vehicles or motorcycles or to people or

animals.

•

City Safety™ is not activated when

your vehicle is backing up.

•

City Safety™ functions at speeds up

to 30 mph (50 km/h). This system can

help prevent a collision if the differ-

ence in speed between your vehicle

and the vehicle ahead is less than

9 mph (15 km/h). If the difference in

speed is greater, a collision cannot be

avoided but the speed at which the

collision occurs can be reduced. The

driver must apply the vehicle’s brakes

for full braking effect.

•

City Safety™ will not intervene in a

potential collision situation if the vehi-

cle is being driven actively. The driver

is always responsible for maintaining a

safe distance to a vehicle or object

ahead.

Related information

•

City Safety – function (p. 203)

•

City Safety – operation (p. 204)

•

City Safety – limitations (p. 204)

City Safety is a registered trademark of the Volvo Car Corporation

07 Driver support

203

•

•

•

City Safety – function

Function

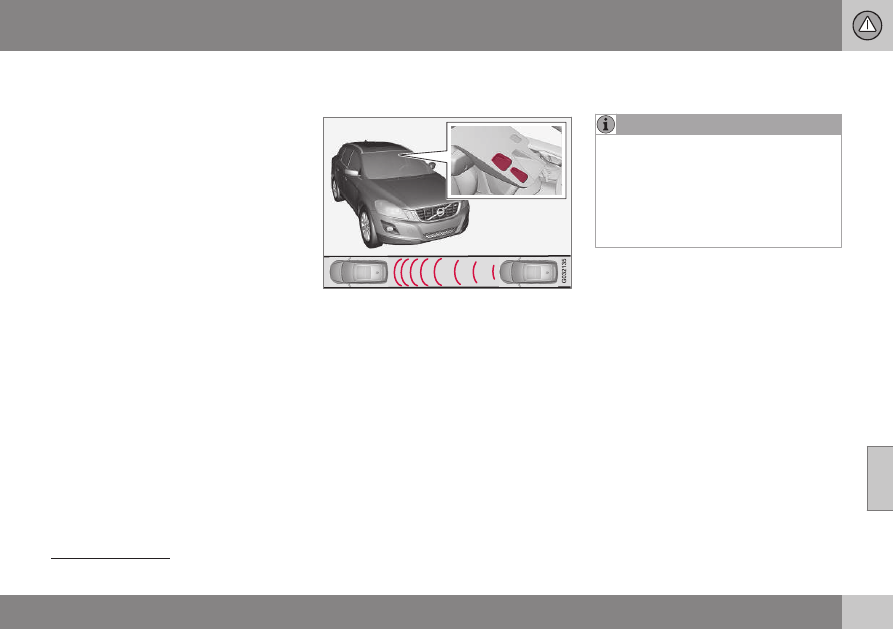

Location of the laser sensor in the windshield

City Safety™ monitors traffic ahead of you

using a laser sensor mounted in the upper

section of the windshield. If a collision is

imminent, City Safety™ will automatically

apply the brakes, which may feel like hard

braking.
If the difference in speed between your vehi-

cle and the vehicle ahead is more than

approximately 9 mph (15 km/h), City Safety™

alone cannot prevent a collision from taking

place. The driver must apply the brakes to

help avoid a collision or reduce its effect.
When the function activates and applies the

brakes, a message will appear in the informa-

tion display to indicate that the system is/has

been active.

City Safety – introduction (p. 202)

•

When City Safety™ applies the

brakes, the brake lights will illuminate.

•

In cases where City Safety™ has stop-

ped the vehicle, the system will then

release the brakes. The driver must

apply the brakes to keep the vehicle at

a standstill.

Related information

•

•

City Safety – operation (p. 204)

•

City Safety – limitations (p. 204)

•

•

•

The illustration is generic; certain details may vary from model to model

07 Driver support

204

City Safety – operation

Using City Safety™

City Safety – introduction (p. 202)

The City Safety™ function is activated

automatically each time the engine has

been switched off and restarted.

On and Off
In certain situations, it may be desirable to

switch City Safety™ off, such as when driving

in close quarters where leaves, branches, etc.

may obscure the hood and windshield.
When the engine is running, City Safety™ can

be switched off as follows:
Press My Car in the center console control
panel and go to

Settings

Car settings

Driver support systems

City Safety

Select

Off

If the engine is switched off, City Safety™ will

reactivate when the engine is restarted.

WARNING

The laser sensor emits light when the igni-

tion is in mode II or higher, even if City

Safety™ has been switched off.

To switch City Safety™ on again:

•

Follow the same procedure as for switch-

ing City Safety™ off but select

Related information

•

•

City Safety – function (p. 203)

•

City Safety – limitations (p. 204)

•

•

•

My Car – introduction (p. 76)

•

City Safety – limitations

Limitations

WARNING

The laser sensor has certain limitations

and its function may be reduced (or it may

not function at all) in conditions such as

heavy rain or snowfall, or by dense fog or

thick, blowing dust or snow. Condensa-

tion, dirt, ice or snow on the windshield

may also interfere with the sensor’s func-

tion.

The sensor used by City Safety™ is designed

to detect cars and other larger motor vehicles

ahead of your vehicle in both daylight and

darkness.
Objects such as warning flags hanging from

long objects on the roof or accessories such

as auxiliary lights or protective arches on the

front of the vehicle that are higher than the

hood may also impede the sensor’s function.
Braking distance to the vehicle ahead increa-

ses on slippery road surfaces, which may

reduce City Safety’s capacity to avoid a colli-

sion. In situations like this, the stability sys-

tem (see Stability system – introduction

(p. 175)) will help provide the best possible

braking capacity and stability.
City Safety™ emits a laser beam and meas-

ures the way in which the light is reflected.

07 Driver support

}}

205

Therefore, vehicles or objects with low-reflec-

tive surfaces may not be detected. Normally,

the license plate and taillight reflectors give

the rear section of a vehicle ahead sufficient

reflective surfaces to be detected.

etc., see City Safety – function

•

Keep the windshield in front of the

laser sensor free of ice, snow, dirt,

(p. 203).

•

Snow or ice on the hood deeper than

2 inches (5 cm) may obstruct the sen-

sor. Keep the hood free of ice and

snow.

•

Do not mount or in any way attach

anything on the windshield that could

obstruct the laser sensor.

Related information

•

City Safety – introduction (p. 202)

•

City Safety – function (p. 203)

•

City Safety – operation (p. 204)

•

•

•

City Safety – troubleshooting

Troubleshooting
If

Windscreen Sensors blocked

appears in

the information display, this indicates that the

City Safety™ laser sensor is obstructed in

some way and cannot detect vehicles ahead

of you, which means that the system is not

functioning.
However, this message will not be displayed

in all situations in which the sensor is

obstructed. For this reason, the driver must

ensure that the area of the windshield in front

of the sensor is always kept clean.
The following table shows some of the situa-

tions that can cause the message to be dis-

played and suggested actions.

Cause

Action

The area of the wind-

shield in front of the sen-

sor is dirty or covered by

ice or snow.

Clean the

windshield or

remove the ice/

snow.

The laser sensor's field

of view is obstructed.

Remove the

obstruction.
