Volvo XC70 (2016 year). Instruction - part 4

02 Safety

}}

Option/accessory, for more information, see Introduction.

WARNING

DEATH or SERIOUS INJURY can

occur
Follow all instructions on the

booster cushion and in the vehi-

cle's owner's manual.
MAKE SURE THE BOOSTER

CUSHION IS SECURELY

LOCKED BEFORE THE CHILD IS

SEATED.
•

Use this booster cushion only with

children whose height and weight are

within the permitted limits shown in

the table (Integrated booster cushion –

general information (p. 57)).

•

In the event of a collision while the

integrated booster cushion was occu-

pied, the entire booster cushion and

seat belt must be replaced. The

booster cushion should also be

replaced if it is badly worn or damaged

in any way. This work should be per-

formed by a trained and qualified

Volvo service technician only.

Related information

•

Integrated booster cushion – using (p. 59)

Child safety locks

Power child safety locks* help prevent chil-

dren from inadvertently opening one of the

rear doors or windows from inside the vehicle.

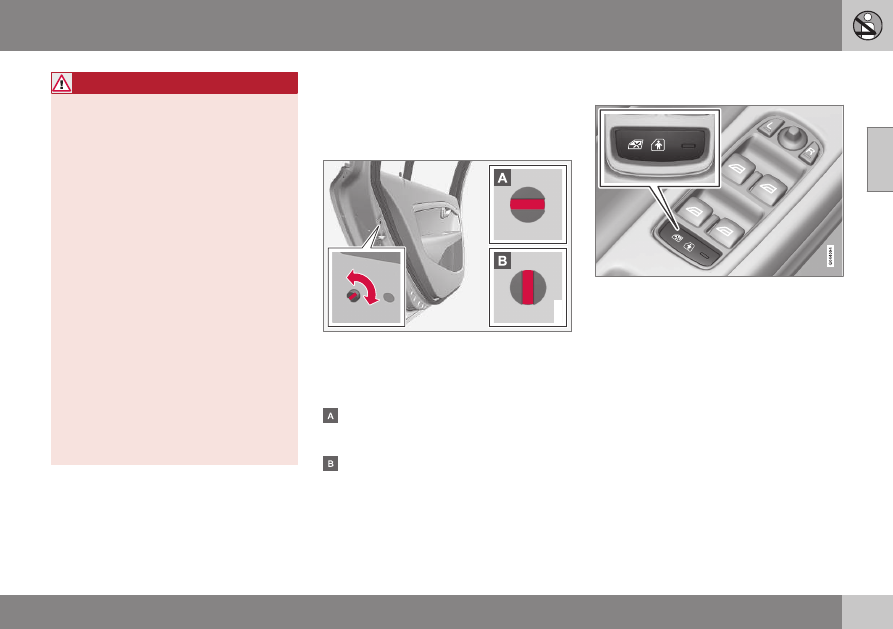

Manual child safety locks

G021077

Child safety locks – rear doors

The controls are located on the rear door

jambs. Use the remote control's key blade or

a screwdriver to adjust these controls.

The rear doors can only be opened from

the outside when the slot is in the hori-

zontal position.
The rear doors can be opened from the

inside when the slot is in the vertical posi-

tion.

Power child safety locks and
disengaging rear door windows*

Driver's door control panel

The power child safety locks can be acti-

vated/deactivated when the remote key is in

mode I (p. 79) or higher. Activation/deacti-

vation can be done up to 2 minutes after the

engine has been switched off (if no door has

been opened).
To activate the child safety locks:
1. Put the ignition in mode I or higher, or

start the engine.

2. Press the button on the driver's door con-

trol panel (see the illustration).
>

Rear child locks Activated

will be

displayed in the instrument panel and

the indicator light in the button will illu-

minate when the function is activated.

When the child safety locks are activated:

02 Safety

•

The rear door windows can only be

opened from the driver's door control

panel

•

The rear doors cannot be opened from

the inside

The child safety locks' current setting is

stored when the engine is switched off. If

these locks were activated when the engine

was switched off, they will also be active

when the engine is restarted.

Related information

•

Detachable key blade – general informa-

tion (p. 157)

•

Locking/unlocking – from inside (p. 166)

INSTRUMENTS AND CONTROLS

03 Instruments and controls

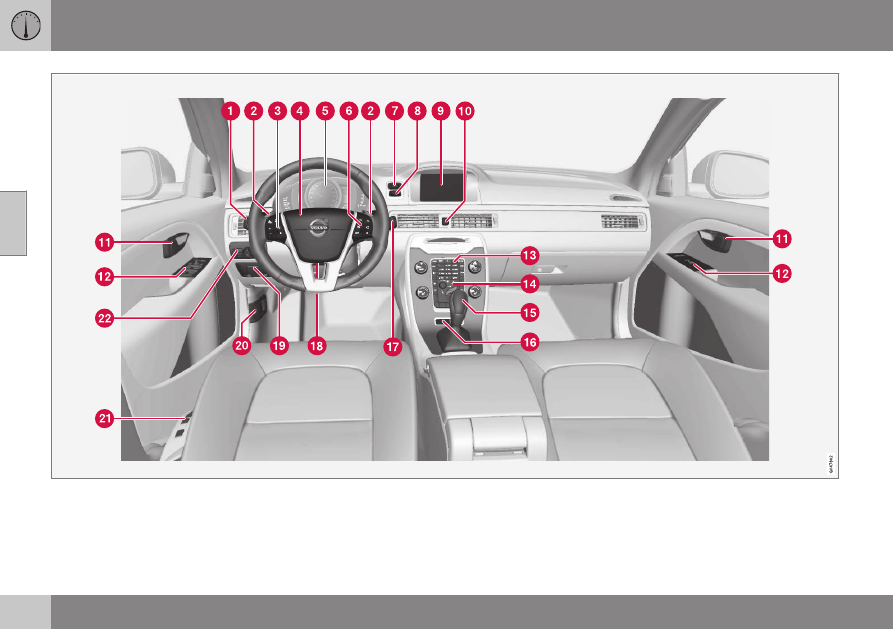

Instrument overview

This overview shows the location of the

instrument panel and center console displays,

and controls/buttons/switches.

03 Instruments and controls

}}

03 Instruments and controls

03 Instruments and controls

Option/accessory, for more information, see Introduction.

Function

See

Controls for menus

and messages, turn

signals, high/low

beams, trip computer

Paddles for manually

shifting gears*

Cruise control

Horn, airbag

Main instrument

panel

(p. 68)

Infotainment system/

Bluetooth hands-free

controls

Sensus Info-

tainment

supplement

START/STOP

ENGINE button

(p. 78)

Ignition slot

(p. 78)

Display for infotain-

ment system func-

tions and menus

(p. 112),

Sensus Info-

tainment

supplement

Hazard warning flash-

ers

(p. 94)

Door handle

–

Function

See

In-door control pan-

els (power windows,

mirrors, central lock-

ing button, power

child safety locks)

Controls for the info-

tainment system and

menus

(p. 76),

Sensus Info-

tainment

supplement

Climate system con-

trols

(p. 128)

Gear selector

(p. 251)

Controls for active

chassis (Four-C)*

(p. 175)

Wipers and washers

(p. 98),

(p. 99)

Steering wheel

adjustment

(p. 87)

Parking brake

(p. 268)

Hood opening control

(p. 327)

Function

See

Power seat* adjust-

ment controls

(p. 81)

Lighting panel, but-

tons for opening fuel

filler door and unlock-

ing the tailgate

(p. 89),

(p. 277),

(p. 168)

Related information

•

Information displays – ambient tempera-

ture sensor (p. 77)

•

Information displays – trip odometer and

clock (p. 78)

03 Instruments and controls

Option/accessory, for more information, see Introduction.

Information displays – introduction

The displays show information on some of the

vehicle's functions, such as cruise control, the

trip computer and messages. The information

is shown with text and symbols.

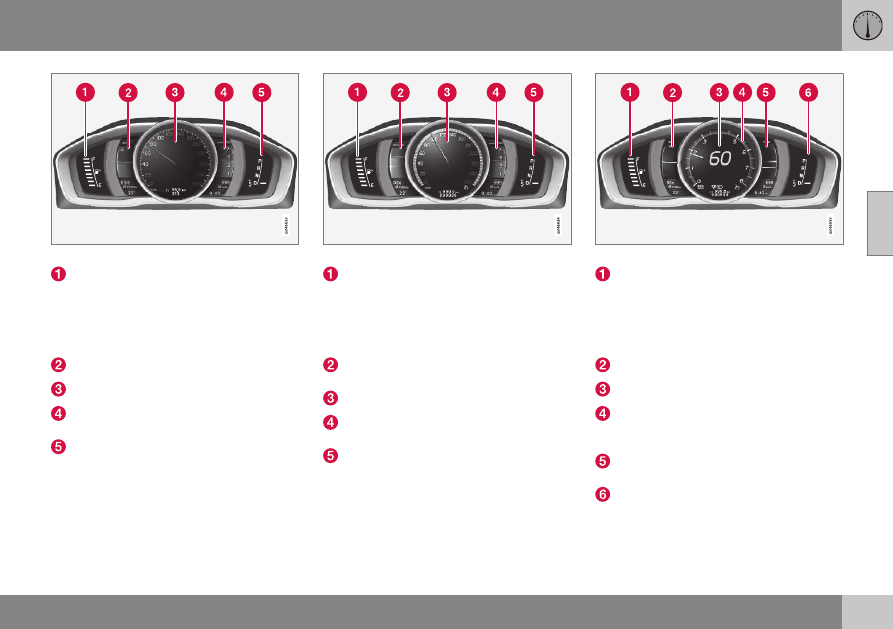

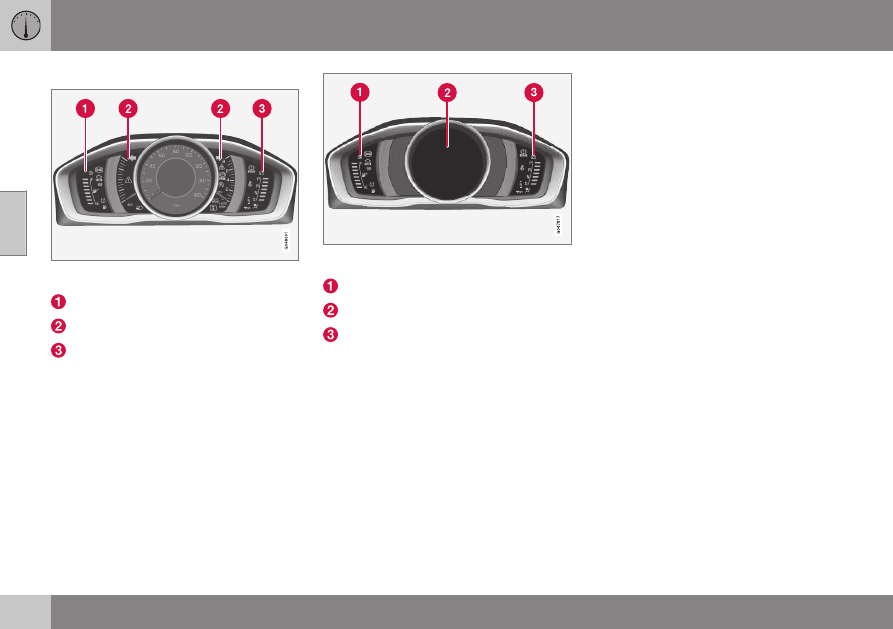

Information displays: analog instrument panel

Information displays: digital instrument panel*

More detailed information can be found in the

descriptions of the functions that use the

information displays.

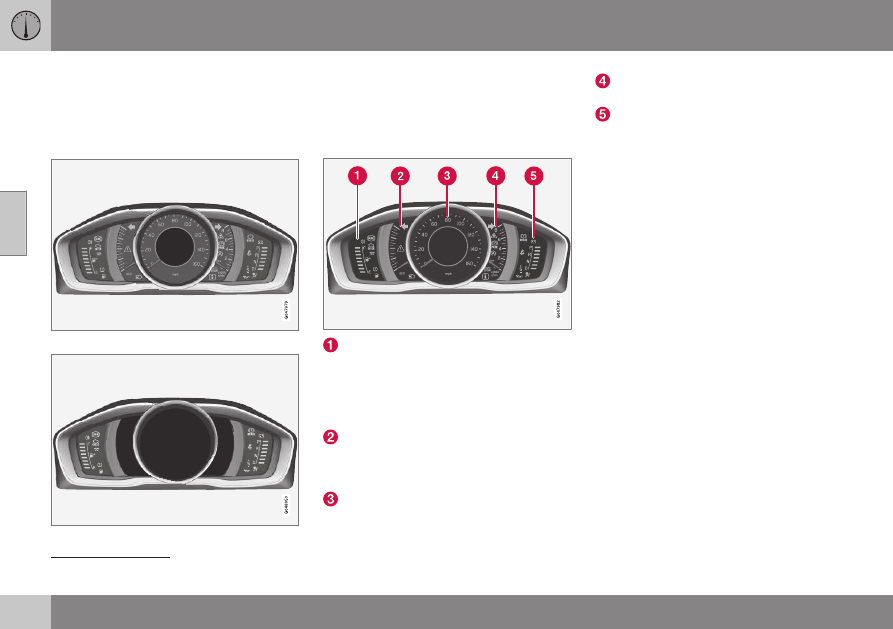

Gauges and indicators: analog
instrument panel

Fuel gauge: When the indicator shows
one white marking

, a yellow indicator

light will illuminate to indicate a low fuel

tion (p. 115) and Refueling – fuel require-

ments (p. 275) for additional information.
Eco meter: Indicates how economically

the vehicle is being driven. The higher the

needle moves on the scale, the more

economically the vehicle is being driven.
Speedometer

Tachometer: Shows engine speed in

thousands of revolutions per minute (rpm)
Gear indicator: Shows the currently

selected gear

Gauges and indicators: digital
instrument panel*
Different themes (display alternatives) can be

selected for the digital instrument panel:

•

Elegance

•

Eco

•

Performance

To change themes, press the OK button on

the left steering wheel lever and use the

thumb wheel to scroll to

Themes

. Press OK

to confirm your choice.

When the message Distance to empty fuel tank: shows "

----

", the marker turns red

03 Instruments and controls

}}

Option/accessory, for more information, see Introduction.

Theme Elegance: gauges and indicators

Fuel gauge. When the indicator shows

one white marking, a yellow indicator light

will illuminate to indicate a low fuel level.

See also Trip computer – introduction

(p. 115) and Refueling – fuel require-

ments (p. 275) for additional information.
Coolant temperature gauge

Speedometer

Tachometer (engine speed in thousands

of revolutions per minute (rpm))
Gear indicator: Shows the currently

selected gear

Theme Eco: gauges and indicators

Fuel gauge. When the indicator shows a

white marking, a yellow indicator light will

illuminate to indicate a low fuel level. See

also Trip computer – introduction (p. 115)

and Refueling – fuel requirements

(p. 275) for additional information.
Eco Guide (see Eco Guide* and Power

Meter* (p. 71))
Speedometer

Tachometer (engine speed in thousands

of revolutions per minute (rpm))
Gear indicator: Shows the currently

selected gear

Theme Performance: gauges and indicators

Fuel gauge. When the indicator shows a

white marking, a yellow indicator light will

illuminate to indicate a low fuel level. See

also Trip computer – introduction (p. 115)

and Refueling – fuel requirements

(p. 275) for additional information.
Coolant temperature gauge

Speedometer

Tachometer (shows engine speed in

thousands of revolutions per minute

(rpm))
Power Meter (see Eco Guide* and Power

Meter* (p. 71)).
Gear indicator: Shows the currently

selected gear

03 Instruments and controls

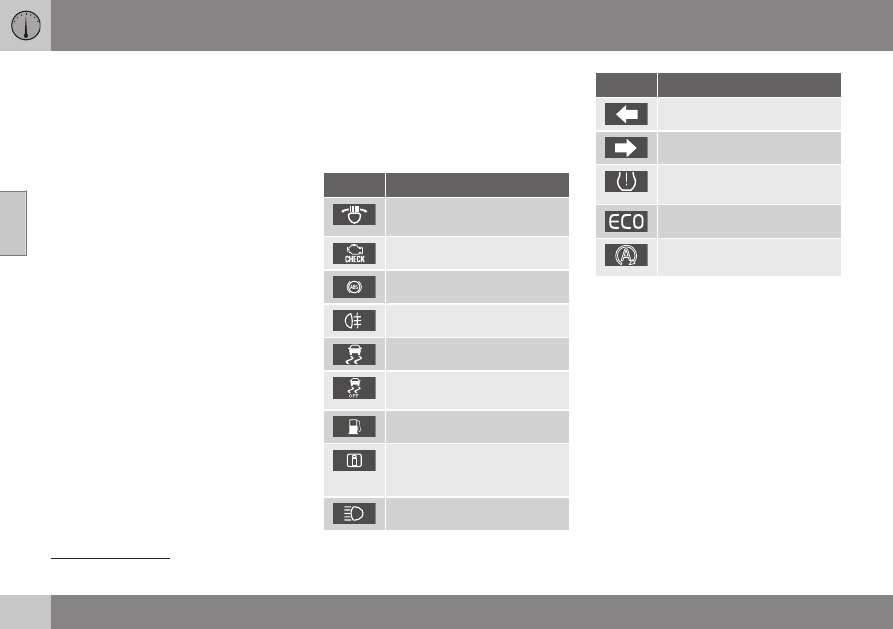

Indicator and warning symbols

Indicator and warning symbols: analog instru-

ment panel

Indicator symbols

Indicator and warning symbols

Warning symbols

Indicator and warning symbols: digital instrument

panel

Indicator symbols

Indicator and warning symbols

Warning symbols

Function check

All indicator and warning symbols light up in

ignition mode II or when the engine is started.

When the engine has started, all the symbols

should go out except the parking brake sym-

bol, which only goes out when the brake is

disengaged.
If the engine does not start or if the function

check is carried out in ignition mode II, all

symbols go out after 5 seconds except the

malfunction indicator light, which may indi-

cate a fault in the vehicle's emissions system,

and the symbol for low oil pressure.

Some of the symbols shown may not be

available in all markets or models.

Related information

•

Instrument overview (p. 64)

•

Information displays – indicator symbols

(p. 72)

•

Information displays – warning symbols

(p. 74)

03 Instruments and controls

}}

Option/accessory, for more information, see Introduction.

Eco Guide* and Power Meter*

Eco guide and Power guide are two gauges in

the instrument panel that help improve driving

economy.
The vehicle also stores driving-related statis-

tics in the form of a bar graph, see Trip com-

puter – Trip statistics (p. 122).

Introduction
To display or remove these functions from the

instrument panel, select the "Eco" theme (see

Information displays – introduction (p. 68)).
Driving statistics are also stored and can be

displayed in the form of a bar chart (see Trip

computer – Trip statistics (p. 122)).

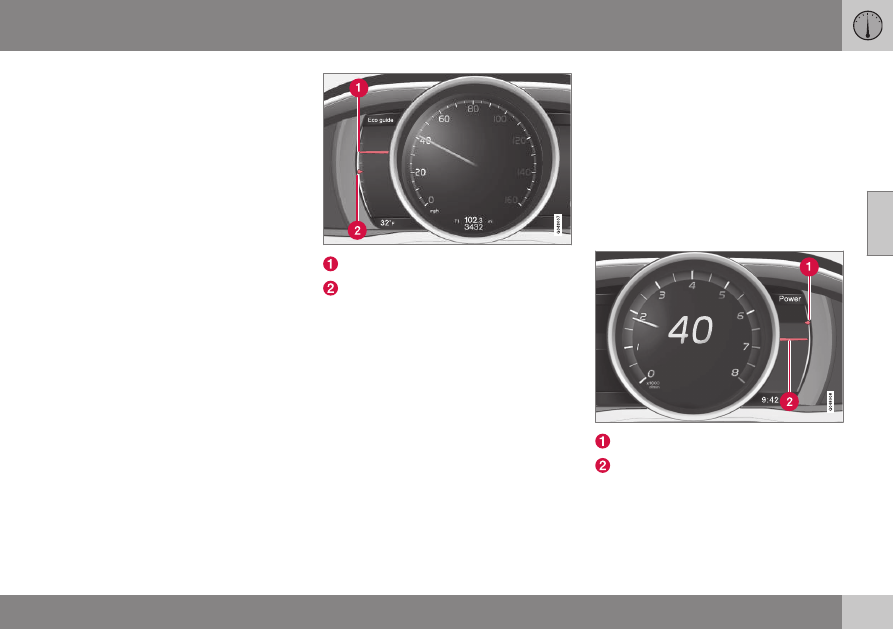

Eco Guide
This gauge gives an indication of how eco-

nomically the vehicle is being driven.

Current (instantaneous) reading

Average

Current (instantaneous) reading

This is the current level of economical driving;

the higher the reading, the more economically

the vehicle is being driven.
This value is calculated based on the vehi-

cle's speed, engine speed (rpm), engine load

and brake use.
The optimal speed range is between approxi-

mately 30–50 mph (50–80 km/h), preferably at

as low rpm as possible. The markers fall

when the brake or accelerator pedal is

pressed.
If the current reading is very low, the red field

in the gauge will illuminate after a slight delay,

indicating low driving economy.

Average

The average reading changes gradually

according to changes in the current reading

to indicate how economically the vehicle has

been driven recently. The higher the average

reading, the more economically the vehicle

has been driven.

Power Meter
This gauge indicates the engine power that

has been utilized and the amount of power

remaining.

Available power

Utilized power

03 Instruments and controls

Option/accessory, for more information, see Introduction.

Available power

The smaller, upper indicator shows the
engine's available power

. The higher the

reading on the scale, the greater the amount

of power remaining in the current gear.

Utilized power

The larger, lower indicator shows the amount
of engine power that has been utilized

. The

higher the reading on the scale, the greater

the amount of power that is being utilized.
The larger the gap between the two indica-

tors, the greater the amount of power remain-

ing.

Information displays – indicator

symbols

The indicator symbols alert the driver when

certain functions are activated, that a system

is actively working or that a fault may have

occurred in a system or function.

Symbol Description

Fault in the Active Bending

Light (ABL)*system

Malfunction indicator light

Anti-lock brake system (ABS)

Rear fog lights on

Stability system

The stability system's Sport

mode is activated

Low fuel level

Information symbol, read the

text displayed in the instrument

panel

High beam indicator

Symbol Description

Left turn signal indicator

Right turn signal indicator

Tire pressure monitoring sensor
(TPMS)

The Eco function is on.

TheStart/Stop function is active

(the engine has auto-stopped)

Option in Canada

Fault in the Active Bending Light (ABL)
system

This symbol will illuminate if there is a fault in

the ABL system. See Active Bending Lights

(ABL)* (p. 92) for more information about

this system.

Depending on rpm

03 Instruments and controls

}}

Option/accessory, for more information, see Introduction.

Malfunction Indicator Light

As you drive, a computer called On-Board

Diagnostics II (OBDII) monitors your vehicle's

engine, transmission, electrical and emission

systems.
The malfunction indicator light will illuminate if

the computer senses a condition that poten-

tially may need correcting. When this hap-

pens, please have your vehicle checked by a

trained and qualified Volvo service technician

as soon as possible.
A malfunction indicator light may have many

causes. Sometimes, you may not notice a

change in your car's behavior. Even so, an

uncorrected condition could hurt fuel econ-

omy, emission controls, and drivability.

Extended driving without correcting the cause

could even damage other components in

your vehicle.
This light may illuminate if the fuel filler cap is

not closed tightly or if the engine was running

while the vehicle was refueled.

Anti-lock Brake System (ABS)

If the warning light comes on, there may be a

malfunction in the ABS system (the standard

braking system will still function). Check the

system by:
1. Stopping in a safe place and switching off

the ignition.

2. Restart the engine.

3. If the warning light goes off, no further

action is required.

If the indicator light remains on, the vehicle

should be driven to a trained and qualified

Volvo service technician for inspection, see

Brakes – general (p. 265) for additional infor-

mation.

Rear fog lights

This symbol indicates that the rear fog lights

are on.

Stability system

This indicator symbol flashes when the stabil-

ity system is actively working to stabilize the

vehicle, see Stability system – introduction

(p. 175) for more detailed information.

Stability system - Sport mode

This symbol illuminates to indicate that the

stability system's Sport mode has been acti-

vated to help provide maximum tractive force,

for example when driving with snow chains,

or driving in deep snow or loose sand.

Low fuel level

When this light comes on, the vehicle should

be refueled as soon as possible. See Refuel-

ing – fuel requirements (p. 275) for informa-

tion about fuel and refueling.

Information symbol

The information symbol lights up and a text

message is displayed to provide the driver

with necessary information about one of the

vehicle's systems. The message can be

erased and the symbol can be turned off by

pressing the OK button (see Information dis-

play – menu controls (p. 112) for information)

or this will take place automatically after a

short time (the length of time varies, depend-

ing on the function affected).
The information symbol may also illuminate

together with other symbols.

High beam indicator

This symbol illuminates when the high beam

headlights are on, or if the high beam flash

function is used.

Left turn signal indicator
Right turn signal indicator

NOTE

•

Both turn signal indicators will flash

when the hazard warning flashers are

used.

•

If either of these indicators flash faster

than normal, the direction indicators

are not functioning properly.

Tire pressure monitoring system
(TPMS)*

This symbol illuminates to indicate that tire

pressure in one or more tires is low, see Tire

Pressure Monitoring System (TPMS) – general

information (p. 306) for detailed information.

Eco* function on

The symbol will illuminate when the Eco func-

tion is activated.

03 Instruments and controls

Option/accessory, for more information, see Introduction.

Start/stop*

The symbol illuminates when the engine has

auto-stopped.

Related information

•

Information displays – introduction (p. 68)

•

Information displays – warning symbols

(p. 74)

Information displays – warning

symbols

The warning lights alert the driver that an

important function is activated or that a seri-

ous fault has occurred.

Symbol Description

Low oil pressure

Parking brake applied

SRS airbags

Seat belt reminder

Generator not charging

Fault in the brake system

Warning symbol, read the text

displayed in the instrument

panel

Certain engines do not use this symbol to indicate low oil

pressure. On these models, a text message will be dis-

played on the instrument panel instead, see Engine com-

partment – engine oil (p. 329).

The symbol is Park only on models with the optional digital

instrument panel.

Low oil pressure

If the light comes on while driving, stop the

vehicle, stop the engine immediately, and

check the engine oil level. Add oil if neces-

sary. If the oil level is normal and the light

stays on after restart, have the vehicle towed

to the nearest trained and qualified Volvo

service technician.

Parking brake applied

This symbol flashes while the brake is being

applied and then glows steadily when the

parking brake has been set.
See Parking brake – general information

(p. 268) for more information about using the

parking brake.

Airbags – SRS

If this light comes on while the vehicle is

being driven, or remains on for longer than

approximately 10 seconds after the vehicle

has been started, the SRS system's diagnos-

tic functions have detected a fault in a seat

belt lock or pretensioner, a front airbag, side

impact airbag, and/or an inflatable curtain.

Have the system(s) inspected by a trained

and qualified Volvo service technician as

soon as possible.
See Supplemental Restraint System (SRS)

(p. 31) for more information about the airbag

system.

Seat belt reminder

This symbol comes on for approximately

6 seconds if the driver has not fastened his or

her seat belt.

03 Instruments and controls

}}

Generator not charging

This symbol comes on during driving if a fault

has occurred in the electrical system. Contact

an authorized Volvo workshop.

Engine temperature

Engine overheating can result from low oil or

coolant levels, towing or hard driving at high

heat and altitude, or mechanical malfunction.

Engine overheating will be signaled with text

and a red warning triangle in the middle of the

instrument display. The exact text will depend

on the degree of overheating. It may range

from

High engine temp Reduce speed

High engine temp Stop engine

. If appropri-

ate, other messages, such as

Coolant level

low, Stop safely

will also be displayed. If

your engine does overheat so that you must

stop the engine, always allow the engine to

cool before attempting to check oil and cool-

ant levels.
See Engine compartment – coolant (p. 331)

for more information.

Fault in brake system

If this symbol lights, the brake fluid level may

be too low. Stop the vehicle in a safe place

and check the level in the brake fluid reser-

voir, see Engine compartment – brake fluid

(p. 332). If the level in the reservoir is below

MIN, the vehicle should be transported to an

authorized Volvo workshop to have the brake

system checked.

If the

and

symbols come on

at the same time, there may be a fault in the

brake force distribution system.
1. Stop the vehicle in a safe place and turn

off the engine.

2. Restart the engine.

•

If both symbols extinguish, continue driv-

ing.

•

If the symbols remain on, check the level

in the brake fluid reservoir, see Engine

compartment – brake fluid (p. 332). If the

brake fluid level is normal but the sym-

bols are still lit, the vehicle can be driven,

with great care, to an authorized Volvo

workshop to have the brake system

checked.

•

If the level in the reservoir is below MIN,

the vehicle should be transported to an

authorized Volvo workshop to have the

brake system checked.

WARNING

•

If the fluid level is below the MIN mark

in the reservoir or if a warning mes-

sage is displayed in the text window:

DO NOT DRIVE. Have the vehicle

towed to a trained and qualified Volvo

service technician and have the brake

system inspected.

•

If the

and

symbols

are on at the same time, there is a risk

of reduced vehicle stability.

Warning symbol

The red warning symbol lights up to indicate

a problem related to safety and/or drivability.

A message will also appear in the instrument

panel. The symbol remains visible until the

fault has been rectified but the text message

can be cleared with the OK button, see Infor-

mation display – menu controls (p. 112). The

warning symbol can also come on in conjunc-

tion with other symbols.
Action:
1. Stop in a safe place. Do not drive the

vehicle further.

2. Read the information on the display.

Implement the action in accordance with

the message in the display. Clear the

message using OK.

03 Instruments and controls

Reminder – doors not closed

If one of the doors is not closed properly, the

information or warning symbol illuminates

(depending on the vehicle's speed), a graphic

will be displayed in instrument panel and an
explanatory text message

will also be dis-

played in the instrument panel. Stop the vehi-

cle in a safe place as soon as possible and

close the door.

If the vehicle is driven at a speed

lower than approximately 5 mph

(7 km/h), the information symbol illu-

minates.

If the vehicle is driven at a speed

higher than approximately 5 mph

(7 km/h), the warning symbol illumi-

nates.
If the hood is not closed properly, the warn-

ing symbol illuminates, a graphic will be dis-

played in instrument panel and an explana-
tory text message

will also be displayed in

the instrument panel. Stop the vehicle in a

safe place as soon as possible and close the

hood.
If the tailgate is not closed properly, the

information symbol illuminates and a graphic

will be displayed in instrument panel. Stop

the vehicle in a safe place as soon as possi-

ble and close the tailgate.

Related information

•

Information displays – introduction (p. 68)

•

Information displays – indicator symbols

(p. 72)

My Car – introduction

The MY CAR menu system provides access

to menus for operating many of the vehicle's

functions, such as setting the clock, door mir-

rors, lock and alarm settings, etc.

Some of the features or functions are stand-

ard; others are optional and vary according to

model/market.

Operation
Use the buttons on the center console or the

steering wheel keypad to navigate in the

menus.

Text message applies only to models with the optional digital instrument panel

Content .. 2 3 4 5 ..
