Volvo V60 Twin Engine (2018 year). Instruction - part 22





MAINTENANCE AND SERVICE

375

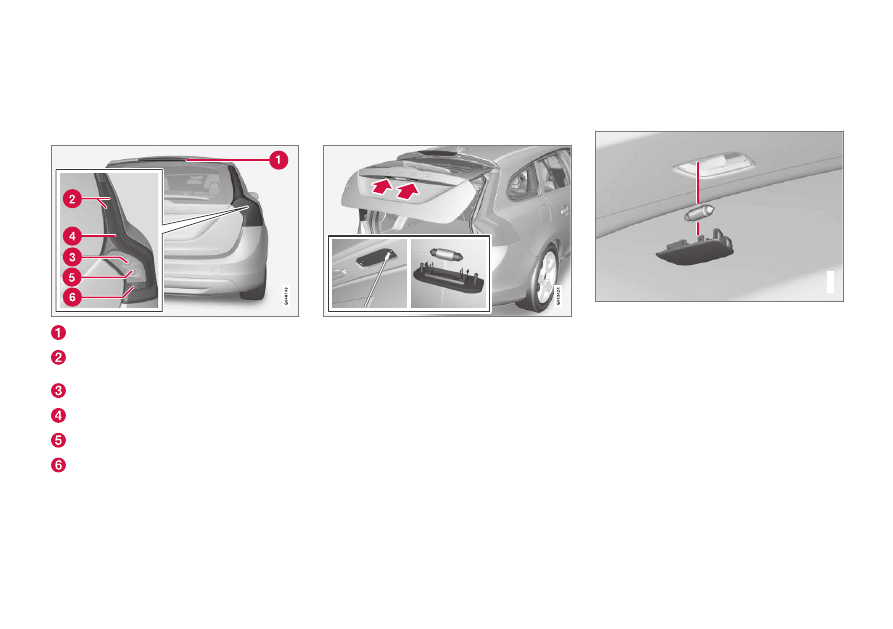

Lamp replacement - location of rear

lamps

The overview shows the location of the lamps at
the rear.

Brake light (LED)

Position lamps (LED)/Side marker lamps
(LED)
Indicator (p. 374)

Brake light (LED)

Reversing lamp

Fog lamp

Related information

Lamp replacement - general (p. 368)

Lamps - specifications (p. 376)

Lamp replacement - number plate

lighting

The number plate lighting is located under the
tailgate handle.

1. Remove the screws with a screwdriver.

2. Carefully detach the whole bulb housing and

withdraw it.

3. Replace the bulb.

4. Refit the whole bulb housing and screw it

into place.

Related information

Lamps - specifications (p. 376)

Lamp replacement - lighting in

cargo area

The cargo area lighting is located in the tailgate.

G031942

1. Insert a screwdriver and gently prize so that

the lamp housing comes loose.

2. Replace the bulb.

3. Check that the bulb illuminates and press

back the lamp housing.

Related information

Lamps - specifications (p. 376)

MAINTENANCE AND SERVICE

376

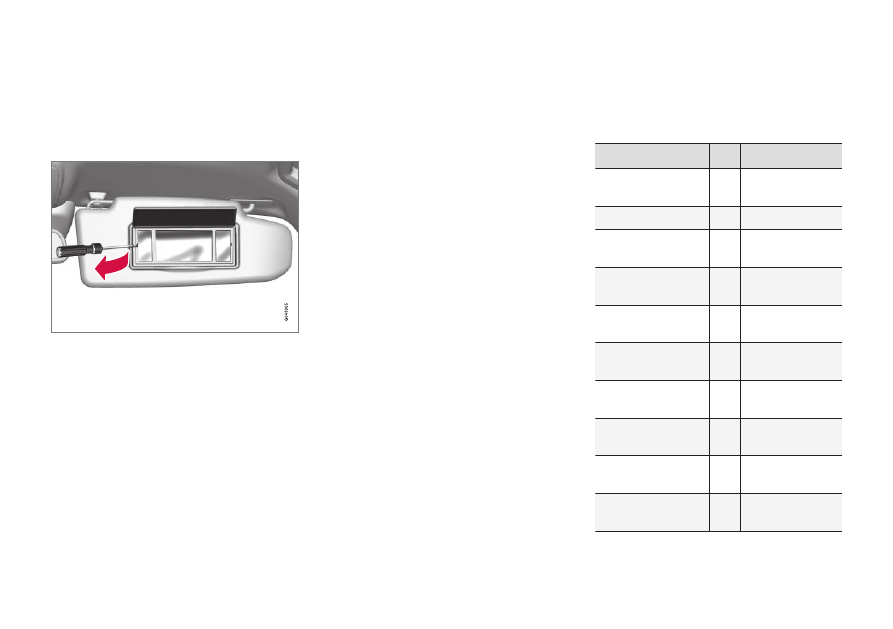

Lamp replacement - vanity mirror

lighting

The vanity mirror's lamps are fitted inside the
lamp lenses.

Removal of lamp lens

1. Insert a screwdriver under the lamp lens and

gently prize up the lug on the edge.

2. Carefully detach and lift aside the lamp lens.

3. Use needle-nose pliers to pull the bulb

straight out to the side and replace with a
new one. Note! - Do not squeeze the bulb
too hard with the pliers. Otherwise, the bulb
glass could then break.

Attaching the lamp lens

1. Refit the lamp lens.

2. Press it into place.

Related information

Lamps - specifications (p. 376)

Lamps - specifications

The specifications apply to bulbs. For replace-
ment of LED lamps and xenon lamps, please
contact a workshop.

Lighting

W

A

Type

Dipped beam, halo-
gen

55

H7 LL

Main beam, halogen

65

H9

Extra main beam,
ABL

65

H9

Front direction indi-
cators

24

PY24W

Courtesy lighting
front

3

T10 Socket

W2.1x9.5d

Glovebox lighting

5

Socket SV8.5

Length 43 mm

Vanity mirror light-
ing

1.2

T5 Socket

W2x4.6d

Cargo area lighting

5

Socket SV8.5

Length 43 mm

Number plate light-
ing

5

C5W LL

Direction indicators,
rear

21

PY21W LL

MAINTENANCE AND SERVICE

}}

377

Lighting

W

A

Type

-

-

-

Reversing lamp

21

P21W LL

Rear fog lamp

21

H21W LL

A

Watt

Related information

Lamp replacement - general (p. 368)

Wiper blades

The wiper blades sweep water away from the
windscreen and rear window. Together with the
washer fluid they clean the windows and ensure
visibility for driving.

The windscreen wiper blades must be in service
position when they are to be replaced.

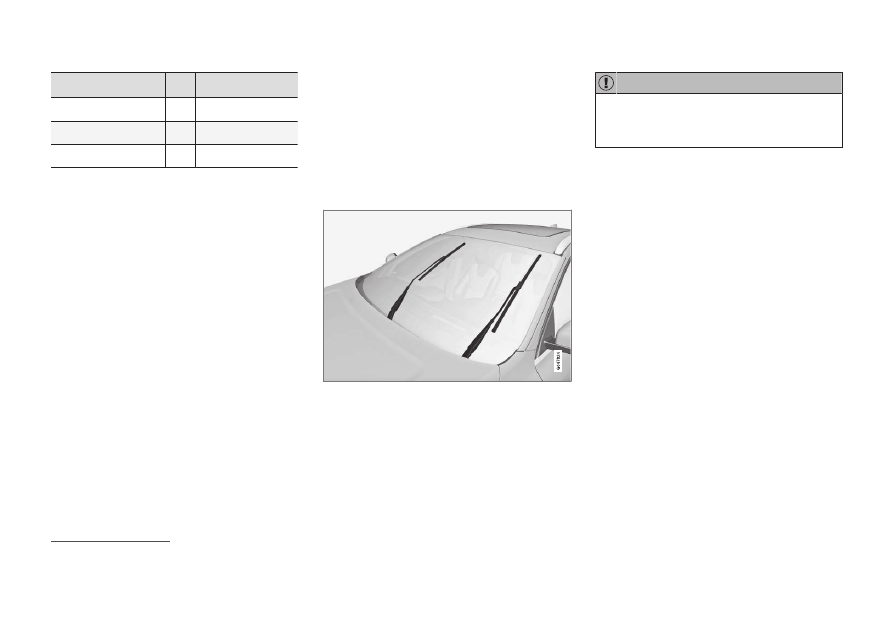

Service position

Wiper blades in service position.

In order to change, clean or lift the wiper blades
(for scraping off ice from the windscreen, for
example) they must be in service position.

IMPORTANT

Before placing the wiper blades in the service
position, make sure that they are not frozen
down.

1. Insert the remote control key in the ignition

switch

7

 and briefly press the START/STOP

ENGINE button to set the car's electrical
system to key position I. For detailed infor-
mation on key positions, see Key positions -
functions at different levels (p. 83).

2. Briefly press the START/STOP ENGINE

button again to set the car’s electrical system
in key position 0.

3. Within 3 seconds, move the right stalk switch

up and hold it in position for
approx. 1 second.
> The wipers then move to standing straight

up.

The wipers return to their starting position when
you briefly press the START/STOP ENGINE
button to set the car’s electrical system to key
position I (or when the car is started).

7

Not required in cars with keyless start and lock system.

||

MAINTENANCE AND SERVICE

378

IMPORTANT

If the wiper arms in service position have
been folded up from the windscreen, they
must be folded back down onto the wind-
screen before the wipers are activated. This is
to avoid scraping the paint on the bonnet.

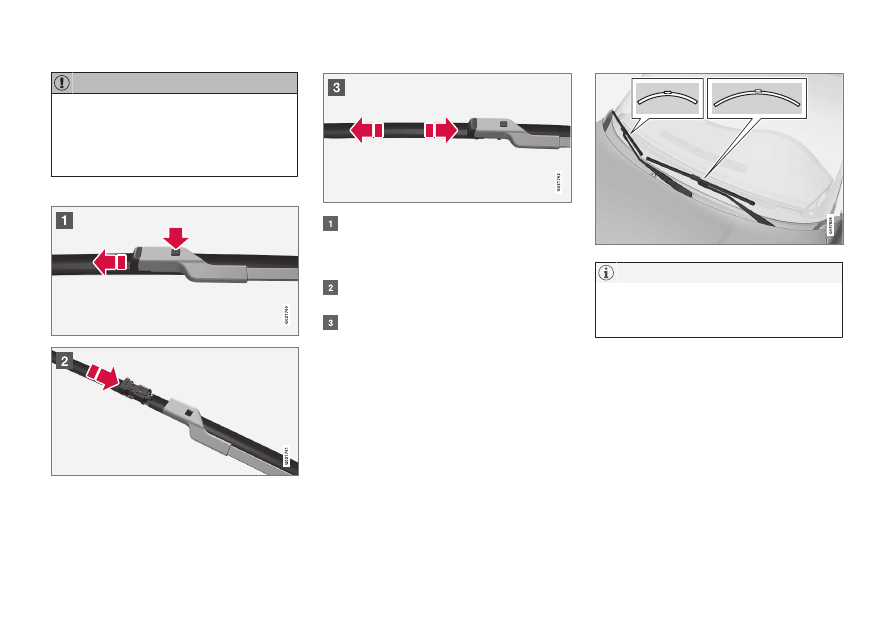

Replacing the wiper blades

Fold up the wiper arm when it is in service
position. Press the button located on the
wiper blade mounting and pull straight out
parallel with the wiper arm.

Slide in the new wiper blade until a "click" is
heard.

Check that the blade is firmly installed.

4. Fold the wiper arm back towards the wind-

screen.

The wipers return from service position to their
starting position when you briefly press the
START/STOP ENGINE button to set the car’s
electrical system to key position I (or when the
car is started).

NOTE

The wiper blades are different lengths. The
blade on the driver's side is longer than on
the passenger side.

MAINTENANCE AND SERVICE

}}

379

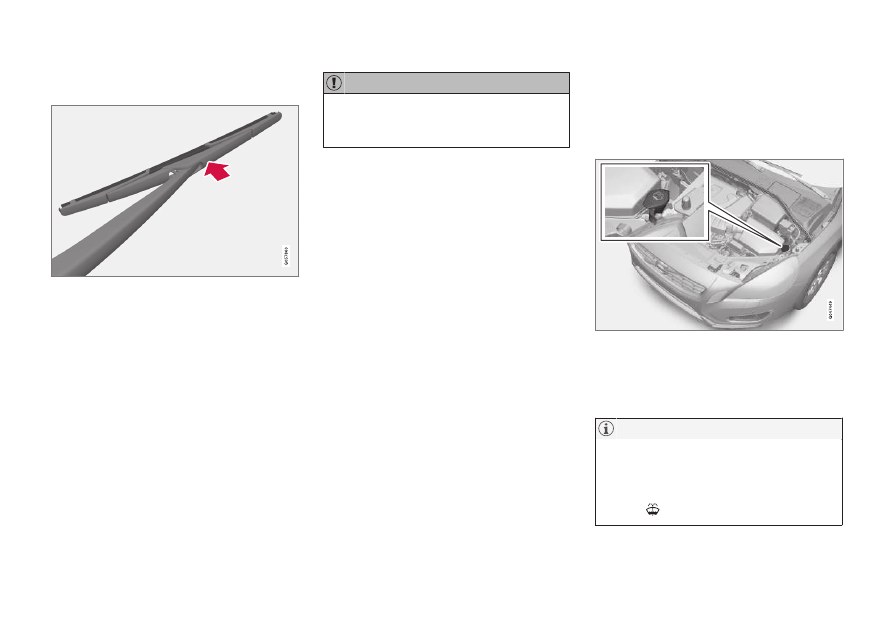

Replacing the wiper blades, rear
window

1. Fold out the wiper arm.

2. Angle the wiper blade out slightly from the

wiper arm.

3. Grip the wiper arm and use force from your

thumb to press the blade forwards (at the
arrow) in order to detach the blade.

4. Press the new wiper blade into position.

Check that it is firmly installed.

5. Fold the wiper arm back towards the wind-

screen.

Cleaning

For cleaning wiper blades and windscreen, see
Car wash (p. 399).

IMPORTANT

Check the blades regularly. Neglected main-
tenance shortens the service life of the wiper
blades.

Related information

Washer fluid - filling (p. 379)

Washer fluid - filling

Washer fluid is used for cleaning the headlamps
and windows. Washer fluid with antifreeze must
be used when the temperature is below freezing
point.

Topping up the washer fluid takes place by open-
ing the blue cap.

The windscreen and headlamp washers share a
common reservoir.

NOTE

When there is approx. 1 litre of washer fluid
remaining in the reservoir, a message to top
up the washer fluid will be shown in the com-
bined instrument panel, together with the
symbol

.

||

MAINTENANCE AND SERVICE

380

Prescribed grade: Washer fluid recommended
by Volvo - with frost protection during cold
weather and below freezing point.

IMPORTANT

Use Volvo genuine washer fluid or equivalent
with a recommended pH of between 6 and 8,
in working dilution (e.g. 1:1 with neutral
water).

IMPORTANT

Use washer fluid with antifreeze when the
temperature is below freezing to avoid freez-
ing in the pump, reservoir and hoses.

Volume:

Cars with headlamp washing: 3.4 litres.

Cars without headlamp washing: 3.4 litres.

Related information

Wiper blades (p. 377)

Wipers and washers (p. 103)

Bonnet - opening and closing (p. 361)

Starter battery - general

The starter battery is used to drive the starter
motor and other electrical equipment in the car.

The car's traditional 12 V battery is here called
"starter battery" even if the hybrid battery
(p. 384) is often used for starting the internal
combustion engine.

The service life and function of the starter battery
is influenced by factors such as the number of
starts, discharging, driving style, driving condi-
tions, climatic conditions, etc.

Never disconnect the battery when the
engine is running.

Check that the cables to the battery are cor-
rectly connected and properly tightened.

Voltage (V)

12

Cold start capacity

A

 - CCA

B

(A)

720

Size, L×W×H (mm)

278×175×190

Capacity (Ah)

70

A

In accordance with EN standard.

B

Cold Cranking Amperes.

IMPORTANT

If the starter battery is replaced, make sure
you replace it with a battery with the same
cold starting capacity and type as the original
battery (see the label on the battery).

NOTE

The starter battery's container size should be
consistent with the original battery's dimen-
sions.

WARNING

The battery can generate oxyhydrogen
gas, which is highly explosive. A spark can
be formed if a jump lead is connected
incorrectly, and this can be enough for
the battery to explode.

Do not connect the jump leads to any
fuel system component or any moving
part. Be careful of hot engine parts.

The battery contains sulphuric acid, which
can cause serious burns.

If sulphuric acid comes into contact with
eyes, skin or clothing, flush with large
quantities of water. If acid splashes into
the eyes - seek medical attention imme-
diately.

Never smoke near the battery.

MAINTENANCE AND SERVICE

381

IMPORTANT

When charging the starter battery, only use a
modern battery charger with controlled charg-
ing voltage. Fast charging function must not
be used since it may damage the battery.

NOTE

If both the starter battery and the hybrid bat-
tery (p. 300) are discharged then
both batter-
ies must be charged. In such a case, charging
only the hybrid battery first is not possible.

In order for the hybrid battery to be charged
the starter battery must have a certain state
of charge.

IMPORTANT

If the following instruction is not observed
then the energy saving function for infotain-
ment system may be temporarily disengaged,
and/or the message in the combined instru-
ment panel's information display about the
starter battery's state of charge may be tem-
porarily inapplicable, following the connection
of an external starter battery or battery
charger:

The negative battery terminal on the car's
starter battery must never be used for
connecting an external starter battery or
battery charger - only the car chassis
may be used as the grounding point.

See Jump starting with another battery
(p. 268) for a description of how the cable
clamps must be attached.

NOTE

The life of the battery is shortened if it
becomes discharged repeatedly.

The life of the battery is affected by several
factors, including driving conditions and cli-
mate. Battery starting capacity decreases
gradually with time and therefore needs to be
recharged if the car is not used for a longer
time or when it is only driven short distances.
Extreme cold further limits starting capacity.

To maintain the battery in good condition, at
least 15 minutes of driving/week is recom-
mended or that the battery is connected to a
battery charger with automatic trickle charg-
ing.

A battery that is kept fully charged has a
maximum service life.

Related information

Battery - symbols (p. 382)

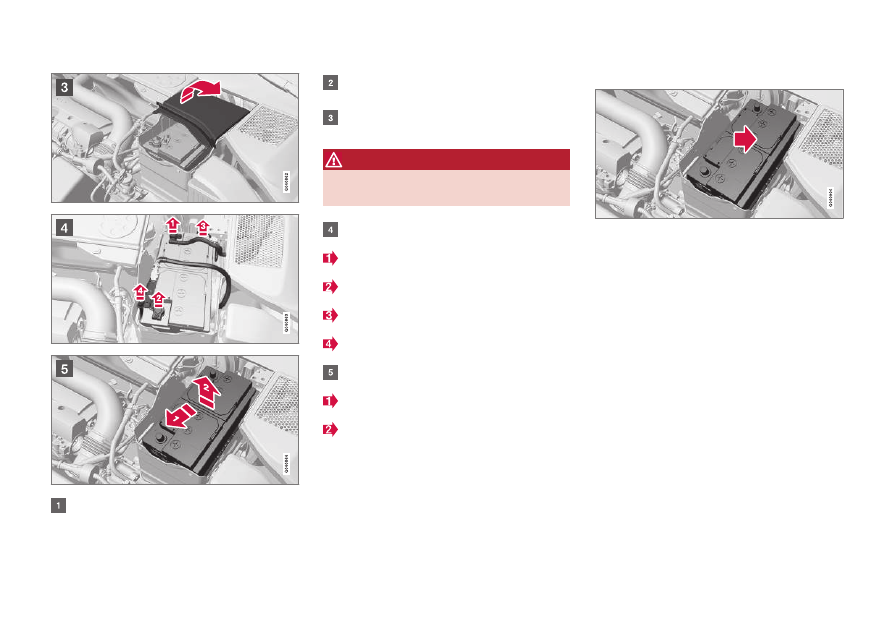

Starter battery - replacement (p. 382)

MAINTENANCE AND SERVICE

382

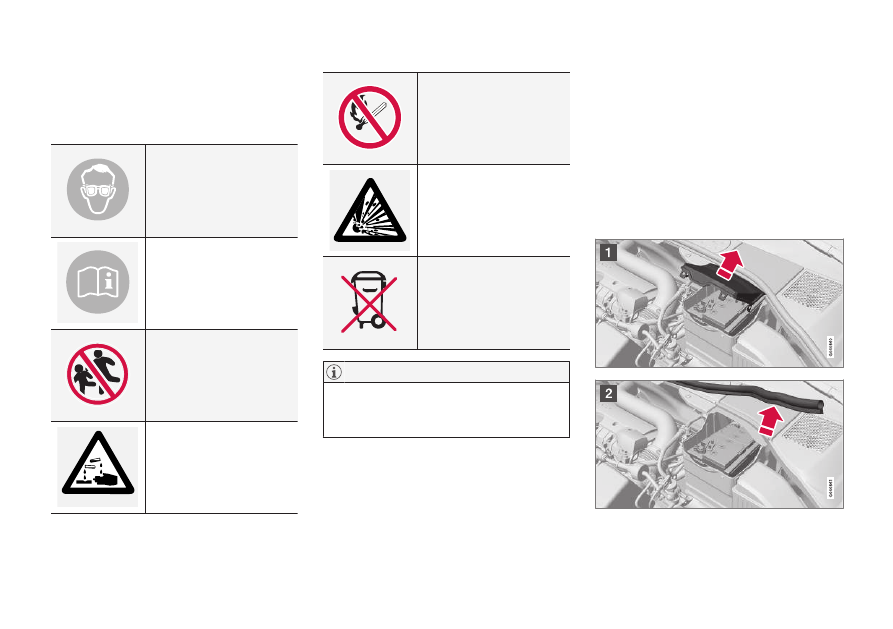

Battery - symbols

There are information and warning symbols on
the batteries.

Symbols on the batteries

Use protective goggles.

Further information in the
owner's manual for the car.

Store the battery out of the
reach of children.

The battery contains corro-
sive acid.

Avoid sparks and naked
flames.

Risk of explosion.

Must be taken for recycling.

NOTE

An expended battery must be recycled in an
environmentally safe manner as it contains
lead.

Related information

Starter battery - general (p. 380)

Starter battery - replacement

The starter battery in the car can be replaced
without the help of a workshop.

Removal

First of all: Take the remote control key from the
ignition switch and wait at least 5 minutes before
any electrical connections are touched - this is
because the car's electrical system needs to
store the necessary information to control mod-
ules.

MAINTENANCE AND SERVICE

383

Open the clips on the front cover and remove
the cover.

Release the rubber moulding so that the rear
cover is free.

Remove the rear cover by screwing one
quarter turn and lifting it away.

WARNING

Connect and remove the positive and nega-

tive cables in the correct order.

Detach the black negative cable.

Detach the red positive cable.

Detach the ventilation hose from the battery.

Loosen the screw holding the battery clamp.

Move the battery aside.

Lift it up.

Fitting

1. Lower the battery into the battery box.

2. Move the battery inward and to the side until

it reaches the rear edge of the box.

3. Tighten the clamp that holds the battery.

4. Connect the ventilation hose.

> Check that it is correctly connected to

both battery and outlet in the body.

5. Connect the red positive cable.

6. Connect the black negative cable.

7. Press in the rear cover. (See earlier section

"Removal".)

8. Fit the rubber moulding. (See "Removal".)

9. Align the front cover and secure it with the

clips. (See "Removal".)

For more information on the car's starter battery,
see Starter battery - general (p. 380) and Jump
starting with another battery (p. 268).

MAINTENANCE AND SERVICE

384

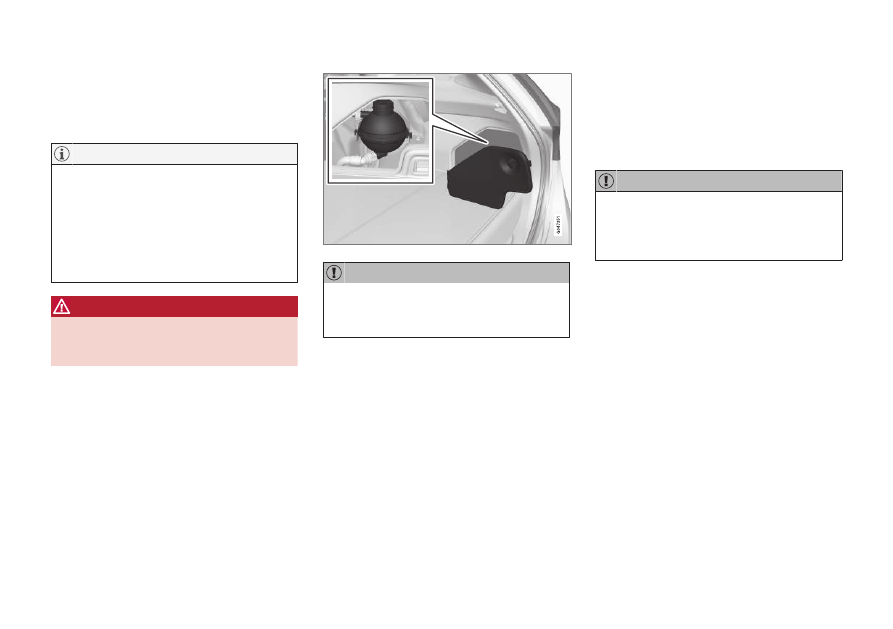

Hybrid battery

The car is equipped with a hybrid battery for
electric motor operation - a maintenance-free
rechargeable Lithium-ion type battery.

NOTE

If both the starter battery and the hybrid bat-
tery (p. 300) are discharged then
both batter-
ies must be charged. In such a case, charging
only the hybrid battery first is not possible.

In order for the hybrid battery to be charged
the starter battery must have a certain state
of charge.

WARNING

The hybrid battery must only be replaced by a

workshop - an authorised Volvo workshop is

recommended.

Coolant

The hybrid battery's cooling system has a sepa-
rate expansion tank.

IMPORTANT

The hybrid battery's coolant must only be top-
ped up by a workshop - an authorised Volvo
workshop is recommended.

Related information

Starter battery - general (p. 380)

Electrical system

The electrical system is single-pole and uses the
chassis and engine casing as a conductor.

The size, type and performance of the starter bat-
tery depend on the car's equipment and function.

IMPORTANT

If the starter battery is replaced, make sure
you replace it with a battery with the same
cold starting capacity and type as the original
battery (see the label on the battery).

Related information

Starter battery - replacement (p. 382)

Starter battery - general (p. 380)

MAINTENANCE AND SERVICE

385

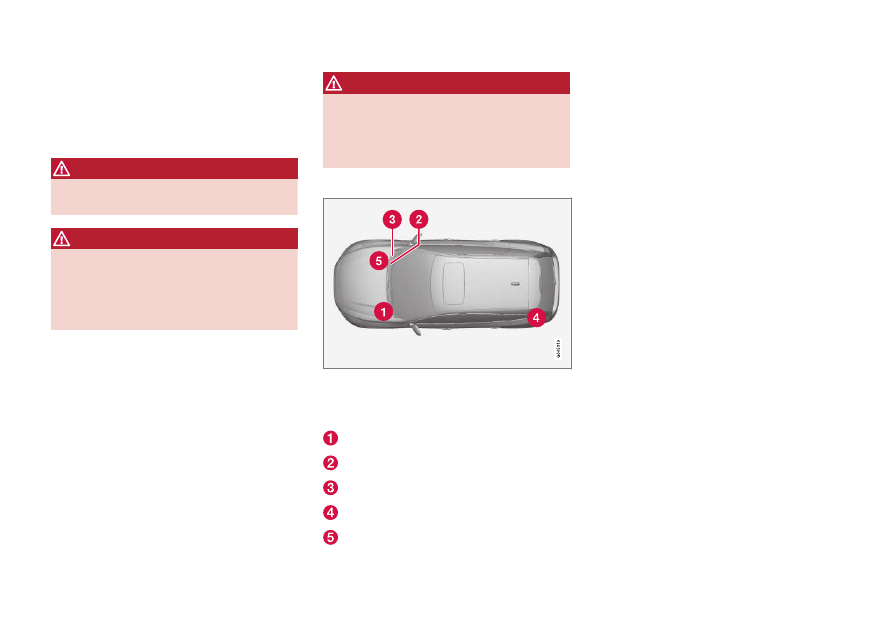

Fuses - general

All electrical functions and components are pro-
tected by a number of fuses in order to protect
the car's electrical system from damage by short
circuiting or overloading.

WARNING

Orange-coloured cables must only be handled

by qualified personnel.

WARNING

Several components in the car work with

high-voltage current that could be dangerous

in the event of incorrect intervention.
Do not touch anything that is not clearly

described in this owner's manual.

If an electrical component or function does not
work, it may be because the component's fuse
was temporarily overloaded and failed. If the
same fuse fails repeatedly then there is a fault in
the circuit. Volvo recommends that you visit an
authorised Volvo workshop for checking.

Changing

1. Look in the fuse diagram to locate the fuse.

2. Pull out the fuse and check from the side to

see whether the curved wire has blown.

3. If this is the case, replace it with a new fuse

of the same colour and amperage.

WARNING

Never use a foreign object or a fuse with an

amperage higher than that specified when

replacing a fuse. This could cause significant

damage to the electrical system and possibly

lead to fire.

Location of central electrical units

Central electrical unit locations in a left-hand
drive car. In a right-hand drive car the central
electrical units under the glovebox change sides.

Engine compartment

Under the glovebox

Under the glovebox

Cargo area

Engine compartment, cold zone

Related information

Fuses - in engine compartment (p. 386)

Fuses - under glovebox (p. 389)

Fuses - in the control module under the glo-
vebox (p. 391)

Fuses - in cargo area (p. 393)

Fuses - in the engine compartment's cold
zone (p. 397)

MAINTENANCE AND SERVICE

386

Fuses - in engine compartment

Fuses in the engine compartment protect engine
and brake functions, amongst other things.

MAINTENANCE AND SERVICE

}}

* Option/accessory.

387

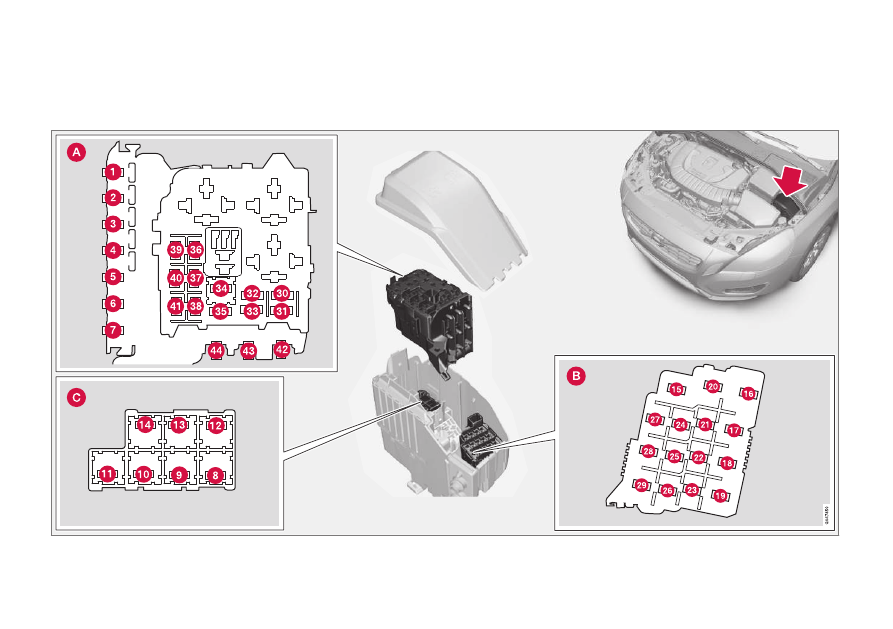

General fuses, engine compartment

On the inside of the cover there are tweezers that
facilitate the procedure for the removal and fitting
of fuses.

Positions (see preceding illustration)

Engine compartment, upper

Engine compartment, front

Engine compartment, lower

These fuses are all located in the engine com-
partment box. The fuses in (C) are located under
(A).

On the inside of the cover is a label that shows
the location of the fuses.

Fuses 1-7 and 42-44 are of the "Midi Fuse"
type and must only be replaced by a work-
shop

8

.

Fuses 8-15 and 34 are of the "JCASE" type
and should be replaced by a workshop

8

.

Fuses 16-33 and 35-41 are of the "Mini
Fuse" type.

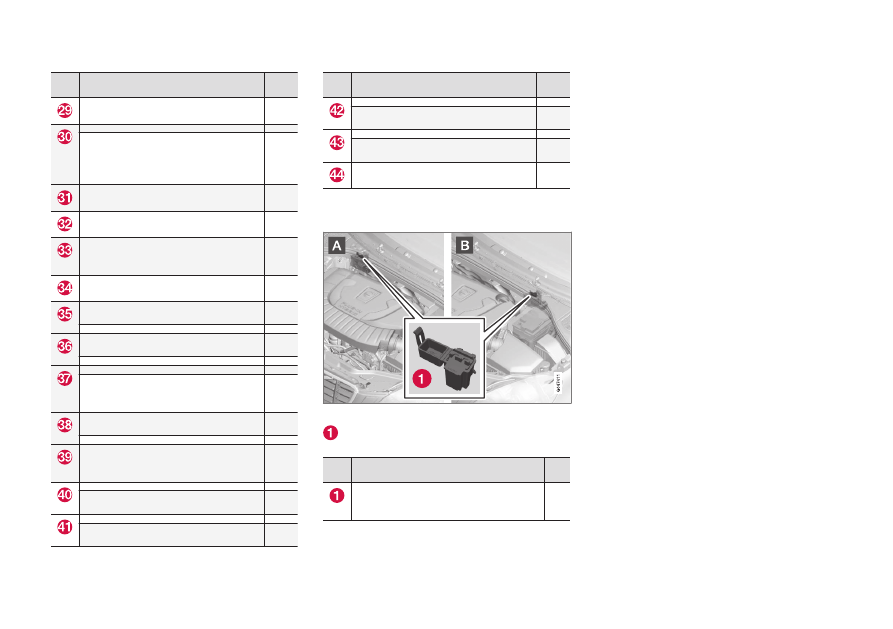

Function

A

A

-

-

Primary fuse for the central elec-
tronic module (CEM) under the
glovebox

50

-

-

Primary fuse for relay/fuse box
under the glovebox

60

-

-

-

-

-

-

-

-

Windscreen wipers

30

Parking heater

*

25

-

-

-

-

ABS pump

40

ABS valves

20

Function

A

A

Headlamp washers

*

20

Headlamp levelling

*; Active Xenon

headlamps - ABL

*

10

Primary fuse for the central elec-
tronic module (CEM) under the
glovebox

20

ABS

5

Adjustable steering force

*

5

Engine control module; Transmis-
sion control module; Airbags

10

Heated washer nozzles

*

10

-

-

Headlamp control

5

-

-

-

-

-

-

Relay coils

5

Auxiliary lamps

*

20

8

An authorised Volvo workshop is recommended.

||

MAINTENANCE AND SERVICE

388

Function

A

A

Horn

15

Relay coil in main relay for engine
management system; Engine con-
trol module

10

Transmission control module

15

-

-

Relay coils in central electrical unit
in engine compartment cold zone

5

Start relay

30

Glow control module

10

Engine Control Module (ECM)

15

Mass air flow sensor; Control
valves

15

Valves; Oil level sensor

10

Lambda-sonds; Control module,
radiator roller cover

15

Diesel filter heater

20

Crankcase ventilation heater

10

Function

A

A

Glow plugs

70

Cooling fan

80

Power steering

100

A

Ampere

Behind the engine

A: Left-hand drive car. B: Right-hand drive car.

Fuse

Function

A

A

Monitoring of vacuum pump for
brake system

5

A

Ampere

Related information

Fuses - under glovebox (p. 389)

Fuses - in the control module under the glo-
vebox (p. 391)

Fuses - in cargo area (p. 393)

MAINTENANCE AND SERVICE

}}

* Option/accessory.

389

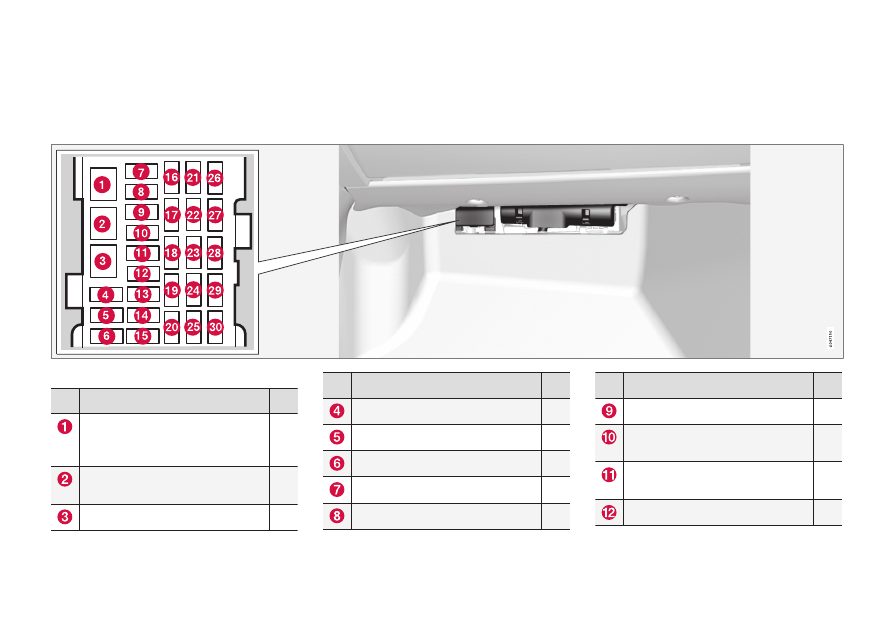

Fuses - under glovebox

Fuses under the glovebox protect the infotain-
ment system and seat functions, amongst other
things.

Positions

Function

A

A

Primary fuse for audio control mod-
ule

*; Primary fuse for fuses 16-20:

Infotainment

40

Windscreen washers; Rear window
washer

25

-

-

Function

A

A

-

-

-

-

Door handles, keyless system

*

5

-

-

Control panel, driver's door

20

Function

A

A

Control panel, front passenger door

20

Control panel, rear passenger door,
right

20

Control panel, rear passenger door,
left

20

Keyless system

*

7.5

||

MAINTENANCE AND SERVICE

* Option/accessory.

390

Function

A

A

Power seat, driver's side

*

20

Power seat, passenger side

*

20

-

-

Infotainment Control Module or
Screen

B

5

Audio control unit (amplifier)

*; TV*;

Digital radio

*

10

Audio control module or Control
module Sensus

B

15

Telematics

*; Bluetooth*

5

-

-

Sunroof

*; Interior lighting roof; Cli-

mate sensor

*

5

12 V socket, tunnel console

15

Seat heating, rear right

*

15

Seat heating, rear left

*

15

Electrically-driven heater

5

Seat heating, front passenger side

15

Seat heating, front driver's side

15

Function

A

A

Parking assistance

*; Parking cam-

era

*; BLIS*

5

-

-

-

-

A

Ampere

B

Certain model variants.

Related information

Fuses - in engine compartment (p. 386)

Fuses - in the control module under the glo-
vebox (p. 391)

Fuses - in cargo area (p. 393)

Fuses - in the engine compartment's cold
zone (p. 397)















Content   ..  20  21  22  23   ..
