CLIMATE CONTROL

134

Air conditioning

The air conditioning cools and dehumidifies
incoming air as required.

In drive mode (p. 270) PURE
the AC is preset not to start.

When the lamp in the AC but-
ton illuminates, the air condi-
tioning is controlled by the sys-
tem's automatic function.

When the lamp in the AC button is switched off
the air conditioning is disconnected. Other func-
tions are still controlled automatically. When the
max. defroster function (p. 134) is activated, the
air conditioning is switched on automatically so
that the air is dehumidified at the maximum set-
ting.

Demisting and defrosting the

windscreen

Max. defroster is used to quickly remove misting
and ice from the windscreen and side windows.

Air flowing to the windows. The
light in the defroster button illu-
minates when the function is
active.

The following also takes place when the function
is active in order to provide maximum dehumidifi-
cation in the passenger compartment:

•

the air conditioning is automatically engaged

•

recirculation and the air quality system are
automatically disengaged.

NOTE

The noise level increases as the fan is operat-
ing at max.

When the defroster is switched off the climate
control returns to the previous settings.

In drive mode PURE, activation of the defroster
function may cause the internal combustion
engine to start and change to drive mode
(p. 270) HYBRID.

Related information

•

General information on climate control
(p. 124)

CLIMATE CONTROL

135

Air distribution - recirculation

Select recirculation to shut out bad air, exhaust
gases etc. from the passenger compartment, i.e.
no outside air is taken into the car when this
function is activated.

When recirculation is engaged
the orange lamp in the button
illuminates.

IMPORTANT

If the air in the car is recirculated for too long
then there is a risk of misting on the insides
of the windows.

Timer

With the timer function activated the system will
exit manually activated recirculation mode
according to a time that depends on the outside
temperature. This reduces the risk of ice, misting
and bad air.

It is possible to activate/deactivate the function
in the menu system MY CAR. For a description of
the menu system, see MY CAR (p. 115).

NOTE

When max. defroster is selected, recirculation
is always deactivated.

Related information

•

General information on climate control
(p. 124)

•

Air distribution in the passenger compart-
ment (p. 127)

•

Air distribution - table (p. 136)

CLIMATE CONTROL

136

Air distribution - table

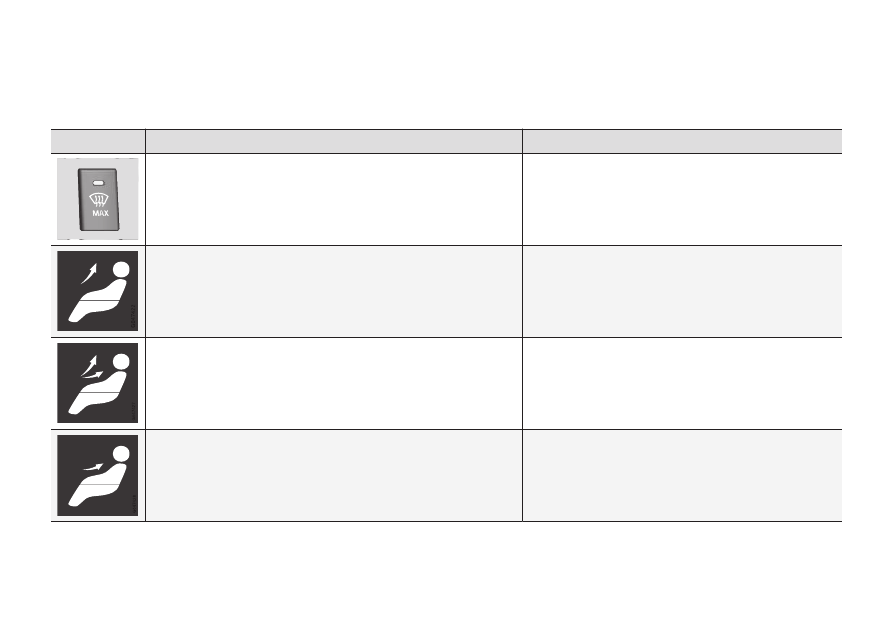

Three buttons are used to select the distribution
(p. 127) of the air.

Air distribution

Use

Air to windows. Some air flows from the air vents. The air is not recircula-
ted. Air conditioning is always engaged.

to remove ice and misting quickly.

Air to windscreen, via defroster vent, and side windows. Some air flows
from the air vents.

to avoid misting and icing in a cold and humid climate (to
achieve this the fan level must not be too low).

Airflow to windows and from dashboard air vents.

to ensure good comfort in warm, dry weather.

Airflow to the head and chest from dashboard air vents.

to ensure efficient cooling in warm weather.

CLIMATE CONTROL

137

Air distribution

Use

Air to the floor and windows. Some air flows from the dashboard air
vents.

to ensure comfortable conditions and good demisting in cold
or humid weather.

Air to floor and from dashboard air vents.

in sunny weather with cool outside temperatures.

Air to floor. Some air flows to the dashboard air vents and windows.

to direct heat or cold to the floor.

Airflow to windows, from dashboard air vents and to the floor.

to provide cooling along the floor in hot, dry weather or warm-
ing upwards in cold weather.

Related information

•

General information on climate control
(p. 124)

•

Air distribution - recirculation (p. 135)

CLIMATE CONTROL

* Option/accessory.

138

General information about

preconditioning

The climate in the car's passenger compartment
can be preconditioned (acclimatised) before
departure, in both hot and cold climates.

In different cases, the preconditioning uses the
car's fuel-driven and electrically-driven heaters
and the car's AC system:

•

In a cold climate the fuel-driven heater heats
both the engine and the passenger compart-
ment - the electrically-driven heater only
heats the passenger compartment before
departure.

•

In a hot climate the AC system cools the
passenger compartment.

Preconditioning the car reduces wear.

During preconditioning in warm weather, conden-
sation from the air conditioning may drip under
the car. This is normal.

NOTE

During preconditioning of the passenger
compartment, the car works to reach comfort
temperature and not the temperature set in
the climate control system.

NOTE

The compressor can operate and cool the
hybrid battery even when passenger compart-
ment cooling is not selected or required. The
compressor emits noise.

NOTE

The car's doors and windows should be
closed during the preconditioning of the pas-
senger compartment.

Options for preconditioning

Select from the following:

•

parking inside (p. 139)

•

parking outside (p. 139).

Preconditioning can then be activated:

•

directly (p. 140) via the information display,
remote control key

* or mobile*

•

with timer (p. 142).

NOTE

Volvo recommends that you activate precon-
ditioning via the timer, and then have the car
connected to the mains power circuit.

Connection to the mains power circuit

The car can be preconditioned both when con-
nected (p. 308) and not connected

* to the mains

power circuit.

When the car is plugged into the mains
power circuit

•

Heating/cooling can last up to 50 minutes.

•

Seat and steering wheel heating can be acti-
vated during preconditioning.

When the car is not plugged into the mains
power circuit*

•

Heating can last up to 50 minutes.

•

Cooling takes place for 2-3 minutes.

During preconditioning, the electrically-driven
heater and AC system use power from the hybrid
battery. If the car is not connected to the mains
power circuit during preconditioning then the
mileage for electric operation is reduced accord-
ingly.

A charging station which is not always active, e.g. because of a timer, may cause loss of function for preconditioning.

CLIMATE CONTROL

}}

139

Preconditioning - parking inside

With the

Indoor parking

option the electrically-

driven heater is activated during preconditioning
(p. 138).

If you select the

Indoor parking

set-

ting then the fuel-driven heater is
deactivated during preconditioning.
This heating will have a slightly lower

performance than the

Outdoor parking

setting

in outside temperatures lower than 5 °C.

NOTE

The car must be connected to the mains
power circuit before the electrically-driven
heater can be activated.

WARNING

Do not use the fuel-driven auxiliary heater

indoors in unventilated areas. Exhaust fumes

are given off.

1. Press OK to access the menu.

2. Scroll with the thumbwheel to

Preconditioning

and select with OK.

3. If the setting

Indoor parking

has already

been made then the symbol for this is shown
in the display, in which case continue from
point 7.

4. If

Outdoor parking

is selected then the

symbol for this (p. 139) is shown instead.
Scroll with the thumbwheel to the symbol
and select with OK.

5. Scroll forward in the next menu to

Indoor

parking

and select with OK.

6. Go back in the menu with RESET.

7. Select whether or not seat heating and

steering wheel heating

should be activated.

Scroll with the thumbwheel to

and

select with OK.

8. Scroll with the thumbwheel to

Driver seat

Passenger seat

and select with the OK

button if they should be activated

during

preconditioning.

9. Exit the menu with RESET.

Related information

•

Preconditioning - direct start (p. 140)

•

Preconditioning - immediate stop (p. 141)

Preconditioning - parking outside

With the

Outdoor parking

option, both the

electrically-driven heater and the fuel-driven
heater

are activated during preconditioning

(p. 138).

With the

Outdoor parking

option, in

addition to the electrically-driven
heater, the fuel-driven heater is also
permitted during preconditioning.

WARNING

Do not use the fuel-driven auxiliary heater

indoors in unventilated areas. Exhaust fumes

are given off.

NOTE

The car can be started and driven even when
the fuel-driven auxiliary heater is running.

1. Press OK to access the menu.

2. Scroll with the thumbwheel to

Preconditioning

and select with OK.

3. If the setting

Outdoor parking

has already

been made then the symbol for this is shown
in the display, in which case continue from
point 7.

Seat heating and steering wheel heating can only be activated when the car is plugged into the mains power circuit.

Tick the box to activate.

The fuel-driven heater is not activated if the outside temperature exceeds 15 °C.

CLIMATE CONTROL

* Option/accessory.

140

4. If

Indoor parking

is selected then the sym-

bol for this (p. 139) is shown instead. Scroll
with the thumbwheel to the symbol and
select with OK.

5. Scroll forward in the next menu to

Outdoor

parking

and select with OK.

6. Go back in the menu with RESET.

7. Select whether or not seat heating and

steering wheel heating

should be activated.

Scroll with the thumbwheel to

and

select with OK.

8. Scroll with the thumbwheel to

Driver seat

Passenger seat

and select with the OK

button if they should be activated

during

preconditioning.

9. Exit the menu with RESET.

Related information

•

Preconditioning - direct start (p. 140)

•

Preconditioning - immediate stop (p. 141)

Preconditioning - direct start

Preconditioning of the car can be started
directly.

Direct start can be performed via:

•

information display

•

remote control key

•

mobile

NOTE

In the event of direct start of preconditioning,
Volvo recommends that you activate via the
remote control key or mobile.

Direct start via the information display

1. Press OK to access the menu.

2. Scroll with the thumbwheel to

Preconditioning

and select with OK.

3. Scroll forward in the next menu to

Direct

start

in order to activate the preconditioning

and select with OK.

4. Exit the menu with RESET.

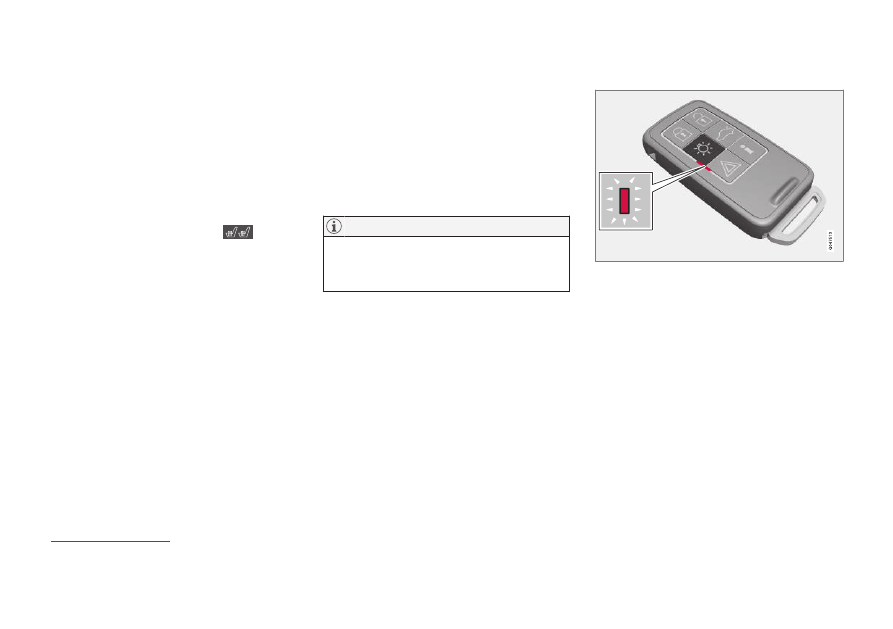

Direct start via the remote control key

Indicator lamp on remote control key with PCC

Seat heating and steering wheel heating can only be activated when the car is plugged into the mains power circuit.

CLIMATE CONTROL

* Option/accessory.

141

Preconditioning can be activated via the remote
control key:

–

Hold the button for approach lighting
depressed for 2 seconds.

Hazard warning flashers provide information
in accordance with the following:

•

5 short flashes followed by a constant
glow for approx. 3 seconds - the signal
has reached the car and preconditioning
has been activated.

•

5 short flashes - the signal has reached
the car but preconditioning has not been
activated.

•

Hazard warning flashers remain switched
off - the signal has not reached the car.

If the button for information

is depressed

when preconditioning is active then the indicator
lamp will show the status for this - at the same
time the car's lock status (p. 167) is shown.
While the status is being investigated the indica-
tor lamp emits a pair of short flashes followed by
a constant glow if preconditioning is active.

Status is also shown in the trip computer while
preconditioning is in progress.

Direct start via app

Activation and information on selected settings
are available via the Volvo On Call

* app.

Related information

•

Preconditioning - timer (p. 142)

•

Preconditioning - immediate stop (p. 141)

•

Preconditioning - messages (p. 144)

Preconditioning - immediate stop

Preconditioning of the car can be deactivated
directly via the information display.

1. Press OK to access the menu.

2. Scroll with the thumbwheel to

Preconditioning

and select with OK.

3. Scroll forward in the next menu to

Stop

order to deactivate the preconditioning and
select with OK.

4. Exit the menu with RESET.

Related information

•

Preconditioning - direct start (p. 140)

•

Preconditioning - timer (p. 142)

•

Preconditioning - messages (p. 144)

CLIMATE CONTROL

142

Preconditioning - timer

Preconditioning (p. 138) timer is connected to
the car's clock.

The time when the car shall be used and accli-
matised is specified with the timer.

Two different times can be selected using the
timer (p. 142). The car's electronics select when
preconditioning shall be activated based on pre-
vailing external climatic conditions.

NOTE

All timer programming will be cleared if the
car's clock is reset.

Related information

•

Timer - starting (p. 143)

•

Timer - switching off (p. 143)

Timer - setting

Two different times can be selected using the
timer. Here time refers to the time when the car
shall be used and acclimatised.

NOTE

All timer programming will be cleared if the
car's clock is reset.

1. Press OK to access the menu.

2. Scroll with the thumbwheel (p. 112) to

Preconditioning

and select with OK.

3. Select one of the two timers using the

thumbwheel and confirm with OK.

4. Briefly press OK to move to the illuminated

hours setting.

5. Select the required hour using the thumb-

wheel.

6. Briefly press OK to move to the illuminated

minutes setting.

7. Select the required minute using the thumb-

wheel.

8. Press OK

to confirm the setting.

9. Go back in the menu structure with RESET.

10. Select the second timer (continued from

point 2) or exit the menu with RESET.

Related information

•

Preconditioning - timer (p. 142)

•

Timer - starting (p. 143)

•

Timer - switching off (p. 143)

An further press of OK activates the timer.

CLIMATE CONTROL

* Option/accessory.

143

Timer - starting

The time when the car shall be used and accli-
matised is specified with the timer.

When the timer is activated the car's electronics
choose when preconditioning should be acti-
vated based on prevailing outside climatic condi-
tions.

1. Press OK to access the menu.

2. Scroll with the thumbwheel to

Preconditioning

and select with OK.

3. Select one of the two timers using the

thumbwheel and activate with OK.

4. Exit the menu with RESET.

It is also possible to start the timer via the Volvo
On Call

* app.

Related information

•

Preconditioning - timer (p. 142)

•

Timer - setting (p. 142)

•

Timer - switching off (p. 143)

•

Menu navigation - combined instrument
panel (p. 112)

Timer - switching off

A timer activated for preconditioning can be
switched off manually.

1. Press OK to access the menu.

2. Scroll with the thumbwheel to

Preconditioning

and select with OK.

> If a timer is set then a clock symbol is

shown beside the set time.

3. Select one of the two timers using the

thumbwheel and confirm with OK.

4. Switch off the timer by pressing:

•

long on OK or

•

short on OK to go forward in the menu.
Then select to stop the timer and confirm
with OK.

5. Exit the menu with RESET.

A timer activated for preconditioning can also be
deactivated (p. 141) .

Related information

•

Preconditioning - timer (p. 142)

•

Timer - starting (p. 143)

•

Timer - setting (p. 142)

•

Menu navigation - combined instrument
panel (p. 112)

CLIMATE CONTROL

144

Preconditioning - messages

Symbols and messages regarding precondition-
ing (p. 138).

When the fuel-driven heater has been
activated the heat symbol illuminates in
the information display.

When one of the timers has been activated, the
symbol for activated timer illuminates in the dis-
play at the same time as the set time is shown
next to the symbol.

Symbol in the display for activated
timer.

The table shows symbols and display texts that
appear.

Symbol

Display

Specification

Auto heater ON

The fuel-driven heater is switched on and operating.

The heater's timer is activated after the remote control key has been removed from the ignition switch and
leaving the car - the engine and passenger compartment are heated at the set time.

Fuel operated heater stopped
Battery saving mode

The fuel-driven heater is stopped by the car's electronics in order to facilitate starting the engine.

The starter battery's charge level is too low.

Fuel operated heater stopped
Low fuel level

The fuel-driven heater is stopped.

Setting the heater is not possible due to fuel level being too low - this is in order to facilitate starting the
engine as well as approx. 50 km driving.

Fuel operated heater Service
required

The fuel-driven heater is fully or partially disengaged.

Visit a workshop if the message remains. Volvo recommends that you contact an authorised Volvo work-
shop.

CLIMATE CONTROL

145

Symbol

Display

Specification

Preconditioning interrupted by
power supply change

The electrically-driven heater or AC system is stopped.

The transfer of energy is interrupted.

Preconditioning stopped due to
malfunction

The electrically-driven heater or AC system is stopped.

Visit a workshop. An authorised workshop is recommended.

Preconditioning stopped Hybrid
battery temperature high

The electrically-driven heater or AC system is stopped.

The hybrid battery is too hot, wait until the temperature has returned to normal.

A display text clears automatically after a time or
after one press on the indicator stalk (p. 112) OK
button.

Related information

•

Messages - handling (p. 114)

CLIMATE CONTROL

146

General information about heaters

The car is equipped with electrically-driven and
fuel-driven heater. The engine needs to be kept
warm in order to reduce the environmental
impact when it is started. These heaters are
used in order to achieve the correct operating
temperature for the engine or to generate suffi-
cient heat in the passenger compartment.

•

Electrically-driven heater (p. 146)

•

Fuel-driven heater (p. 146)

Electrically-driven heater

The car is equipped with electrically-driven and
fuel-driven heater (p. 146).

The electrically-driven heater cannot be con-
trolled manually but is activated automatically
when required.

NOTE

When the electrically-driven heater is in use,
the charging time for the hybrid battery will be
extended. The time required for heating the
car is mainly determined by the outside tem-
perature.

Related information

•

General information about preconditioning
(p. 138)

•

General information about heaters (p. 146)

Fuel-driven heater

The car is equipped with electrically-driven
(p. 146) and fuel-driven heater.

In colder weather, the car's fuel-driven heater can
be activated during warming-up. The heater starts
automatically when extra heat is required and is
switched off automatically when not required.

NOTE

When the fuel-driven auxiliary heater is active,
exhaust fumes may be given off from the
right-hand wheel housing, which is perfectly
normal.

If you do not want the car's fuel-driven heater to
start during preconditioning, activate

Indoor

parking

, see Preconditioning - parking inside

(p. 139). However, this may prolong the warming-
up time.

The fuel-driven heater cannot be started during
driving or preconditioning if the outside tempera-
ture exceeds 15 °C. The heater's maximum run-
ning time is 50 minutes during preconditioning.

If the fuel level in the tank is too low then the
fuel-driven heater is prevented from starting, with
inadequate heating as a result.

CLIMATE CONTROL

147

NOTE

Make sure that there is sufficient fuel in the
car's regular fuel tank when driving at temper-
atures below +15 °C.

WARNING

Do not use the fuel-driven auxiliary heater

indoors in unventilated areas. Exhaust fumes

are given off.

Refuelling

Warning label on fuel filler flap.

WARNING

Fuel which spills out could be ignited. Switch

off the fuel-driven auxiliary heater before star-

ting to refuel.
Check in the combined instrument panel that

the heater is switched off. The heat symbol is

shown when it is operating.

Parking on a hill

If the car is parked on a steep hill, the front of the
car should point downhill to ensure that there is a
supply of fuel to the fuel-driven heater.

Starter battery and fuel

If the starter battery has insufficient charge or if
the fuel level is too low, the heater will be
switched off automatically and a message is
shown in the combined instrument panel.
Acknowledge the message by pressing the indi-
cator stalk (p. 112) OK button once.

Related information

•

General information about preconditioning
(p. 138)

•

General information about heaters (p. 146)

Fuel-driven heater - auto mode/

deactivation

The fuel-driven heater's automatic start
sequence can be deactivated if required.

NOTE

If the fuel-driven auxiliary heater is deacti-
vated, the diesel engine will start more fre-
quently in order to meet the need for heat in
drive mode PURE or HYBRID, i.e. electrical
operation will be restricted.

1. Press the indicator stalk (p. 112) OK button

to access the menu.

2. Scroll with the thumbwheel to

Settings

and

select with OK.

3. Select one of the alternatives

Auto heater

Auto heater OFF

using the thumb-

wheel and confirm with OK.

4. Exit the menu with RESET.
