Volvo V60 Plug-in Hybrid (2015 year). Instruction - part 10

For cars with the Keyless system, see Key-

When the door has been unlocked using

the key blade and is opened, the alarm is

triggered.

2. Deactivate the alarm by inserting the

remote control key in the ignition switch.

less drive* - unlocking with the key blade

(p. 173).

Related information

•

Remote control key - replacing the bat-

•

tery (p. 169)

06 Locks and alarm

168

Option/accessory, for more information, see Introduction.

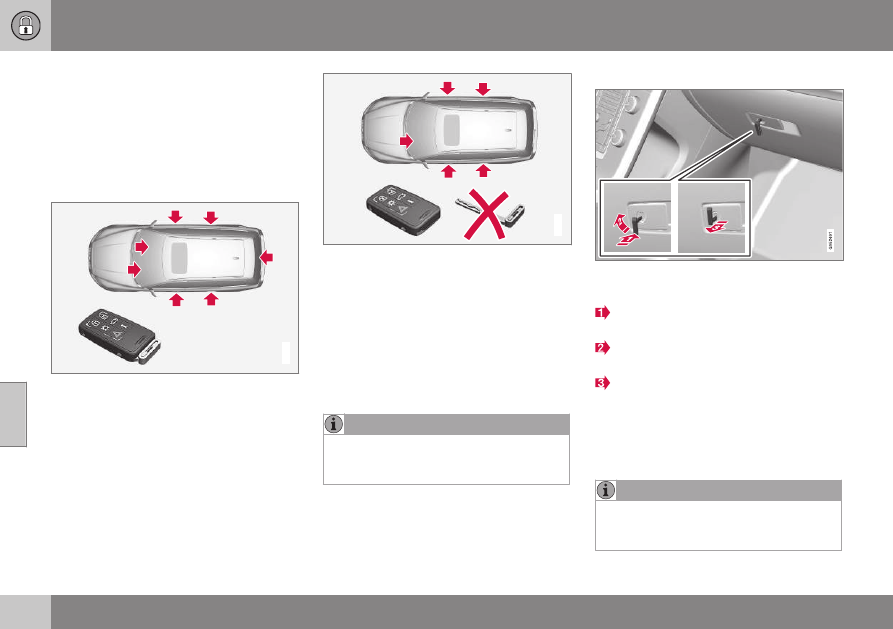

Privacy locking*

Privacy locking is intended for when the car is

left for service, with a hotel parking valet or

similar. The glovebox is then locked and the

tailgate lock is disconnected from the central

locking - the tailgate cannot be opened with

either the central locking button in the front

doors or the remote control key (p. 159).

G017869

Active locks for remote control key with key

blade.

G017870

Active locks for remote control key, without key

blade and privacy locking activated.

This means that the remote control key with-

out key blade can only be used to activate/

deactivate the alarm (p. 182), to open the

doors and to drive the car.
The remote control key without key blade can

then be handed over to the service or hotel

staff - the loose key blade is retained by the

car owner.

Do not forget to pull out the cargo cover

(p. 156)) over the cargo area before closing

the tailgate.

Activate/deactivate

Activating privacy locking.

To activate privacy locking:

Insert the key blade in the glovebox lock

cylinder.
Turn the key blade 180 degrees clock-

wise.
Pull out the key blade. The combined

instrument panel's information display

shows a message at the same time.

The glovebox is then locked and the tailgate

can no longer be unlocked with the remote

control key or the central locking button.

see Locking/unlocking - glovebox (p. 177).

Do not reinsert the key blade into the

remote control key, but keep it in a safe

place instead.

06 Locks and alarm

}}

169

•

Deactivation takes place in reverse order.

For information on locking the glovebox only,

Remote control key - replacing the

battery

The battery

for the remote control key may

need to be replaced.

The battery for the remote control key should

be replaced if:

•

the information symbol in the combined

instrument panel illuminates and the dis-

play shows

Car key battery low See

manual

and/or

•

the locks repeatedly do not react to sig-

nals from the remote control key within

20 metres from the car.

Opening

Slide the spring-loaded catch to the

side.

At the same time pull the key blade

straight out backwards.

Insert a 3 mm slot screwdriver in the

hole behind the spring-loaded catch and

gently prize the remote control key up.

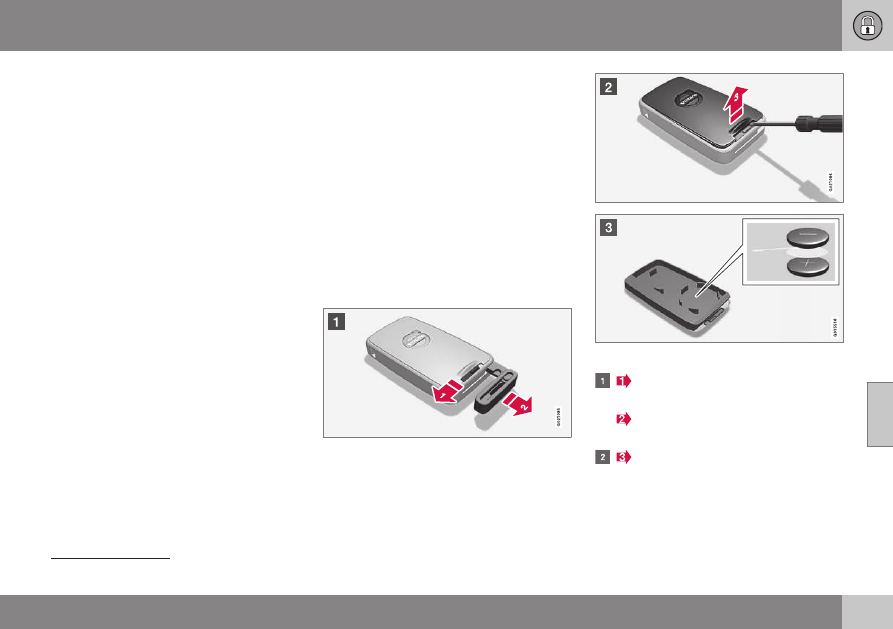

Remote control key with PCC has two batteries.

06 Locks and alarm

170

Option/accessory, for more information, see Introduction.

Turn the remote control key over with the

buttons facing up, this is to avoid the bat-

teries falling out when it is opened.

Avoid touching new batteries and their

contact surfaces with your fingers as this

may impair their function.

Battery replacement

Closely study how the battery/batteries

are secured on the inside of the cover,

with regard to their (+) and (–) sides.

Remote control key (one battery)
1. Carefully prize out the battery.
2. Install a new one with the (+) side down.

Remote control key with PCC* (two
batteries)
1. Carefully prize out the batteries.
2. First install one new one with the (+)side

up.

3. Position the white plastic tab in between

and finally install a second new battery

with the (+) side down.

Battery type
Use batteries with the designation

CR2430, 3V - one in the remote control key,

two in the remote control key with PCC.

Volvo recommends that the batteries to be

used in the remote control key/PCC fulfil

UN Manual of Test and Criteria, Part III,

sub-section 38.3. Batteries fitted in the

factory or replaced by an authorised Volvo

workshop fulfil the above criteria.

Assembly
1. Press the remote control key together.
2. Hold the remote control key with the slot

pointed up and lower the key blade into

its slot.

3. Lightly press the key blade. You should

hear a "click" when the key blade is

locked in.

Make sure that exhausted batteries are

disposed of in a manner which is kind to

the environment.

Related information

•

Remote control key - functions (p. 163)

•

Keyless drive*

Cars equipped with Keyless Drive have a star-

ting and locking system that can be operated

keylessly.

With the keyless starting and locking system

the car can be started, locked and unlocked
without the remote control key (p. 159)

inserted in the ignition switch. It is enough to

have the remote control key with you in a

pocket. The system makes it easier and more

convenient to e.g. open the car when your

hands are full.
Both of the remote control keys included with

the car have Keyless functionality. It is possi-

ble to order more remote control keys.
The car's electrical system can be set to

three different levels - key position 0, I and II

(p. 81) - with the remote control key.

Related information

•

Keyless Drive* - remote control key range

(p. 171)

•

Keyless drive* - secure handling of the

remote control key (p. 171)

•

Keyless drive* - interference to remote

control key function (p. 172)

06 Locks and alarm

Option/accessory, for more information, see Introduction.

171

Keyless Drive* - remote control key

range

In order to unlock the doors or tailgate auto-

matically without pressing a button on the
remote control key

, a remote control key

must be within approx. 1.5 metres from the

car's door handle or tailgate.

The person who wishes to lock or unlock a

door must have the remote control key with

him or her. It is not possible to lock or unlock

a door if the remote control key is on the

opposite side of the car.

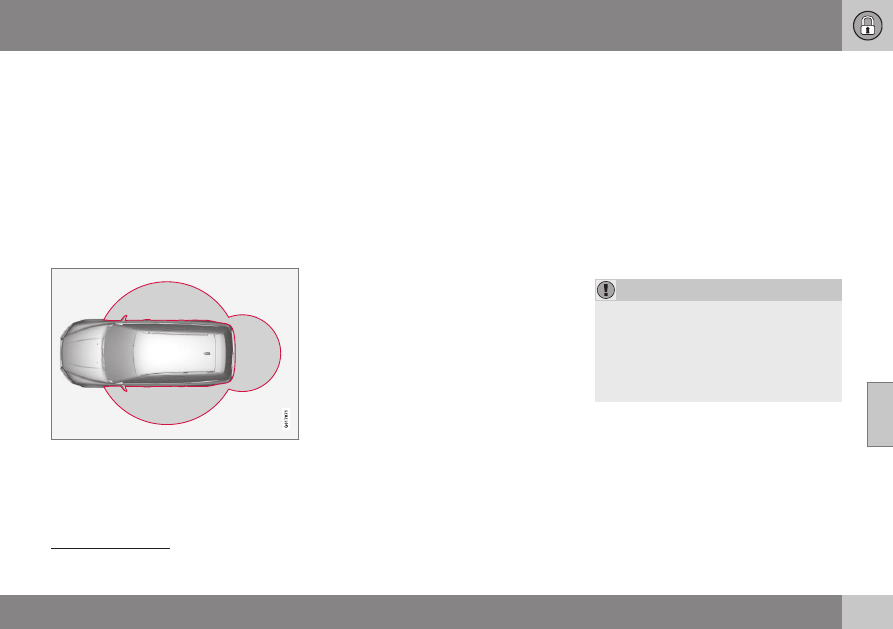

The red rings in the above figure indicate the

range covered by the system's antennas.
If all remote control keys are removed from

the car when the engine is running or key

position I or II (p. 81) is active, and if all doors

are closed, then a warning message is shown

in the information display in the combined

instrument panel and an audio reminder sig-

nal sounds at the same time.
When the remote control key has been

returned to the car, the warning message

goes off and the audible reminder ceases

once either/or:

•

a door has been opened and closed

•

the remote control key has been inserted

in the ignition switch

•

The OK button has been pressed.

Related information

•

Keyless Drive* - antenna location (p. 174)

•

Keyless drive* - secure handling of

the remote control key

It is important to handle the car's remote con-

trol keys with great care.

If one of the remote control keys

has been

left in the car then the Keyless functionality is

deactivated in case the car is e.g. locked with

the other remote control key that belongs to

the car. This prevents unauthorised entry.
The next time the car is unlocked with the

other remote control key the forgotten remote

control key is reactivated again.

Avoid leaving the remote control key with

PCC behind in the car. If someone breaks

into your car and takes the remote control

key, it will e.g. be possible to start the car

by pressing the remote control key in the

ignition switch and then pressing the

START/STOP ENGINE button.

Related information

•

interfere with the remote control key's Keyless

Only applies to Remote Control Key with PCC.

Applies to remote control key with PCC (Personal Car Communicator).

06 Locks and alarm

172

Option/accessory, for more information, see Introduction.

Keyless drive* - interference to

remote control key function

Electromagnetic fields and screening can

functions (p. 170).

Remote control key - functions (p. 163).

Do not place/store the PCC near a mobile

phone or metal object - no closer than

10-15 cm.

If interference is experienced nonetheless,

use the remote control key and the key blade

like a remote control key in basic version, see

Related information

•

Remote control key - replacing the bat-

tery (p. 169)

•

Keyless drive* - secure handling of the

remote control key (p. 171)

•

Keyless Drive* - remote control key range

(p. 171)

Keyless drive* - locking

Cars equipped with Keyless drive have a

touch-sensitive area on the outer handle of

the doors and a rubberised button next to the

tailgate's rubberised pressure plate for lock-

ing/unlocking.

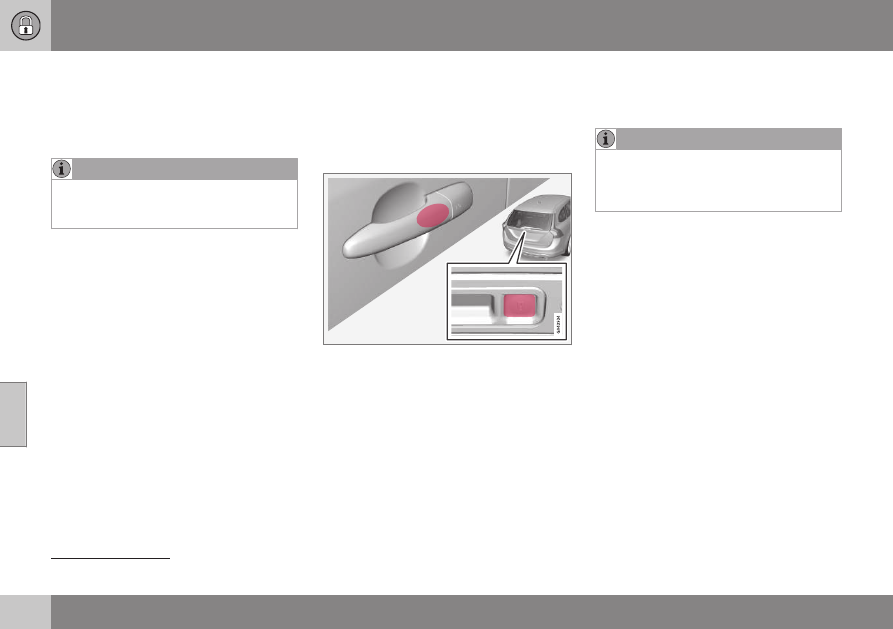

The touch-sensitive area on the outer door han-

dles and the rubberised button next to the tail-

gate's rubberised pressure plate.

Lock the doors and the tailgate with one long

press on any of the door handles' touch-sen-

sitive areas or press the smaller of the tail-

gate's two rubberised buttons - the lock indi-

cator (p. 161) in the windscreen confirms that

locking has been completed by starting to

flash.

All doors and the tailgate must be closed

before the car can be locked - otherwise the

car is not locked.

In cars with automatic gearbox selectors,

the gear selector must be set to the P

position; otherwise the car can be neither

locked nor alarmed.

Related information

•

•

Alarm indicator (p. 183)

Applies to remote control key with PCC (Personal Car Communicator).

06 Locks and alarm

Option/accessory, for more information, see Introduction.

173

Keyless drive* - unlocking

Unlocking takes place when a hand grasps a

door handle or the tailgate's rubberised pres-

sure plate is actuated - open the door or tail-

gate as normal.

The door handles normally register a hand

that takes hold of the handle, but with

thick gloves on or after a very quick hand

movement a second attempt may be

required, or with the glove taken off.

Related information

•

Keyless drive* - locking (p. 172)

•

Keyless drive* - unlocking with the

key blade

If central locking cannot be unlocked with the

remote control key, e.g. if the batteries are

discharged, then the left-hand front door can

be opened using the detachable key blade.

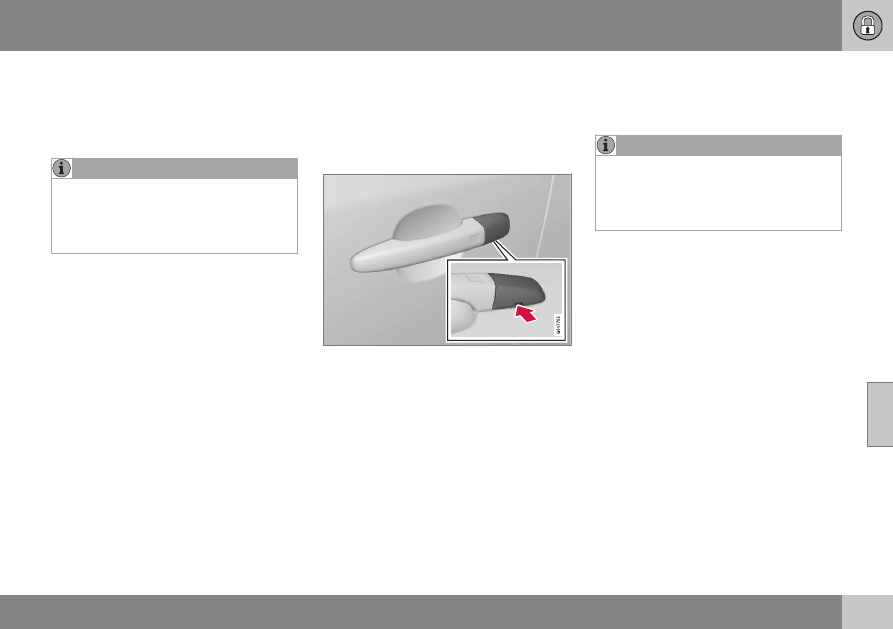

Hole for key blade - to loosen the cover.

To access the lock cylinder, the door handle's

plastic cover must be removed - this is also

done with the key blade:
1. Press the key blade approx. 1 cm straight

up into the hole on the underside of the

door handle/cover - do not prize.
> The plastic cover loosens automati-

cally by means of the torque when the

blade is pushed straight up and into

the opening.

2. Then insert the key blade in the lock cyl-

inder and unlock the door.

3. Refit the plastic cover after unlocking.

PCC in the ignition switch, see Alarm -

When the driver's door is unlocked using

the key blade and is opened, the alarm is

triggered. It is switched off by inserting the

remote control key not working (p. 183).

Related information

•

Detachable key blade - detaching/attach-

•

ing (p. 167)

•

Alarm (p. 182)

06 Locks and alarm

174

Option/accessory, for more information, see Introduction.

Keyless Drive* - lock settings

Lock settings for cars equipped with Keyless

Drive can be adapted by indicating in the

menu system MY CAR which doors are to be

unlocked.

For a description of the menu system, see

MY CAR (p. 113).

Related information

•

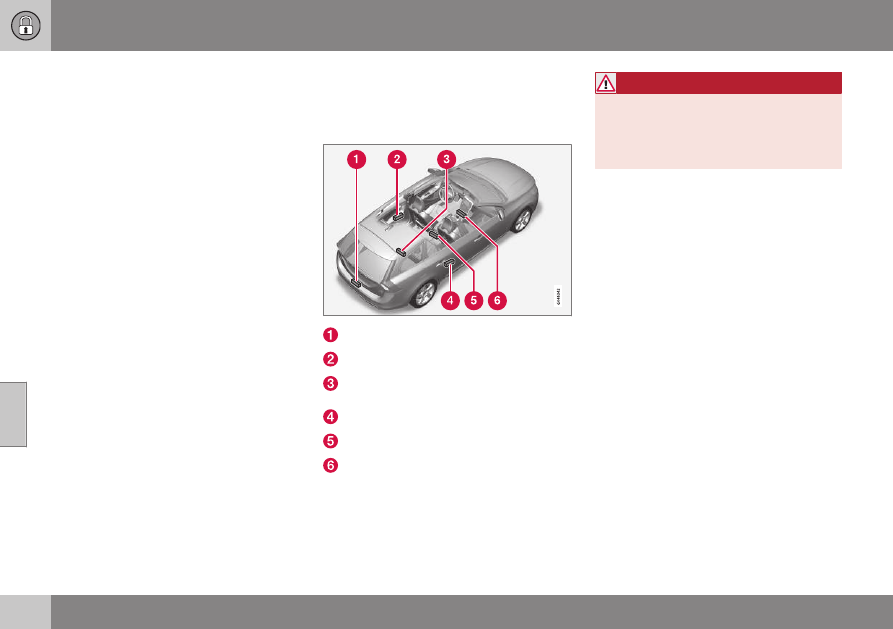

Keyless Drive* - antenna location

Cars equipped with Keyless Drive have a

number of built-in antennas positioned at dif-

ferent locations in the car.

Rear bumper, centre

Door handle, left rear

Cargo area, central and furthest in under

the floor
Door handle, right rear

Centre console, under the rear section

Centre console, under the front section.

WARNING

People with pacemaker operations should

not come closer than 22 cm to the keyless

system's antennae with their pacemaker.

This is to prevent interference between the

pacemaker and the keyless system.

Related information

•

out using the remote control key (p. 159). The

06 Locks and alarm

}}

Option/accessory, for more information, see Introduction.

175

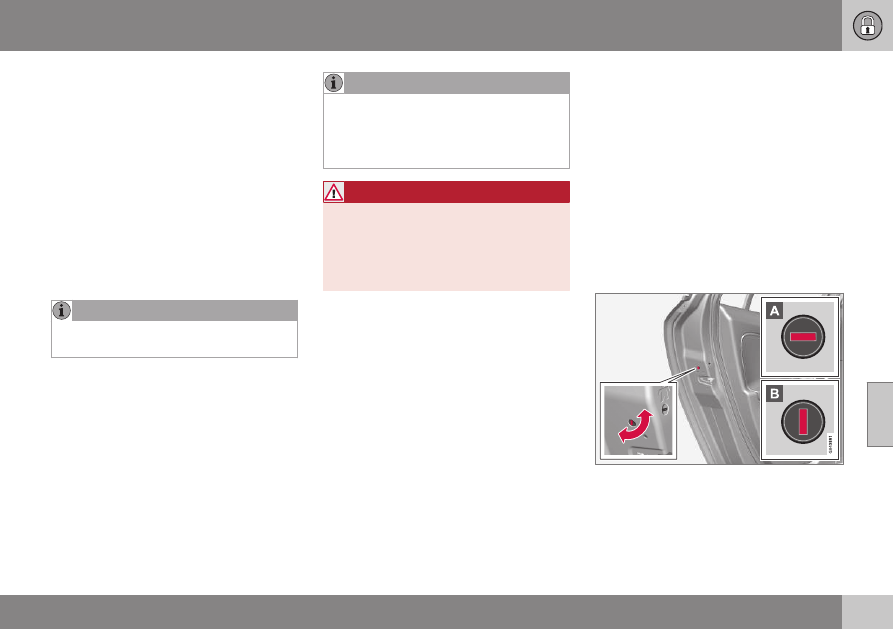

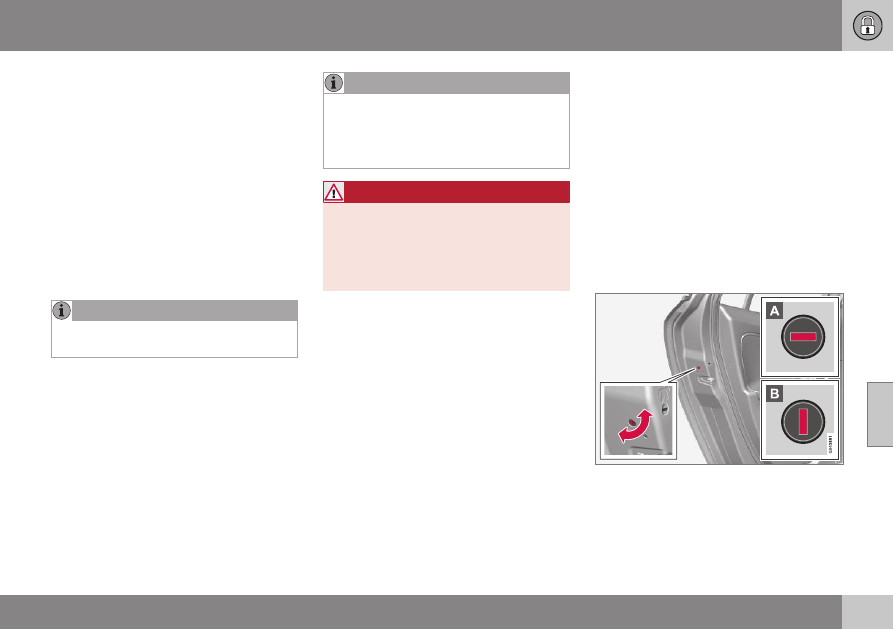

Locking/unlocking - from the outside

Locking/unlocking from the outside is carried

remote control key can lock/unlock all doors

and the tailgate simultaneously. Different

sequences for unlocking can be selected, see

Remote control key - functions (p. 163).

In order that the lock sequence can be acti-

vated, the driver's door must be closed - if

any of the other doors or the tailgate is open,

then it/they is/are locked and the alarm is

activated only when it/they are closed. For

cars equipped with keyless locking system*

all doors and the tailgate must be closed.

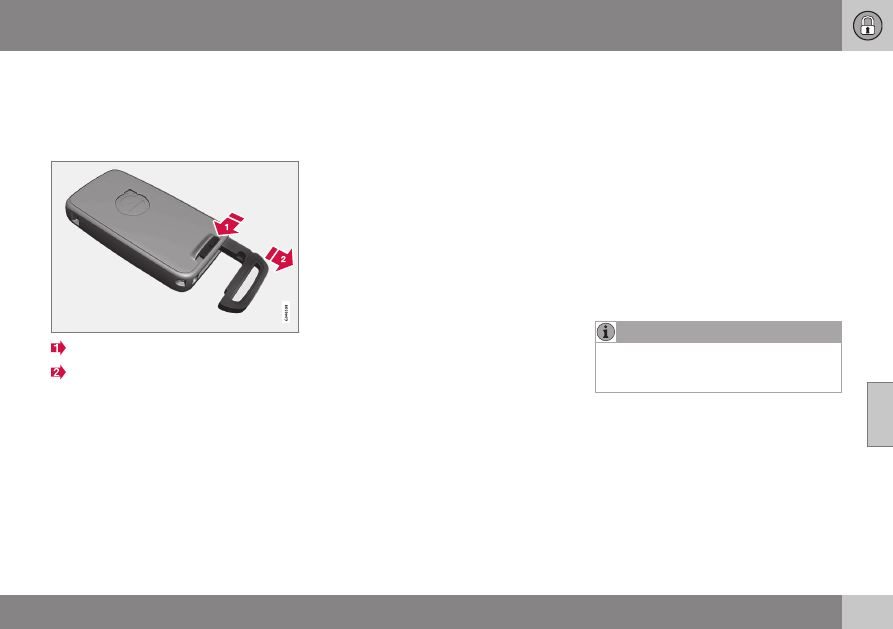

Detachable key blade - detaching/attaching

Be aware of the risk of locking the remote

control key in the car.

If it is not possible to lock/unlock with the

remote control key, the battery may be dis-

charged - lock or unlock the left-hand front

door with the detachable key blade, see

(p. 167).

information, see Deadlocks* (p. 179).

Remember that the alarm is triggered

when the door is opened after being

unlocked with the key blade - the alarm is

switched off when the remote control key

is inserted into the ignition switch.

WARNING

Be aware of the risk of being locked in the

car when it is locked from the outside

using the remote control key - it is then not

possible to open any of the doors from the

inside with the door controls. For more

Automatic relocking
If none of the doors or the tailgate is opened

within two minutes of unlocking, all are

locked again automatically. This function

reduces the risk that the car is left unlocked

unintentionally. (For cars with alarm, see

Alarm (p. 182).)

Related information

•

•

detachable key blade, see Keyless drive* -

Manual locking of the door

In certain situations the car must be lockable

manually, e.g. in the event of power failure.

The left-hand front door can be locked with

its lock cylinder and the remote control key's

unlocking with the key blade (p. 173).
Other doors do not have lock cylinders and

instead have lock knobs on each door's end

face which must be re-turned - then they are

mechanically locked/blocked against opening

from the outside. The doors can still be

opened from the inside.

Manual locking of the door. Not to be mixed up

with child safety locks (p. 180).

–

Use the remote control key's detachable

key blade to turn the knob, see Detacha-

ble key blade - detaching/attaching

(p. 167).

06 Locks and alarm

176

Option/accessory, for more information, see Introduction.

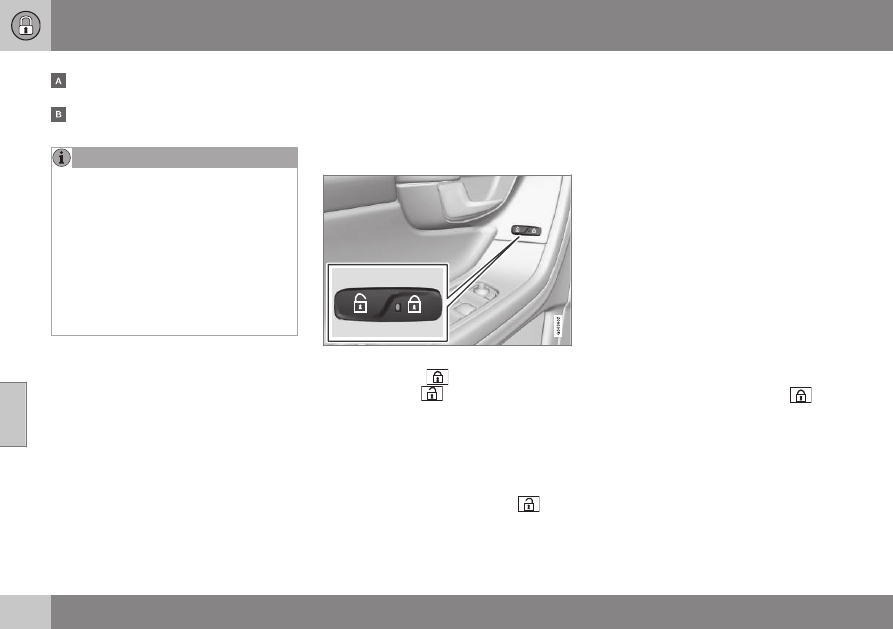

The door is blocked against opening from

the outside.
The door can be opened from both the

outside and the inside.

or the inside, see Child safety locks -

•

A door's knob control only locks that

particular door - not all doors simulta-

neously.

•

A manually locked rear door with an

activated manual child safety lock can-

not be opened from either the outside

manual activation (p. 180). A rear door

that is locked in this way can only be

unlocked with the remote control key

or central locking button.

Related information

•

Remote control key - replacing the bat-

tery (p. 169)

Locking/unlocking - from the inside

All of the doors and the tailgate are locked or

unlocked simultaneously using the central

locking button on the driver's door and pas-

senger door*.

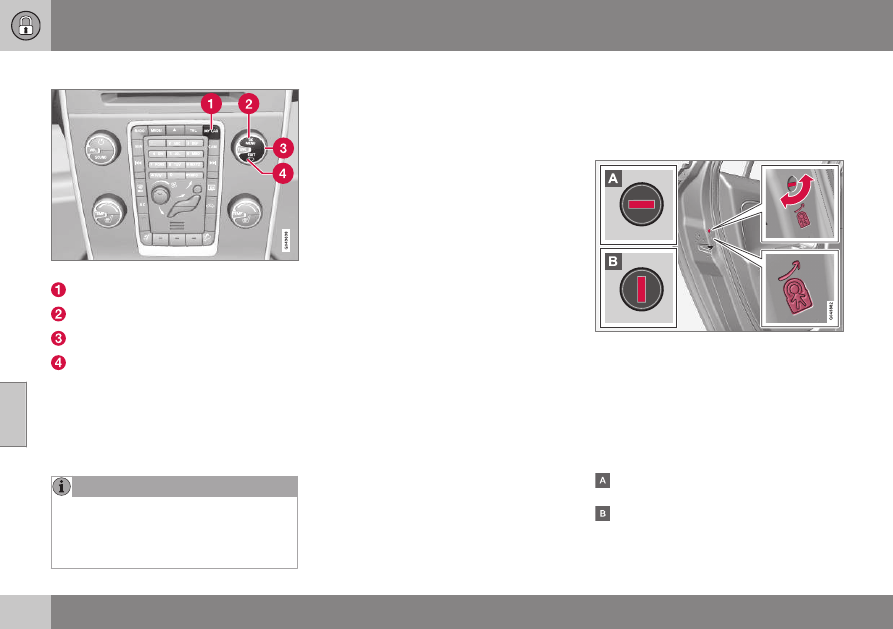

Central locking

Central locking.

•

Press one side

of the button to lock -

the other side

to unlock.

Press and hold to also open all side windows*

simultaneously.

Unlocking
A door can be unlocked from the inside in

two different ways:

•

Press the central locking button

A long press also opens all the side windows*

simultaneously (see also Global opening

(p. 177)).

•

Pull the door handle and open the door -

the door is unlocked and opened in one

operation.

Lamp in lock button
Central locking is available in two variants -

the lamp in the central locking button for the

driver's door has different meanings depend-

ent on the variant.
With central locking button only in the driver's

door, other doors have no button:

•

Illuminated lamp means that all doors are

locked.

With central locking button on both front

doors and electric lock button in each rear

door:

•

Illuminated lamp means that only that

particular door is locked. When all but-

tons are illuminated all doors are locked.

Locking

•

Press the central locking button

- all

closed doors are locked.

A long press also closes all side windows and

sunroof simultaneously (see also Global

opening (p. 177)).

06 Locks and alarm

}}

Option/accessory, for more information, see Introduction.

177

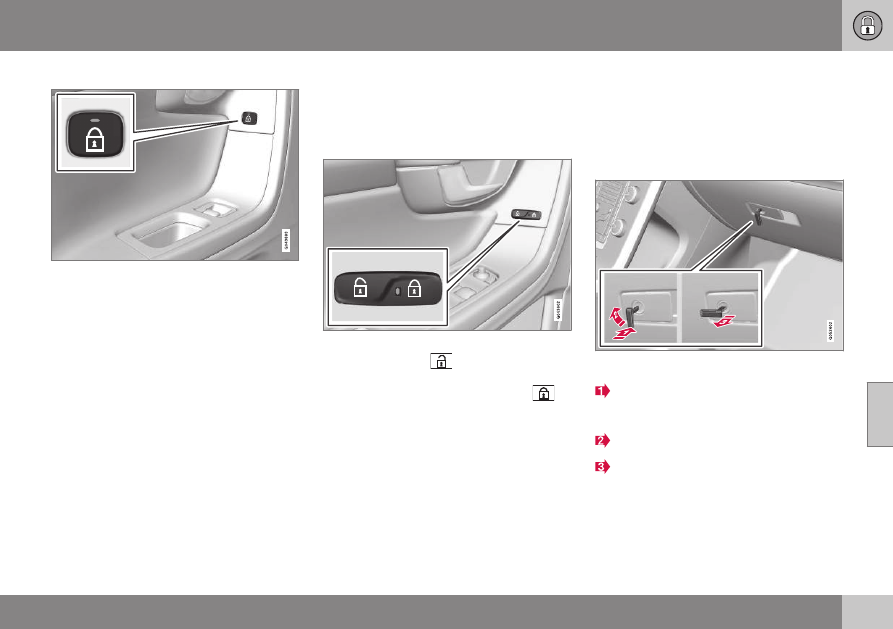

Lock button* rear doors

The button's lamp illuminates when the door is

locked.

The rear door lock buttons only lock their

respective rear door.
To unlock the door:

•

Pull the door handle - the door is

unlocked and opened.

Automatic locking
The doors and tailgate are locked automati-

cally when the car starts to move.
The function can be activated/deactivated in

the menu system MY CAR. For a description

of the menu system, see MY CAR (p. 113).

Related information

•

Locking/unlocking - from the outside

(p. 175)

•

Alarm (p. 182)

•

Remote control key - functions (p. 163)

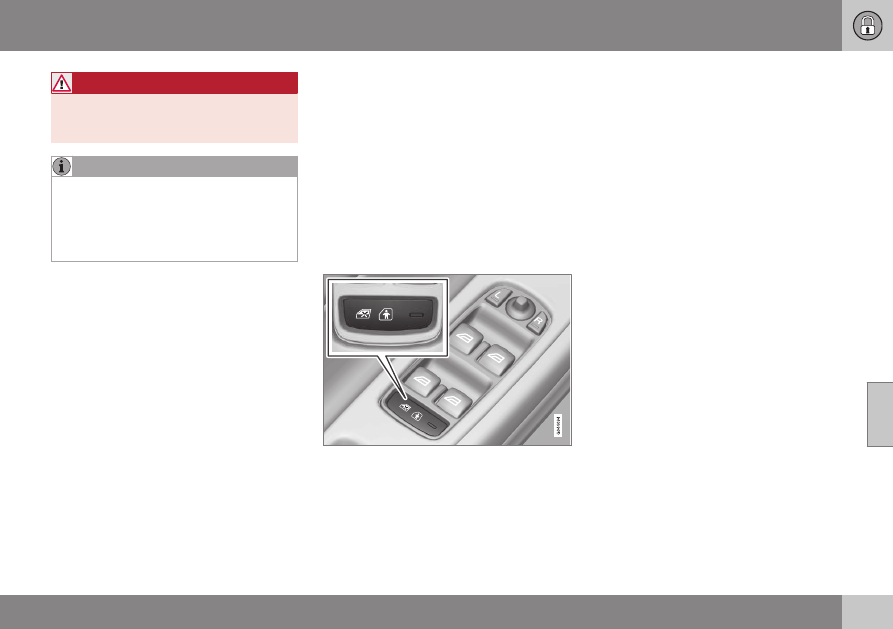

Global opening

The global opening function opens or closes

all side windows simultaneously and can be

used for example to quickly air the car during

hot weather.

Central locking button

A long press on the

symbol in the central

locking button opens all side windows simul-
taneously. The same procedure on the
symbol closes all side windows simultane-

ously.

Related information

•

The glovebox (p. 149) can only be locked/

•

Power windows (p. 103)

Locking/unlocking - glovebox

unlocked using the detachable key blade from

the remote control key.

For information on the key blade, see Detach-

able key blade - detaching/attaching (p. 167).

Locking the glovebox:

Insert the key blade in the glovebox lock

cylinder in accordance with the illustration

above.
Turn the key blade 90 degrees clockwise.

Pull out the key blade.

•

Unlock by carrying this out in reverse

order.

For information on privacy locking, see Pri-

vacy locking* (p. 168).

06 Locks and alarm

178

Option/accessory, for more information, see Introduction.

Related information

•

Locking/unlocking - tailgate

The tailgate can be opened, locked and

unlocked in several ways.

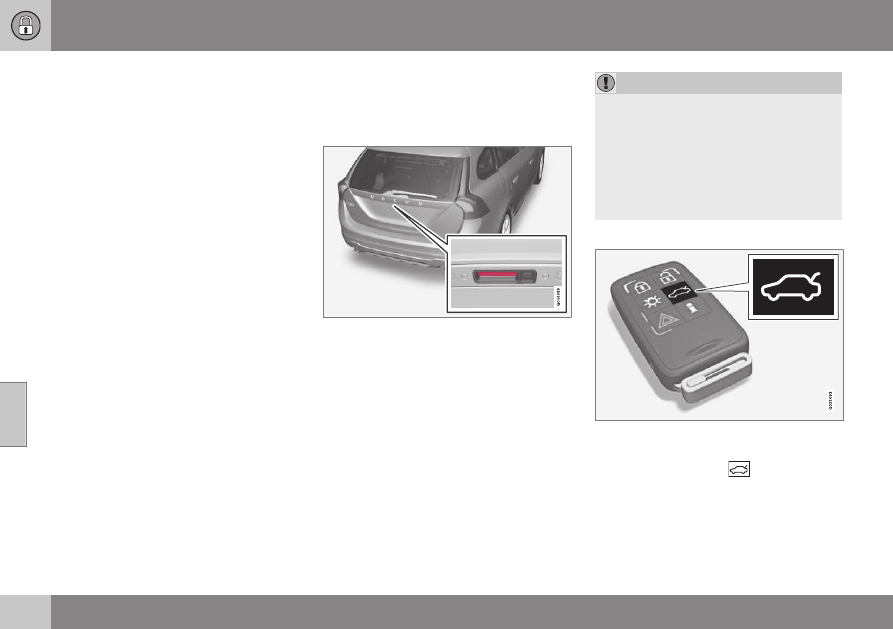

Manual opening

Rubber plate with electrical contact.

The tailgate is held closed by an electrical

lock. To open:
1. Push down gently on the wider of the two

rubberised pressure plates under the

outer handle - the lock is released.

2. Lift the outside handle in order to fully

open the tailgate.

The lock indicator (p. 161) on the instrument

•

Minimal force is required to release the

rear hatch lock - just gently press the

rubberised panel.

•

Do not place the lift force on the rub-

ber panel when opening the rear hatch

- lift the handle. Using too much force

may damage the electrical contacts on

the rubber panel.

Unlocking with the remote control key

The alarm for the tailgate can be disarmed*

and the tailgate unlocked on its own by using
the remote control key's

button.

panel stops flashing in order to show that not

all of the car is locked and the alarm's* level

and movement sensors and the sensors for

opening the tailgate are disconnected.

06 Locks and alarm

}}

Option/accessory, for more information, see Introduction.

179

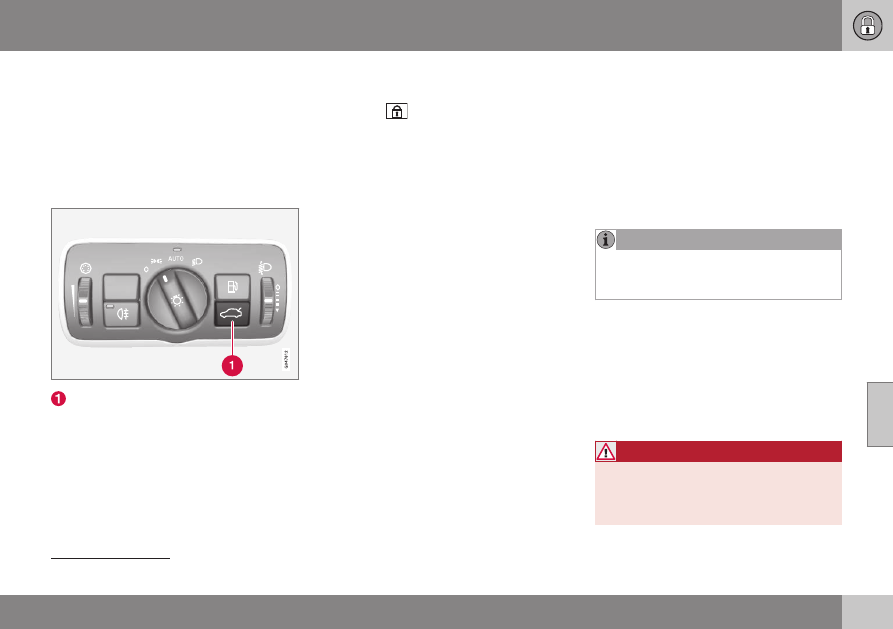

The doors remain locked and armed.

•

The tailgate is unlocked, but remains

closed - press lightly on the rubberised

pressure plate under the outer handle and

lift the tailgate.

If the tailgate is not opened within 2 minutes

then it is relocked and the alarm is re-armed.

Unlocking the car from inside

Unlocking, tailgate

To unlock the tailgate:

–

Press the lighting panel button (1).
> The tailgate is unlocked and can be

opened within 2 minutes (if the car is

locked from the inside).

Locking with the remote control key

–

Press the remote control key's button for
locking

, see Remote control key -

functions (p. 163).
> The lock indicator on the instrument

panel starts flashing, which means that

the car is locked and the alarm* has

been activated.

Related information

•

Locking/unlocking - from the outside

•

(p. 175)

Deadlocks*

Deadlocks

means that all door handles are

mechanically disengaged, which prevents

doors being opened from both inside and

outside.

The deadlocks are activated with the remote

control key (p. 159) and are set after an

approx. ten seconds delay after the doors

have been locked.

unlocked with the detachable key blade

If a door is opened within the delay time

then the sequence is interrupted and the

alarm is deactivated.

The car can only be unlocked with the remote

control key when the deadlocks function is

activated. The front left door can also be

(p. 166). In addition, it is possible to unlock

and open the doors and tailgate on cars

equipped with the Keyless Drive* by touching

door handles or the handle on the tailgate.

WARNING

Do not allow anyone to remain in the car

without first deactivating the deadlocks in

order to avoid the risk of anyone being

locked in.

Only in combination with alarm.

06 Locks and alarm

180

Option/accessory, for more information, see Introduction.

Temporary deactivation

Active menu options are indicated with a cross.

MY CAR

OK MENU

TUNE knob control

EXIT

If someone is going to stay in the car but the

doors must be locked from the outside, then

the deadlocks function can be temporarily

switched off. This takes place the menu sys-

tem MY CAR. For a description of the menu

system, see MY CAR (p. 113).

Keyless drive* - unlocking with the key

•

Remember that the alarm is activated

when the car is locked.

•

If any of the doors are opened from

the inside then the alarm is triggered.

Related information

•

blade (p. 173)

•

with manual door lock (p. 175).

Child safety locks - manual activation

The child safety locks prevent children from

being able to open a rear door from the

inside.

Activate/deactivate child safety locks

Manual child safety locks. Not to be mixed up

The child safety locks are located on the trail-

ing edge of the rear doors and are only

accessible when the doors are open.
To activate/deactivate the child safety locks:

–

Use the remote control key's detachable

key blade (p. 166) to turn the knob.
The door is blocked against opening from

the inside.
The door can be opened from both the

outside and the inside.

06 Locks and alarm

Option/accessory, for more information, see Introduction.

181

WARNING

Each rear door has two knob controls - do

not mix up the child safety locks with man-

ual door locks.

Child safety locks - electrical activation*

•

A door's knob control only blocks that

particular door - not both rear doors

simultaneously.

•

Cars with an electric child safety lock

do not have a manual child lock.

Related information

•

(p. 181)

•

Locking/unlocking - from the outside

•

(p. 175)

Child safety locks - electrical

activation*

Child safety locks with electrical activation

prevent children from opening the rear doors

or windows from the inside.

Activation
The child safety locks can be activated/deac-

tivated in all key positions (p. 80) higher than

0. Activation/deactivation can be performed

up to 2 minutes after switching off the engine,

provided that no door is opened.
To activate the child safety locks:

Control panel driver's door.

1. Start the engine or choose a key position

higher than 0.

2. Press the button in the driver's door con-

trol panel.
> The combined instrument panel's

information display shows the mes-

sage

Rear child lock activated

and

the button's lamp illuminates - the

locks are active.

When the child safety lock is active then the

rear:

•

windows can only be opened with the

driver's door control panel

•

doors cannot be opened from inside.

The current setting is stored when the engine

is switched off - if the child safety locks are

activated at engine shutdown, the function

will remain activated the next time the engine

is started.

Related information

•

Child safety locks - manual activation

(p. 180)

•

06 Locks and alarm

182

Option/accessory, for more information, see Introduction.

Alarm

The alarm is a device that warns in the event

of e.g. a break-in in the car.

Activated alarm is triggered if:

•

a door, the bonnet or the tailgate is

opened

•

a movement is detected in the passenger

compartment (if fitted with a movement

detector*)

•

the car is raised or towed away (if fitted

with a tilt detector*)

•

the battery's cable is disconnected

•

the siren is disconnected.

If there is a fault in the alarm system then the

information display in the combined instru-

ment panel shows a message. In which case,

contact a workshop - an authorised Volvo

workshop is recommended.

Reduced alarm level (p. 184).

The movement sensors trigger an alarm in

the event of movement in the passenger

compartment - air currents are also regis-

tered. For this reason the alarm is trig-

gered if the car is left with a window or the

sunroof open or if the passenger compart-

ment heater is used.
To avoid this: Close the window/sunroof

when leaving the car. If the car's inte-

grated passenger compartment heater (or

a portable electric heater) shall be used -

direct the airflow from the air vents so that

they are not pointing upwards in the pas-

senger compartment. Alternatively,

reduced alarm level can be used, see
