Volvo V60 Plug-in Hybrid (2015 year). Instruction - part 9

Optional equipment and accessories - e.g.

display screens, music players and mobile

phones - which are connected to one of

the passenger compartment's 12V electri-

cal sockets, could be activated by the cli-

mate control system, even when the

remote control key has been removed or

when the car is locked, for example, when

the parking heater is activated at a preset

time.
For this reason remove the plugs from the

electrical sockets for optional equipment

or accessories when not in use because

the battery could be drained in the event of

such an occurrence!

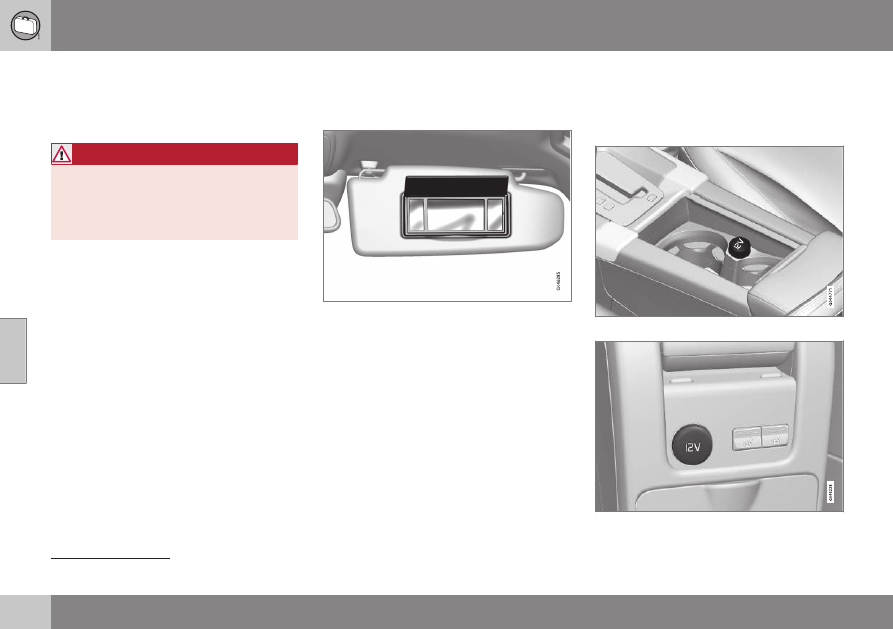

Max. socket is 10 A (120 W) if one socket

is used at a time. If both sockets in the

tunnel console are used simultaneously,

7.5 A (90 W) per socket is applicable.
If the compressor for emergency puncture

repair is connected to one of the two sock-

ets, no other current consumer must be

connected to the other one.

The compressor for emergency puncture

repair (p. 330) has been tested and

approved by Volvo.

Related information

•

Tunnel console - cigarette lighter and

ashtray* (p. 149)

•

12 V electrical socket - cargo area*

(p. 153)

Loading

Payload depends on the car's kerb weight.

Payload depends on the car's kerb weight.

The total of the weight of the passengers and

all accessories reduces the car's payload by

a corresponding weight.
For more detailed information on weights, see

Weights (p. 397).

The tailgate is opened via a button

on the lighting panel or the remote

control key, see Locking/unlocking -

tailgate (p. 178).

WARNING

The car’s driving properties change

depending on the weight and positioning

of the load.

To bear in mind when loading

•

Position the load firmly against the rear

seat's backrest.

Note that objects must not prevent the func-

tion of the WHIPS system for the front seats if

any of the rear seat's backrests is folded

down, seeWHIPS - seating position (p. 41).

•

Centre the load.

•

Heavy objects should be placed as low

as possible. Avoid placing heavy loads on

lowered backrests.

05 Loading and storage

152

Option/accessory, for more information, see Introduction.

•

Cover sharp edges with something soft to

avoid damaging the upholstery.

•

Secure all loads to the load retaining eye-

lets with straps or web lashings.

WARNING

A loose object weighing 20 kg can, in a

frontal collision at a speed of 50 km/h,

carry the impact of an item weighing

1000 kg.

WARNING

The protection provided by the inflatable

curtain in the headlining may be compro-

mised or eliminated by high loads.

•

Never load cargo above the backrest.

WARNING

Always secure the load. During heavy

braking the load may otherwise shift, caus-

ing injury to the car's occupants.
Cover sharp edges and sharp corners with

something soft.
Switch off the engine and apply the park-

ing brake when loading/unloading long

items. Otherwise you may accidentally

knock the gear lever or gear selector with

the load into a drive position - and the car

could then move off.

Related information

•

Load retaining eyelets (p. 153)

•

Safety net* (p. 154)

•

Loading - long load (p. 152)

•

Roof load (p. 153)

Loading - long load

To simplify loading (p. 151) in the cargo area,

the rear seat backrest can be folded down.
The passenger seat

backrest can also be

folded for an extra long load*.

Lowering the rear seat backrest
To simplify loading in the cargo area, the rear

seat backrest can be folded down, see Seats,

rear (p. 85).

Only applies to comfort seats.

05 Loading and storage

}}

Option/accessory, for more information, see Introduction.

153

Roof load

The load carriers recommended for roof loads

are the ones developed by Volvo. This is in

order to avoid damage to the car and in order

to achieve the maximum possible safety dur-

ing a journey.

Carefully follow the installation instructions

supplied with the carriers.

•

Check periodically that the load carriers

and load are properly secured. Lash the

load securely with retaining straps.

•

Distribute the load evenly over the load

carriers. Put the heaviest objects at the

bottom.

•

The size of the area exposed to the wind,

and therefore fuel consumption, increase

with the size of the load.

•

Drive gently. Avoid quick acceleration,

heavy braking and hard cornering.

WARNING

The car's centre of gravity and driving cha-

racteristics are altered by roof loads.
For information about the maximum per-

mitted load on the roof, including load car-

riers and any space box, see Weights

(p. 397).

Related information

•

Load retaining eyelets

The folding load retaining eyelets are used to

fasten straps in order to anchor items in the

cargo area.

WARNING

Hard, sharp and/or heavy objects which

protrude may cause injury under violent

braking.
Always secure large and heavy objects

with a seatbelt or cargo retaining straps.

Related information

•

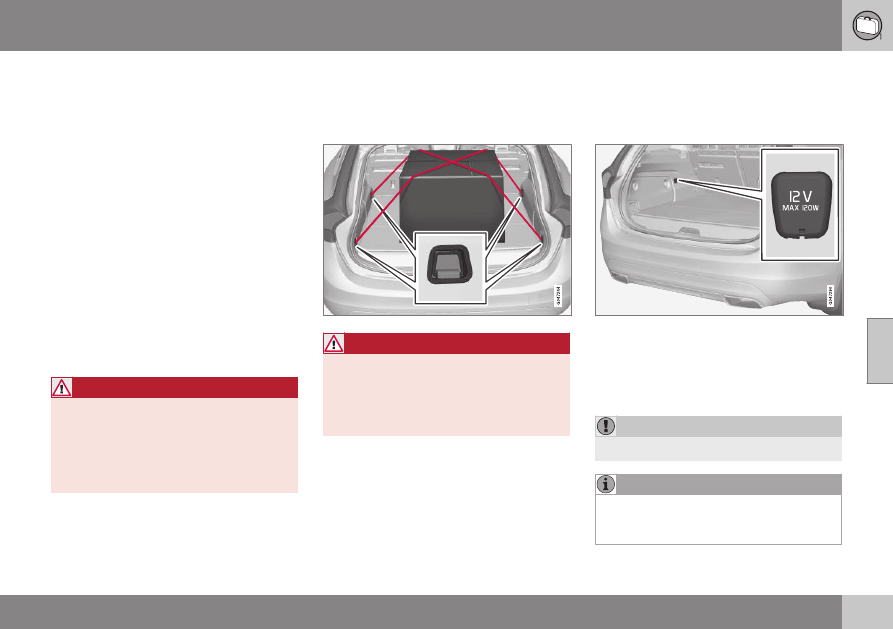

12 V electrical socket - cargo area*

The electrical socket can be used for various

accessories designed for 12 V, e.g. display

screens, music players and mobile phones.

Lower the cover to access the electrical

socket.

•

The socket also provides voltage when

the remote control key is not in the igni-

tion switch.

Max. power takeoff is 10 A (120 W).

Remember that using the electrical socket

with the engine switched off involves the

risk of discharging the car's battery.

05 Loading and storage

154

Option/accessory, for more information, see Introduction.

Emergency puncture repair (p. 330).

The compressor for temporary emergency

puncture repair has been tested and

approved by Volvo. For information on the

use of Volvo's recommended temporary

emergency puncture repair (TMK), see

Related information

•

Tunnel console - 12 V-sockets (p. 150)

Safety net*

A safety net prevents loads from being thrown

forward in the passenger compartment in the

event of sudden braking.

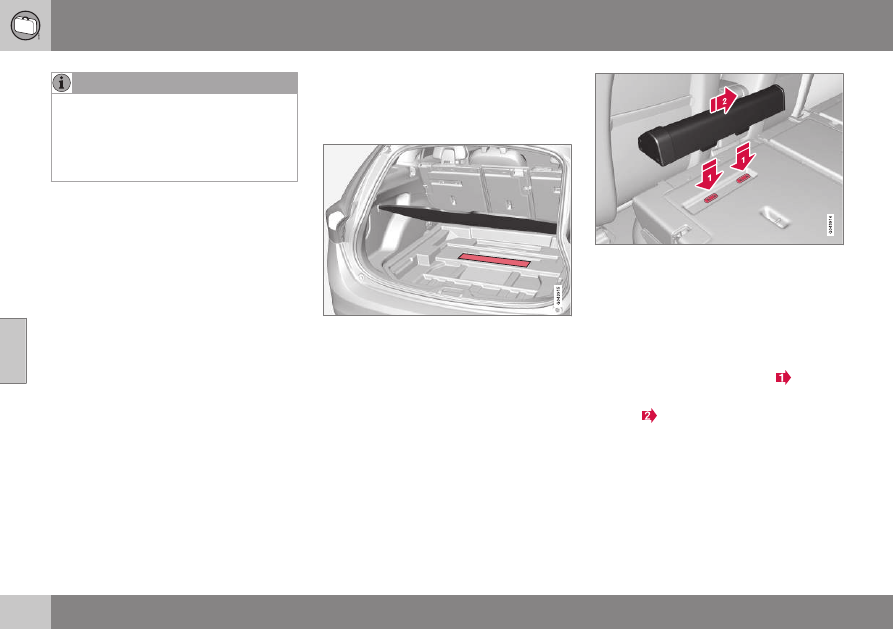

Storage space, safety net cassettes.

A rollable safety net comprising two cassettes

has a storage space under the cargo area

floor hatch.

Securing the net cassettes
A rollable safety net comprising two cassettes

has a storage space under the cargo area

floor hatch.

The two-part safety net cassette is secured

on the rear of the backrest. The narrowest

cassette is secured on the left-hand side

(seen from the tailgate).
1. Fold the rear seat's backrest forward, see

Seats, rear (p. 85).

2. Align the cassette's anchor rails in front of

the backrest attachment lugs

3. Slide the cassette into the attachment

lugs

4. Fold back and lock the backrests.

•

Removing the cassette takes place in

reverse order.

05 Loading and storage

Option/accessory, for more information, see Introduction.

155

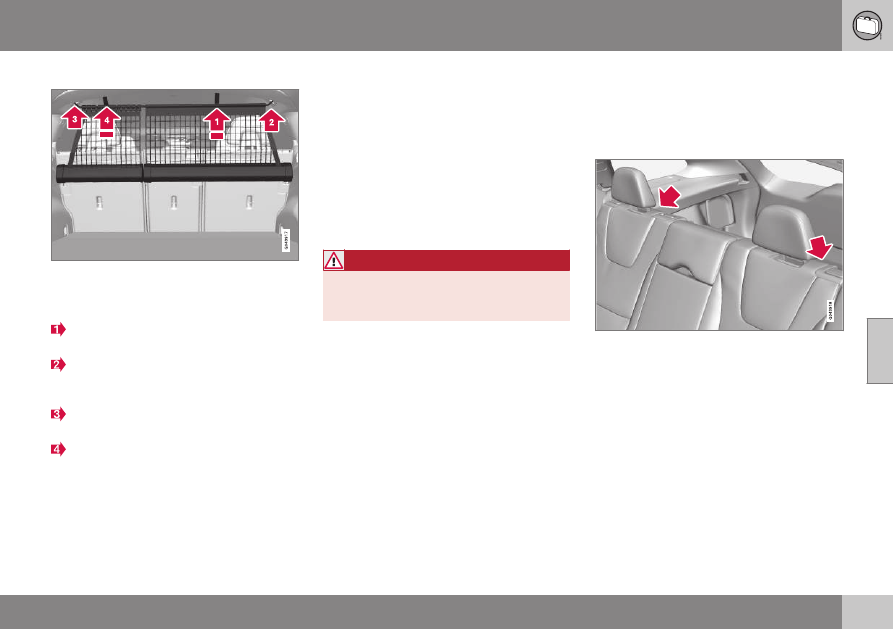

Using the safety net

Pull the net up from the cassettes. The net is

self-locking after approx. one minute if the

rear seat's backrests are raised.

Pull up the right-hand section of the net

using its strap.
Insert the rod in the mounting on the

right-hand side and then press it forward

– the rod locks in with a click.
Pull out the rod's telescope section and

click it in on the other side.
Pull up the left-hand safety net and hook

it into the rod.

•

Folding up takes place in reverse order.

The net can also be used when the rear

seat's backrests are folded forward.

Removing the net cassettes
1. Roll the safety nets into the cassettes in

accordance with the procedure in the

section entitled "Using the safety net",

but in reverse.

2. Fold the whole backrest forward.
3. Slide the cassettes out until they loosen

from the anchor rails.

Store the cassettes in their compartment

under the cargo area floor hatch.

WARNING

Loads in the luggage compartment must

be anchored well, and also using a cor-

rectly fitted safety net.

Related information

•

"Using the safety net" (p. 154). The straps for

•

Safety grille (p. 156)

Safety net* combined with cargo

cover

A safety net prevents loads from being thrown

forward in the passenger compartment in the

event of sudden braking.

Puller-straps for raising the net.

The safety net can also be raised from the

rear seat when the cargo cover is extended.
Follow the procedure described in the section

folding up are located by the arrows.

Related information

•

Safety net* (p. 154)

•

Load retaining eyelets (p. 153)

•

05 Loading and storage

156

Option/accessory, for more information, see Introduction.

Safety grille

A safety grille prevents loads or pets from

being thrown forward in the passenger com-

partment in the event of sudden braking.

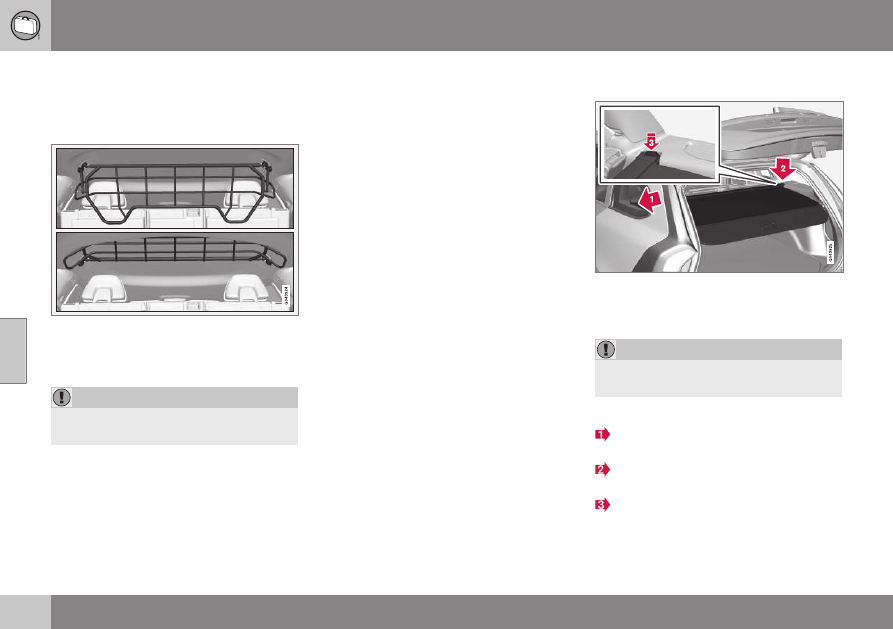

Folding up
Take hold of the bottom of the safety grille

and pull back/up.

The protective grille cannot be folded up

or down when a cargo cover is fitted.

Fitting/removal
The safety grille is normally permanently

installed in the car because it can easily be

folded up in the roof and so be out of the way

if a longer cargo area is required. However, if

desired, the safety grille can be dismantled

and removed from the car.

For information about the tools required and

methods for fitting/removal, see the installa-

tion instructions that were included with the

initial purchase.
For safety reasons, the safety grille must

always be correctly fastened and secured

when being refitted.

Related information

•

Safety net* (p. 154)

•

Load retaining eyelets (p. 153)

•

Cargo cover

Pull the cargo cover over the load and hook it

into the recesses at the cargo area's rear

posts.

The protective grille cannot be folded up

or down when the cargo cover is fitted.

Attaching the cargo cover

Move one end piece of the cover into the

recess on the side panel.
Move the other end piece into the corres-

ponding recess.
Press both sides in. A "click" should be

audible and the red marking should dis-

appear.
> Check that both end pieces are

locked.

05 Loading and storage

157

Removing the cargo cover
1. Press in one end piece button and lift it

out.

2. Carefully angle the cover up/out and the

other end piece loosens automatically.

Lowering the cargo cover's rear sealing
disc
In its rolled-in position, the cargo cover's rear

sealing disc protrudes horizontally into the

cargo area when it is fitted.

–

Pull the sealing disc back gently, free

from its support shelves, and lower.

Related information

•

Loading - long load (p. 152)

•

06 Locks and alarm

Option/accessory, for more information, see Introduction.

159

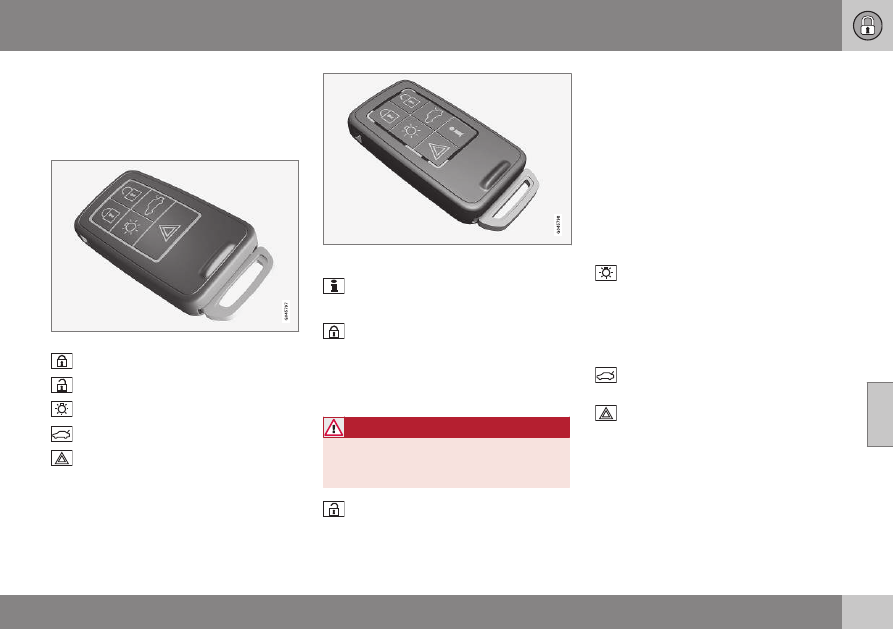

Remote control key

Amongst other things, the remote control key

is used for locking/unlocking and starting the

engine.

There are two variants of remote control key -

Remote control key in basic version and

Remote control key with PCC (Personal Car

Communicator)*.

Functionality

Basic

with

PCC

Locking/unlocking

and detachable key

blade

Keyless locking/

unlocking

Keyless engine star-

ting

Information button

and indicator lamps

5-button key

6-button key

Remote control key with PCC has extended

functionality compared with the remote con-

trol key in the basic version - e.g. support for

Keyless Drive (p. 170) and certain unique

functions (p. 165).

All remote control keys have a detachable key

blade (p. 166) made of metal. The visible

section is available in two versions so that it

is possible to distinguish between the remote

control keys.
More remote control keys can be ordered -

but not variants other than the one supplied

with the car. Up to six keys can be pro-

grammed and used for one single car.
The car is supplied with two remote control

keys

WARNING

If there are children in the car:
Remember to switch off the supply to the

power windows and sunroof by removing

the remote control key if the driver leaves

the car.

Related information

•

Remote control key - losing

If you lose a remote control key then a new

one can be ordered at a workshop - an

authorised Volvo workshop is recommended.

The remaining remote control keys must be

taken to the Volvo workshop. The code of the

missing remote control key must be erased

from the system as a theft prevention meas-

ure.
The current number of keys registered to the

car can be checked in the menu system MY

CAR. For a description of the menu system,

see MY CAR (p. 113).

Related information

•

The key memory in the remote control key

06 Locks and alarm

160

Option/accessory, for more information, see Introduction.

Remote control key - personalisation*

(p. 159) means that certain settings in the car

can be individually adapted for different peo-

ple.

The key memory function is available in com-

bination with power* driver's seat.
Settings for door mirrors (p. 105), driver's

seat, steering force (p. 252) and the com-

bined instrument panel's theme, contrast and

colour mode (p. 67) can be stored in the

memory, depending on the car's equipment

level.

The function

can be activated/deactivated in

the menu system MY CAR. For a description

of the menu system, see MY CAR (p. 113).
When the function is activated, the settings

are automatically linked to the key memory.

This means that a change in a setting will

automatically be saved to the specific remote

control key's memory.

Storing settings
Make sure that the key memory function is

activated in the menu system MY CAR.

Proceed as follows in order to store the set-

tings and use the key memory in the remote

control key:
1. Unlock the car with the remote control

key in whose memory the setting

shall

be stored.

2. Make the desired settings for e.g. the

seat and the door mirrors.

3. The settings are stored in the current

remote control key's memory.

The next time the car is unlocked with the

same remote control key, the positions that

are stored in the key memory will be set auto-

matically - providing that they have been

changed since the last time the current

remote control key was used.

Emergency stop

If the seat accidentally begins to move, press

one of the setting buttons for the seat or

memory buttons in order to stop the seat.
Restarting to reach the seat position stored in

the key memory is performed by pressing the

unlock button on the remote control key. The

driver's door must then be open.

WARNING

Risk of crushing! Make sure that children

do not play with the controls. Check that

there are no objects in front of, behind or

under the seat during adjustment. Ensure

that none of the rear seat passengers is in

danger of becoming trapped.

Changing settings
If several people each with a remote control

key approach the car, then the settings for

e.g. seat and door mirrors are implemented

for the person whose remote control key

unlocks the driver's door.
If the driver's door has been opened by

person A with remote control key A, but

person B with remote control key B shall

drive, then the settings can be changed as

follows:

•

Standing by the driver's door, or sitting

behind the steering wheel, person B

presses the button for unlocking on

his/her remote control key, see Remote

control key - functions (p. 163).

•

Select one of three possible memories for

seat adjustment with seat button 1-3, see

Called Car key memory in MY CAR.

This setting does not affect settings that have been stored in the power seat's memory function.

06 Locks and alarm

Option/accessory, for more information, see Introduction.

161

Seats, front - electrically operated*

(p. 83).

•

Adjust seat and door mirrors manually,

see Seats, front - electrically operated*

(p. 83) and Door mirrors (p. 105).

Reactivation of settings
When the car is locked or after 30 minutes if

the car is left unlocked, the key memory will

be deactivated and a standard driver profile

will be set. To reactivate the key memory for

the current remote control key, the following

is required.

For cars without Keyless Drive

The settings that are stored in the key mem-

ory are activated if the car is unlocked by

pressing the remote control key's unlock but-

ton.

For cars with Keyless Drive

The key memory is activated if:
1. The car is unlocked either by pressing the

remote control key's unlock button or via

keyless unlocking.

2. If the car is unlocked, a key scan is made

when the driver's door is opened. If a

unique remote control key is found, its

stored settings will be activated. If the car

is locked, see the previous point.

Related information

•

Remote control key with PCC* - unique

functions (p. 165)

Locking/unlocking - indicator

When the car is locked or unlocked using the

remote control key (p. 159) the direction indi-

cators confirm that locking/unlocking was

correctly performed.

•

Locking - one flash and the door mirrors
are folded

in.

•

Unlocking - two flashes and the door mir-
rors are folded

out.

After locking the indication is only given if all

locks are activated once the doors have been

closed.

Selecting the function
Different options for indicating locking/

unlocking with light can be set in the car's

menu system MY CAR. For a description of

the menu system, see MY CAR (p. 113).

Related information

•

Keyless drive* (p. 170)

•

Lock indicator (p. 161)

•

Alarm indicator (p. 183)

Lock indicator

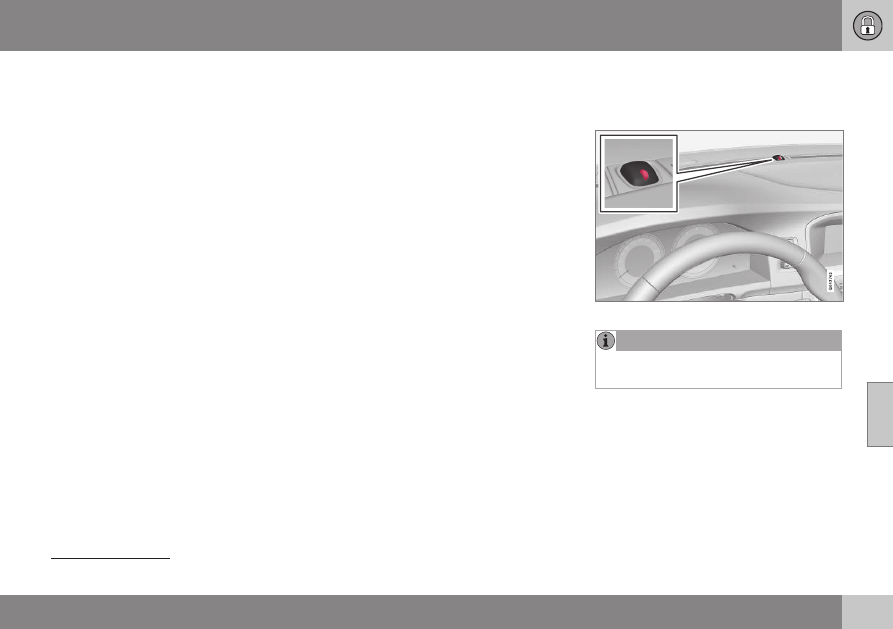

A flashing LED by the windscreen verifies that

the car is locked.

Same LED as alarm indicator (p. 183).

Locking/unlocking - indicator (p. 161)

Cars that are not equipped with alarm also

have this indicator.

Related information

•

Only for cars with retractable power door mirrors.

06 Locks and alarm

162

Option/accessory, for more information, see Introduction.

Immobiliser

The electronic immobiliser is a theft protec-

tion system that prevents an unauthorised

person from starting the car.

Each remote control key (p. 159) has a unique

code. The car can only be started with the

correct remote control key with the correct

code.
The following error messages in the com-

bined instrument panel's information display

are related to the electronic immobiliser:

Mes-

sage

Specification

Insert car

key

Error when reading the

remote control key during

starting - Remove the key

from the ignition switch, press

it in again and make a new

start attempt.

Car key

not found

Error reading the remote con-

trol key during starting - Try

to start again.
If the error persists: Insert the

remote control key into the

ignition switch and try to start

again.

Immobi-

liser Try

to start

again

Error in immobiliser system

during starting. If the error

persists: Contact a workshop

- an authorised Volvo work-

shop is recommended.

For starting the car, see Starting the engine

(p. 259).

Related information

•

Remote-controlled immobiliser with

tracking system* (p. 162)

Remote-controlled immobiliser with

tracking system*

Remote-controlled immobiliser with tracking
system

makes it possible to track and locate

the car, and to remotely activate the immobi-

liser to switch off the engine.

Contact your nearest Volvo dealer for more

information and assistance with activating the

system.

Related information

•

tion, see Global opening (p. 177).

•

Immobiliser (p. 162)

Only certain markets and in combination with Volvo On Call*.

06 Locks and alarm

}}

Option/accessory, for more information, see Introduction.

163

Remote control key - functions

The remote control key in basic version has

functions such as locking and unlocking the

doors.

Functions

Remote control key in basic version.

Locking

Unlocking

Approach light duration

Tailgate

Panic function

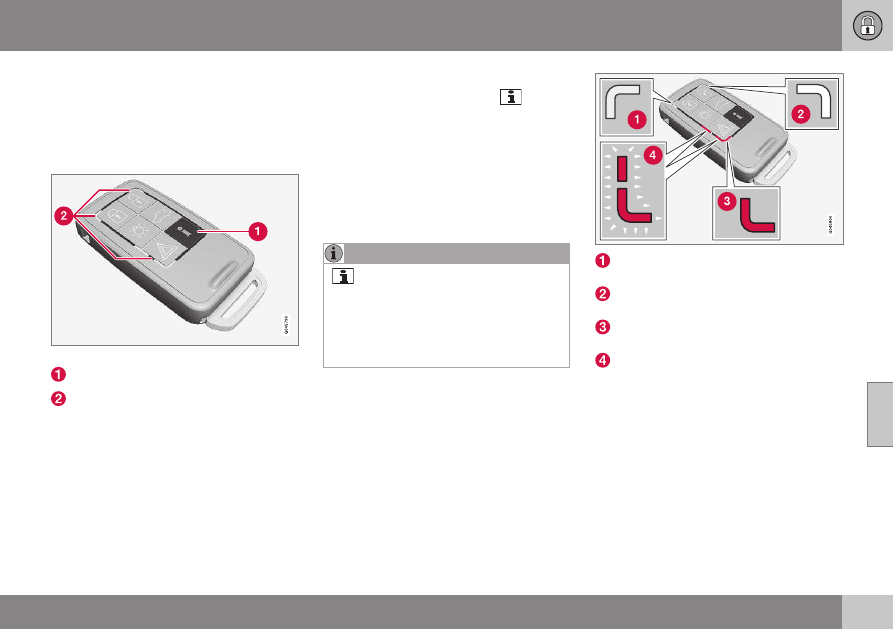

Remote control key with PCC*( Personal Car

Communicator).

Information

Function buttons

Locking – Locks the doors and tailgate

while the alarm is activated.
Press and hold to close all the windows and

sunroof* simultaneously. For more informa-

WARNING

If the sunroof and windows are closed

using the remote control key, check that

nobody's hands are trapped.

Unlocking – Unlocks the doors and tail-

gate while the alarm is deactivated.

Press and hold to open all windows simulta-

neously. For more information, see Global

opening (p. 177).
The function can be changed from unlocking

all doors simultaneously, to unlocking the

driver's door only with one press of the but-

ton and, after a further press of the button -

within ten seconds - unlocking the remaining

doors.
The function can be changed in the menu

system MY CAR. For a description of the

menu system, see MY CAR (p. 113).

Approach light duration – Used to

switch on the car's lighting at a distance. For

more information, see Approach lighting

(p. 100).
The button can also be used for activating

preconditioning (p. 138).

Tailgate (p. 178) - Unlocks and disarms

the alarm for the tailgate only.

Panic function – Used to attract atten-

tion in an emergency.
Press and hold the button for at least 3 sec-

onds or press it twice within 3 seconds to

activate the direction indicators and the horn.
The function can be turned off with the same

button once it has been active for at least

5 seconds. Otherwise the function switches

off automatically after approx. 3 minutes.

06 Locks and alarm

164

Option/accessory, for more information, see Introduction.

Related information

•

Remote control key with PCC* - unique

•

functions (p. 165)

•

Locking/unlocking - from the outside

(p. 175)

Remote control key - range

Remote control key functions (in its basic ver-

sion) have a range of approx. 20 metres from

the car.

If the car does not verify a button being

pressed - move closer and try again.

with the key blade (p. 167).

The remote control key functions may be

disrupted by surrounding radio waves,

buildings, topographical conditions, etc.

The car can always be locked/unlocked

If the remote control key is removed from the

car when the engine is running or key position

I or II (p. 80) is active, and if all doors are

closed, then a warning message is shown in

the information display in the combined

instrument panel and an audio reminder sig-

nal sounds at the same time.
The message is extinguished and the audible

reminder signal stops when the remote con-

trol key is brought back to the car after

either/or:

•

The remote control key has been inserted

in the ignition switch.

•

Speed exceeds 30 km/h.

•

The OK button has been pressed.

Related information

•

•

functionality compared with a remote control

06 Locks and alarm

Option/accessory, for more information, see Introduction.

165

Remote control key with PCC* -

unique functions

A remote control key with PCC has enhanced

key in basic version (p. 159) in the form of an

information button and indicator lamps.

Remote control key with PCC.

Information button

Indicator lamps

Using the information button enables access

to certain information from the car via the

indicator lamps.

Using the information button

–

Press the information button

> All indicator lamps flash for approxi-

mately 7 seconds and the light travels

around on the remote control key. This

indicates that information from the car

is being scanned.
If any of the other buttons are pressed

during this time then the reading is

interrupted.

Remote control key with PCC* - range

If none of the indicator lamps illumi-

nates with repeated use of the information

button and in different locations (as well as

after 7 seconds and after the light has

travelled around on the PCC), contact a

workshop - an authorised Volvo workshop

is recommended.

Indicator lamps display information in accord-

ance with the following illustration:

Green continuous light – the car is

locked.
Yellow continuous light – the car is

unlocked.
Red continuous light – the alarm has

been triggered since the car was locked.
Red light flashing alternately in both indi-

cator lamps – The alarm was triggered

less than 5 minutes ago.

Related information

•

(p. 166)

06 Locks and alarm

166

Option/accessory, for more information, see Introduction.

Remote control key with PCC* - range

The range of a remote control key with PCC

(Personal Car Communicator) for locking,

unlocking the doors and tailgate is approx. 20

metres from the car - the other functions are

up to approx. 100 metres.

If the car does not verify a button being

pressed - move closer and try again.

The information button function may be

disrupted by surrounding radio waves,

buildings, topographical conditions, etc.

Outside the remote control key's range
If the remote control key is too far away from

the car for the information to be read then the

status the car was last left in is shown, with-

out the light in the indicator lamps travelling

around on the remote control key.
If several remote control keys are used for the

car then it is only the one last used for lock-

ing/unlocking that shows the correct status.

Keyless Drive* - remote control key range

If no indicator lamps illuminate when

the information button is used within range

then this may be because the last commu-

nication between the remote control key

and the car was disrupted by surrounding

radio waves, buildings, topographical con-

ditions, etc.

Related information

•

(p. 171)

•

Remote control key - range (p. 164)

Detachable key blade

A remote control key contains a detachable

key blade of metal with which some functions

can be activated and some operations carried

out.

The key blade's unique code is provided by

authorised Volvo workshops, which are rec-

ommended when ordering new key blades.

Key blade functions
Using the remote control key's detachable

key blade:

•

the left-hand front door can be opened

manually if central locking cannot be acti-

vated with the remote control key, see

Detachable key blade - unlocking doors

(p. 167).

•

the rear doors' mechanical child safety

locks can be activated/deactivated

(p. 180).

•

the right-hand front door and the rear

doors can be locked manually (p. 175),

e.g. in the event of power failure.

•

access to the glovebox and cargo area

(privacy locking (p. 168)*) can be

blocked.

•

the airbag for front passenger seat

(PACOS*) can be activated/deactivated

(p. 36).

Related information

•

•
